  1. Issues of ScaleUsing Color

  2. Scale Issues

  3. What is map scale? The scale of a map is the relationship between a unit of length on the map and a unit of length on the ground.

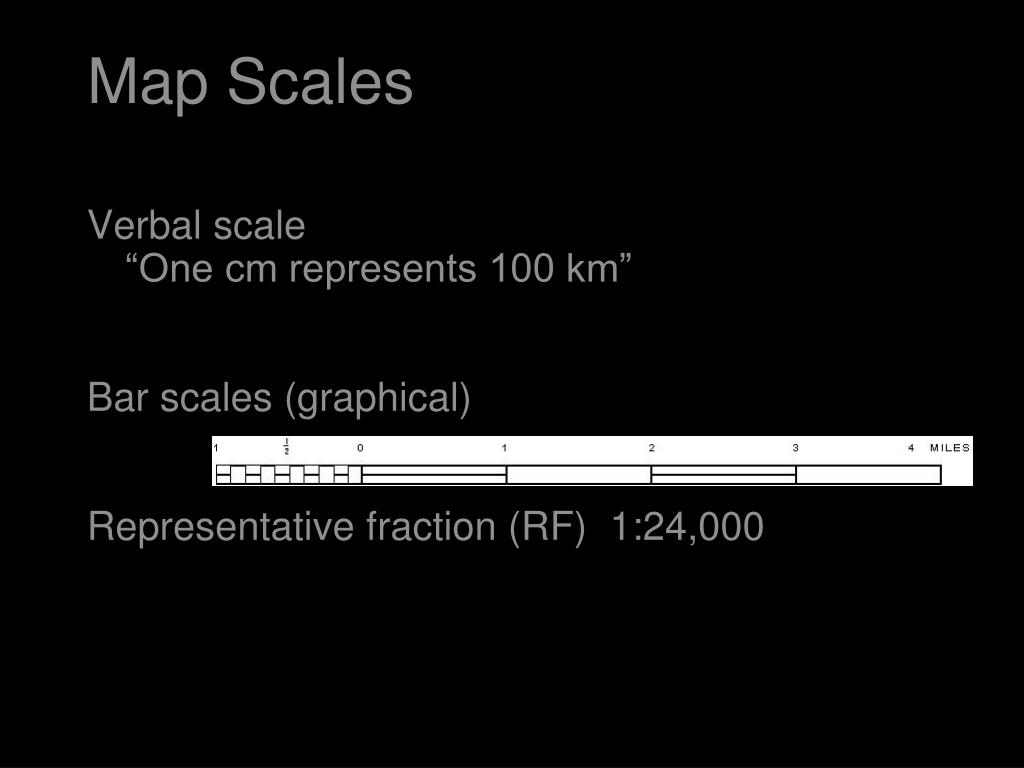

  4. Map Scales Verbal scale “One cm represents 100 km” Bar scales (graphical) Representative fraction (RF) 1:24,000

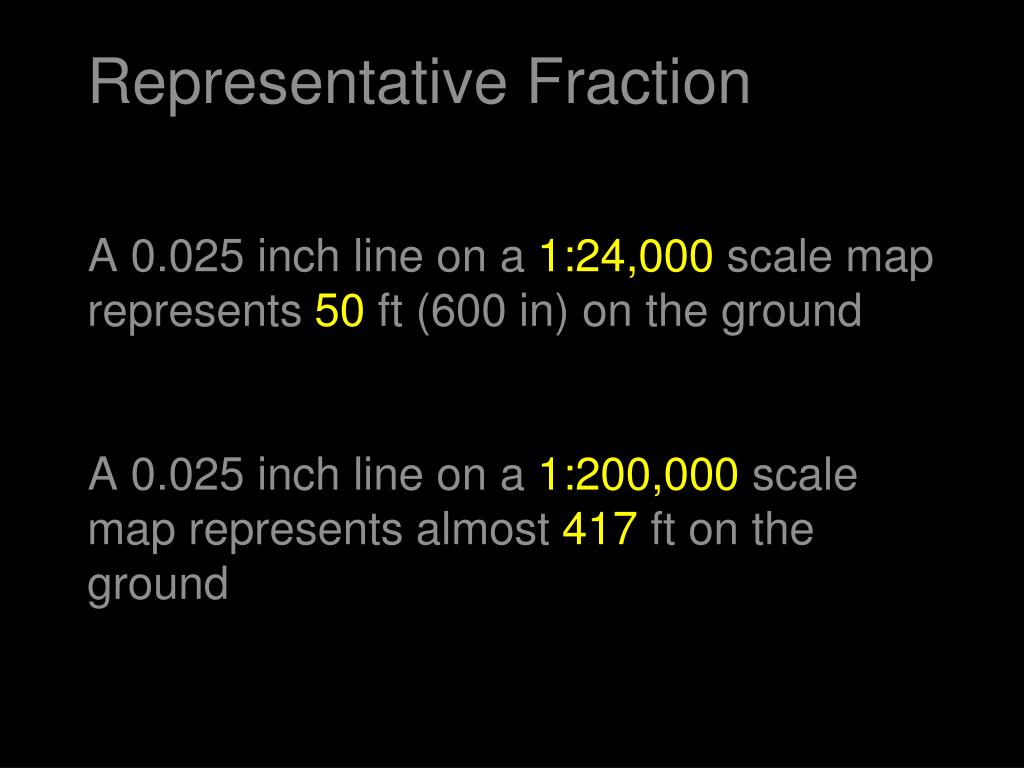

  5. Representative Fraction A 0.025 inch line on a1:24,000scale map represents50ft (600 in) on the ground A 0.025 inch line on a1:200,000scale map represents almost417ft on the ground

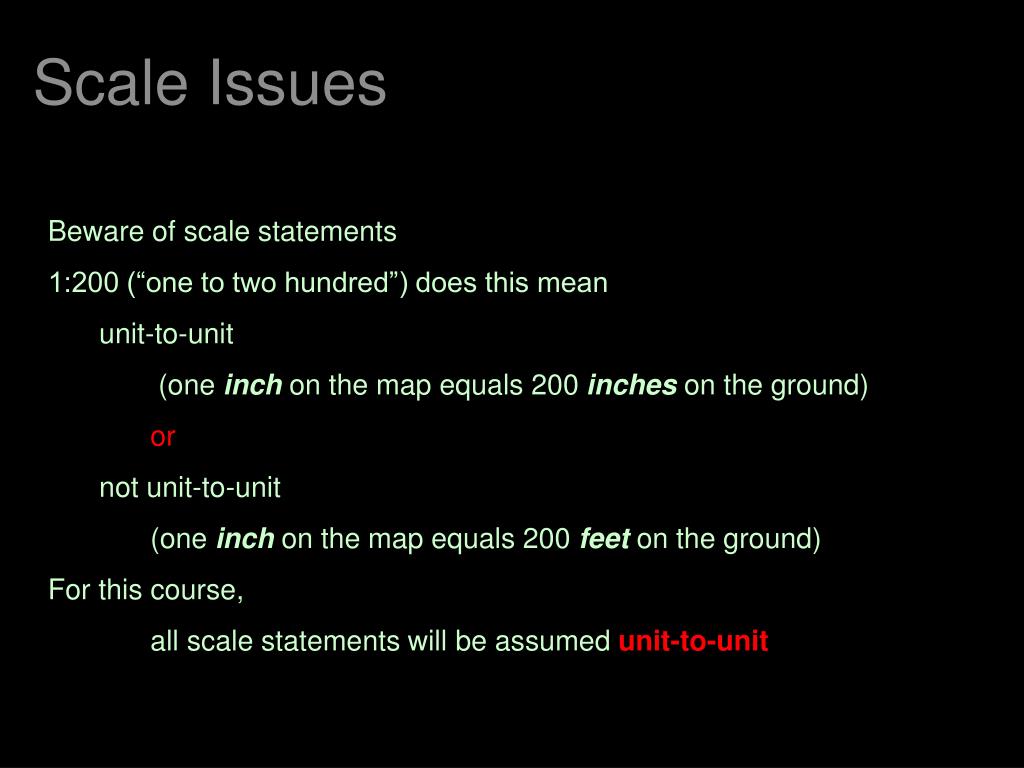

  6. Scale Issues Beware of scale statements 1:200 (“one to two hundred”) does this mean unit-to-unit (one inch on the map equals 200 inches on the ground) or not unit-to-unit (one inch on the map equals 200 feet on the ground) For this course, all scale statements will be assumed unit-to-unit

  7. Scale Issues large scale vs. small scaleTo a geographer:1:2,000,000 is small scale1:200 is large scale

  8. Importance of Scale Scale of data plays an important role, and frequently causes problems All spatial phenomena have scale dependent behavior/properties Be aware of: Data source scale Mixing data from different source scales Appropriateness of output scale

  9. Scale Issues Data from different sources and scales can vary widely 1:100,000 scale data from USGS DLG

  10. Scale Issues 1:1,000,000 scale data from DCW (DMA)

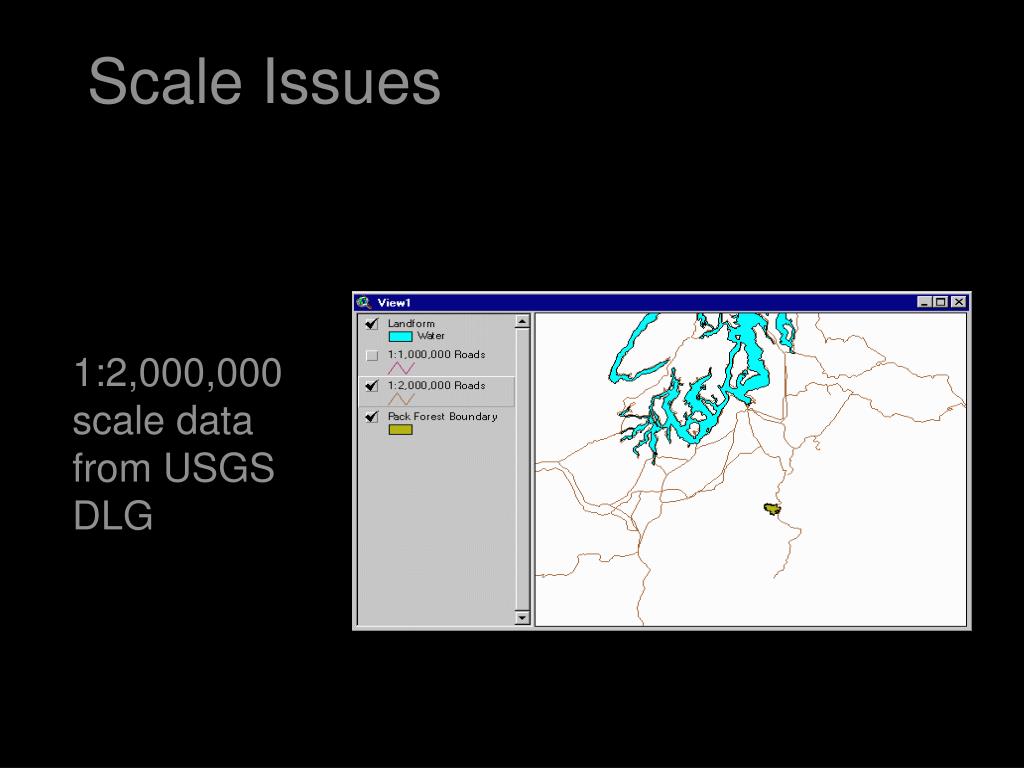

  11. Scale Issues 1:2,000,000 scale data from USGS DLG

  12. Using Color

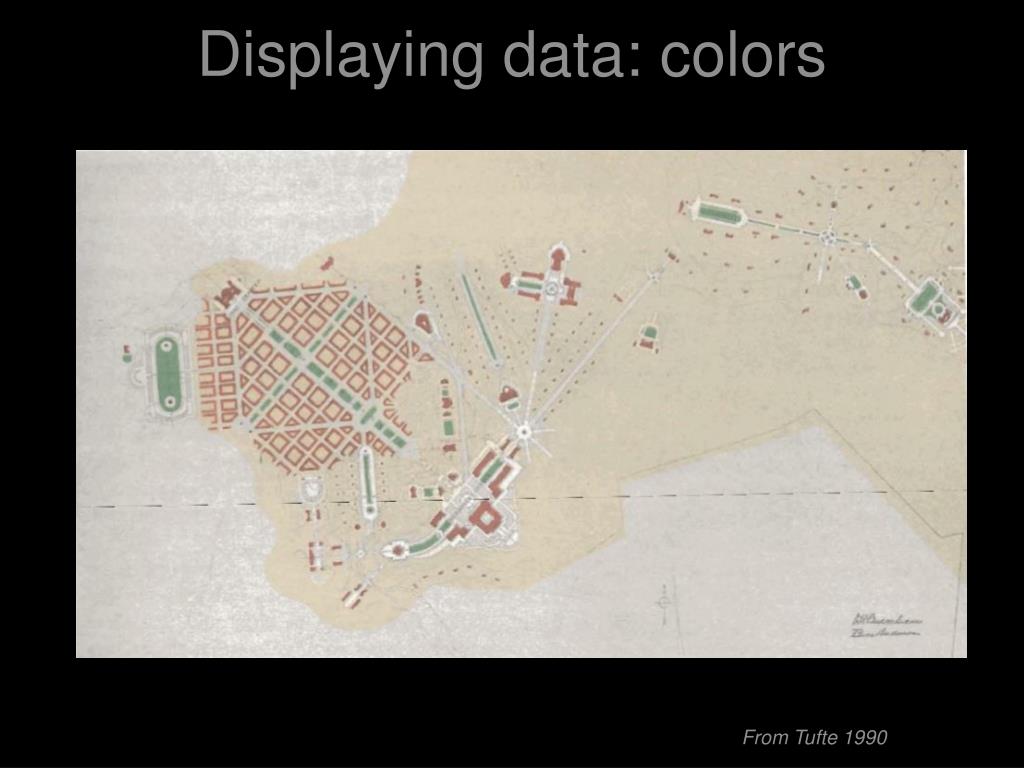

  13. Displaying data: colors What can color do? Label Measure Represent or imitate reality Beautify From Tufte 1990 Wabern, 1983

  14. Displaying data: colors Primary home heating fuel. U.S. Department of Commerce From Tufte 1990

  15. Displaying data: colors Primary home heating fuel. U.S. Department of Commerce From Tufte 1990

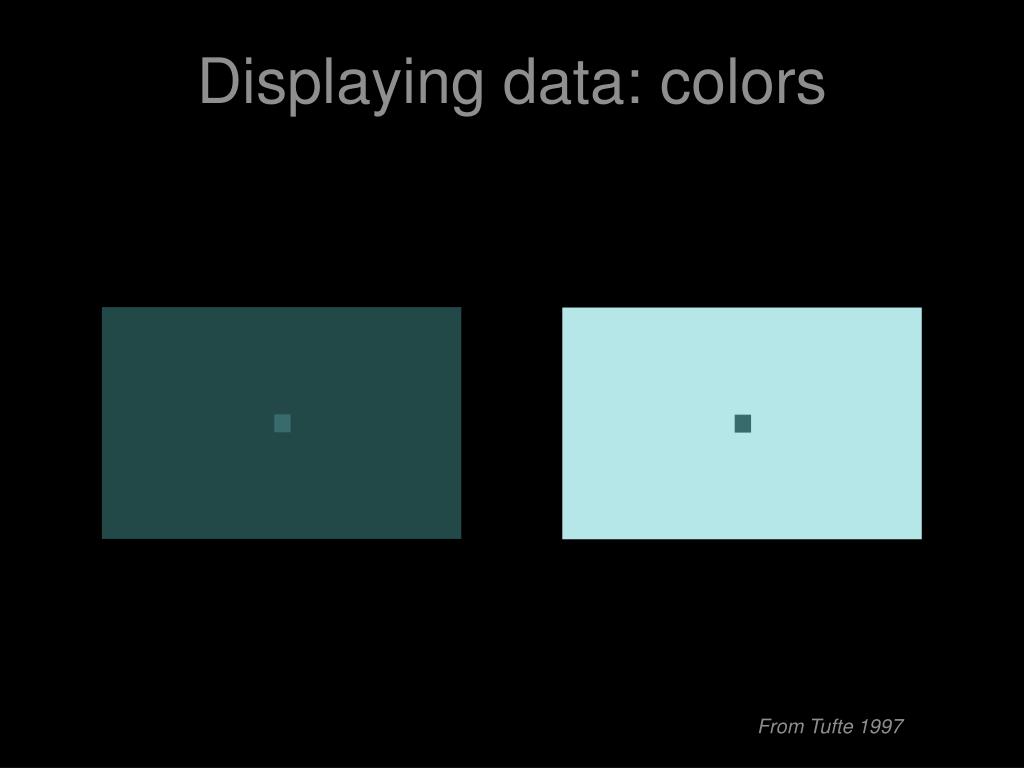

  16. Displaying data: colors From Tufte 1997

  17. Displaying data: colors From Tufte 1997

  18. Displaying data: colors From Tufte 1997

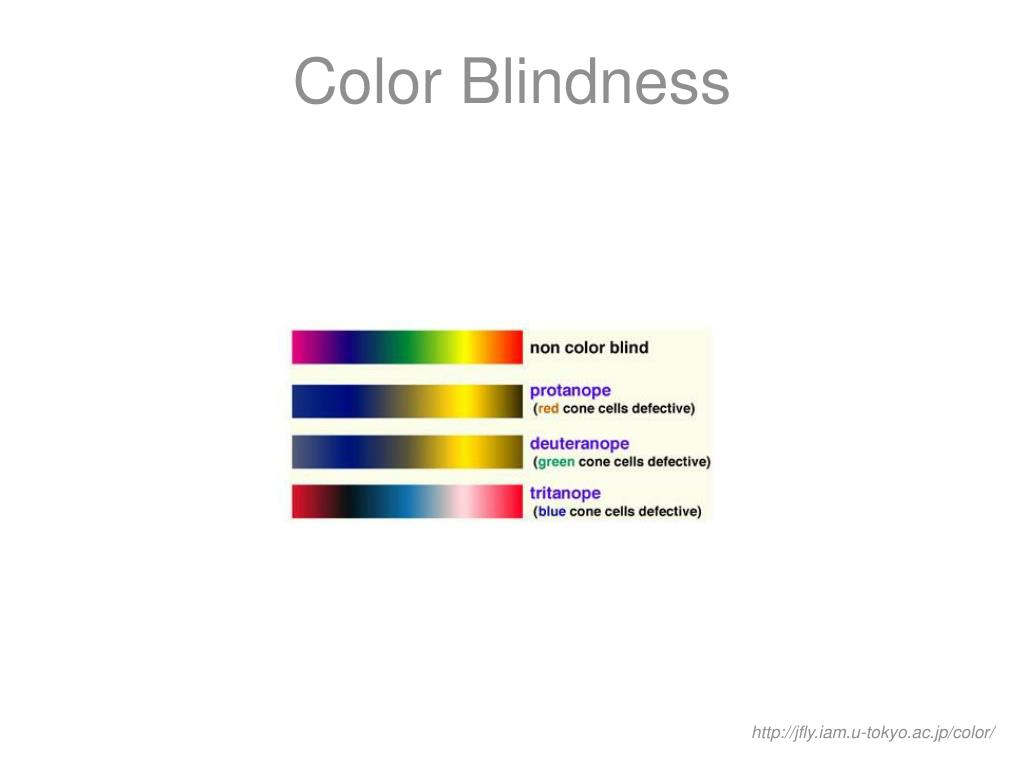

  19. Color Blindness

  20. Color Blindness

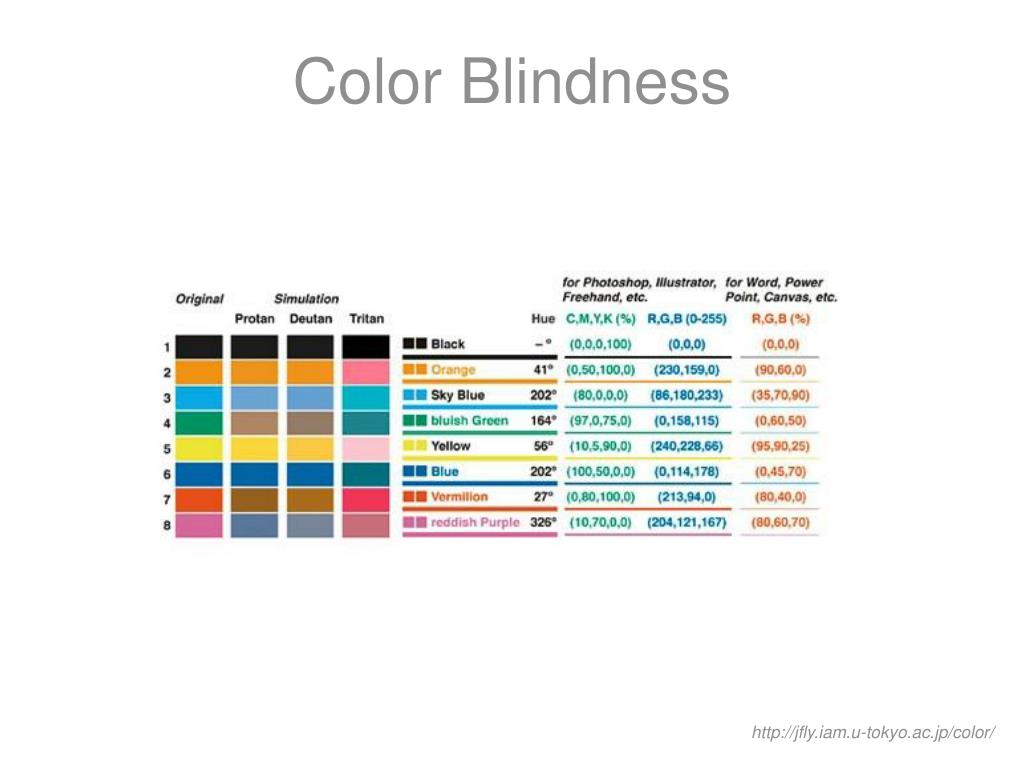

  21. Color Blindness http://jfly.iam.u-tokyo.ac.jp/color/

  22. Color Blindness http://jfly.iam.u-tokyo.ac.jp/color/

  23. Color Blindness http://jfly.iam.u-tokyo.ac.jp/color/

  24. Color Blindness http://jfly.iam.u-tokyo.ac.jp/color/

  25. Color Blindness http://jfly.iam.u-tokyo.ac.jp/color/

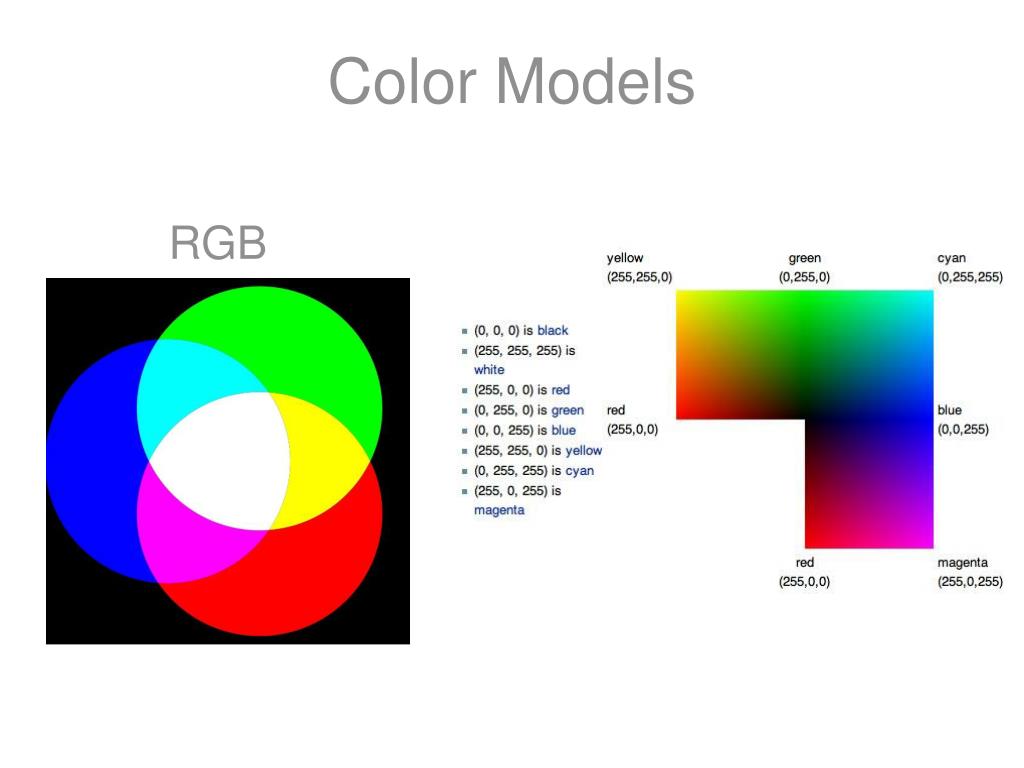

  26. Color Models RGB

  27. Color Models CMYK

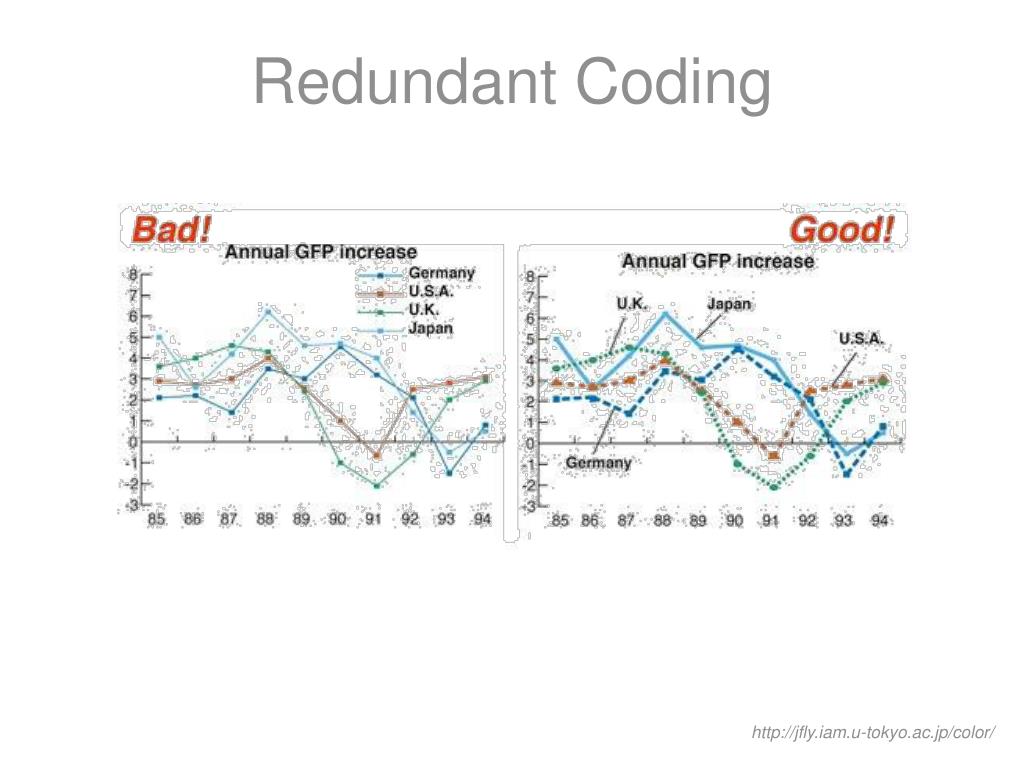

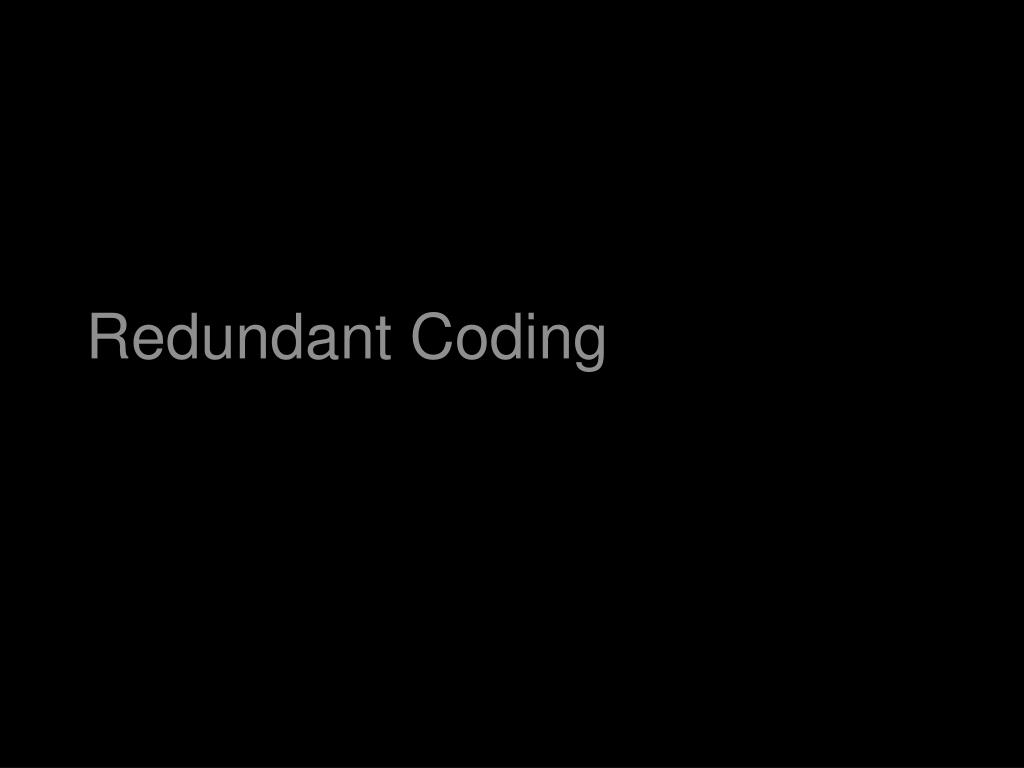

  28. Redundant Coding

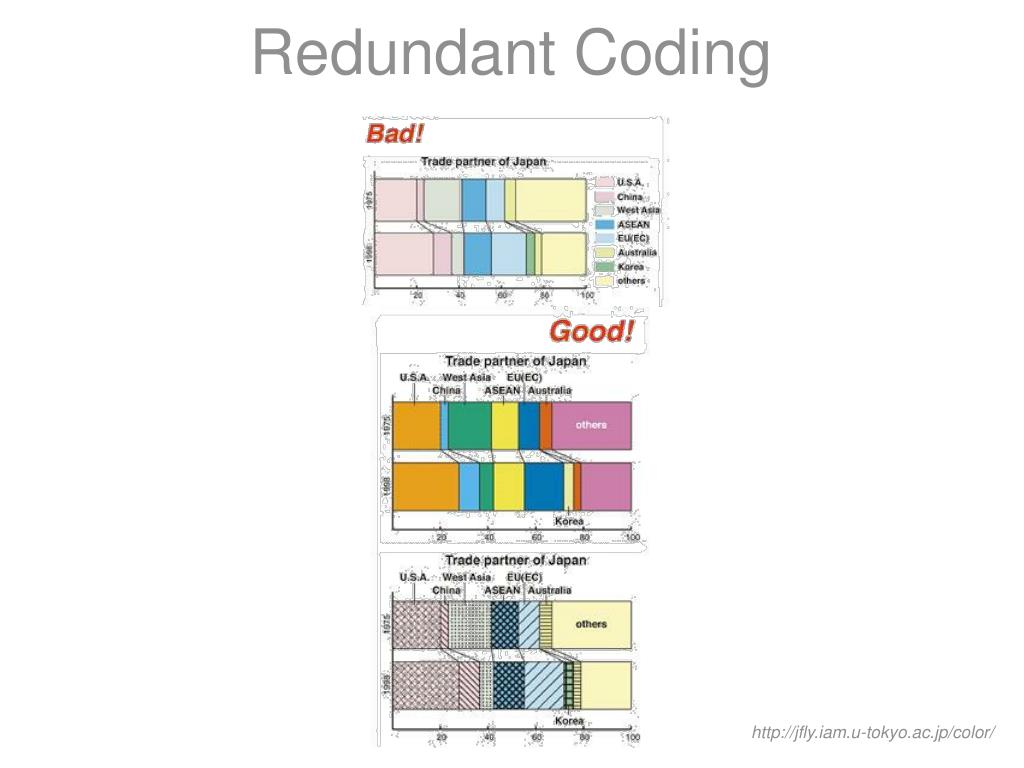

  29. Redundant Coding http://jfly.iam.u-tokyo.ac.jp/color/

  30. Redundant Coding http://jfly.iam.u-tokyo.ac.jp/color/

  31. Color Schemes

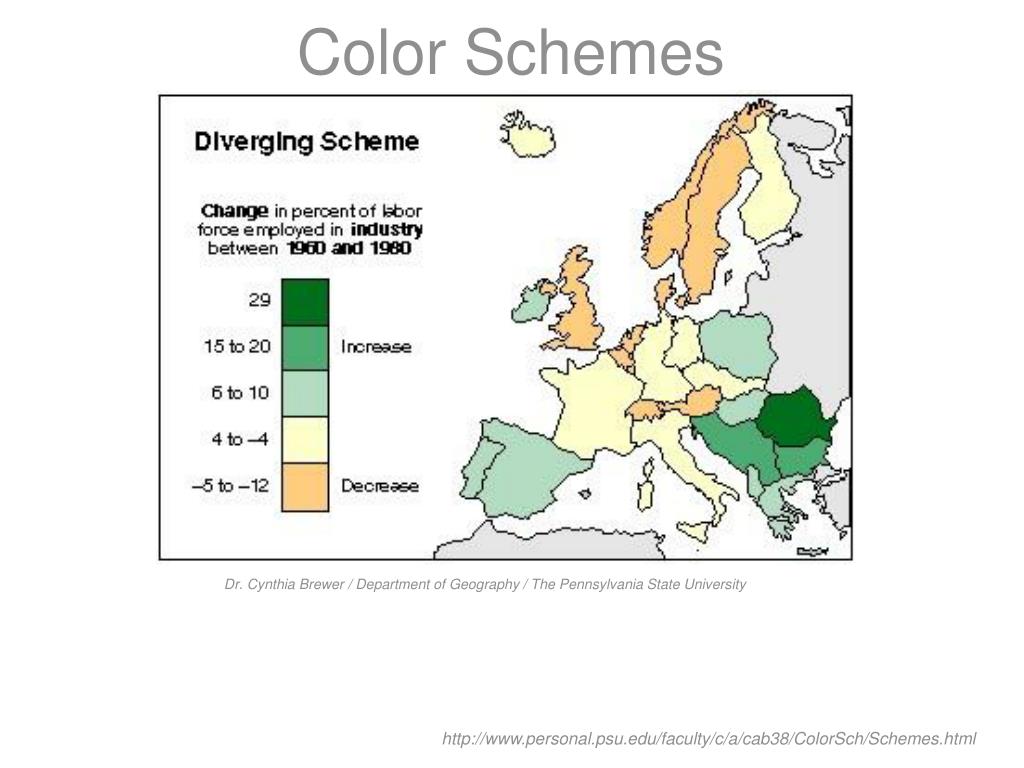

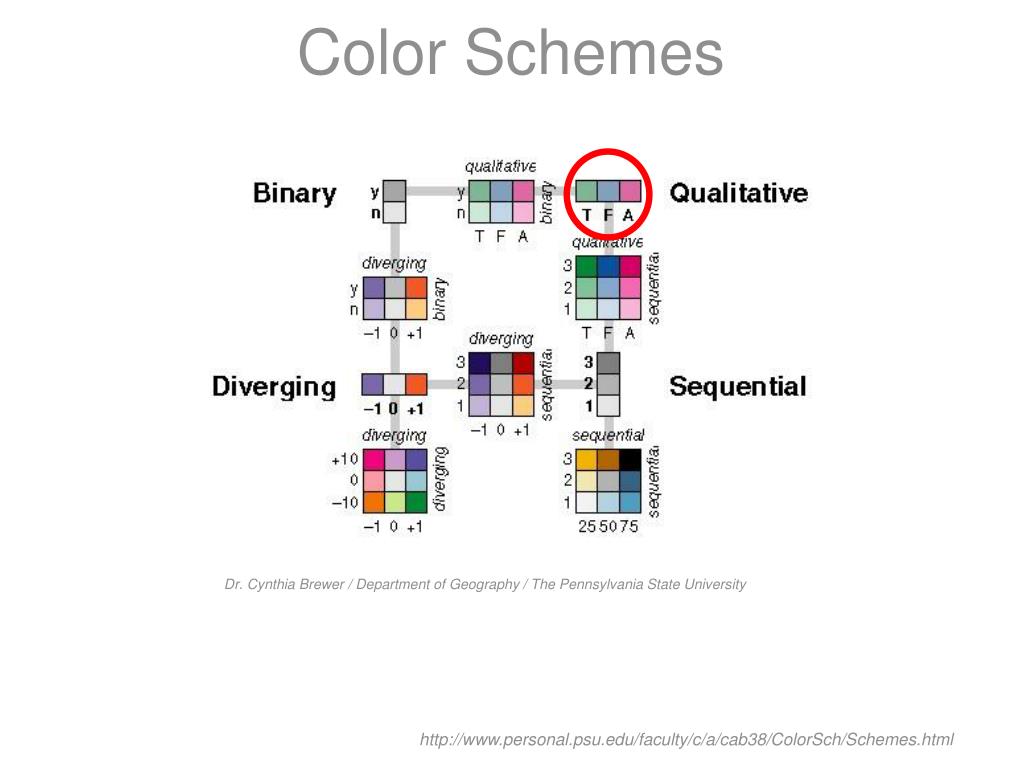

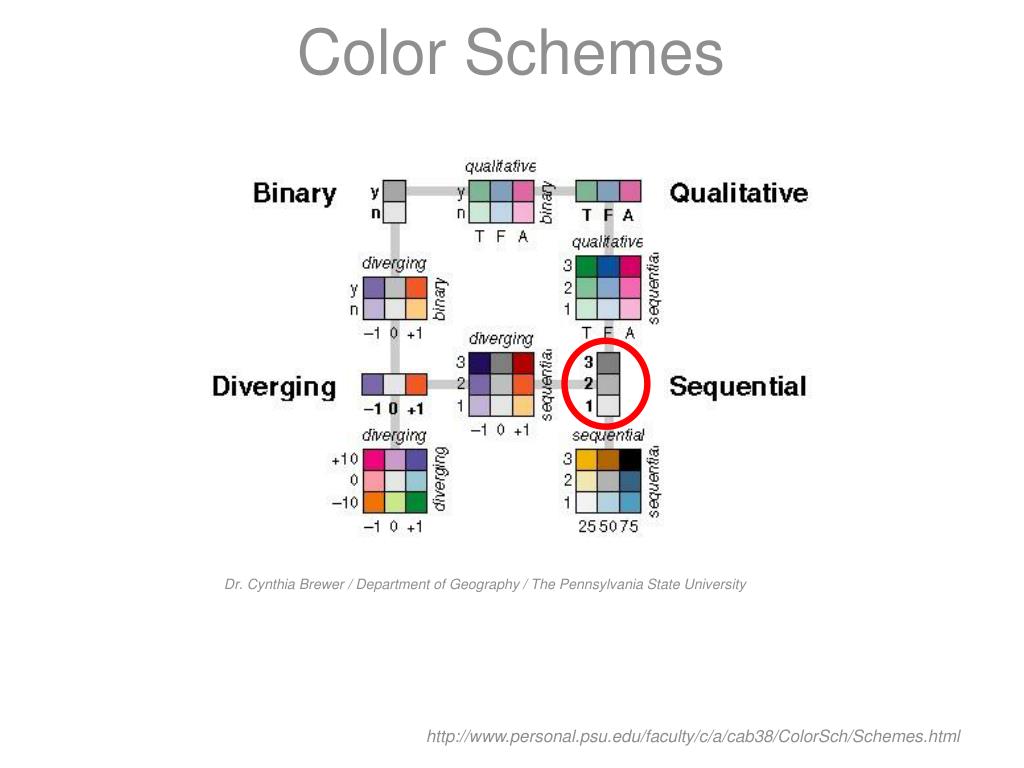

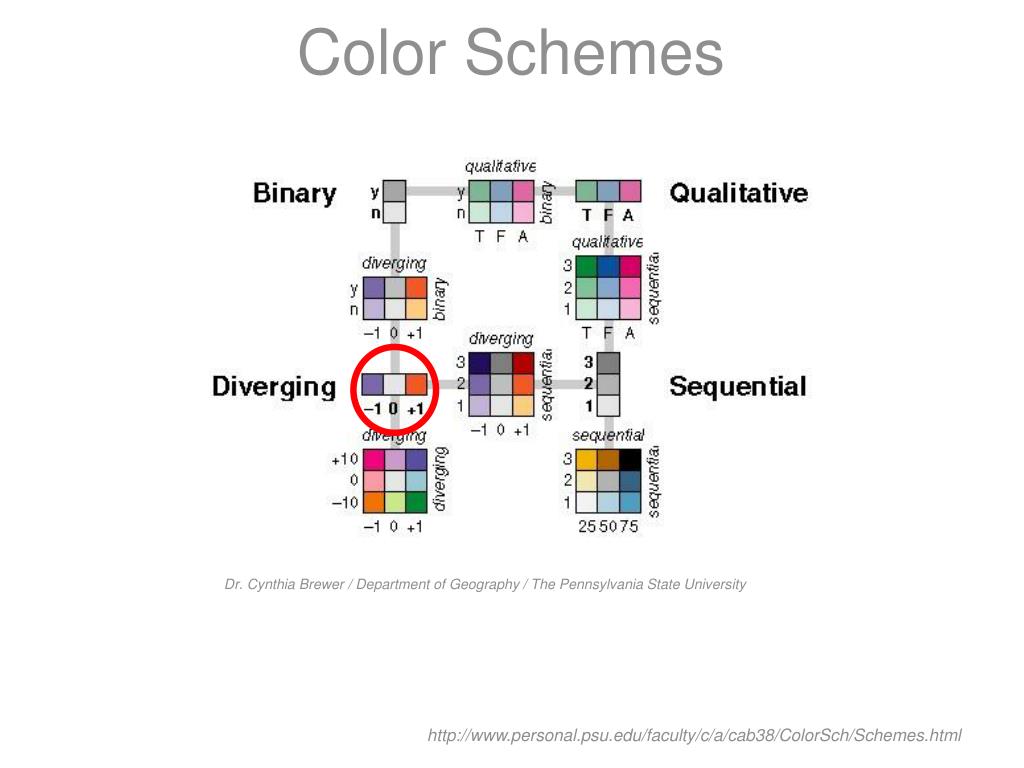

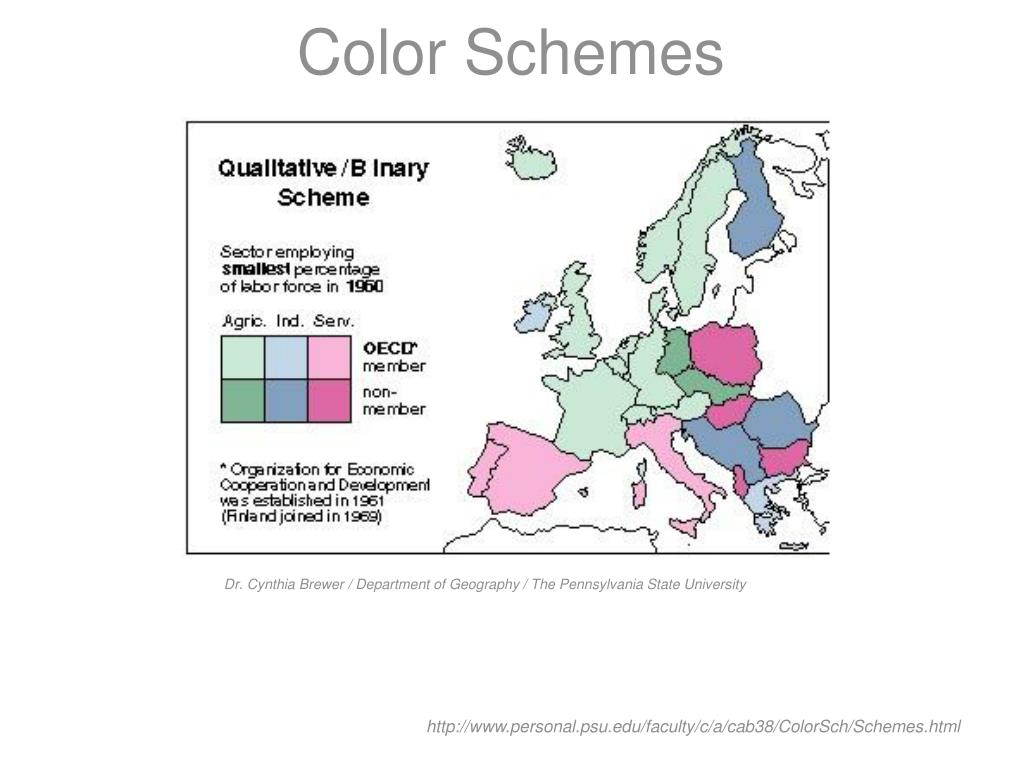

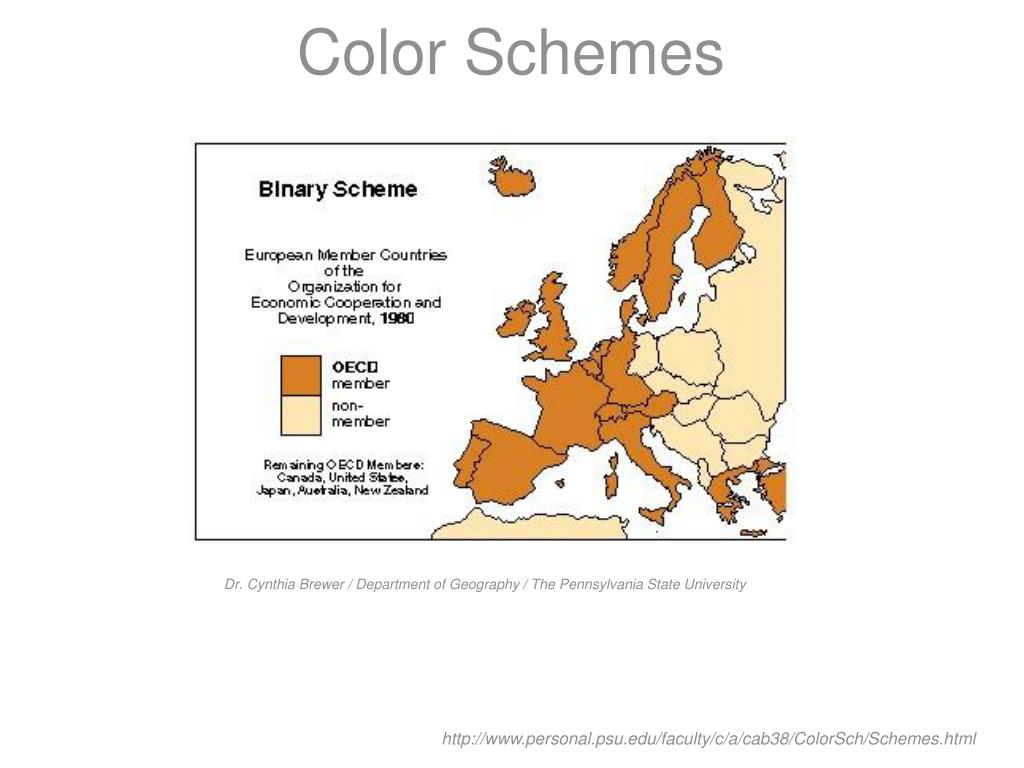

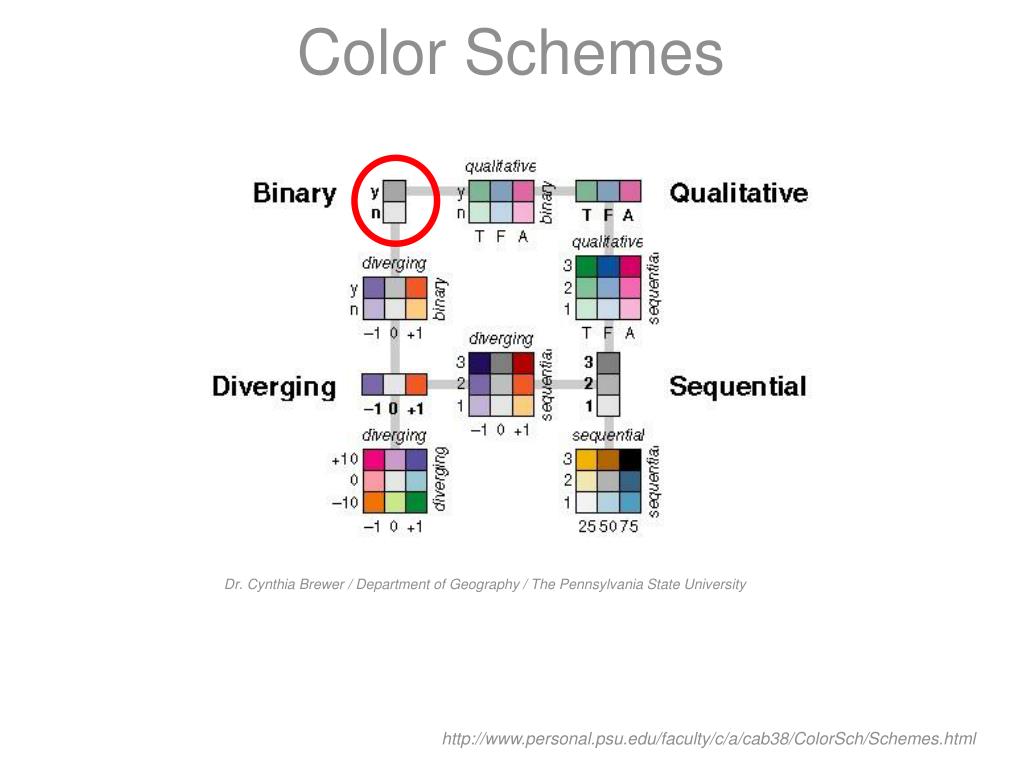

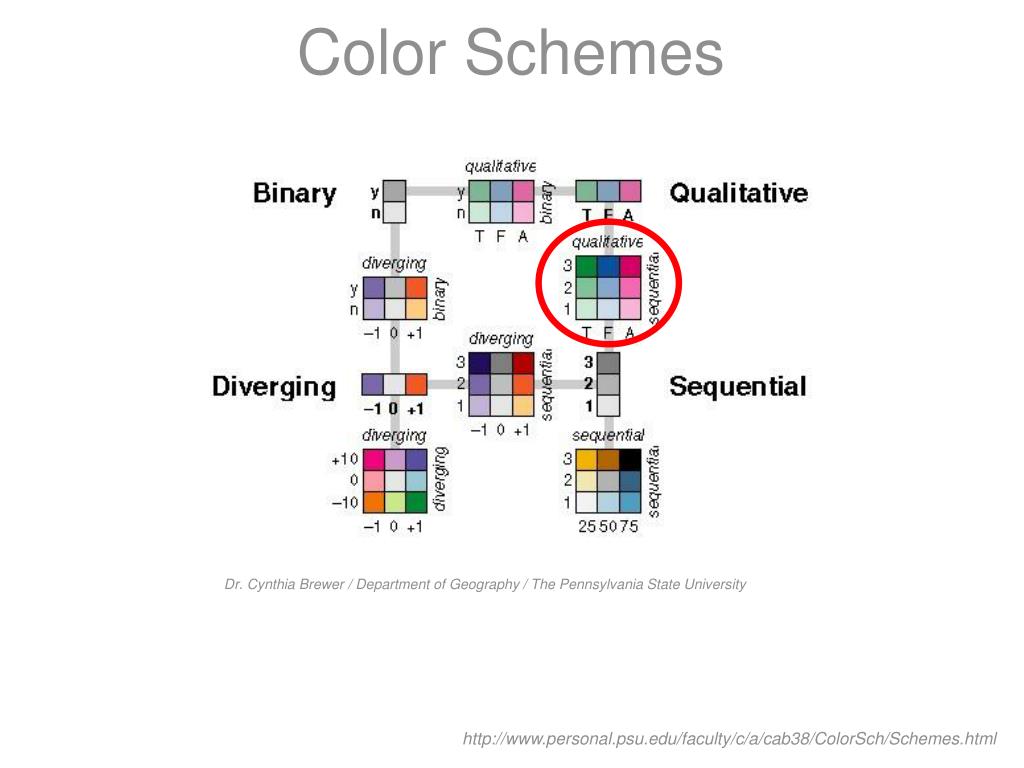

  32. Color Schemes Dr. Cynthia Brewer / Department of Geography / The Pennsylvania State University http://www.personal.psu.edu/faculty/c/a/cab38/ColorSch/Schemes.html

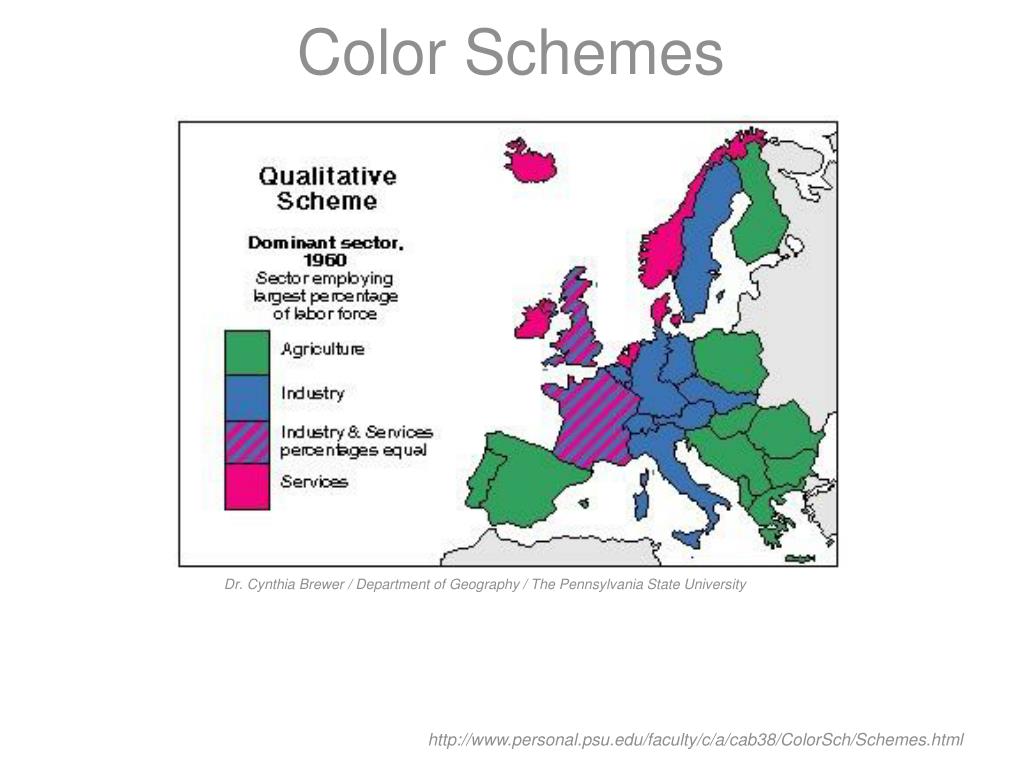

  33. Color Schemes Dr. Cynthia Brewer / Department of Geography / The Pennsylvania State University http://www.personal.psu.edu/faculty/c/a/cab38/ColorSch/Schemes.html

  34. Color Schemes Dr. Cynthia Brewer / Department of Geography / The Pennsylvania State University http://www.personal.psu.edu/faculty/c/a/cab38/ColorSch/Schemes.html

  35. Color Schemes Dr. Cynthia Brewer / Department of Geography / The Pennsylvania State University http://www.personal.psu.edu/faculty/c/a/cab38/ColorSch/Schemes.html

  36. Color Schemes Dr. Cynthia Brewer / Department of Geography / The Pennsylvania State University http://www.personal.psu.edu/faculty/c/a/cab38/ColorSch/Schemes.html

  37. Color Schemes Dr. Cynthia Brewer / Department of Geography / The Pennsylvania State University http://www.personal.psu.edu/faculty/c/a/cab38/ColorSch/Schemes.html

  38. Color Schemes Dr. Cynthia Brewer / Department of Geography / The Pennsylvania State University http://www.personal.psu.edu/faculty/c/a/cab38/ColorSch/Schemes.html

  39. Color Schemes Dr. Cynthia Brewer / Department of Geography / The Pennsylvania State University http://www.personal.psu.edu/faculty/c/a/cab38/ColorSch/Schemes.html

  40. Color Schemes Dr. Cynthia Brewer / Department of Geography / The Pennsylvania State University http://www.personal.psu.edu/faculty/c/a/cab38/ColorSch/Schemes.html

  41. Color Schemes Dr. Cynthia Brewer / Department of Geography / The Pennsylvania State University http://www.personal.psu.edu/faculty/c/a/cab38/ColorSch/Schemes.html

  42. Color Schemes Dr. Cynthia Brewer / Department of Geography / The Pennsylvania State University http://www.personal.psu.edu/faculty/c/a/cab38/ColorSch/Schemes.html

  43. Color Schemes Dr. Cynthia Brewer / Department of Geography / The Pennsylvania State University http://www.personal.psu.edu/faculty/c/a/cab38/ColorSch/Schemes.html

  44. Color Schemes Dr. Cynthia Brewer / Department of Geography / The Pennsylvania State University http://www.personal.psu.edu/faculty/c/a/cab38/ColorSch/Schemes.html

  45. Color Schemes Dr. Cynthia Brewer / Department of Geography / The Pennsylvania State University http://www.personal.psu.edu/faculty/c/a/cab38/ColorSch/Schemes.html

  46. Color Schemes Dr. Cynthia Brewer / Department of Geography / The Pennsylvania State University http://www.personal.psu.edu/faculty/c/a/cab38/ColorSch/Schemes.html

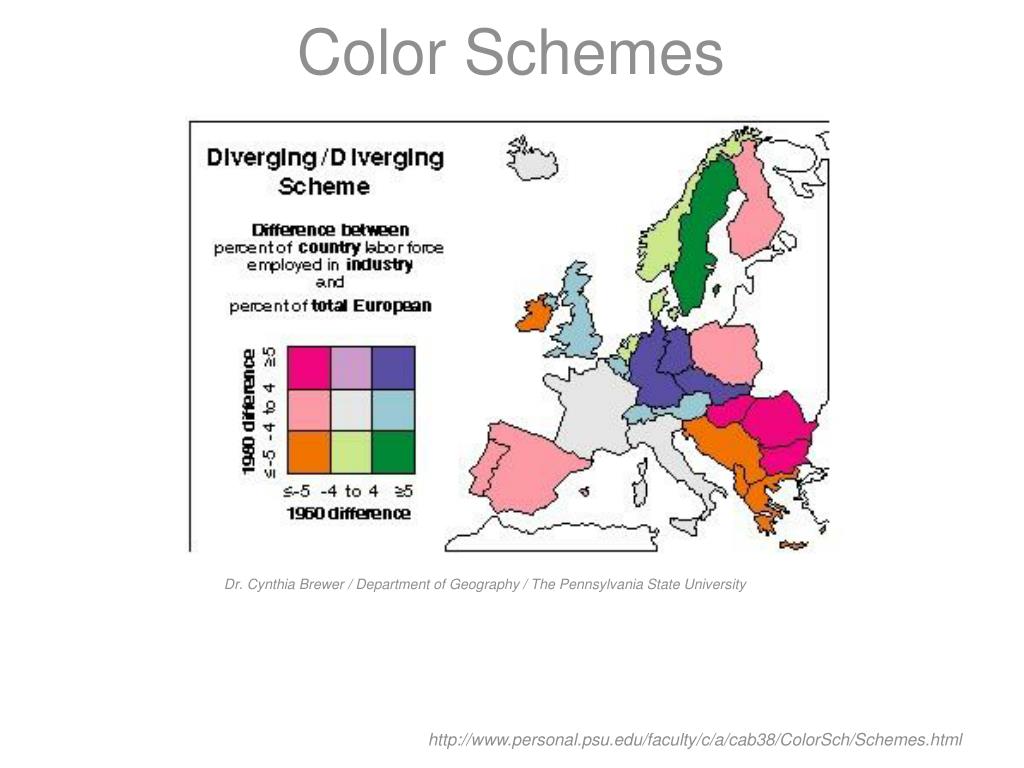

  47. Color Schemes Dr. Cynthia Brewer / Department of Geography / The Pennsylvania State University http://www.personal.psu.edu/faculty/c/a/cab38/ColorSch/Schemes.html

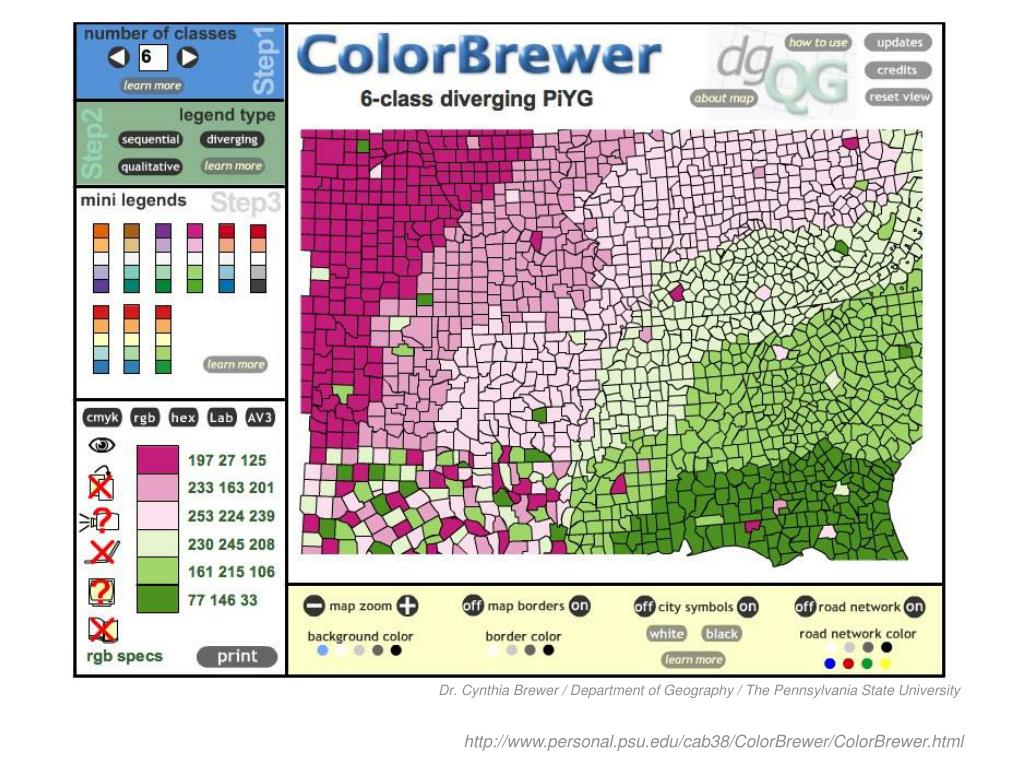

  48. Dr. Cynthia Brewer / Department of Geography / The Pennsylvania State University http://www.personal.psu.edu/cab38/ColorBrewer/ColorBrewer.html

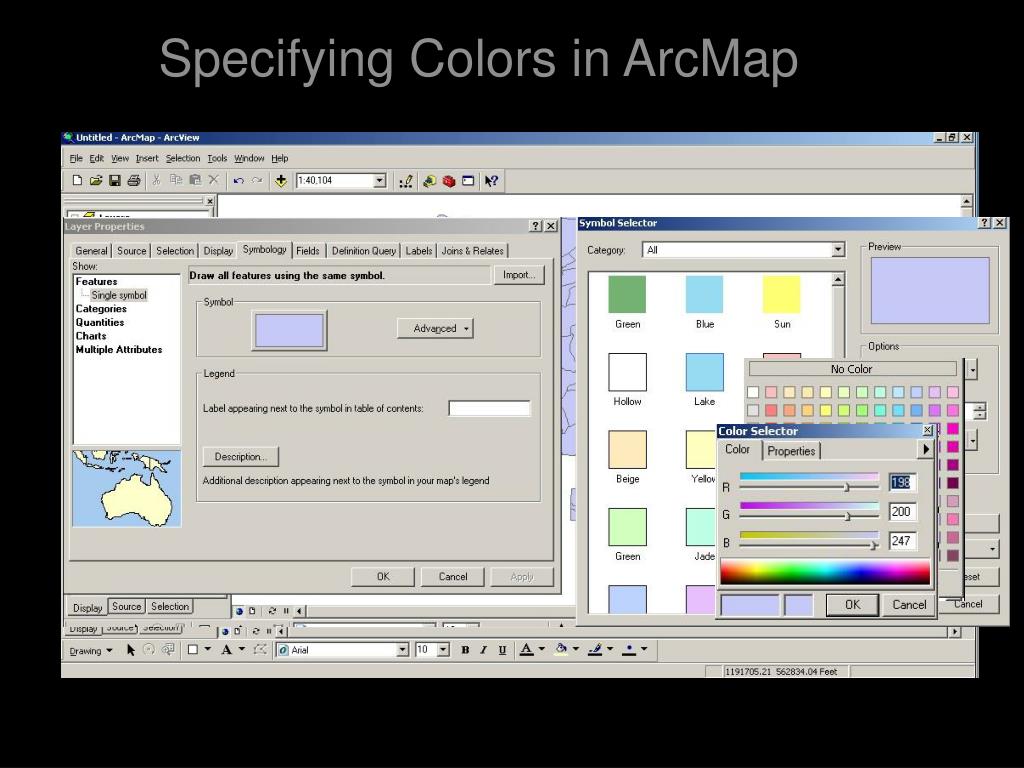

  49. Specifying Colors in ArcMap

  50. Homework Read: “Creating Feature Datasets & Vector Editing” & “Creating and Modifying Tables” Start working on assignment #4 -- Due April 26.
