Optimization of Test Strategies for System-in-Package Using Linear Programming

This research explores the application of linear programming to optimize test strategies for System-in-Package assemblies, considering cost and yield trade-offs. The approach involves analyzing defect levels, test methods, and component selection to minimize overall SIP costs. The study aims to find near-optimal solutions when exact optimization is challenging. Future work includes enhancing the efficiency of the approach and investigating variances between SIP and MCM test methodologies.

sydnee-gilliam
Télécharger la présentation

Optimization of Test Strategies for System-in-Package Using Linear Programming

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

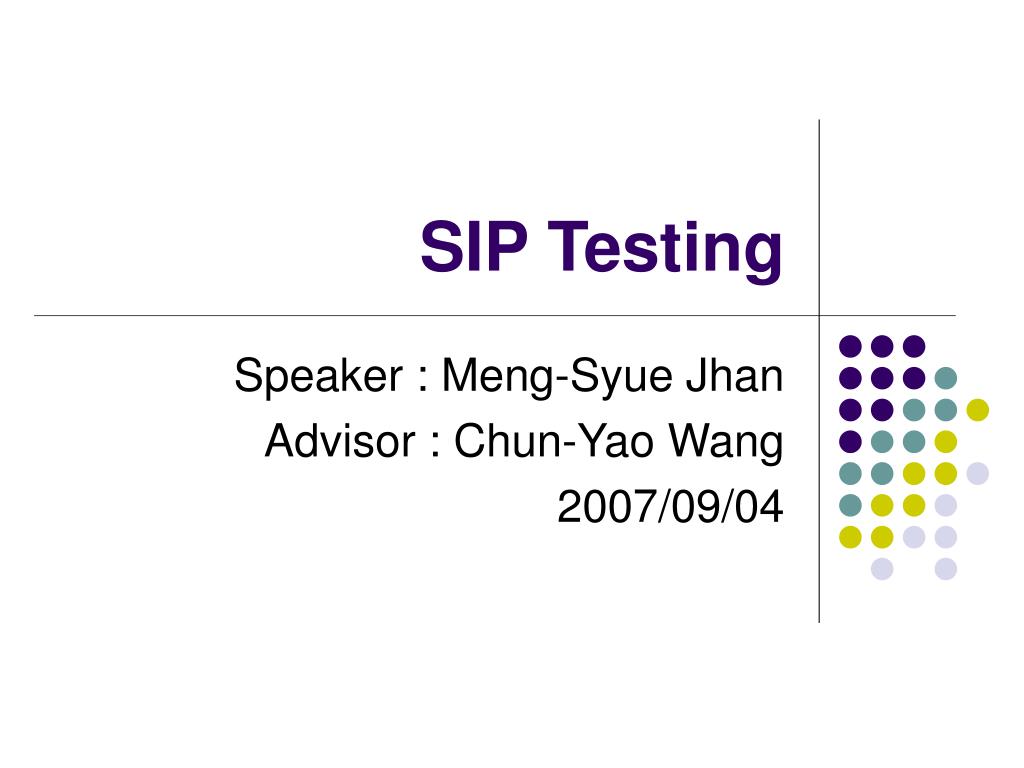

  1. SIP Testing Speaker : Meng-Syue Jhan Advisor : Chun-Yao Wang 2007/09/04

  2. Outline • Introduction • Our Idea • Linear Programming • Example • Conclusion • Future Work

  3. Introduction • The system-in-package(SIP) consists of multiple chips stacked and connected within a package • The components can be manufactured separately, in different technologies, and then assembled

  4. Introduction • To produce high quality and cost effective, we require evaluation to determine the economics of the various solutions and the payback • We need to examine and understand the relationship between the cost parameters, the yield of the various components, and various test strategy parameters

  5. Outline • Introduction • Our Idea • Linear Programming • Example • Conclusion • Future Work

  6. Linear Programming • Linear programming is utilizing the math to analyst the problem of the resource distribution • A fraction in some situation is no meaning, and it has called Integer Programming

  7. Binary Linear Programming • In our problem, coefficients must be a binary number • Balas proposed branch and bound to solve binary integer programming problem in 1965

  8. How to Apply it to Our Problem • We explore the tradeoff between the defect level and cost • Given the objective function of the cost or defect level and constrains of our goal • Find the solution which meets all constrains

  9. Example • We have several choices among chips and testing methods, and want to minimize the cost of the overall SIP

  10. Example

  11. Example A B Testing Min Z = (5X1+7X2)+2(13X3+15X4)+10X5+15X6+20X7+30X8+W • 2 > X1+X2 ≧ 1 • 2 > X3+X4 ≧1 • 2 > X5+X6 ≧1 • 2 > X7+X8 ≧1 • 106(DL1+DL2) < 10000 • 104(DL1+DL2) = W Constrains of Dies Constrains of Testing Constrains of Defect Level

  12. Example Z = 8 X1=0 X1=1 hopeful hopeful X2=0 X2=1 X2=0 X2=1 Fathomed hopeful hopeful Fathomed X3=0 X3=1 X3=1 X3=0 hopeful hopeful hopeful hopeful X4=0 X4=1 X4=0 X4=1 X4=0 X4=1 X4=0 hopeful Fathomed hopeful Fathomed hopeful Fathomed hopeful 、、、、、、、、、、、、、、、、、、、、、、、、、、、、、、、、、、、、、

  13. Example TEST TEST COST COST We find the optimal solution is (0,1,0,1,0,1,0,1) and Z = 174

  14. Conclusion • By this way, we can find the optimal solution between cost and yield • If no optimal solution could be found, our approach can find a solution near optimal but not satisfied constrains

  15. Future Work • Make our approach quicker • Find what is the variations between SIP and MCM in our approach
