  1. Algorithm Implementation:Safe Landing Zone Identification Presented by Noah Kuntz

  2. Problem Under Investigation • UAV flying in unknown terrain • Typically helicopter • Map terrain • Vision • LIDAR • Identify landing sites • Hazard free • Terrain is suitable • Large enough to fit UAV

  3. Papers Reviewed • “Towards Vision-Based Safe Landing for an Autonomous Helicopter”Pedro J. Garcia-Pardo, Gaurav S. Sukhatme and James F. MontgomeryRobotics and Automated Systems 2001 • “Vision Guided Landing of an Autonomous Helicopter in Hazardous Terrain”Andrew Johnson, James Montgomery and Larry MatthiesInternational Conference on Robotics and Automation 2005 • “The JPL Autonomous Helicopter Testbed: A Platform for Planetary Exploration Technology Research and Development”James F. Montgomery, Andrew E. Johnson, Stergios I. Roumeliotis, and Larry H. MatthiesJournal of Field Robotics 2006 • “Lidar-based Hazard Avoidance for Safe Landing on Mars”Andrew Johnson, Allan Klumpp, James Collier and Aron WolfAIAA Journal of Guidance, Control and Dynamics 2002

  4. Algorithm Selection – Option 1 • Source: “Towards Vision-Based Safe Landing for an Autonomous Helicopter” • Strengths: • Using vision requires low weight camera • Processing power required is not high • Weaknesses: • Assumes flat underlying terrain, which severely limits practical usage. • Assumes high contrast between obstacles and underlying terrain, risks failure to detect some objects. • Could pick to land on an obstacle if it is large enough.

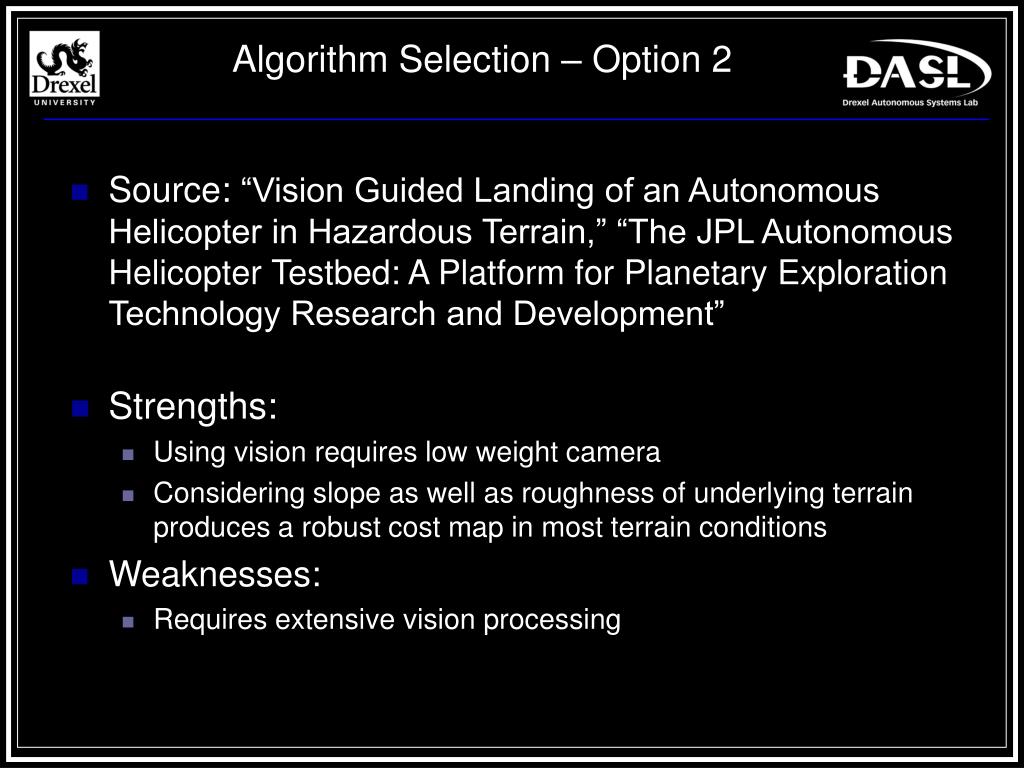

  5. Algorithm Selection – Option 2 • Source: “Vision Guided Landing of an Autonomous Helicopter in Hazardous Terrain,” “The JPL Autonomous Helicopter Testbed: A Platform for Planetary Exploration Technology Research and Development” • Strengths: • Using vision requires low weight camera • Considering slope as well as roughness of underlying terrain produces a robust cost map in most terrain conditions • Weaknesses: • Requires extensive vision processing

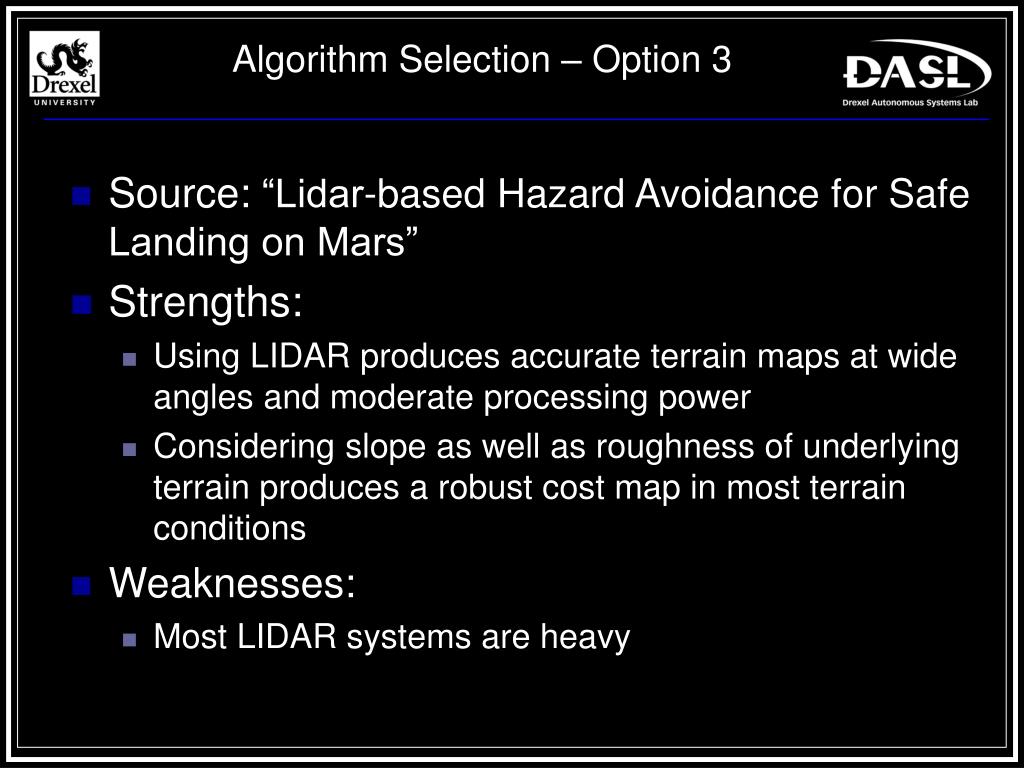

  6. Algorithm Selection – Option 3 • Source: “Lidar-based Hazard Avoidance for Safe Landing on Mars” • Strengths: • Using LIDAR produces accurate terrain maps at wide angles and moderate processing power • Considering slope as well as roughness of underlying terrain produces a robust cost map in most terrain conditions • Weaknesses: • Most LIDAR systems are heavy

  7. Algorithm Choice – Option 3 • Reasoning: • Most robust in terms of accurately detecting obstacles • Other than the sensor, identical to the 2nd best choice, option 2 • Mitigation of Weaknesses: • Helicopter must be capable of lifting sufficient weight

  8. Overview of Algorithm Implementation • Digital Elevation Map • SICK data is interpreted and flattened • Pose and position at each SICK scan point is recorded from UAV autopilot • Elevation map is generated by correlating the scanned depths with the position and pose at which they were recorded

  9. Overview of Algorithm Implementation • Safe Landing Zone • Elevation map is analyzed in units the size of the lander footprint, incremented at a fraction of the footprint size • Planes are fit to each unit using least mean squares • Slope of each plane is calculated from the center of the region • Roughness is calculated as the difference between the original map and the fitted map • Roughness and slope maps are normalized and added to produce the cost map • Cost map is blurred to prevent landing on a good zone adjacent to a highly unsafe zone • Landing zone is found in resulting image as the minimum cost point

  10. Generated Terrain • Hypothetical terrain was generated with a graphics program

  11. Landing Zone Algorithm Step 1 • Fit planes to the original data Original: Fitted:

  12. Landing Zone Algorithm Step 2,3 • Find the slopes of the fitted planes • Find the roughness based on the difference between the original maps and the fitted planes Normalized Slope Cost: Normalized Roughness Cost:

  13. Landing Zone Algorithm Step 4 • The cost map is produced by the adding the normalized roughness and slope cost, then blurred with a 3x3 Gaussian Total Cost: Blurred Cost:

  14. Landing Zone Algorithm Step 5 • The landing zone is chosen as the minimum cost point Map With Landing Zone: Image With Landing Zone:

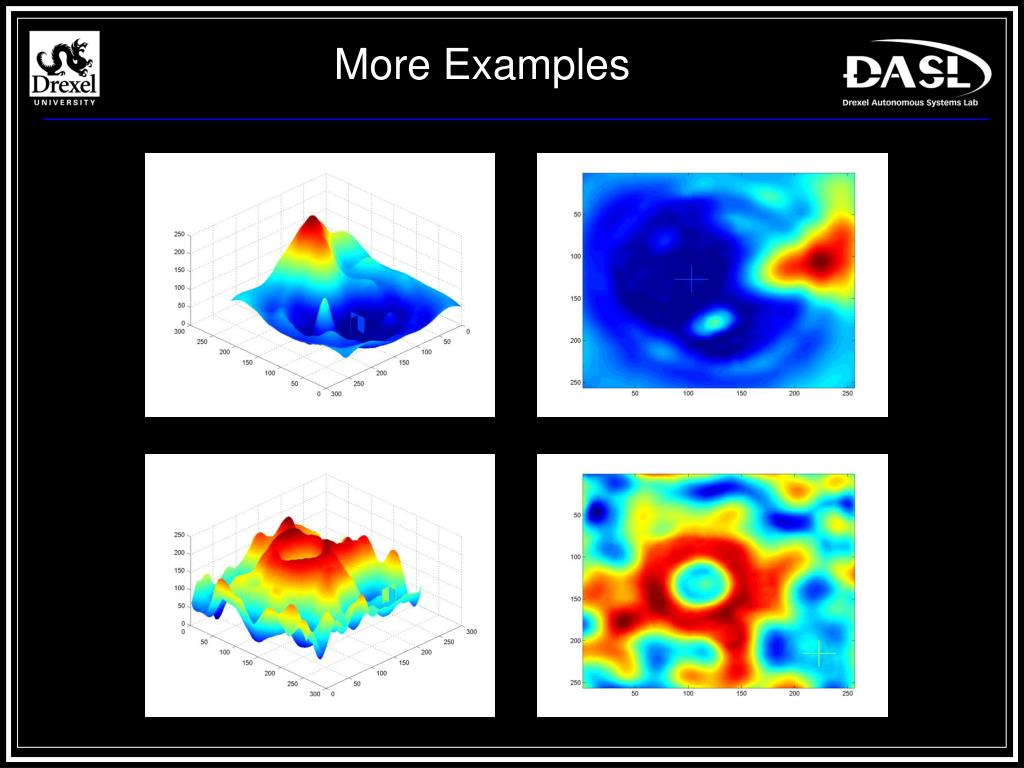

  15. More Examples

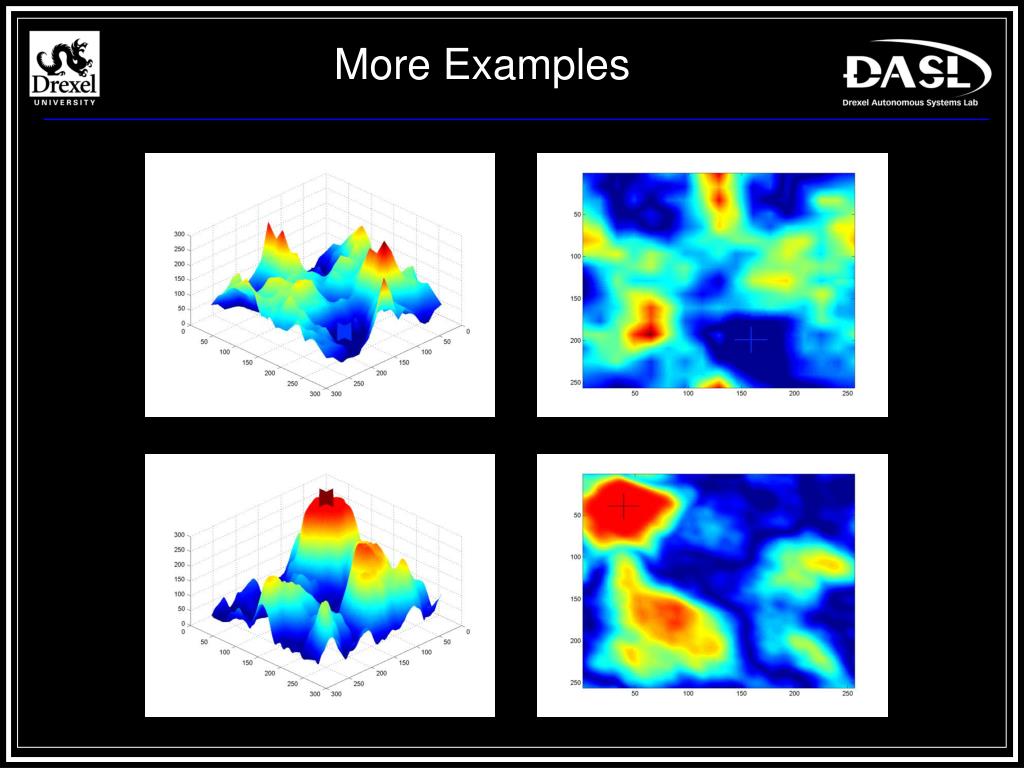

  16. More Examples
