  1. Chapter 2 IMPLEMENTING ACTIVE DIRECTORY

  2. Chapter 2: IMPLEMENTING ACTIVE DIRECTORY REQUIREMENTS FOR ACTIVE DIRECTORY • Microsoft Windows Server 2003 (Standard, Enterprise, Datacenter) • Cannot use Web Edition for Active Directory • Access as a local administrator • NT file system (NTFS) partition for Sysvol • 200 MB minimum free space • Transmission Control Protocol/Internet Protocol (TCP/IP) • Domain Name System (DNS) to host service location (SRV) resource records

  3. Chapter 2: IMPLEMENTING ACTIVE DIRECTORY ACTIVE DIRECTORY INSTALLATION PROCESS • Complete pre-installation tasks • Plan and test before you install in a production environment

  4. Chapter 2: IMPLEMENTING ACTIVE DIRECTORY ACTIVE DIRECTORY INSTALLATION • Dcpromo or Manage Your Server • If already a domain controller, Dcpromo allows you to remove Active Directory • Operating system compatibility issues • Microsoft Windows 95 • Microsoft Windows NT 4, Service Pack 3

  5. Chapter 2: IMPLEMENTING ACTIVE DIRECTORY ACTIVE DIRECTORY INSTALLATION WIZARD OPTIONS • Domain Controller type • Domain controller for a new domain • Replica domain controller • Install in a new or existing forest? • Install in a new or existing domain tree? • Use the appropriate names • Domain Name System (DNS) • Fully Qualified Domain Name (FQDN) • NetBIOS

  6. Chapter 2: IMPLEMENTING ACTIVE DIRECTORY ACTIVE DIRECTORY INSTALLATION WIZARD OPTIONS • Database and Log Folders • Shared System Volume (Sysvol) • %systemroot%\NTDS • NTFS required

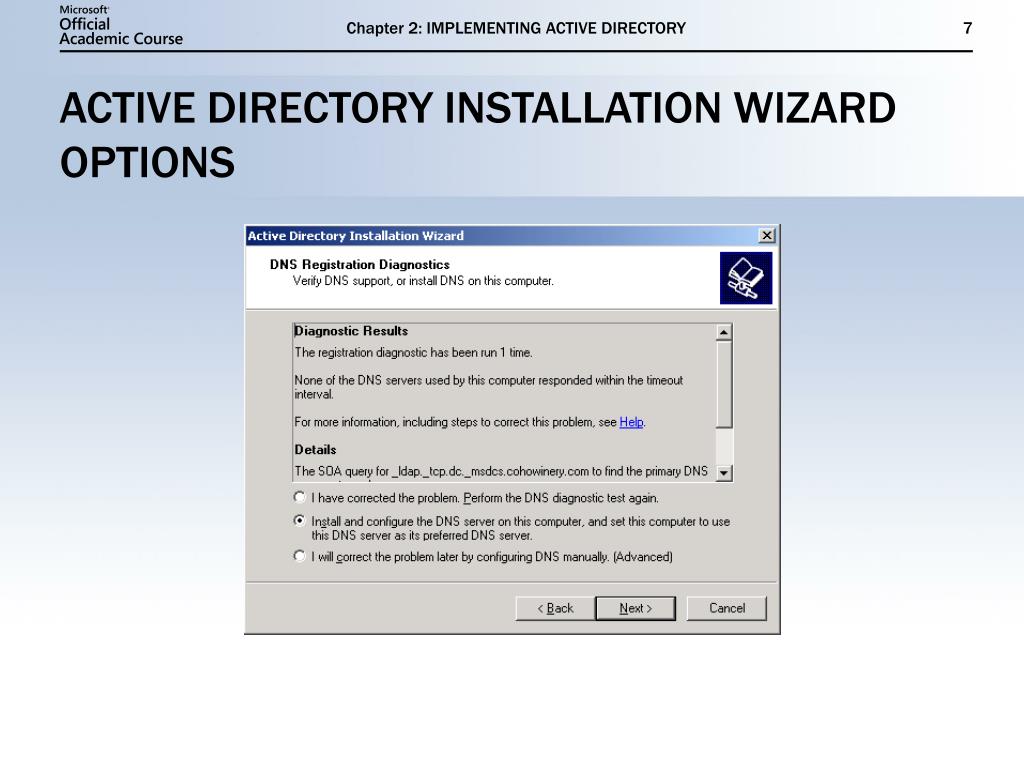

  7. Chapter 2: IMPLEMENTING ACTIVE DIRECTORY ACTIVE DIRECTORY INSTALLATION WIZARD OPTIONS

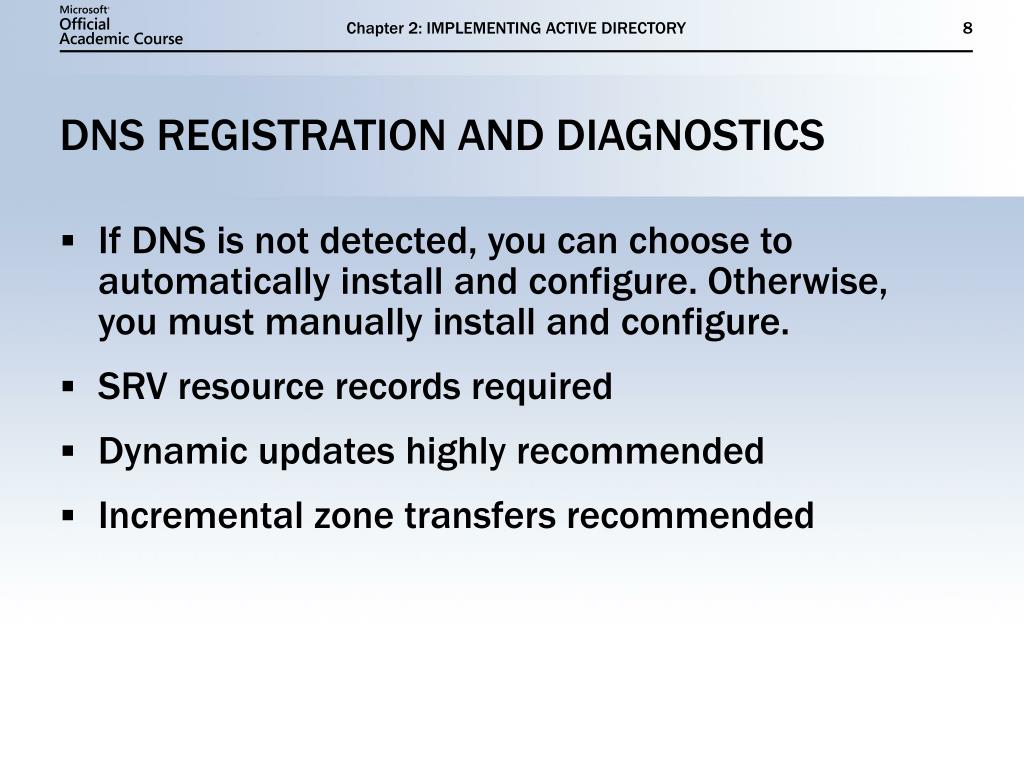

  8. Chapter 2: IMPLEMENTING ACTIVE DIRECTORY DNS REGISTRATION AND DIAGNOSTICS • If DNS is not detected, you can choose to automatically install and configure. Otherwise, you must manually install and configure. • SRV resource records required • Dynamic updates highly recommended • Incremental zone transfers recommended

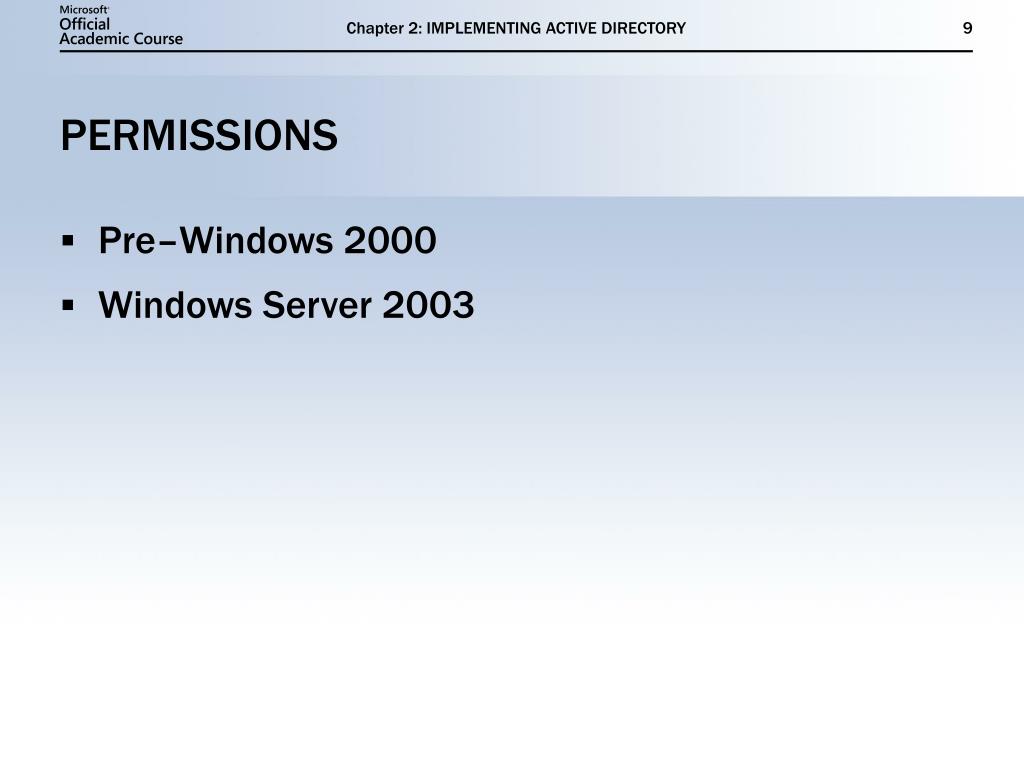

  9. Chapter 2: IMPLEMENTING ACTIVE DIRECTORY PERMISSIONS • Pre–Windows 2000 • Windows Server 2003

  10. Chapter 2: IMPLEMENTING ACTIVE DIRECTORY ACTIVE DIRECTORY INSTALLATION WIZARD OPTIONS • Directory Services Restore Mode Administrator password • Password used to enter Directory Services Restore Mode • Required for Active Directory maintenance • Completing the Active Directory installation • Confirm your configuration • Restart your new domain controller

  11. Chapter 2: IMPLEMENTING ACTIVE DIRECTORY VERIFY AND FINALIZE DNS • Application Directory partition creation • DomainDNSZones • ForestDNSZones • Automatically created when Active Directory Integrated DNS is used • Can be managed only by Enterprise Admins • Aging and scavenging options • Forward lookup zones and SRV resource records

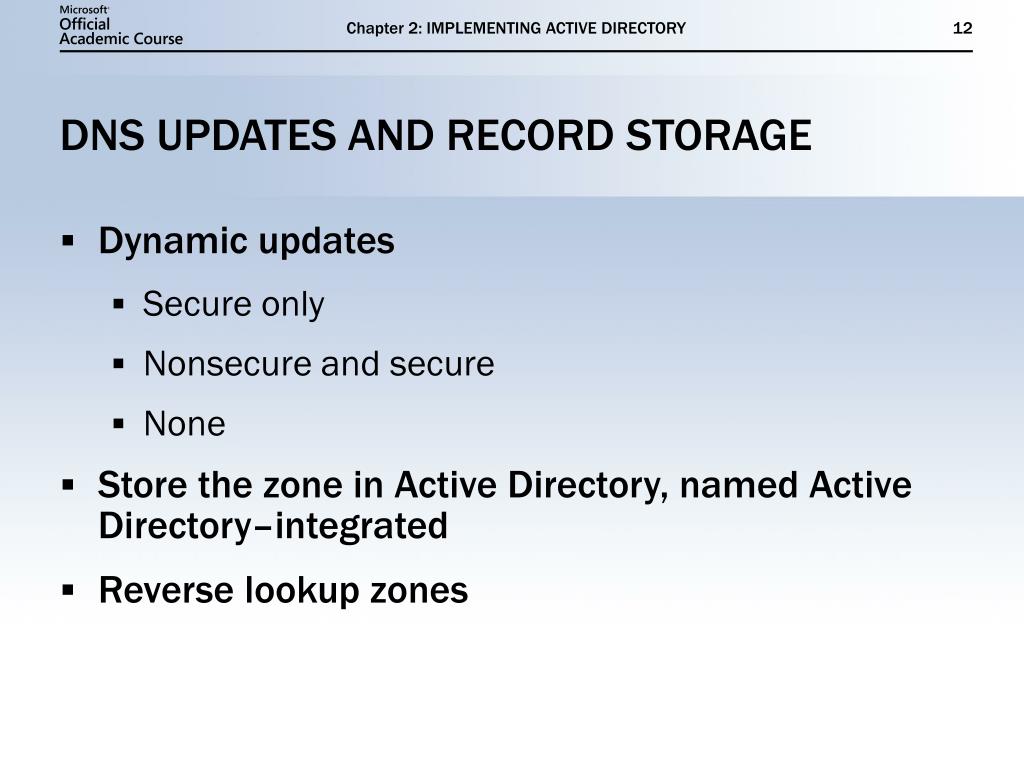

  12. Chapter 2: IMPLEMENTING ACTIVE DIRECTORY DNS UPDATES AND RECORD STORAGE • Dynamic updates • Secure only • Nonsecure and secure • None • Store the zone in Active Directory, named Active Directory–integrated • Reverse lookup zones

  13. Chapter 2: IMPLEMENTING ACTIVE DIRECTORY REPLICA DOMAIN CONTROLLER • Provides load balancing and fault tolerance • If one domain controller fails, there is another holding the Active Directory records • Clients can use either domain controller for authentication • DNS fault tolerance • If Active Directory–integrated, the records are automatically copied to other domain controllers • If not Active Directory–integrated, you can use a secondary zone for fault tolerance of records

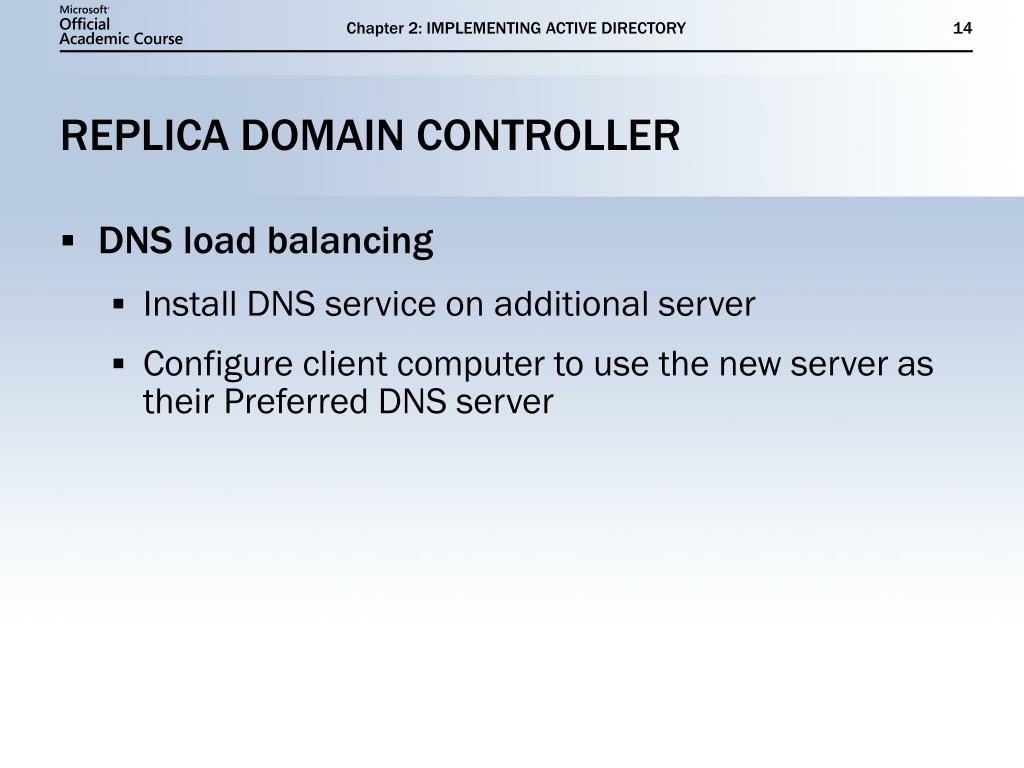

  14. Chapter 2: IMPLEMENTING ACTIVE DIRECTORY REPLICA DOMAIN CONTROLLER • DNS load balancing • Install DNS service on additional server • Configure client computer to use the new server as their Preferred DNS server

  15. Chapter 2: IMPLEMENTING ACTIVE DIRECTORY SCHEMA MODIFICATION • Some applications modify the schema • Examples include: e-mail programs, backup programs, and directory integration software • Must be a member of Schema Admins to install these applications or to manually modify the schema • Schema changes trigger replication to all domain controllers in the forest • Default system classes cannot be modified • Class and attribute changes cannot be removed, but can be deactivated

  16. Chapter 2: IMPLEMENTING ACTIVE DIRECTORY RAISING DOMAIN AND FOREST FUNCTIONAL LEVELS • Once complete, cannot be undone without a reinstall • Each domain functional level can be raised independently of other domains • Forest functional levels can be raised only when all domains are at Windows 2000 native or higher • Domain Admins membership required to raise domain functional level • Enterprise Admins membership required to raise forest functional level

  17. Chapter 2: IMPLEMENTING ACTIVE DIRECTORY ESTABLISHING AND MAINTAINING TRUSTS • Shortcut trust • Used to improve resource access • Reduces the length of the trust path • Transitive • Cross-forest trust • Initially one-way; can create two one-way trusts to provide access in either direction • Available only to Windows Server 2003 forests • Transitive

  18. Chapter 2: IMPLEMENTING ACTIVE DIRECTORY ESTABLISHING AND MAINTAINING TRUST • External • Can be used for Windows NT Server 4.0 and Windows 2000 domain trusts • Not transitive • Realm • Used between third-party Kerberos implementations • Not transitive

  19. Chapter 2: IMPLEMENTING ACTIVE DIRECTORY MANAGING TRUSTS • Verifying trusts • Active Directory Domains And Trusts • netdom trust domain1 /d:contoso /verify • Revoking trust relationships • Active Directory Domains And Trusts • netdom trust domain1 /d:contoso /remove

  20. Chapter 2: IMPLEMENTING ACTIVE DIRECTORY USER PRINCIPAL NAMES • Allows users to log on without specifying a domain separately • Can be the user’s e-mail address • By default, the User Principal Name (UPN) suffix is the same as the forest root domain name • Can add UPN suffix in Active Directory Domains And Trusts • Can modify UPN on a per-user basis

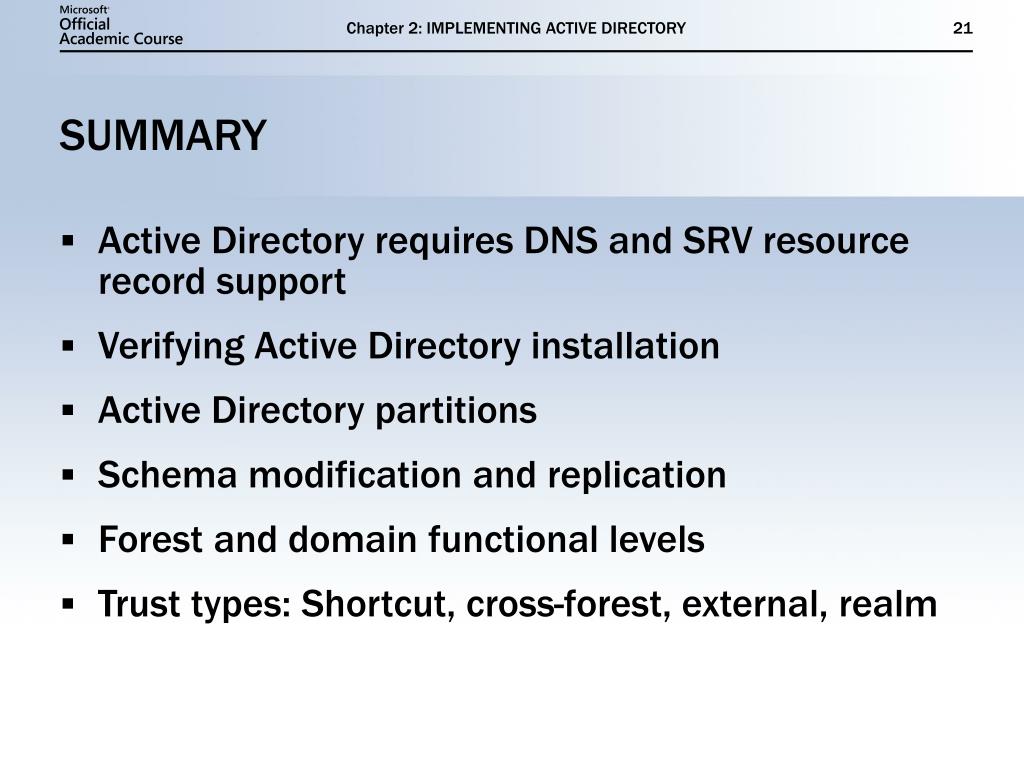

  21. Chapter 2: IMPLEMENTING ACTIVE DIRECTORY SUMMARY • Active Directory requires DNS and SRV resource record support • Verifying Active Directory installation • Active Directory partitions • Schema modification and replication • Forest and domain functional levels • Trust types: Shortcut, cross-forest, external, realm
