Explore the advancements in weather data access for aviation with the ADL110 and ADL120 systems presented by Dr. Golze at the PA46 Technical Conference 2013 in Bremen, Germany. These innovative solutions facilitate the real-time download of critical weather information, including METAR and TAF reports, radar images, and strike maps, directly to aircraft in flight using a reliable data link. Discover the benefits and limitations of existing systems and how ADL solutions offer a cost-effective alternative for pilots to ensure safety during flight while accessing essential weather updates.
E N D
PA46 TECHNICAL CONFERENCE 2013 Data Link Weather ADL110 / ADL120 11.10.2013 Bremen, Germany - Dr. Golze Engineering - www.ing-golze.de

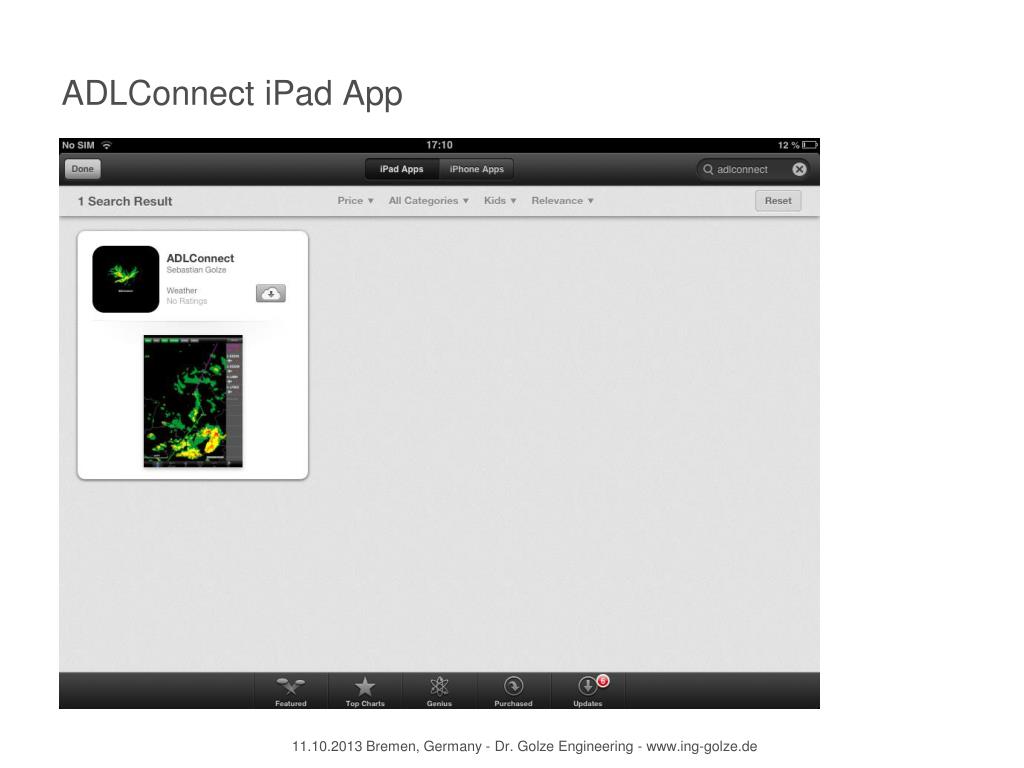

ADLConnect iPad App 11.10.2013 Bremen, Germany - Dr. Golze Engineering - www.ing-golze.de

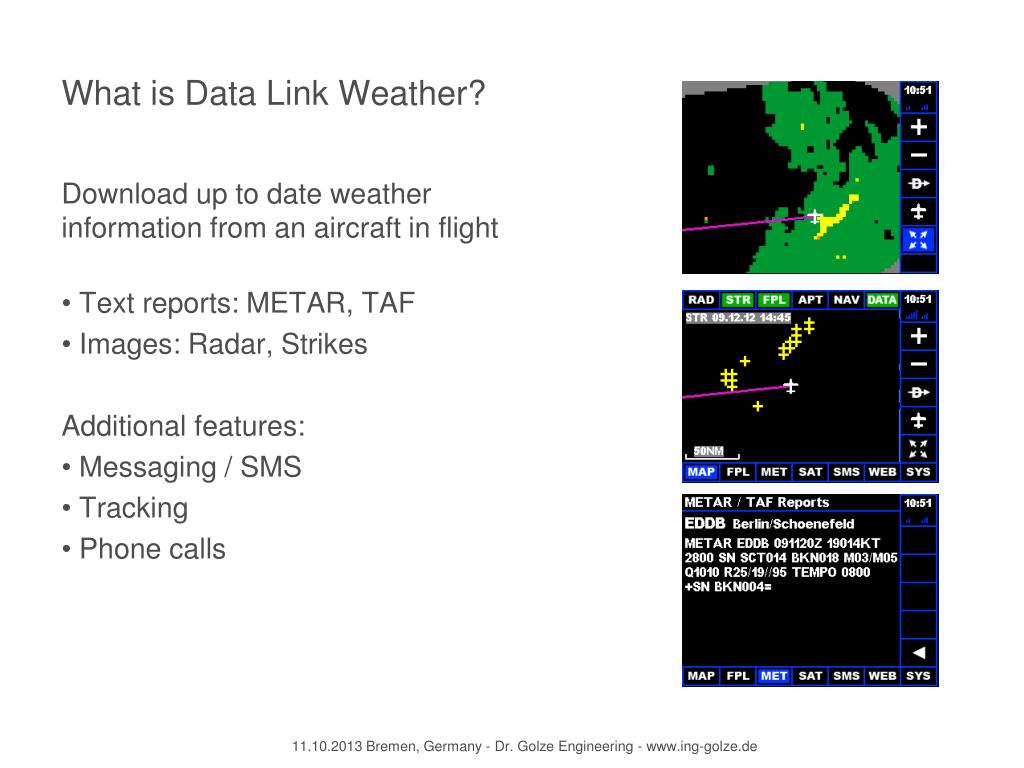

What is Data Link Weather? Download up to date weather information from an aircraft in flight • Text reports: METAR, TAF • Images: Radar, Strikes Additional features: • Messaging / SMS • Tracking • Phone calls 11.10.2013 Bremen, Germany - Dr. Golze Engineering - www.ing-golze.de

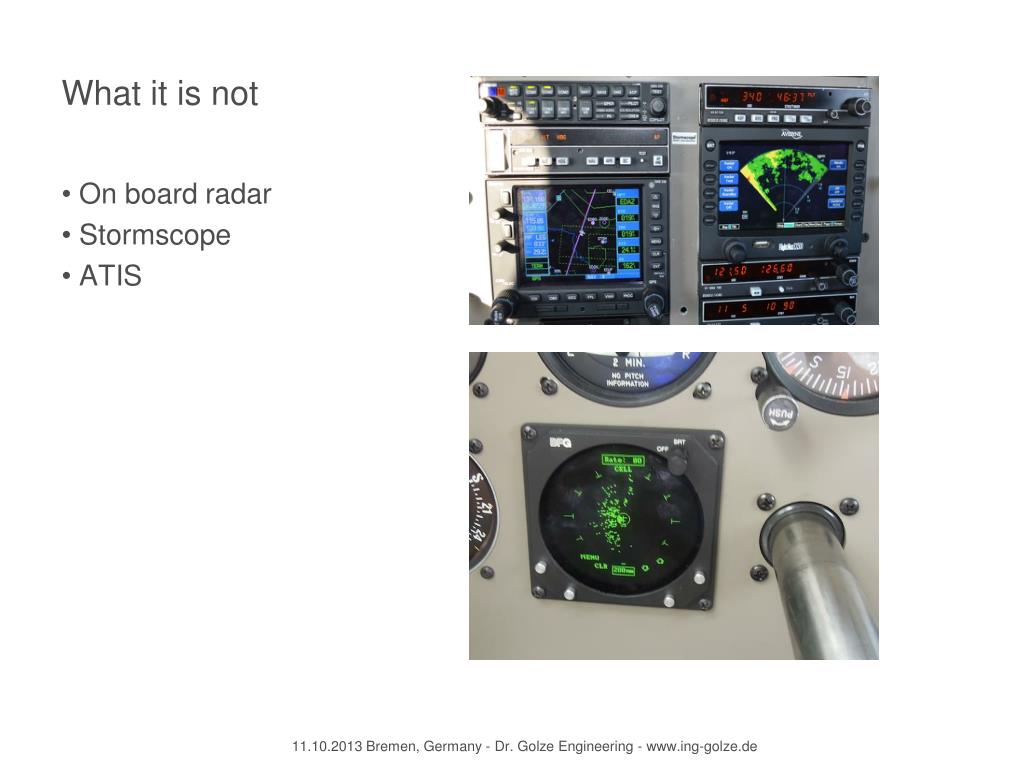

What it is not • On board radar • Stormscope • ATIS 11.10.2013 Bremen, Germany - Dr. Golze Engineering - www.ing-golze.de

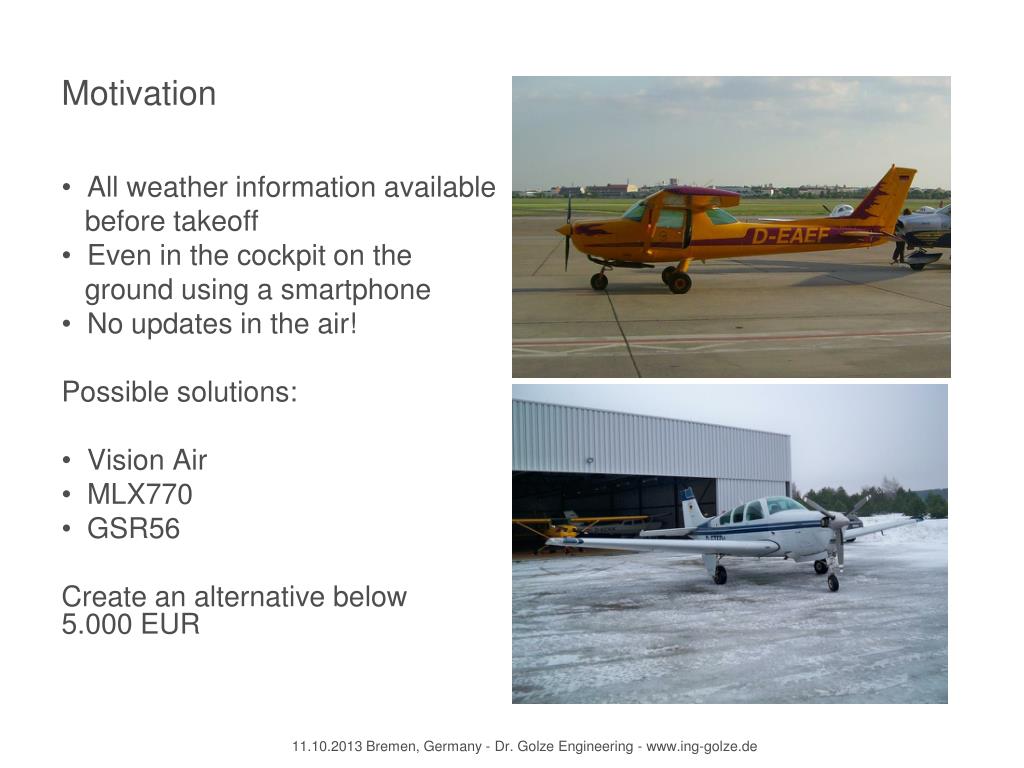

Motivation • All weather information available before takeoff • Even in the cockpit on the ground using a smartphone • No updates in the air! Possible solutions: • Vision Air • MLX770 • GSR56 Create an alternative below5.000 EUR 11.10.2013 Bremen, Germany - Dr. Golze Engineering - www.ing-golze.de

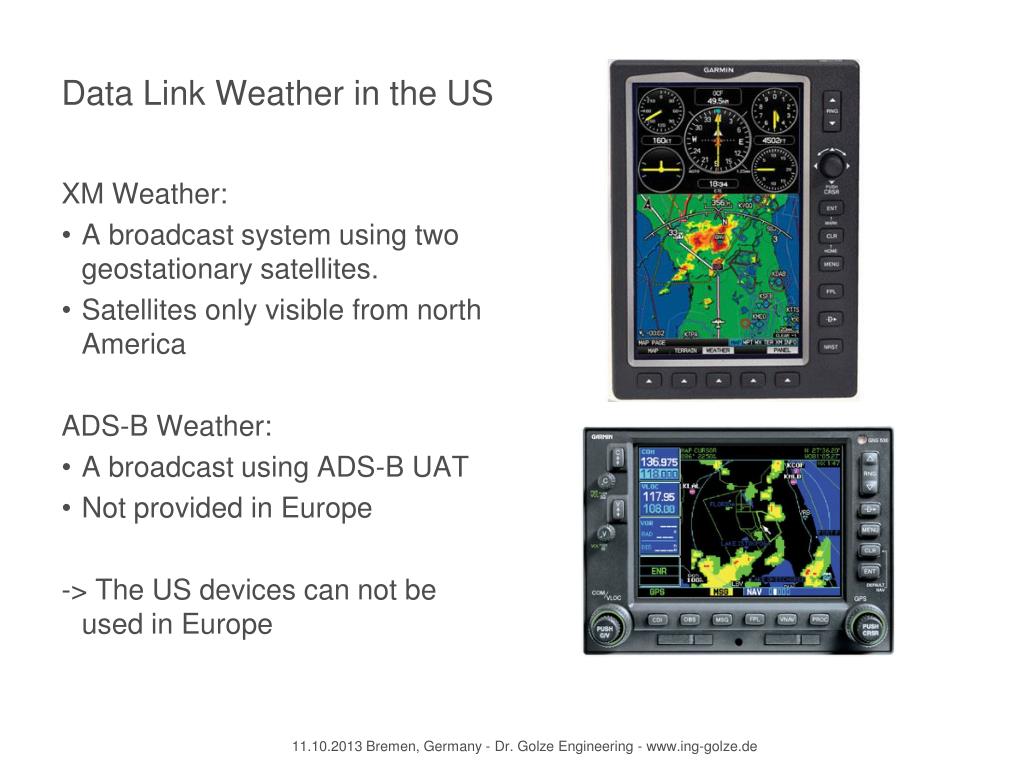

Data Link Weather in the US XM Weather: • A broadcast system using two geostationary satellites. • Satellites only visible from north America ADS-B Weather: • A broadcast using ADS-B UAT • Not provided in Europe -> The US devices can not be used in Europe 11.10.2013 Bremen, Germany - Dr. Golze Engineering - www.ing-golze.de
Different European Solutions GSM • No coverage at altitude or speed Globalstar • Network unrealiable • Medium speed transmission Thuraya • Network unrealiable • Hardware unreliabale • Fast transmission Iridium • Network reliable • Hardware professional • Very slow transmission 11.10.2013 Bremen, Germany - Dr. Golze Engineering - www.ing-golze.de

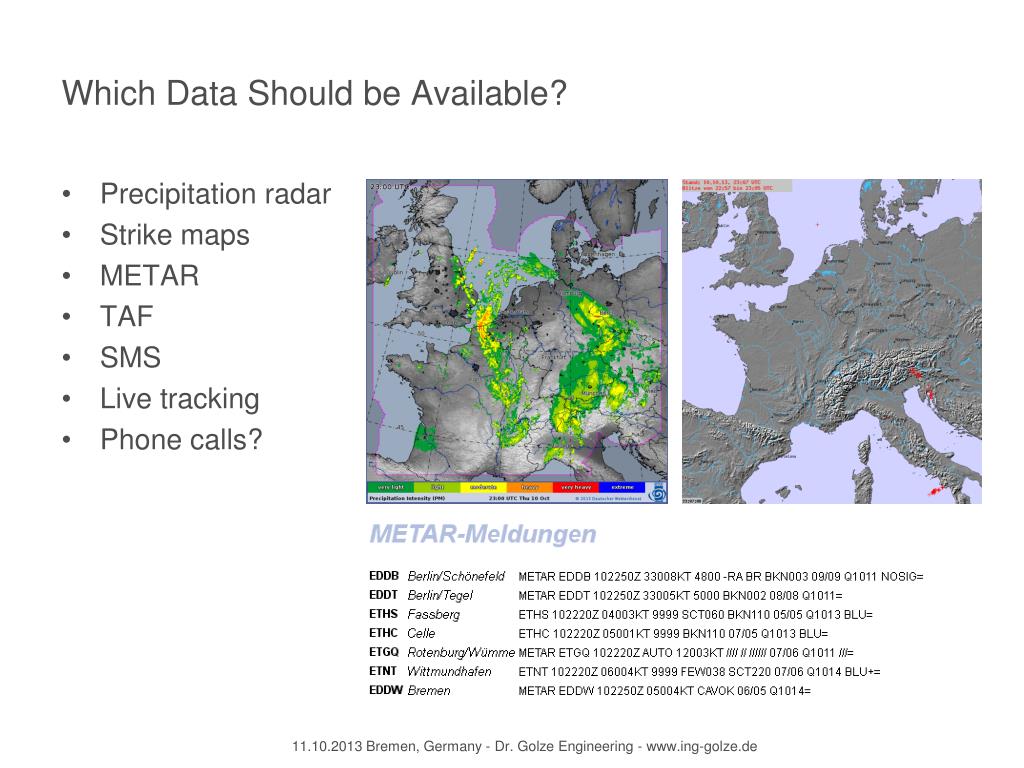

Which Data Should be Available? • Precipitation radar • Strike maps • METAR • TAF • SMS • Live tracking • Phone calls? 11.10.2013 Bremen, Germany - Dr. Golze Engineering - www.ing-golze.de

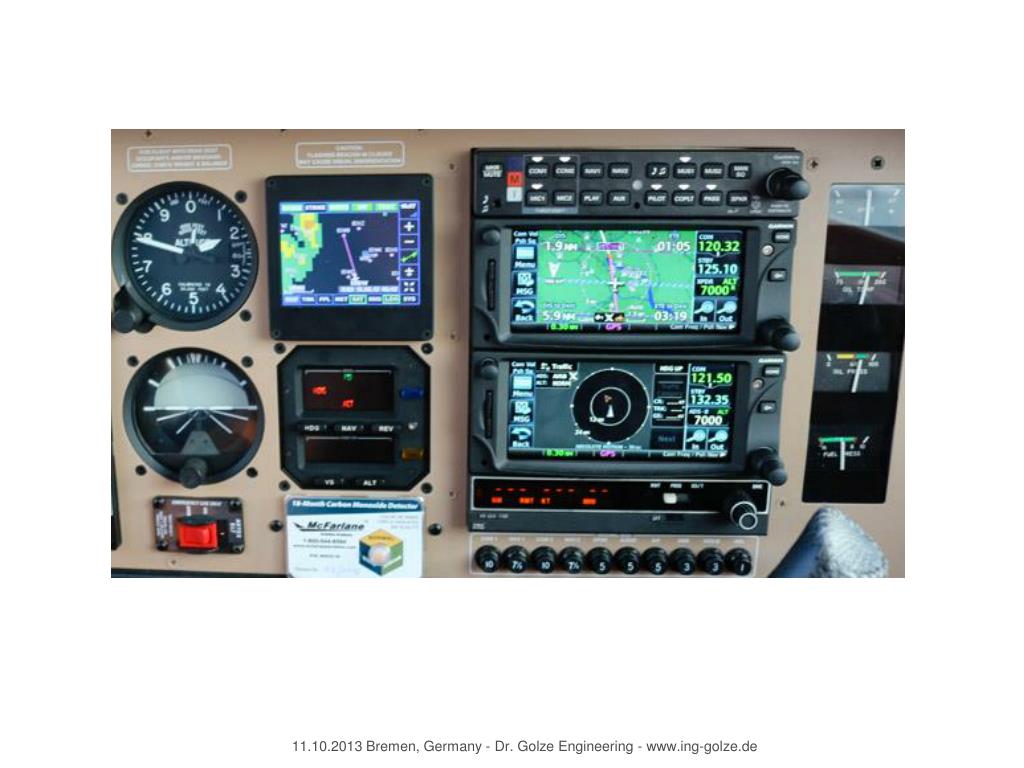

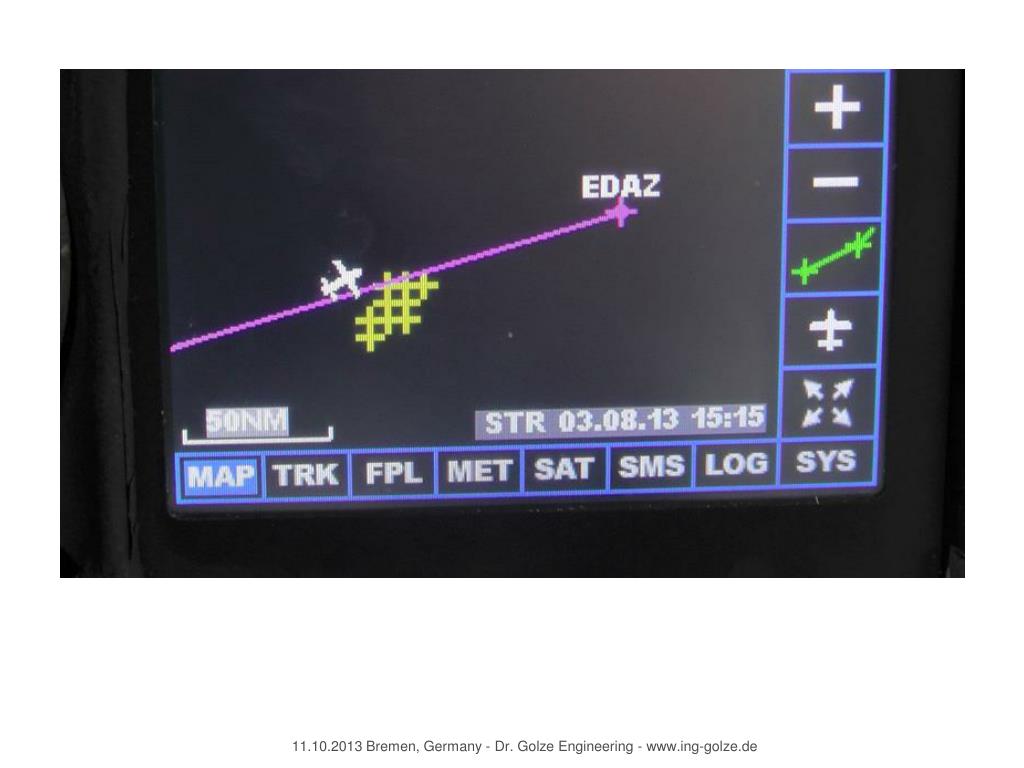

ADL110B • 3,5“ touchscreen • Moving map • Integrated GPS • Flightplan interface • iPad interface • Fits standard 80mm cut out • Self contained • Small glareshield antenna • Can be installed using an EASA minor change 11.10.2013 Bremen, Germany - Dr. Golze Engineering - www.ing-golze.de

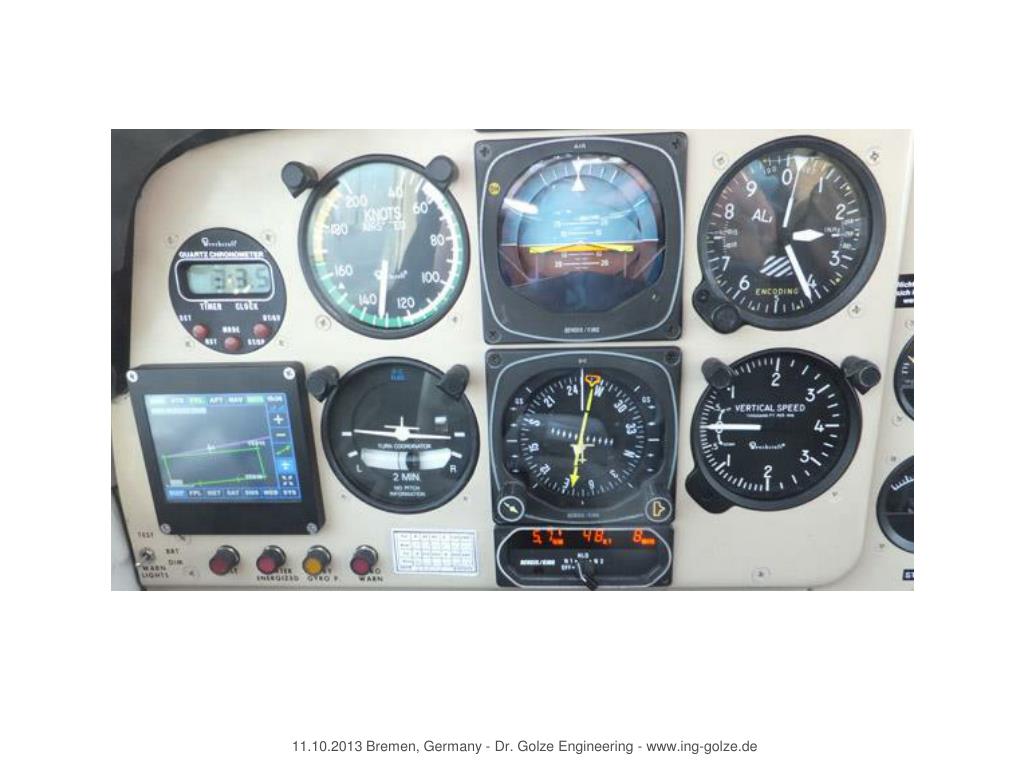

11.10.2013 Bremen, Germany - Dr. Golze Engineering - www.ing-golze.de
11.10.2013 Bremen, Germany - Dr. Golze Engineering - www.ing-golze.de

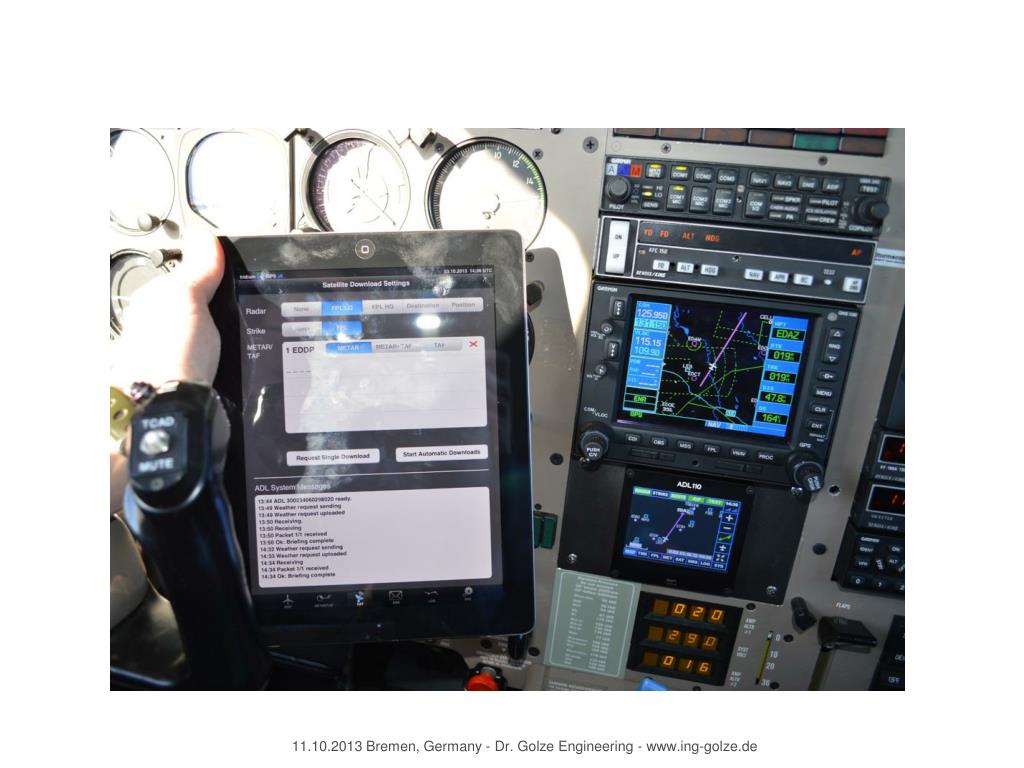

11.10.2013 Bremen, Germany - Dr. Golze Engineering - www.ing-golze.de
ADL120 • Black box with the same features as the ADL110B • Lower cost variant requiring no panel space • Can also be installed using an EASA minor change 11.10.2013 Bremen, Germany - Dr. Golze Engineering - www.ing-golze.de
11.10.2013 Bremen, Germany - Dr. Golze Engineering - www.ing-golze.de

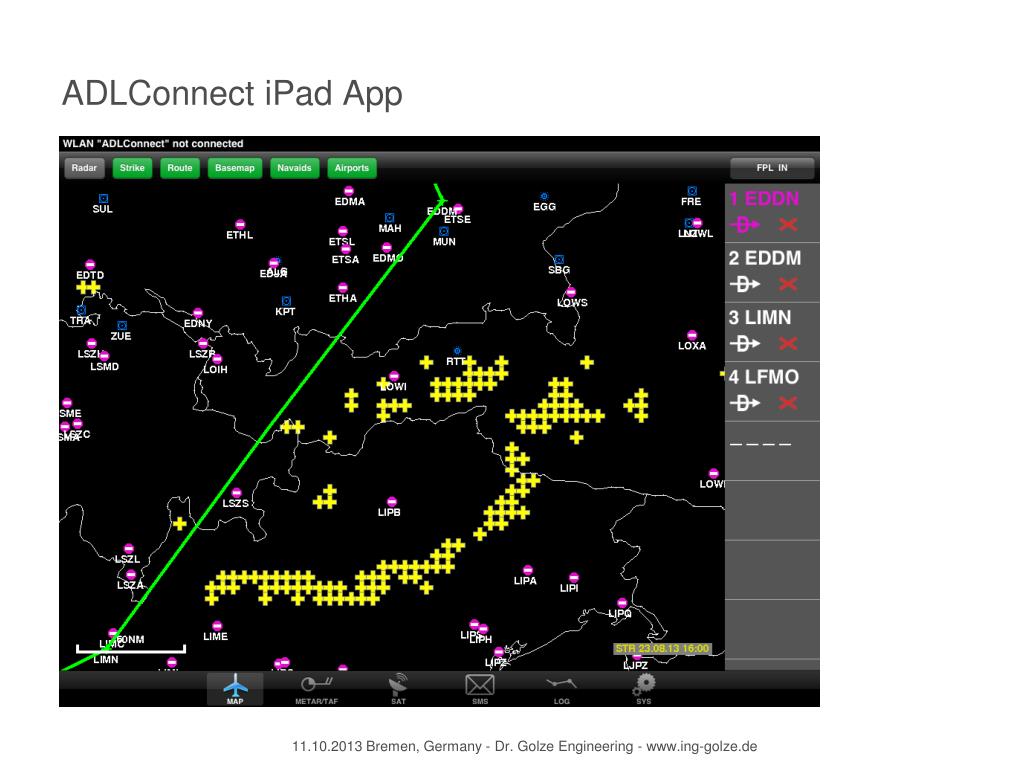

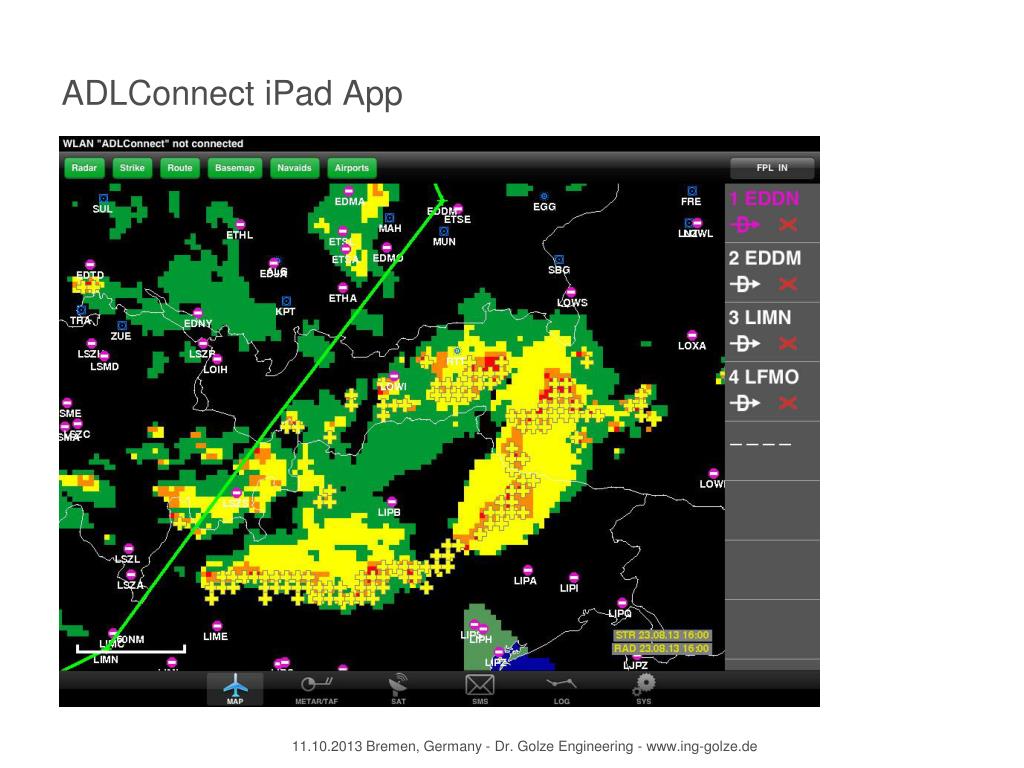

ADLConnect iPad App 11.10.2013 Bremen, Germany - Dr. Golze Engineering - www.ing-golze.de

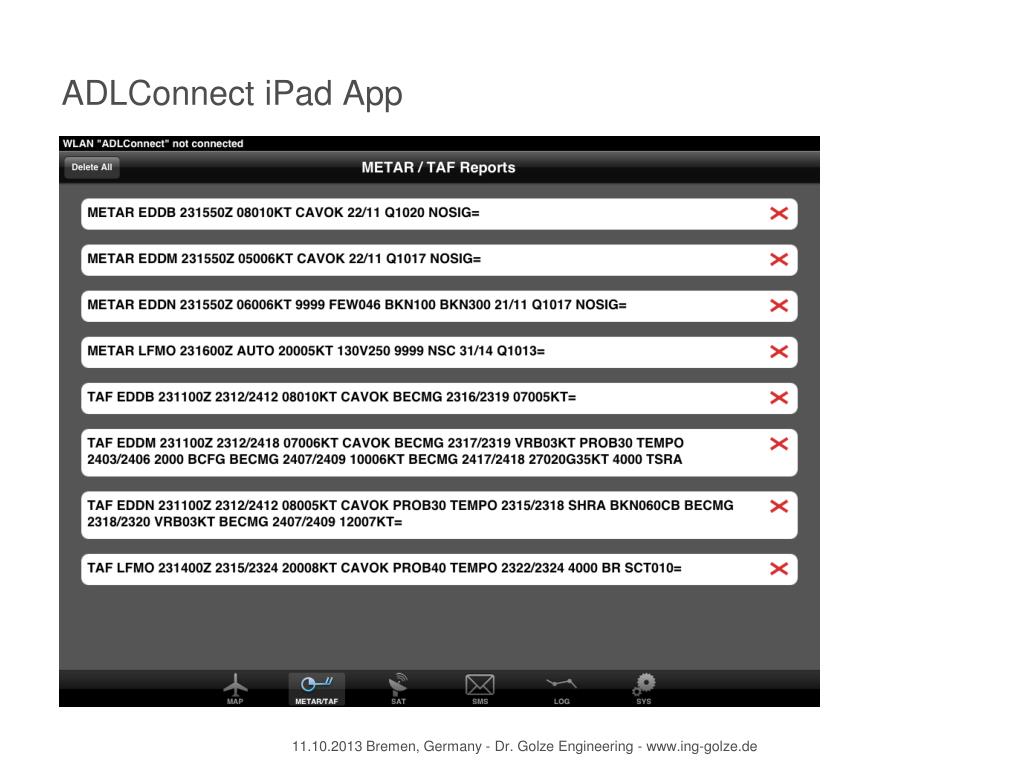

ADLConnect iPad App 11.10.2013 Bremen, Germany - Dr. Golze Engineering - www.ing-golze.de
ADLConnect iPad App 11.10.2013 Bremen, Germany - Dr. Golze Engineering - www.ing-golze.de
METAR/TAF coverage 11.10.2013 Bremen, Germany - Dr. Golze Engineering - www.ing-golze.de
Radar Coverage 11.10.2013 Bremen, Germany - Dr. Golze Engineering - www.ing-golze.de

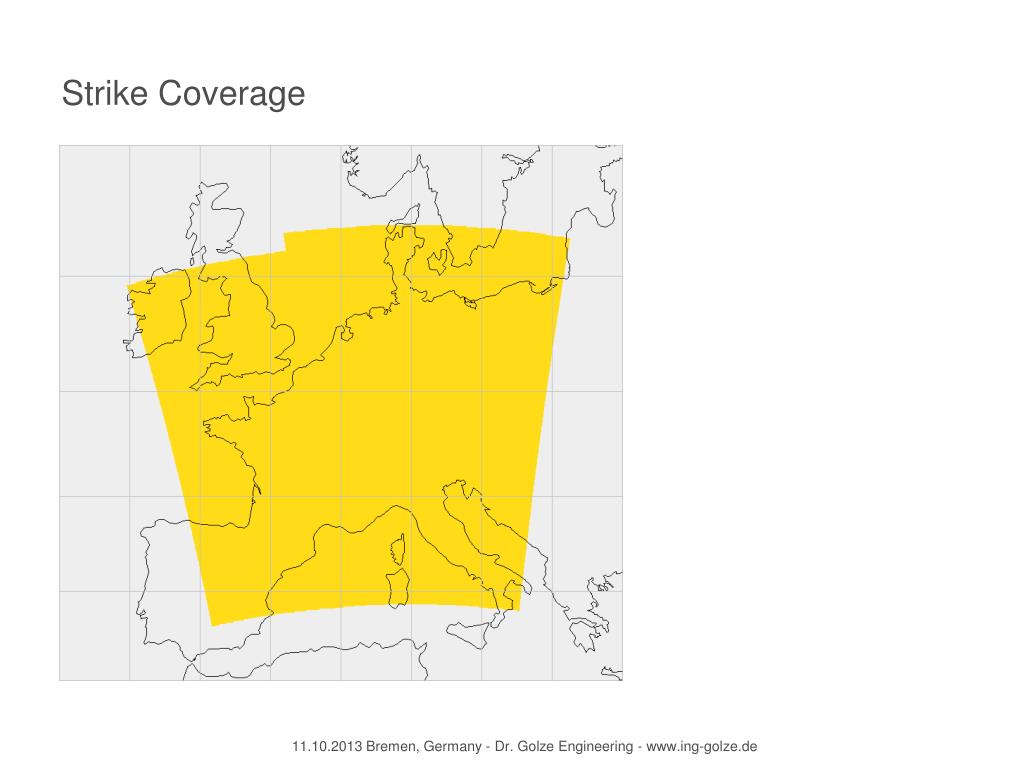

Strike Coverage 11.10.2013 Bremen, Germany - Dr. Golze Engineering - www.ing-golze.de
Pricing ADL110B 2.980,- EUR + VAT ADL120 1.950,- EUR + VAT Monthly charge 25,00 EUR + VAT Download packet 0,25 EUR + VAT SMS outbound 0,25 EUR + VAT SMS inbound 0,14 EUR + VAT Tracking update 0,09 EUR + VAT PC-Met Account required 11.10.2013 Bremen, Germany - Dr. Golze Engineering - www.ing-golze.de

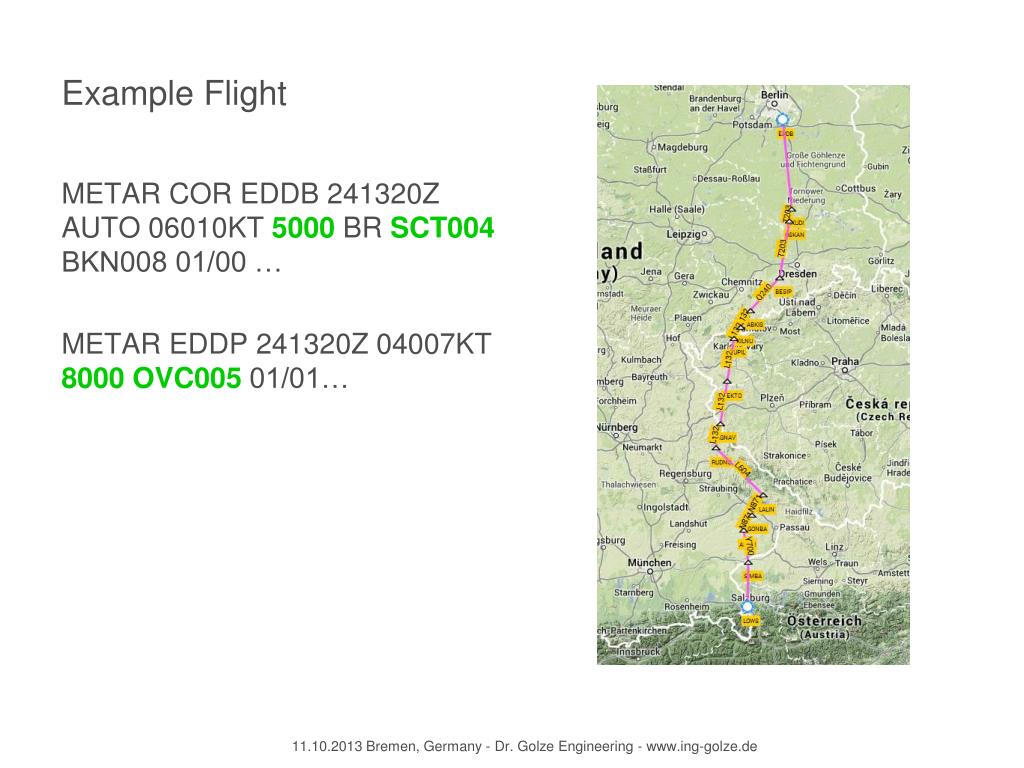

Example Flight METAR COR EDDB 241320Z AUTO 06010KT 5000 BR SCT004 BKN008 01/00 … METAR EDDP 241320Z 04007KT 8000 OVC005 01/01… 11.10.2013 Bremen, Germany - Dr. Golze Engineering - www.ing-golze.de

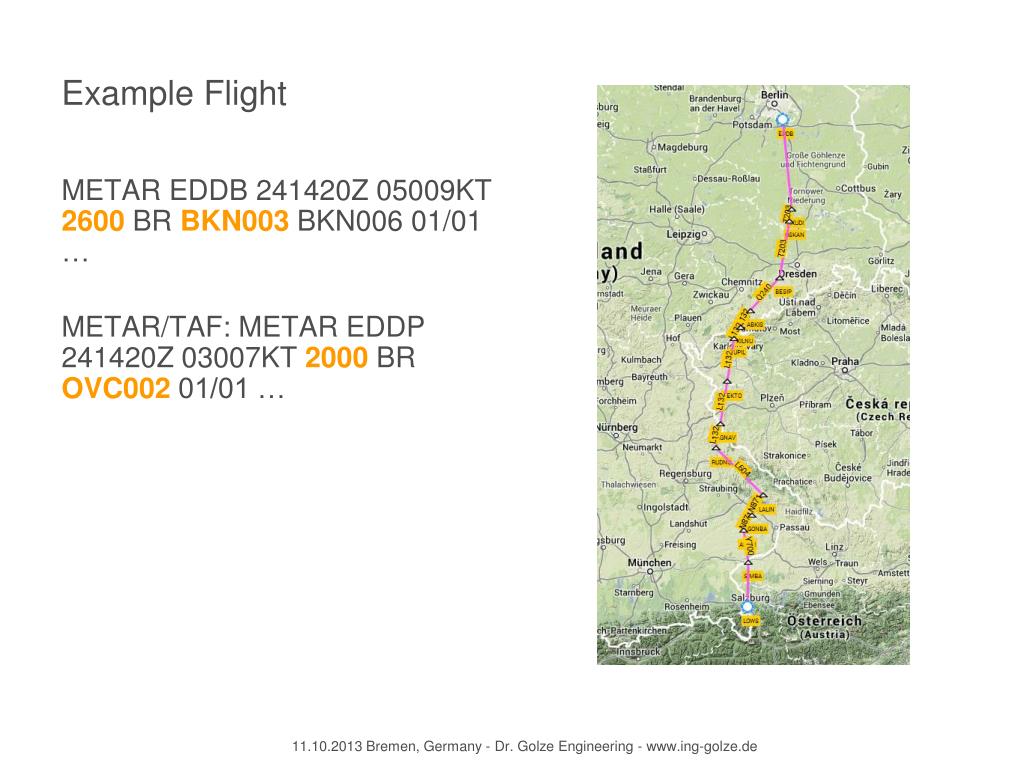

Example Flight METAR EDDB 241420Z 05009KT 2600 BR BKN003 BKN006 01/01 … METAR/TAF: METAR EDDP 241420Z 03007KT 2000 BR OVC002 01/01 … 11.10.2013 Bremen, Germany - Dr. Golze Engineering - www.ing-golze.de

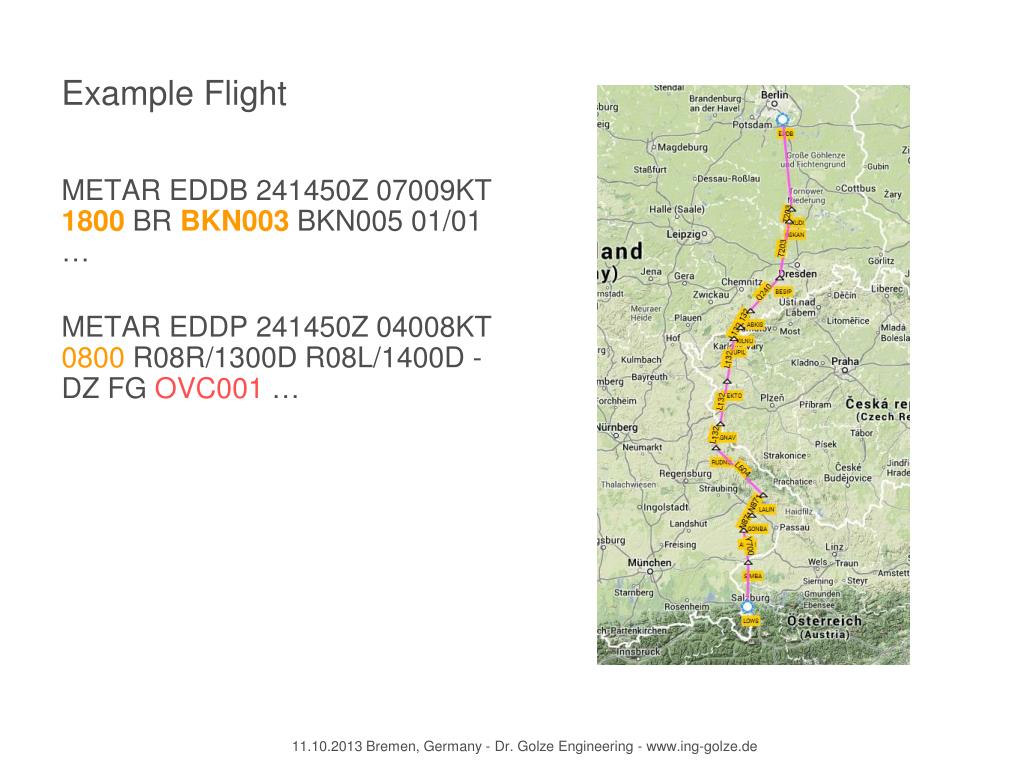

Example Flight METAR EDDB 241450Z 07009KT 1800 BR BKN003 BKN005 01/01 … METAR EDDP 241450Z 04008KT 0800 R08R/1300D R08L/1400D -DZ FG OVC001 … 11.10.2013 Bremen, Germany - Dr. Golze Engineering - www.ing-golze.de
Example Flight METAR EDDC 241450Z 06003KT 6000 FEW006 SCT015 BKN026 … METAR EDDT 241450Z 05007KT 4700 BR BKN004 BKN007 … 11.10.2013 Bremen, Germany - Dr. Golze Engineering - www.ing-golze.de
11.10.2013 Bremen, Germany - Dr. Golze Engineering - www.ing-golze.de
11.10.2013 Bremen, Germany - Dr. Golze Engineering - www.ing-golze.de
11.10.2013 Bremen, Germany - Dr. Golze Engineering - www.ing-golze.de
11.10.2013 Bremen, Germany - Dr. Golze Engineering - www.ing-golze.de
PA46 TECHNICAL CONFERENCE 2013 Data Link Weather ADL110 / ADL120 11.10.2013 Bremen, Germany - Dr. Golze Engineering - www.ing-golze.de
