  1. Problems of Inference and Uncertainty Estimation in Hydrologic Modelling Peter Reichert Eawag Dübendorf and ETH Zürich

  2. Contents • Motivation • Errors and Uncertainties in Hydrologic Watershed Modelling • Suggested Problem Solutions • Working Group Opportunities Motivation Errors in Hydro-logic Modelling Suggested Pro-blem Solutions Working GroupOpportunities

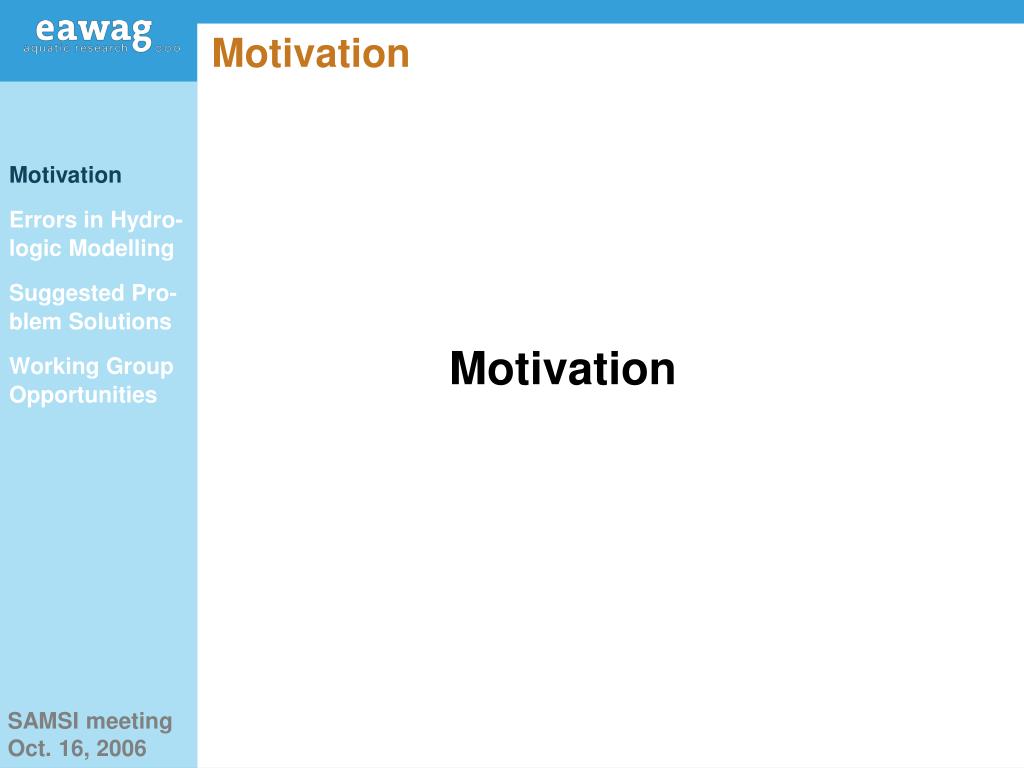

  3. Motivation Motivation Errors in Hydro-logic Modelling Suggested Pro-blem Solutions Working GroupOpportunities Motivation

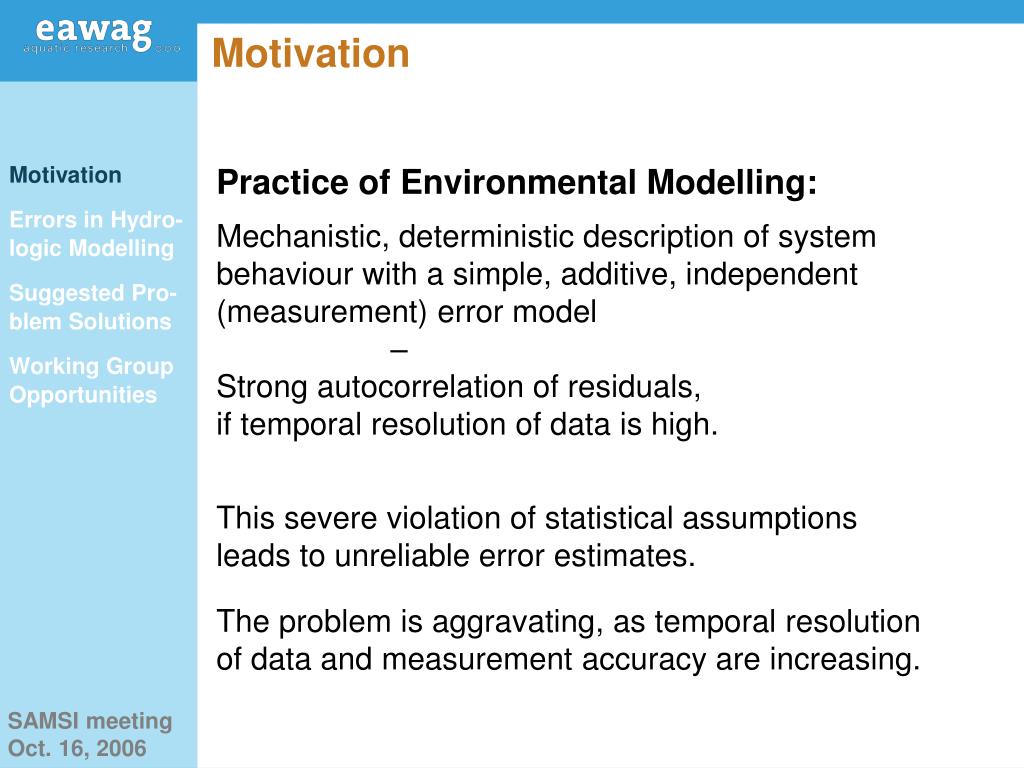

  4. Motivation Practice of Environmental Modelling: Mechanistic, deterministic description of system behaviour with a simple, additive, independent (measurement) error model – Strong autocorrelation of residuals, if temporal resolution of data is high. This severe violation of statistical assumptions leads to unreliable error estimates. The problem is aggravating, as temporal resolution of data and measurement accuracy are increasing. Motivation Errors in Hydro-logic Modelling Suggested Pro-blem Solutions Working GroupOpportunities

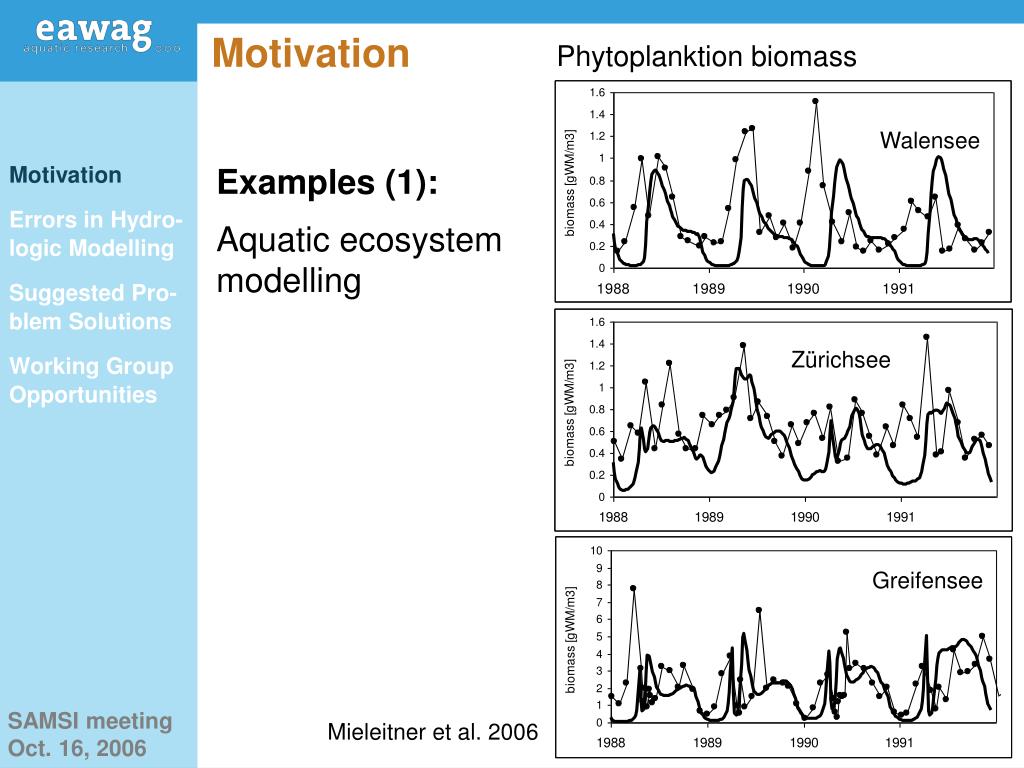

  5. Motivation Phytoplanktion biomass Walensee Examples (1): Aquatic ecosystemmodelling Motivation Errors in Hydro-logic Modelling Suggested Pro-blem Solutions Working GroupOpportunities Zürichsee Greifensee Mieleitner et al. 2006

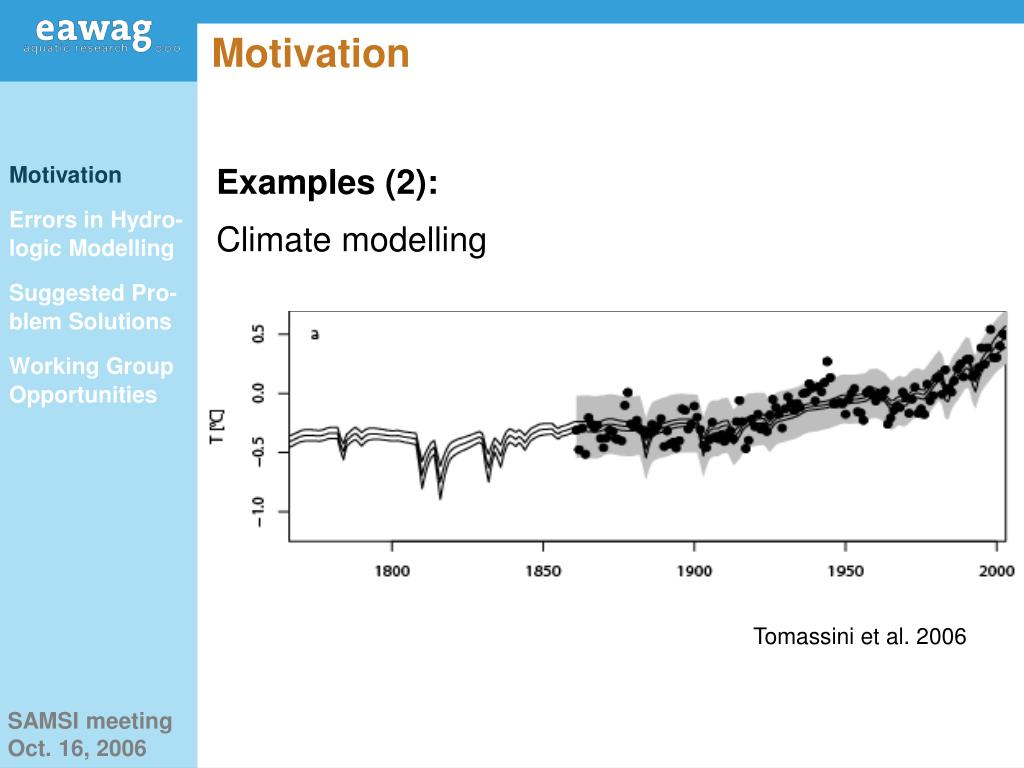

  6. Motivation Examples (2): Climate modelling Motivation Errors in Hydro-logic Modelling Suggested Pro-blem Solutions Working GroupOpportunities Tomassini et al. 2006

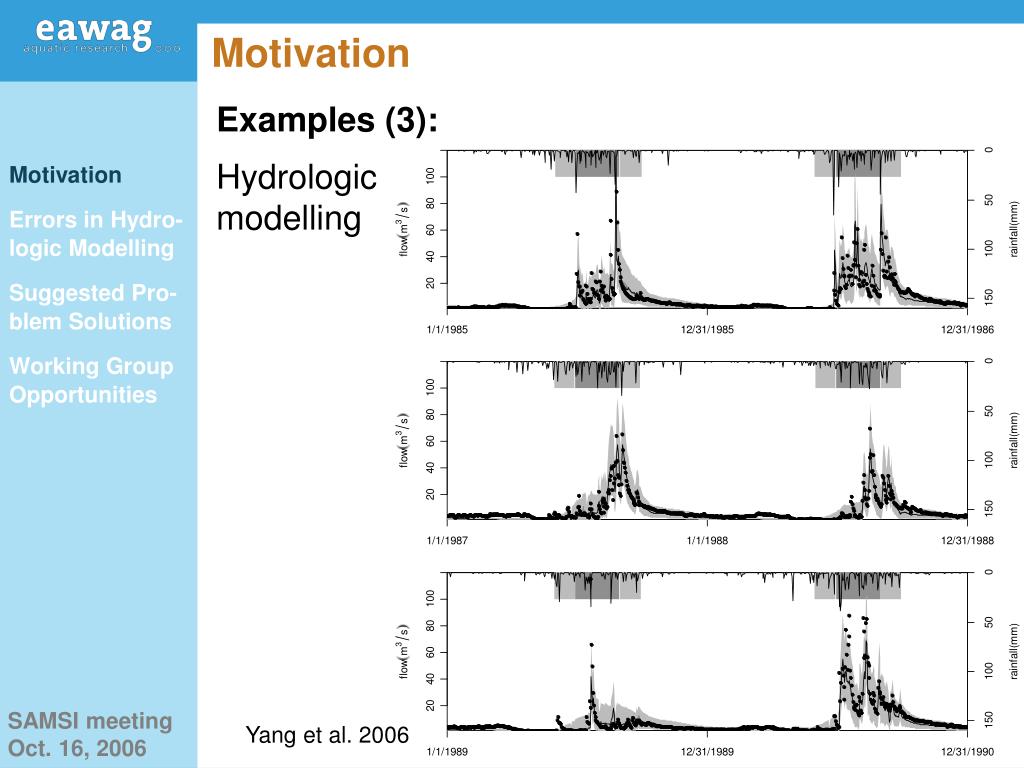

  7. Motivation Examples (3): Hydrologicmodelling Motivation Errors in Hydro-logic Modelling Suggested Pro-blem Solutions Working GroupOpportunities Yang et al. 2006

  8. Motivation Cause of the Problem and Challenges: The cause of this problem is not the inadequatemodel of the measurement process, but the neglection of input and model structure errors that are propagated through the model and dominate prediction uncertainty. Both input and model structure errors lead to very similar pattern in the residuals. The challenges are Motivation Errors in Hydro-logic Modelling Suggested Pro-blem Solutions Working GroupOpportunities • to find good statistical descriptions of the random contributions of both error sources, • to find procedures to support finding model structure improvements, and • to separate the two error contributions.

  9. Motivation Universality of the Problem: This problem is typical for nearly all fields of dynamic modelling in the environmental sciences. The causes and techniques for problem analysis can be expected to be the same for different application areas, despite application-field specific interpretations and identified error models. Motivation Errors in Hydro-logic Modelling Suggested Pro-blem Solutions Working GroupOpportunities

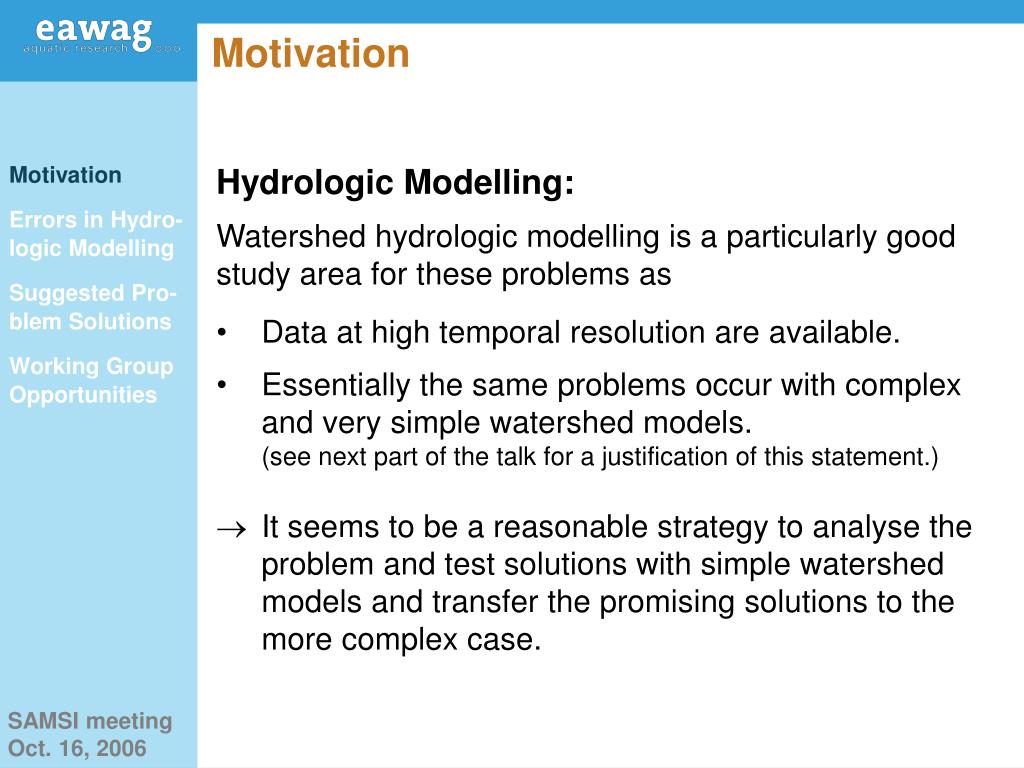

  10. Motivation Hydrologic Modelling: Watershed hydrologic modelling is a particularly good study area for these problems as Motivation Errors in Hydro-logic Modelling Suggested Pro-blem Solutions Working GroupOpportunities • Data at high temporal resolution are available. • Essentially the same problems occur with complex and very simple watershed models.(see next part of the talk for a justification of this statement.)  It seems to be a reasonable strategy to analyse the problem and test solutions with simple watershed models and transfer the promising solutions to the more complex case.

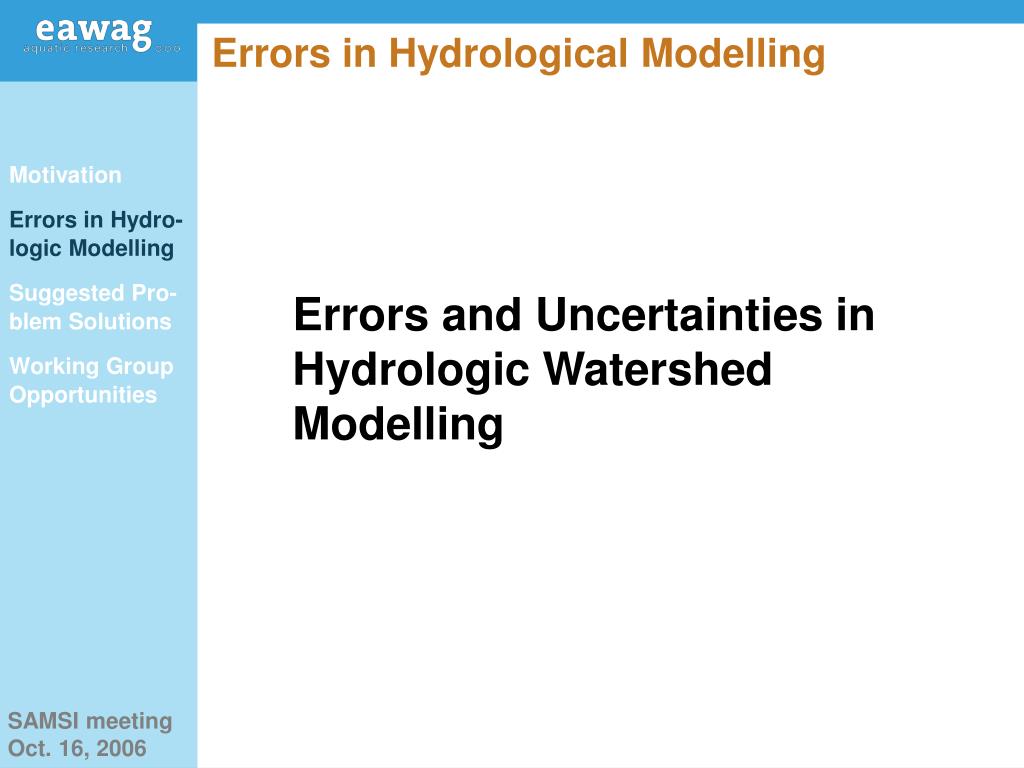

  11. Errors in Hydrological Modelling Motivation Errors in Hydro-logic Modelling Suggested Pro-blem Solutions Working GroupOpportunities Errors and Uncertainties in Hydrologic Watershed Modelling

  12. Errors and Uncertainties in Hydrologic Watershed Modelling • Overview of Hydrologic Processes • A Simple Hydrologic Watershed Model • More Complex Watershed Models • Sources of Error in Watershed Modelling Motivation Errors in Hydro-logic Modelling Suggested Pro-blem Solutions Working GroupOpportunities

  13. Errors in Hydrologic Modelling Overview of Hydrologic Processes The water balance in a watershed is affected by: • rainfall, • runoff, • infiltration into the soil, • evapotranspiration, • transport through the soil (vertically and laterally), • transport to shallow ground water, • lateral transport in ground water, • transport to deep ground water, • exfiltration from soil and groundwater to surface water, • transport in surface water. Motivation Errors in Hydro-logic Modelling Suggested Pro-blem Solutions Working GroupOpportunities

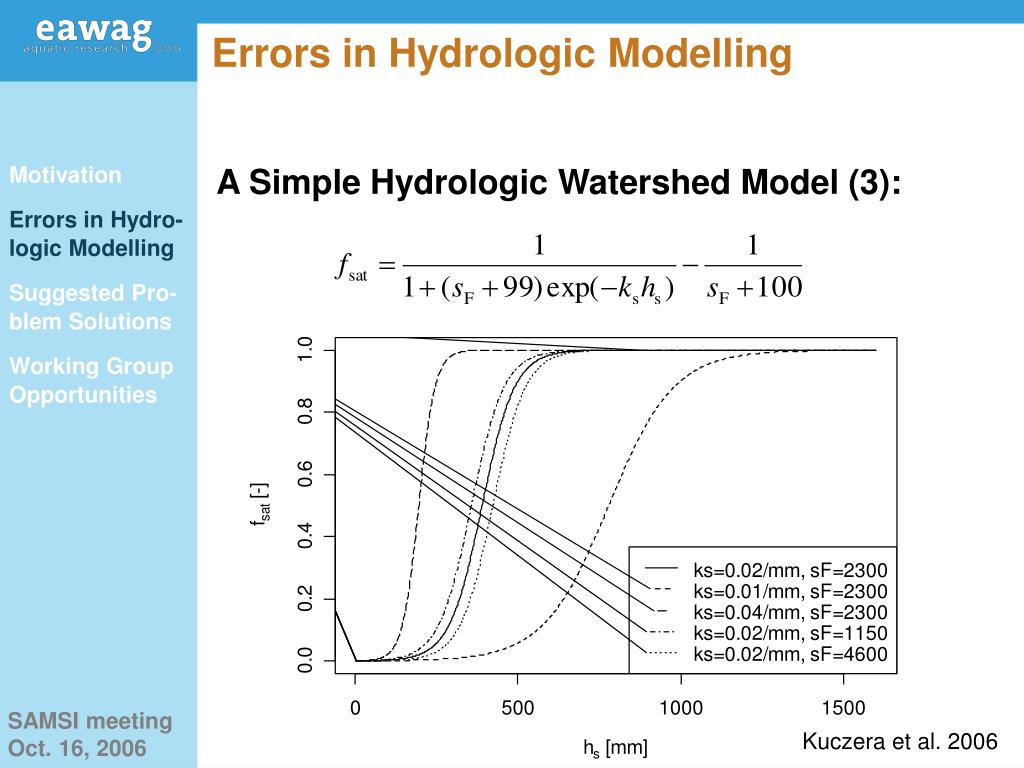

  14. Errors in Hydrologic Modelling A Simple Hydrologic Watershed Model (1): Motivation Errors in Hydro-logic Modelling Suggested Pro-blem Solutions Working GroupOpportunities Kuczera et al. 2006

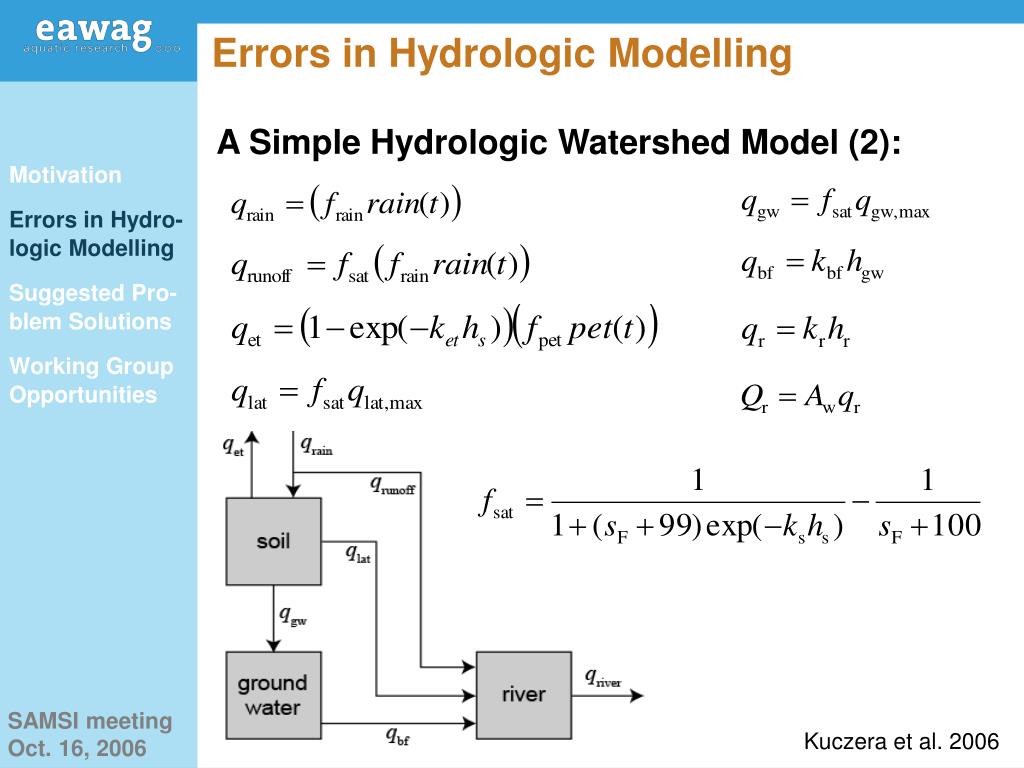

  15. Errors in Hydrologic Modelling A Simple Hydrologic Watershed Model (2): Motivation Errors in Hydro-logic Modelling Suggested Pro-blem Solutions Working GroupOpportunities Kuczera et al. 2006

  16. Errors in Hydrologic Modelling A Simple Hydrologic Watershed Model (3): Motivation Errors in Hydro-logic Modelling Suggested Pro-blem Solutions Working GroupOpportunities Kuczera et al. 2006

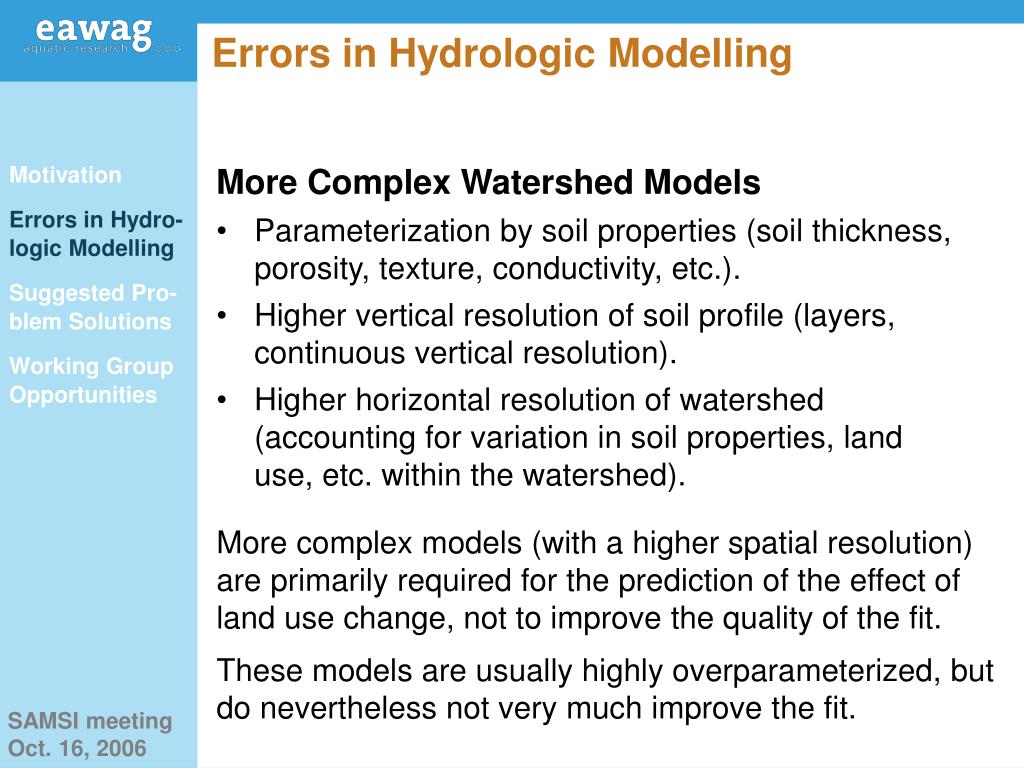

  17. Errors in Hydrologic Modelling More Complex Watershed Models • Parameterization by soil properties (soil thickness, porosity, texture, conductivity, etc.). • Higher vertical resolution of soil profile (layers, continuous vertical resolution). • Higher horizontal resolution of watershed (accounting for variation in soil properties, land use, etc. within the watershed). Motivation Errors in Hydro-logic Modelling Suggested Pro-blem Solutions Working GroupOpportunities More complex models (with a higher spatial resolution) are primarily required for the prediction of the effect of land use change, not to improve the quality of the fit. These models are usually highly overparameterized, but do nevertheless not very much improve the fit.

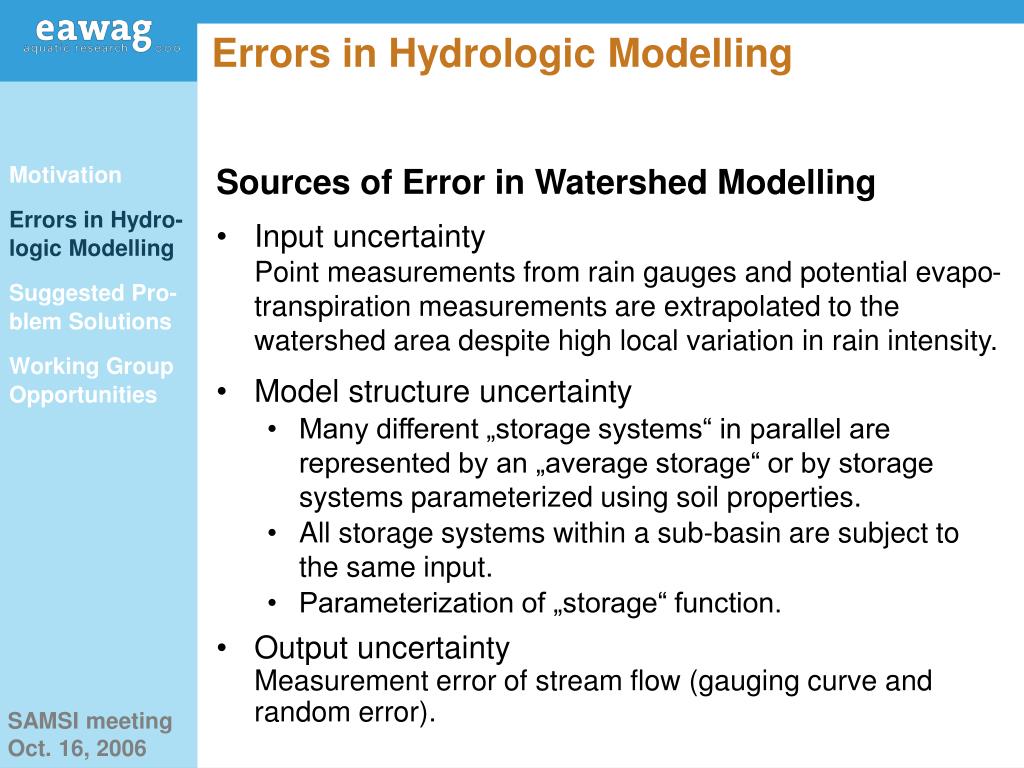

  18. Errors in Hydrologic Modelling Sources of Error in Watershed Modelling • Input uncertaintyPoint measurements from rain gauges and potential evapo-transpiration measurements are extrapolated to the watershed area despite high local variation in rain intensity. • Model structure uncertainty • Many different „storage systems“ in parallel are represented by an „average storage“ or by storage systems parameterized using soil properties. • All storage systems within a sub-basin are subject to the same input. • Parameterization of „storage“ function. • Output uncertaintyMeasurement error of stream flow (gauging curve and random error). Motivation Errors in Hydro-logic Modelling Suggested Pro-blem Solutions Working GroupOpportunities

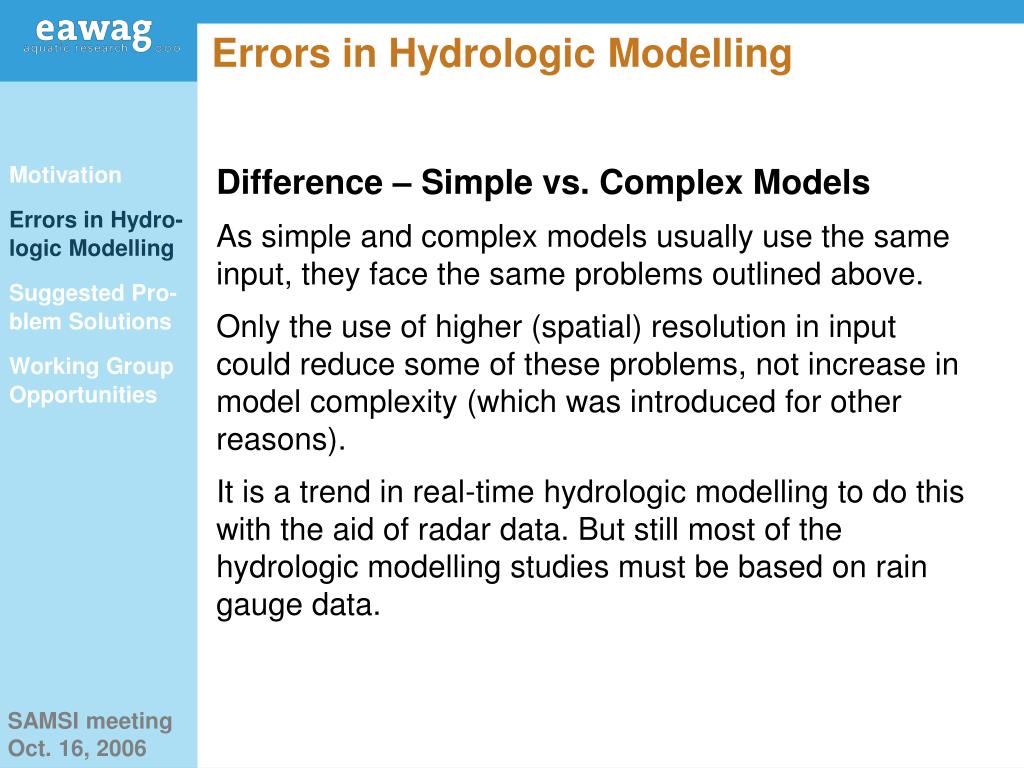

  19. Errors in Hydrologic Modelling Difference – Simple vs. Complex Models As simple and complex models usually use the same input, they face the same problems outlined above. Only the use of higher (spatial) resolution in input could reduce some of these problems, not increase in model complexity (which was introduced for other reasons). It is a trend in real-time hydrologic modelling to do this with the aid of radar data. But still most of the hydrologic modelling studies must be based on rain gauge data. Motivation Errors in Hydro-logic Modelling Suggested Pro-blem Solutions Working GroupOpportunities

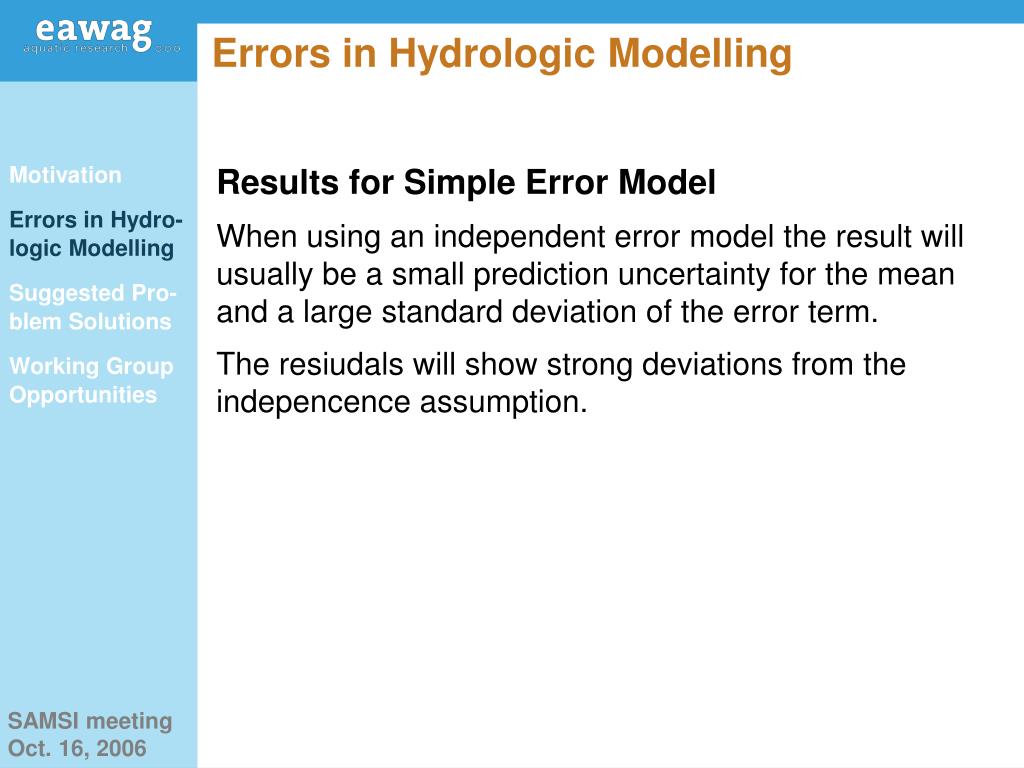

  20. Errors in Hydrologic Modelling Results for Simple Error Model When using an independent error model the result will usually be a small prediction uncertainty for the mean and a large standard deviation of the error term. The resiudals will show strong deviations from the indepencence assumption. Motivation Errors in Hydro-logic Modelling Suggested Pro-blem Solutions Working GroupOpportunities

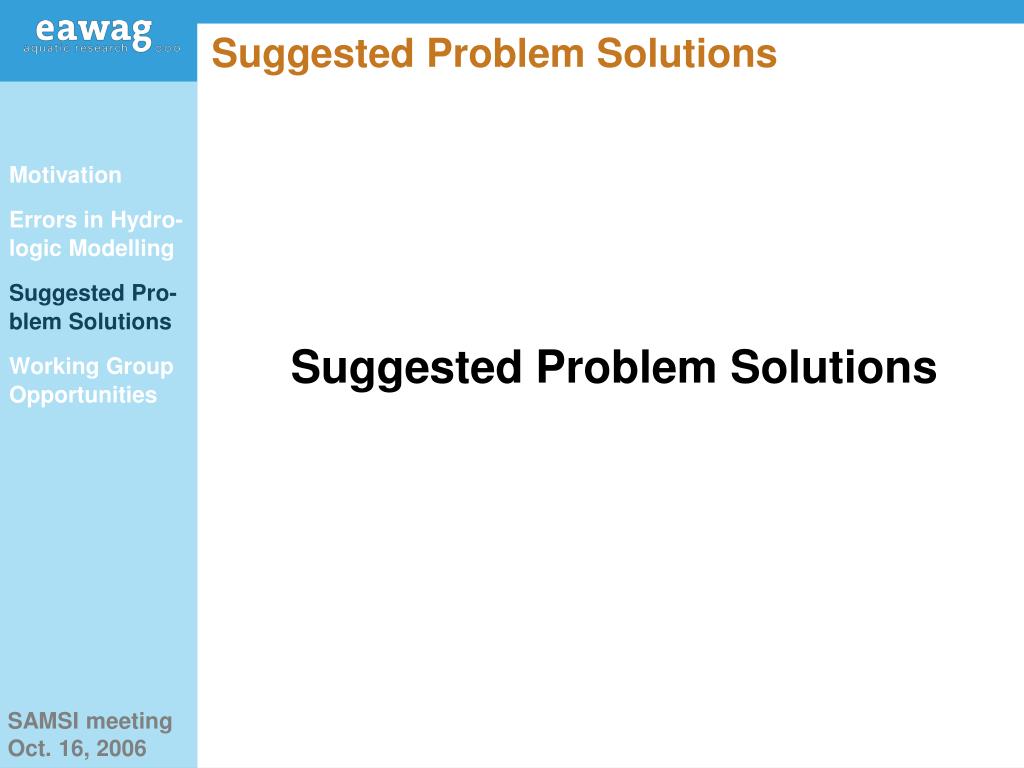

  21. Suggested Problem Solutions Motivation Errors in Hydro-logic Modelling Suggested Pro-blem Solutions Working GroupOpportunities Suggested Problem Solutions

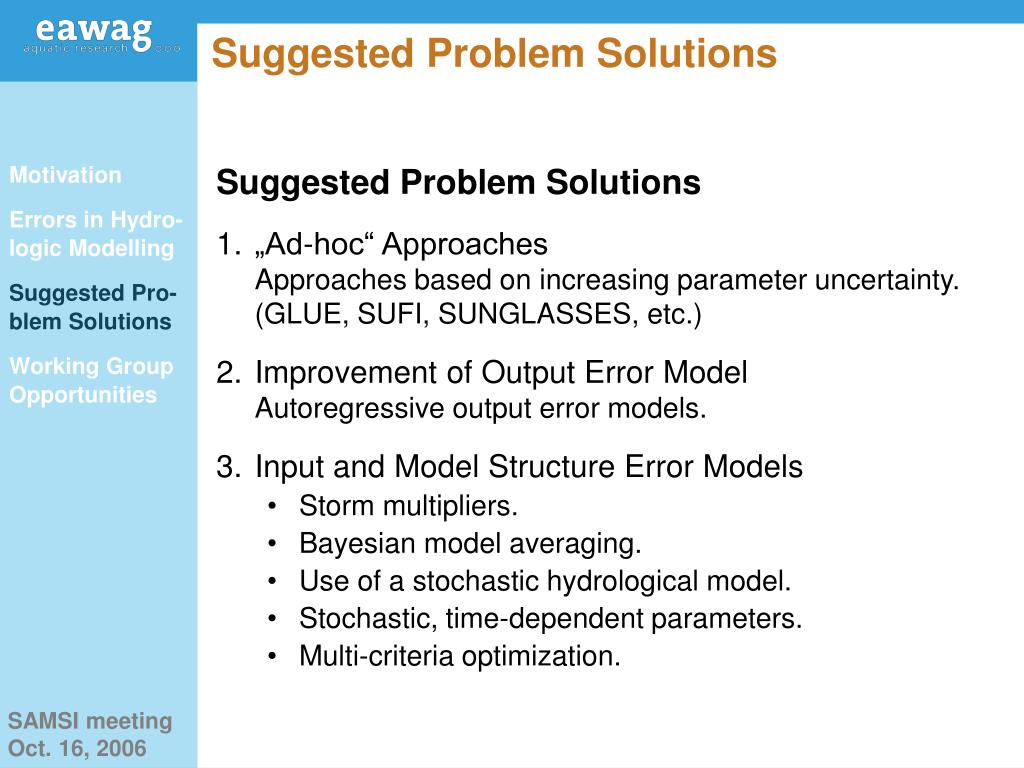

  22. Suggested Problem Solutions Suggested Problem Solutions • „Ad-hoc“ ApproachesApproaches based on increasing parameter uncertainty.(GLUE, SUFI, SUNGLASSES, etc.) • Improvement of Output Error ModelAutoregressive output error models. • Input and Model Structure Error Models • Storm multipliers. • Bayesian model averaging. • Use of a stochastic hydrological model. • Stochastic, time-dependent parameters. • Multi-criteria optimization. Motivation Errors in Hydro-logic Modelling Suggested Pro-blem Solutions Working GroupOpportunities

  23. Suggested Problem Solutions 1. „Ad-hoc“ Approaches Approaches such as GLUE, SUFI, SUNGLASSES, etc. increase parameter uncertainty to cover most of the observations with a prediction uncertainty band. This is either done by introducing a „generalized“ likelihood function, the values of which are normalized and then interpreted as probabilities or by „ad-hoc“ selection of parameter subsets that lead to an adequate coverage of observations. Despite the poor statistical foundation, such techniques are quite popular in hydrology.  This is not the approach I would like to follow in the working group. Motivation Errors in Hydro-logic Modelling Suggested Pro-blem Solutions Working GroupOpportunities

  24. Suggested Problem Solutions 2. Improvement of Output Error Model Use of an autoregressive error model instead of the independent error model. This approach is quite successful in the fulfilment of statistical assumptions (see example). However, it describes only the effect and not the cause of the errors and may lead to „statistical description“ of „physical phenomena“ (description of recession curves from „storages“ by the auto-regressive error model).  This is a nice intermediate step, but the effort must be on a description of the actual error sources. Motivation Errors in Hydro-logic Modelling Suggested Pro-blem Solutions Working GroupOpportunities

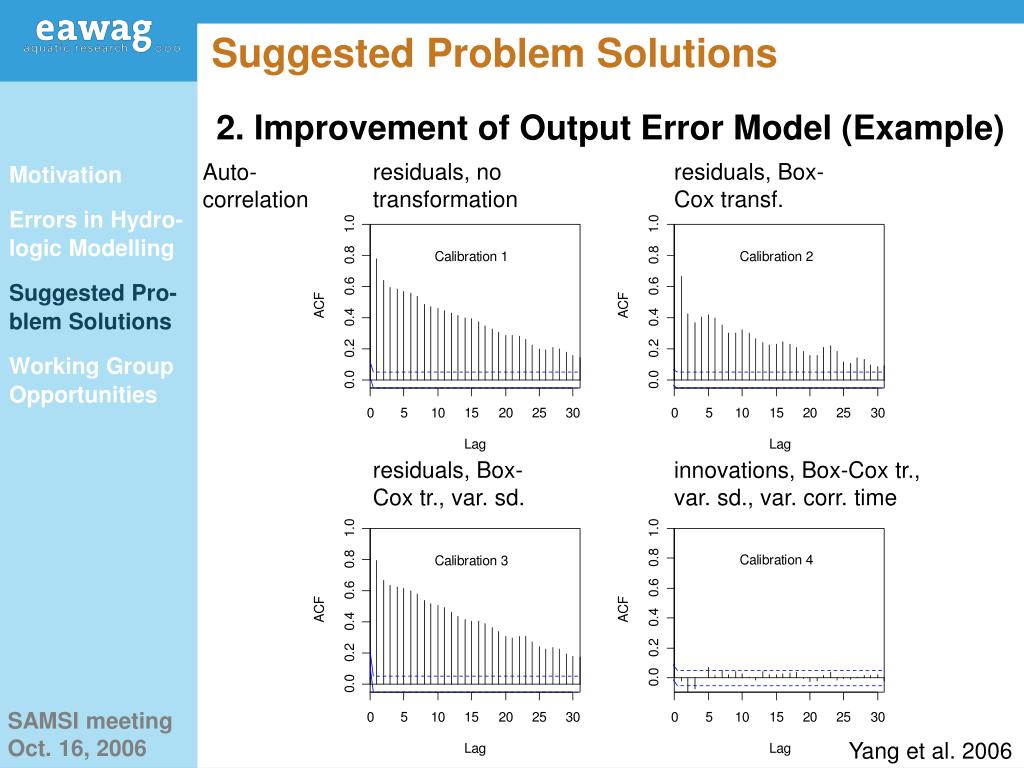

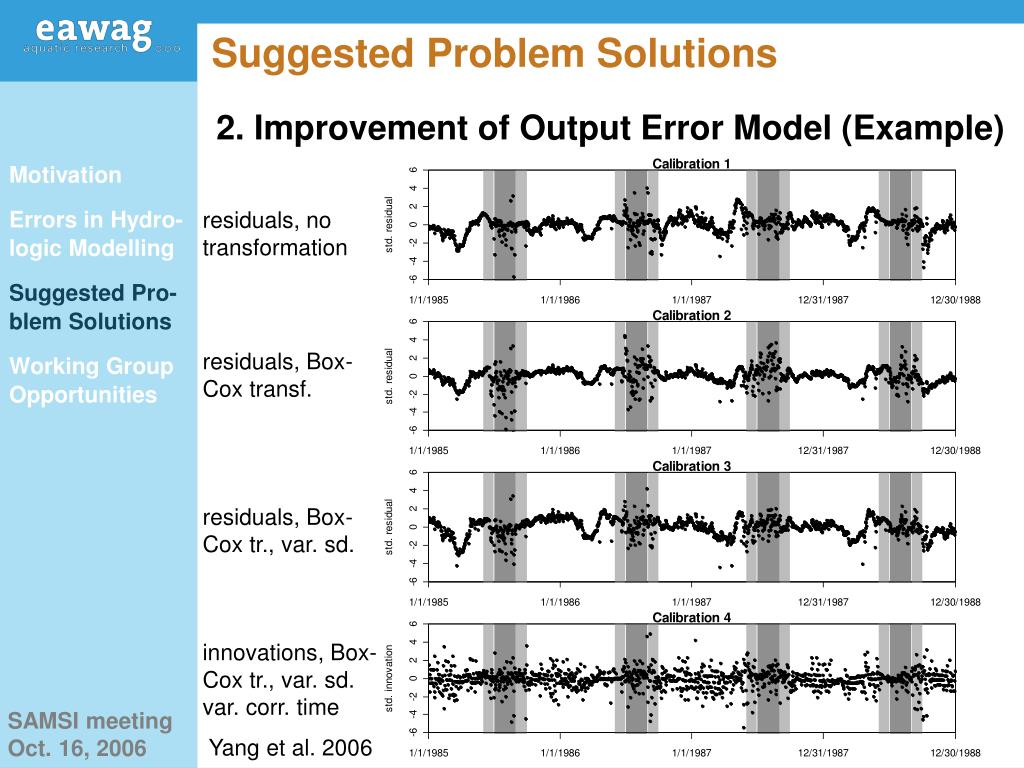

  25. Suggested Problem Solutions 2. Improvement of Output Error Model (Example) Motivation Errors in Hydro-logic Modelling Suggested Pro-blem Solutions Working GroupOpportunities residuals, no transformation residuals, Box-Cox transf. residuals, Box-Cox tr., var. sd. innovations, Box-Cox tr., var. sd.var. corr. time Yang et al. 2006

  26. Suggested Problem Solutions 2. Improvement of Output Error Model (Example) residuals, no transformation residuals, Box-Cox transf. Auto-correlation Motivation Errors in Hydro-logic Modelling Suggested Pro-blem Solutions Working GroupOpportunities residuals, Box-Cox tr., var. sd. innovations, Box-Cox tr., var. sd., var. corr. time Yang et al. 2006

  27. Suggested Problem Solutions 3. Input and Model Structure Error Model Only recently better error models have been suggested. The essential elements are that • the high input uncertainty in total rainfall and potential evapotranspiration over the watershed must be considered explicitly, • a deterministic description is not adequate due to stochastic distribution of input over the watershed („the different storage systems“), • model structure (systematic) errors must be distinguished from random errors.  It would be an interesting SAMSI activity to discuss how to best do this and compare results of different approaches. Motivation Errors in Hydro-logic Modelling Suggested Pro-blem Solutions Working GroupOpportunities

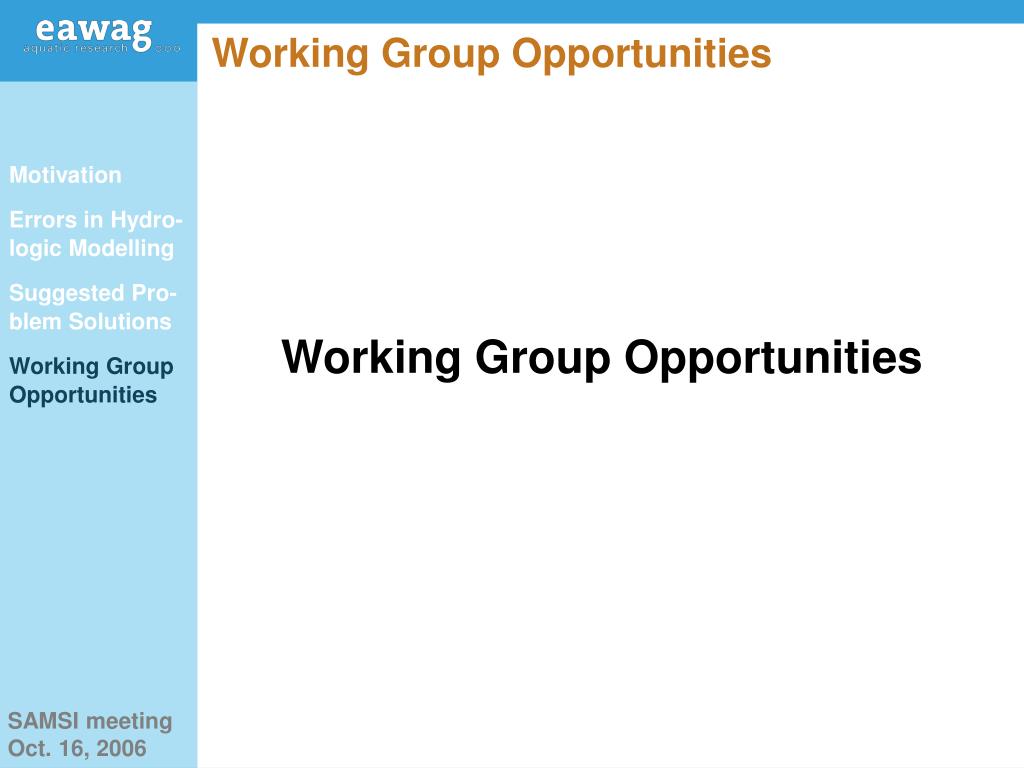

  28. Working Group Opportunities Motivation Errors in Hydro-logic Modelling Suggested Pro-blem Solutions Working GroupOpportunities Working Group Opportunities

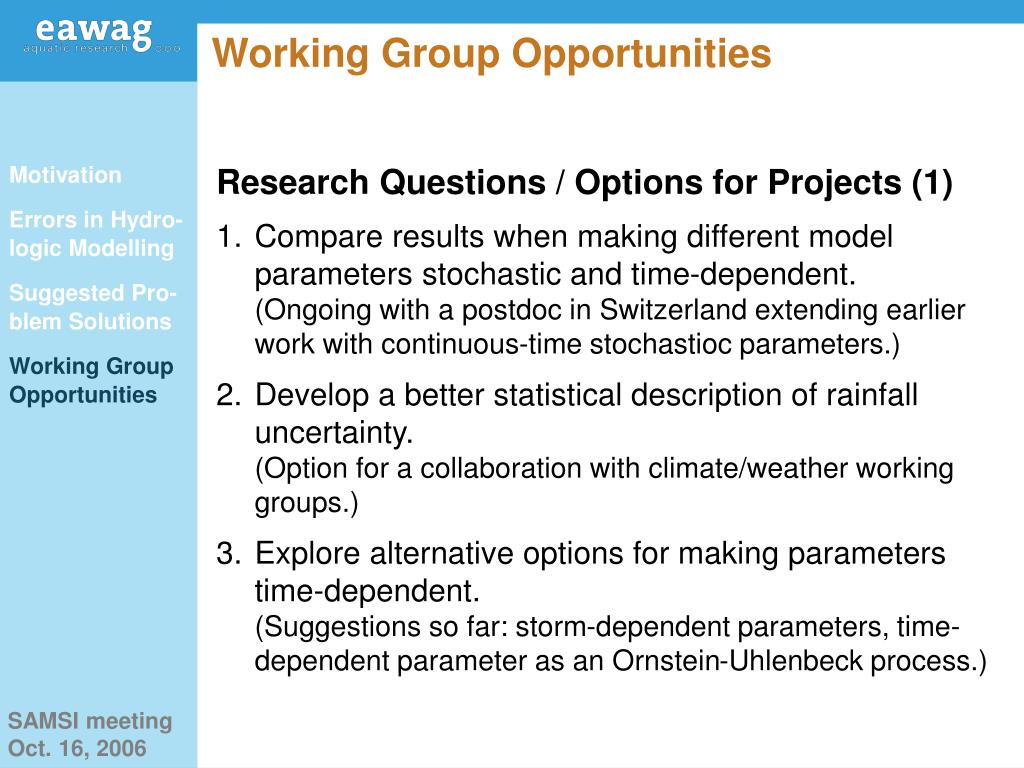

  29. Working Group Opportunities Research Questions / Options for Projects (1) • Compare results when making different model parameters stochastic and time-dependent. (Ongoing with a postdoc in Switzerland extending earlier work with continuous-time stochastioc parameters.) • Develop a better statistical description of rainfall uncertainty.(Option for a collaboration with climate/weather working groups.) • Explore alternative options for making parameters time-dependent.(Suggestions so far: storm-dependent parameters, time-dependent parameter as an Ornstein-Uhlenbeck process.) Motivation Errors in Hydro-logic Modelling Suggested Pro-blem Solutions Working GroupOpportunities

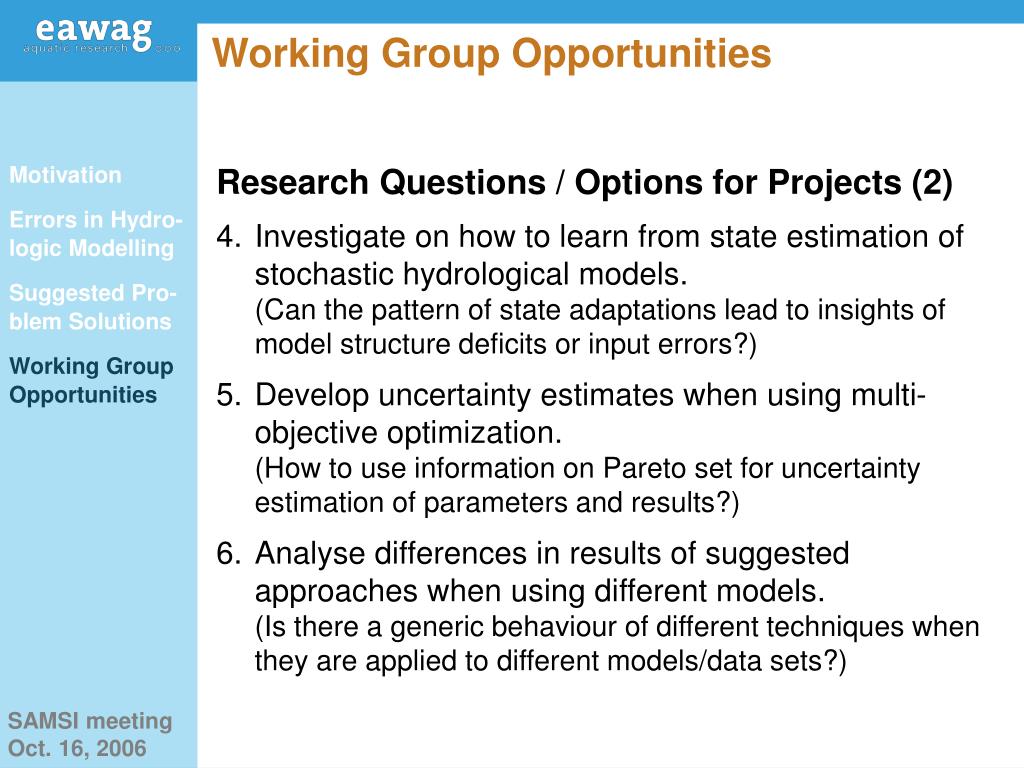

  30. Working Group Opportunities Research Questions / Options for Projects (2) • Investigate on how to learn from state estimation of stochastic hydrological models.(Can the pattern of state adaptations lead to insights of model structure deficits or input errors?) • Develop uncertainty estimates when using multi-objective optimization.(How to use information on Pareto set for uncertainty estimation of parameters and results?) • Analyse differences in results of suggested approaches when using different models.(Is there a generic behaviour of different techniques when they are applied to different models/data sets?) Motivation Errors in Hydro-logic Modelling Suggested Pro-blem Solutions Working GroupOpportunities

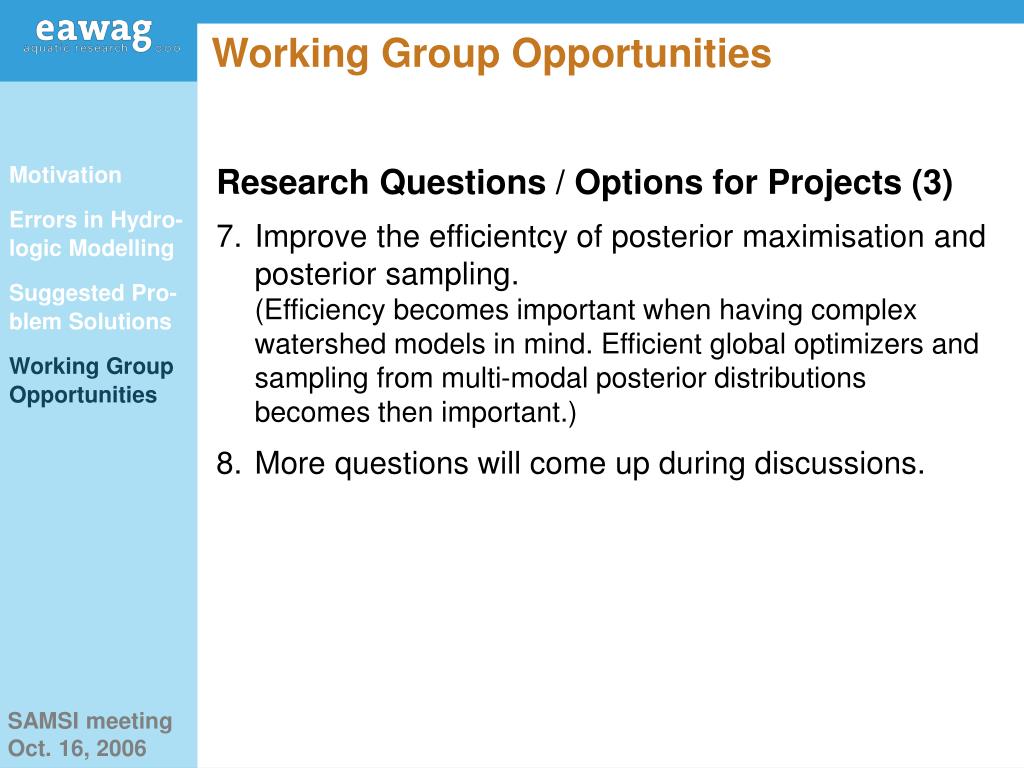

  31. Working Group Opportunities Research Questions / Options for Projects (3) • Improve the efficientcy of posterior maximisation and posterior sampling.(Efficiency becomes important when having complex watershed models in mind. Efficient global optimizers and sampling from multi-modal posterior distributions becomes then important.) • More questions will come up during discussions. Motivation Errors in Hydro-logic Modelling Suggested Pro-blem Solutions Working GroupOpportunities

  32. Working Group Opportunities Practical Considerations • State estimation of time-dependent OU-parameters as well as the simple hydrological model are implemented in the UNCSIM package by PR.This package also provides a simple interface to complex hydrological models. • Jasper Vrugt (LANL) can provide implementations of several simple hydrological models and analysis techniques in Matlab. • The simple hydrological models can also easily be implemented in any other computing environment. Motivation Errors in Hydro-logic Modelling Suggested Pro-blem Solutions Working GroupOpportunities

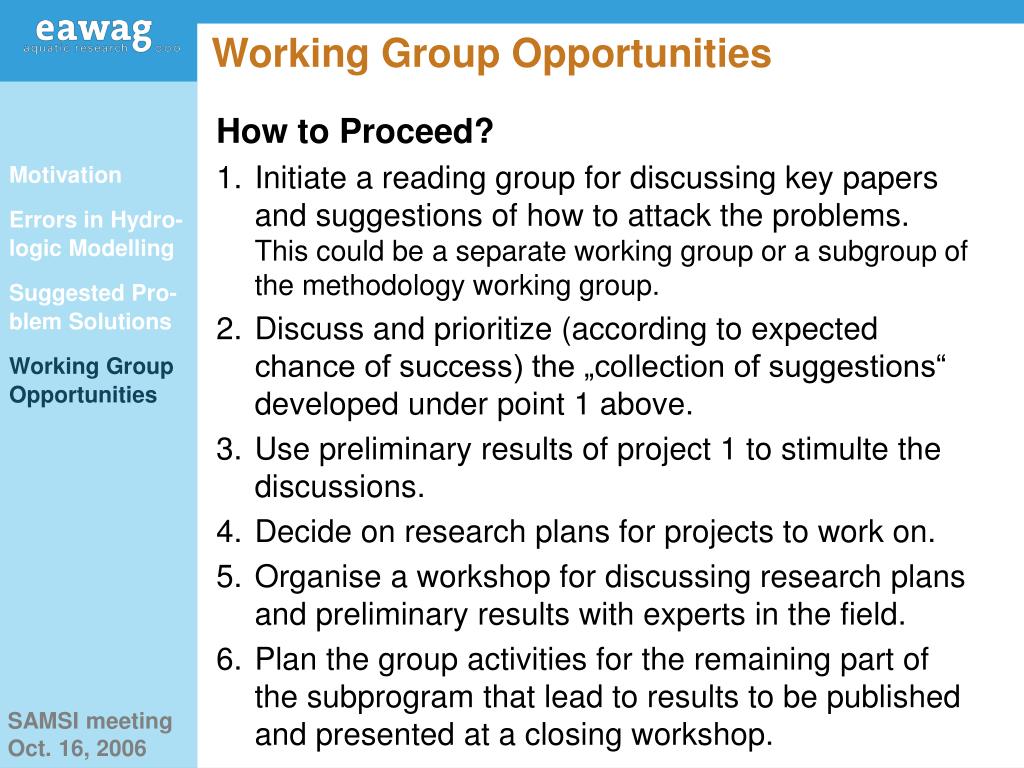

  33. Working Group Opportunities How to Proceed? • Initiate a reading group for discussing key papers and suggestions of how to attack the problems.This could be a separate working group or a subgroup of the methodology working group. • Discuss and prioritize (according to expected chance of success) the „collection of suggestions“ developed under point 1 above. • Use preliminary results of project 1 to stimulte the discussions. • Decide on research plans for projects to work on. • Organise a workshop for discussing research plans and preliminary results with experts in the field. • Plan the group activities for the remaining part of the subprogram that lead to results to be published and presented at a closing workshop. Motivation Errors in Hydro-logic Modelling Suggested Pro-blem Solutions Working GroupOpportunities

  34. Thank you for your attention
