  1. Arch 330 Thermal & Moisture Protection Roofing Systems

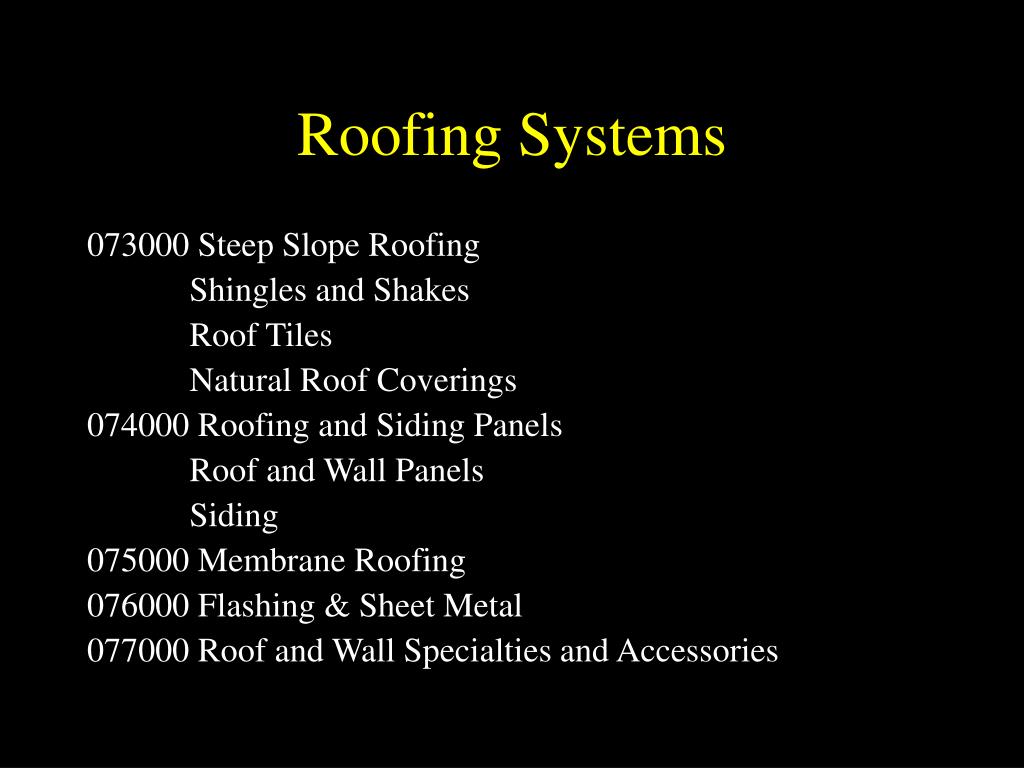

  2. Roofing Systems 073000 Steep Slope Roofing Shingles and Shakes Roof Tiles Natural Roof Coverings 074000 Roofing and Siding Panels Roof and Wall Panels Siding 075000 Membrane Roofing 076000 Flashing & Sheet Metal 077000 Roof and Wall Specialties and Accessories

  3. Division 7 078000 Fire and Smoke Protection 079000 Joint Protection Joint Sealants and Expansion Control

  4. Low Slope - Disadvantages • water drains slowly • standing water can cause deterioration • structural movement - tear the membrane.

  5. Low Slope - Advantages • can cover building of any horz. dimension can serve as • balconies, decks, patios, landscaped gardens.

  6. Item Spotted: Flat roof Observations: This is not a good roof design for wet climates. There is constantly puddles of water on the top of this roof. Location: PEB, WSU Campus Name: Kallen Hawthorne ID# 10596914

  7. Steep Slope • drains quickly • can be covered with roofing material of small overlapping units - shingles of wood - slate - artificial composition - tiles of fired clay or concrete - bundles of reeds (thatch).

  8. Steep Slope • Thermal expansion / contraction minimized • Movement in structure is minimized - by the ability of small units to move with - respect to one another. • Water vapor vents from the interior through the loose joints in the roofing material.

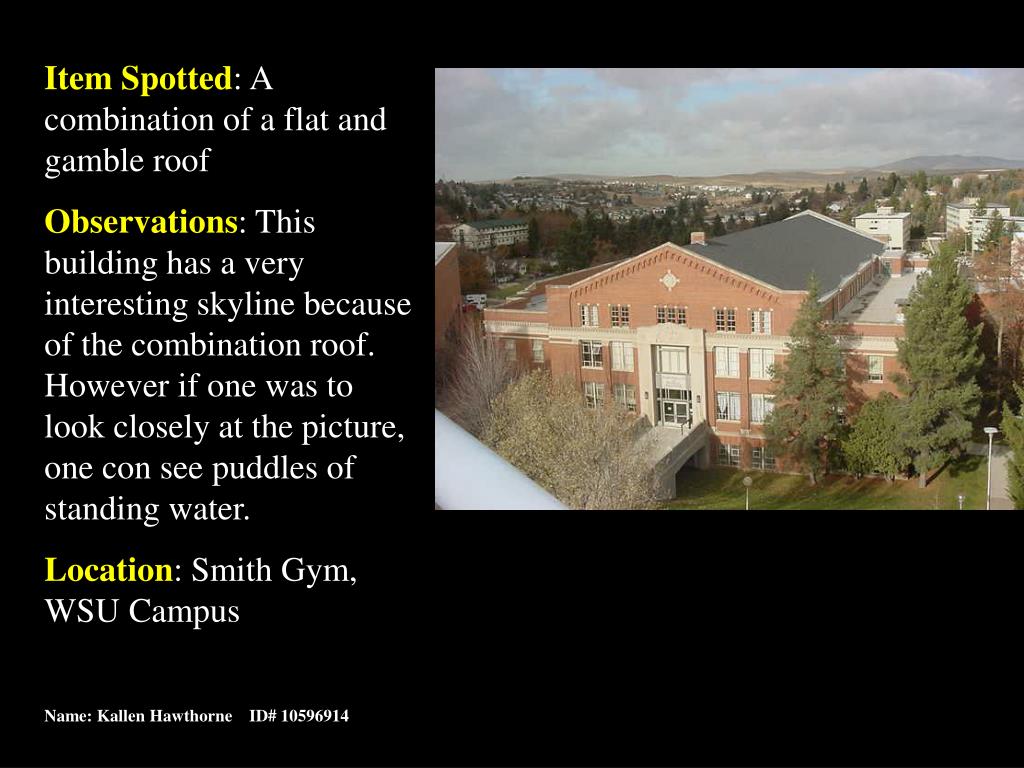

  9. Item Spotted: A combination of a flat and gamble roof Observations: This building has a very interesting skyline because of the combination roof. However if one was to look closely at the picture, one con see puddles of standing water. Location: Smith Gym, WSU Campus Name: Kallen Hawthorne ID# 10596914

  10. LOW SLOPE ROOF(not FLAT) < 3:12 pitch • Min Slope   • 1/8” per 1’-0” or 1:100 • 1/4” per 1’-0” or 1:50

  11. Low < 3:12 pitch 12 3 1/4

  12. Roof Slope • Slope Roof to direct water towards drainage points - counter-acting structural deflection. • Depending on size of deck expansion joints should be provided to - control expansion and contraction and - satisfy requirements of membrane. • Membrane should be laid on flat surface.

  13. FLAT ROOF - COMPONENTS  • DECK • THERMAL INSULATION • VAPOR RETARDER • MEMBRANE • FLASHINGS • DRAINAGE COMPONENTS

  14. Deck:Types of structural deck used for low slope roof • Plywood over wood joists • Solid wood decking over heavy timber framing • Corrugated steel decking • Panels of wood fiber bonded together with portland cement • Poured gypsum over insulating formboard • Sitecast concrete and precast concrete

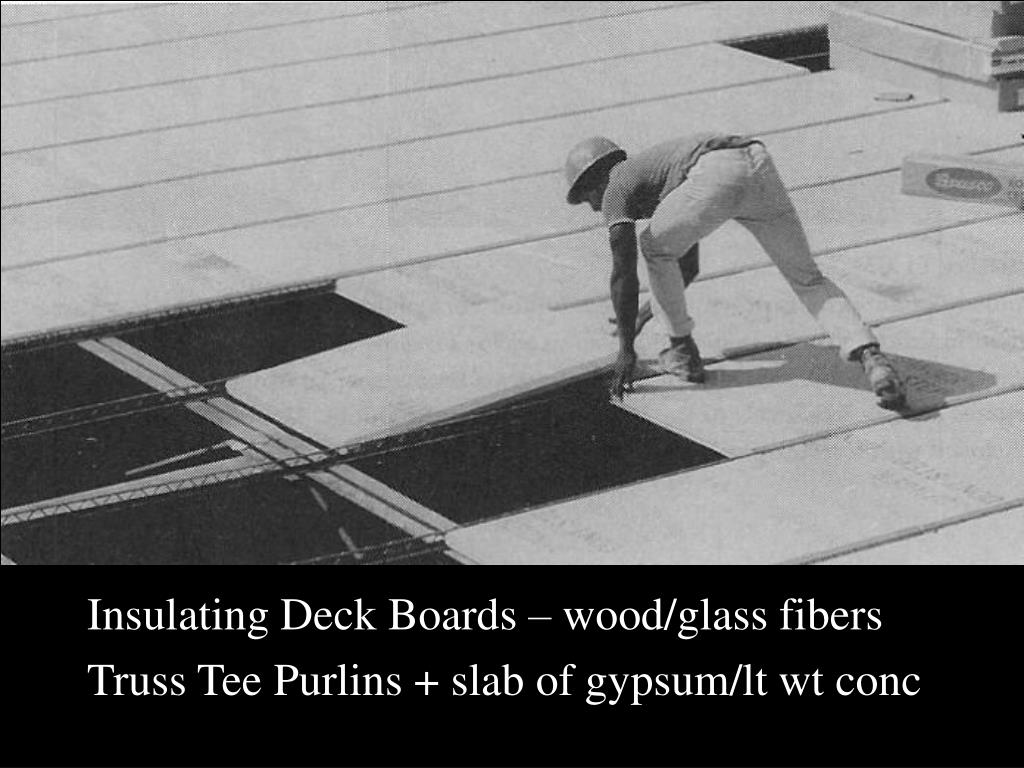

  15. Insulating Deck Boards – wood/glass fibers Truss Tee Purlins + slab of gypsum/lt wt conc

  16. Thermal Insulation • Below the Deck • Between Deck + Membrane • Above the Membrane

  17. Thermal Insulation: Below the Deck • Leaves the deck and membrane exposed to full range of temperature. • Batt insulation of glass fiber or mineral fiber between wood joists - or on top of a suspended ceiling assembly. • Vapor retarder below insulation** (Vapor retarder on warm side of insulation)

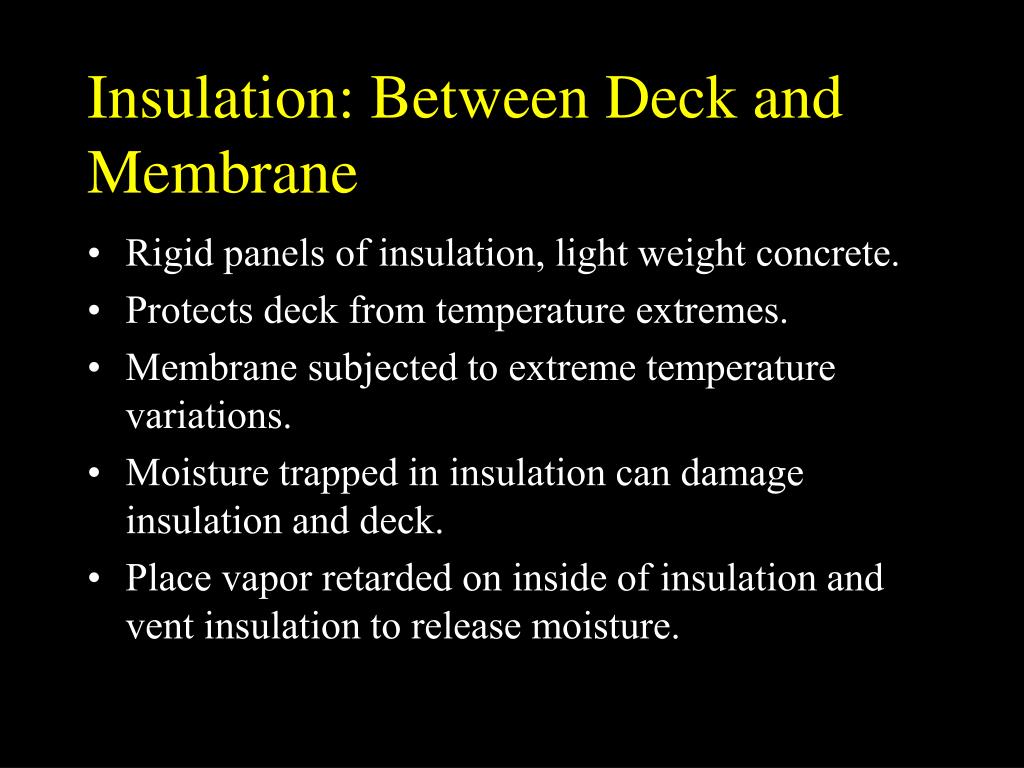

  18. Insulation: Between Deck and Membrane • Rigid panels of insulation, light weight concrete. • Protects deck from temperature extremes. • Membrane subjected to extreme temperature variations. • Moisture trapped in insulation can damage insulation and deck. • Place vapor retarded on inside of insulation and vent insulation to release moisture.

  19. Insulation: Above the Membrane • Membrane protected - extremes of temperature. • Membrane on warm side of insulation - immune to vapor blistering. • Insulation must be a material which is not effected by wet and will not disintegrate - extruded polystyrene board • Insulation board adhered in bed of hot asphalt or laid loose. • Layer of ballast laid over insulation.

  20. Insulation: Above the Membrane • Ballast - crushed stone - thin concrete layer factory laminated to upper surface of insulation board - interlocking concrete blocks. • Membrane ages little protected from sunlight and temperature extremes - despite presence of moisture. • Rigid insulation - mechanical fix to deck preferable.

  21. Insulation above the Membrane: Other names for this system • Inverted roof • Upside down roof • Protected membrane roof, +- 20years old

  22. Vapor Retarder • 2 sheets asphalt saturated roofing felt • In cold climate on warm side of insulation.** • In hot humid climate/with air conditioning - on outer side of insulation**

  23. Membrane • Built up roof membrane • Single-ply roof membrane • Fluid-applied roof membrane

  24. Built-up membrane • 2-4 Layers/ plies of felt asphalt impregnated, bedded in bitumen felt: cellulose fibers/glass fibers +asphalt • Felt laminated in overlapping layers • Layer of aggregate (crushed stone)

  25. Built-Up Membrane • Bitumen - asphalt derived • For low pitch roofs - coal tar bitumen or coal-tar pitch used- - greater resistance to standing water • Asphalt and coal tar are applied hot

  26. Aggregate • Insulation • Felt • Conc. Deck • Aggregate • Felt • Insulation x 2 • Metal Deck

  27. 4 ply felt + hot asphalt

  28. Single Ply Roof membrane • Single layer • More elastic - less cracking/tearing • Fixing: adhesives, ballast, concealed fasteners, mechanical fasteners. • Protective coating

  29. Single Ply Roof Membrane • EPDM , synthetic rubber (ethylene propylene diene monomer)  • NEOPRENE (polychloroprene) synthetic rubber compound  • PVC (polyvinyl chloride) vinyl - thermoplastic compound

  30. Single-Ply Membrane

  31. Aluminum Faced Single-Ply Membrane

  32. Fluid Applied Membrane • domes, vaults, complex shapes • roller or spray gun, applied • several coats - rubbery membrane.

  33. Built-Up + Single PlyBallast • loose stone aggregate • precast concrete blocks. • Ballast holds the membrane in place against wind uplift • Protects membrane from ultraviolet light and physical wear. • Increase the fire resistance of the roof covering.

  34. Traffic Decks-walks, terraces, parking – on low slope roof • Heavy square paving slabs or stones –open joints on blocks of plastic or conc on roof membrane (b) Open Jointed Paving Blocks on A drainage layer of gravel or porous concrete leveled over the membrane • Water falls through the joints and is drained away by the membrane below • Membrane is not pierced.

  35. Structural Standing Seam Metal Roofing for Low Slope Roofs: • Proprietary systems of standing seam metal roofing • Used as low slope roofs - 1/4" in 12 "(1:48). • The folded shape - stiffness - support itself + a normal snow load between purlins without the need for structural deck below.

  36. Mechanical Fix Through Insulation to Deck below

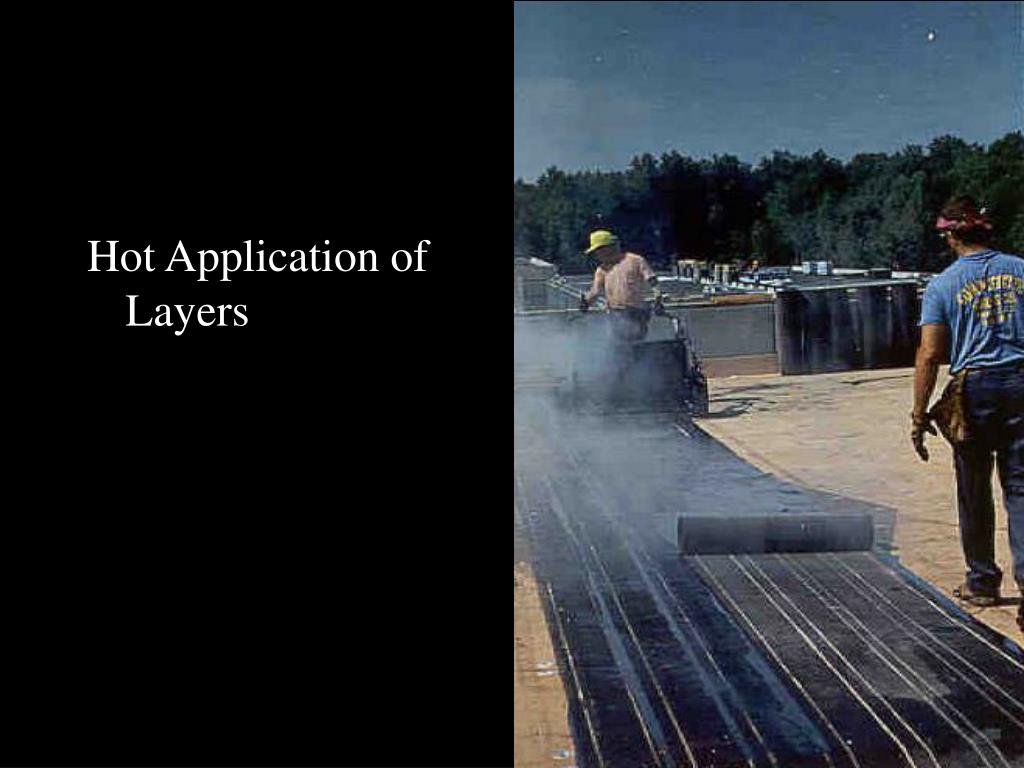

  37. Hot Application of Layers
