  1. Introducing Ethernet/IP(IP stands for Industrial Protocol) Nick Jones and William H. (Bill) Moss 6th ODVA Annual Meeting Tampa, FL March 8, 2000

  2. I need Ethernet – Why? • Customers Asking for it • Other Vendors are doing it • I think it will be faster, easier and cheaper • I want to use existing wire • I think it will give me better connectivity • I think Ethernet is going to be the Fieldbus winner

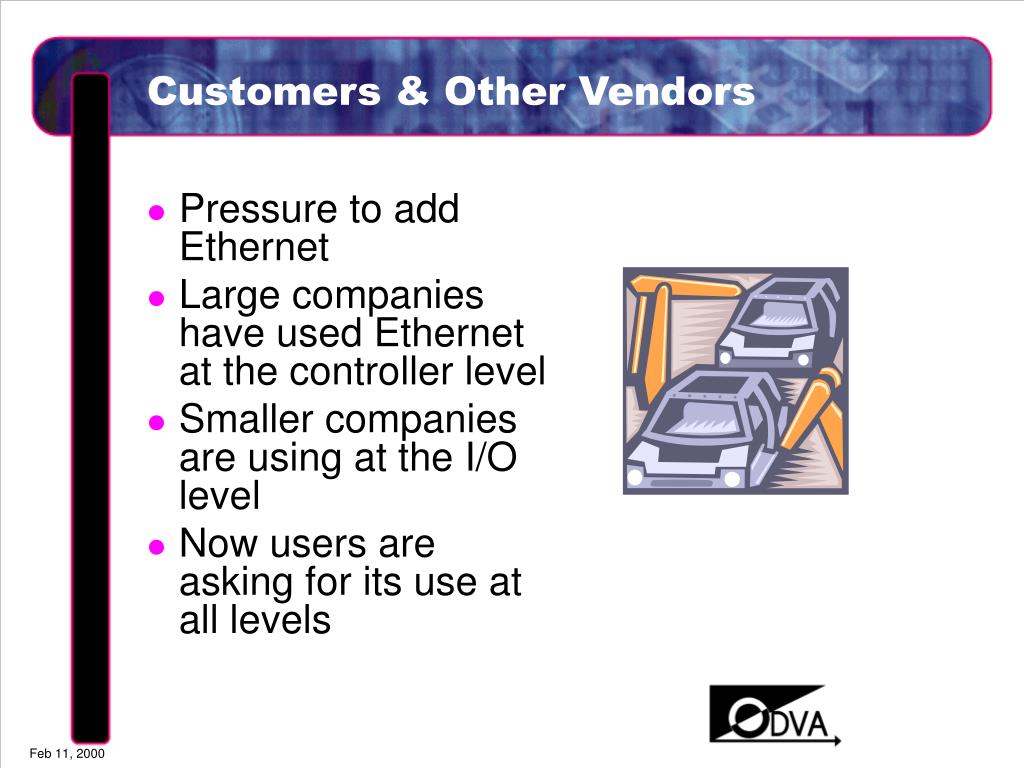

  3. Customers & Other Vendors • Pressure to add Ethernet • Large companies have used Ethernet at the controller level • Smaller companies are using at the I/O level • Now users are asking for its use at all levels

  4. Some Customer Requirements • Absolutely no changes shall be required to any existing node on DeviceNet to allow accessibility from Ethernet!!! • Should be able to route messages from Ethernet to DeviceNet without making any DeviceNet product changes • Where it make sense, reuse the application layer architecture that already exists in the DeviceNet spec • Reuse the same Application Objects and same Device Profiles • Expand as required to support any new requirements • Need to use Commercial Off The Shelf technology • Use standard Ethernet chip sets • Use standard TCP/ UDP / IP protocol • Allow for operation of other standard TCP/ IP applications like: FTP, HTTP, SNMP, DHCP, BOOTP, DNS, etc.

  5. Device Access Requirements • Require “temporary” access to all devices (“unconnected”) • Access to device resources can’t be permanently “blocked” or held by any one device • Always allow access to devices for intermittent “one-time” services • Devices should always support a non-reserved access point for non-time critical applications • Example: “who”, get attribute, set attribute • Example: The Hotel has a reservation phone line (that is not always busy) to allow room reservations to be made or cancelled • Optionally support “persistent” access to devices (“connected”) • This allows customers to make sure that device resources can be “reserved” or “guaranteed” for important / time critical applications • Example: You can make a “guaranteed” hotel reservation before you board a plane

  6. Encapsulation Requirements • Encapsulation=> To put one protocol inside of another • Typically a higher layer protocol in the data portion of a lower layer • Example: encapsulate a DeviceNet message inside of a TCP/IP packet • Shall be general enough to support delivering both DeviceNet and non-DeviceNet messages over TCP/IP to the appropriate network • Allows connectivity to other “open” networks (e.g.,Modbus) • Allows connectivity to “legacy”, proprietary or other vendor specific networks • Support a set of “common” protocol independent services • Standard way to do a WHO, ping, request/response, etc. • Be able to determine what protocol(s) a device supports • Support vendor specific services • Support both unsolicited and solicited services • Support “common” method for the first hop • Ability to deliver any encapsulated frame to the correct router

  7. Explicit Message Requirements • Need temporary and persistent access to all devices • Need to be able to do upload and download of programming information to devices • Need access to individual parameters within a device • Need to be able to do configuration of HMI, DeviceNet scanners, robots, PLCs, weld controllers, etc • Need to be able to collect data from end devices • Collect status and maintenance information from a drive, valve controller, motion controller, etc. • Needs to support multiple outstanding requests to a device • Needs to support multiple requests to the same device in a single TCP/IP packet

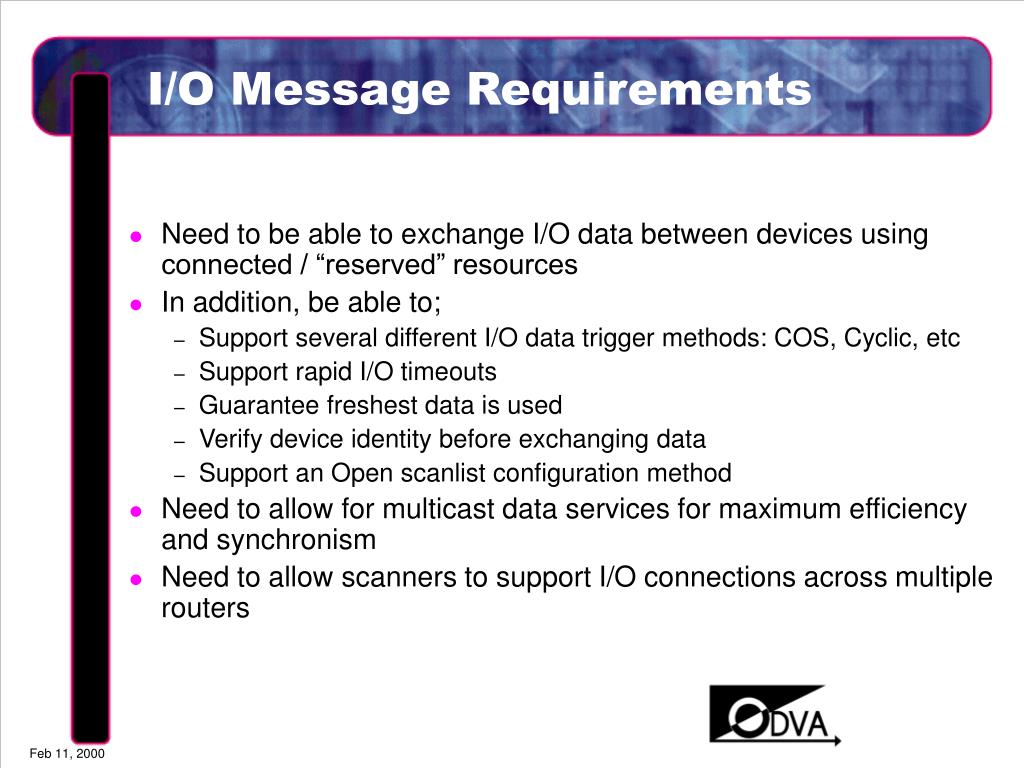

  8. I/O Message Requirements • Need to be able to exchange I/O data between devices using connected / “reserved” resources • In addition, be able to; • Support several different I/O data trigger methods: COS, Cyclic, etc • Support rapid I/O timeouts • Guarantee freshest data is used • Verify device identity before exchanging data • Support an Open scanlist configuration method • Need to allow for multicast data services for maximum efficiency and synchronism • Need to allow scanners to support I/O connections across multiple routers

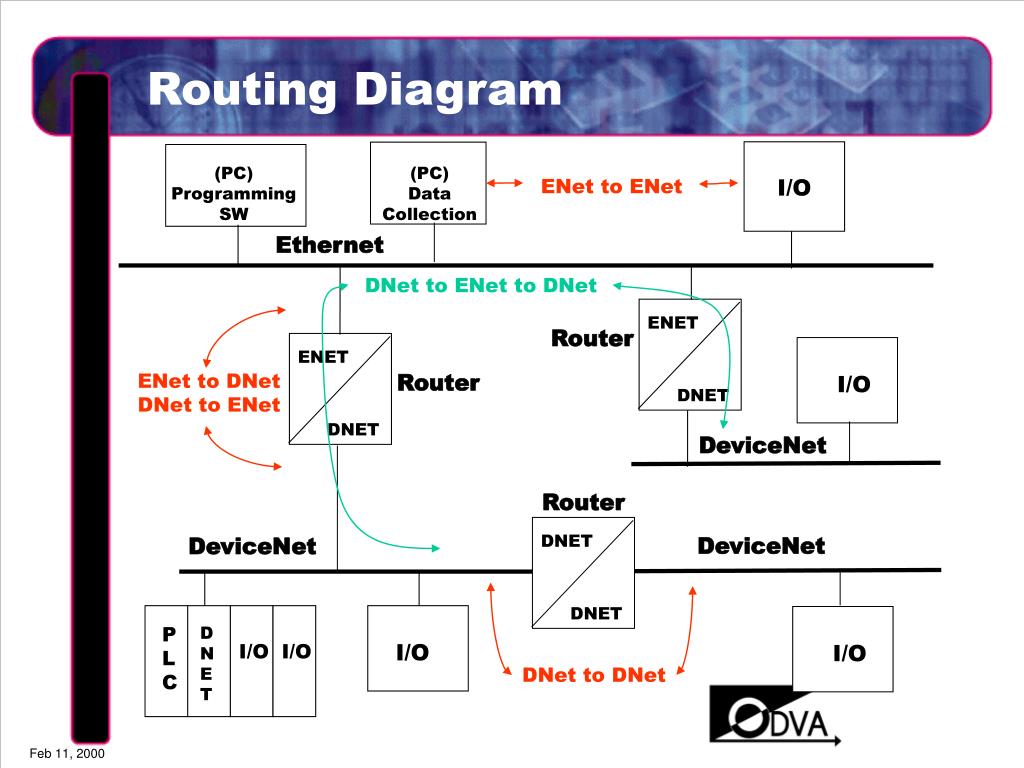

  9. Routing Diagram I/O (PC) Programming SW (PC) Data Collection ENet to ENet Ethernet DNet to ENet to DNet ENET Router ENET • ENet to DNet • DNet to ENet Router I/O DNET DNET DeviceNet Router DNET DeviceNet DeviceNet DNET P L C D N E T I/O I/O I/O I/O DNet to DNet

  10. Routing Requirements • Need to support data “routing” between networks with the application layer • Enet subnet to ENet subnet • ENet to DNet • DNet to ENet • DNet to DNet • DNet to ENet to DNet • Other multi-hop combinations • I/O and Explicit Messaging available with routing • Routing support for alternate protocols • Support “generic” single hop routing for any protocol

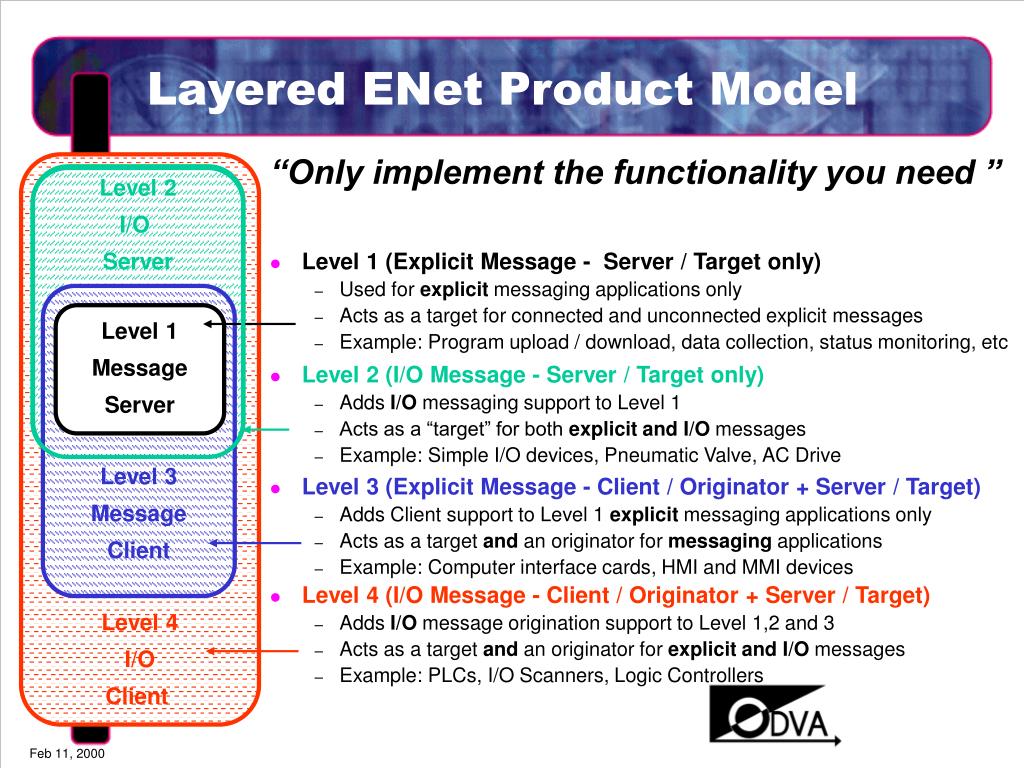

  11. Level 1 (Explicit Message - Server / Target only) • Used for explicit messaging applications only • Acts as a target for connected and unconnected explicit messages • Example: Program upload / download, data collection, status monitoring, etc • Level 2 (I/O Message - Server / Target only) • Adds I/O messaging support to Level 1 • Acts as a “target” for both explicit andI/O messages • Example: Simple I/O devices, Pneumatic Valve, AC Drive • Level 3 (Explicit Message - Client / Originator + Server / Target) • Adds Client support to Level 1 explicit messaging applications only • Acts as a target and an originator for messaging applications • Example: Computer interface cards, HMI and MMI devices Layered ENet Product Model “Only implement the functionality you need ” Level 4 I/O Client Level 2 I/O Server • Level 4 (I/O Message - Client / Originator + Server / Target) • Adds I/O message origination support to Level 1,2 and 3 • Acts as a target and an originator for explicit andI/O messages • Example: PLCs, I/O Scanners, Logic Controllers Level 3 Message Client Level 1 Message Server

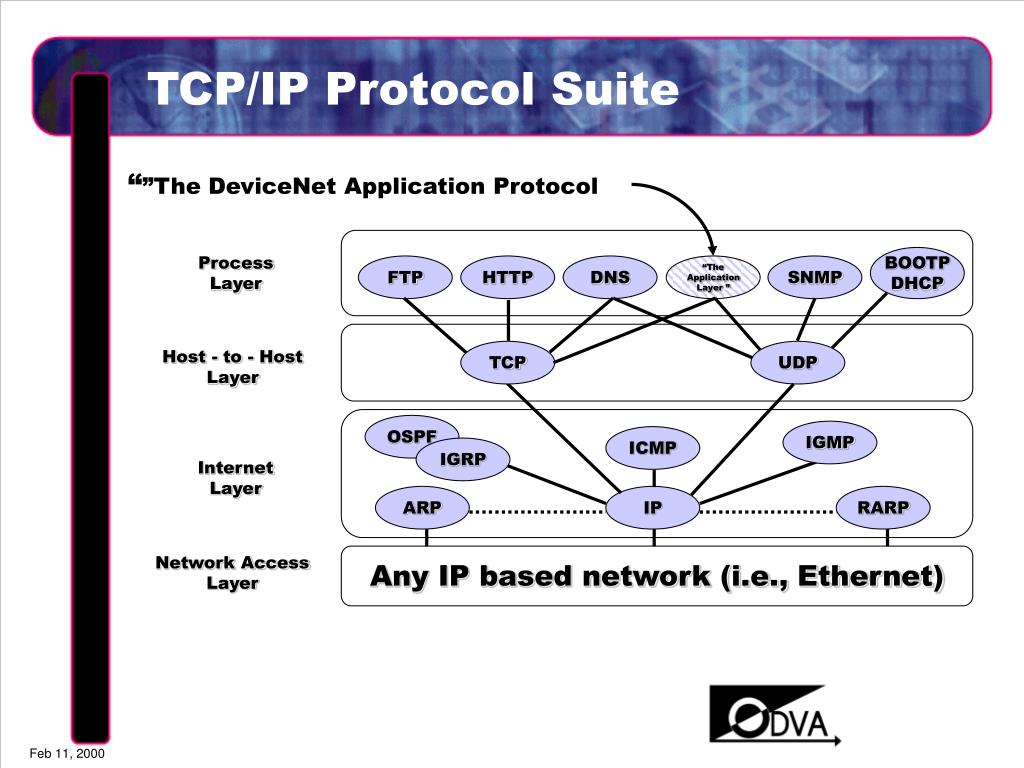

  12. TCP/IP Protocol Suite “”The DeviceNet Application Protocol Process Layer BOOTP DHCP FTP HTTP DNS “The Application Layer ” SNMP Host - to - Host Layer TCP UDP OSPF IGMP ICMP IGRP Internet Layer ARP IP RARP Any IP based network (i.e., Ethernet) Network Access Layer

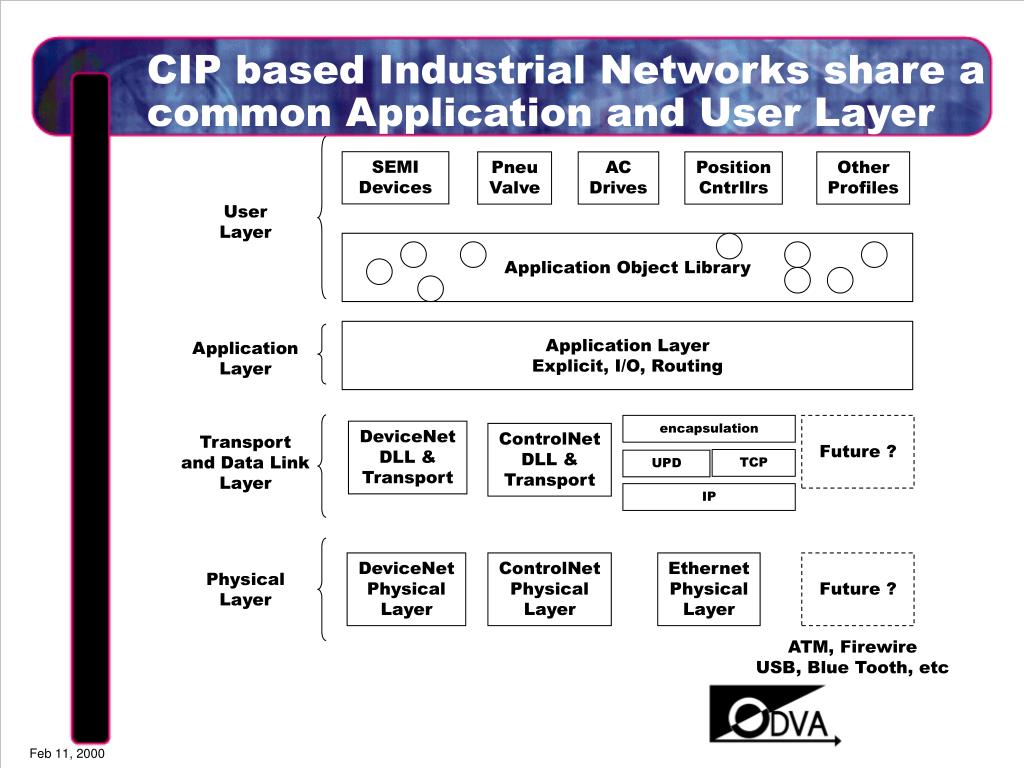

  13. Application Object Library Application Layer Explicit, I/O, Routing Future ? DeviceNet DLL & Transport ControlNet DLL & Transport encapsulation TCP UPD IP CIP based Industrial Networks share a common Application and User Layer SEMI Devices Pneu Valve AC Drives Position Cntrllrs Other Profiles User Layer Application Layer Transport and Data Link Layer DeviceNet Physical Layer ControlNet Physical Layer Ethernet Physical Layer Future ? Physical Layer ATM, Firewire USB, Blue Tooth, etc

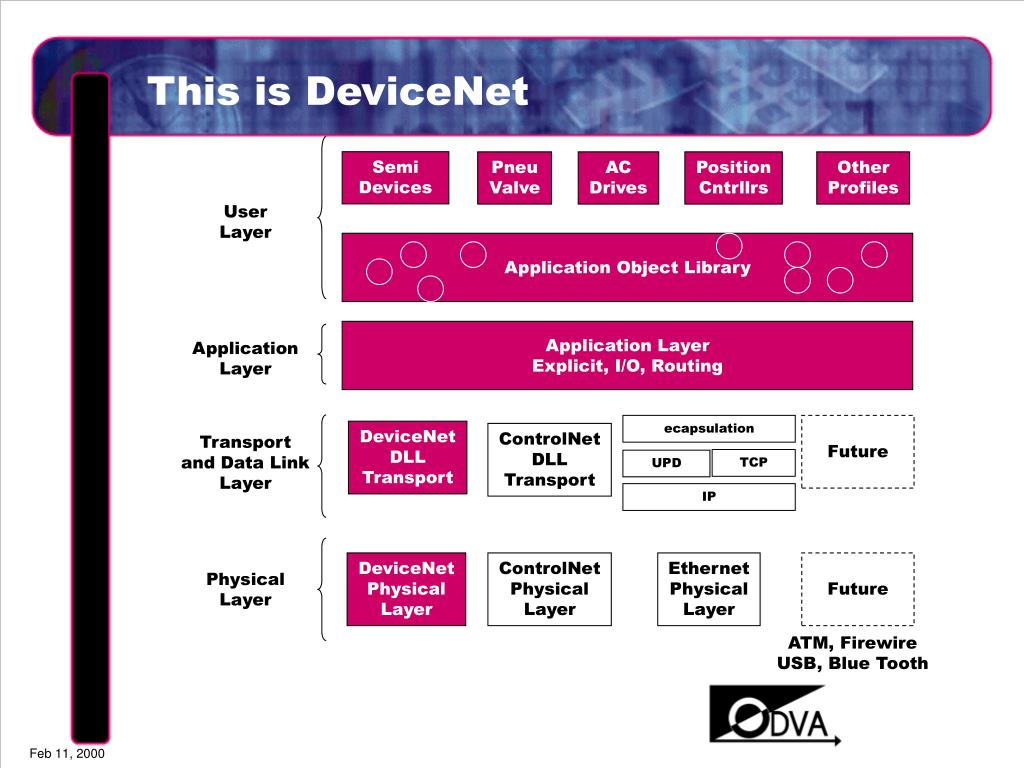

  14. ecapsulation TCP UPD IP This is DeviceNet Semi Devices Pneu Valve AC Drives Position Cntrllrs Other Profiles User Layer Application Object Library Application Layer Explicit, I/O, Routing Application Layer Future DeviceNet DLL Transport ControlNet DLL Transport Transport and Data Link Layer DeviceNet Physical Layer ControlNet Physical Layer Ethernet Physical Layer Future Physical Layer ATM, Firewire USB, Blue Tooth

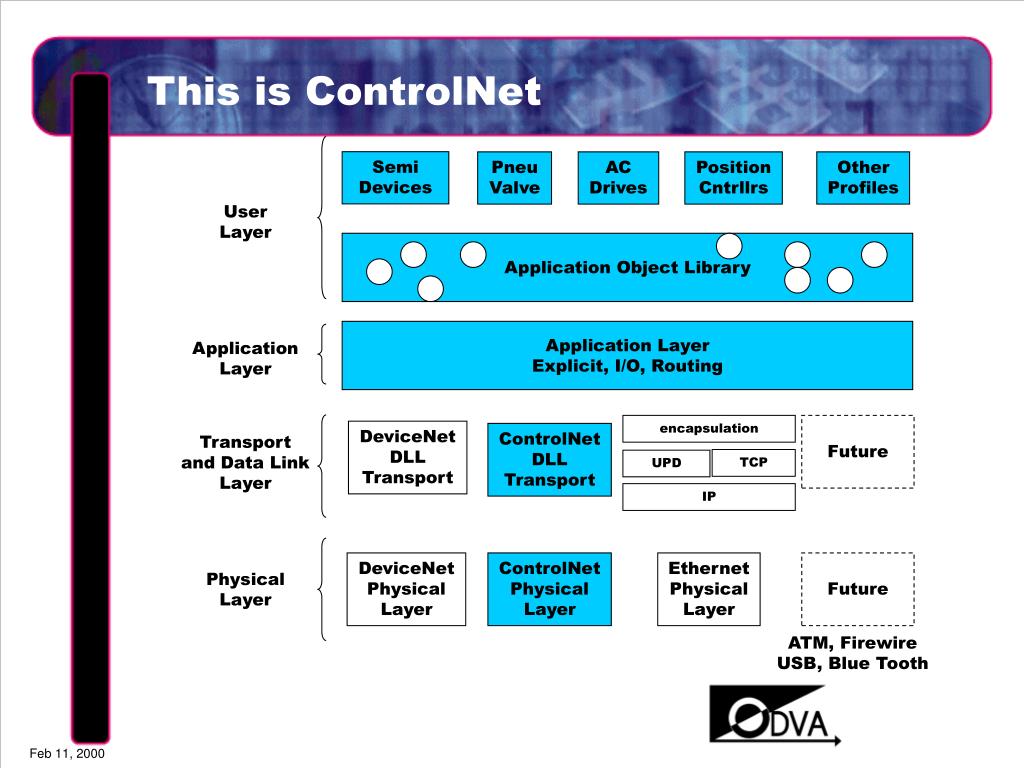

  15. encapsulation TCP UPD IP This is ControlNet Semi Devices Pneu Valve AC Drives Position Cntrllrs Other Profiles User Layer Application Object Library Application Layer Explicit, I/O, Routing Application Layer Future DeviceNet DLL Transport ControlNet DLL Transport Transport and Data Link Layer DeviceNet Physical Layer ControlNet Physical Layer Ethernet Physical Layer Future Physical Layer ATM, Firewire USB, Blue Tooth

  16. This is Ethernet/IP(IP stands for Industrial Protocol) Semi Devices Pneu Valve AC Drives Position Cntrllrs Other Profiles User Layer Application Object Library Application Layer Explicit, I/O, Routing Application Layer encapsulation Future DeviceNet DLL Transport ControlNet DLL Transport Transport and Data Link Layer TCP UPD IP DeviceNet Physical Layer ControlNet Physical Layer Ethernet Physical Layer Future Physical Layer ATM, Firewire USB, Blue Tooth

  17. Ethernet/IP has a new logo

  18. Technology will be downloadable ODVA will make the technology free and downloadable from multiple Web Sites • Specifications (Protocol, Object Library, TCP/IP Encapsulation) • Example (source) Code for a simple I/O server (“Level2”) type product

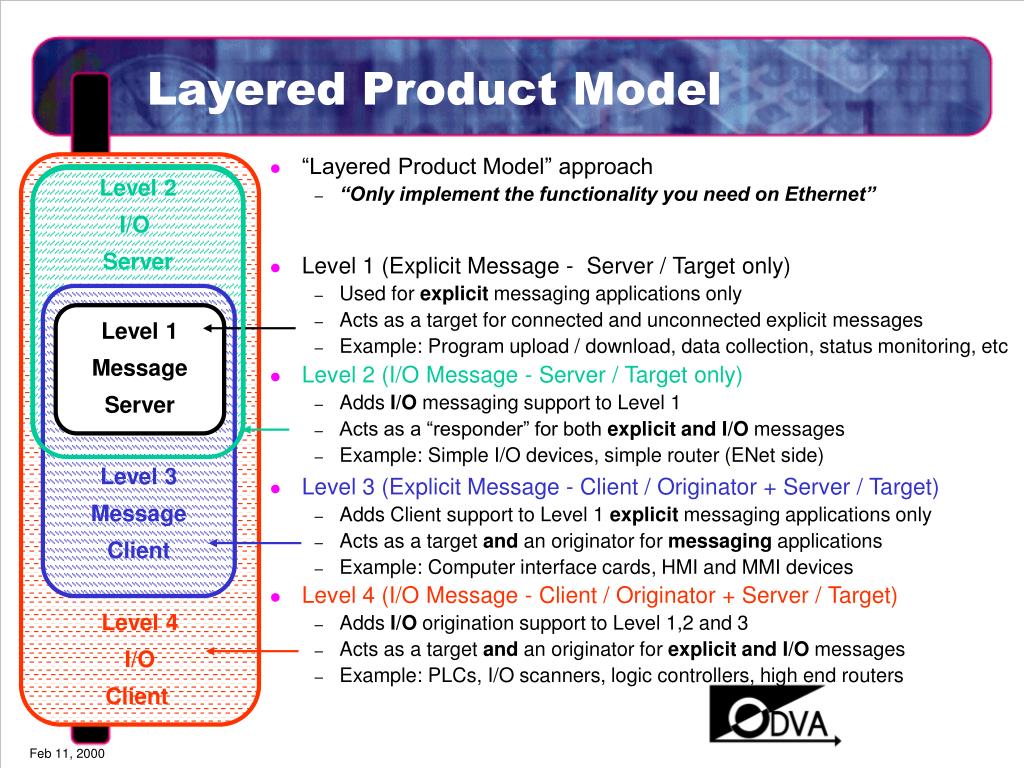

  19. Level 1 (Explicit Message - Server / Target only) • Used for explicit messaging applications only • Acts as a target for connected and unconnected explicit messages • Example: Program upload / download, data collection, status monitoring, etc • Level 2 (I/O Message - Server / Target only) • Adds I/O messaging support to Level 1 • Acts as a “responder” for both explicit andI/O messages • Example: Simple I/O devices, simple router (ENet side) • Level 3 (Explicit Message - Client / Originator + Server / Target) • Adds Client support to Level 1 explicit messaging applications only • Acts as a target and an originator for messaging applications • Example: Computer interface cards, HMI and MMI devices Layered Product Model • “Layered Product Model” approach • “Only implement the functionality you need on Ethernet” Level 4 I/O Client Level 2 I/O Server • Level 4 (I/O Message - Client / Originator + Server / Target) • Adds I/O origination support to Level 1,2 and 3 • Acts as a target and an originator for explicit andI/O messages • Example: PLCs, I/O scanners, logic controllers, high end routers Level 3 Message Client Level 1 Message Server

  20. Free Technology • Level 1 (Explicit Message - Server / Target only) • Used for explicit messaging applications only • Acts as a target for connected and unconnected explicit messages • Example: Program upload / download, data collection, status monitoring, etc • Level 2 (I/O Message - Server / Target only) • Adds I/O messaging support to Level 1 • Acts as a “responder” for both explicit andI/O messages • Example: Simple I/O server devices • In an effort to give vendors a “jump start” on an EtherNet/IP product development, ODVA will make the “Level 2” technology available free of charge! • Provide free example code for “Level 2” functionality • Provide a free copy of the Ethernet/IP Specification Level 2 I/O Server Level 1 Message Server

  21. What Is Example Code? • The example code is the ‘C’ source code (or “stack”) that is provided to product developers to allow them to embed the application layer within their TCP/IP Ethernet product • The Example code contains the ‘C’ source code required to implement the application layer on top of a TCP/IP Ethernet stack • This includes support for “Level 2” required objects • Also include support for a general purpose “assembly object” • The developer needs to provide the following commercially available items; • The appropriate Ethernet hardware platform • Any optional product or vendor specific application objects • TCP/IP stack with a “Berkley Sockets” (BSD) interface • A multitasking real time operating system (RTOS) • The Example code is currently being developed with; • VxWorks RTOS from WindRiver Systems • TCP/IP stack also from WindRiver Systems • The example code will also be tested on a Microsoft PC platform (NT4.0)

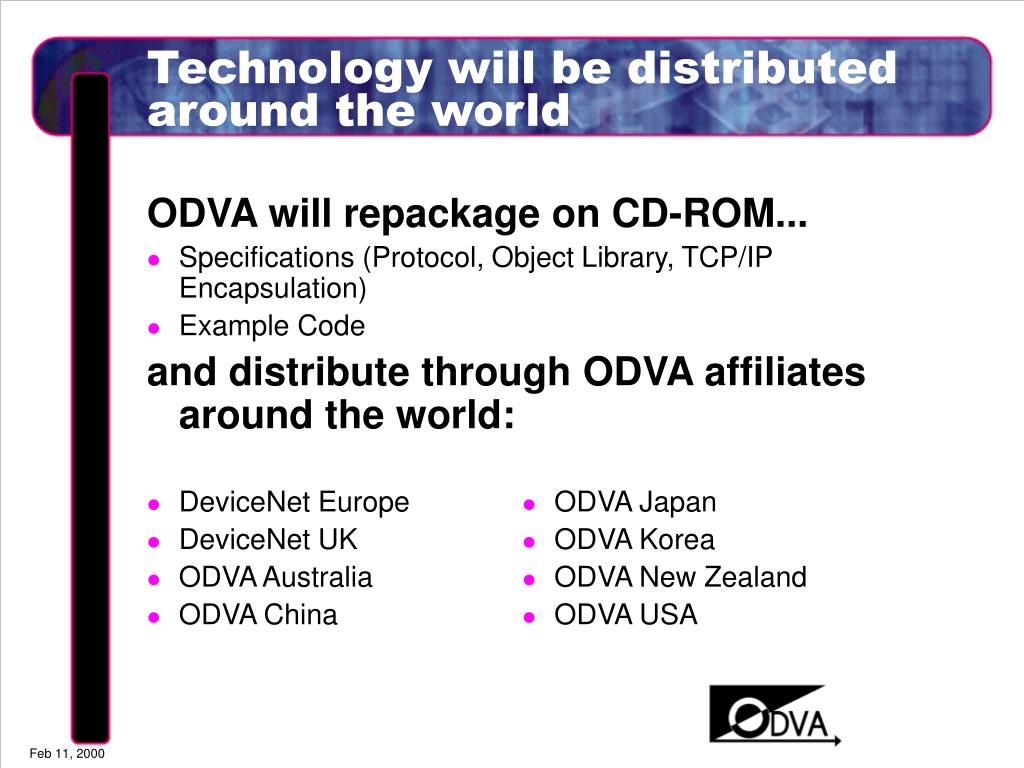

  22. Technology will be distributed around the world ODVA will repackage on CD-ROM... • Specifications (Protocol, Object Library, TCP/IP Encapsulation) • Example Code and distribute through ODVA affiliates around the world: • DeviceNet Europe • DeviceNet UK • ODVA Australia • ODVA China • ODVA Japan • ODVA Korea • ODVA New Zealand • ODVA USA

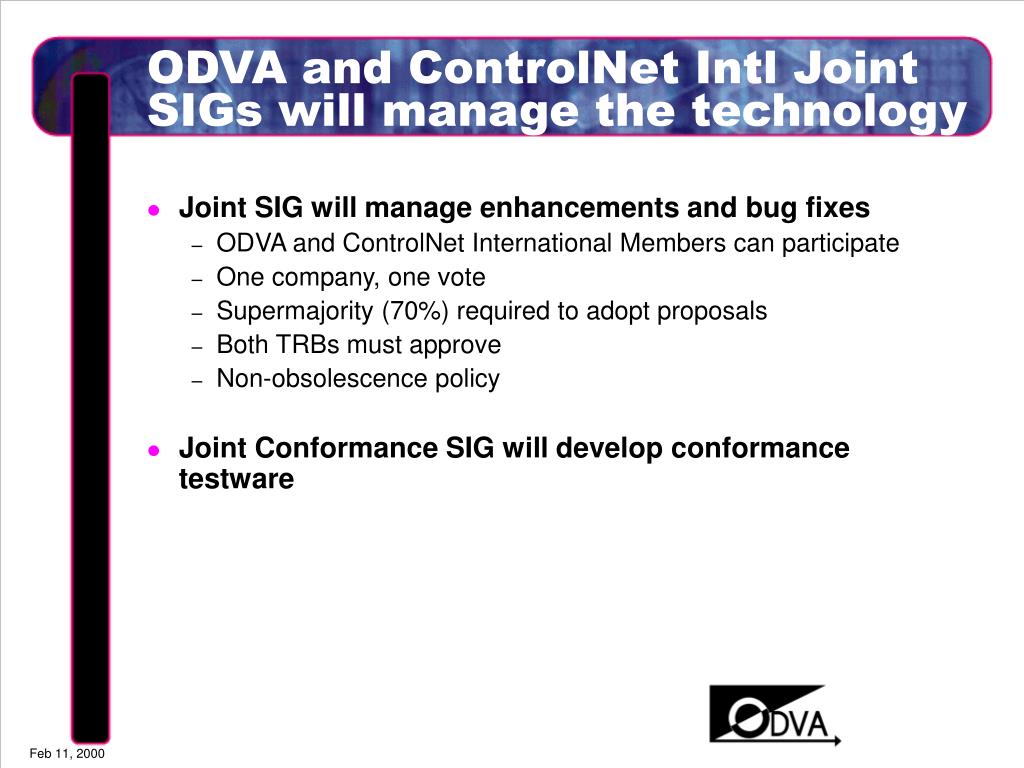

  23. ODVA and ControlNet Intl Joint SIGs will manage the technology • Joint SIG will manage enhancements and bug fixes • ODVA and ControlNet International Members can participate • One company, one vote • Supermajority (70%) required to adopt proposals • Both TRBs must approve • Non-obsolescence policy • Joint Conformance SIG will develop conformance testware

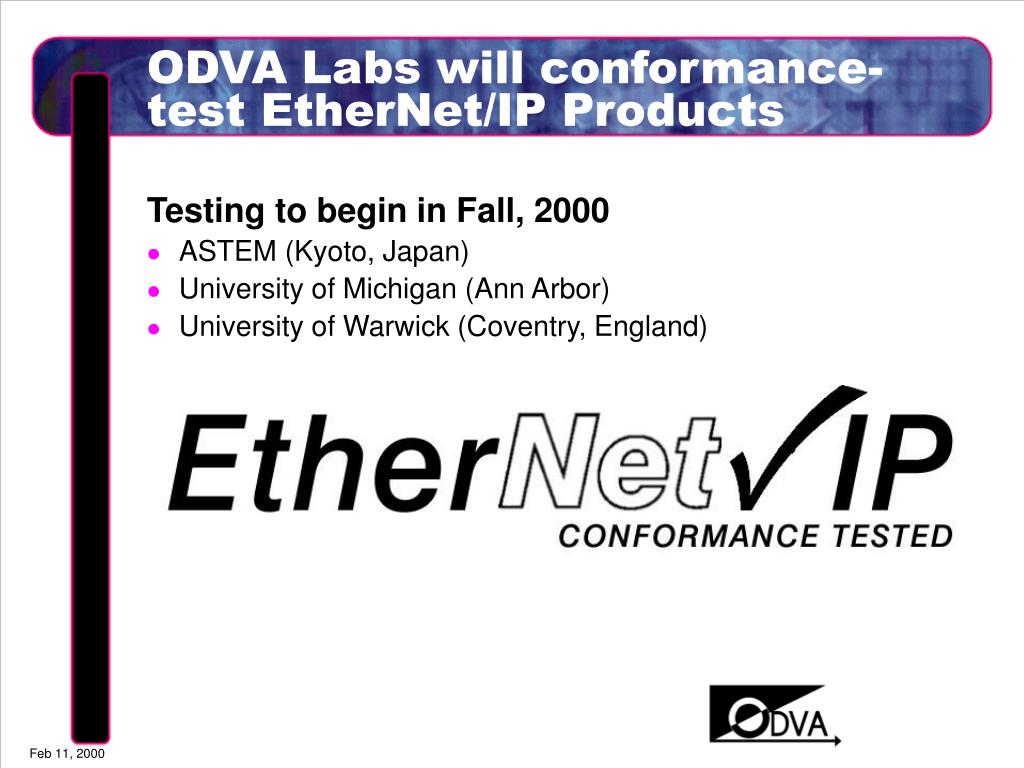

  24. ODVA Labs will conformance-test EtherNet/IP Products Testing to begin in Fall, 2000 • ASTEM (Kyoto, Japan) • University of Michigan (Ann Arbor) • University of Warwick (Coventry, England)

  25. ODVA will promote EtherNet/IP Multiple organizations will support the rapid adoption of Ethernet/IP • Introductory training for developers and product managers • Next Training is May 2 in Cleveland • Offer extended 2-3 day fee-paid developer training • Introduce free technical support service - Ask Mr. Ethernet • Sponsor Trade Show Demonstrations • Speakers’ Bureau • Accelerate Joint ControlNet Intl/ODVA Ethernet SIG • Guidelines for Vendors • Guidelines for Users • Collect and Publish Performance Benchmarks
