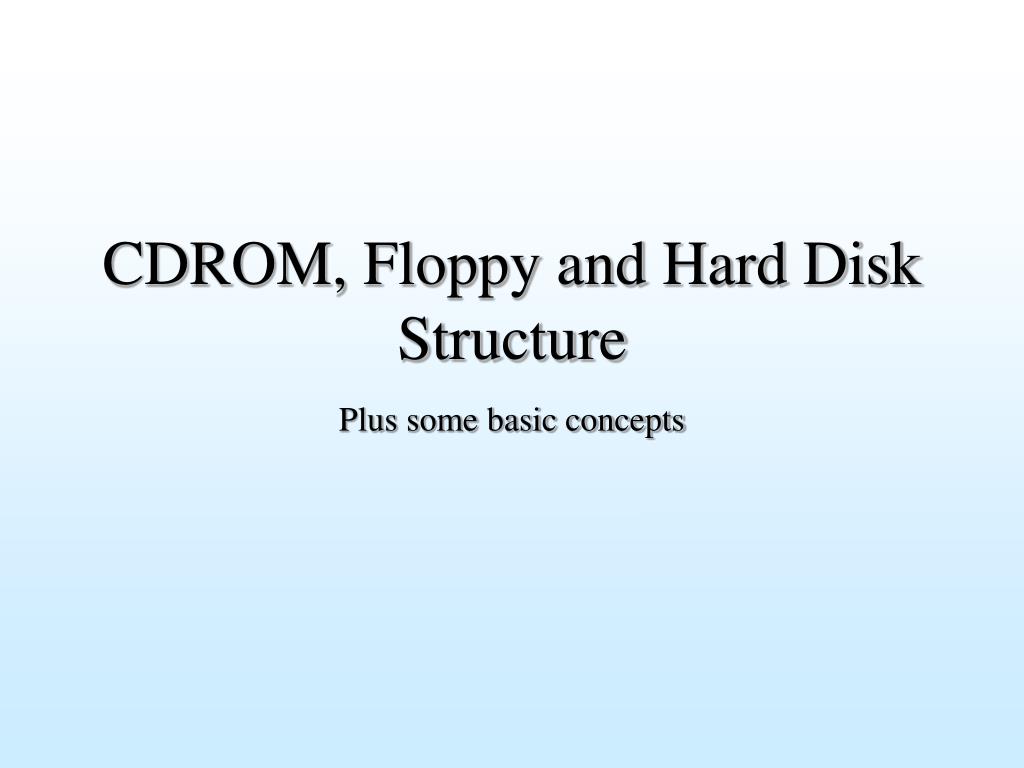

  1. CDROM, Floppy and Hard Disk Structure Plus some basic concepts

  2. Table of Contents • CD • History • Structure • Data Recording • How The CD Drive Works • CD File Systems • Multiple Sessions • CD-ReWritable (CD-RW) • DVD • Floppy Disk • History • Structure • Data Recording/Retrieval • Formatting • 3½ Inch (2HD) Disks • Hard Disk • Some Basic Concepts • Boot Sector • Cluster • FAT • NTFS

  3. PART 1 CD-ROM

  4. www.themegallery.com

  5. History • Compact Disc - Digital Audio (CD-DA), the original CD specification developed by Philips and Sony in 1980 • Specifications were published in Red Book, continued to be updated (lastest version in 1999) • In 1985 a standard for the storage of computer data by Sony and Philips, CD-ROM (Compact Disc Read Only Memory) • Developments in the technology have been ongoing and rapid • Compact disc Interactive (CD-I) • Compact Disc Television (CD-TV) • Compact Disc Recording (CD-R) • Digital Video Disc (DVD)

  6. Structure • A CDROM Drive uses a small plastic-encapsulated disk that can store data • This information is retrieved using a Laser Beam • A CD can store vast amounts of information because it uses light to record data in a tightly packed form

  7. Structure (cont’d) • On surface of CDROM, it was be "punched" to according the spiral called the pits. These positions do not have "punch" as land. • The 0.12 micron deep pit, approximately 0.6 microns wide. • The pit and land length from 0.9 to 3.3 microns. • The distance between the spiral is 1.6 micron. • Track density on a CDROM is about 16,000 tracks per inch.

  8. CD Layers • The thickness of a CD can vary between 1.1 and 1.5mm • A CD consists of four layers • The biggest part is clear polycarbonate (nominally 1.2mm) • There is a very thin layer of reflective metal (usually aluminum) on top of the polycarbonate • Then a thin layer of some protective material covering the reflective metal • A label or some screened lettering on top of protective material

  9. CD Layers (cont’d)

  10. CD Safety • The label side of a CD is the most vulnerable part of the disk • The other side is protected by the thick (1.2mm) and hard polycarbonate • It is possible to carefully clean and even to polish this surface to remove fingerprints and even scratches • Many flaws on the polycarbonate surface will simply go unread.

  11. CD vs. Magnetic Media • In Magnetic Media (like floppy/hard disk) the surface is arranged into concentric circles called “tracks” • Number of sectors per track is constant for all tracks • The CD has one single track, starts at the center of the disk and spirals out to the circumference of the disk • This track is divided into sectors of equal size

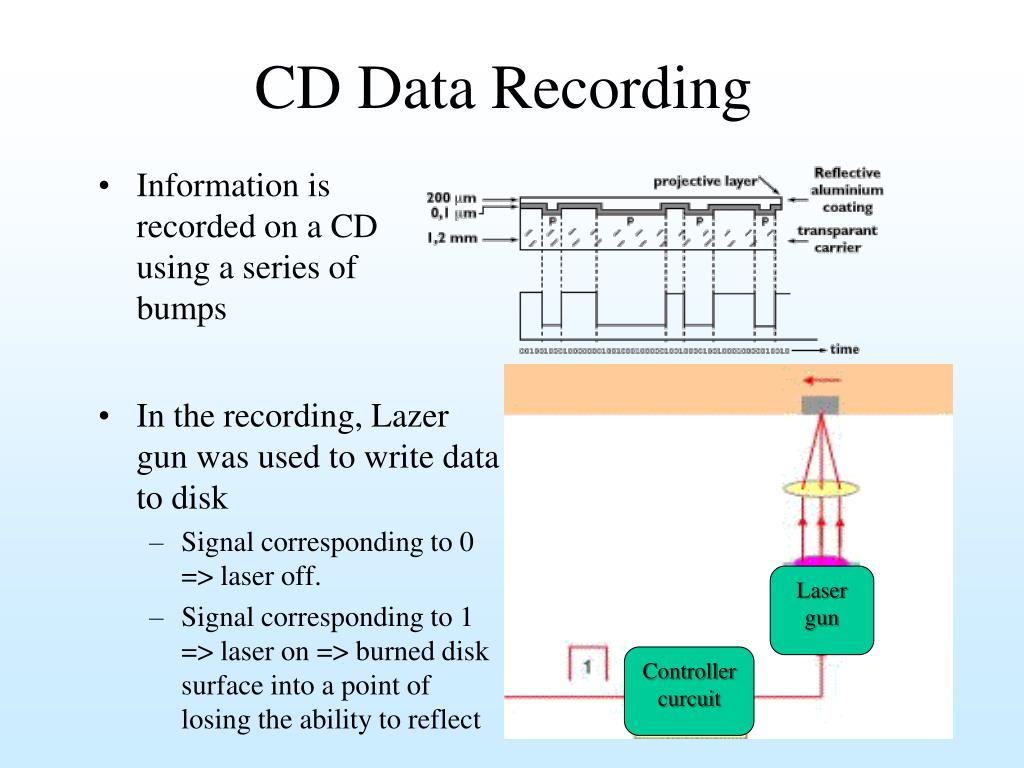

  12. CD Data Recording • Information is recorded on a CD using a series of bumps • In the recording, Lazer gun was used to write data to disk • Signal corresponding to 0 => laser off. • Signal corresponding to 1 => laser on => burned disk surface into a point of losing the ability to reflect Laser gun Controller curcuit

  13. Data Recording (cont’d) • The unmarked areas between pits are called "lands” • Lands are flat surface areas • The information is stored permanently as pits and lands on the CD-ROM. It cannot be changed once the CD-ROM is mastered, this is why its called CD-ROM

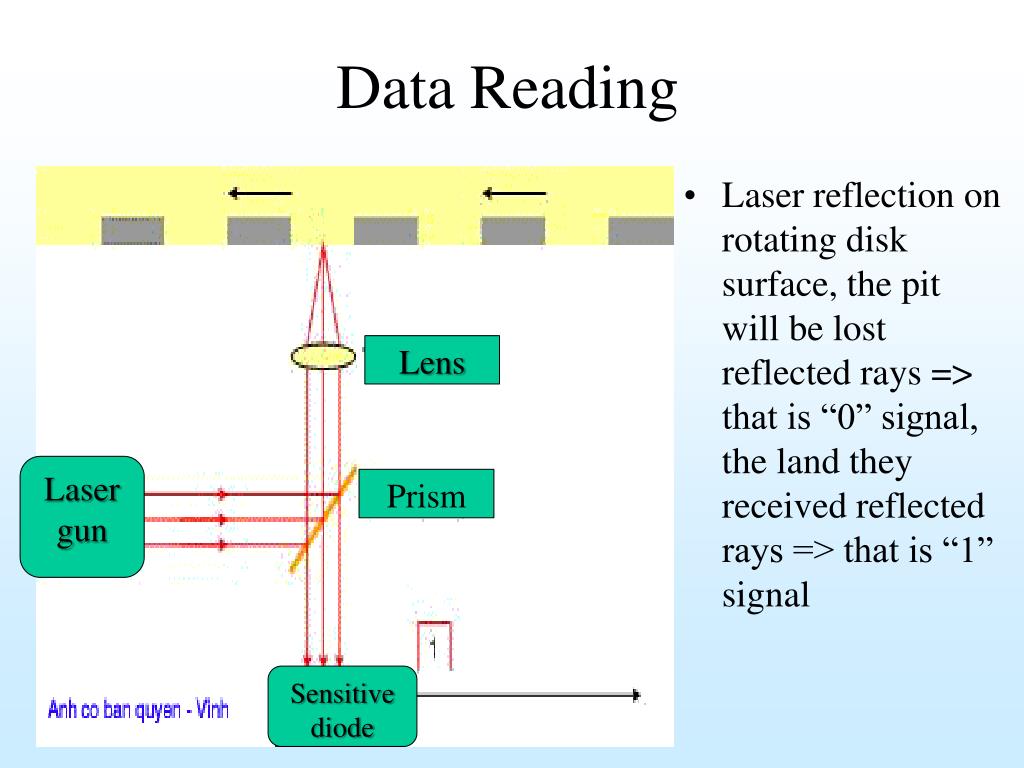

  14. Data Reading • Laser reflection on rotating disk surface, the pit will be lost reflected rays => that is “0” signal, the land they received reflected rays => that is “1” signal Lens Laser gun Prism Sensitive diode

  15. How The CD Drive Works • A motor rotates the CD • The rotational speed varies so as to maintain a constant linear velocity (the disk is rotated faster when its inner "SPIRALS" are being read)

  16. How The CD Drive Works (cont’d) • A laser beam is shone onto the surface of the disk • The light is scattered by the pits and reflected by the lands, these two variations encode the binary 0's and 1's • A light sensitive diode picks up the reflected laser light and converts the light to digital data

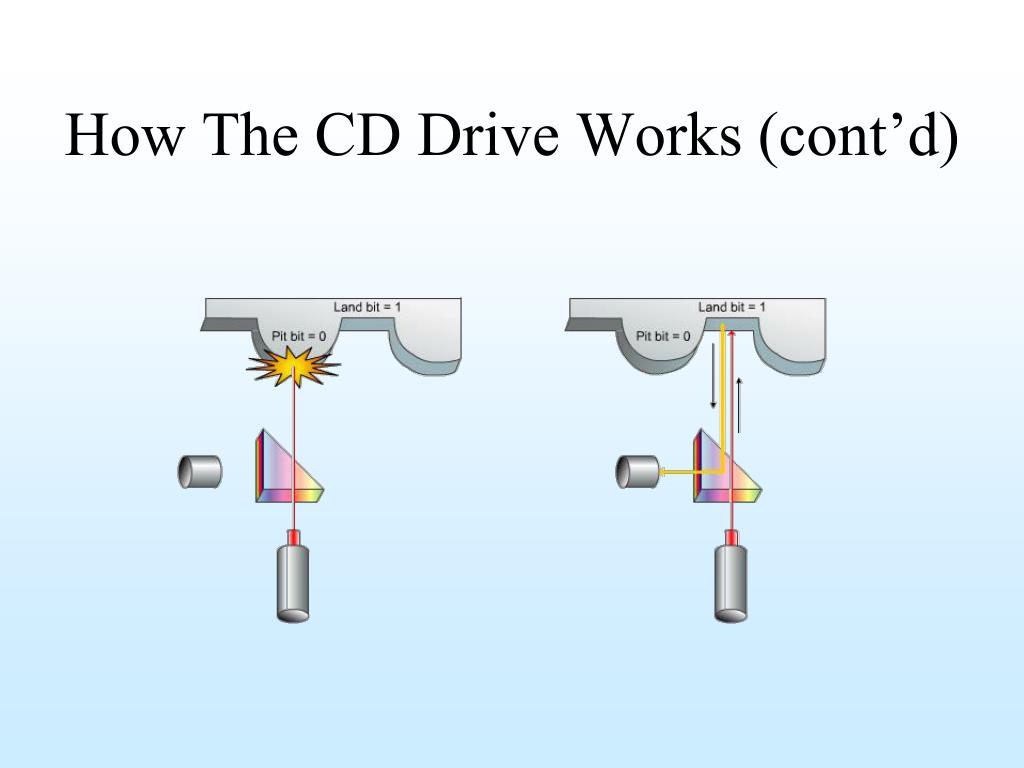

  17. How The CD Drive Works (cont’d)

  18. CD-ROM Drive Speed • The CD-ROM drives are classified by their rotational speed • Based on the original speed of a CD-Audio (e.g. A "2X" CD-ROM drive will run at twice the speed of a CD- Audio)

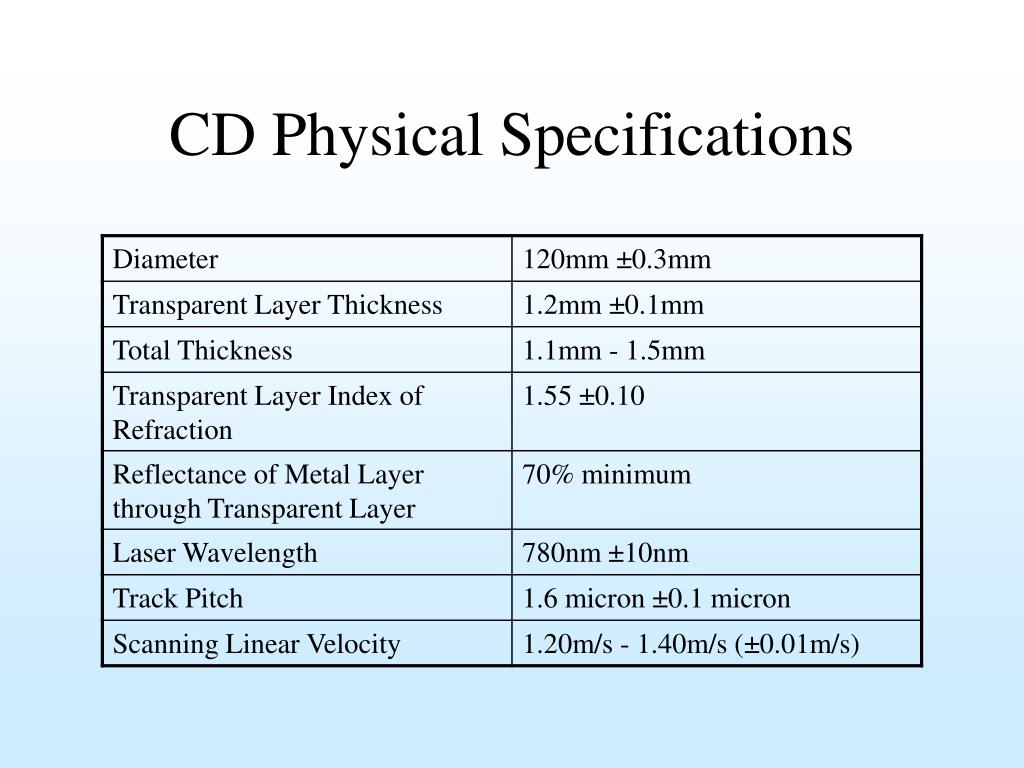

  19. CD Physical Specifications

  20. CD File Systems 1. ISO-9660 The base standard defines three levels of compliance • Level 1 limits file names to 8+3 format. Many special characters (space, hyphen, equals, and plus) are forbidden • Level 2 and 3 allow longer filenames (up to 31) and deeper directory structures (32 levels instead of 8) • Level 2 and 3 are not usable on some systems, special MS-DOS

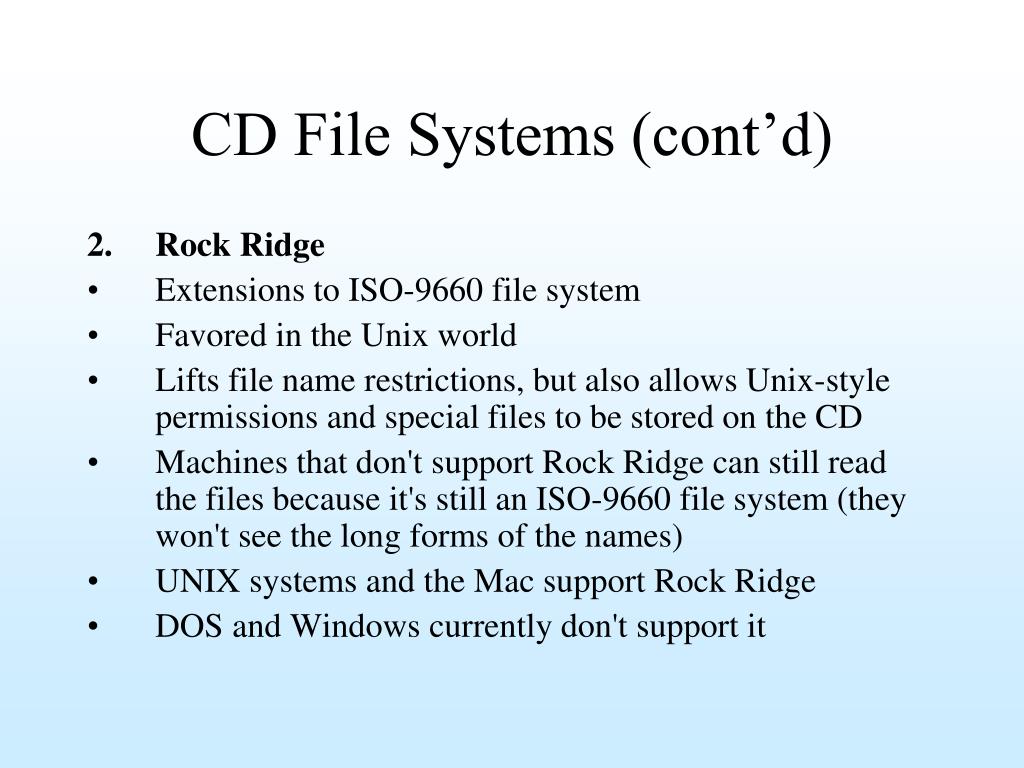

  21. CD File Systems (cont’d) 2. Rock Ridge • Extensions to ISO-9660 file system • Favored in the Unix world • Lifts file name restrictions, but also allows Unix-style permissions and special files to be stored on the CD • Machines that don't support Rock Ridge can still read the files because it's still an ISO-9660 file system (they won't see the long forms of the names) • UNIX systems and the Mac support Rock Ridge • DOS and Windows currently don't support it

  22. CD File Systems (cont’d) 3. Joliet • Favored in the MS Windows world • Allows Unicode characters to be used for all text fields (including file names and the volume name) • Disk is readable as ISO-9660, but shows the long filenames under MS Windows • HFS (Hierarchical File System) Used by the Macintosh in place of the ISO-9660, making the disk unusable on systems that don't support HFS

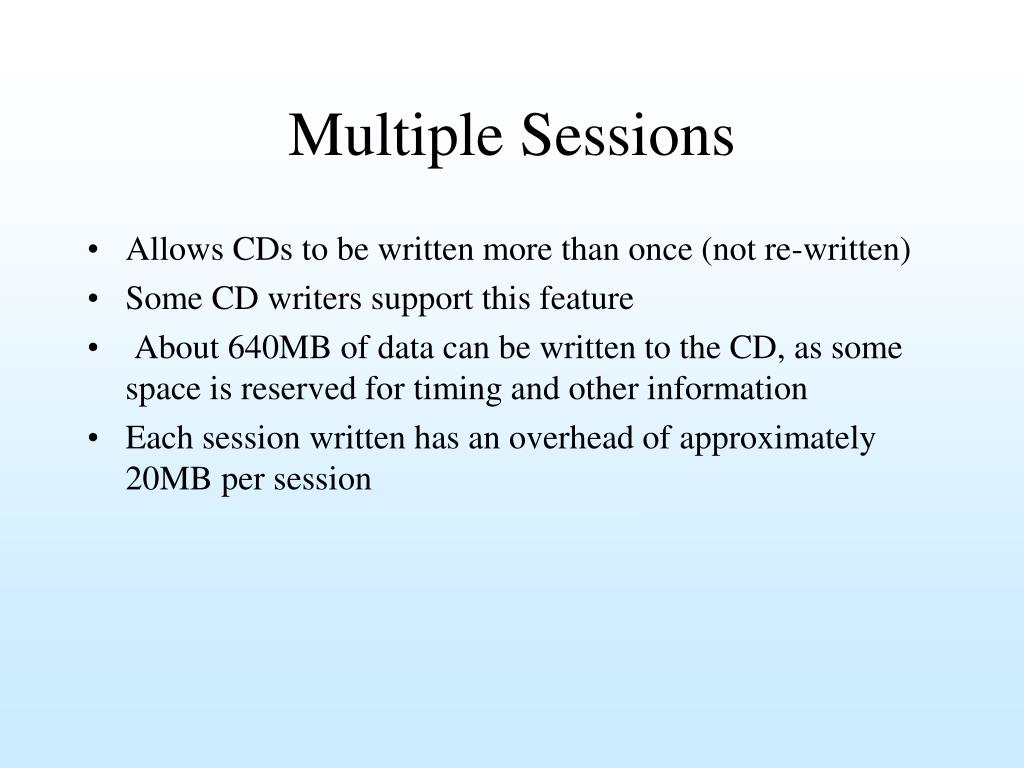

  23. Multiple Sessions • Allows CDs to be written more than once (not re-written) • Some CD writers support this feature • About 640MB of data can be written to the CD, as some space is reserved for timing and other information • Each session written has an overhead of approximately 20MB per session

  24. CD-ReWritable (CD-RW) • It is essentially CD-R • Allows discs to be written and re-written up to 1000 times • The storage capacity is the same as that for CD-R • Based on phase-change technology • The recording layer is a mixture of silver, indium, antimony and tellurium

  25. CD-RW Recording Process • The recording layer is polycrystalline • The laser heats selected areas of the recording track to the recording layer's melting point of 500 to 700 degrees Celsius

  26. CD-RW Recording (cont’d) • The laser beam melts the crystals and makes them non-crystalline (amorphous phase) • The medium quickly cools, locking in the properties of the heated areas • The amorphous areas have a lower reflectivity than the crystalline areas • This creates a pattern which can be read as pits and lands of the traditional CD • To erase a CD-RW disc, the recording laser turns the amorphous areas back into crystalline areas

  27. DVD • Digital Versatile Disk (Formerly Digital Video Disk) • same size (120mm) and thickness (1.2mm) as CD • Improvements in the logarithms used for error correction • Much greater data accuracy using smaller Error Correction Codes (ECC) • More effective use of the track space

  28. DVD vs. CD • DVD uses a tighter spiral (track or helix) with only 0.74 microns between the tracks (1.6 microns on CDs) • DVD recorders use a laser with a smaller wavelength, 635nm or 650 nm (visible red light) vs. 780nm (infrared) for CDs • DVD has smaller "burns" (pits) in the translucent dye layer (0.4 microns minimum vs. 0.83 microns minimum on CDs) • These technologies allow DVDs to store large amounts of data

  29. DVD (cont’d) • Standard single-sided DVDs store up to 4.7GB of data • Dual-sided discs hold about 8.5GB of data (9.4GB for back-to-back layers dual-sided discs) • In back-to-back layers discs, it must be turned over to access the data on the reverse side • DVD uses MPEG2 compression for high quality pictures • DVD drives have a much faster transfer rate than CD drives • DVD-ROM drives will read and play existing CD-ROM and CD-A disks

  30. DVD (cont’d)

  31. PART 2 Floppy Disks (floppies or diskettes)

  32. History • The 8-inch disk - First attempt by IBM in 1967, the result was a diskette storing 80KBytes of data • 250KB, 800KB and 1MB floppies untill 1975 • The problem was their poor media quality • 2. The 5¼-inch minifloppy • First developed in 1976, storing 110KB • In 1978, double-sided drive doubled the capacity, and a new "double density" format increased it to 360 KB

  33. History (cont’d) 3. The 3-inch compact floppy disk • No more capacity than the more popular (and cheap) 5¼" floppies • More reliable thanks to its hard casing • Their main problems were their high prices

  34. History (cont’d) 4. The 3½-inch floppy disk • originally offered in a 360 KB single-sided and 720 KB double-sided double-density format • A newer "high-density" format, displayed as "HD" on the disks and storing 1440 KB of data, in the mid-80s • Another advance in the oxide coatings allowed a new "extended-density" ("ED") format at 2880 KB in 1991

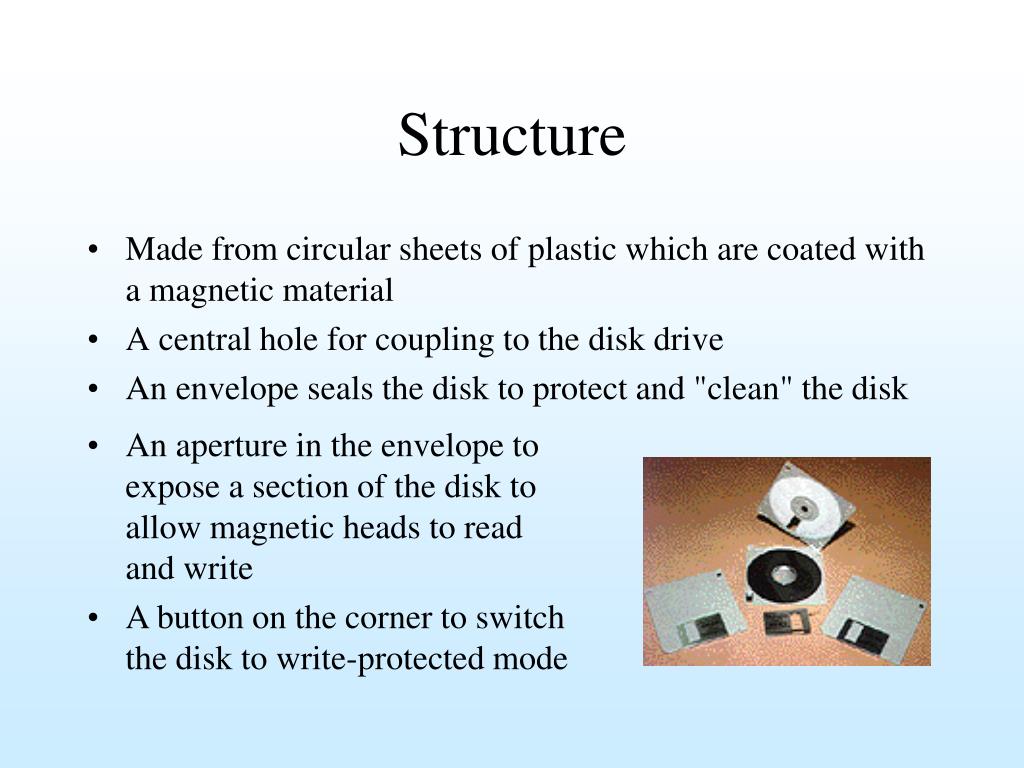

  35. Structure • Made from circular sheets of plastic which are coated with a magnetic material • A central hole for coupling to the disk drive • An envelope seals the disk to protect and "clean" the disk • An aperture in the envelope to expose a section of the disk to allow magnetic heads to read and write • A button on the corner to switch the disk to write-protected mode

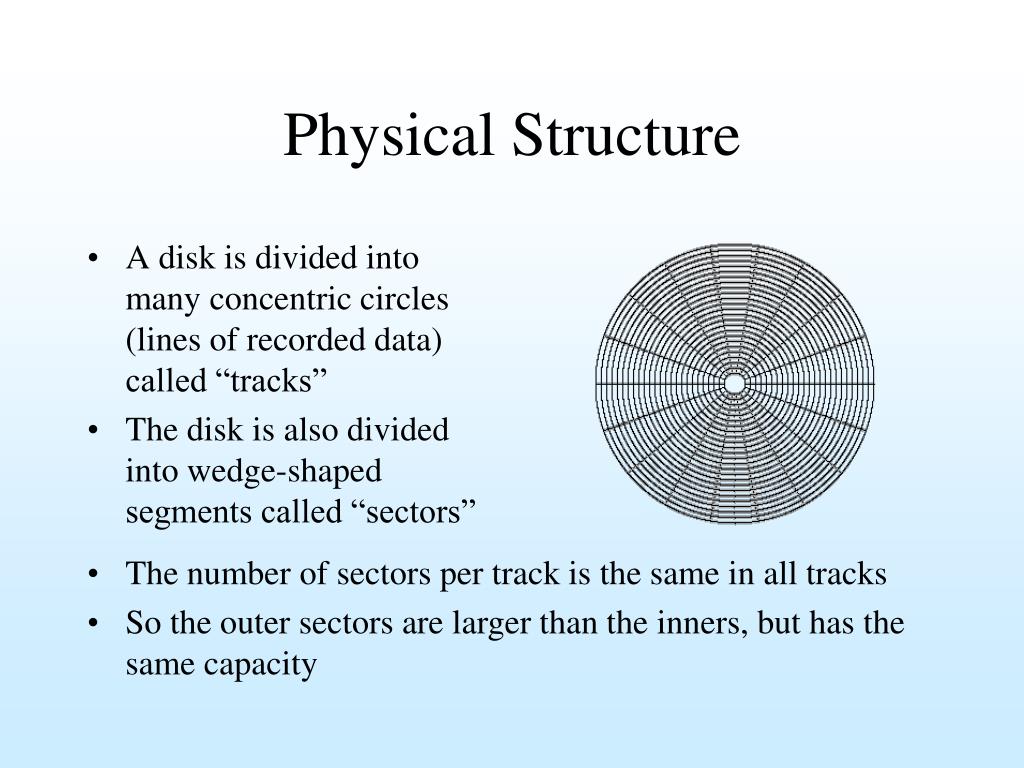

  36. Physical Structure • A disk is divided into many concentric circles (lines of recorded data) called “tracks” • The disk is also divided into wedge-shaped segments called “sectors” • The number of sectors per track is the same in all tracks • So the outer sectors are larger than the inners, but has the same capacity

  37. Data Recording • Similar to the operation of a domestic tape recorder • Similar to the operation of a domestic tape recorder • Similar to the operation of a domestic tape recorder • An electric current flows through a coil of wire • A magnetic field is produced • This field is used to magnetise the coating of iron oxide on a floppy disk • Varying electrical current, the signal is passed through the coil and the variations are "recorded" on the disk • An electric current flows through a coil of wire • A magnetic field is produced • This field is used to magnetise the coating of iron oxide on a floppy disk • Varying electrical current, the signal is passed through the coil and the variations are "recorded" on the disk • An electric current flows through a coil of wire • A magnetic field is produced • This field is used to magnetise the coating of iron oxide on a floppy disk • Varying electrical current, the signal is passed through the coil and the variations are "recorded" on the disk

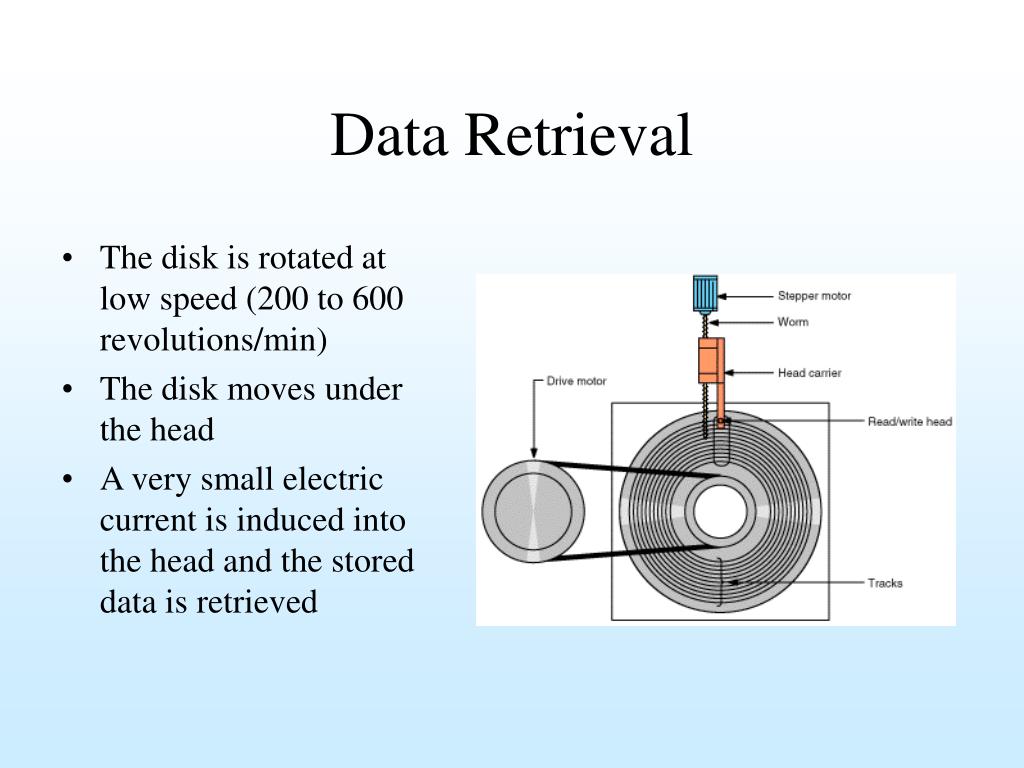

  38. Data Retrieval • The disk is rotated at low speed (200 to 600 revolutions/min) • The disk moves under the head • A very small electric current is induced into the head and the stored data is retrieved

  39. Double Sided Disks • Are used in a disk drive with two read/write heads • A pressure pad is fitted for each head

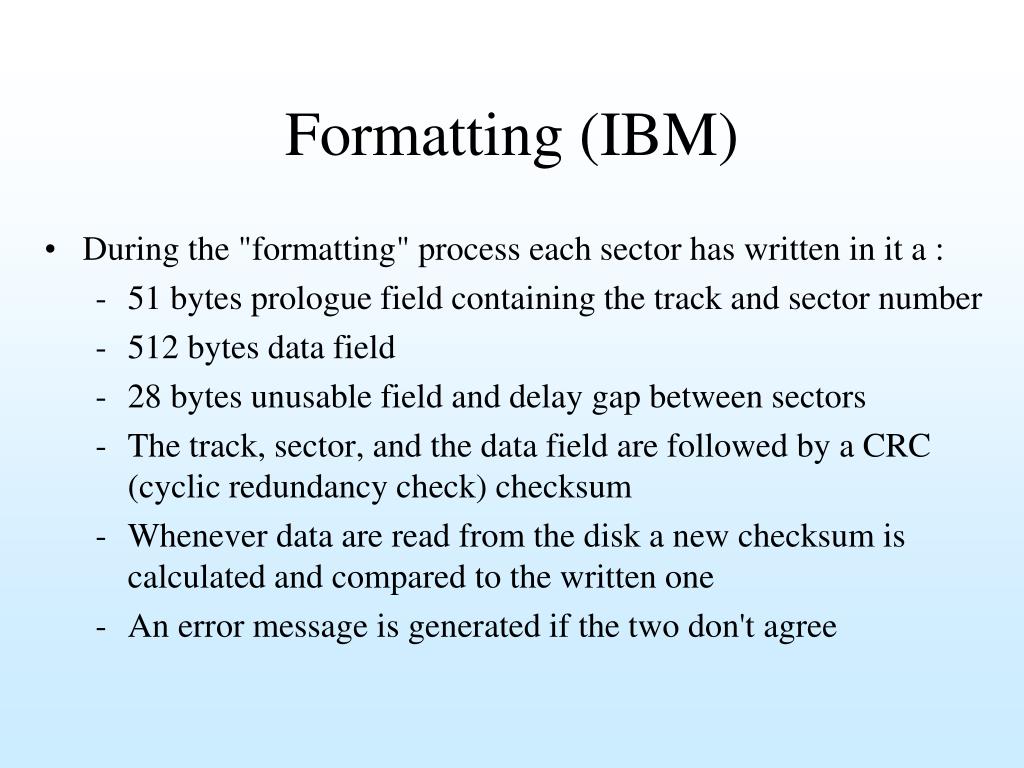

  40. Formatting (IBM) • During the "formatting" process each sector has written in it a : • 51 bytes prologue field containing the track and sector number • 512 bytes data field • 28 bytes unusable field and delay gap between sectors • The track, sector, and the data field are followed by a CRC (cyclic redundancy check) checksum • Whenever data are read from the disk a new checksum is calculated and compared to the written one • An error message is generated if the two don't agree

  41. Hard Disk • Fixed and removable • Fast (disk rotates at 60 to 200 times per second) • Currently 20 – 180 GB (may be limited by the version of the operating system) • Like floppies, uses the magnetic properties of the coating material, but the technology is different

  42. Boot Sector (Boot Record) • A vital sector, disk will be unusable if this sector damages • MBR at CHS 0, 0, 1 in hard disks, contains Partition Table • Each partition has its own boot sector too • Each operating system has its own boot sector format • For Booting, Bootstrap Loader loads Boot Sector data it in a particular address of memory (0000:7C00h) and sets the PC • In hard disks, the small program in MBR attempts to locate an active (bootable) partition in partition table • If found, the boot record of that partition is read into memory (location 0000:7C00) and runs

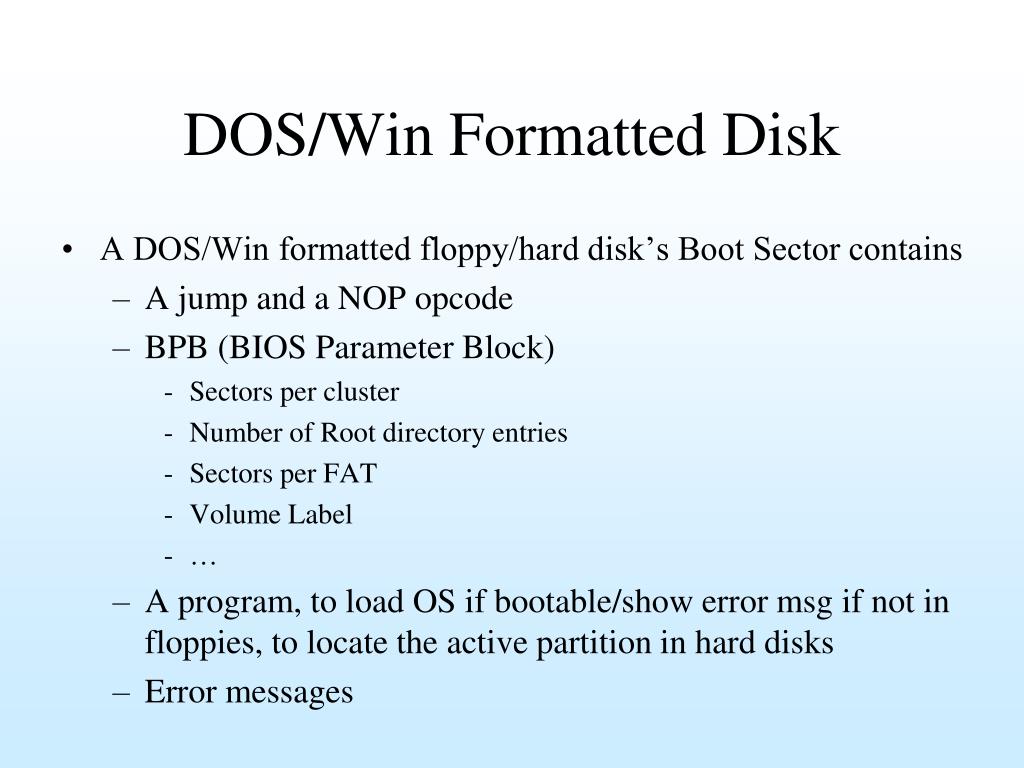

  43. DOS/Win Formatted Disk • A DOS/Win formatted floppy/hard disk’s Boot Sector contains • A jump and a NOP opcode • BPB (BIOS Parameter Block) • Sectors per cluster • Number of Root directory entries • Sectors per FAT • Volume Label • … • A program, to load OS if bootable/show error msg if not in floppies, to locate the active partition in hard disks • Error messages

  44. Cluster • Data units of disk must be addressed, which units belong to which file / are free / are damaged (bad sectors) / … • On disks having large capacity, purposing one sector as a unit makes addressing table so large  Cluster is defined • Represents the smallest amount of disk space that can be allocated • The smaller the cluster size, the more efficiently disk space usage, the more number of bits to address one unit • The number of sectors per cluster is stored in the Boot Record

  45. FAT • FAT-12/FAT-16/FAT-32 are Microsoft favorite File Allocation Tables (before NTFS) • FAT-12 uses 12 bits for addressing, a max. of 4096 units, considering one sector as a cluster, 2MB can be addressed • FAT-16 with max.(128) sectors/cluster (64KB cluster size  wasting large amount of disk space) up to 4GB, this is why Win95 cannot support more than 4GB partiotions • FAT-32, the same system, 32 bit fields for addressing

  46. NTFS • NT File System • Better performance • Less wasted space • More security • Supports all sizes of clusters (512b - 64 KB) • The 4 KB cluster is somehow standard • Practically no partition size limitation • Very flexible, all the system files can be relocated, except the first 16 MFT (Master File Table) elements

  47. NTFS (cont’d) • NTFS disk is symbolically divided into two parts • The first 12% is assigned to MFT area • The rest 88% represents usual space for files storage • MFT area can simply reduce if needed, clearing the space for recording files • At clearing the usual area, MFT can be extended again

  48. Question • Why are the bumps on the reflective layer of the CD called pits? • Do you know what a Boot Loader program is? And how it works?
