Comparison of Pcal with offical calibration

H1 ETMY coil actuation coefficients. Photon calibrator. Actuation coeff. x f^2. Official calibration. Frequency (Hz). Comparison of Pcal with offical calibration. Still seeing 10-15% discrepancies between Pcals and the offical calibration

tallys
Télécharger la présentation

Comparison of Pcal with offical calibration

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. H1 ETMY coil actuation coefficients Photon calibrator Actuation coeff. x f^2 Official calibration Frequency (Hz) Comparison of Pcal with offical calibration • Still seeing 10-15% discrepancies between Pcals and the offical calibration • Investigating calibration of Pcal output power meas. • Working on estimating other factors in error budgets R. Savage Virgo/Ligo Calibration mtg. May 2007

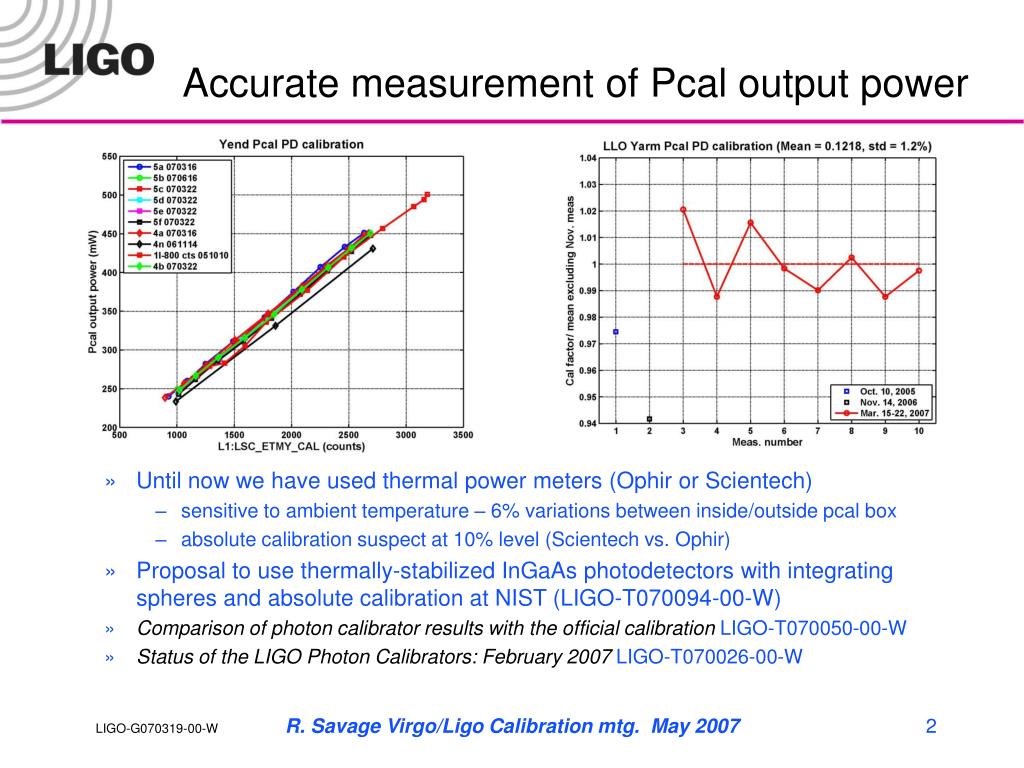

  2. Accurate measurement of Pcal output power • Until now we have used thermal power meters (Ophir or Scientech) • sensitive to ambient temperature – 6% variations between inside/outside pcal box • absolute calibration suspect at 10% level (Scientech vs. Ophir) • Proposal to use thermally-stabilized InGaAs photodetectors with integrating spheres and absolute calibration at NIST (LIGO-T070094-00-W) • Comparison of photon calibrator results with the official calibration LIGO-T070050-00-W • Status of the LIGO Photon Calibrators: February 2007 LIGO-T070026-00-W R. Savage Virgo/Ligo Calibration mtg. May 2007
