  1. Chapter 2Basic Tools for Improving Quality

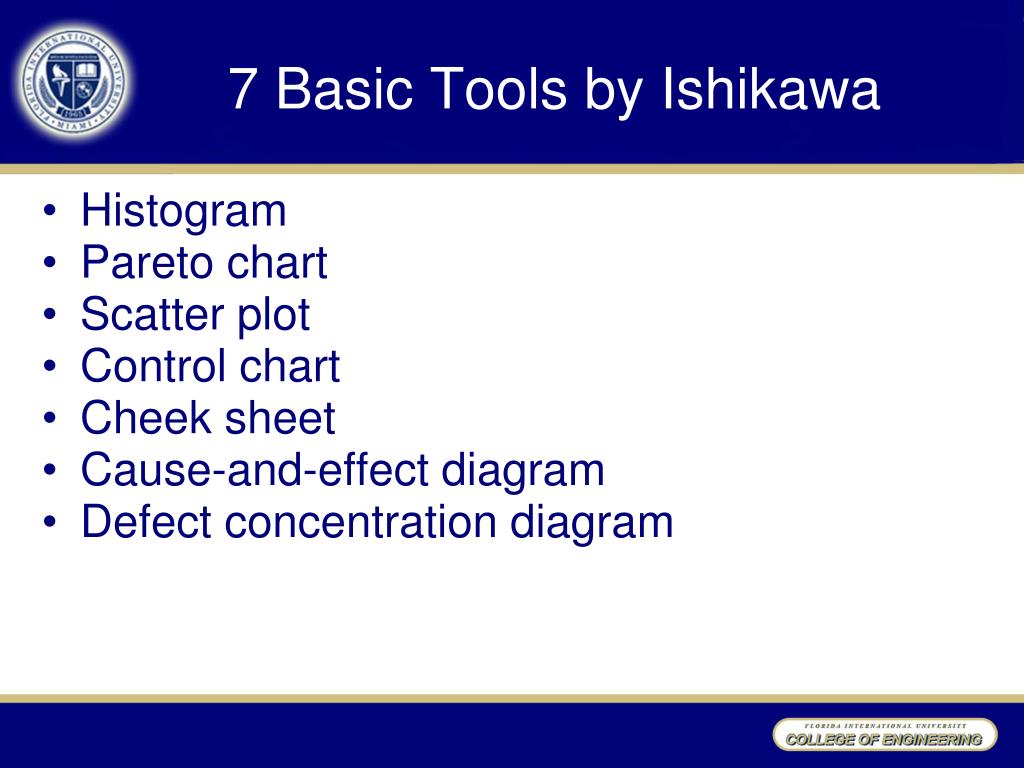

  2. 7 Basic Tools by Ishikawa • Histogram • Pareto chart • Scatter plot • Control chart • Cheek sheet • Cause-and-effect diagram • Defect concentration diagram

  3. 2.1 Histogram • A histogram is a bar chart that shows the relative frequencies of observations in each of several classes. • Rule for determining the number of classes: • “Power of 2 rule”: for n observations, we would use a classes, where 2a-1 < n < 2a • Roundup a = lnn / ln 2 (=ROUNDUP(LN(100)/LN(2), 0) • a ~

  4. Table 2.1 Example Data

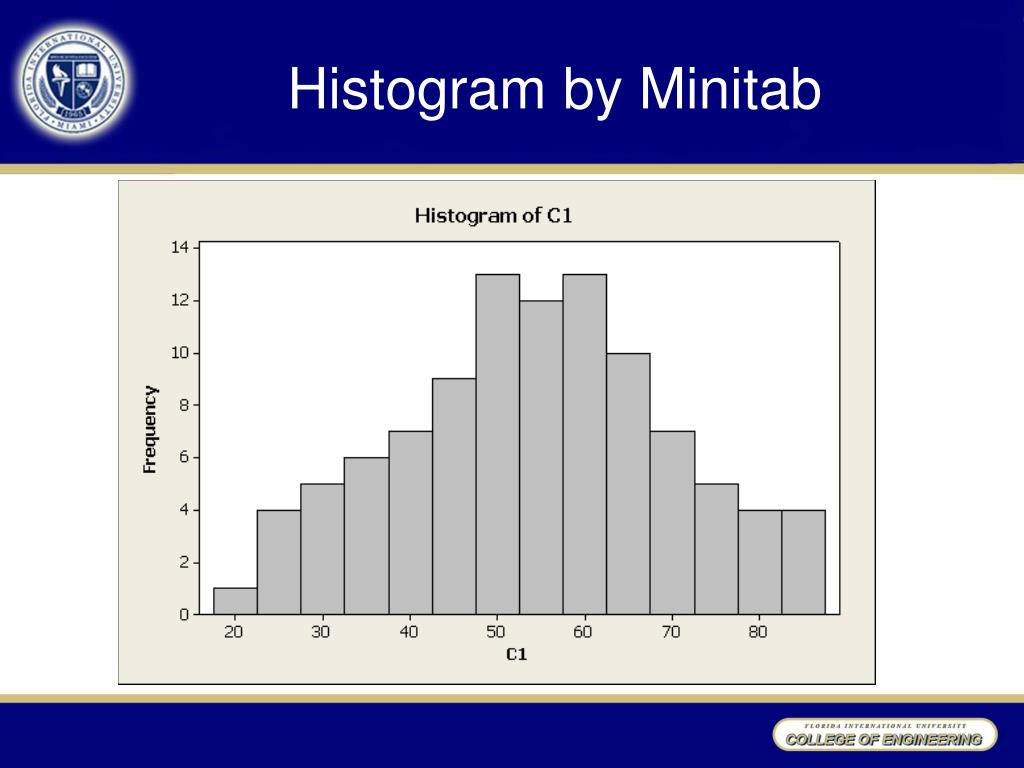

  5. Histogram by Minitab

  6. Histogram by Excel

  7. 2.2 Pareto Charts • A Pareto chart is a bar graph that shows the relative frequencies of observations in a descending order. • draws its name from an Italian economist, VilfredoPareto (1848–1923) • J. M. Juran is credited with being the first person to apply it to industrial problems

  8. Table 2.3 Nonconformities and Associated Monetary Losses

  9. Pareto Chart on Nonconformities

  10. Pareto Chart on Monetary Losses

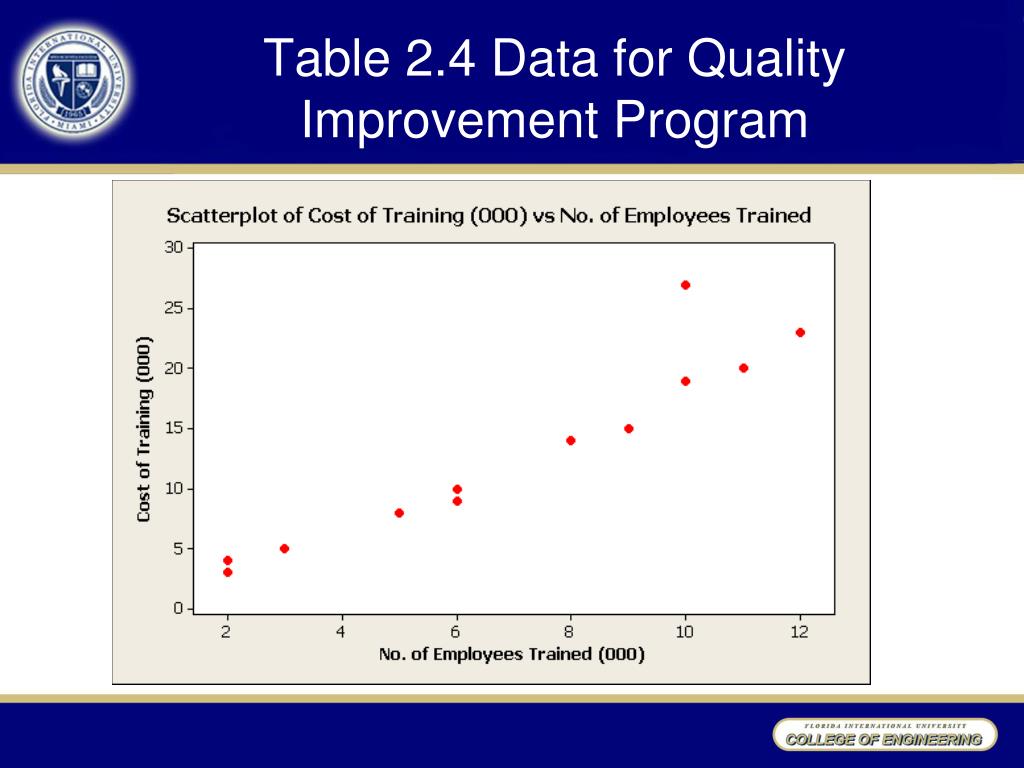

  11. 2.3 Scatter Plots • A scatter plot is another simple graphical device • The simplest type is a bivariate scatter plot, in which two quantities are plotted. • Scaling of the two axes is somewhat arbitrary • A time sequence plot is a type of scatter plot in that data on one variable are plotted against a second variable, time. • A probability plot is another type of scatter plot.

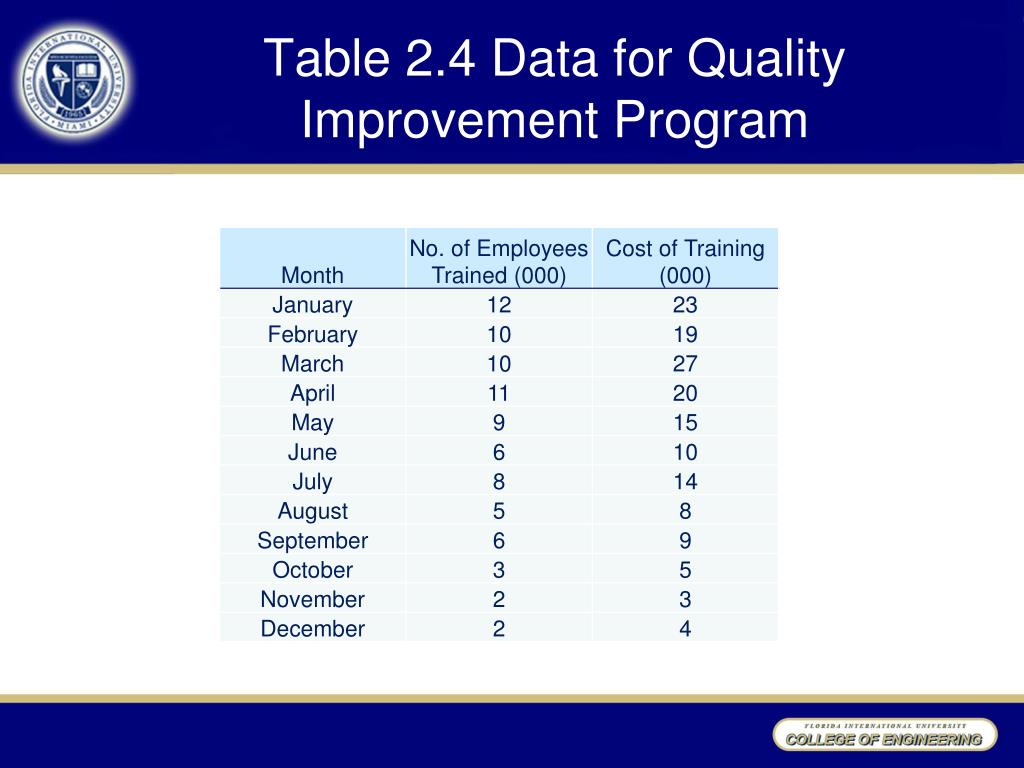

  12. Table 2.4 Data for Quality Improvement Program

  13. Table 2.4 Data for Quality Improvement Program

  14. Variations of Scatter Plots • Use number or special symbols for duplicated data points. • Use “range frames”, instead of scales

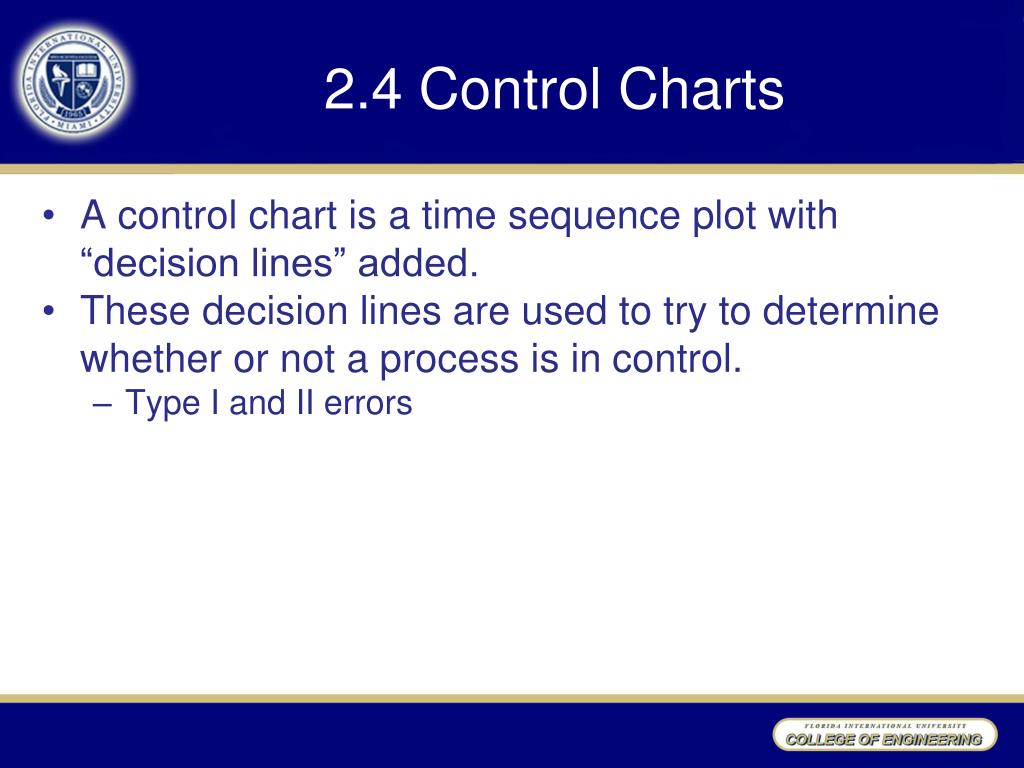

  15. 2.4 Control Charts • A control chart is a time sequence plot with “decision lines” added. • These decision lines are used to try to determine whether or not a process is in control. • Type I and II errors

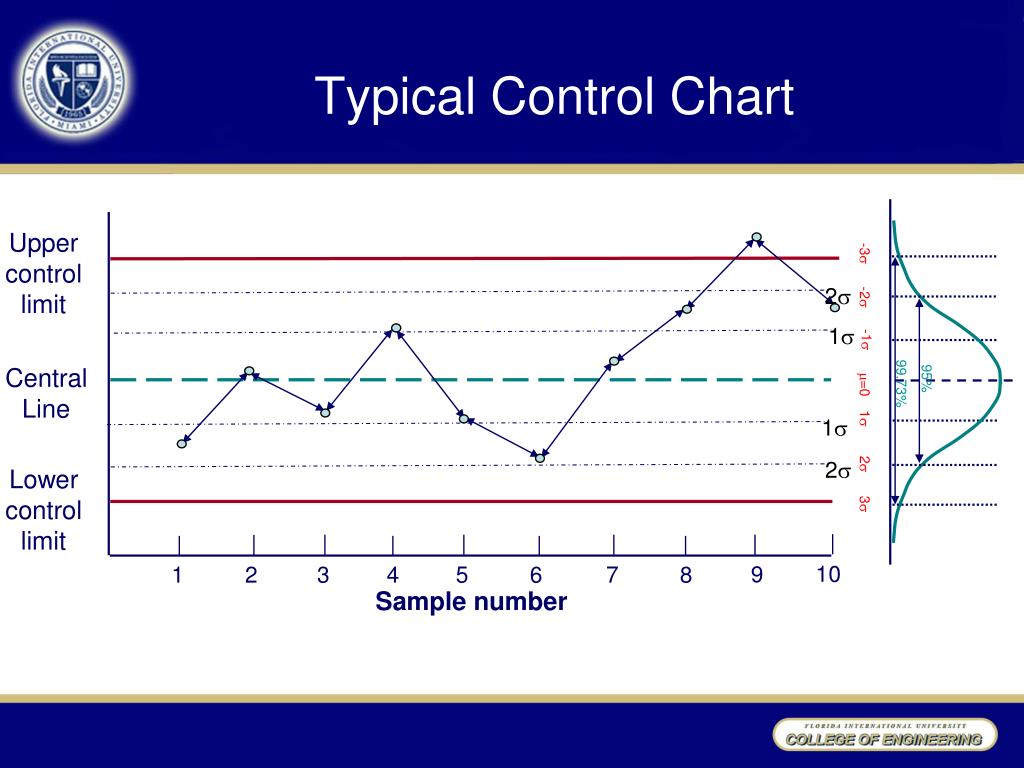

  16. 10 9 1 2 3 4 5 6 7 8 Typical Control Chart Upper control limit 2s 1s Central Line 95% 99.73% 1s Lower control limit -1 -3 -2 =0 1 2 3 2s Sample number

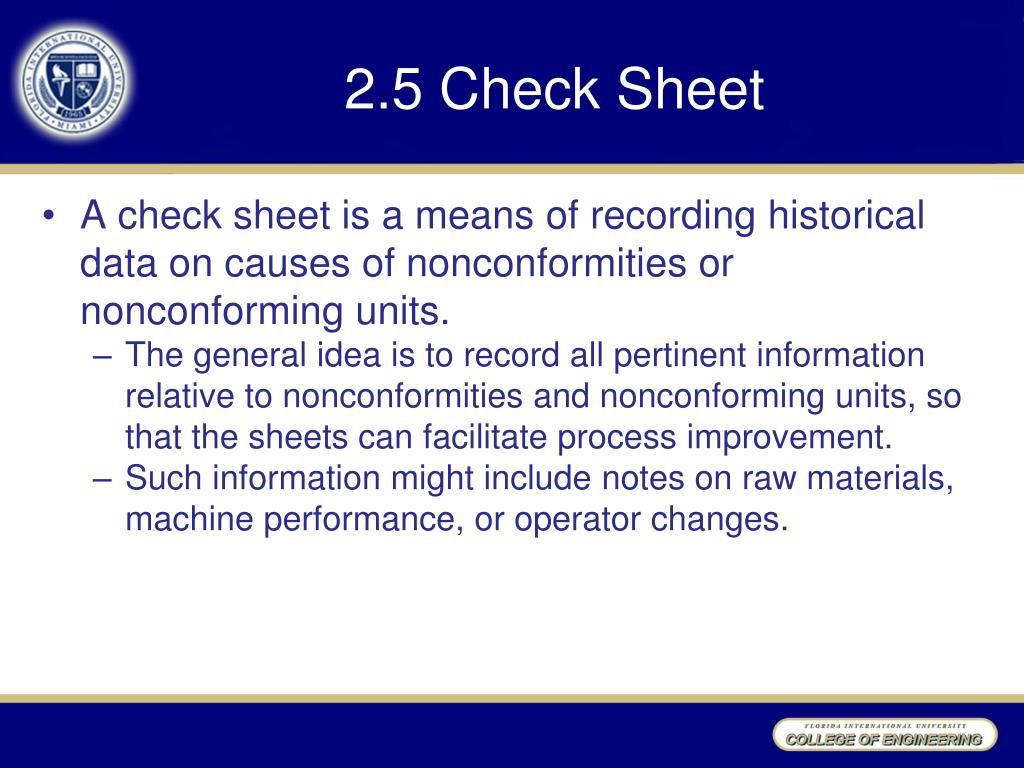

  17. 2.5 Check Sheet • A check sheet is a means of recording historical data on causes of nonconformities or nonconforming units. • The general idea is to record all pertinent information relative to nonconformities and nonconforming units, so that the sheets can facilitate process improvement. • Such information might include notes on raw materials, machine performance, or operator changes.

  18. 2.6 Cause-and-Effect Diagram • The cause-and-effect diagram was introduced in Japan in 1943 by Professor Kaoru Ishikawa of the University of Tokyo. • For that reason it is sometimes called an Ishikawa diagram; it has also been called a fishbone chart.

  19. Cause-and-Effect Diagram

  20. 2.7 Defect Concentration Diagram • It is simply a schematic diagram that shows the various sides of a unit of production, with the positions where nonconformities occur pinpointed.

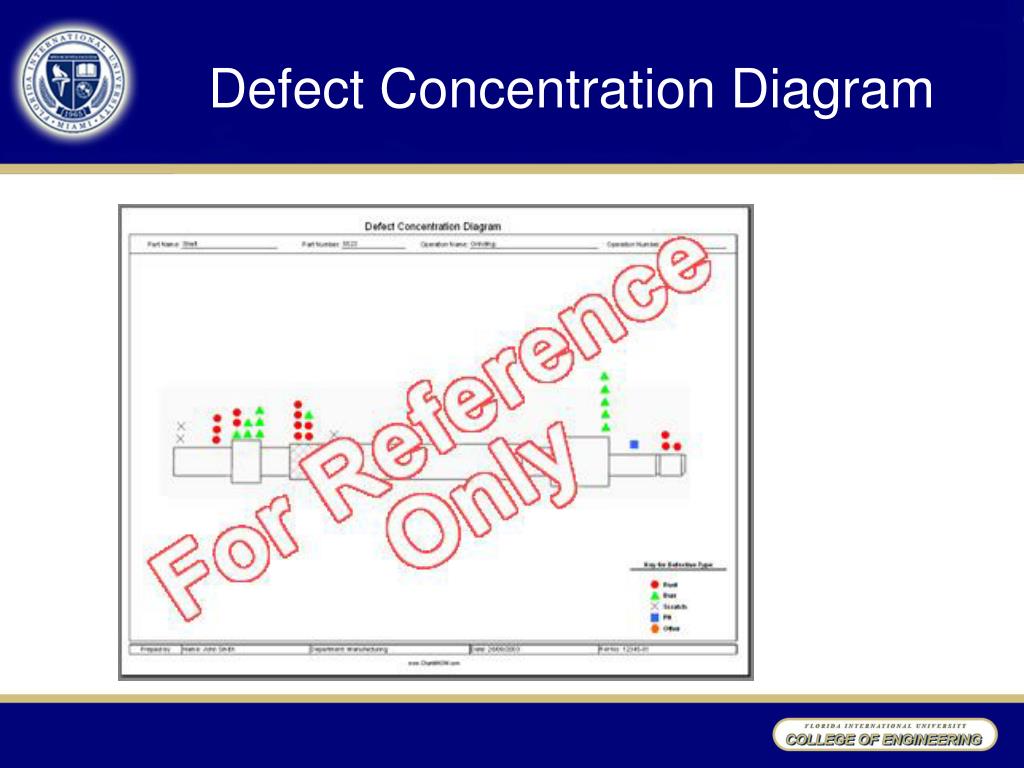

  21. Defect Concentration Diagram

  22. 2.8 The 7 Newer Tools • Affinity Diagram • Interrelationship Digraph • Tree Diagram • Prioritization Matrix • Matrix Diagram • Process Decision Program Chart • Activity Network Diagram

  23. 2.8.1 Affinity Diagram • An affinity diagram is a set of ideas about a particular topic that are grouped into clusters. • The diagram is the end product of brainstorming that is performed in a prescribed manner.

  24. 2.8.1 Affinity Diagram

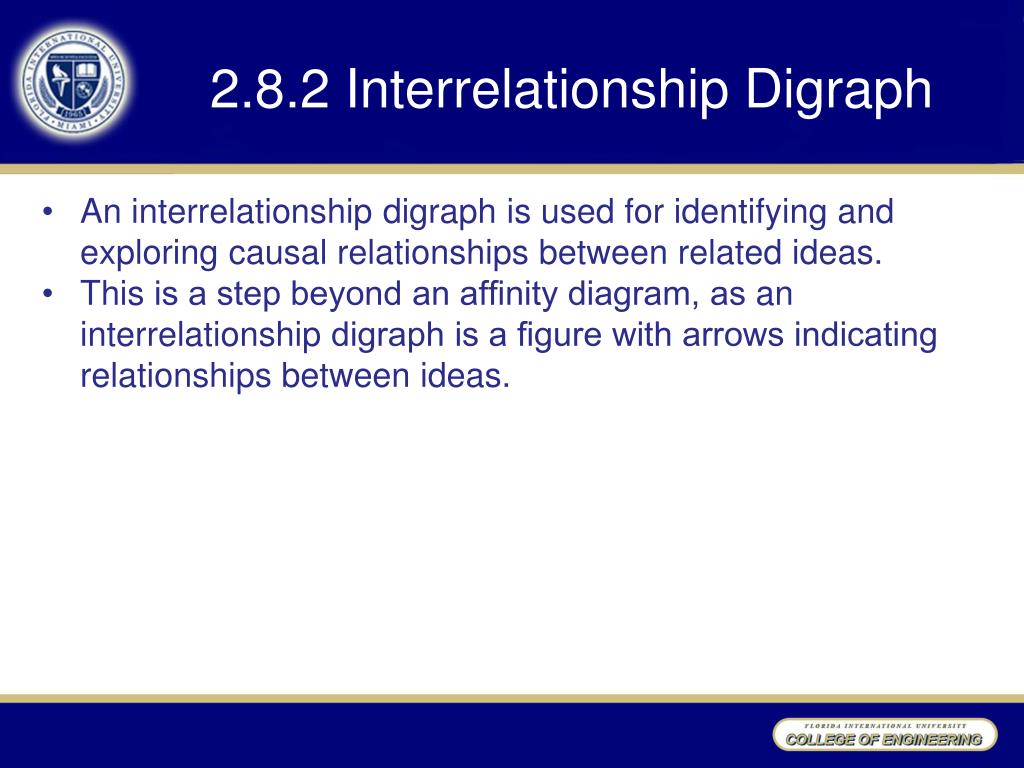

  25. 2.8.2 Interrelationship Digraph • An interrelationship digraph is used for identifying and exploring causal relationships between related ideas. • This is a step beyond an affinity diagram, as an interrelationship digraph is a figure with arrows indicating relationships between ideas.

  26. 2.8.2 Interrelationship Digraph

  27. 2.8.3 Tree Diagram • A tree diagram is somewhat similar to a cause-and-effect diagram in that a desired effect (e.g., reducing delivery delays) can be shown pictorially as related to the factors that can lead to the effect. • A tree diagram will generally more closely resemble a company organizational chart in appearance than a cause-and-effect diagram. • A tree diagram is a more structured display than either an affinity diagram or an interrelationship digraph.

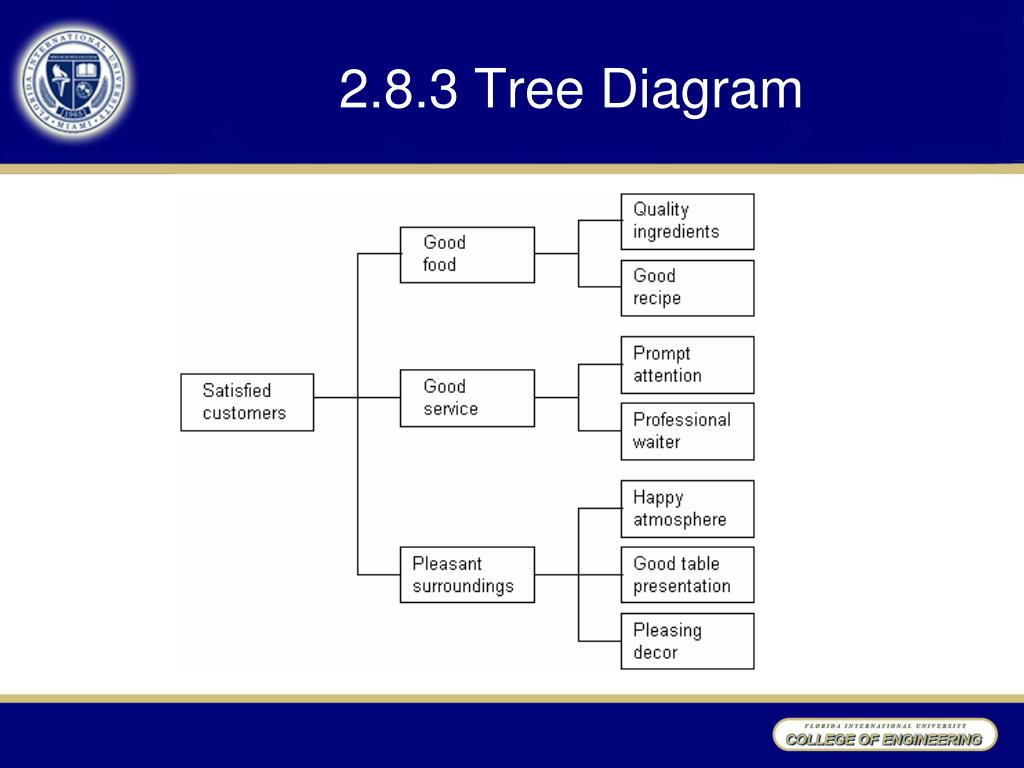

  28. 2.8.3 Tree Diagram

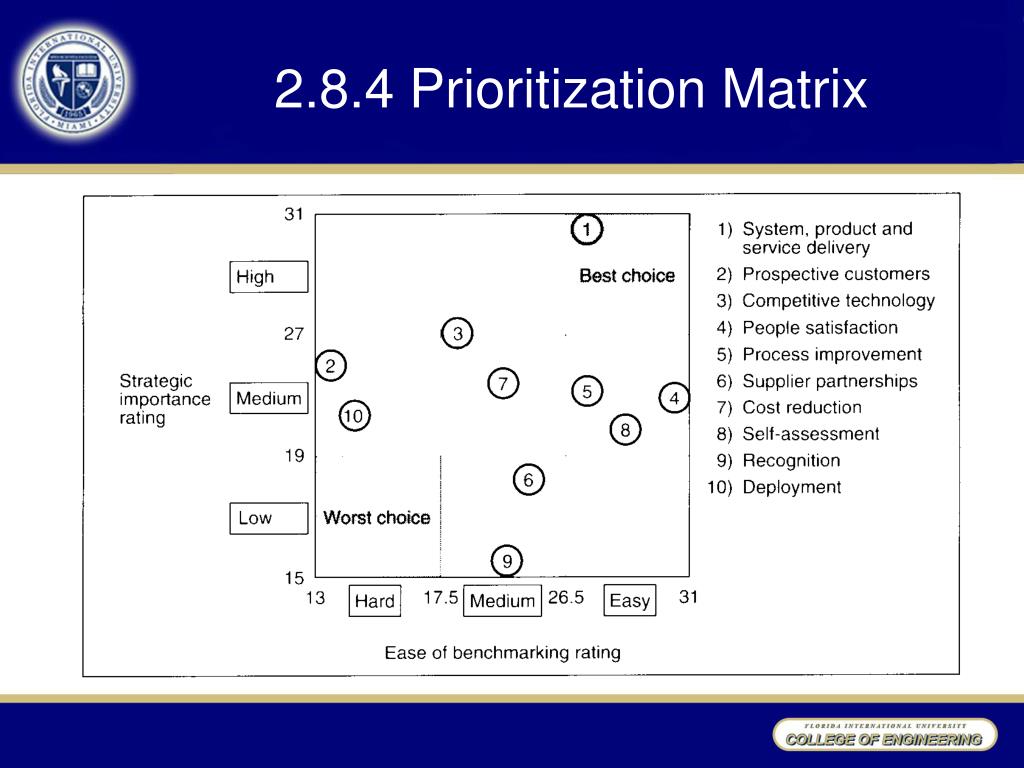

  29. 2.8.4 Prioritization Matrix • A prioritization matrix is a relative ranking of issues jobs, objectives, products, and so on. • The ranking is accomplished by comparing the components pairwise so that a logical and consistent ranking results.

  30. 2.8.4 Prioritization Matrix

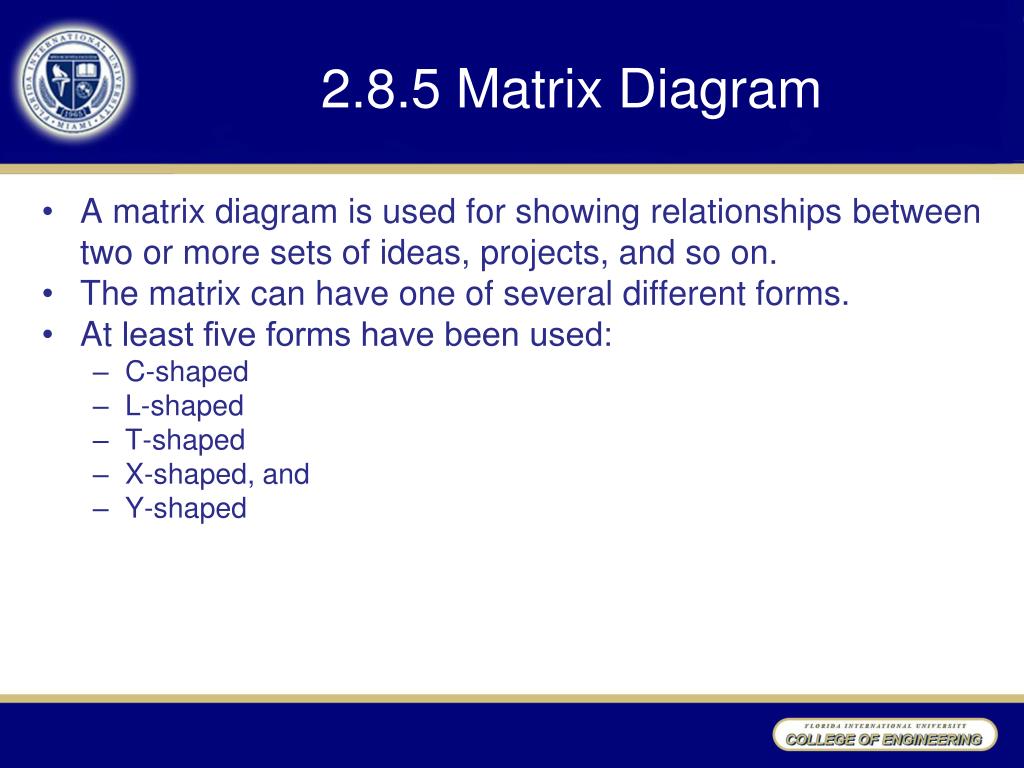

  31. 2.8.5 Matrix Diagram • A matrix diagram is used for showing relationships between two or more sets of ideas, projects, and so on. • The matrix can have one of several different forms. • At least five forms have been used: • C-shaped • L-shaped • T-shaped • X-shaped, and • Y-shaped

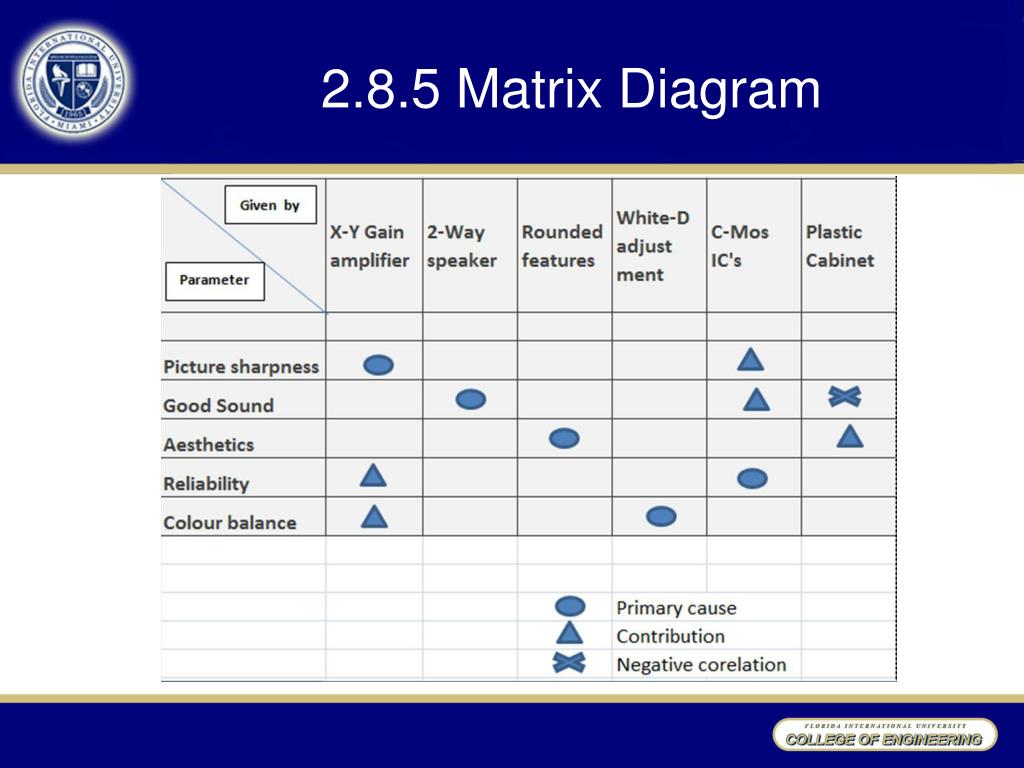

  32. 2.8.5 Matrix Diagram

  33. 2.8.6 Process Decision Program Chart • A process decision program chart is a listing of undesirable events and corresponding contingency actions relative to planned actions. • It is used when there is considerable concern about the possibility of negative unanticipated outcomes.

  34. 2.8.6 Process Decision Program Chart

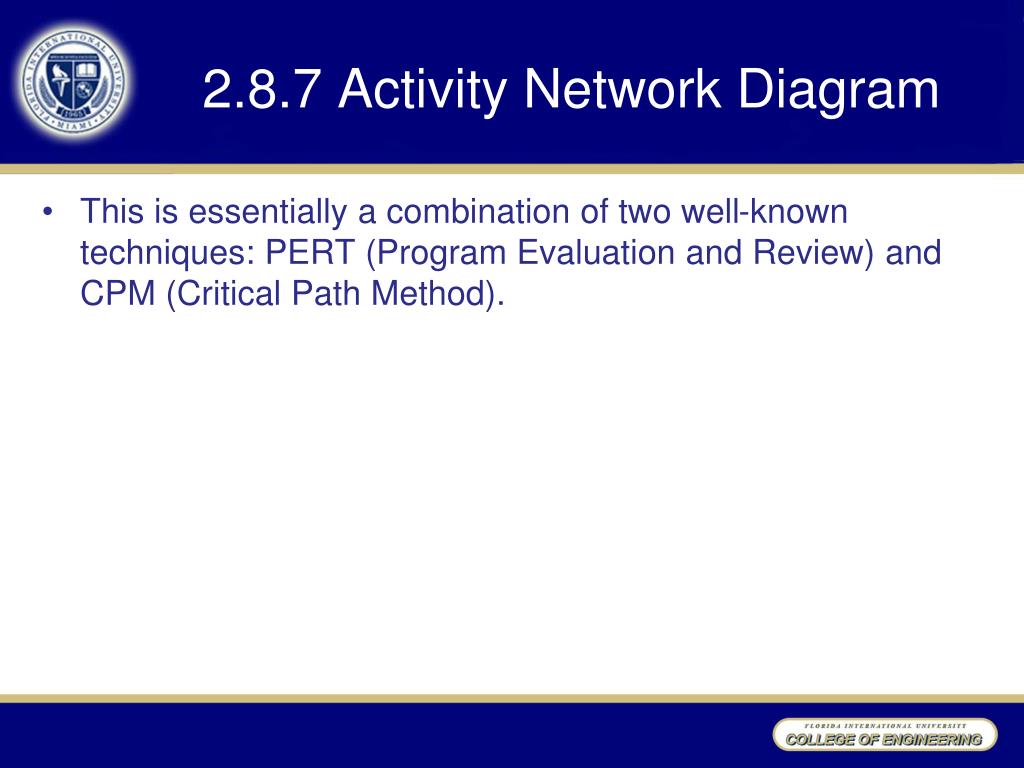

  35. 2.8.7 Activity Network Diagram • This is essentially a combination of two well-known techniques: PERT (Program Evaluation and Review) and CPM (Critical Path Method).

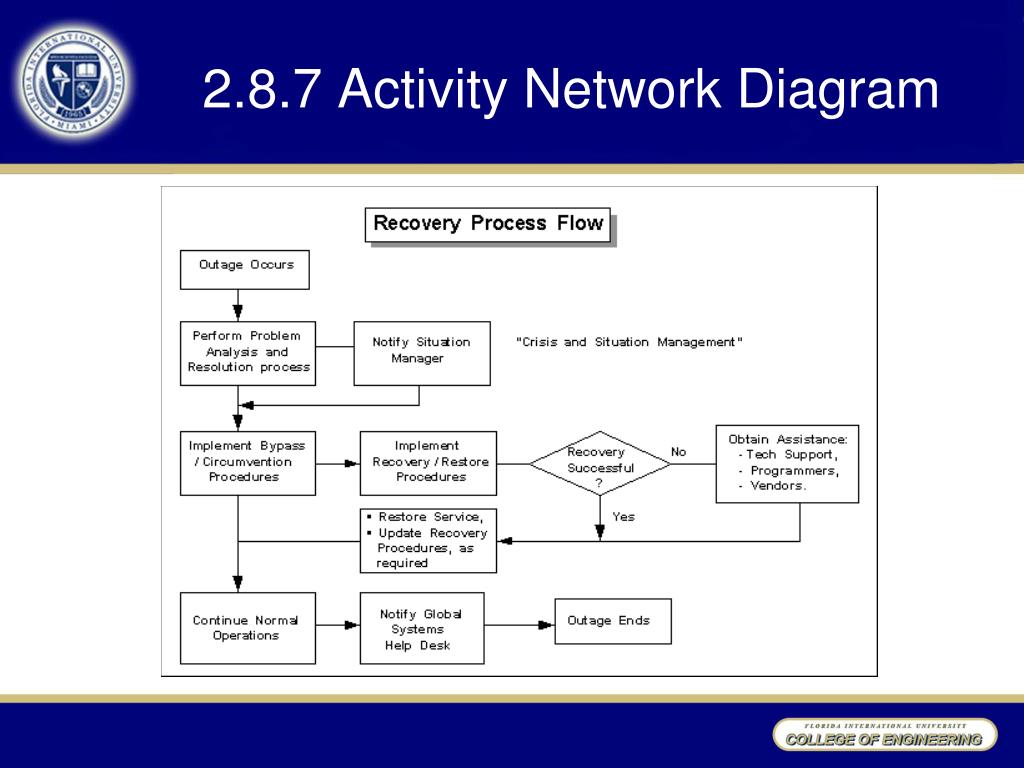

  36. 2.8.7 Activity Network Diagram
