Magnetic Background Issues above 1Hz for CLIC beams

This study investigates the impact of magnetic background issues above 1 Hz on the CLIC beams, focusing on klystron performance and beam stability. It discusses the necessary tolerances for variable fields in critical components such as the main linac and long transfer lines. Measurements highlight the influence of external factors, including high voltage transmission lines and site power distribution on stray magnetic fields. Proposals for mapping and reducing these stray fields are also presented, aiming to minimize their effects on beam precision and emittance growth.

talon
Télécharger la présentation

Magnetic Background Issues above 1Hz for CLIC beams

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Magnetic Background Issues above 1Hz for CLIC beams Cezary Jach CLIC2009

  2. 326 klystrons 33 MW, 139 ms combiner rings Circumferences delay loop 72.4 m CR1 144.8 m CR2 434.3 m drive beam accelerator 2.38 GeV, 1.0 GHz CR1 CR1 1 km delay loop CR2 326 klystrons 33 MW, 139 ms drive beam accelerator 2.38 GeV, 1.0 GHz 1 km delay loop CR2 decelerator, 24 sectors of 868 m BDS 2.75 km BDS 2.75 km BC2 BC2 245m 245m IP1 e- main linac , 12 GHz, 100 MV/m, 20.85 km e+ main linac TA R=120m TA R=120m 47.9 km CLIC 3 TeV booster linac, 9 GeV, 2 GHz or 4 GHz ? BC1 e- injector 2.4 GeV e+ injector, 2.4 GeV e+ DR 365m e- DR 365m

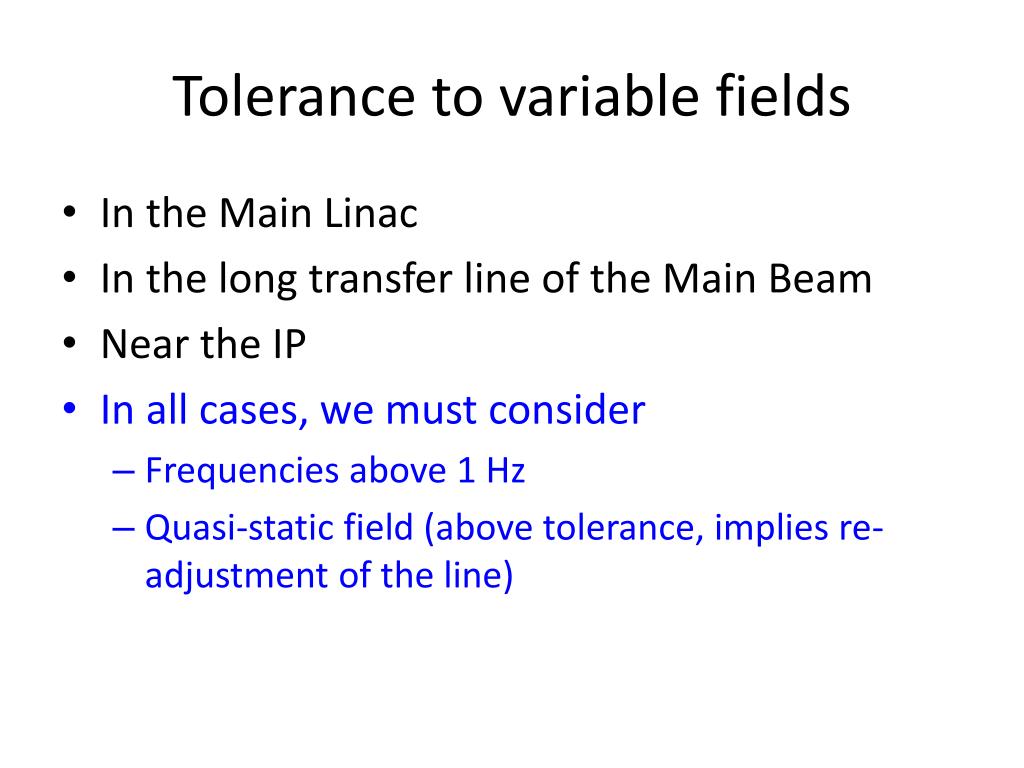

  3. Tolerance to variable fields • In the Main Linac • In the long transfer line of the Main Beam • Near the IP • In all cases, we must consider • Frequencies above 1 Hz • Quasi-static field (above tolerance, implies re-adjustment of the line)
