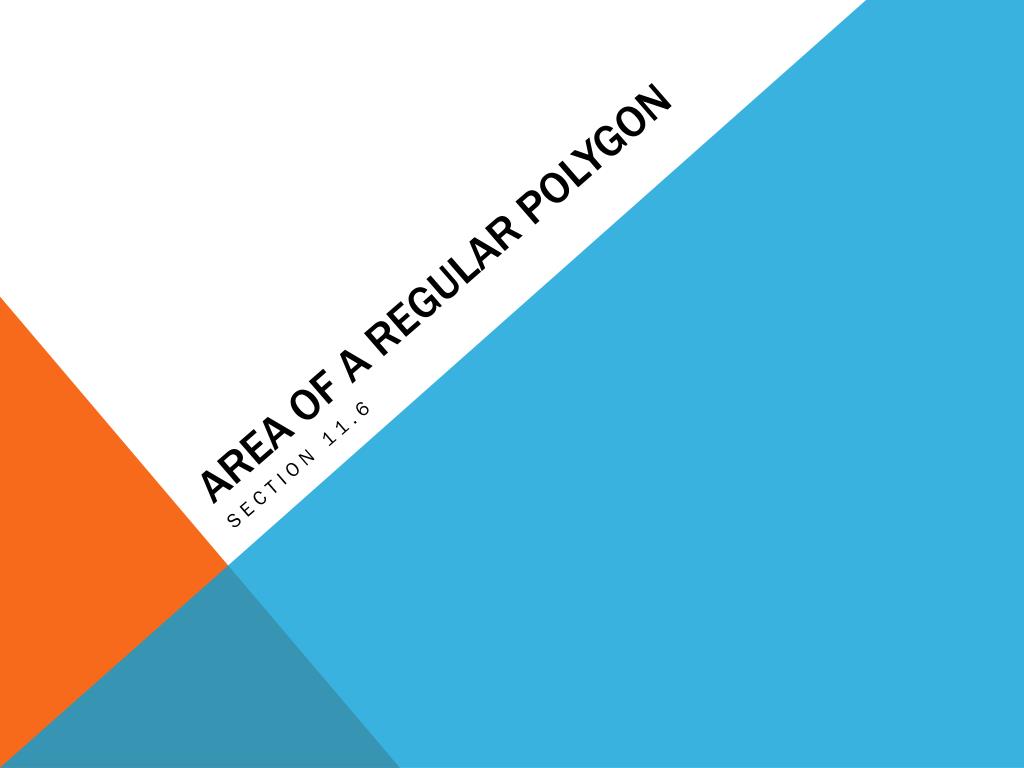

  1. Area of a Regular Polygon Section 11.6

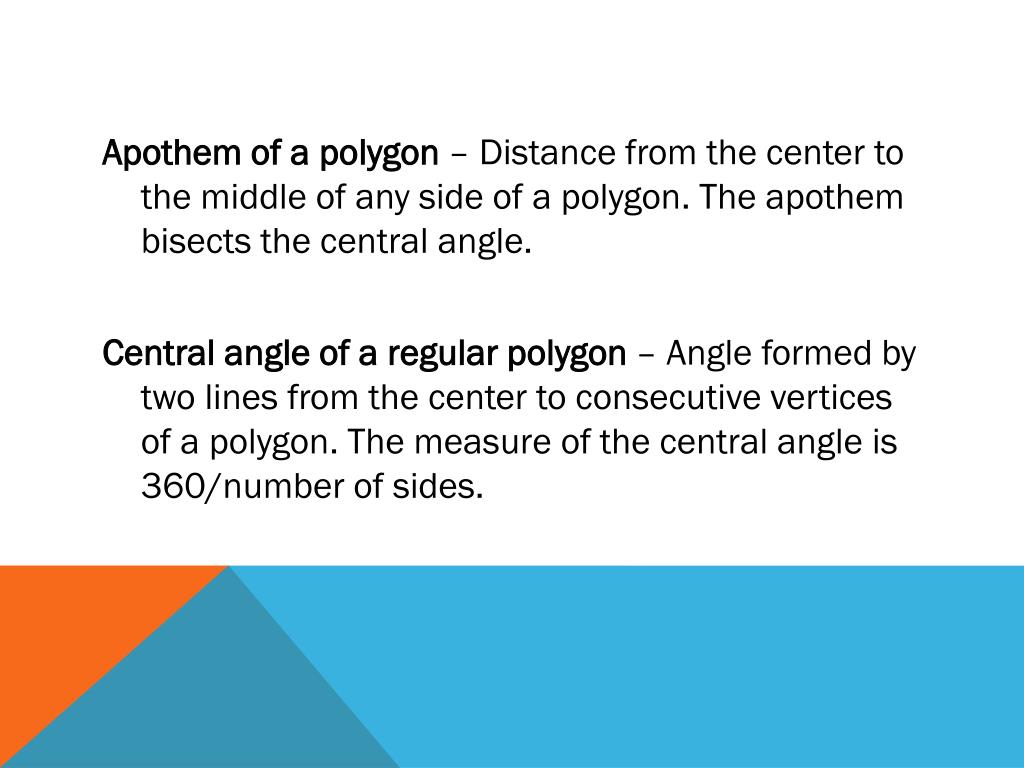

  2. Apothem of a polygon – Distance from the center to the middle of any side of a polygon. The apothem bisects the central angle. • Central angle of a regular polygon – Angle formed by two lines from the center to consecutive vertices of a polygon. The measure of the central angle is 360/number of sides.

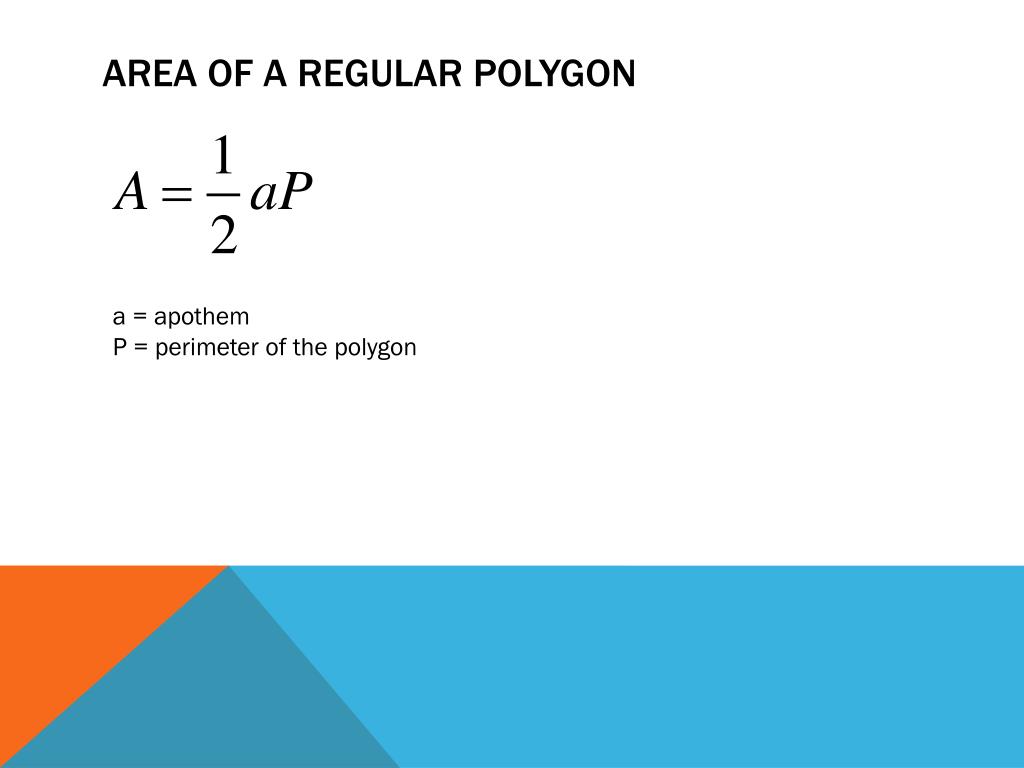

  3. Area of a regular polygon a = apothem P = perimeter of the polygon

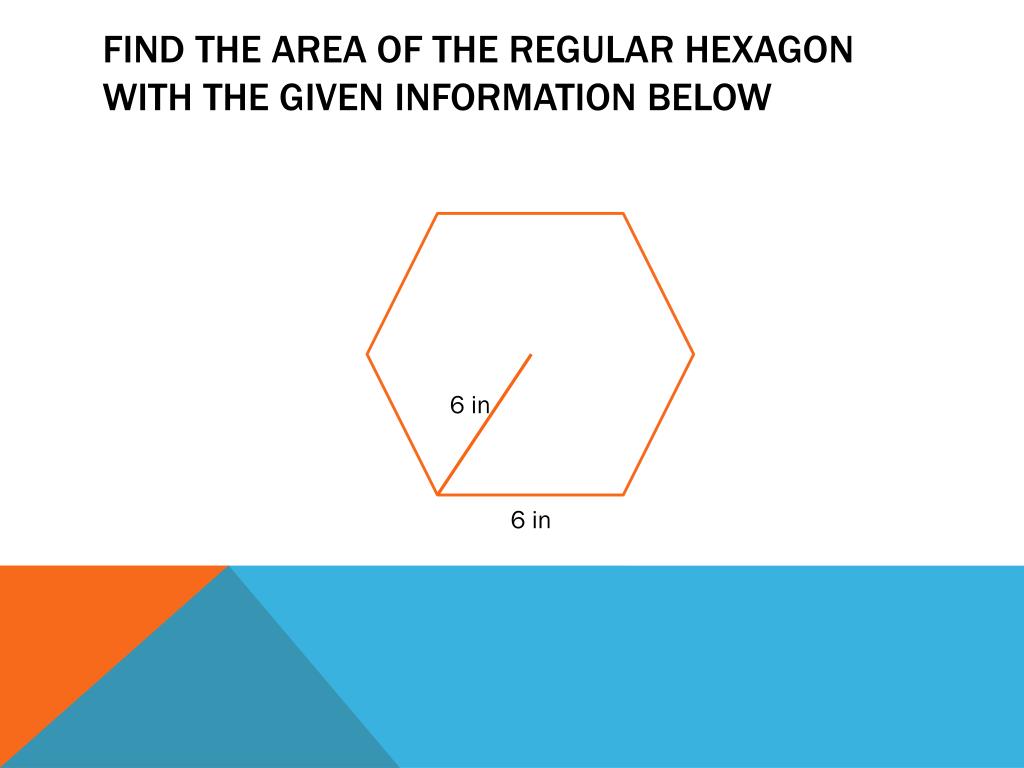

  4. Find the area of the regular hexagon with the given information below 6 in 6 in

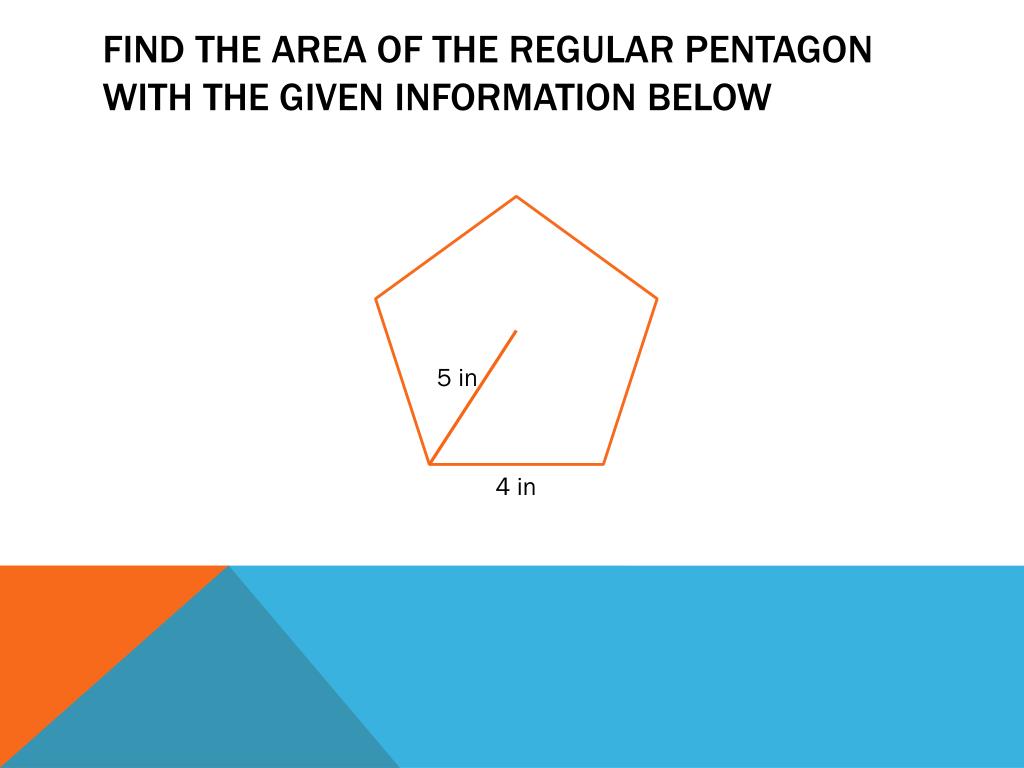

  5. Find the area of the regular pentagon with the given information below 5 in 4 in

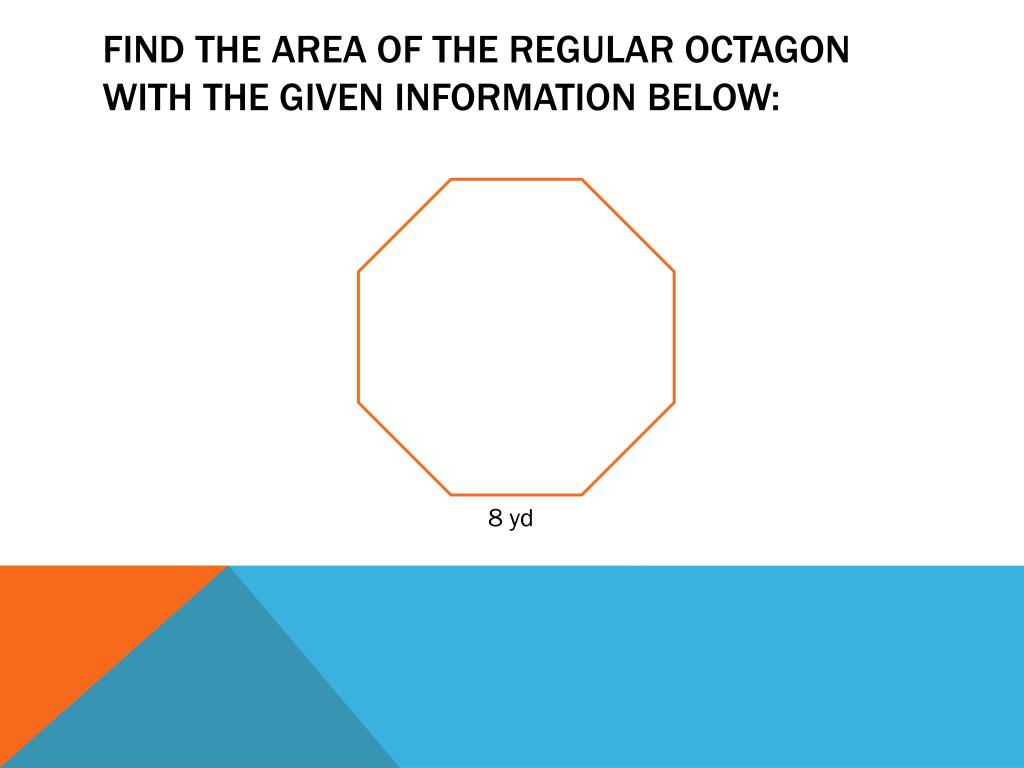

  6. Find the area of the regular octagon with the given information below: 8 yd

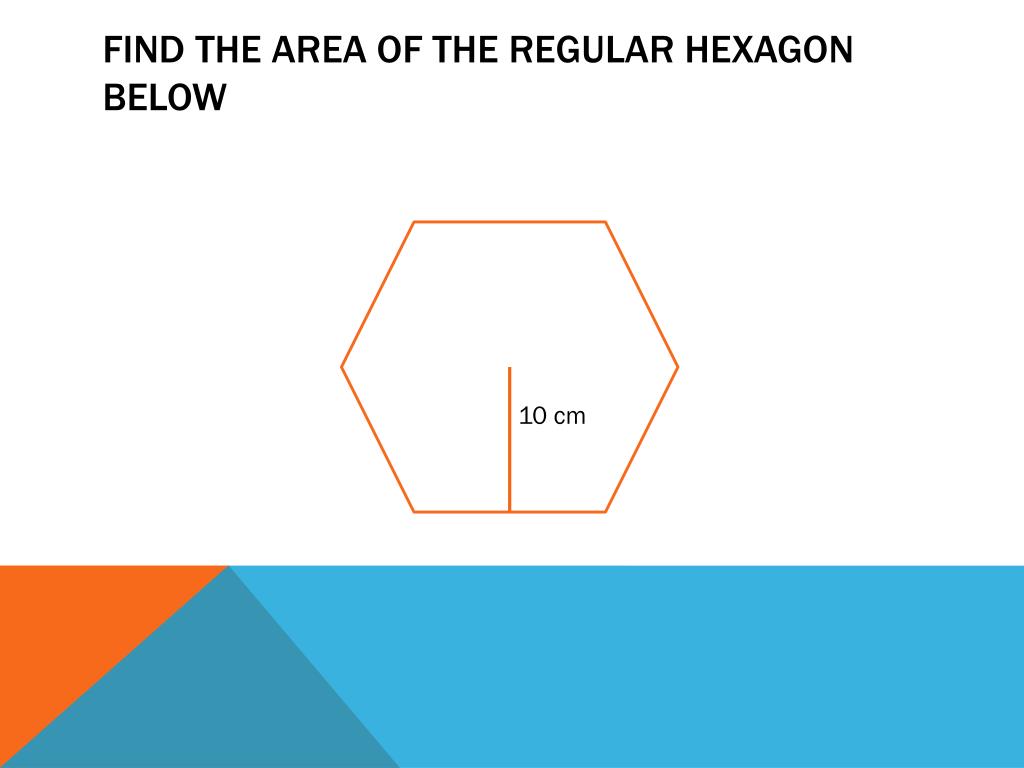

  7. Find the area of the regular hexagon below 10 cm

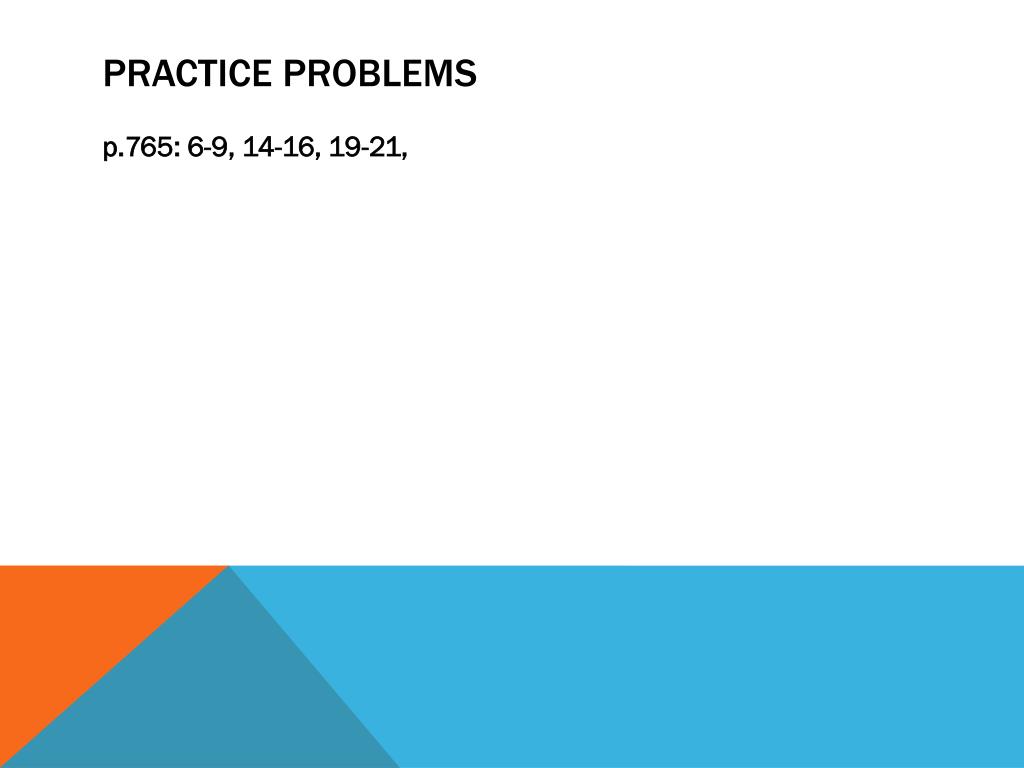

  8. Practice Problems • p.765: 6-9, 14-16, 19-21,
