Resonance:

Resonance: When you can draw more than one classic valence bond structure for a compound that differ only in the arrangement of the electrons, there is resonance . If the structures have approximately the same stability, then resonance is important .

tamas
Télécharger la présentation

Resonance:

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

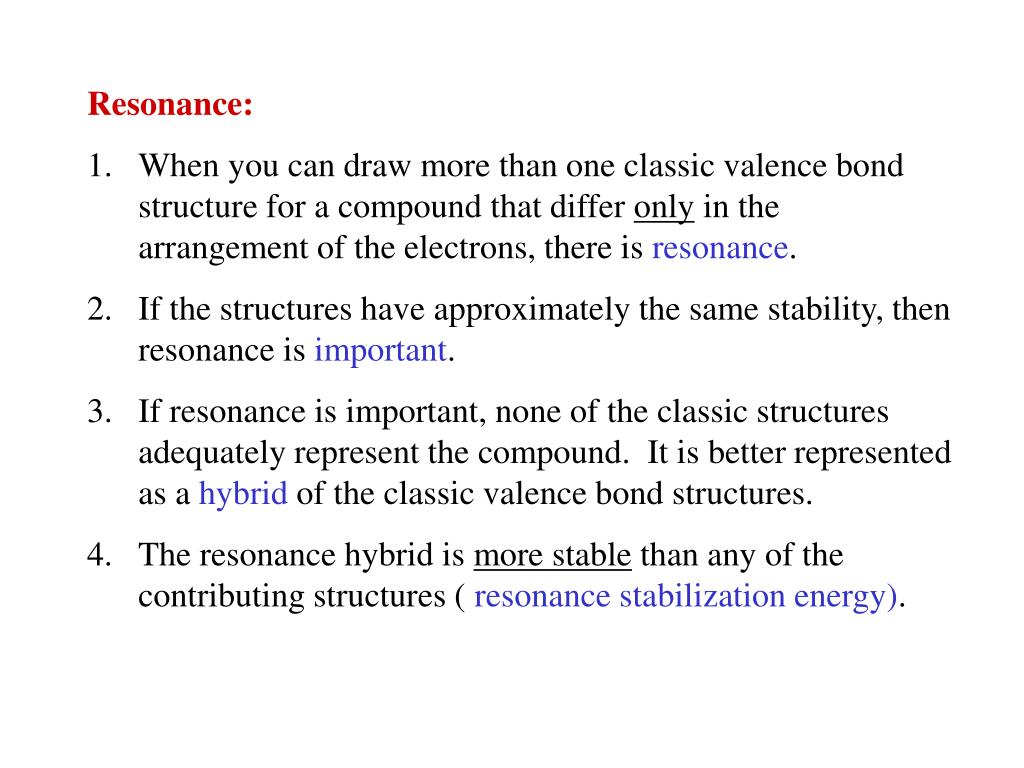

  1. Resonance: • When you can draw more than one classic valence bond structure for a compound that differ only in the arrangement of the electrons, there is resonance. • If the structures have approximately the same stability, then resonance is important. • If resonance is important, none of the classic structures adequately represent the compound. It is better represented as a hybrid of the classic valence bond structures. • The resonance hybrid is more stable than any of the contributing structures ( resonance stabilization energy).

  2. allylic halogenation of alkenes. • CH2=CHCH3 + X2, heat  CH2=CHCH2 + HX • X • X2 2 X• • CH2=CHCH3 + •X  HX + CH2=CHCH2• • allyl free radical • 3) CH2=CHCH2• + X2  CH2=CHCH2-X + X• • etc.

  3. [ CH2=CHCH2•  •CH2CH=CH2 ] Resonance is important here! H H H | | | H—C- - C- -C—H • Stability of free radicals: allyl > 3o > 2o > 1o > CH3

  4. H | C H — C C — H | | H H delocalization of the unpaired electron  resonance stabilization • • •

  5. proof that the allyl free radical is as proposed: 13CH3CH=CH2 + NBS  13CH2CH=CH2 + 13CH2=CHCH2 Br Br [13CH2CH=CH2 13CH2=CHCH2 ] • •

  6. Dienes: | | | | | | | | | — C = C — C = C — —C = C — C — C = C — | conjugated double bonds isolated double bonds | | — C = C = C — cumulated double bonds

  7. nomenclature: CH2=CHCH=CH2 CH3CH=CHCH2CH=CHCH3 1,3-butadiene 2,5-heptadiene conjugated isolated 2-methyl-1,3-butadiene (isoprene) conjugated

  8. (cumulated dienes are not very stable and are rare) • isolated dienes are as you would predict, undergo addition reactions with one or two moles… •  conjugated dienes are unusual in that they: • are more stable than predicted • are the preferred products of eliminations • give 1,2- plus 1,4-addition products

  9. Heats of hydrogenation (Kcal/mole) for dienes: 1,4-pentadiene 60.8 isolated 1,5-hexadiene 60.5 isolated 1,3-butadiene 57.1 conjugated 1,3-pentadiene 54.1 conjugated 2-methyl-1,3-pentadiene 53.4 conjugated 2,3-dimethyl-1,3-butadiene 53.9 conjugated 1,2-propadiene (allene) 71.3cumulated

  10. Conjugated dienes are more stable (~3/4 Kcal/mole) than predicted. (Isolated dienes are as expected.) Conjugated dienes are the preferred products of eliminations: CH3CH2CHCH2CH=CH2 + KOH(alc)  Br CH3CH2CH=CHCH=CH2 ONLY! CH3CH=CHCH2CH=CH2 none!

  11. isolated dienes: (as expected) 1,5-hexadiene CH2=CHCH2CH2CH=CH2 + H2, Ni  CH3CH2CH2CH2CH=CH2 CH2=CHCH2CH2CH=CH2 + 2 H2, Ni  CH3CH2CH2CH2CH2CH3 CH2=CHCH2CH2CH=CH2 + Br2  CH2CHCH2CH2CH=CH2 Br Br CH2=CHCH2CH2CH=CH2 + HBr  CH3CHCH2CH2CH=CH2 Br CH2=CHCH2CH2CH=CH2 + 2 HBr  CH3CHCH2CH2CHCH3 Br Br

  12. conjugated dienes yield 1,2- plus 1,4-addition: CH2=CHCH=CH2 + H2, Ni  CH3CH2CH=CH2 + CH3CH=CHCH3 CH2=CHCH=CH2 + 2 H2, Ni  CH3CH2CH2CH3 CH2=CHCH=CH2 + Br2 CH2CHCH=CH2 + CH2CH=CHCH2 Br Br Br Br CH2=CHCH=CH2 + HBr  CH3CHCH=CH2 + CH3CH=CHCH2 Br Br peroxides CH2=CHCH=CH2 + HBr  CH2CH=CHCH3 + CH2CH2CH=CH2 Br Br

  13. 1,2- plus 1,4-addition? CH2=CHCH=CH2 + HBr CH2CHCH=CH2 CH2CH=CHCH2 H H  resonance! allyl carbocation: CH3CH--C--CH2   CH2CHCH=CH2 + CH2CH=CHCH2 H Br H Br 1,2-addition 1,4-addition

  14. 1,2- plus 1,4-addition of free radicals: perox. CH2=CHCH=CH2 + HBr CH2CHCH=CH2 CH2CH=CHCH2 Br• Br • resonance! allyl free radical: CH3CH--C--CH2 •  CH2CHCH=CH2 + CH2CH=CHCH2 Br H Br H 1,2-addition 1,4-addition

  15. no resonance is possible with isolated double bonds: CH2=CHCH2CH=CH2 + HBr  CH2CHCH2CH=CH2 H  no resonance possible  CH2CHCH2CH=CH2 H Br

  16.  conjugated dienes are unusual in that they: • are more stable than predicted • are the preferred products of eliminations • give 1,2- plus 1,4-addition products

  17. polymer  isoprene polyisoprene all cis- polyisoprene = latex rubber all trans- polyisoprene = gutta percha cis-/trans- polyisoprene = chicle

  18. vulcanization of rubber: addition of sulfur and heat to natural rubber => 1) harder & 2) less soluble in organic solvents. synthetic rubber Cl Cl CH2 = C—CH = CH2 -(-CH2—C = C—CH2-)-n chloroprene polychoroprene
