  1. Mesh Layouts for Block-Based Caches Sung-Eui Yoon Peter Lindstrom Lawrence Livermore National Laboratory

  2. Goal • Provide cache-coherent layouts of meshes and graphs • Derive metrics that measure cache-coherence of layouts • Generality • Simplicity • Efficiency • Accuracy

  3. Cache-Coherent Metrics • Measure the expected number of cache misses of a layout given block-based caches • Should correlate well with the observed number of cache misses • Cache-aware metrics • Measure cache-coherence given known cache parameters (e.g., block size) • Cache-oblivious metrics • Consider all possible cache parameters

  4. Motivation • Lower growth rate of data access speed 130X Accumulated growth rate during 1993 – 2004 (log scale) 46X 20X 1.5X during 99 - 04 Courtesy: Anselmo Lastra, http://www.hcibook.com/e3/online/moores-law/

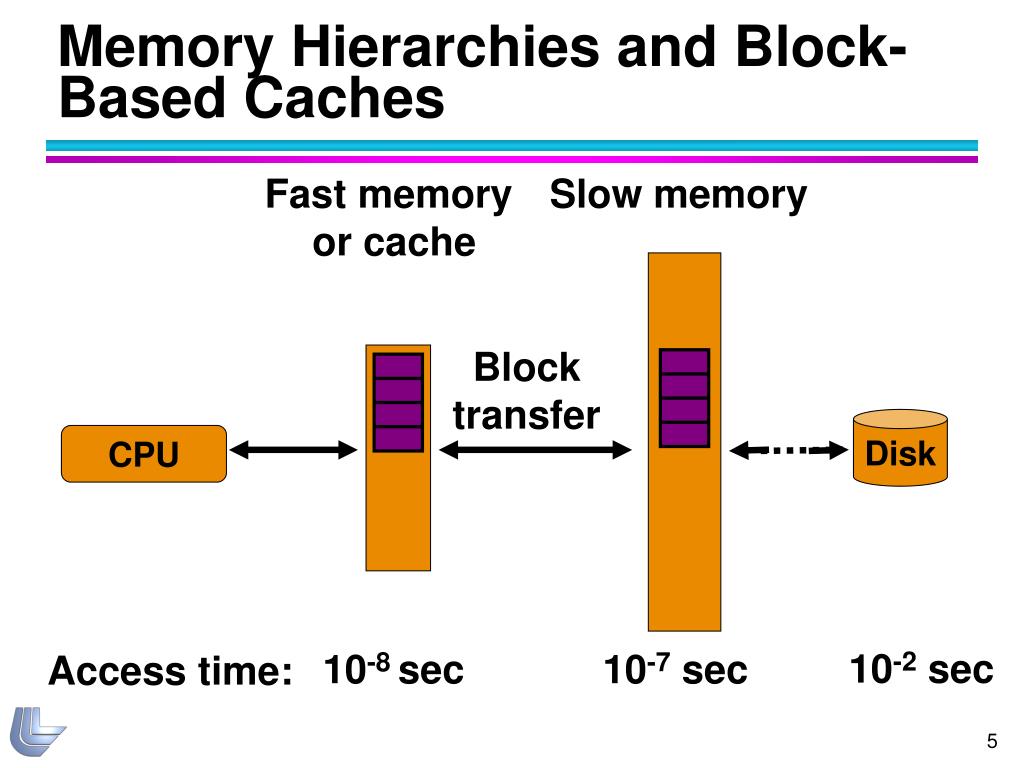

  5. Memory Hierarchies and Block-Based Caches Fast memory or cache Slow memory Block transfer Disk CPU 10-2 sec 10-8 sec 10-7 sec Access time:

  6. Main Contributions • Propose novel and practical cache-aware and cache-oblivious metrics • Derive metrics given block-based caches • Propose efficient cache-coherent layout constructions • Apply to different applications

  7. Related Work • Computation reordering • Data layout optimization

  8. Computational Reordering • Cache-aware [Coleman and McKinley 95, Vitter 01, Sen et al. 02] • Cache-oblivious [Frigo et al. 99, Arge et al. 04] Focus on specific problems such as sorting and linear algebra computations

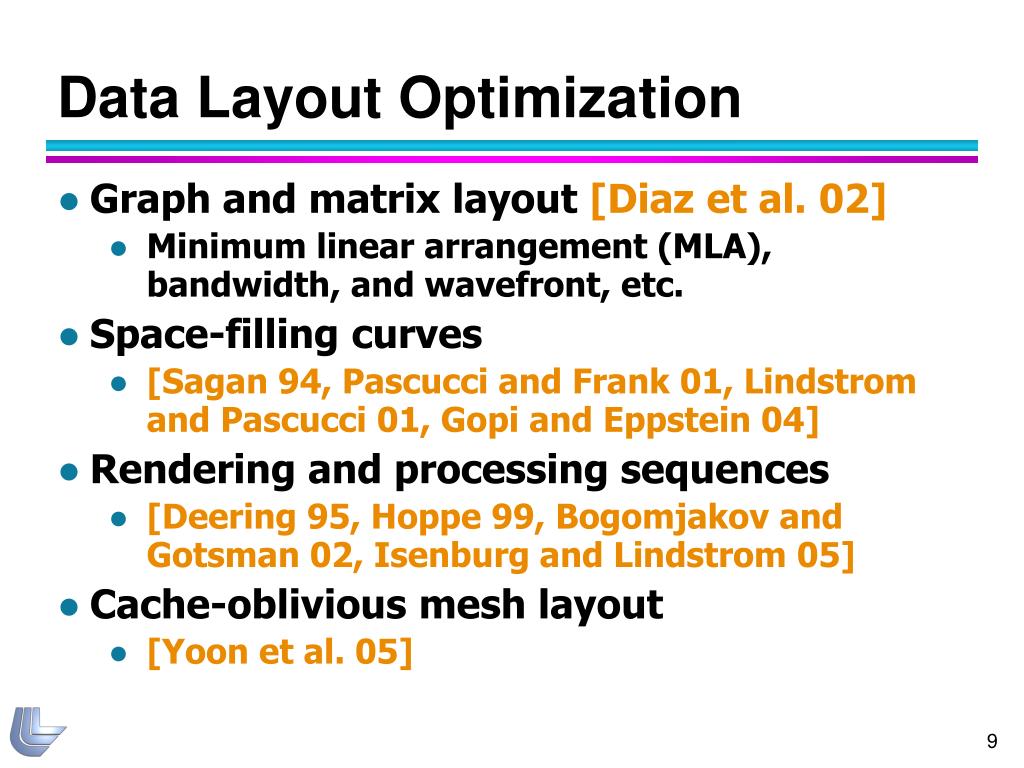

  9. Data Layout Optimization • Graph and matrix layout [Diaz et al. 02] • Minimum linear arrangement (MLA), bandwidth, and wavefront, etc. • Space-filling curves • [Sagan 94, Pascucci and Frank 01, Lindstrom and Pascucci 01, Gopi and Eppstein 04] • Rendering and processing sequences • [Deering 95, Hoppe 99, Bogomjakov and Gotsman 02, Isenburg and Lindstrom 05] • Cache-oblivious mesh layout • [Yoon et al. 05]

  10. Outline • Computation models • Cache-aware and cache-oblivious metrics • Results

  11. Outline • Computation models • Cache-aware and cache-oblivious metrics • Results

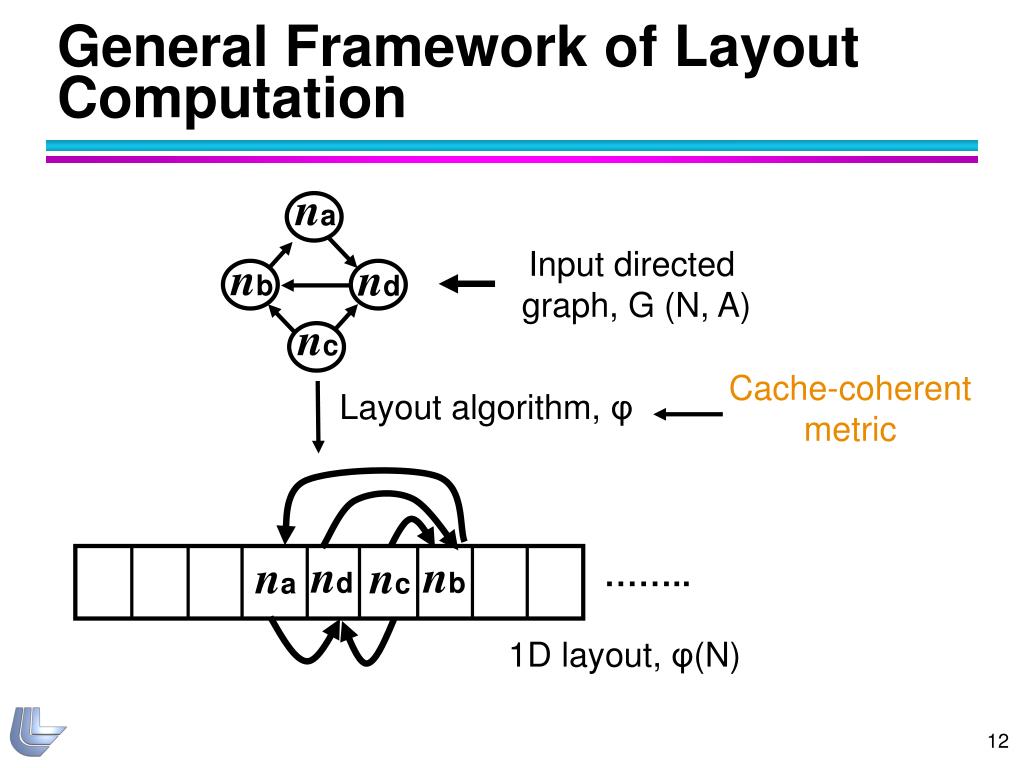

  12. General Framework of Layout Computation na Input directed graph, G (N, A) nb nd nc Cache-coherent metric Layout algorithm, φ nd nb na nc …….. 1D layout, φ(N)

  13. nd na nc Two-Level I/O Model [Aggarwal and Vitter 88] na Input directed graph nb nd nc M cache blocks, whose size is B Layout algorithm nb Cache nd nb na nc …….. 1D layout with block size = 3

  14. Graph Representation • Directed graph, G = (N, A) • Represent access patterns between nodes • Nodes, N • Data element • (e.g., mesh vertex or mesh triangle) • Directed arcs, A • Connects two nodes if they are accessed sequentially na nb nd nc

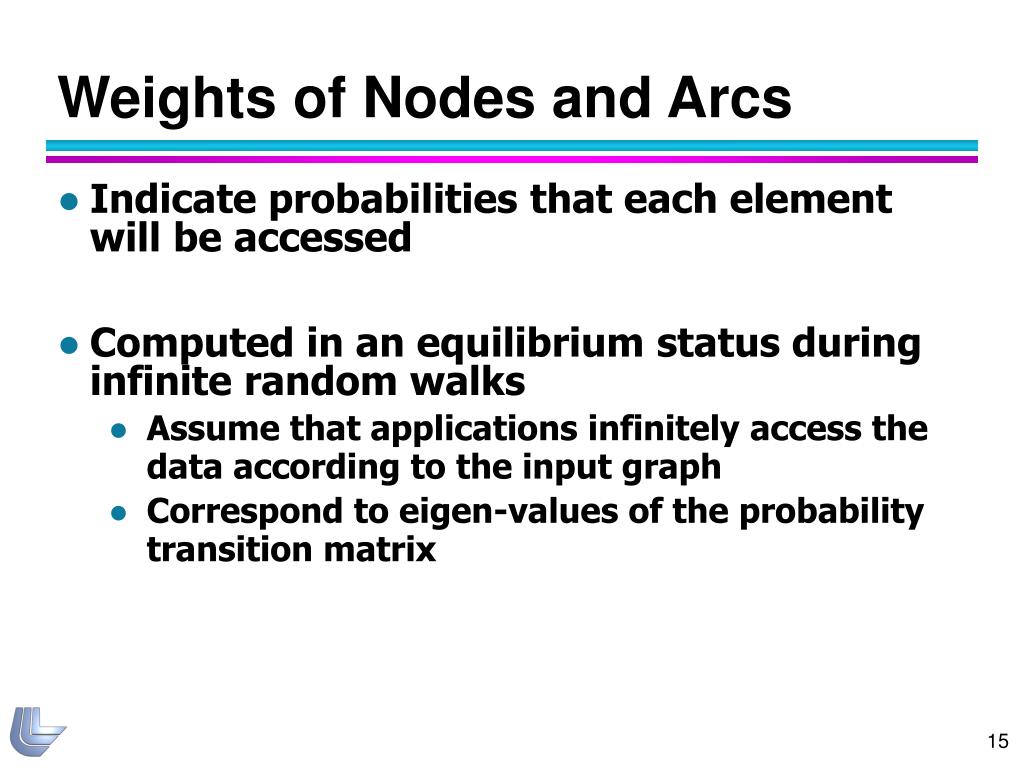

  15. Weights of Nodes and Arcs • Indicate probabilities that each element will be accessed • Computed in an equilibrium status during infinite random walks • Assume that applications infinitely access the data according to the input graph • Correspond to eigen-values of the probability transition matrix

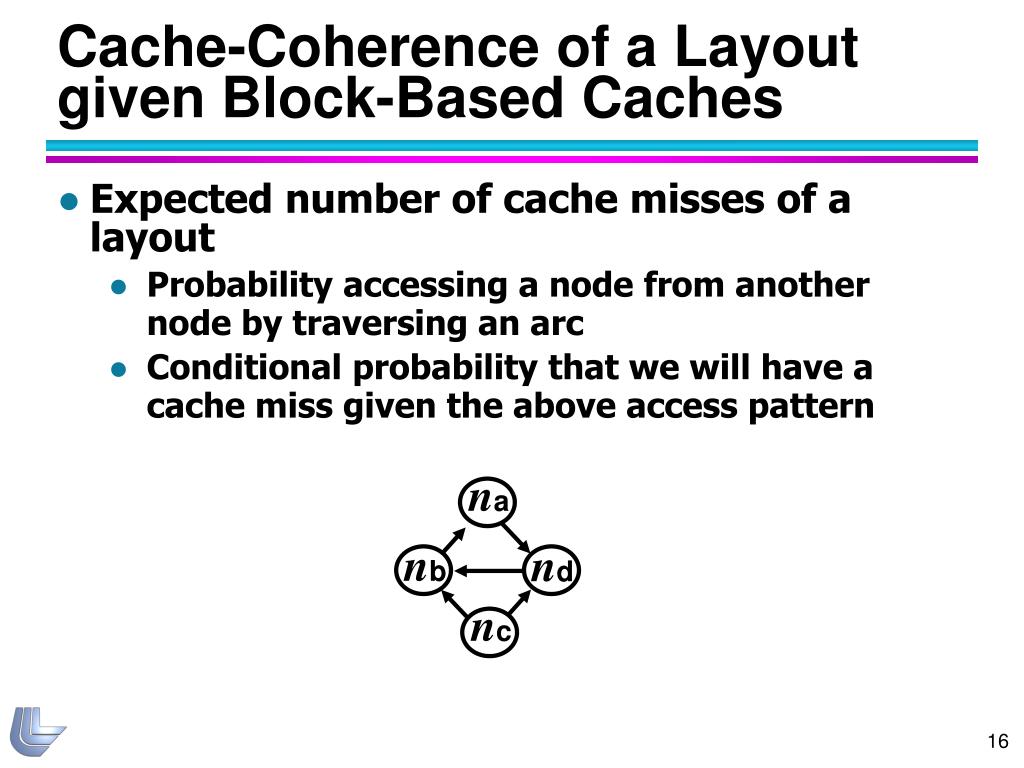

  16. Cache-Coherence of a Layout given Block-Based Caches • Expected number of cache misses of a layout • Probability accessing a node from another node by traversing an arc • Conditional probability that we will have a cache miss given the above access pattern na nb nd nc

  17. Specialization to Meshes • Expected number of cache misses of a layout • Probability accessing a node from another node by traversing an arc • Conditional probability that we will have a cache miss given the above access pattern = constant na na 1. Two opposite directed arcs 2. Uniform distribution to access adjacent nodes given a node nb nd nb nd nc nc Implicitly derived graph An input mesh

  18. Outline • Computation models • Cache-aware and cache-oblivious metrics • Results

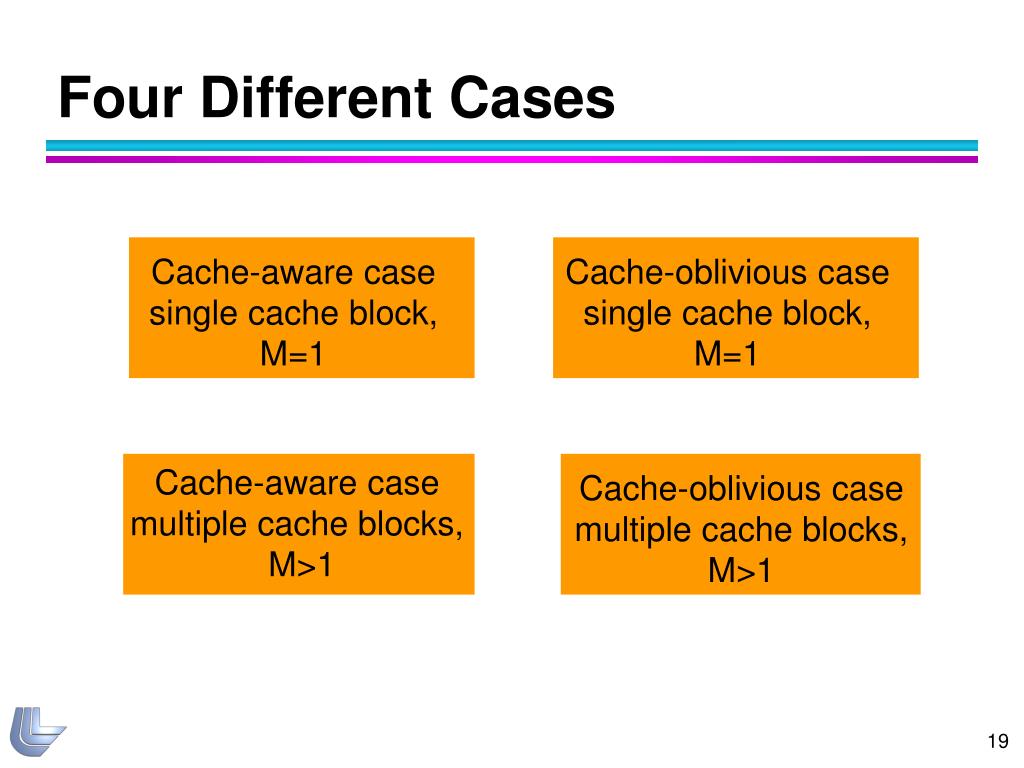

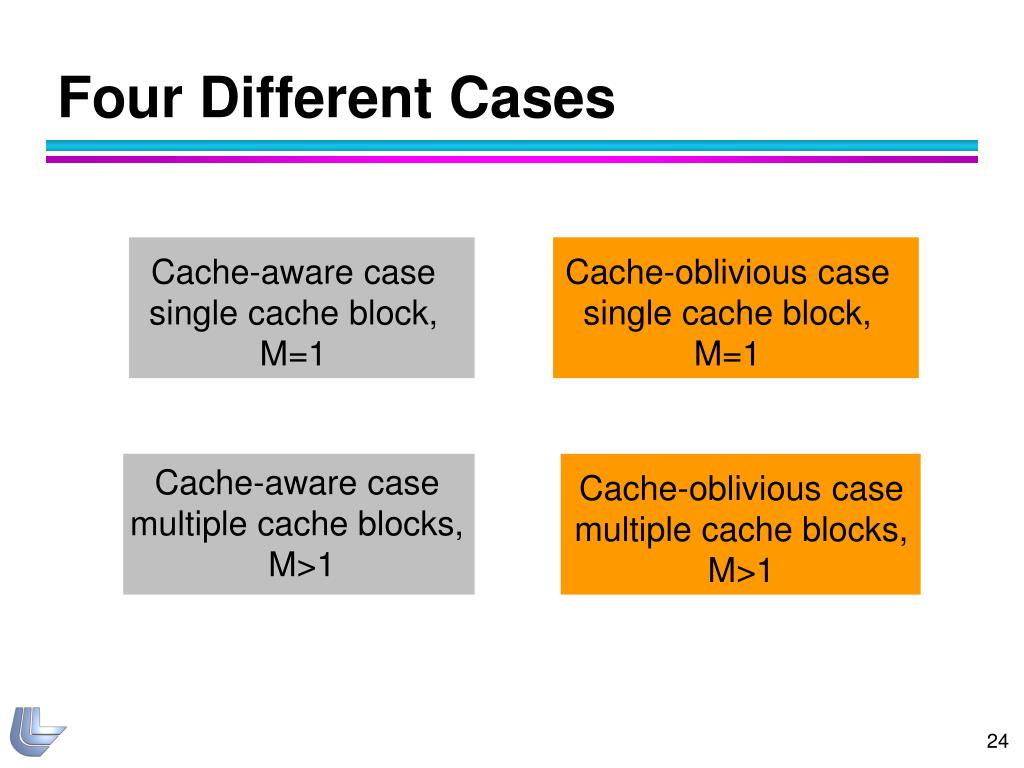

  19. Four Different Cases Cache-aware case single cache block, M=1 Cache-oblivious case single cache block, M=1 Cache-aware case multiple cache blocks, M>1 Cache-oblivious case multiple cache blocks, M>1

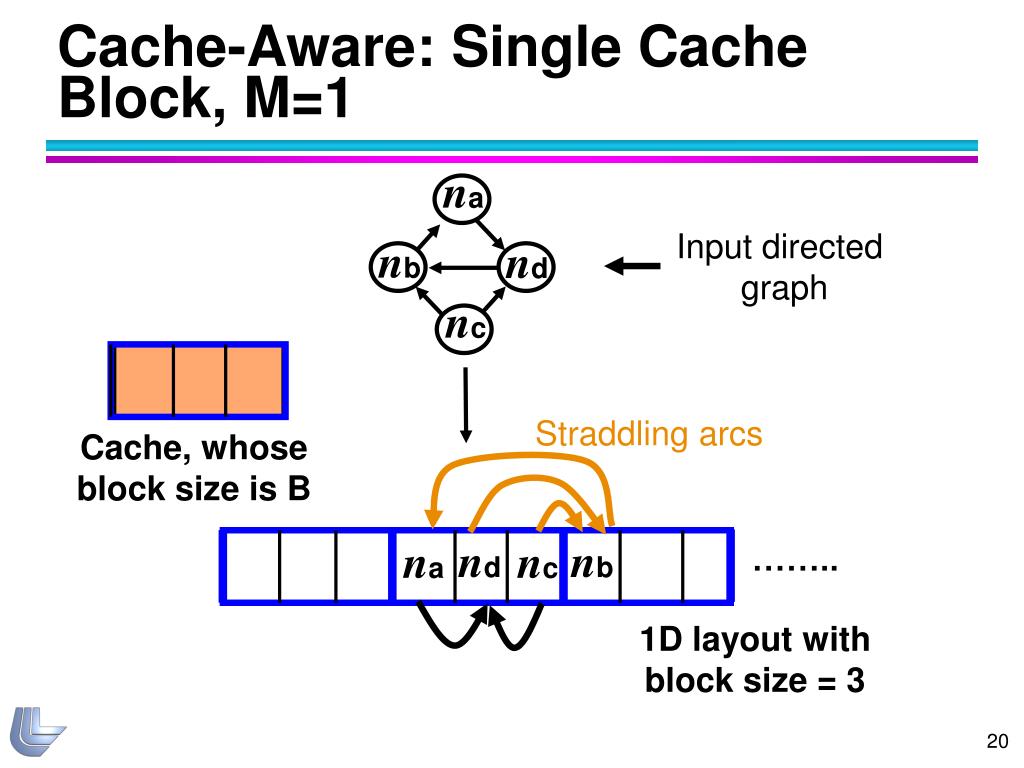

  20. Cache-Aware: Single Cache Block, M=1 na Input directed graph nb nd nc Straddling arcs Cache, whose block size is B nd nb na nc …….. 1D layout with block size = 3

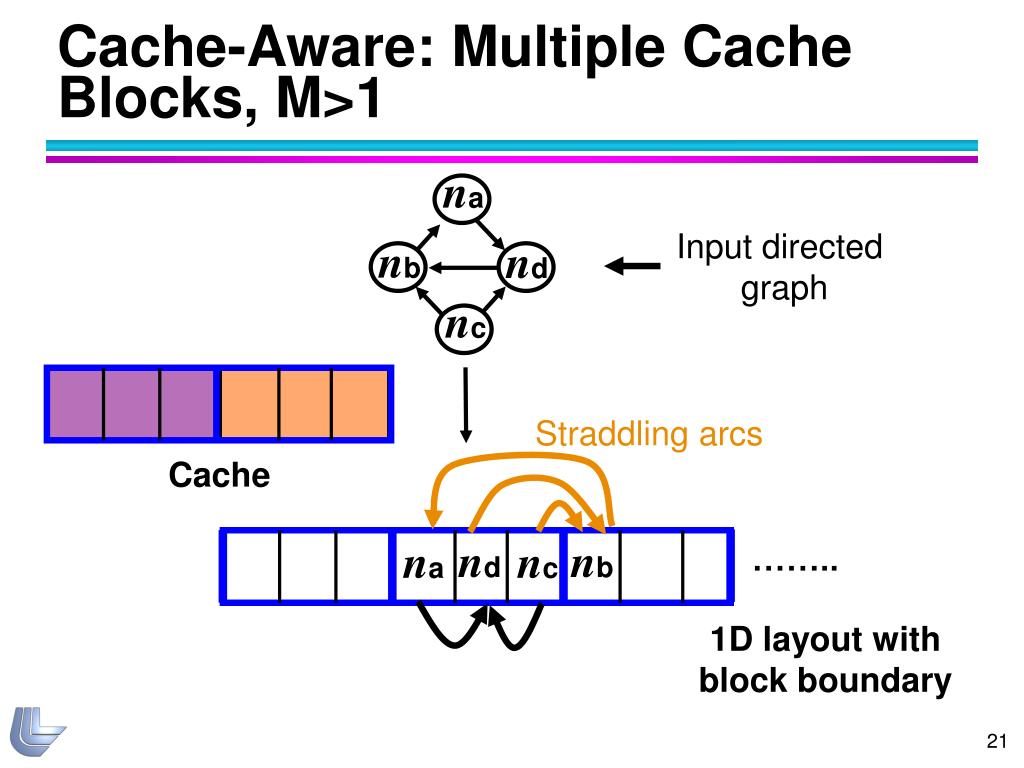

  21. Cache-Aware: Multiple Cache Blocks, M>1 na Input directed graph nb nd nc Straddling arcs Cache nd nb na nc …….. 1D layout with block boundary

  22. Final Cache-Aware Metric • Counts the number of straddling arcs of the layout given a block size B : block index containing the node, i where : Unit step function, 1 if x > 0 0 otherwise.

  23. High Accuracy of Cache-Aware Metric Tested block size = 4KB Z-curve on a uniform grid Tested layouts: Z-curve, Hilbert curve, H-order, minimum linear arrangement layout, βΩ-layout, geometric CO layout, (bi or uni) row-by-row, (bi or uni) diagnoal layouts

  24. Four Different Cases Cache-aware case single cache block, M=1 Cache-oblivious case single cache block, M=1 Cache-aware case multiple cache blocks, M>1 Cache-oblivious case multiple cache blocks, M>1

  25. Cache-Oblivious: Single Cache Block, M=1 Does not assume a particular block size: Then, what are good representatives for block sizes? Cache

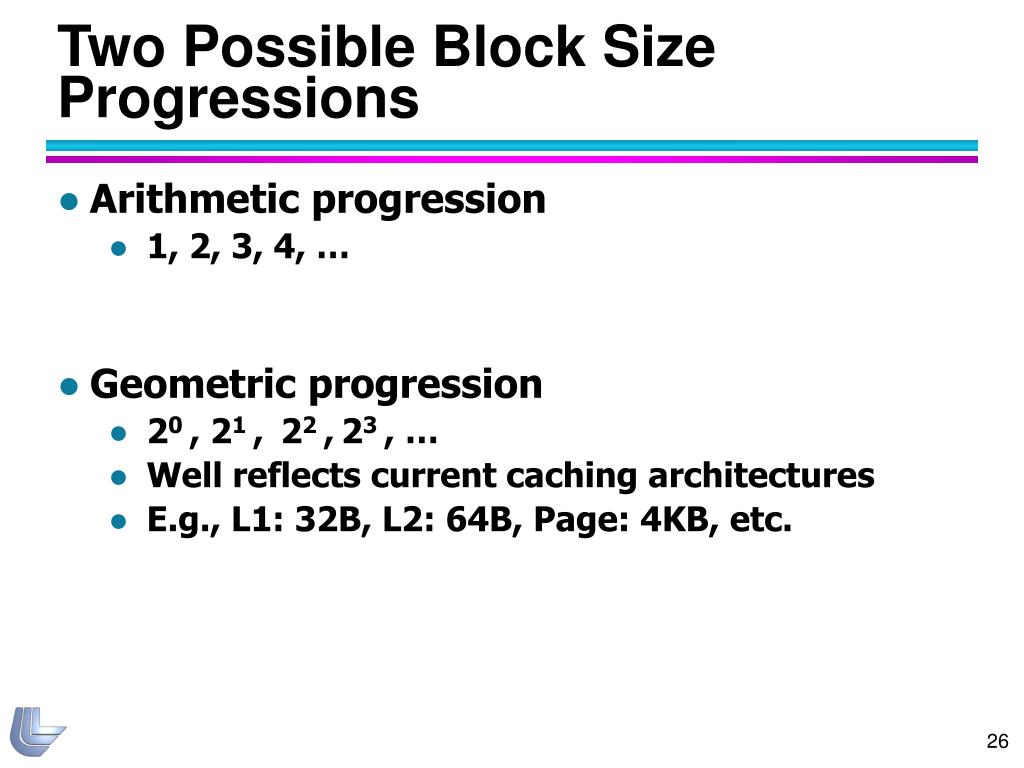

  26. Two Possible Block Size Progressions • Arithmetic progression • 1, 2, 3, 4, … • Geometric progression • 20 , 21 , 22 ,23 , … • Well reflects current caching architectures • E.g., L1: 32B, L2: 64B, Page: 4KB, etc.

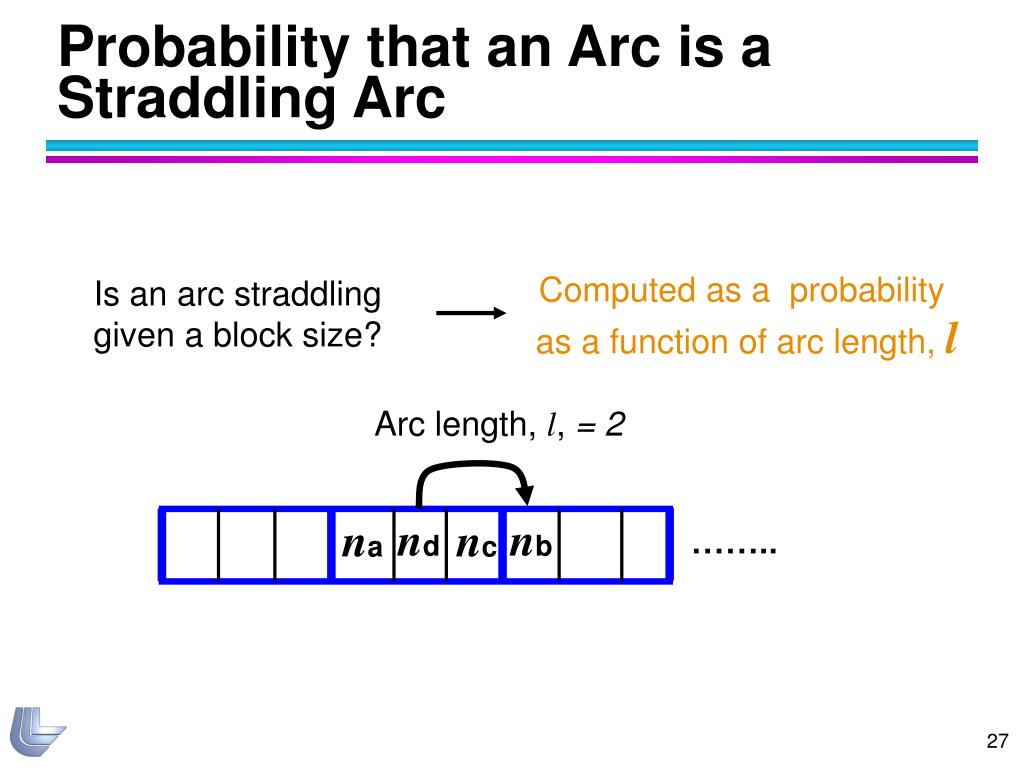

  27. Probability that an Arc is a Straddling Arc Computed as a probability as a function of arc length,l Is an arc straddling given a block size? Arc length, l, = 2 nd nb na nc ……..

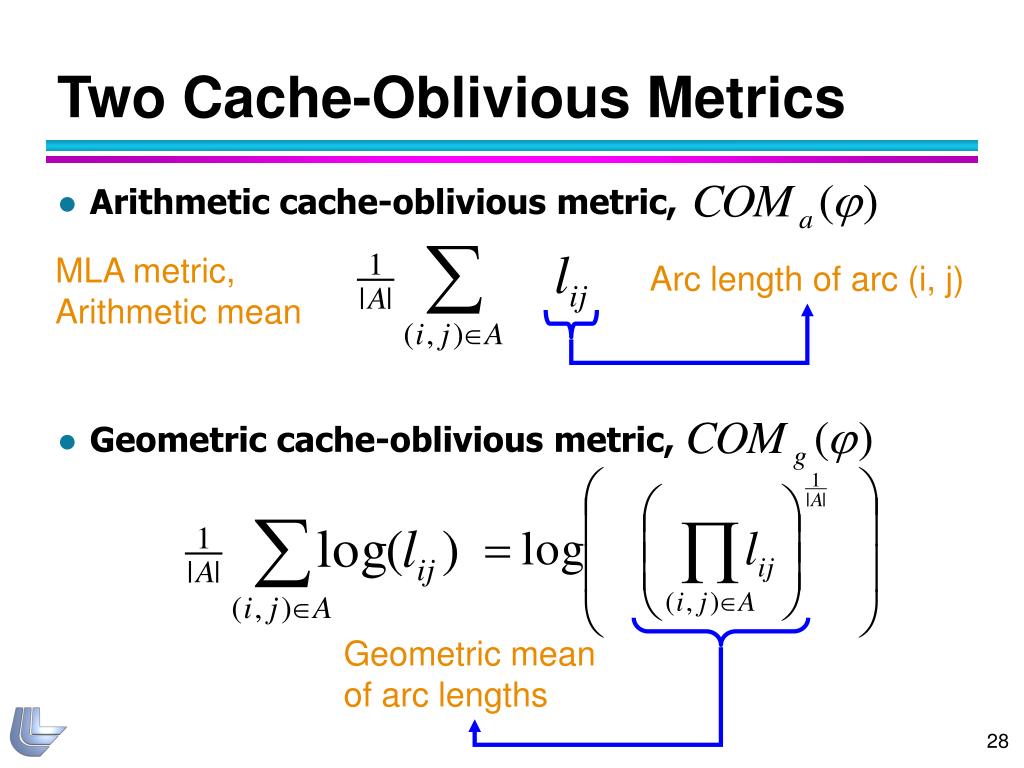

  28. Two Cache-Oblivious Metrics • Arithmetic cache-oblivious metric, • Geometric cache-oblivious metric, MLA metric, Arithmetic mean Arc length of arc (i, j) Geometric mean of arc lengths

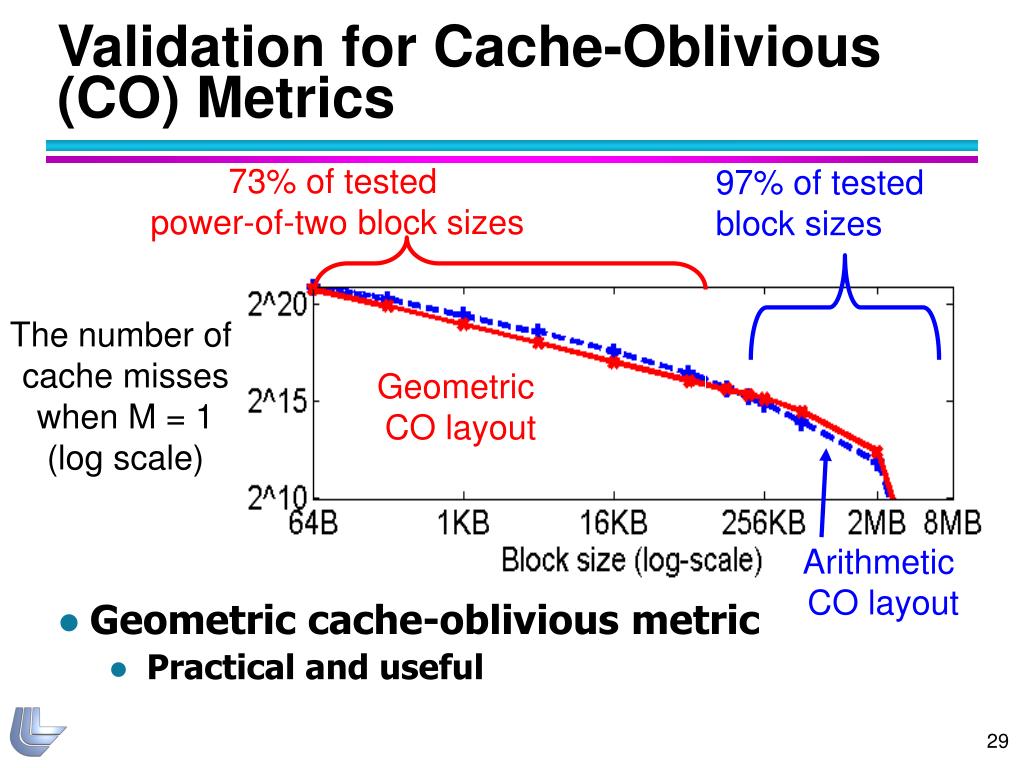

  29. Validation for Cache-Oblivious (CO) Metrics 73% of tested power-of-two block sizes 97% of tested block sizes • Geometric cache-oblivious metric • Practical and useful The number of cache misses when M = 1 (log scale) Geometric CO layout Arithmetic CO layout

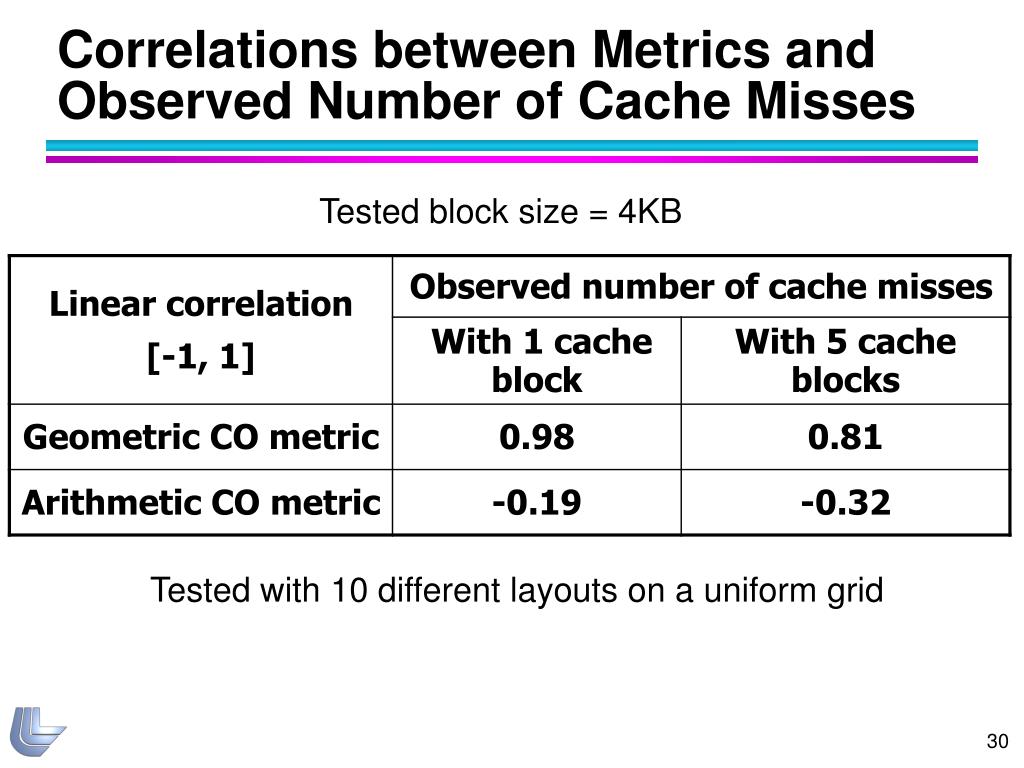

  30. Correlations between Metrics and Observed Number of Cache Misses Tested block size = 4KB Tested with 10 different layouts on a uniform grid

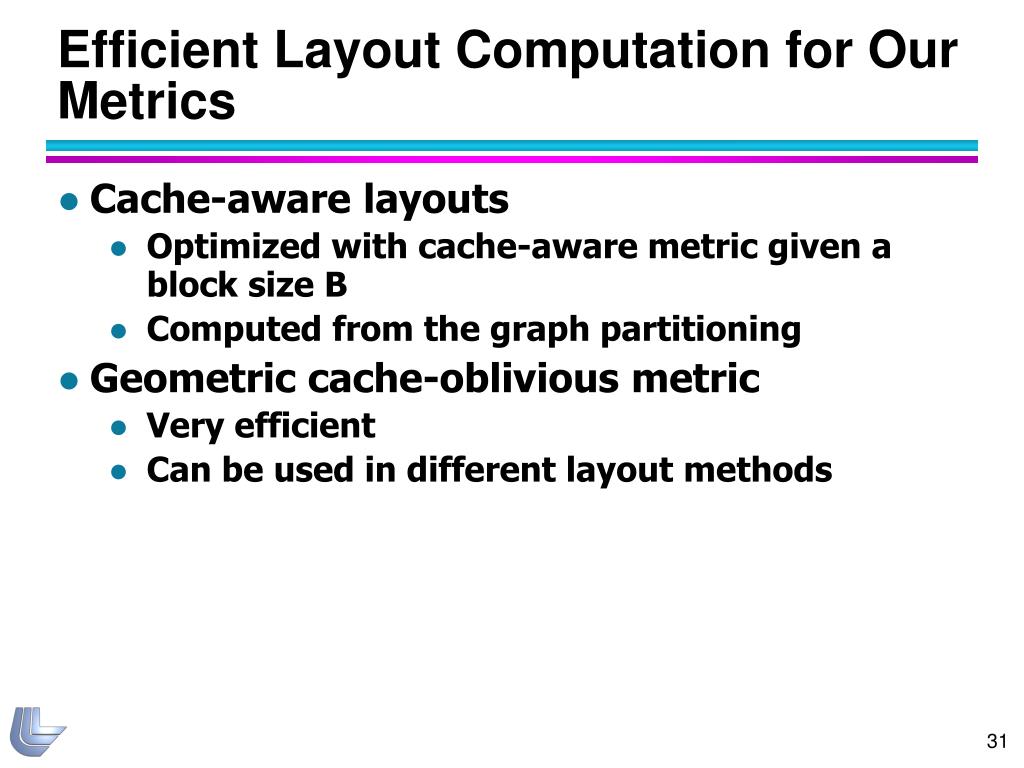

  31. Efficient Layout Computation for Our Metrics • Cache-aware layouts • Optimized with cache-aware metric given a block size B • Computed from the graph partitioning • Geometric cache-oblivious metric • Very efficient • Can be used in different layout methods

  32. Layout Computation with Geometric Cache-Oblivious Metric • Multi-level construction method • Partition an input mesh into k different sets • Layout partitions based on our metric • Generalized layout method • for unstructured meshes 1. Partition 2. Lay out

  33. Outline • Computation models • Cache-aware and cache-oblivious metrics • Results

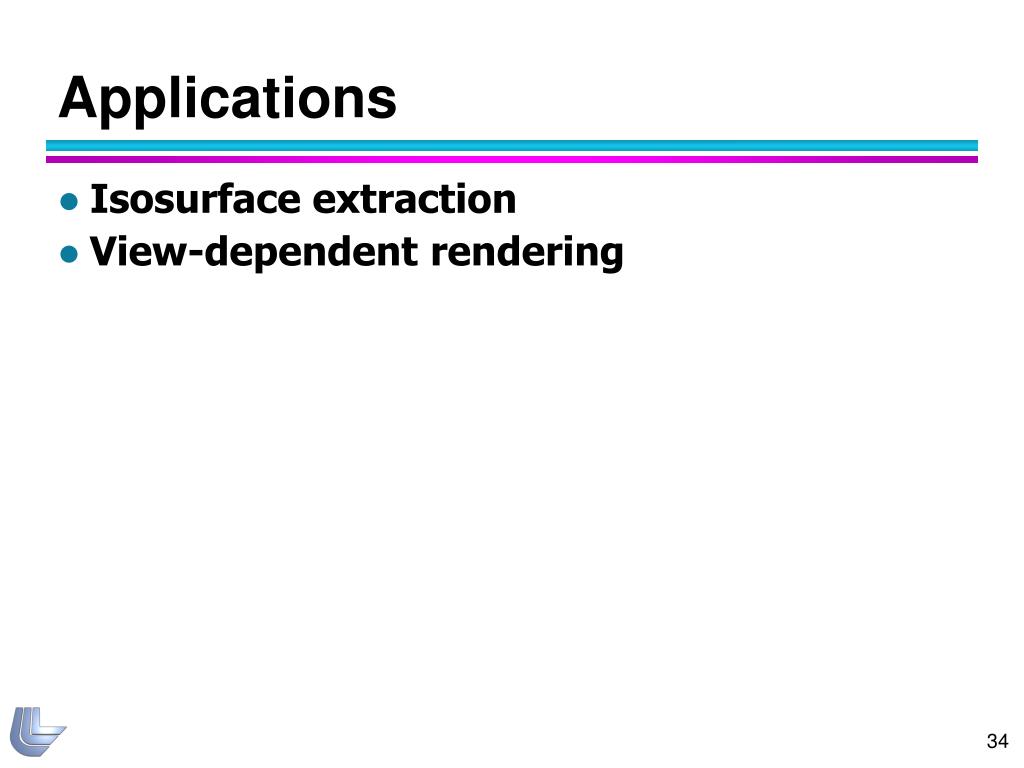

  34. Applications • Isosurface extraction • View-dependent rendering

  35. Iso-Surface Extraction • Uses contour tree [van Kreveld et al. 97] • Runtime is dominated by the traversal of iso-surface • Layout graph • Use an input tetrahedral mesh Spx model (140K vertices)

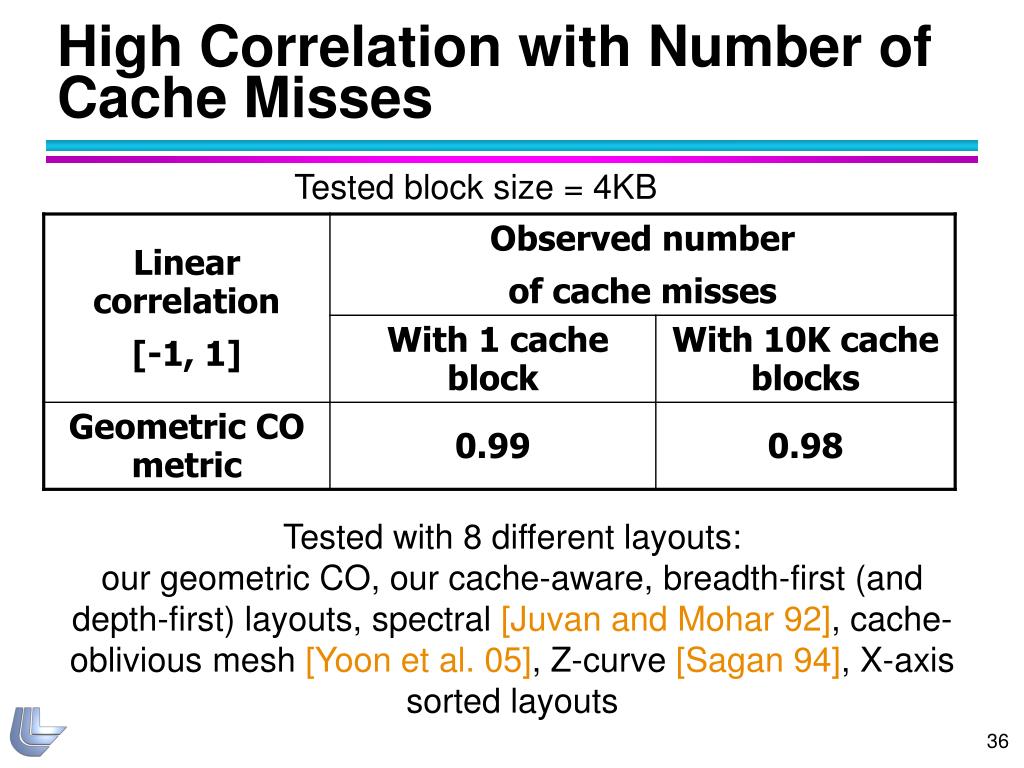

  36. High Correlation with Number of Cache Misses Tested block size = 4KB Tested with 8 different layouts: our geometric CO, our cache-aware, breadth-first (and depth-first) layouts, spectral [Juvan and Mohar 92], cache-oblivious mesh [Yoon et al. 05], Z-curve [Sagan 94], X-axis sorted layouts

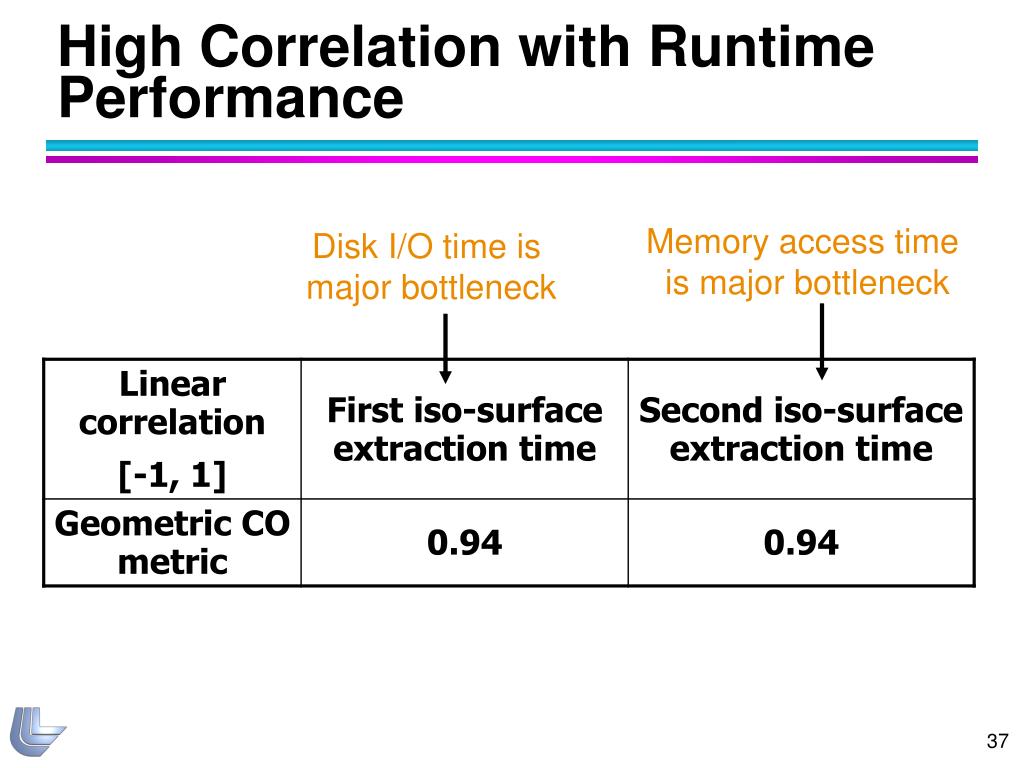

  37. High Correlation with Runtime Performance Memory access time is major bottleneck Disk I/O time is major bottleneck

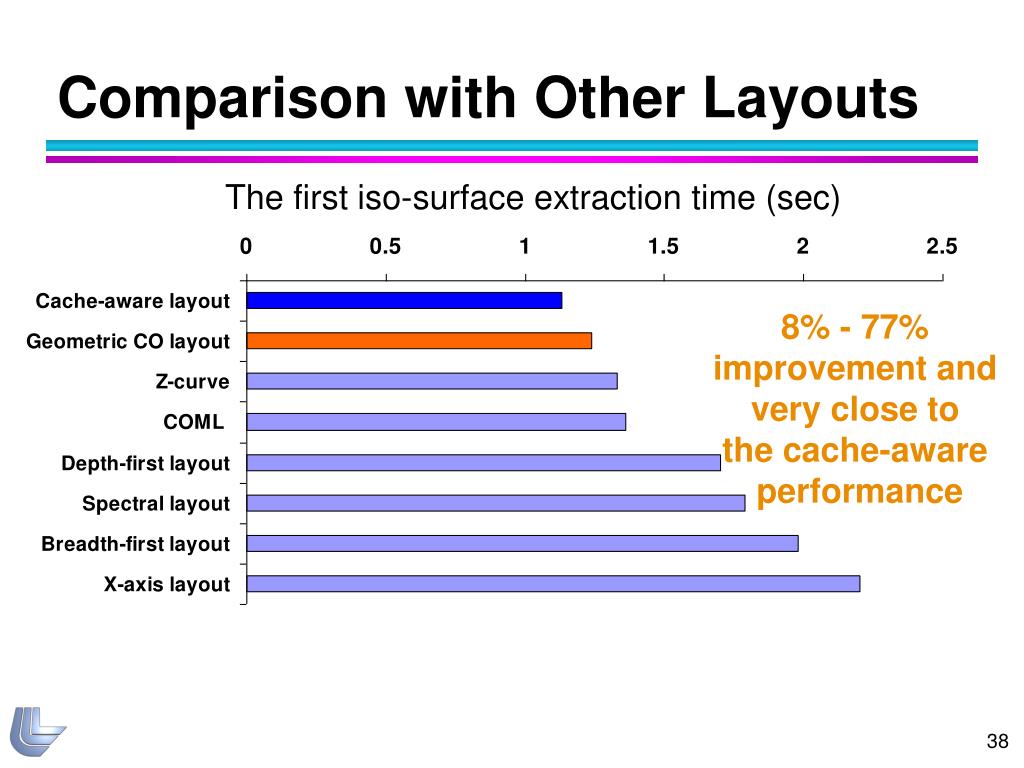

  38. Comparison with Other Layouts The first iso-surface extraction time (sec) 8% - 77% improvement and very close to the cache-aware performance

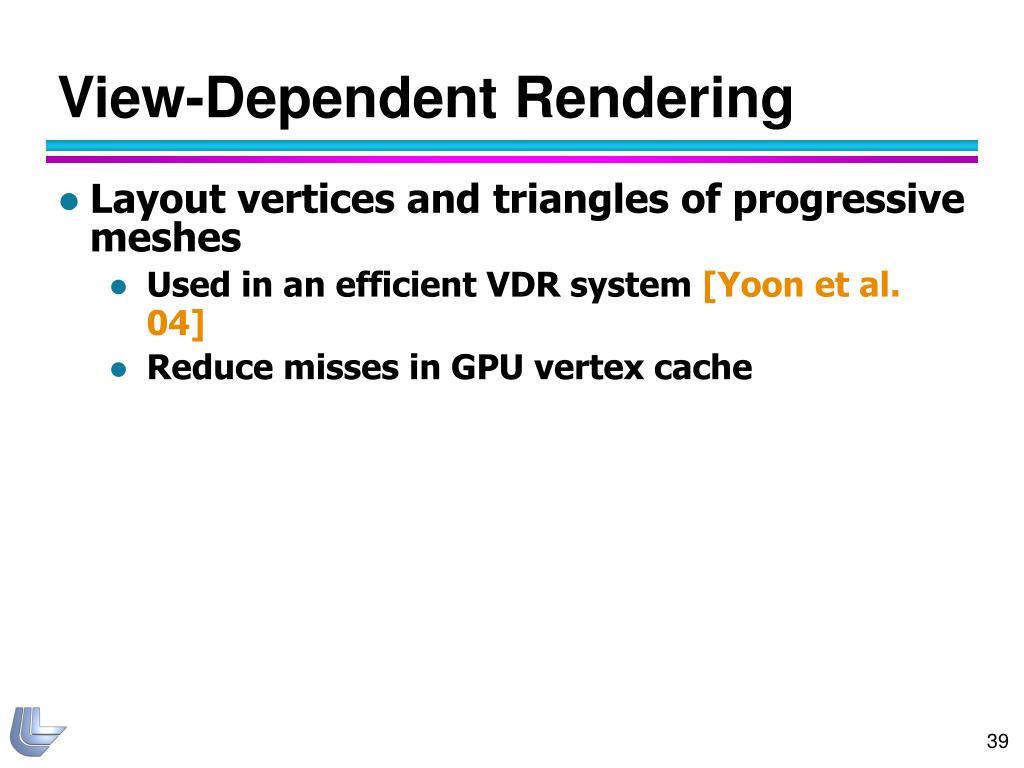

  39. View-Dependent Rendering • Layout vertices and triangles of progressive meshes • Used in an efficient VDR system [Yoon et al. 04] • Reduce misses in GPU vertex cache

  40. Cache Miss Ratio on Bunny Model Universal rendering seq. [Bogomjakov and Gotsman 02] GPU vertex cache miss ratio Hoppe [Hoppe 99] Theoretical lower bound [Bar-Yehuda and Gotsman 96] Geometric CO layout Vertex cache size

  41. Cache Miss Ratio on Power Plant Model GPU vertex cache miss ratio Z-curve COML [Yoon et al. 05] Hoppe’s rendering seq. [Hoppe 99] Theoretical lower bound [Bar-Yehuda and Gotsman 96] Geometric CO layout Vertex cache size

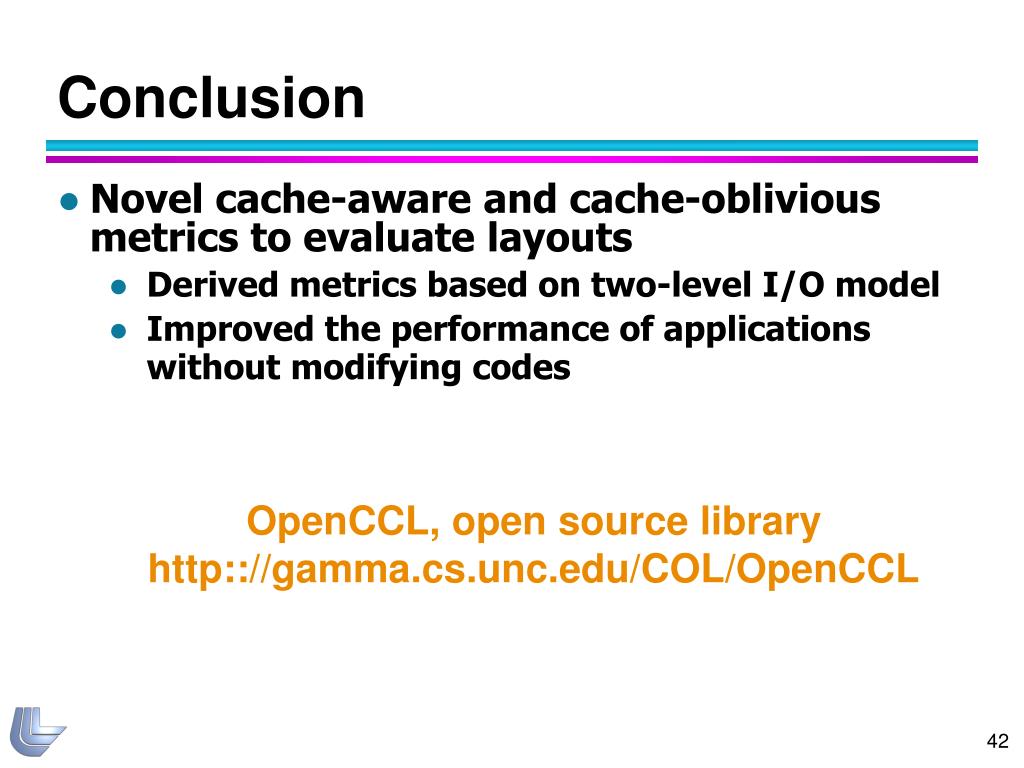

  42. Conclusion • Novel cache-aware and cache-oblivious metrics to evaluate layouts • Derived metrics based on two-level I/O model • Improved the performance of applications without modifying codes OpenCCL, open source library http:://gamma.cs.unc.edu/COL/OpenCCL

  43. Ongoing and Future Work • Derive a lower bound on our geometric cache-oblivious metric • Employ mesh compression to further reduce disk I/O accesses • Investigate efficient layout method for deforming models • Apply to non-graphics applications • e.g., shortest path or other graph computations

  44. Cache-Efficient Layouts of Bounding Volume Hierarchies • Yoon and Manocha, Eurographics 06 Collision detection Ray tracing

  45. Acknowledgements • Ajith Mascarenhas • Martin Isenburg • Dinesh Manocha • Fabio Bernardon, Joao Comba, and Claudio Silva • For their unstructured tetrahedra rendering program • Members of data analysis group in LLNL • Anonymous reviewers

  46. UCRL-PRES-225448 This work was performed under the auspices of the U.S. Department of Energy by University of California Lawrence Livermore National Laboratory under contract No. W-7405-ENG-48.

  47. Additional slides

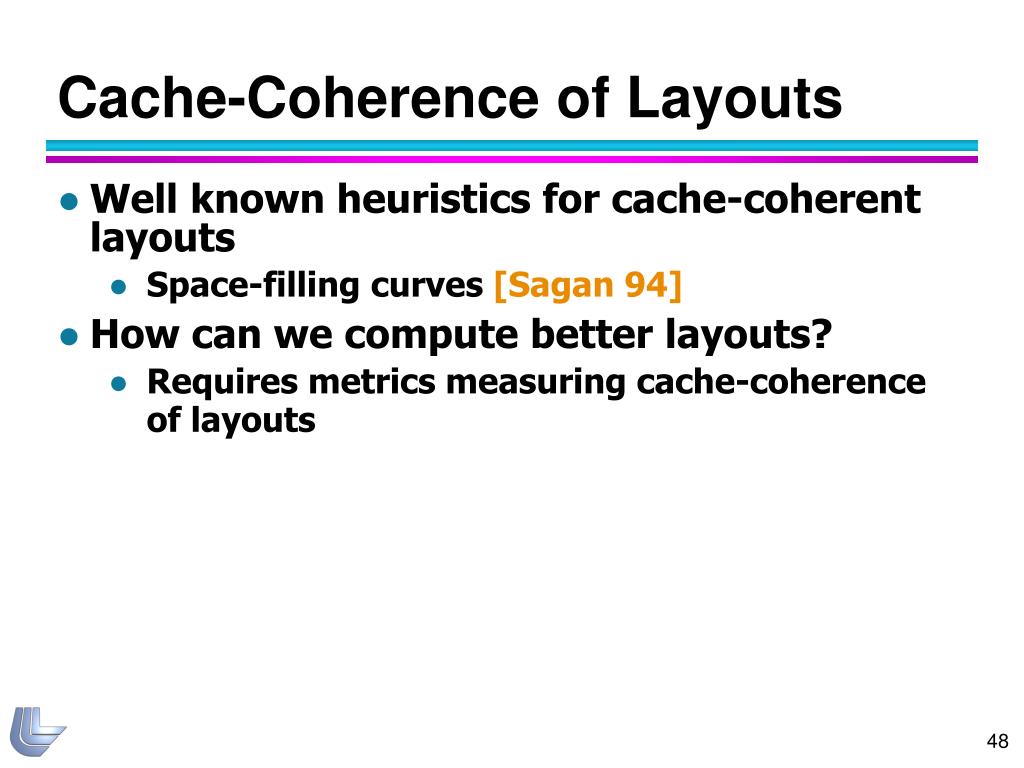

  48. Cache-Coherence of Layouts • Well known heuristics for cache-coherent layouts • Space-filling curves [Sagan 94] • How can we compute better layouts? • Requires metrics measuring cache-coherence of layouts

  49. Main Results • Define cache-coherence of layout as: • Expected number of cache misses during random walks of a graph given block-based caches • Then, the exp. number of cache misses • Number of straddling arcs in a cache-aware cache • Geometric mean of arc lengths in a cache-oblivious case

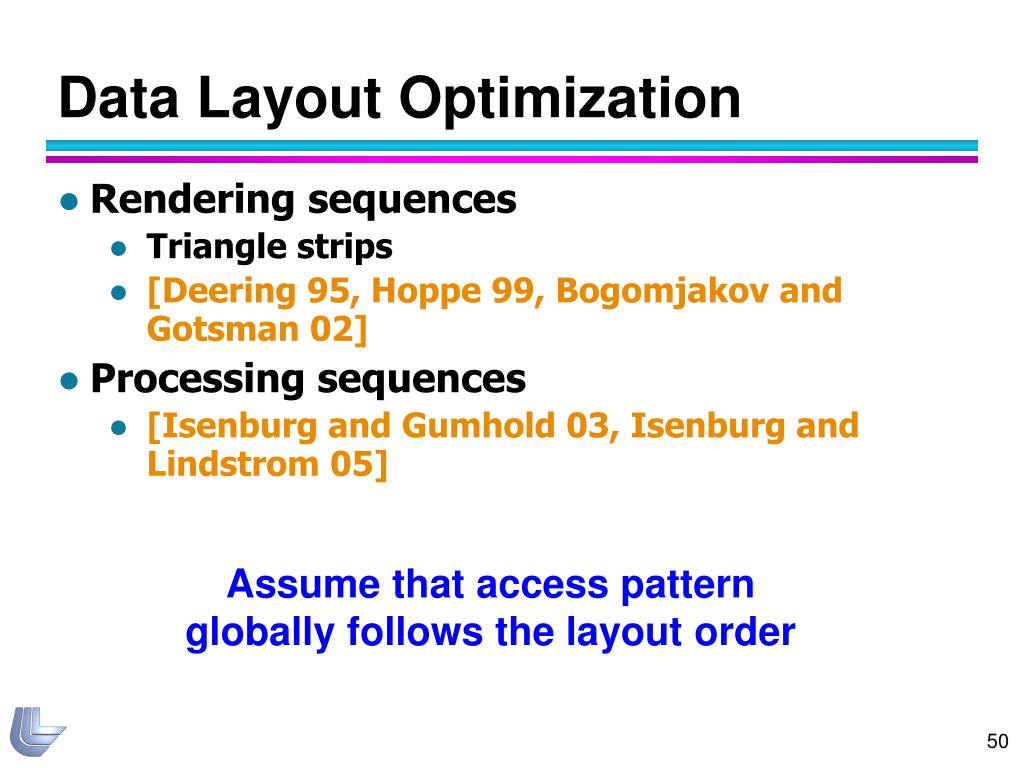

  50. Data Layout Optimization • Rendering sequences • Triangle strips • [Deering 95, Hoppe 99, Bogomjakov and Gotsman 02] • Processing sequences • [Isenburg and Gumhold 03, Isenburg and Lindstrom 05] Assume that access pattern globally follows the layout order
