  1. Workshop on ‘Fault Segmentation and Fault-to-Fault Jumps in Co-Seismic Earthquake Rupture’ WGCEP Caltech, Pasadena, 15-17 March 2006 Dynamic models of steps and branches Renata Dmowska (Harvard) coworkers: Harsha S. Bhat (Harvard) Sonia Fliss (Ecole Polytechnique & Corps des Telecoms) Nobuki Kame (Kyushu Univ., Japan) Marion Olives (Ecole des Mines de Paris) Alexei N. B. Poliakov (Royal Bank of Canada, London) James R. Rice (Harvard) Elizabeth L. Templeton (Harvard)

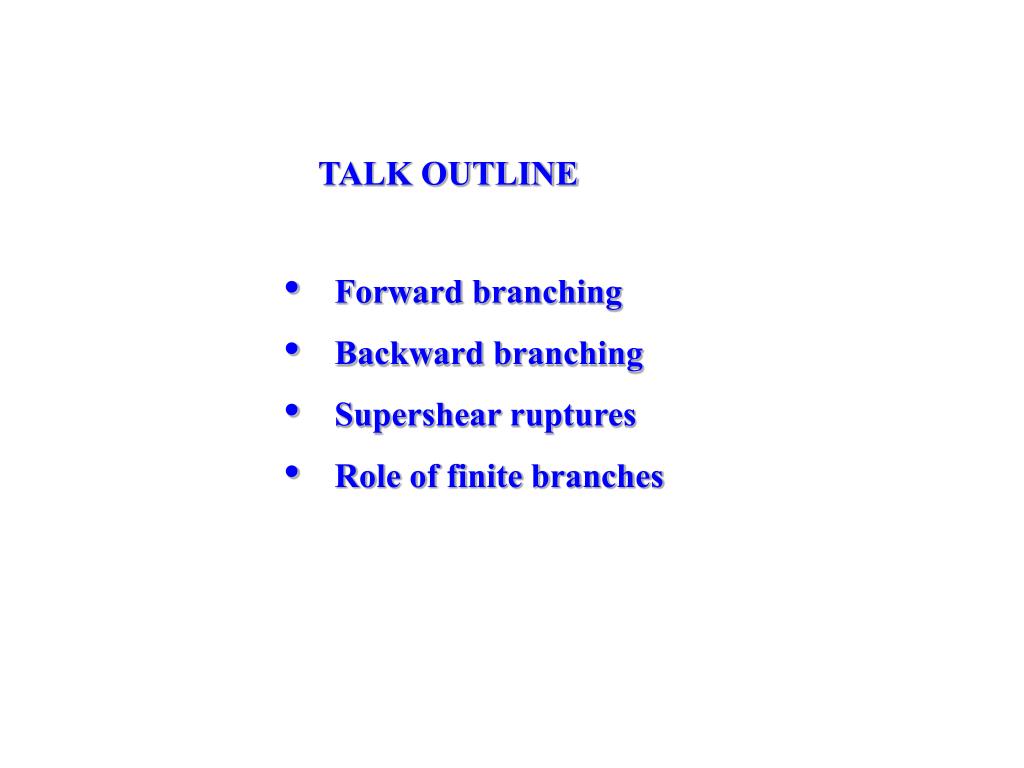

  2. TALK OUTLINE • Forward branching • Backward branching • Supershear ruptures • Role of finite branches

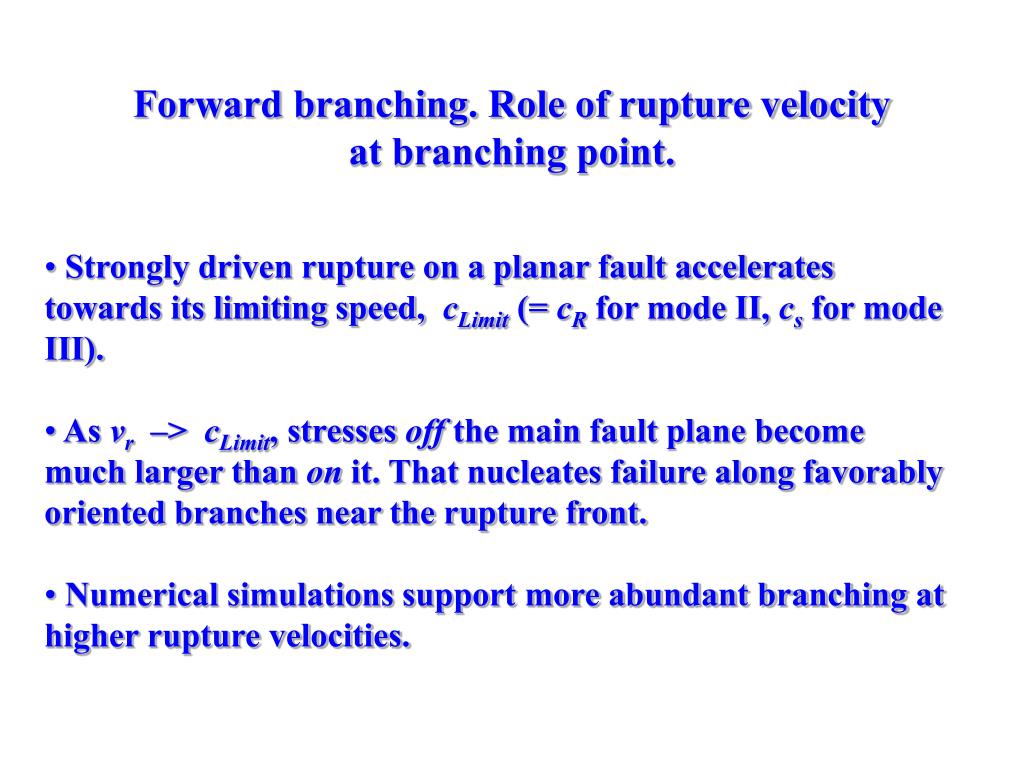

  3. Forward branching. Role of rupture velocity at branching point. • Strongly driven rupture on a planar fault accelerates towards its limiting speed, cLimit (= cR for mode II, cs for mode III). • As vr –> cLimit, stresses off the main fault plane become much larger than on it. That nucleates failure along favorably oriented branches near the rupture front. • Numerical simulations support more abundant branching at higher rupture velocities.

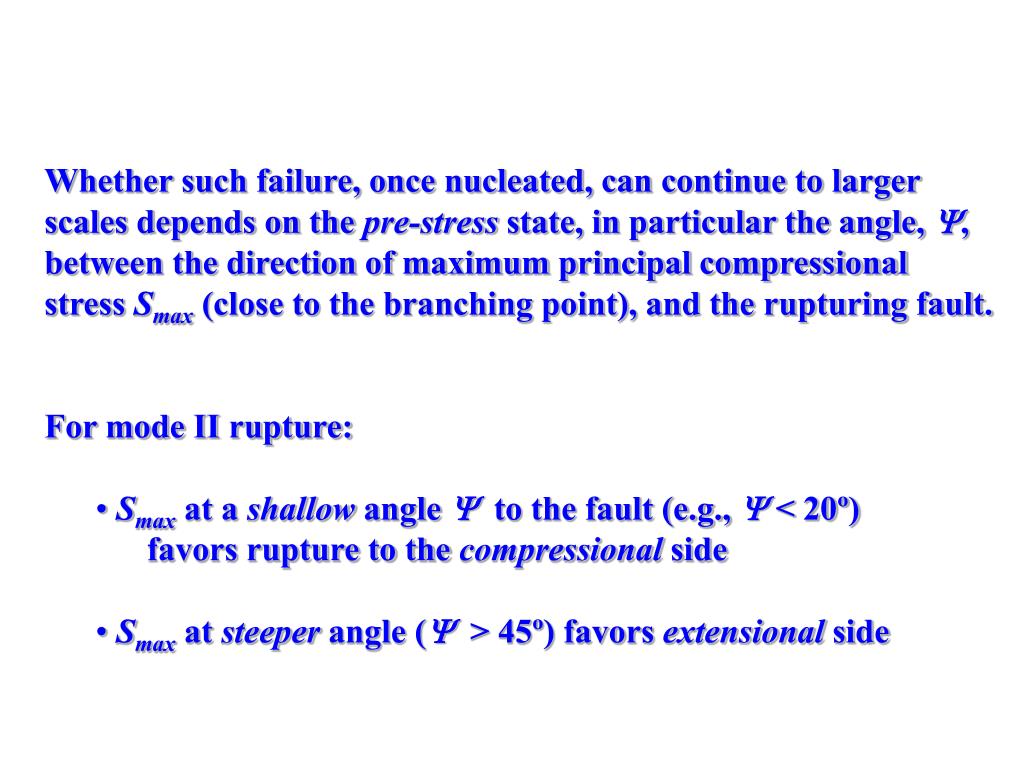

  4. Whether such failure, once nucleated, can continue to larger scales depends on the pre-stress state, in particular the angle, , between the direction of maximum principal compressional stress Smax (close to the branching point), and the rupturing fault. • For mode II rupture: • Smax at a shallow angle  to the fault (e.g., < 20º) favors rupture to the compressional side • Smax at steeper angle ( > 45º) favors extensional side

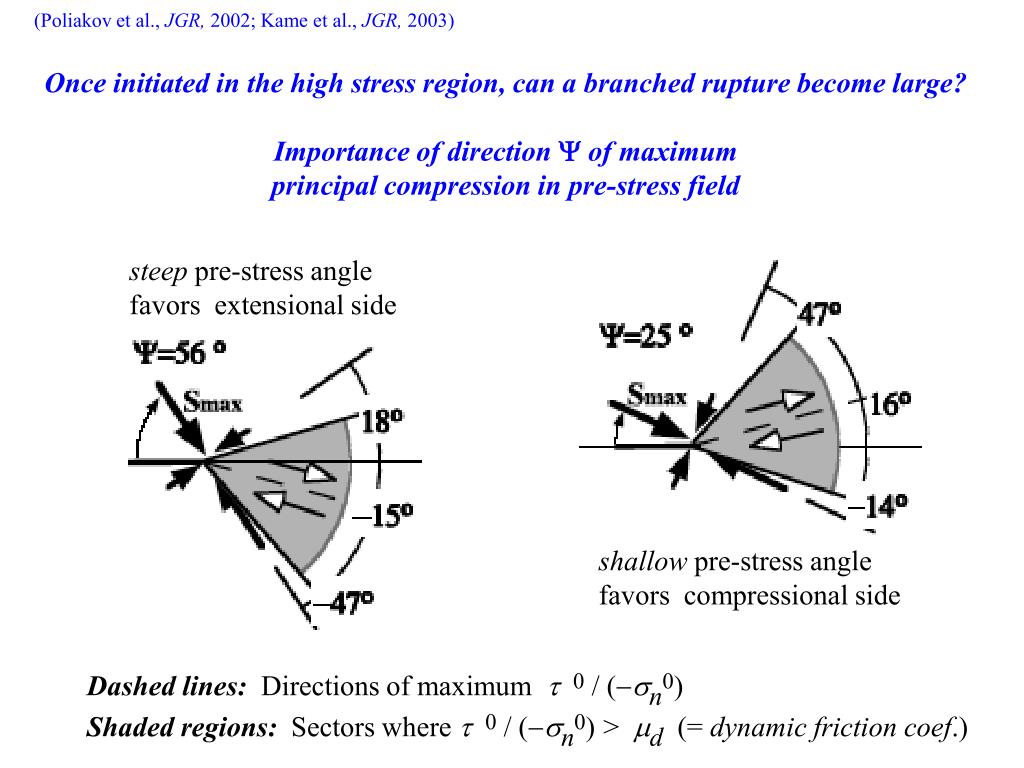

  5. (Poliakov et al., JGR, 2002; Kame et al., JGR, 2003) Once initiated in the high stress region, can a branched rupture become large? Importance of direction Y of maximum principal compression in pre-stress field steep pre-stress angle favors extensional side shallow pre-stress angle favors compressional side Dashed lines: Directions of maximum t 0 / (-sn0) Shaded regions: Sectors where t 0 / (-sn0)> md (= dynamic friction coef.)

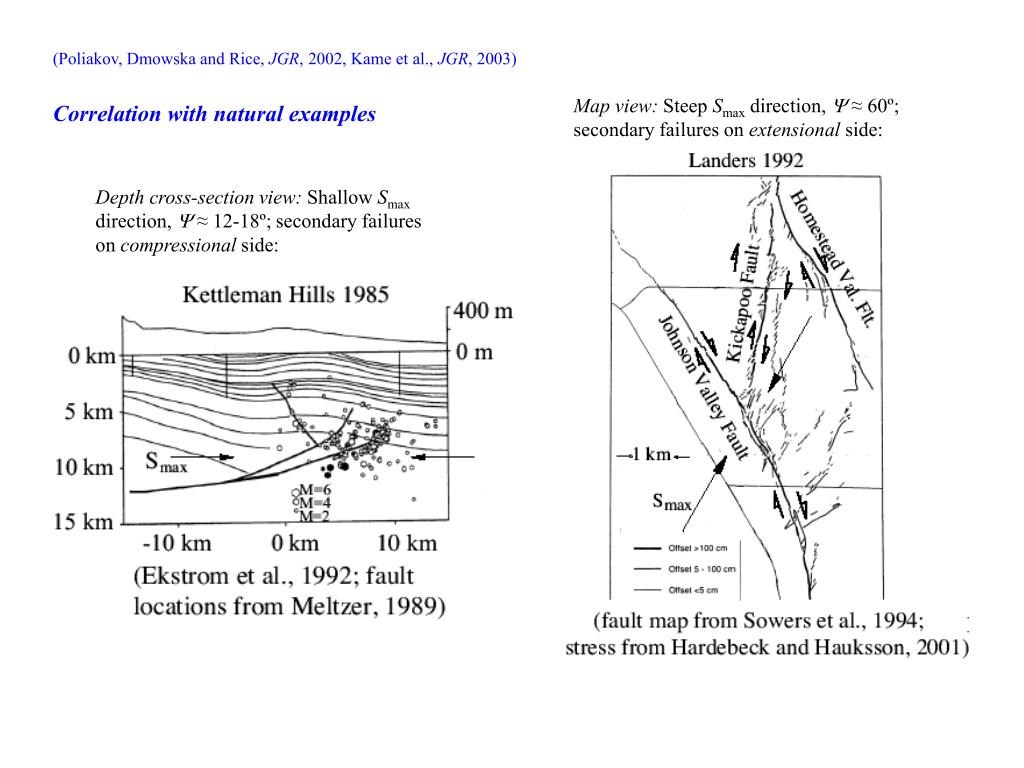

  6. (Poliakov, Dmowska and Rice, JGR, 2002, Kame et al., JGR, 2003) Map view: Steep Smax direction, Y ≈ 60º; secondary failures on extensional side: Correlation with natural examples Depth cross-section view: Shallow Smax direction, Y ≈ 12-18º; secondary failures on compressional side:

  7. (Kame et al., JGR, 2003)

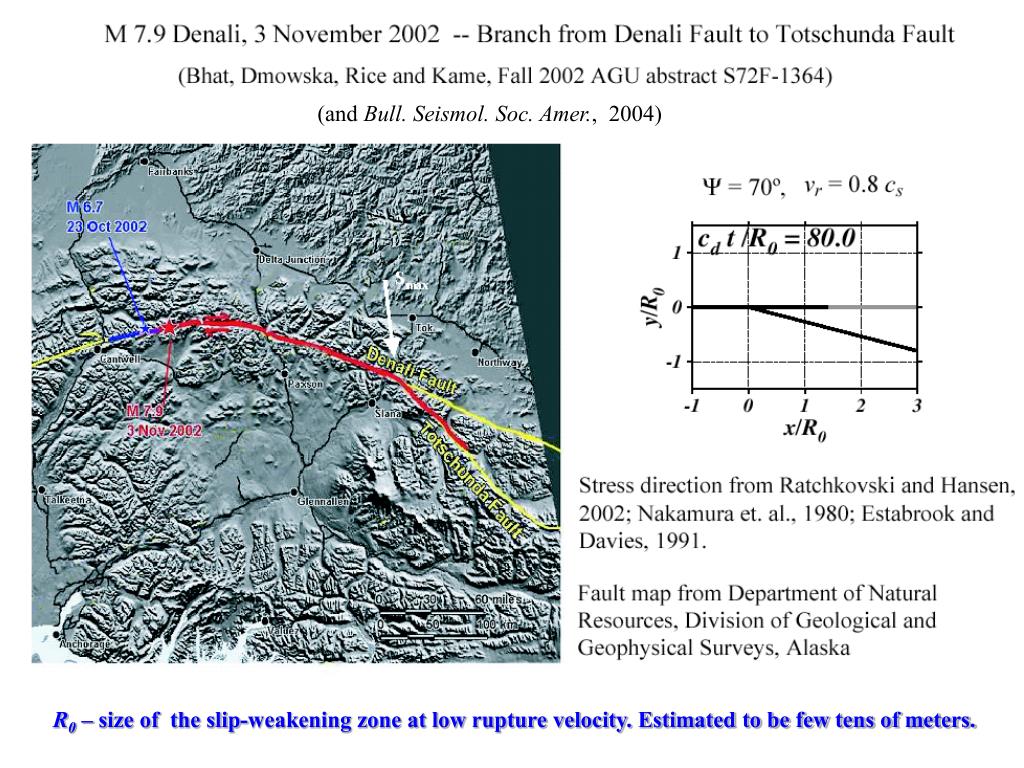

  8. (and Bull. Seismol. Soc. Amer., 2004) R0 – size of the slip-weakening zone at low rupture velocity. Estimated to be few tens of meters.

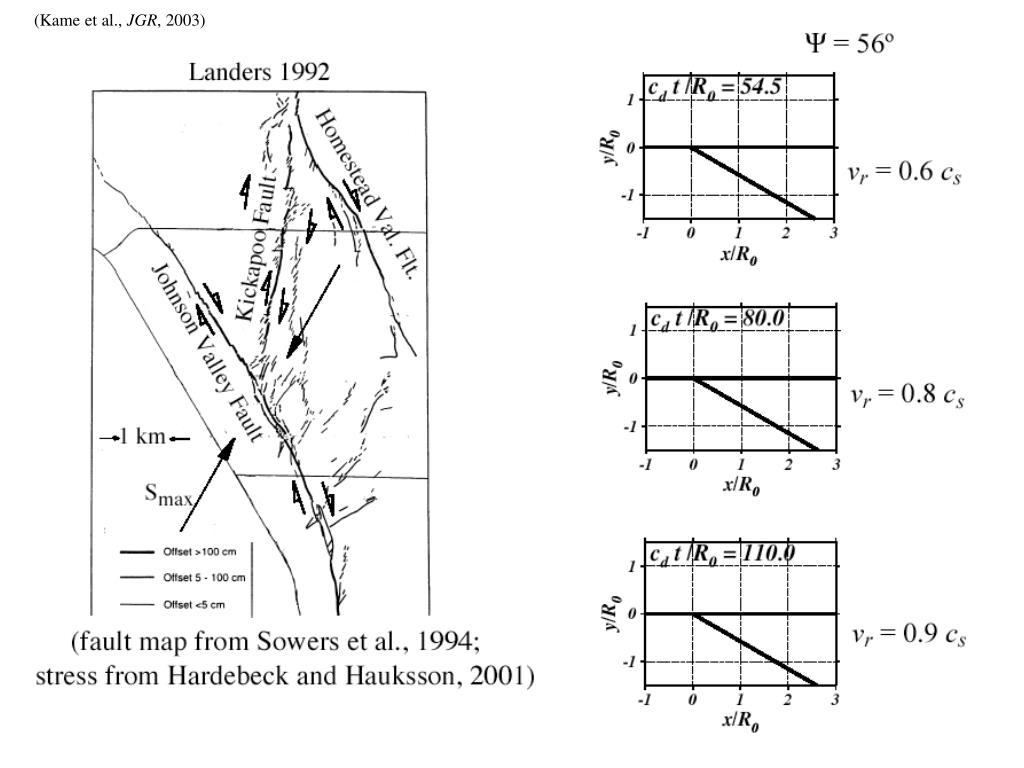

  9. (Kame et al., JGR, 2003)

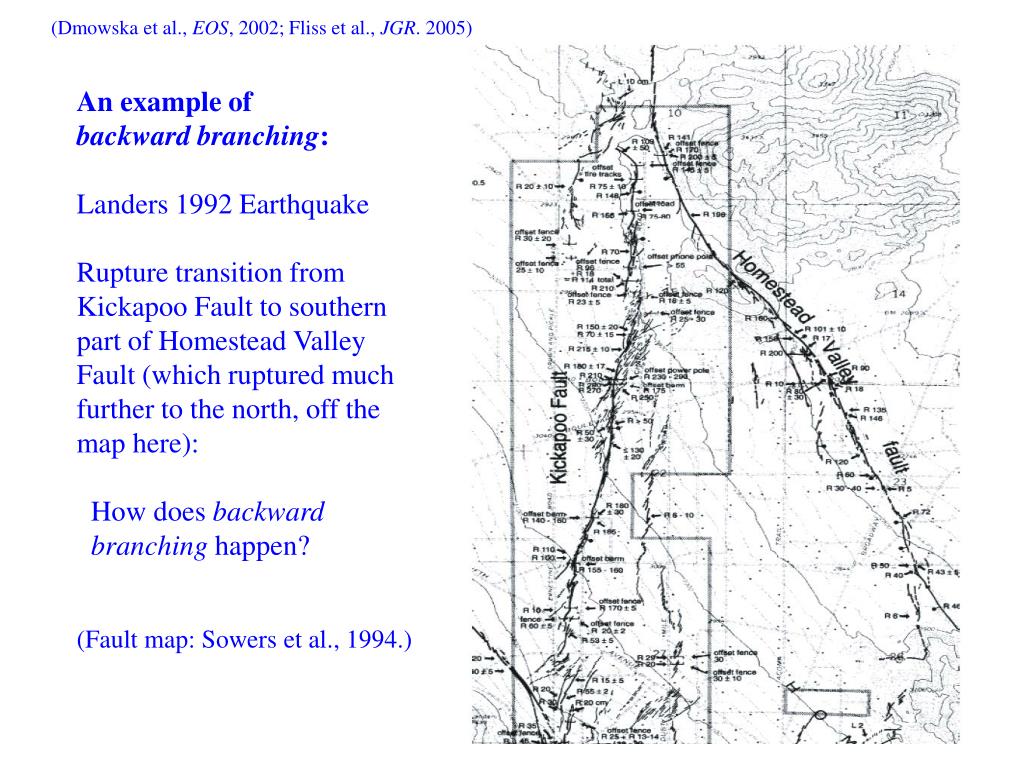

  10. (Dmowska et al., EOS, 2002; Fliss et al., JGR. 2005) An example of backward branching: Landers 1992 Earthquake Rupture transition from Kickapoo Fault to southern part of Homestead Valley Fault (which ruptured much further to the north, off the map here): How does backward branching happen? (Fault map: Sowers et al., 1994.)

  11. North ––> 1 km

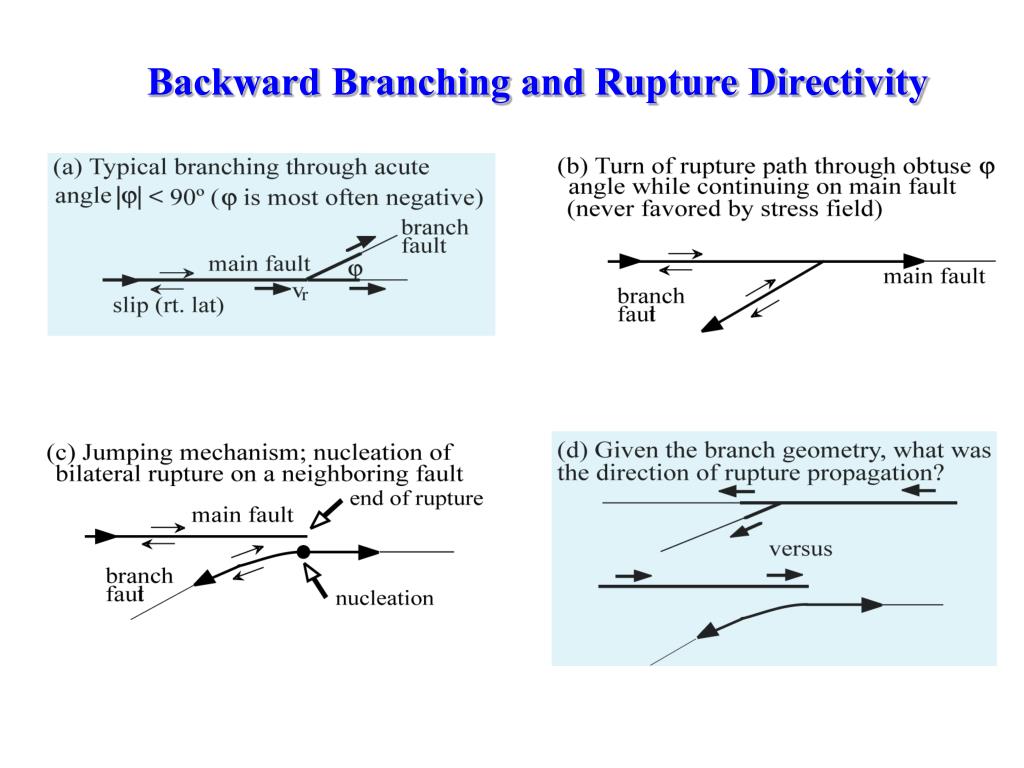

  12. Backward Branching and Rupture Directivity

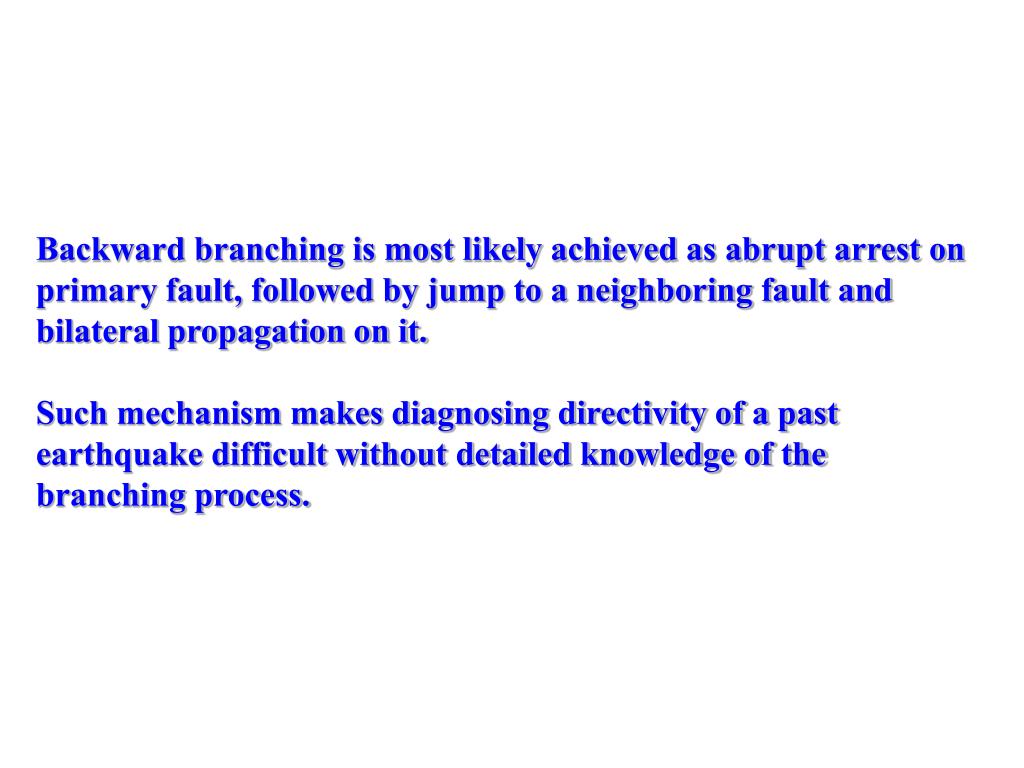

  13. Backward branching is most likely achieved as abrupt arrest on primary fault, followed by jump to a neighboring fault and bilateral propagation on it. Such mechanism makes diagnosing directivity of a past earthquake difficult without detailed knowledge of the branching process.

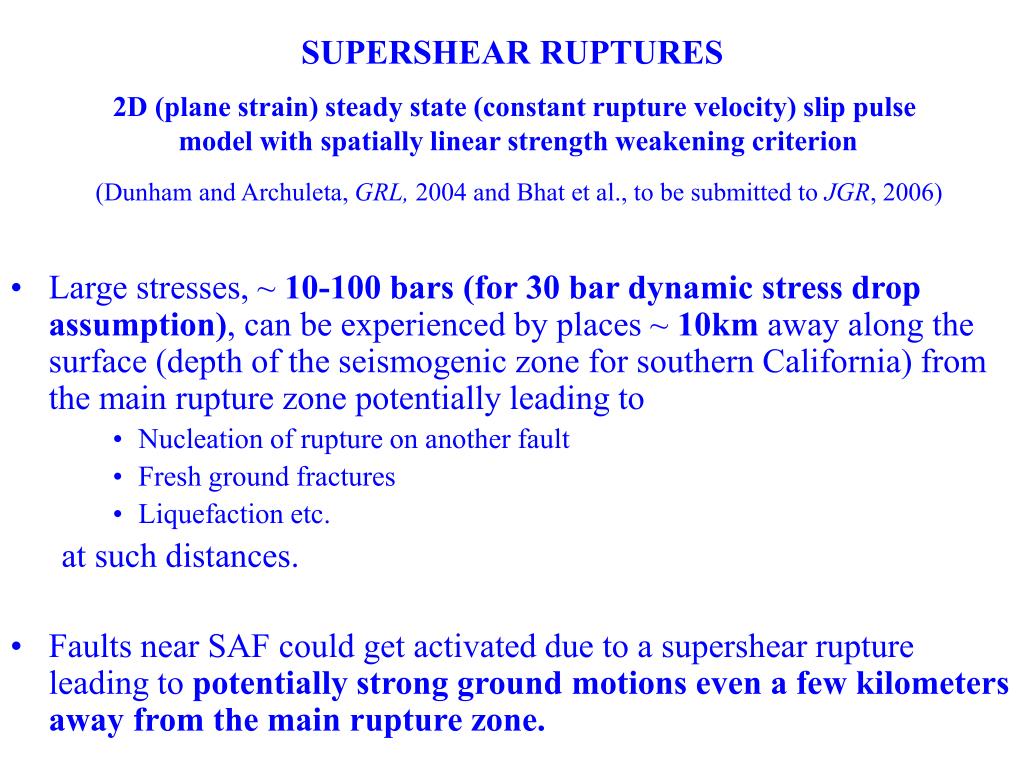

  14. SUPERSHEAR RUPTURES 2D (plane strain) steady state (constant rupture velocity) slip pulse model with spatially linear strength weakening criterion (Dunham and Archuleta, GRL, 2004 and Bhat et al., to be submitted to JGR, 2006) • Large stresses, ~ 10-100 bars (for 30 bar dynamic stress drop assumption), can be experienced by places ~ 10km away along the surface (depth of the seismogenic zone for southern California) from the main rupture zone potentially leading to • Nucleation of rupture on another fault • Fresh ground fractures • Liquefaction etc. at such distances. • Faults near SAF could get activated due to a supershear rupture leading to potentially strong ground motions even a few kilometers away from the main rupture zone.

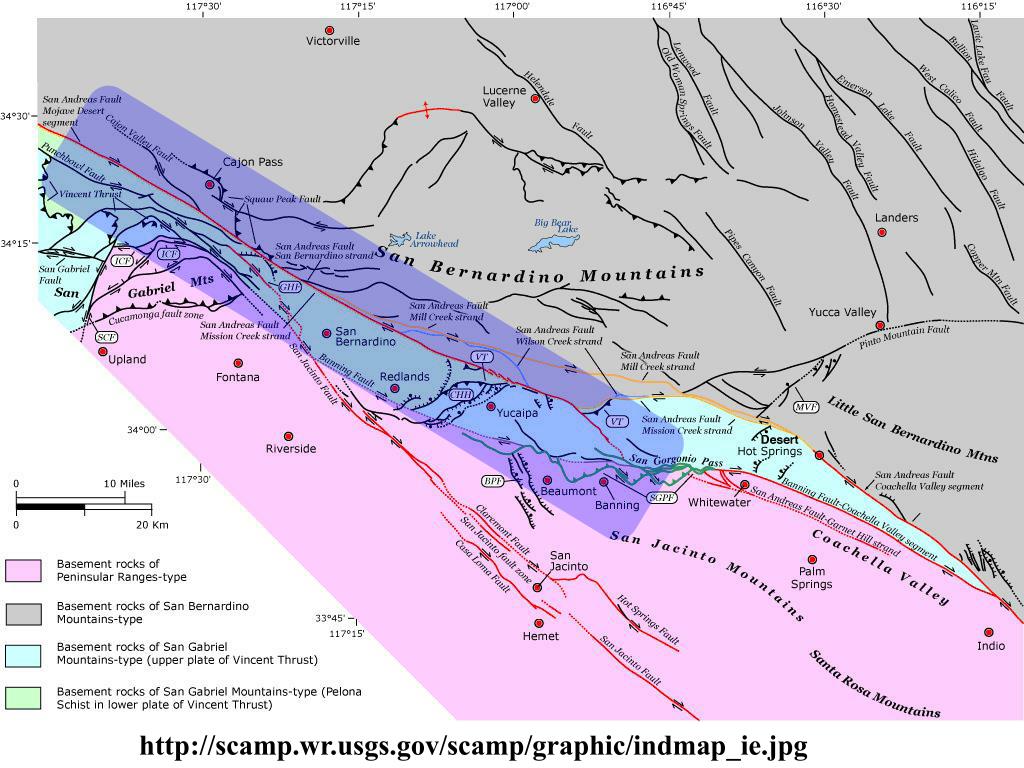

  15. http://scamp.wr.usgs.gov/scamp/graphic/indmap_ie.jpg

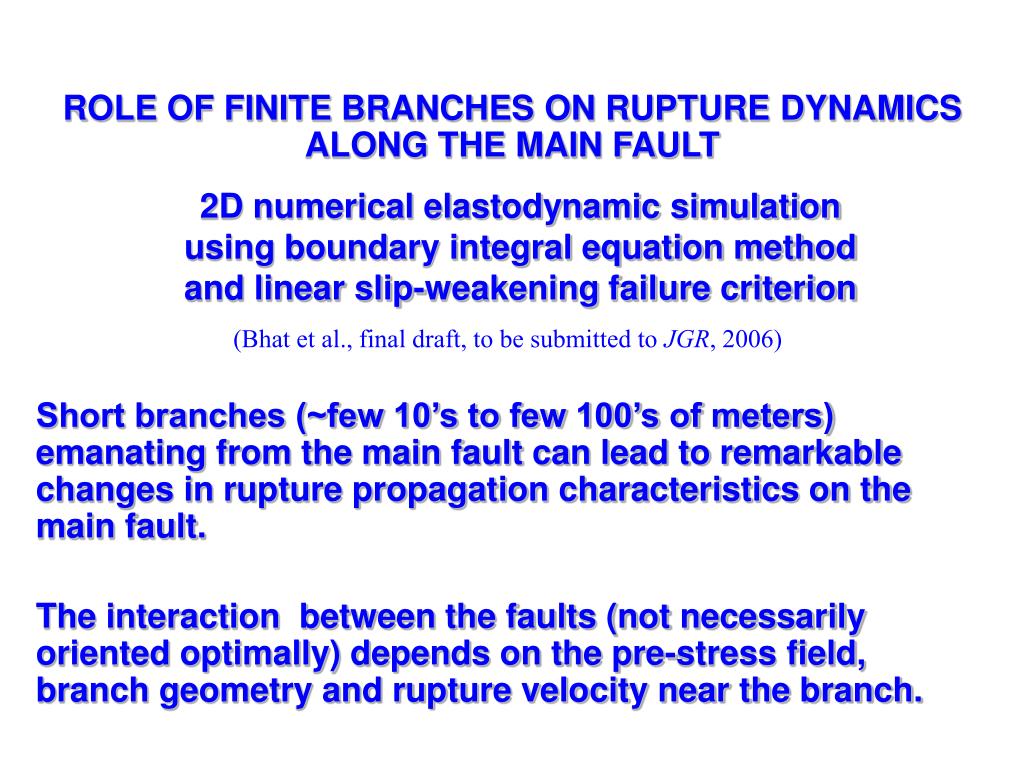

  16. ROLE OF FINITE BRANCHES ON RUPTURE DYNAMICS ALONG THE MAIN FAULT 2D numerical elastodynamic simulation using boundary integral equation method and linear slip-weakening failure criterion (Bhat et al., final draft, to be submitted to JGR, 2006) Short branches (~few 10’s to few 100’s of meters) emanating from the main fault can lead to remarkable changes in rupture propagation characteristics on the main fault. The interaction between the faults (not necessarily oriented optimally) depends on the pre-stress field, branch geometry and rupture velocity near the branch.

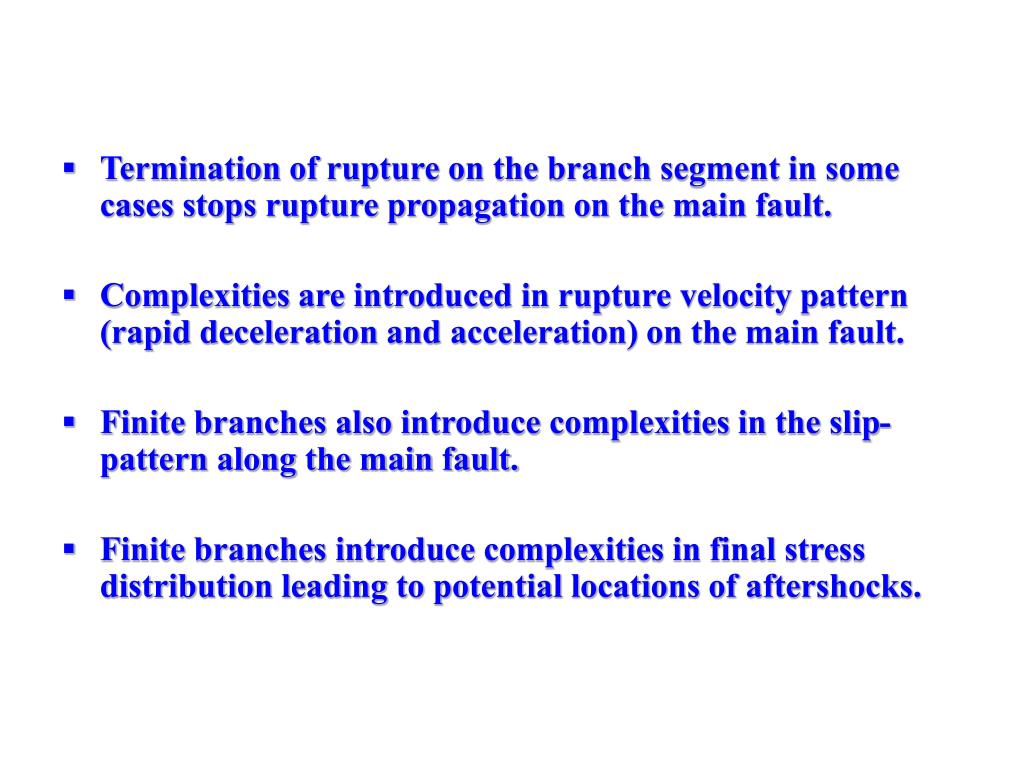

  17. Termination of rupture on the branch segment in some cases stops rupture propagation on the main fault. • Complexities are introduced in rupture velocity pattern (rapid deceleration and acceleration) on the main fault. • Finite branches also introduce complexities in the slip-pattern along the main fault. • Finite branches introduce complexities in final stress distribution leading to potential locations of aftershocks.

  18. vr = 0.80cs vr = 0.80cs vr = 0.80cs Smax Smax Smax vr = 0.87cs vr = 0.87cs vr = 0.87cs  = -150  = -150  = -150  =700  =700  = -150  = -150  = -150  = -150  =560  =560  =560  =700  =700  =700 6R0 30R0 Effect of finite branch on rupture progress along the main fault Short Finite Branch Long Finite Branch Infinite Branch (Kame et al. 2003, JGR) Smax Smax vr = 0.87cs vr = 0.87cs  = -150 R0 – size of the slip-weakening zone at low rupture velocity. Estimated to be few tens of meters.

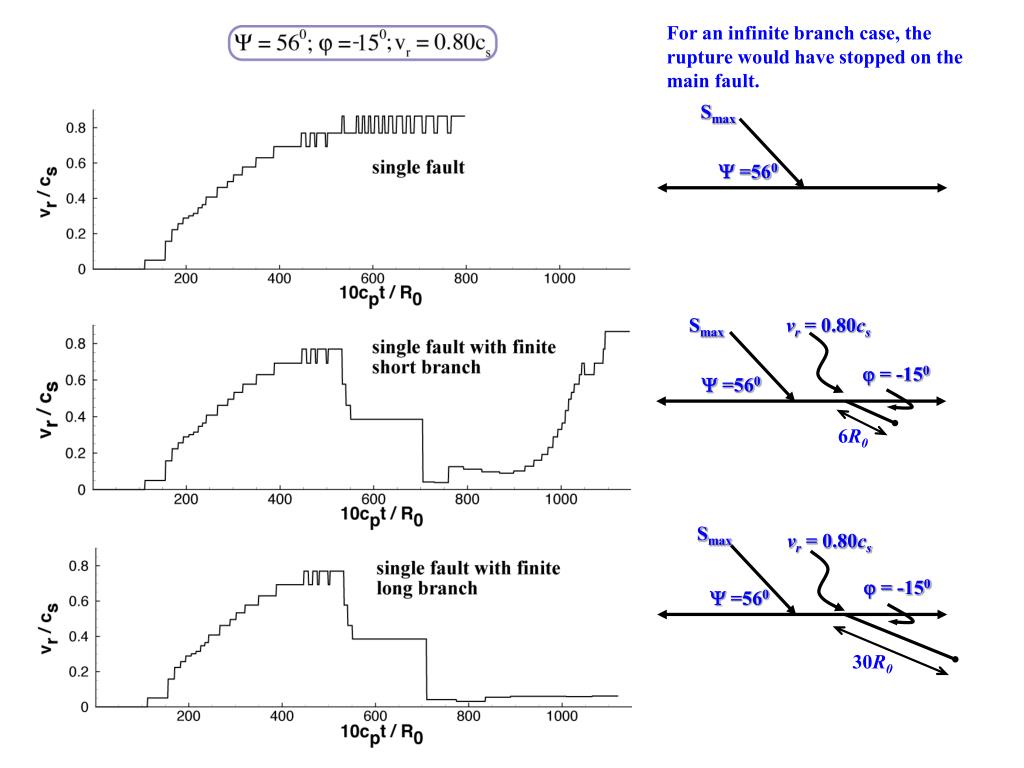

  19. Smax  =560 Smax vr = 0.80cs  = -150  =560 6R0 Smax vr = 0.80cs  = -150  =560 30R0 For an infinite branch case, the rupture would have stopped on the main fault.

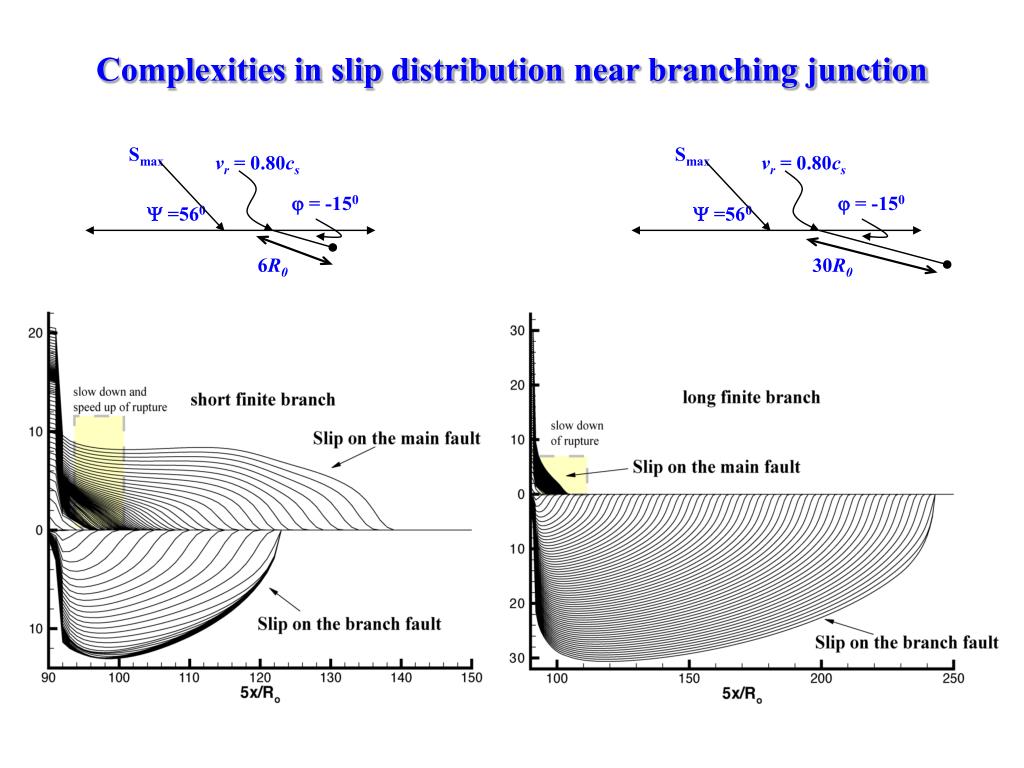

  20. Smax vr = 0.80cs  = -150  =560 6R0 30R0 Smax vr = 0.80cs  = -150  =560 Complexities in slip distributionnear branching junction

  21. SUMMARY • Forward branching • Backward branching • Supershear ruptures • Role of finite branches

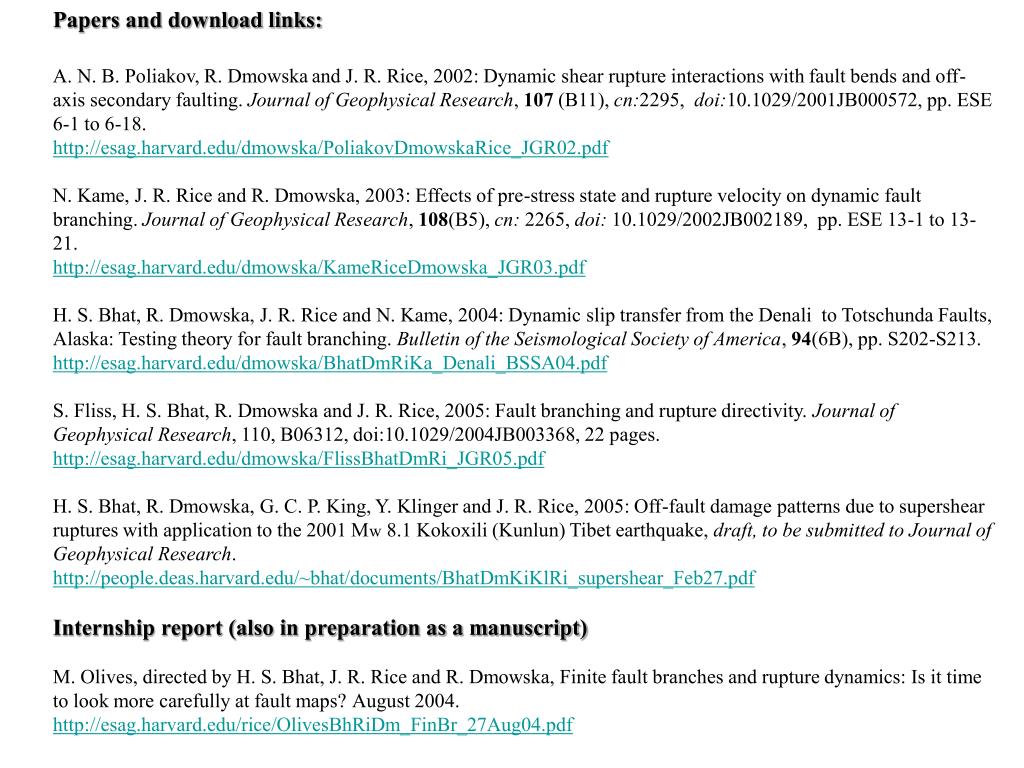

  22. Papers and download links: A. N. B. Poliakov, R. Dmowskaand J. R. Rice, 2002: Dynamic shear rupture interactions with fault bends and off-axis secondary faulting. Journal of Geophysical Research, 107 (B11), cn:2295, doi:10.1029/2001JB000572, pp. ESE 6-1 to 6-18. http://esag.harvard.edu/dmowska/PoliakovDmowskaRice_JGR02.pdf N. Kame, J. R. Rice and R. Dmowska, 2003: Effects of pre-stress state and rupture velocity on dynamic fault branching. Journal of Geophysical Research, 108(B5), cn: 2265, doi: 10.1029/2002JB002189, pp. ESE 13-1 to 13-21. http://esag.harvard.edu/dmowska/KameRiceDmowska_JGR03.pdf H. S. Bhat, R. Dmowska, J. R. Rice and N. Kame, 2004: Dynamic slip transfer from the Denali to Totschunda Faults, Alaska: Testing theory for fault branching. Bulletin of the Seismological Society of America, 94(6B), pp. S202-S213. http://esag.harvard.edu/dmowska/BhatDmRiKa_Denali_BSSA04.pdf S. Fliss, H. S. Bhat, R. Dmowska and J. R. Rice, 2005: Fault branching and rupture directivity. Journal of Geophysical Research, 110, B06312, doi:10.1029/2004JB003368, 22 pages. http://esag.harvard.edu/dmowska/FlissBhatDmRi_JGR05.pdf H. S. Bhat, R. Dmowska, G. C. P. King, Y. Klinger and J. R. Rice, 2005: Off-fault damage patterns due to supershear ruptures with application to the 2001 Mw 8.1 Kokoxili (Kunlun) Tibet earthquake, draft, to be submitted to Journal of Geophysical Research. http://people.deas.harvard.edu/~bhat/documents/BhatDmKiKlRi_supershear_Feb27.pdf Internship report (also in preparation as a manuscript) M. Olives, directed by H. S. Bhat, J. R. Rice and R. Dmowska, Finite fault branches and rupture dynamics: Is it time to look more carefully at fault maps?August 2004. http://esag.harvard.edu/rice/OlivesBhRiDm_FinBr_27Aug04.pdf
