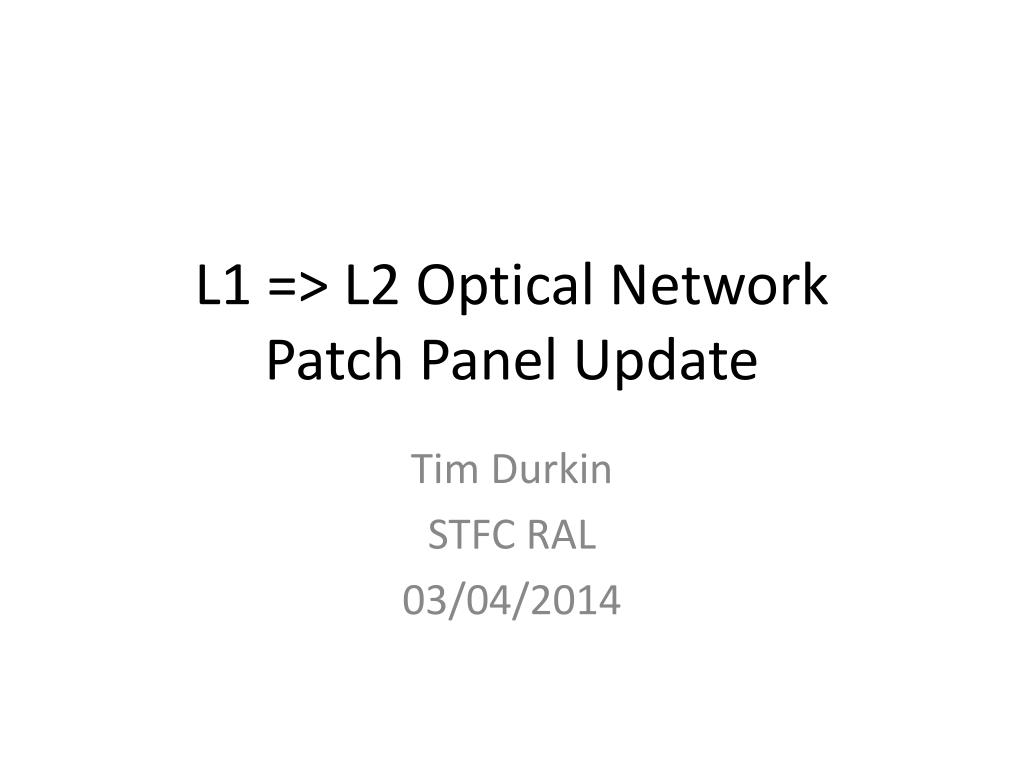

  1. L1 => L2 Optical Network Patch Panel Update Tim Durkin STFC RAL 03/04/2014

  2. Previous Talk

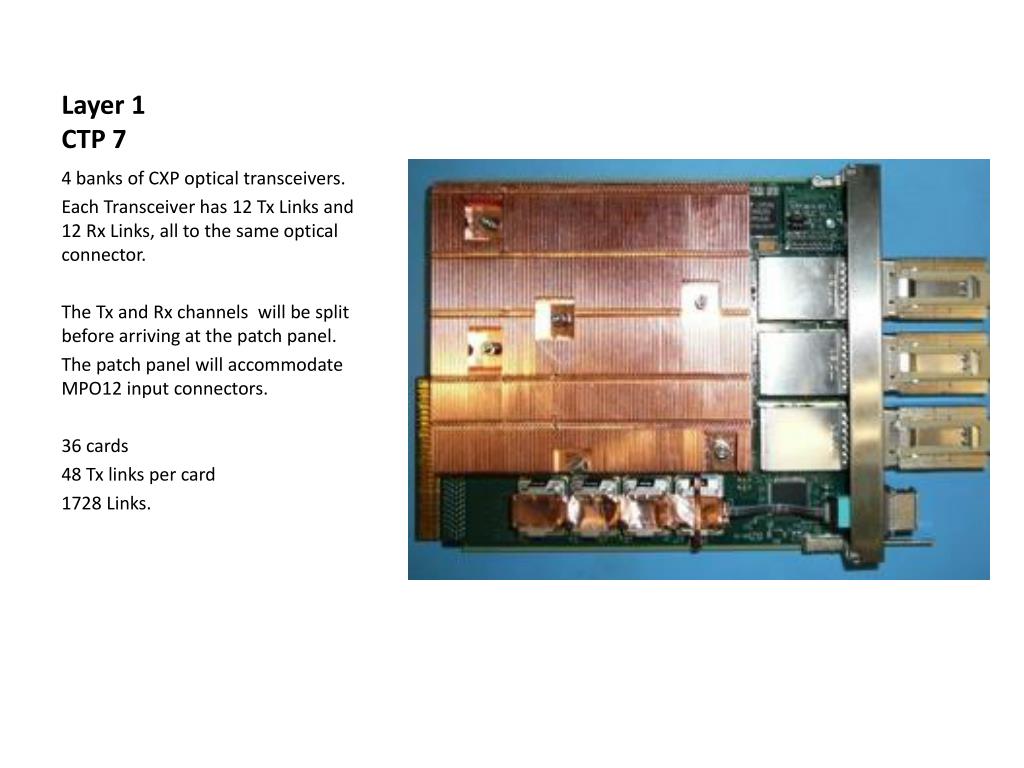

  3. Layer 1CTP 7 4 banks of CXP optical transceivers. Each Transceiver has 12 Tx Links and 12 Rx Links, all to the same optical connector. The Tx and Rx channels will be split before arriving at the patch panel. The patch panel will accommodate MPO12 input connectors. 36 cards 48 Tx links per card 1728 Links.

  4. Layer 2MP7 Mp7 has two banks of 36 Tx links, and two banks of 36 Rx Links. A total of 72 Tx and 72 Rx Links Tx and Rx are on separate MPO 48 cablesin groups of 36. 12 Cards 72 links per card 864 Links

  5. Topology The trigger requires optical connections from each Layer one card to each Layer 2 card. Each fibre ribbon must be split to individual links and merged with fibres from other cards prior to connection with a layer 2 card. CTP7 Layer 1 Card MP7 Layer 2 Cards

  6. Optical patch panel concept CTP7 35 Simplex links from other panels MPO12 Tx link Optical Splitter  Optical Multiplexer LC Simplex link MPT48 Tx link 11 Simplex links to other panels  MP7

  7. 8(MPO12=>LC quad) Sylex 1U splitter boxes. MPO12 connector mapped to LC quad outputs. Front panel can house 96 LC connections. 8 arrays can be housed in one box. 36 588,96 EUR Each Total 11779.20 EUR

  8. 2(LC quad => MTP48) 48 LC connections Routed to 1 MTP48 2 per unit. 72 links target available RX on MP7 therefore 1 unit per MP7. 19 needed to connect layer 2 plus 2 spares. 639.25 EUR Each Total 13424.25 EUR

  9. ……………………………………. CTP7 CTP7 CTP7 CTP7 CTP7 CTP7 CTP7 CTP7 35 36 34 2 1 5 4 3 ……………………………………. 8(MPT12=>12LC quad) 8(MPT12=>12LC quad) 8(MPT12=>12LC quad) 8(MPT12=>12LC quad) 18 2 1 3 ……………………………………. 2(LC quad => MTP48) 2(LC quad => MTP48) 2(LC quad => MTP48) 2(LC quad => MTP48) 1 2 3 12 ……………………………………. MP7 MP7 MP7 MP7 1 2 3 12 19 MP7 13

  10. S2D11 Rack 2(MPO48=>48LC) 30 U of optical components 15 U of cable management Total of 45 U About 2 meters height of equipment. 864 Tx links from layer one have no target component in the current plan. It is essential to make the accessible now for future use. Option one to place unused links at the bottom. 8(MPO12=>12LC) Fully populated 8(MPO12=>12LC) LC Empty

  11. S2D11 Rack 2(MPO48=>48LC) Option two, make them uniformly accessible in the centre of the device. 8(MPO12=>12LC) Fully populated 8(MPO12=>12LC) LC 50%

  12. S2D11 Rack ‘+’ If all potential connections from the L1 cards are to be mapped onto L2 This would require 24 L2 MP7 and 63 U of rack space. 2.8 meters.

  13. Cartridge Concept 45U of components, 30 U of boxes and 15U of cable management will be cabled and tested. Option 1 Do it all in the cavern, Simple to install but guaranteed mistakes.

  14. Cartridge Concept Option 2 Cable and test LC connections on the surface and take the full assembly underground. Easy to debug in a comfortable environment, Hard to lift and install. Each component needs to be serviceable.

  15. Costs EUR 41,094.96

  16. Insertion losses CTP7 Each connection has an associated loss This topology has 6 connections Estimated loss is 2.6 dB. MP7 6 5

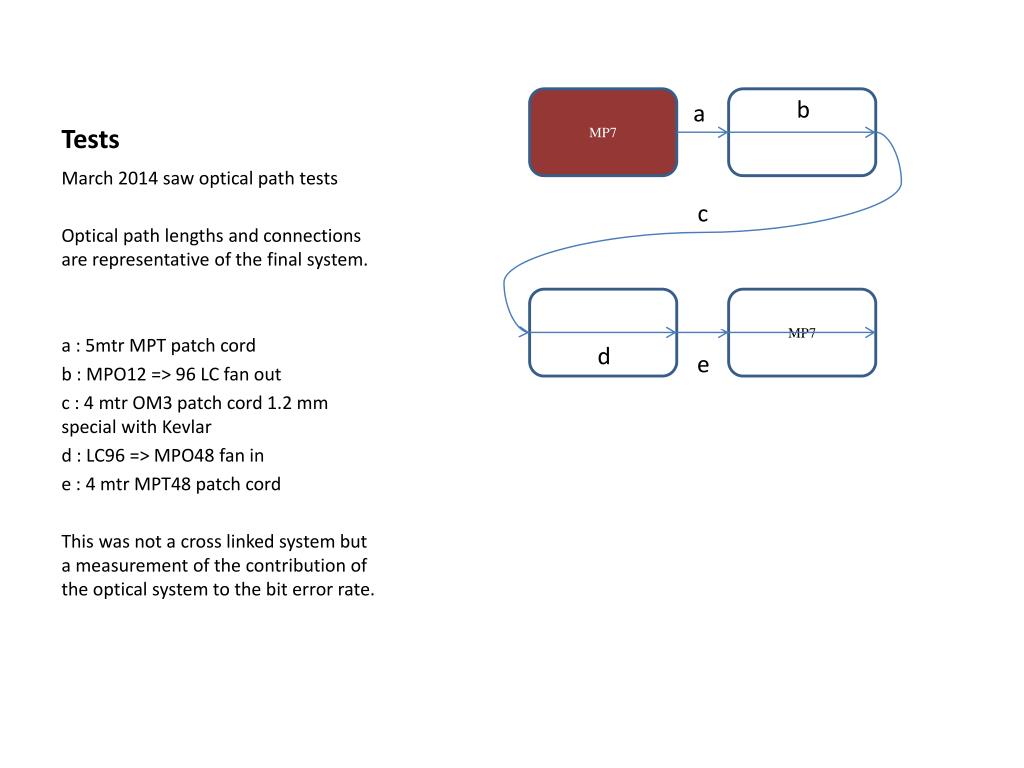

  17. Tests MP7 March 2014 saw optical path tests Optical path lengths and connections are representative of the final system. a : 5mtr MPT patch cord b : MPO12 => 96 LC fan out c : 4 mtr OM3 patch cord 1.2 mm special with Kevlar d : LC96 => MPO48 fan in e : 4 mtr MPT48 patch cord This was not a cross linked system but a measurement of the contribution of the optical system to the bit error rate. MP7 b a c d e

  18. Installation In 904 Not representative of the final system, 4 mtr patch cables to simulate longest reach.

  19. BER BER is of order 10-16 Measured with a 7 bit pseudorandom binary sequence. Eye is Clean.

  20. And Now….. I have to change direction We no longer have the space

  21. Molex FlexPlane OM3 Fibre Laid on Kapton Substrate by robot http://www.molex.com/molex/products/family?channel=products&chanName=family&key=flexplanetrade

  22. 12 X 12 matrix routes 12 channels from input side to common connectors on the output side.

  23. Three 12 to 12 Units will provide 36 inputs each with 12 channels, giving a total of 432 Links.

  24. MPO 48 with 36 connections MPO 48 to 3 x MPO12 Fan-out trunk cable is used to bring groups of three signals togetheron one single MPO48 connector. Each MPO 48 connector has 36 links all originating from the same position of each input connector.

  25. MPO 48 with 36 connections INPUT: 2 x(12 x12) units housed in one 1U box provide 24 MPO-12 inputs (288) 3 of these boxes provides the required 864 input links. OUTPUT: A multiplexer cable takes an MP0-12 from each box (36 total) into 1 MPO-48 to the MP7. Two multiplexer cables are required per MP7 to provide the 72 input links.

  26. Why? LC => LC system costs time, money and space. 35 U high 3 U Both have a lead time of 16 weeks from PO.
