  1. Introduction to ArcGIS forEnvironmental ScientistsModule 1 – Data VisualizationChapter 1 – GIS Basics

  2. Logistics • Start, end, and lunch times • Restrooms and sustenance • Phone/internet access • Parking and ID badges (if applicable) Introduction to ArcGIS

  3. Introductions • Who are you? • Any GIS background? • What do you want to get out of the class? Introduction to ArcGIS

  4. Day 1 Topics • Become familiar with the ArcMap interface • Learn where to find spatial data • Learn how to import and symbolize data in ArcMap • Create publication quality output maps Introduction to ArcGIS

  5. Day 2 Topics • Coordinate systems and map projections • Spatial and attribute queries • Table operations • Editing Introduction to ArcGIS

  6. Day 3 Topics • Spatial analysis tools • Model Builder • Address geocoding Introduction to ArcGIS

  7. Chapter 1 Objectives • Basic theory of GIS • ArcGIS structure • EPA/ESRI Enterprise License Agreement (ELA) Introduction to ArcGIS

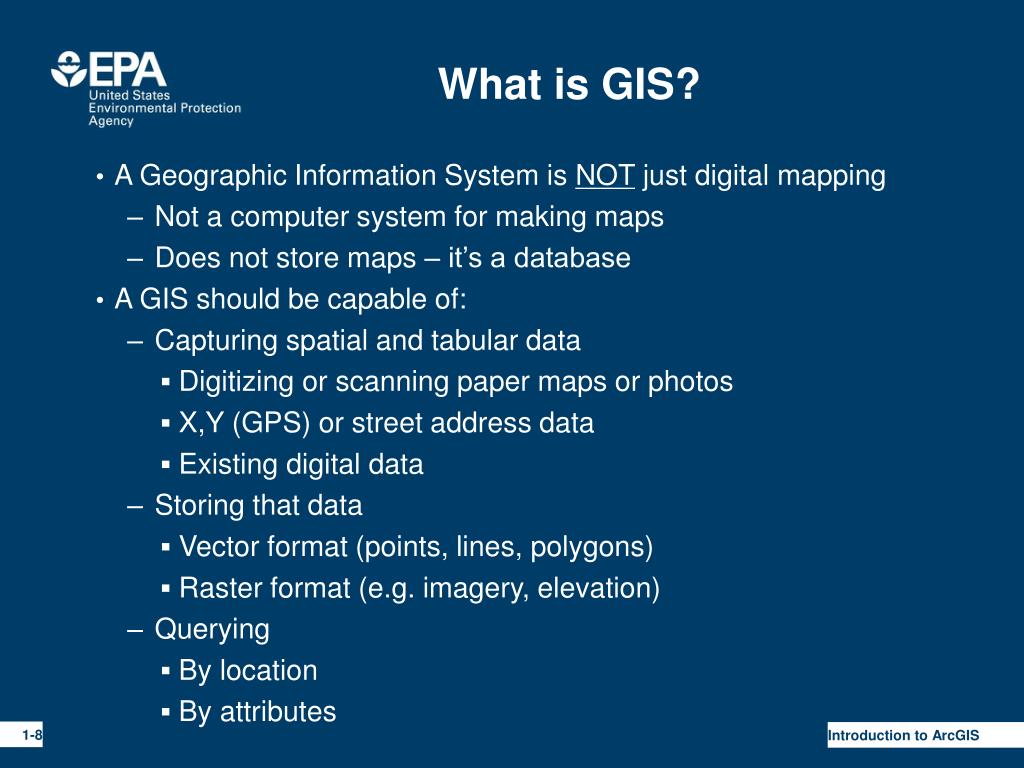

  8. What is GIS? • A Geographic Information System is NOT just digital mapping • Not a computer system for making maps • Does not store maps – it’s a database • A GIS should be capable of: • Capturing spatial and tabular data • Digitizing or scanning paper maps or photos • X,Y (GPS) or street address data • Existing digital data • Storing that data • Vector format (points, lines, polygons) • Raster format (e.g. imagery, elevation) • Querying • By location • By attributes Introduction to ArcGIS

  9. More What is GIS? • A GIS should be capable of: • Analyzing spatial relationships between datasets • Overlay • Proximity • Network • Display • Maps, graphs, reports • Output • Paper maps • Digital maps • Internet Introduction to ArcGIS

  10. Questions a GIS Can Help Answer • What is at …? • Where is it …? • What has changed since…? • What spatial patterns exist …? • What if .. (modeling question)? Introduction to ArcGIS

  11. Geo-browsers • NOT a GIS, but useful in data visualization • Google Maps: http://maps.google.com • Bing Maps: http://www.microsoft.com/maps • ArcGIS Explorer: http://www.esri.com/software/arcgis/explorer/index.html • Google Earth: http://earth.google.com • All are free. Government restrictions on Google Earth. • Some GIS data can be displayed in Google Earth and ArcGIS Explorer. Introduction to ArcGIS

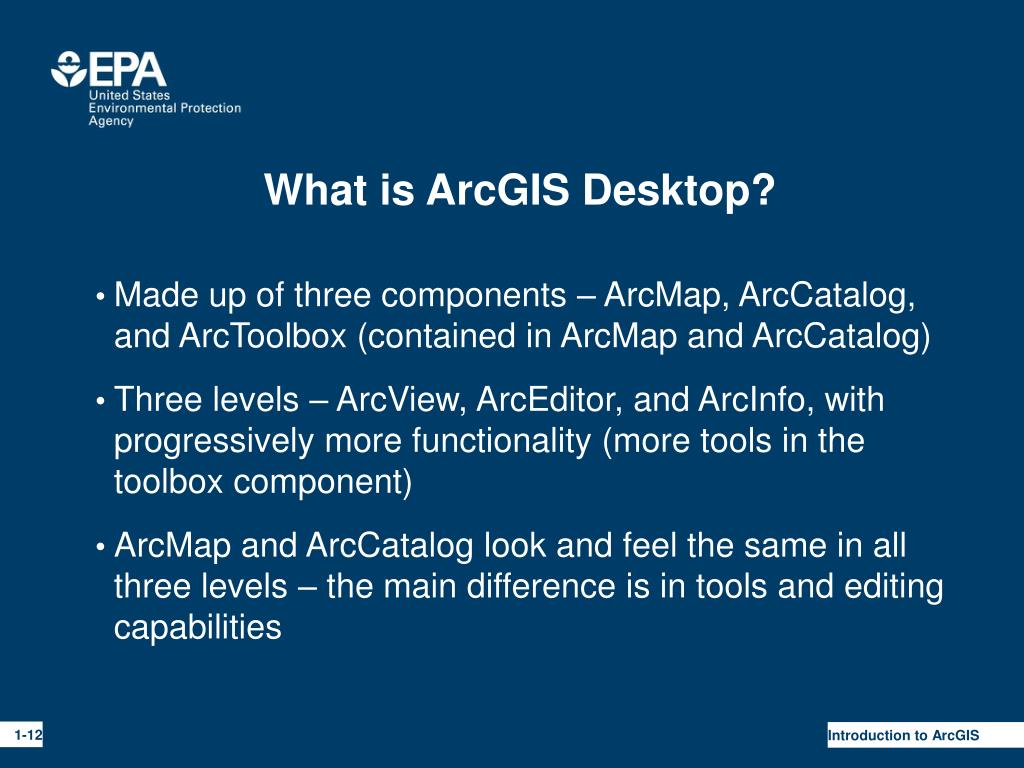

  12. What is ArcGIS Desktop? • Made up of three components – ArcMap, ArcCatalog, and ArcToolbox (contained in ArcMap and ArcCatalog) • Three levels – ArcView, ArcEditor, and ArcInfo, with progressively more functionality (more tools in the toolbox component) • ArcMap and ArcCatalog look and feel the same in all three levels – the main difference is in tools and editing capabilities Introduction to ArcGIS

  13. ArcMap Title Bar MenuBar Standard toolbar Tools Toolbar (docked) Display Area Data Frame Layers draw from bottom to top, with intelligent default draw order Table of Contents ArcCatalog pane Status Bar Introduction to ArcGIS

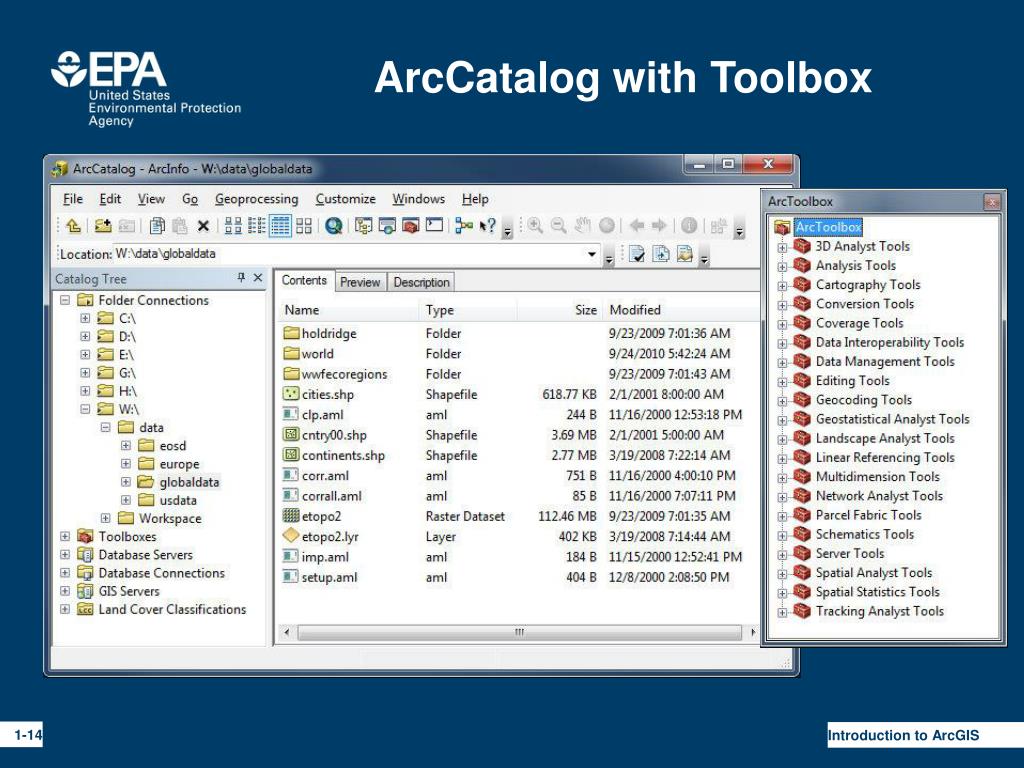

  14. ArcCatalog with Toolbox Introduction to ArcGIS

  15. ArcGIS Terms • Feature – Any real world object represented on a map • Feature class – A collection of geographic features with the same geometry type, attributes, and spatial reference • Layer – A reference to a data source that defines properties such as map symbolization • .mxd –The file extension for ArcMap documents • Data frame – Container for layers Introduction to ArcGIS

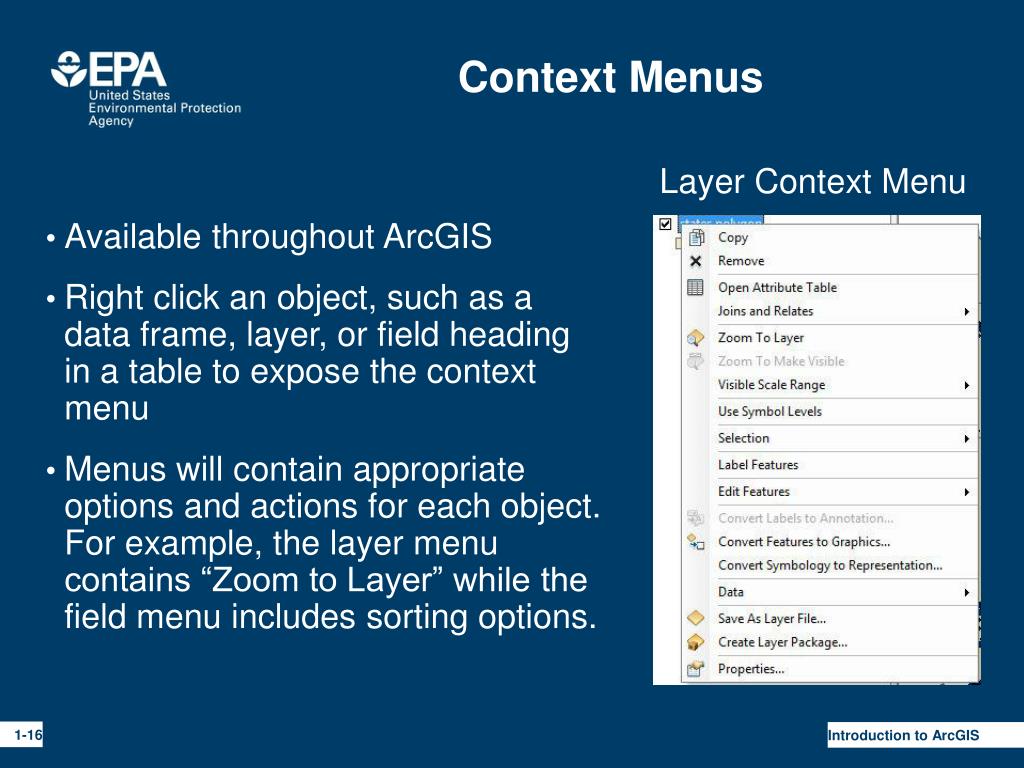

  16. Context Menus Layer Context Menu • Available throughout ArcGIS • Right click an object, such as a data frame, layer, or field heading in a table to expose the context menu • Menus will contain appropriate options and actions for each object. For example, the layer menu contains “Zoom to Layer” while the field menu includes sorting options. Introduction to ArcGIS

  17. ESRI Resources • Website: http://www.esri.com • Software documentation • Additional training, both self taught and instructor-led • Knowledge base and list-serve tech support • Events • Annual user conference • Online seminars • Data and maps DVD set • Software patches and service packs • ArcScripts and samples Introduction to ArcGIS

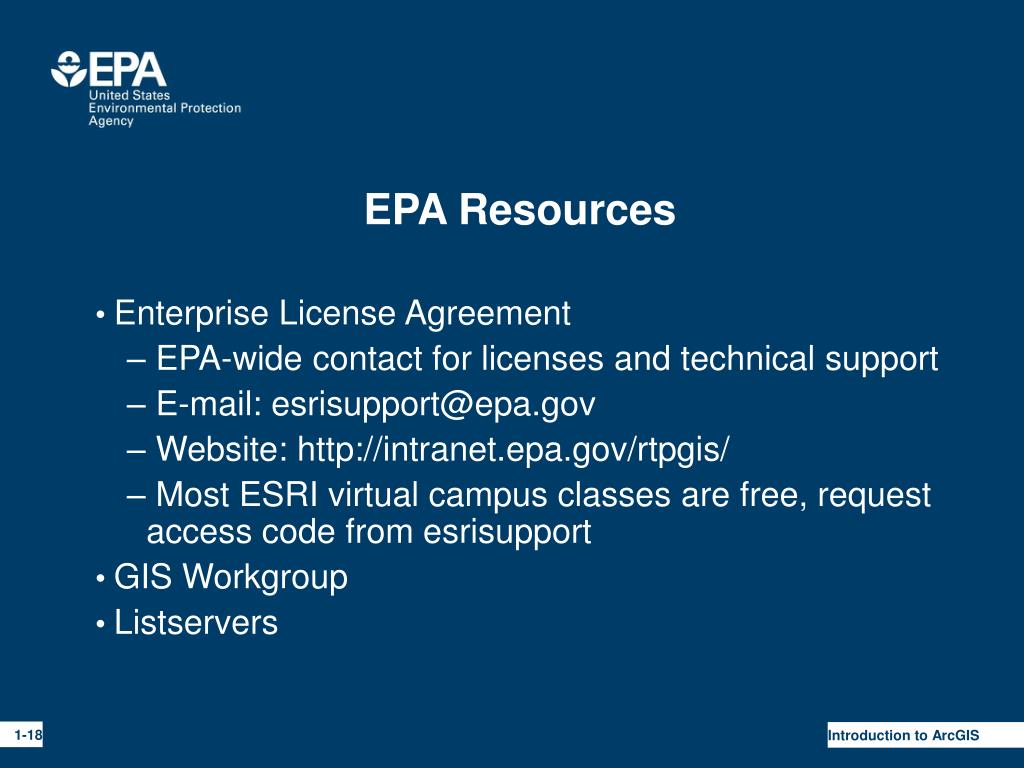

  18. EPA Resources • Enterprise License Agreement • EPA-wide contact for licenses and technical support • E-mail: esrisupport@epa.gov • Website: http://intranet.epa.gov/rtpgis/ • Most ESRI virtual campus classes are free, request access code from esrisupport • GIS Workgroup • Listservers Introduction to ArcGIS
