4.1 Coordinates Objective : To plot points and name points in the coordinate plane.

tana avatar
tana
83 diapositives · 1.4K Views · Aug 22, 2014

4.1 Coordinates Objective : To plot points and name points in the coordinate plane. is formed by two real number lines that intersect at the origin. (x-axis and y-axis). A coordinate plane.

4.1 Coordinates Objective : To plot points and name points in the coordinate plane. - slide 1
01 / 834.1 Coordinates Objective : To plot points and name points in the coordinate plane.
1 / 17

Télécharger la présentation

4.1 Coordinates Objective : To plot points and name points in the coordinate plane.
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. 4.1 CoordinatesObjective: To plot points and name points in the coordinate plane. is formed by two real number lines that intersect at the origin. (x-axis and y-axis) A coordinate plane is a point in the coordinate plane represented by real numbers. The x-coordinate is the first number. The y-coordinate is the second number. Ex. (3,6) An ordered pair (x, y)  (right or left, up or down) How do you tell?

  2. Coordinate plane (x, y) y-axis Quadrant II (-, +) Quadrant I (+, +) Origin (0,0) x- axis Quadrant III (-, -) Quadrant IV (+, -)

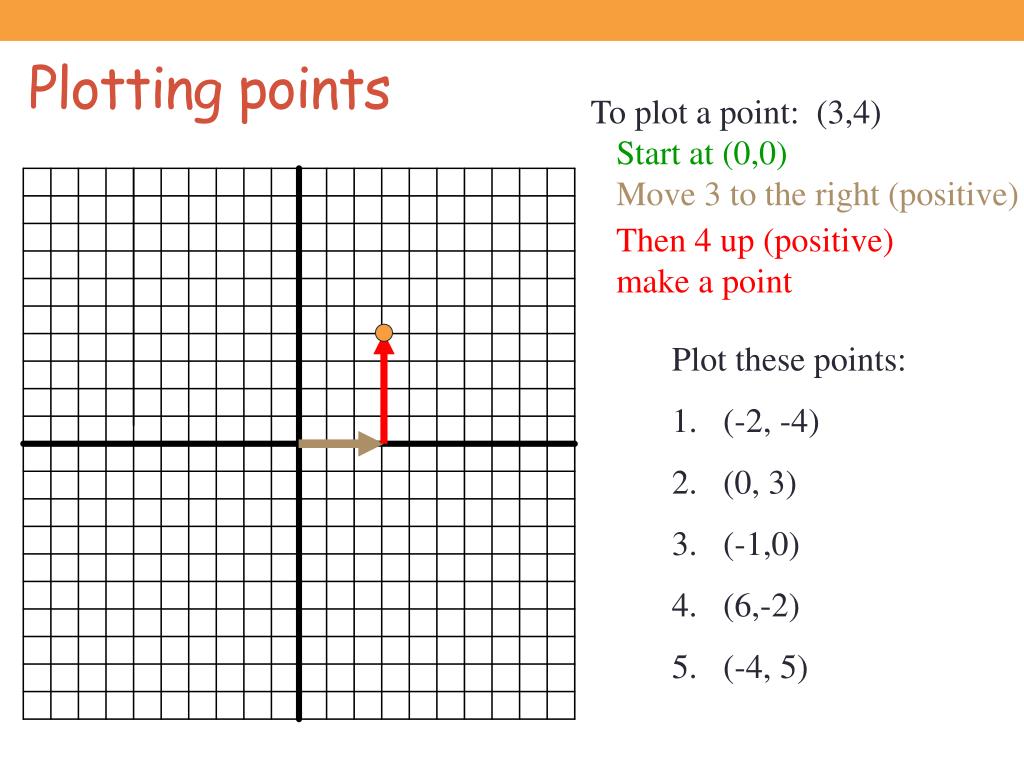

  3. Plotting points To plot a point: (3,4) Start at (0,0) Move 3 to the right (positive) Then 4 up (positive) make a point • Plot these points: • (-2, -4) • (0, 3) • (-1,0) • (6,-2) • (-4, 5)

  4. Practice Name the following points and give the quadrant or axis where they lie. A: B: C: D: A D C B Plot the following points and label each!! E (-3, 4) F(-5, 0) G(-3, -1) H(0, 0)

  5. The Coordinate Plane Steps to Make a Scatter Plot: • Determine what will be x and y. • x – is in charge, it changes automatically • y – depends on x, is not automatic • Determine units of each axis and label. • Find range of variable • Divide range by number of squares • Always round up to “nice” unit • Plot points.

  6. 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Example Make a Scatter Plot The age (in years) of seven used cars and the price (in thousands of dollars) paid for the cars are recorded in the table. Make a scatter plot and explain what it indicates. price in $1,000 age of car How much would a 2-year old car cost?

  7. Make a Scatter Plot Example The amount (in millions of dollars) spent in the United States on snowmobiles is shown in the table. Make a scatter plot and explain what it indicates.

  8. Reminders • Math Lab Tomorrow - Stocks • 4.1-4.3 Quiz on Monday, Oct. 7th • Homework: • P. 206-207 #’s 10-26 EVEN, 35-37 • EXTRA CREDIT – Halloween “Goblin’ Goblin” Grid

  9. What is represented by this BrainBat? TOOL O O O O LOOT

  10. 4.2 Graphing Linear Equations Objective: To graph linear equations using a table of values. Note (1) All the Eqs. in Chap 4 refer 2 variable linear Eqs. (2) The graph of each linear eq. is a LINE The solution to a linear equation -- is an ordered pair (x, y). There are many solutions to a linear equation and all of the solutions together form a straight line, 

  11. Find out if the ordered pairs are solutions. HOW? A) -5x – 8y = 15 (-3, 0) B) -2x – 9y = 7 (-1, -1)

  12. -1 0 1 Graph a line 5 Steps to graph a line 3 1. Pick three values for x 1 • Plug in values for x then solve for y • Solve for y, then evaluate y for all input x 3. Graph the ordered pairs 4. Connect these order pairs. This should form a straight line! y = -2x + 3

  13. -1 0 1 Function form  When an equation is solved for y = What are the advantages of putting the equation into function form? Graph the given linear equations. A) 3x – y = 2 Solve for y: We select three x values, and evaluate the corresponding y values.

  14. Graph the given linear equations. Solve for y, B) 2x – 2y = 10 We select three x values, and evaluate the corresponding y values. What are the “good” x values we should select? The x values should make “nice” y values. (or, no fraction values for y)

  15. Make a table of values and graph the following line: 6x – 3y = 12 2y = 4x + 1

  16. Ex 4) y = -3 Ex 5) x = 4 Ex 6) x = -2 Ex 7) y = 0 Special Linear Equations always a vertical line x = #  always a horizontal line y = #  MEMORIZE THESE!!!! It’s easy! x = # , label the # on x-axis, then “cut” there y = # , label the # on y-axis, then “cut” there

  17. Make a table of values and graph the following line: y = -3 x = 4

  18. Summary • A two variables linear equation represents a line in x-y coordinate plan. • An ordered pair is a solution to a two variable linear equation, then the point represented by the ordered pair is on the line represented by the linear equation, and vice versa. • Remember the two types of special line by an easy way: • x = #  no y  cut x-axis at that #  parallel to y-axis • y = #  no x  cut y-axis at that #  parallel to x-axis

  19. Summary • When graphing a linear equation, remember the 4 steps: • Pick a few x values • Solve for y, then evaluate y for all input x • Graph ordered pairs • Connect ordered pairs with a line

  20. Lesson 4.2 DHQ • Decide whether the given ordered pair is a solution of 2x – 3y = 8. • (-2, -4) b. (7, -2) • Rewrite 4x – 2y = 18 in function form.

  21. Reminders • 4.1-4.3 Quiz on Monday, Oct. 7th • Homework: • P. 214-215 #’s 15-20, 30-32, 36-37, 60

  22. What is represented by this BrainBat? G G E G E G E G G

  23. y-intercept?( , ) x-intercept? ( , ) 4.3 Quick Graphs Using Intercepts Objective: To graph lines using x and y-intercepts. Where the line or curve crosses the x-axis. This should be written as the point (x, 0) . (WHY?) What is an x-intercept? What is a y-intercept? Where the line or curve crosses the y-axis. This should be written as the point (0, y) . (WHY?) 0 3 2 0 Note x or y intercept is a point!!!

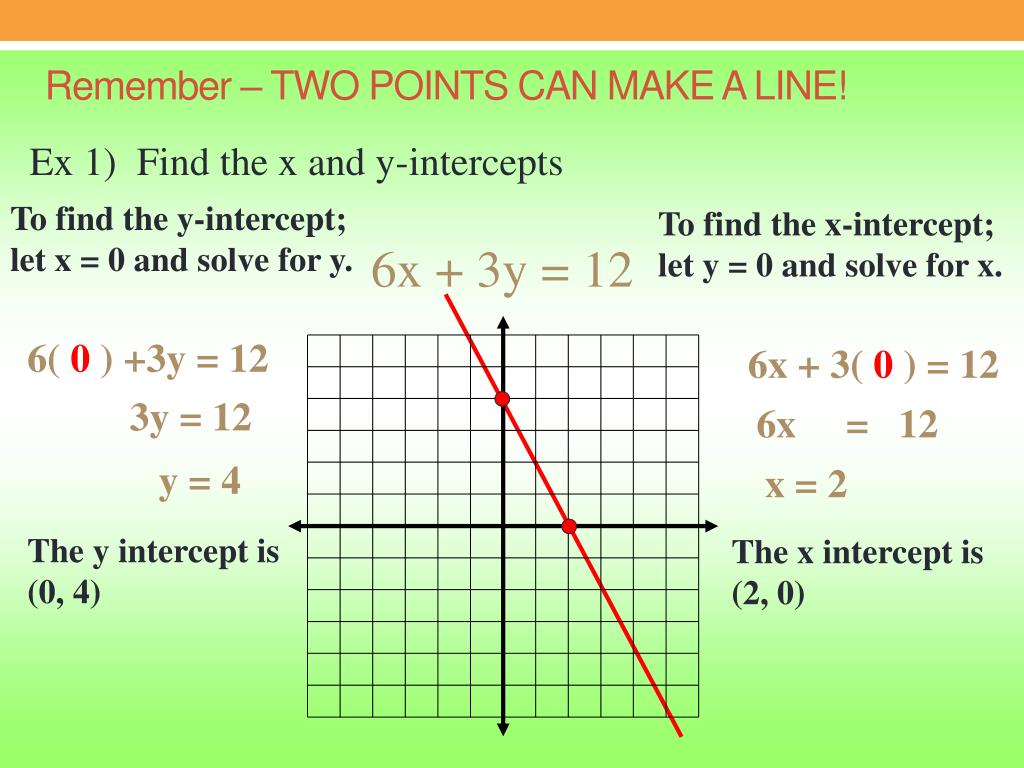

  24. 6x + 3y = 12 Remember – TWO POINTS CAN MAKE A LINE! Ex 1) Find the x and y-intercepts To find the y-intercept; let x = 0 and solve for y. To find the x-intercept; let y = 0 and solve for x. 6( 0 ) +3y = 12 6x + 3( 0 ) = 12 3y = 12 6x = 12 y = 4 x = 2 The y intercept is (0, 4) The x intercept is (2, 0)

  25. You try these: Calculate the x and y-intercept. Then graph each line. 1. 2x – y = 4 2. 3y – 2x = -6

  26. What happens with horizontal and vertical lines? Find the x and y-intercepts (if possible). Graph each line. Ex 2) y = 4 Ex 3) x = -1 You can set x = 0 but end with “No solution”  can not find x, or no x-intercept. You can set y = 0 but end with “No solution”  can not find y, or no y-intercept. y-int. (0, 4) x-int. (-1, 0) Variable x does not show up  no x-intercept  line is parallel to x-axis Variable y does not show up  no y-intercept  line is parallel to y-axis

  27. You try these: Calculate the x and/or y-intercept. Then graph each line. 4. y = 2x + 4 5. y = -3

  28. Graph and Write the equation of the special line 7. Vertical line passing through (-2, 3) 6. Horizontal line passing (-3, 4) and (4, 4).

  29. Summary • x-intercept (y-intercept) is a point where the line or curve crosses the x(y)-axis. • To find x-intercept (y-intercept), just setting • y = 0 (x = 0) in an equation. • 3. When graph a line, just find x and/or y-intercept and then connect two intercepts with a line.

  30. Find the intercepts and graph. 3) 2x – 4y = –8 4) x – 4y = 2 The point where line(curve) crosses the x-axis. Graphing with Intercepts What is an x-intercept? How do you find an x-intercept? (Why does this work?) How should you write the x-intercept? set y = 0 and then solve for x. In an order pair (x, y). The point where line(curve) crosses the y-axis. What is a y-intercept? How do you find a y-intercept? (Why does this work?) How should you write the y-intercept? set x = 0 and then solve for y. In an order pair (x, y). – 4y = –8 – 4y = 2 y = 2 y = –1/2 2x = –8 x = 2 x = –4 So – If I gave you a quiz over this material, how would you do?

  31. Lesson 4.3 DHQ • Give the x- and y- intercepts of the graph of 2x – y = -4. • 2. Graph 2x – 3y = 6 using x and y intercepts.

  32. Reminders • 4.1-4.3 Quiz on Monday, Oct. 7th • Homework: • P. 221-222 #’s 35-37, 44-49, 56-57

  33. What is represented by this BrainBat? C H I M A D E N A

  34. (ORDER MATTERS!)  Slope: m = m = m = To read the slope from a graph, choose 2 lattice points and write a ratio of the vertical to horizontal change. Explain.   4.4 The Slope of a Line Objective: To calculate the slope of a line using 2 points, to read slope from a given line and to understand some applications of slope. 1) The measurement of the steepness and direction of a line (m) Slope is:

  35. The slope formula – finding slopes from ordered pairs If you are given 2 points  you have 2 x-values and 2 y-values. You need memorize it!!!

  36. 6) Describe how to move a slope of…….  a) -2  b) c) d) 5a) Sketch a positive slope. c) Sketch a 0 slope. d) Sketch an undefined slope. b) Sketch a negative slope.

  37. Ex 4) The store plane descends 100 feet for every 2000 feet it travels. Find the slope of decent. Ex 5) The road rises 2 feet for every 50 yards. Find the slope of the road. * REMEMBER TO CONVERT YDs to FT

  38. (order matters!!) • Summary • There are 3 different formulas to calculate the slope:

  39. Lesson 4.4 DHQ • Find the slope of each line. Use formula to find the slope. • (-2, 2), (0, 4) • (1, 1), (4, 2) • 2. Find the slope of the line.

  40. Reminders • 4.4+4.6 Quiz on Wednesday, Oct. 16th • Homework: • P. 230-231 #’s 23-28, 35-36 ***38

  41. What is represented by this BrainBat? sdraw

  42. 4.6 Graph Using Slope-Intercept Form Objective: 1. To use slope intercept form to graph a line. 2. Tell the slope of two parallel lines. Slope-Intercept Form is :Memorize this form!! y = mx + b (m = slope & b = y-intercept.) • The equation must be y = to use this short-cut • m is always the coefficient of • y-intercept (b) is always x Constant – (no variable)

  43. Solve the following equations for y = then pick out the m and b for each. -2x -2x y = –2x - 5 -2 -5

  44. Use the slope (m) and y-intercept (b) to graph each line. 2x + y = 5 m = b = x - 2y = 4 m = b = You need to graph a) the y-intercept first and then b) use the slope to get the second (third) point (move the slope) c) connect the two (three) points by a line.

  45. One more for you to try.  3x – 2y = –6 m = b = Can you solve for y? Can you locate the m and b? Can you put this on the graph paper? 3x – 2y = –6 -3x -3x

  46. Summary • The slope-intercept form is the form in which y is solved. • In the slope-intercept, the number in front of x is the slope m and the number right after x is the y-intercept. • When you graph a line of slope-intercept form, you have to graph • a) the y-intercept first and then • b) use the slope to get the second (third) point • c) connect the two (three) points by a line. • 4. Parallel lines have equal slope.

  47. Lesson 4.6 DHQ • Write x + y + 3 = 0 in slope-intercept form. Then graph the equation.

  48. Reminders • 4.4+4.6 Quiz on Wednesday, Oct. 16th • Homework: • P. 244 #’s 13-18, 29-31

  49. Slope-Intercept Form Organization Check: We can now graph an equation in three different ways: Using an x, y table Using x-intercepts, y-intercepts Slope-intercept form Where a line crosses the y-axis.

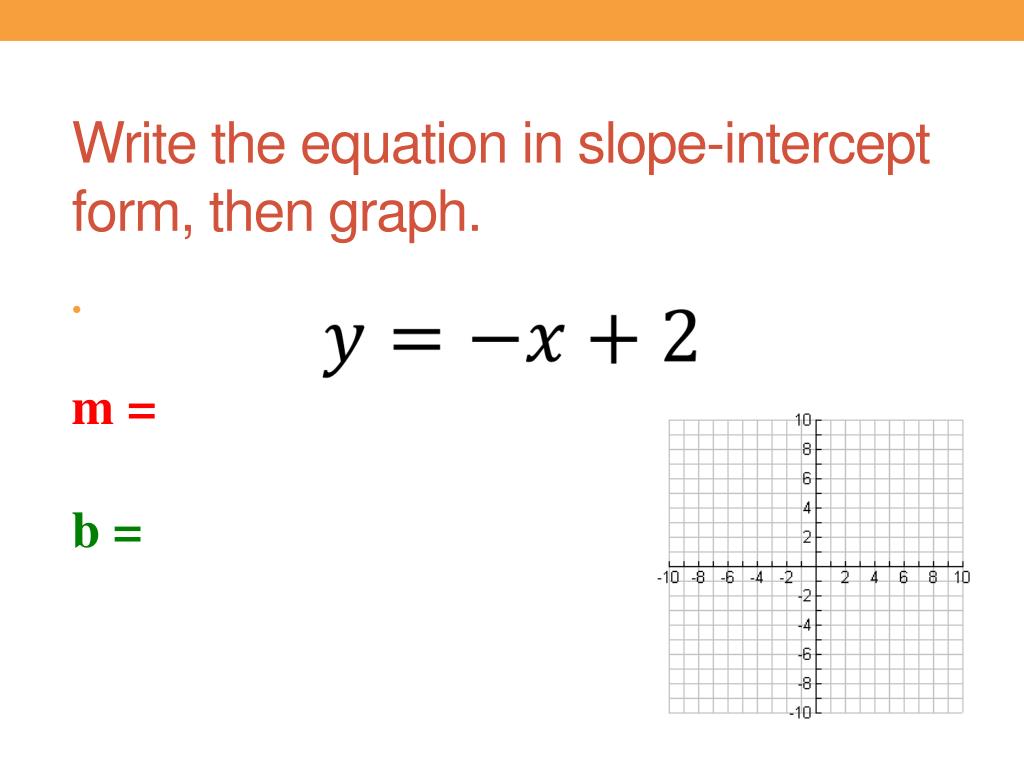

  50. Write the equation in slope-intercept form, then graph. m = b =
