  1. Class Notes 2: MICROSCOPES

  2. I. The Light Microscope • A. Microscopes enabled scientist to view and study the cell. 1. Anton van Leeuwenhoek in the 1600’s used a simple light microscope. It contained one lens and light to view objects.

  3. B. The compound light microscope was later invented 1. It uses series of lenses to magnify objects 2. It magnified up to 1500 times.

  4. II. Electron Microscope • A. A new type of microscope was developed called the electron microscope. 1. A beam of electrons instead of light to magnify objects up to 1 million times their actual size. 2. These microscopes can show the arrangement of atoms in a molecule.

  5. III. Parts of Compound Light Microscope 1. eyepiece 2. Course adjustment 3. Nosepiece 4.Objectives 5. Stage  6. Diaphragm 7. Light 8. Stage Clip 9. base 10. Arm 11. Fine adjustment 12. Body Tube

  6. 1. Ocular lens or eyepiece:10x magnification. • 2. Course Adjustment: Located on side of microscope; innermost is the fine focus and outermost is the coarse focus. • 3. Nosepiece: holds the objective lenses, rotates.

  7. 4. Objective lenses: 3 on our scopes, 4x, 10x, 40x Total magnification = ocular power x objective power. • 5. Stage: platform on which slides are mounted for viewing • 6. Diaphragm: controls the amount of light which passes to the specimen and can drastically affect the focus of the image.

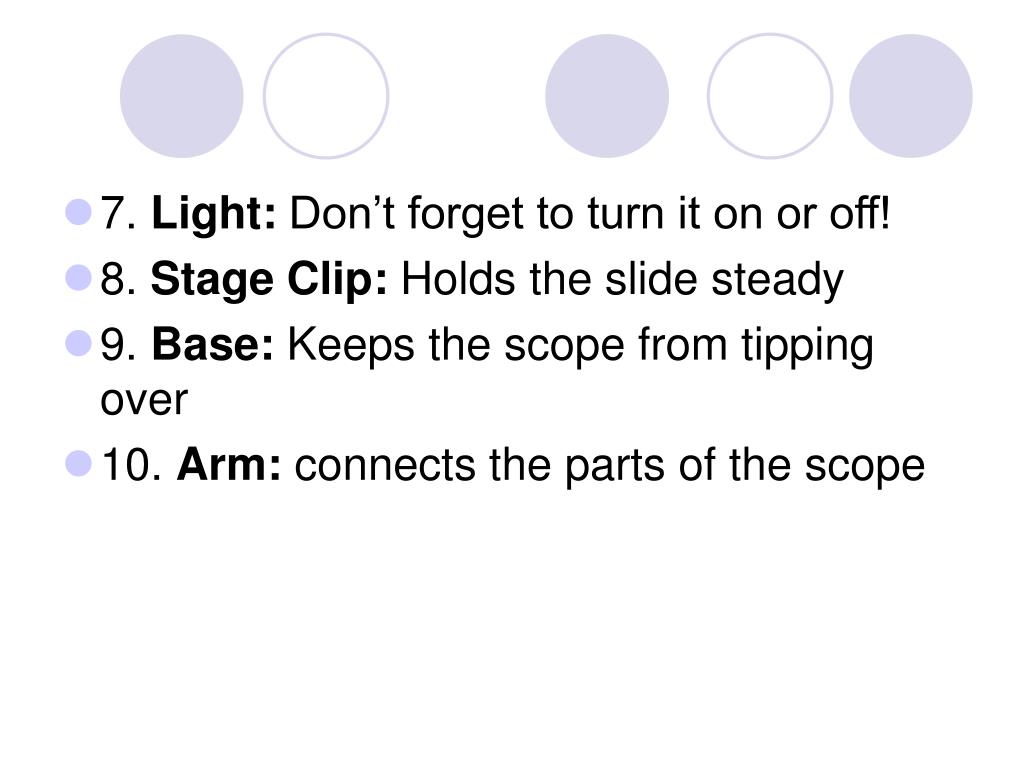

  8. 7. Light: Don’t forget to turn it on or off! • 8. Stage Clip: Holds the slide steady • 9. Base: Keeps the scope from tipping over • 10. Arm: connects the parts of the scope

  9. 11.Fine adjustment: small knob on top of big knob. • 12. Body tube: contains mirrors and prisms which direct the image to the ocular lens.

  10. IV. Care and Handling of the Compound Microscope • There are only a few ABSOLUTE rules to observe in caring for the microscopes you will use. Taken care of, these instruments will last many years and continue to work well. Please report any malfunctions immediately to your instructor.

  11. Precautions • 1. ALWAYS use two hands to carry the scope - one on the arm and one under the base - NO EXCEPTIONS! NEVER carry the scope upside down, for the ocular can and will fall out.

  12. 2. Always use the proper focusing technique to avoid ramming the objective lens into a slide - this can break the objective lens and/or ruin an expensive slide.

  13. 3. Always turn off the light when not using the scope. • 4. Always carefully place the wire out of harm's way. Wires looped in the leg spaces invite a major microscope disaster. Try sliding the wire down through the drawer handles beside your bench space.

  14. 5. Wrap cord around microscope and place in cabinet when finished
