Refraction in a spherical atmosphere

Spherical atmosphere, T=177 K. Refraction in a spherical atmosphere. Deflection angle. Flux. from Elliot and Young, 1992. Refraction in an elliptical atmosphere. Occultation imaging sequence ( 20 frames sec -1 ). Palomar 241-actuator adaptive optics system on the 5-m Hale telescope.

tariq
Télécharger la présentation

Refraction in a spherical atmosphere

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

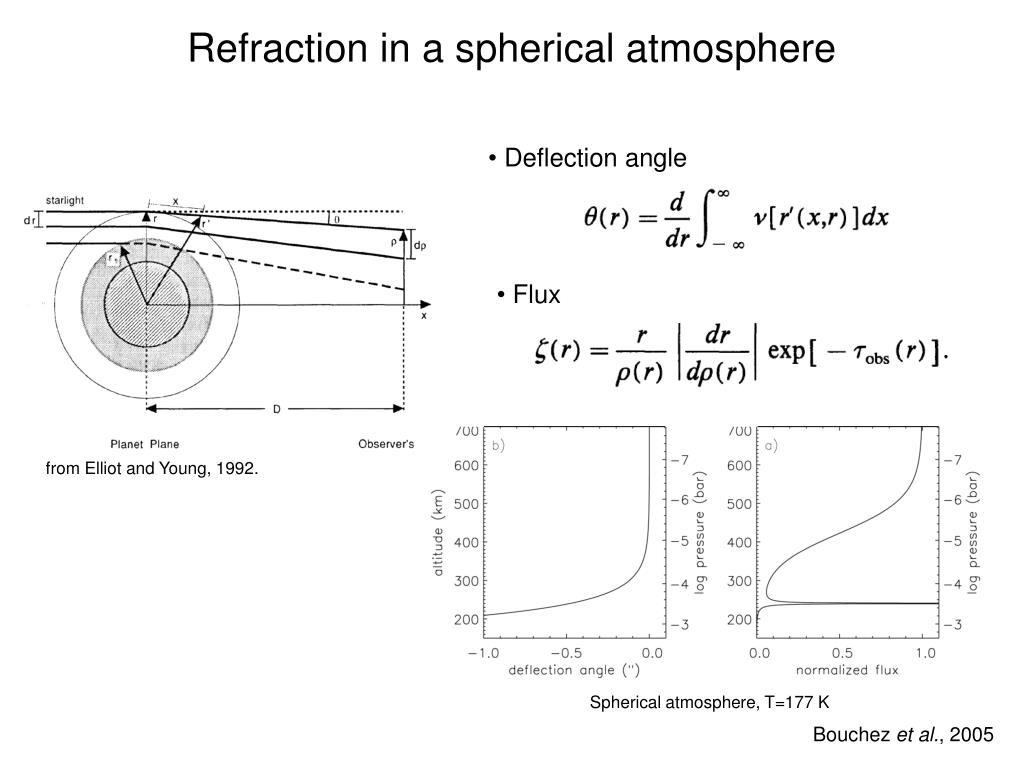

  1. Spherical atmosphere, T=177 K Refraction in a spherical atmosphere • Deflection angle • Flux from Elliot and Young, 1992.

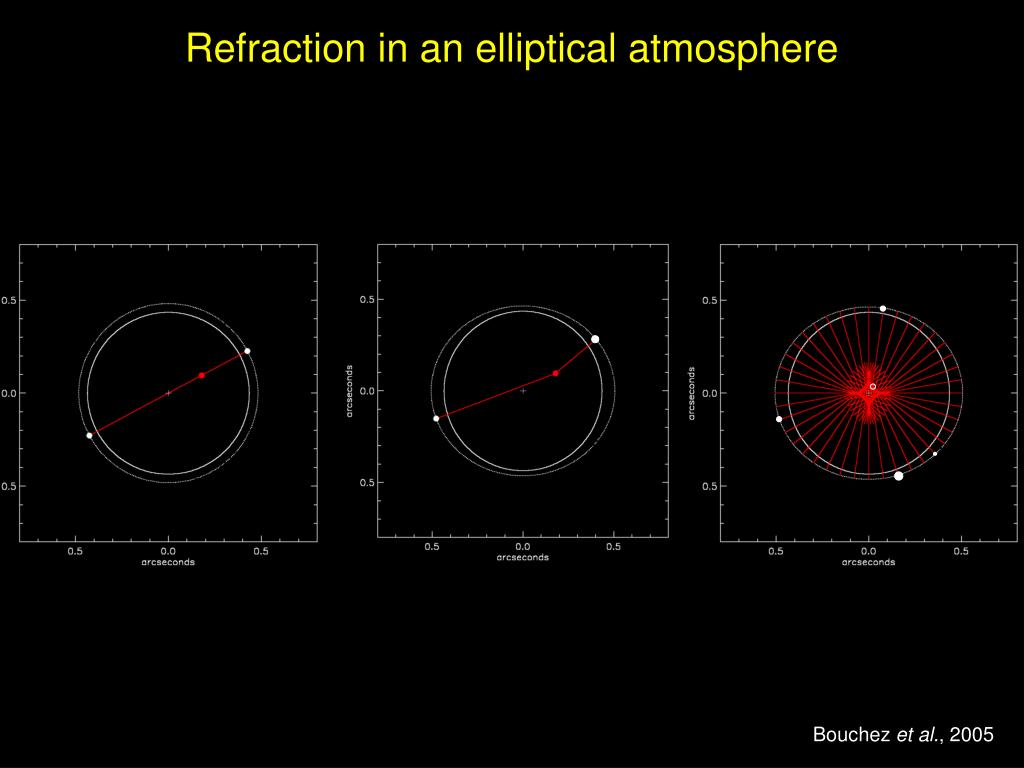

  2. Refraction in an elliptical atmosphere

  3. Occultation imaging sequence(20 frames sec-1) • Palomar 241-actuator adaptive optics system on the 5-m Hale telescope. • PHARO 1024x1024 near-IR camera, K’ filter (1.95 – 2.30 μm). • 437ms integrations every 880 ms, total 4700 images.

  4. Titan-subtracted images (10 frames sec-1) • 2 refracted images visible throughout each occultation. • No central flash. • Unocculted star provides photometric and astrometric reference.

  5. Best fit isobaric surface implies a polar jet • Best-fit 8th order isobaric surface fit to positions of both stars. • Implies strong winter jet, weaker zonal circulation in summer hemisphere. • Consistent with GCM models (Hourdin et al. 1995, Rannou et al. 2002), though wind speeds are ~40% higher • Huygens drogue chute should be OK!
