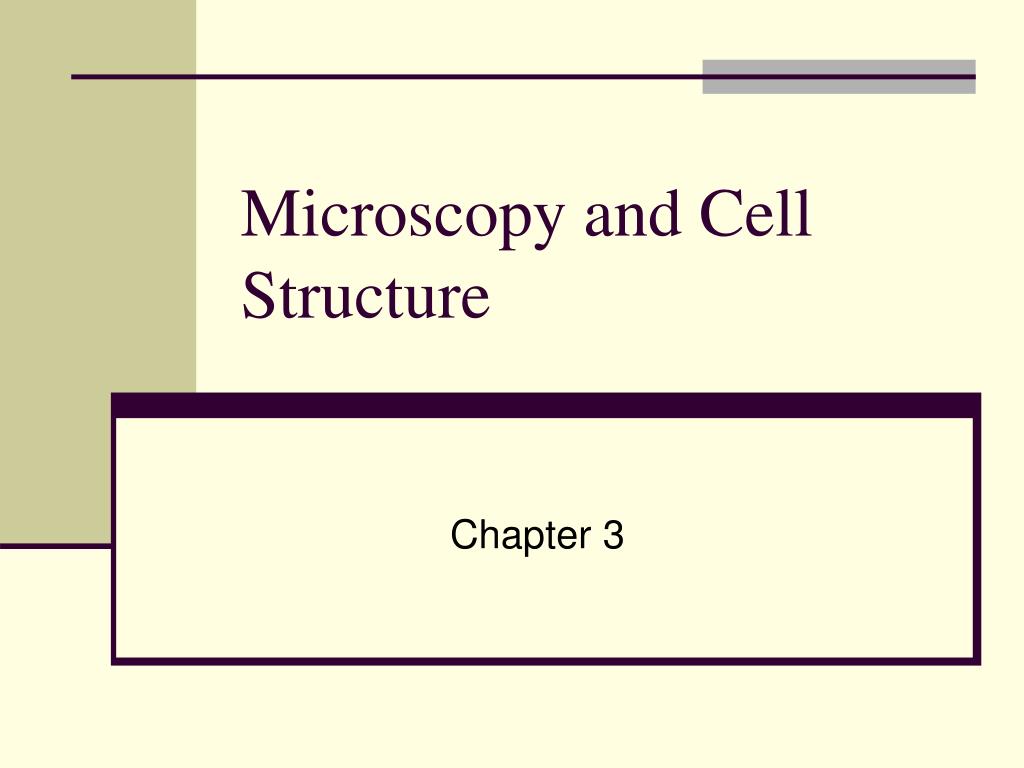

  1. Microscopy and Cell Structure Chapter 3

  2. Microscope TechniquesMicroscopes • Microscopes • Most important tool for studying microorganisms • Use viable light to observe objects • Magnify images approximately 1,000x • Electron microscope, introduced in 1931, can magnify images in excess of 100,000x • Scanning probe microscope, introduced in 1981, can view individual atoms

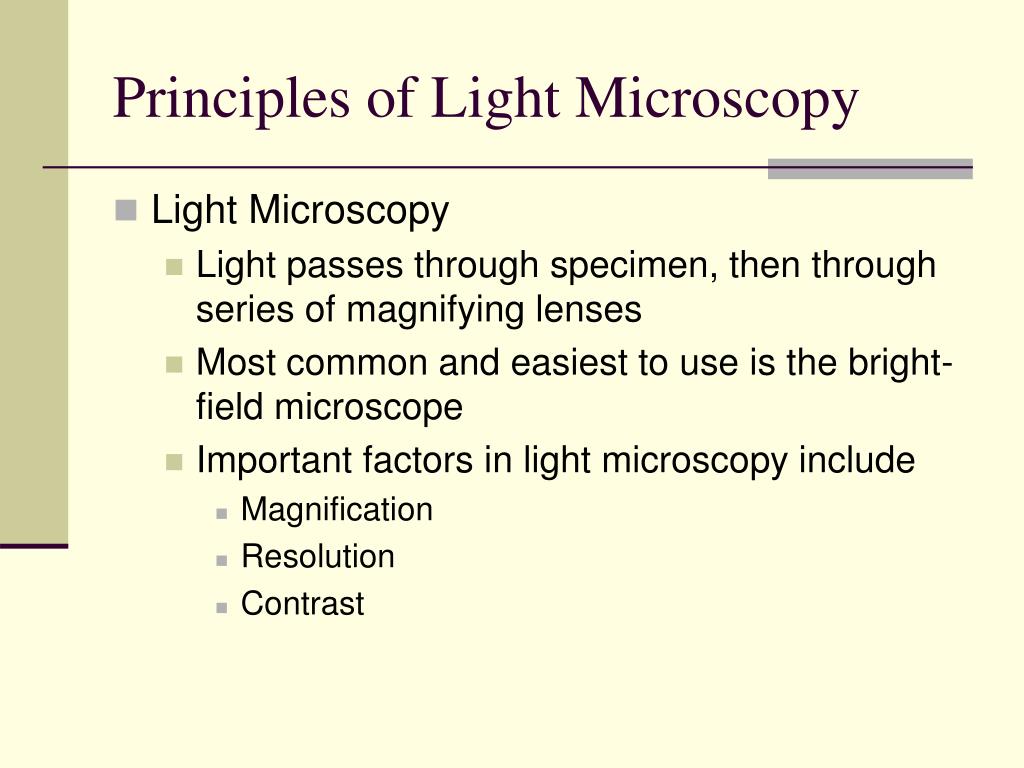

  3. Principles of Light Microscopy • Light Microscopy • Light passes through specimen, then through series of magnifying lenses • Most common and easiest to use is the bright-field microscope • Important factors in light microscopy include • Magnification • Resolution • Contrast

  4. Principles of Light Microscopy • Magnification • Microscope has two magnifying lenses • Called compound microscope • Lens include • Ocular lens and objective lens • Most bright field scopes have four magnifications of objective lenses, 4x, 10x, 40x and 100x • Lenses combine to enlarge objects • Magnification is equal to the factor of the ocular x the objective • 10x X 100x = 1,000x

  5. Principles of Light Microscopy • Magnification • Bright field scopes have condenser lens • Has no affect on magnification • Used to focus illumination on specimen

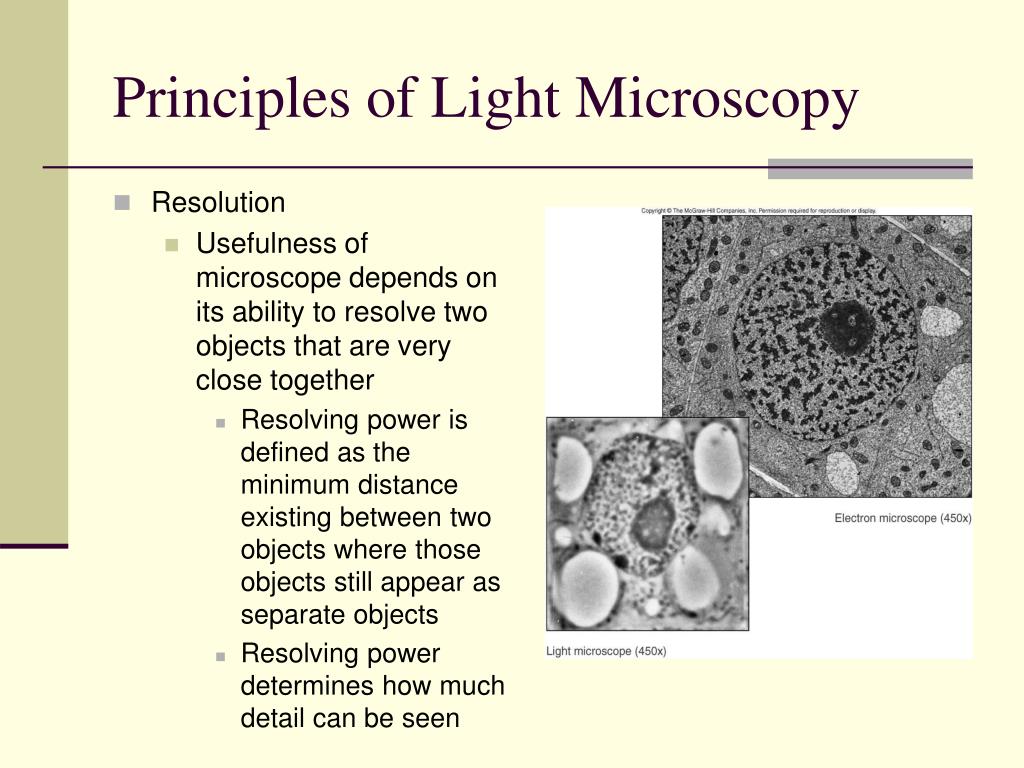

  6. Principles of Light Microscopy • Resolution • Usefulness of microscope depends on its ability to resolve two objects that are very close together • Resolving power is defined as the minimum distance existing between two objects where those objects still appear as separate objects • Resolving power determines how much detail can be seen

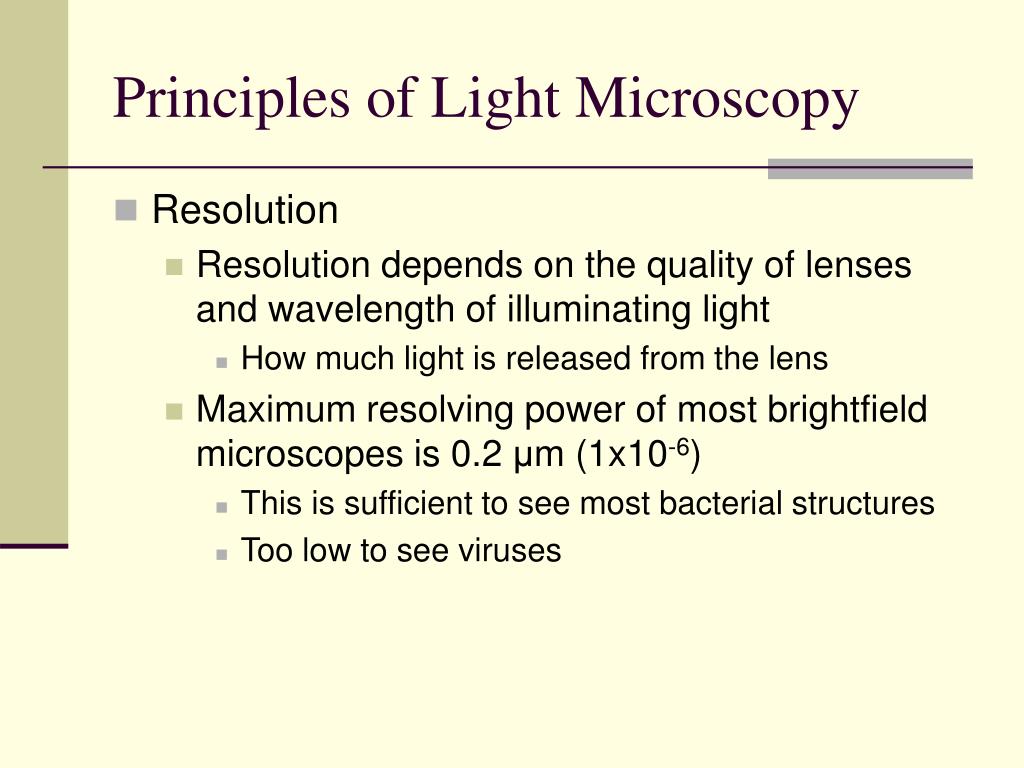

  7. Principles of Light Microscopy • Resolution • Resolution depends on the quality of lenses and wavelength of illuminating light • How much light is released from the lens • Maximum resolving power of most brightfield microscopes is 0.2 μm (1x10-6) • This is sufficient to see most bacterial structures • Too low to see viruses

  8. Principles of Light Microscopy • Resolution • Resolution is enhanced with lenses of higher magnification (100x) by the use of immersion oil • Oil reduces light refraction • Light bends as it moves from glass to air • Oil bridges the gap between the specimen slide and lens and reduces refraction • Immersion oil has nearly same refractive index as glass

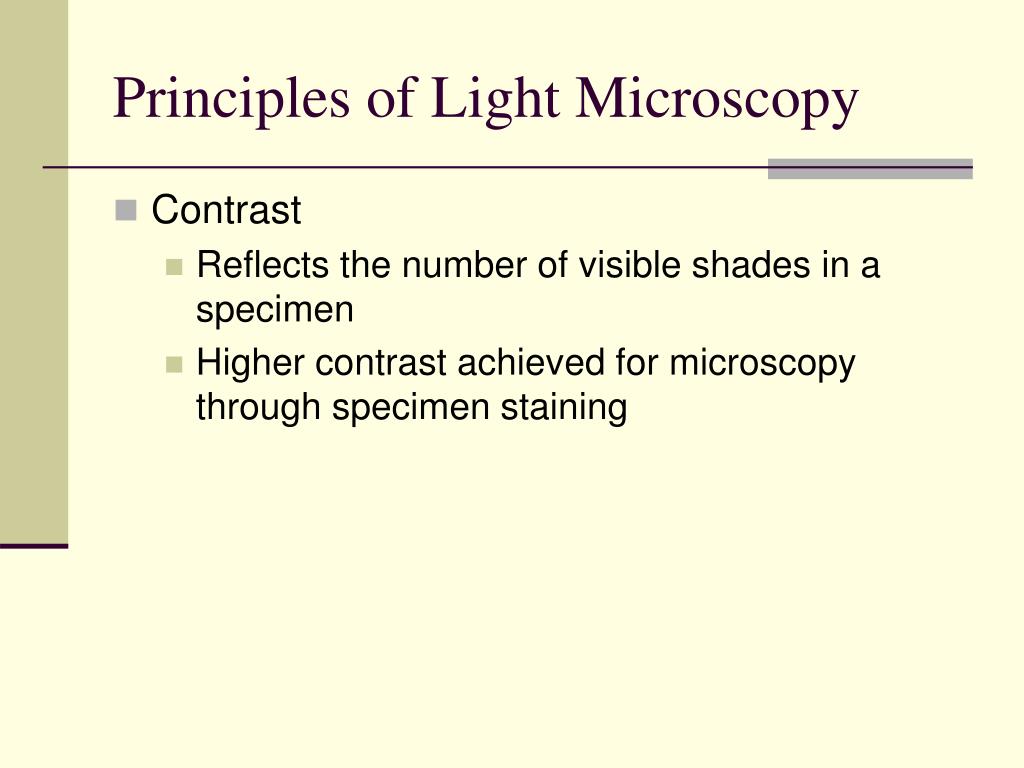

  9. Principles of Light Microscopy • Contrast • Reflects the number of visible shades in a specimen • Higher contrast achieved for microscopy through specimen staining

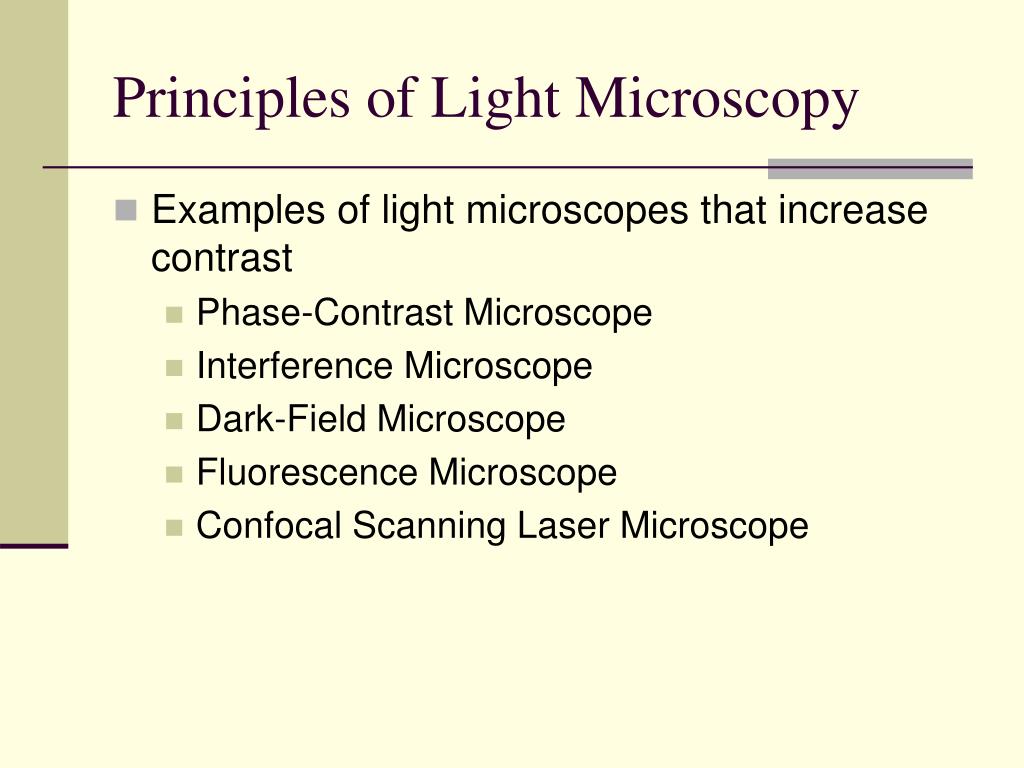

  10. Principles of Light Microscopy • Examples of light microscopes that increase contrast • Phase-Contrast Microscope • Interference Microscope • Dark-Field Microscope • Fluorescence Microscope • Confocal Scanning Laser Microscope

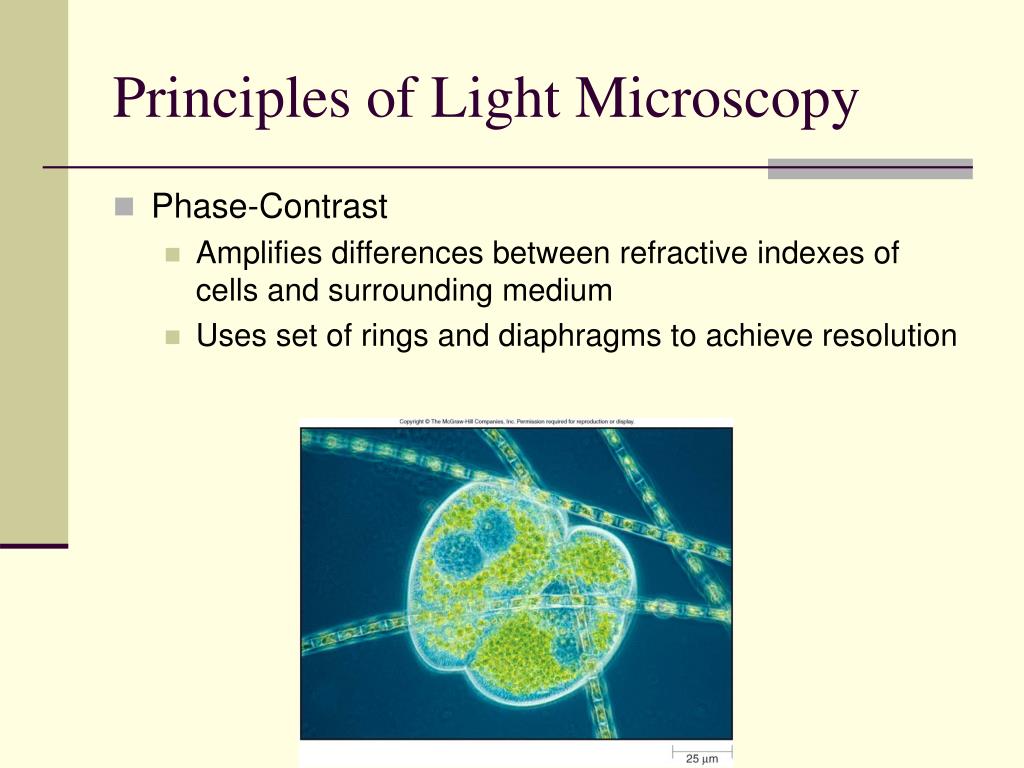

  11. Principles of Light Microscopy • Phase-Contrast • Amplifies differences between refractive indexes of cells and surrounding medium • Uses set of rings and diaphragms to achieve resolution

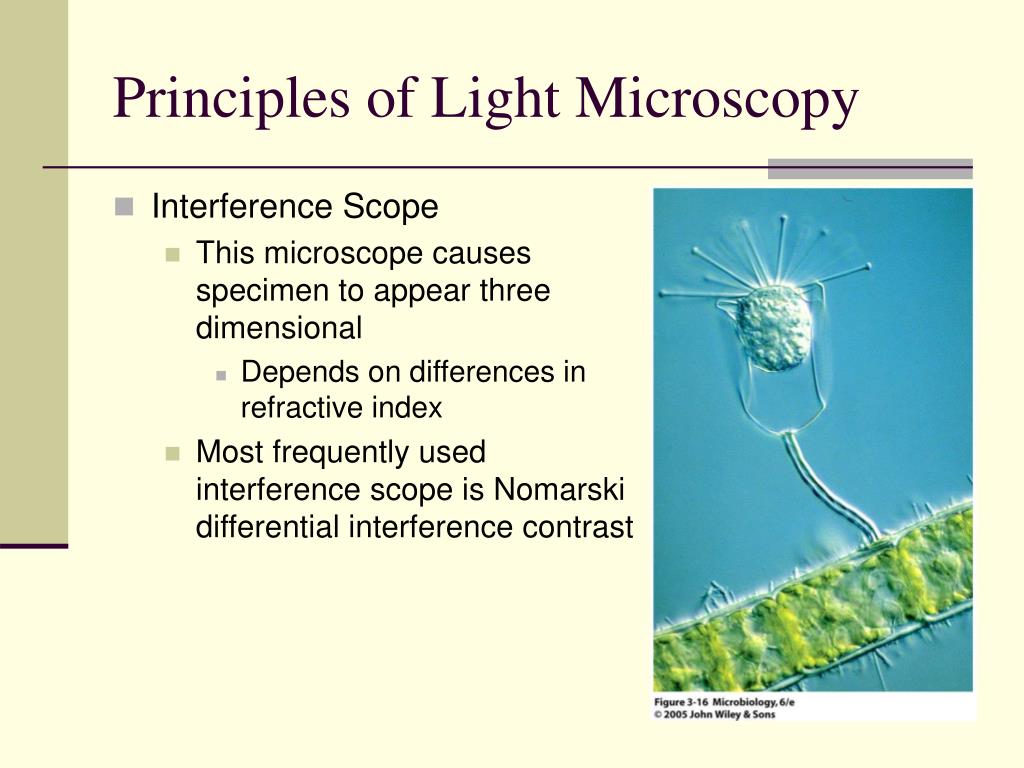

  12. Principles of Light Microscopy • Interference Scope • This microscope causes specimen to appear three dimensional • Depends on differences in refractive index • Most frequently used interference scope is Nomarski differential interference contrast

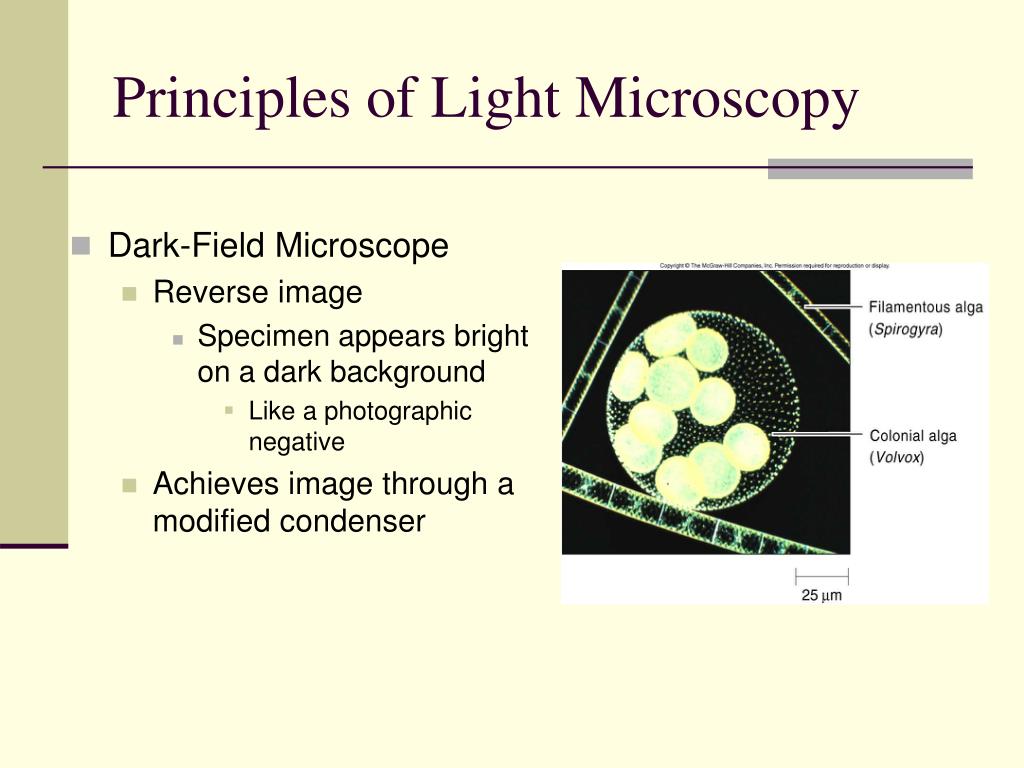

  13. Principles of Light Microscopy • Dark-Field Microscope • Reverse image • Specimen appears bright on a dark background • Like a photographic negative • Achieves image through a modified condenser

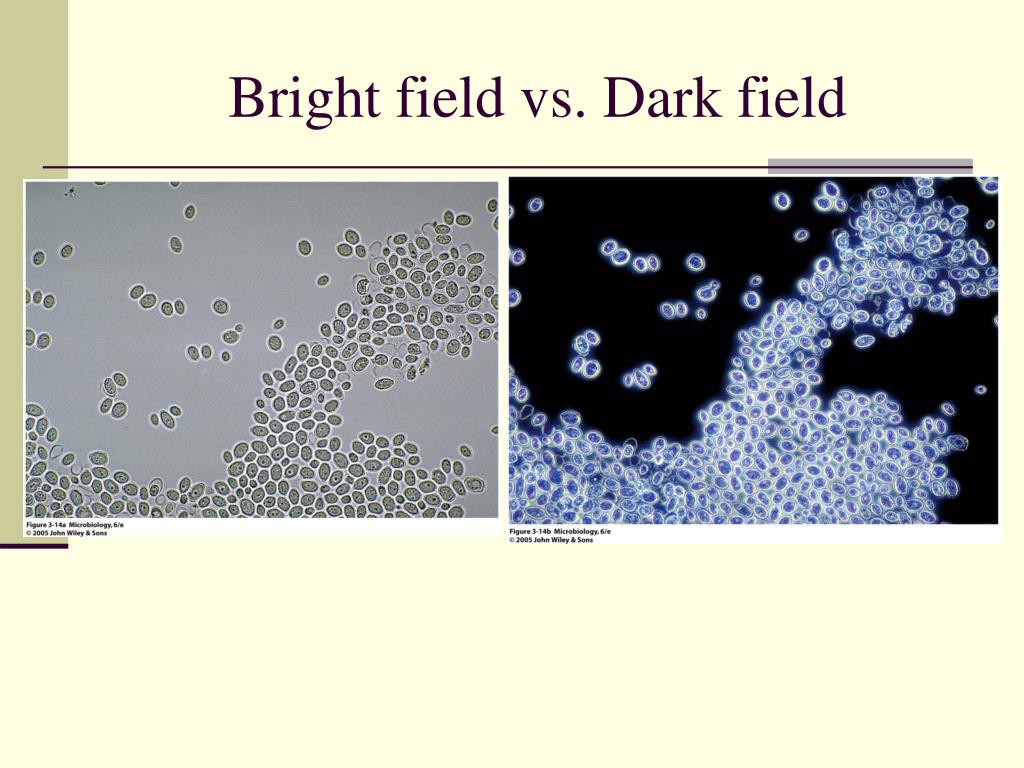

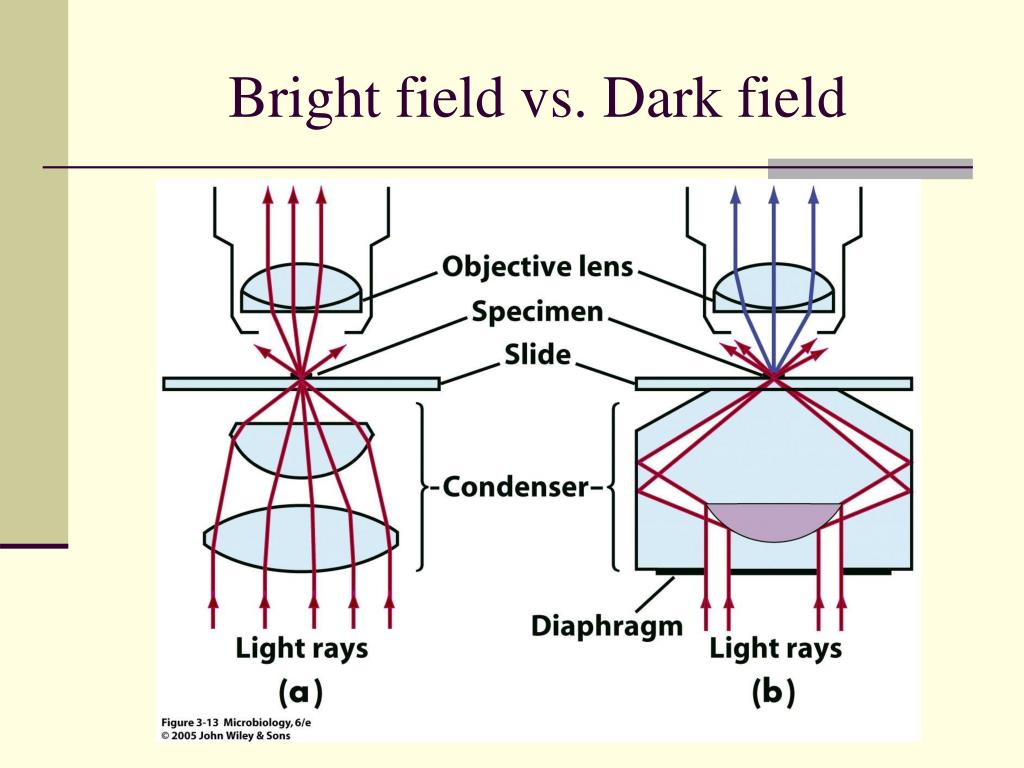

  14. Bright field vs. Dark field

  15. Bright field vs. Dark field

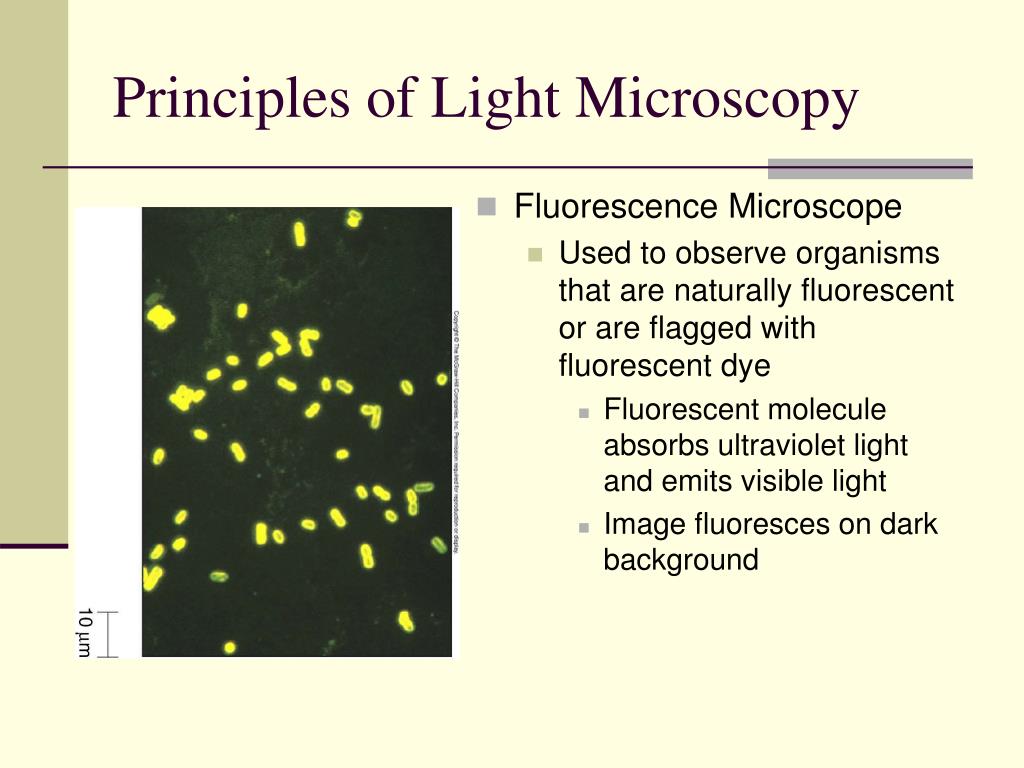

  16. Principles of Light Microscopy • Fluorescence Microscope • Used to observe organisms that are naturally fluorescent or are flagged with fluorescent dye • Fluorescent molecule absorbs ultraviolet light and emits visible light • Image fluoresces on dark background

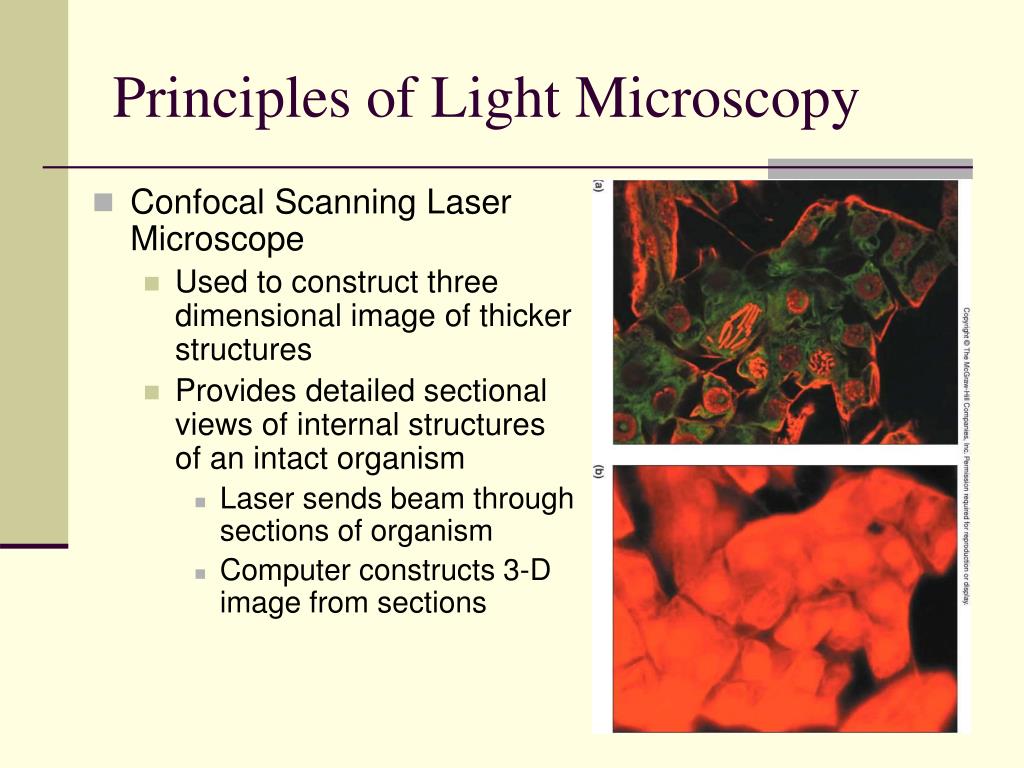

  17. Principles of Light Microscopy • Confocal Scanning Laser Microscope • Used to construct three dimensional image of thicker structures • Provides detailed sectional views of internal structures of an intact organism • Laser sends beam through sections of organism • Computer constructs 3-D image from sections

  18. Principles of Light Microscopy • Electron Microscope • Uses electromagnetic lenses, electrons and fluorescent screen to produce image • Resolution increased 1,000 fold over brightfield microscope • To about 0.3 nm (1x10-9) • Magnification increased to 100,000x • Two types of electron microscopes • Transmission • Scanning

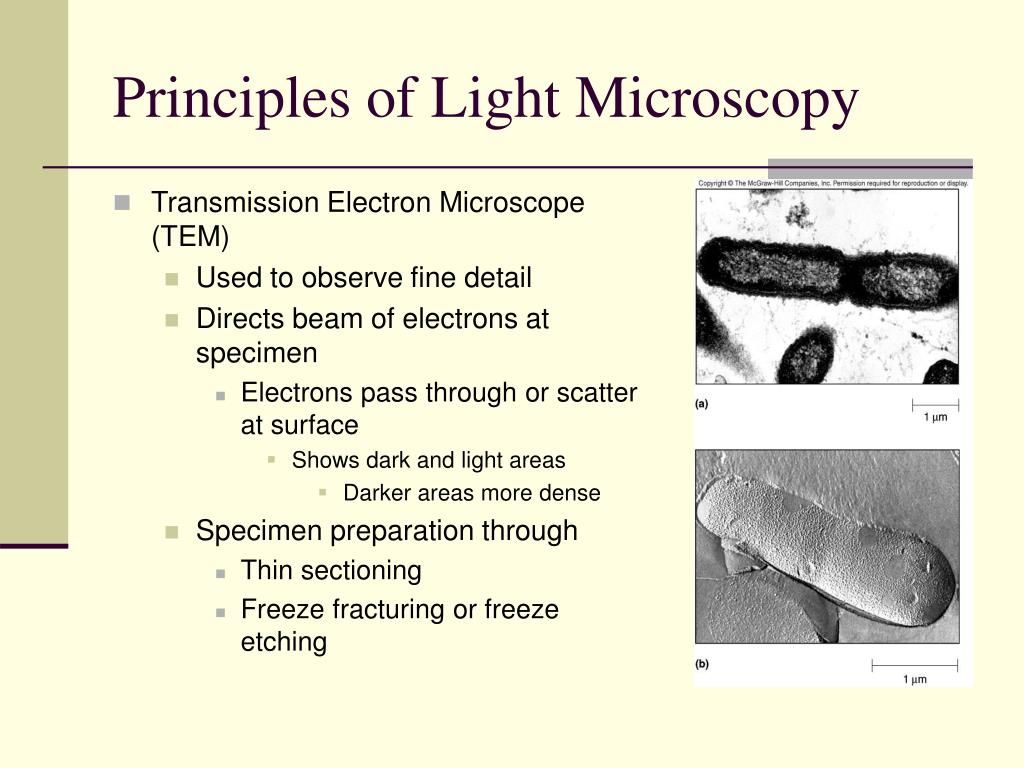

  19. Principles of Light Microscopy • Transmission Electron Microscope (TEM) • Used to observe fine detail • Directs beam of electrons at specimen • Electrons pass through or scatter at surface • Shows dark and light areas • Darker areas more dense • Specimen preparation through • Thin sectioning • Freeze fracturing or freeze etching

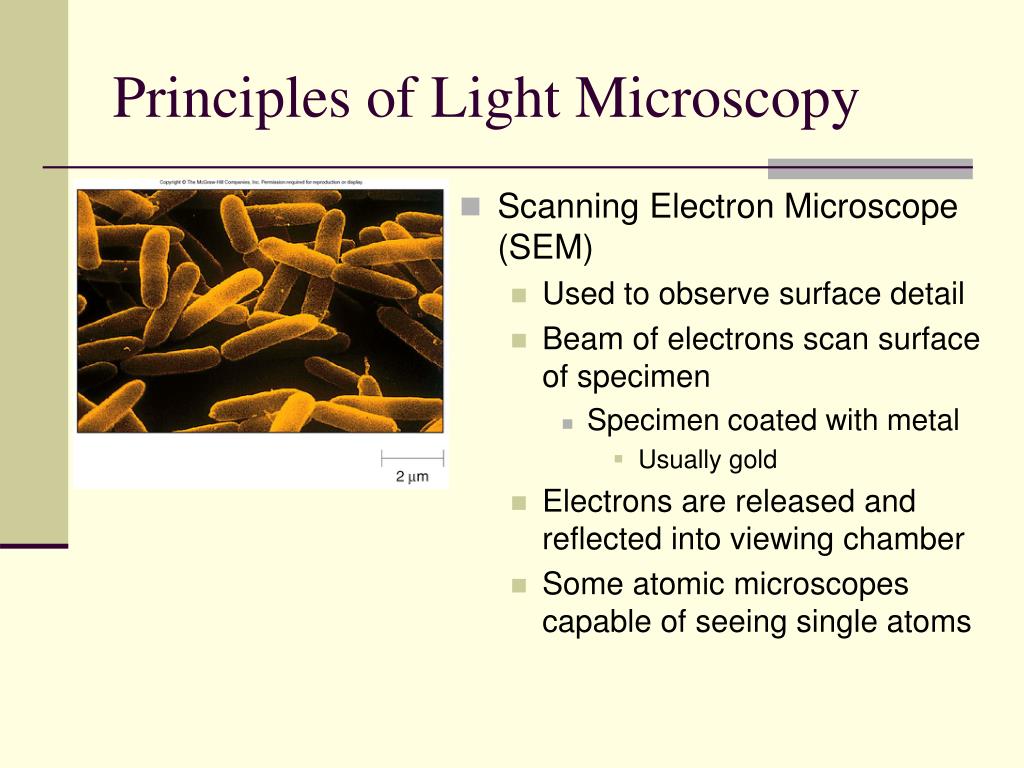

  20. Principles of Light Microscopy • Scanning Electron Microscope (SEM) • Used to observe surface detail • Beam of electrons scan surface of specimen • Specimen coated with metal • Usually gold • Electrons are released and reflected into viewing chamber • Some atomic microscopes capable of seeing single atoms

  21. Microscope TechniquesDyes and Staining • Dyes and Staining • Cells are frequently stained to observe organisms • Satins are made of organic salts • Dyes carry (+) or (-) charge on the molecule • Molecule binds to certain cell structures • Dyes divided into basic or acidic based on charge • Basic dyes carry positive charge and bond to cell structures that carry negative charge • Commonly stain the cell • Acidic dyes carry positive charge and are repelled by cell structures that carry negative charge • Commonly stain the background

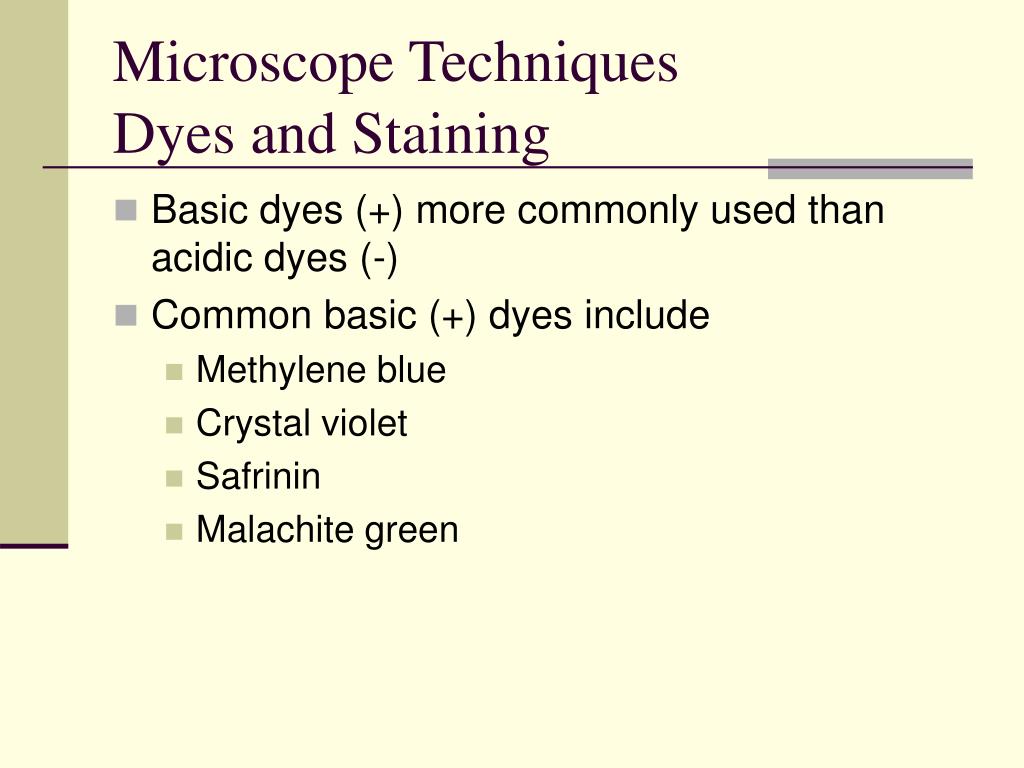

  22. Microscope TechniquesDyes and Staining • Basic dyes (+) more commonly used than acidic dyes (-) • Common basic (+) dyes include • Methylene blue • Crystal violet • Safrinin • Malachite green

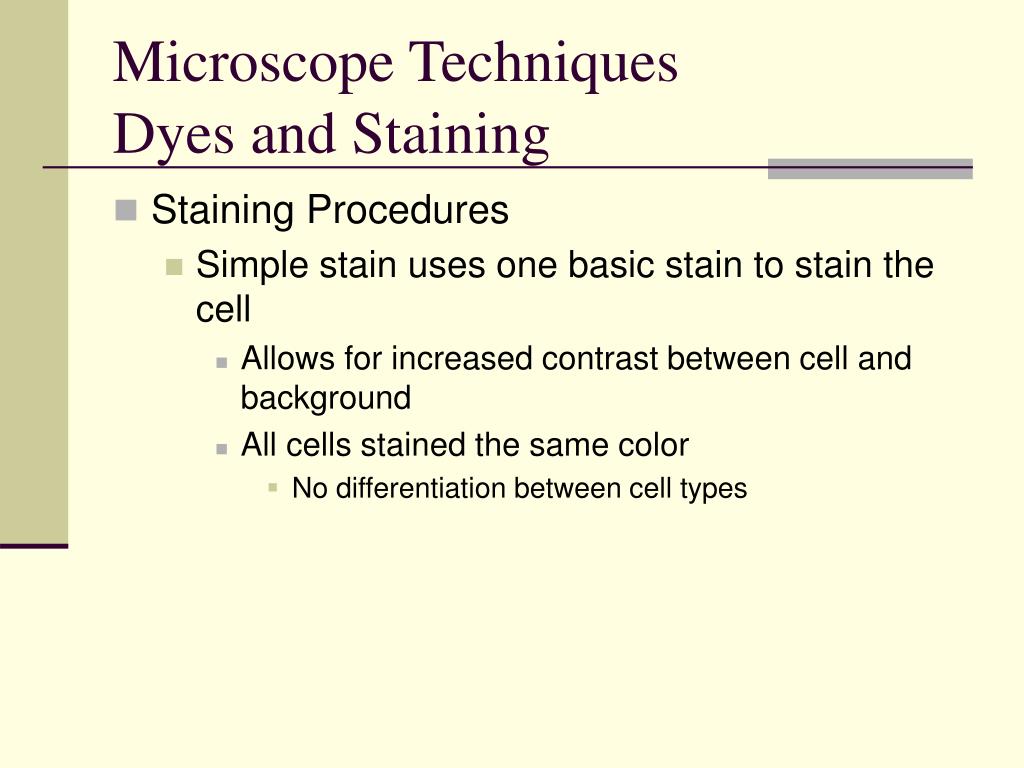

  23. Microscope TechniquesDyes and Staining • Staining Procedures • Simple stain uses one basic stain to stain the cell • Allows for increased contrast between cell and background • All cells stained the same color • No differentiation between cell types

  24. Microscope TechniquesDyes and Staining • Differential Stains • Used to distinguish one bacterial group from another • Uses a series of reagents • Two most common differential stains • Gram stain • Acid-fast stain

  25. Microscope TechniquesDyes and Staining • Gram Stain • Most widely used procedure for staining bacteria • Developed over century ago • Dr. Hans Christian Gram • Bacteria separated into two major groups • Gram positive • Stained purple • Gram negative • Stained red or pink

  26. Dyes and Staining • The Gram Stain

  27. Gram Positive and Gram Negative Cells

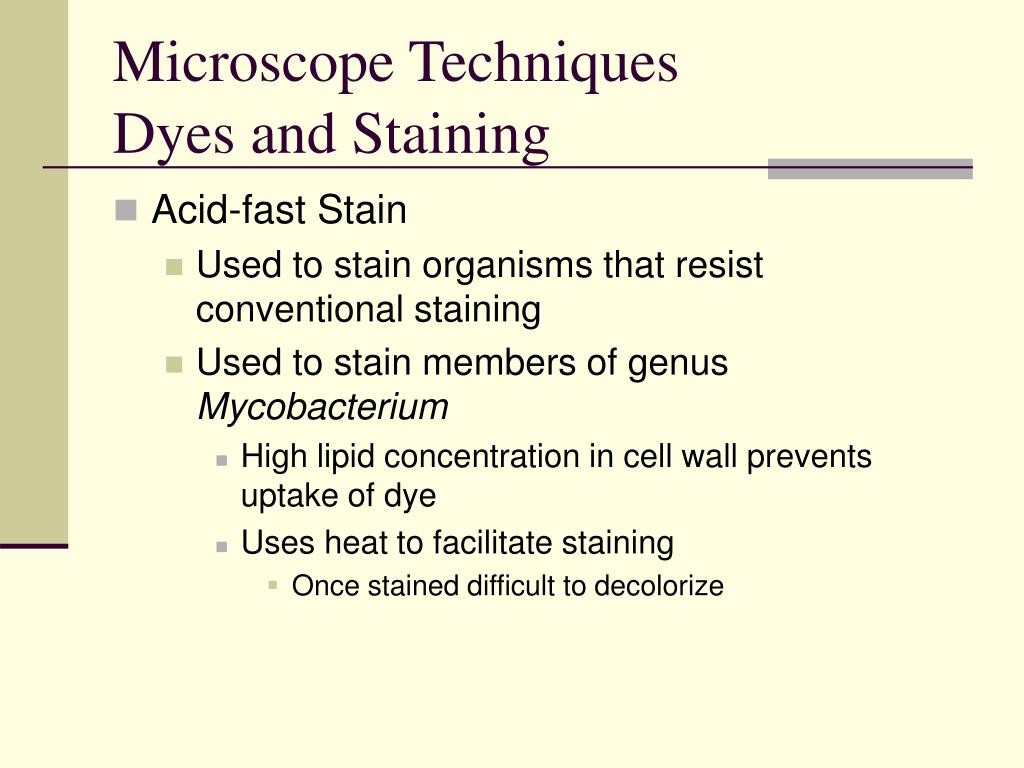

  28. Microscope TechniquesDyes and Staining • Acid-fast Stain • Used to stain organisms that resist conventional staining • Used to stain members of genus Mycobacterium • High lipid concentration in cell wall prevents uptake of dye • Uses heat to facilitate staining • Once stained difficult to decolorize

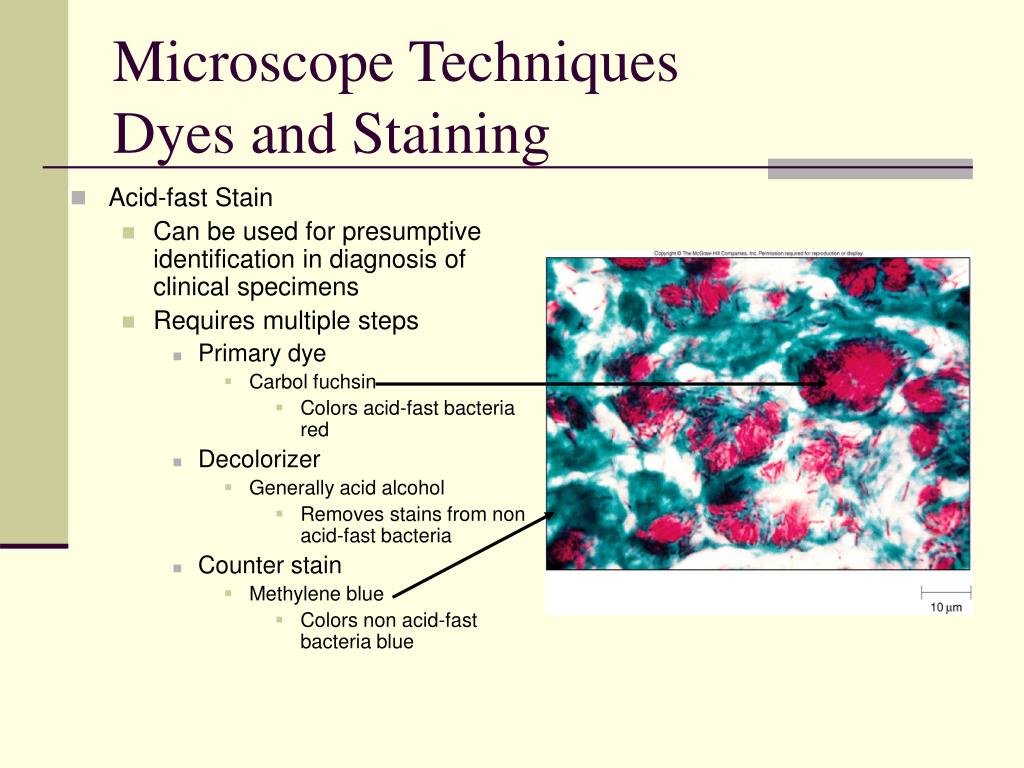

  29. Microscope TechniquesDyes and Staining • Acid-fast Stain • Can be used for presumptive identification in diagnosis of clinical specimens • Requires multiple steps • Primary dye • Carbol fuchsin • Colors acid-fast bacteria red • Decolorizer • Generally acid alcohol • Removes stains from non acid-fast bacteria • Counter stain • Methylene blue • Colors non acid-fast bacteria blue

  30. The Ziehl-Neesen Acid-Fast Stain

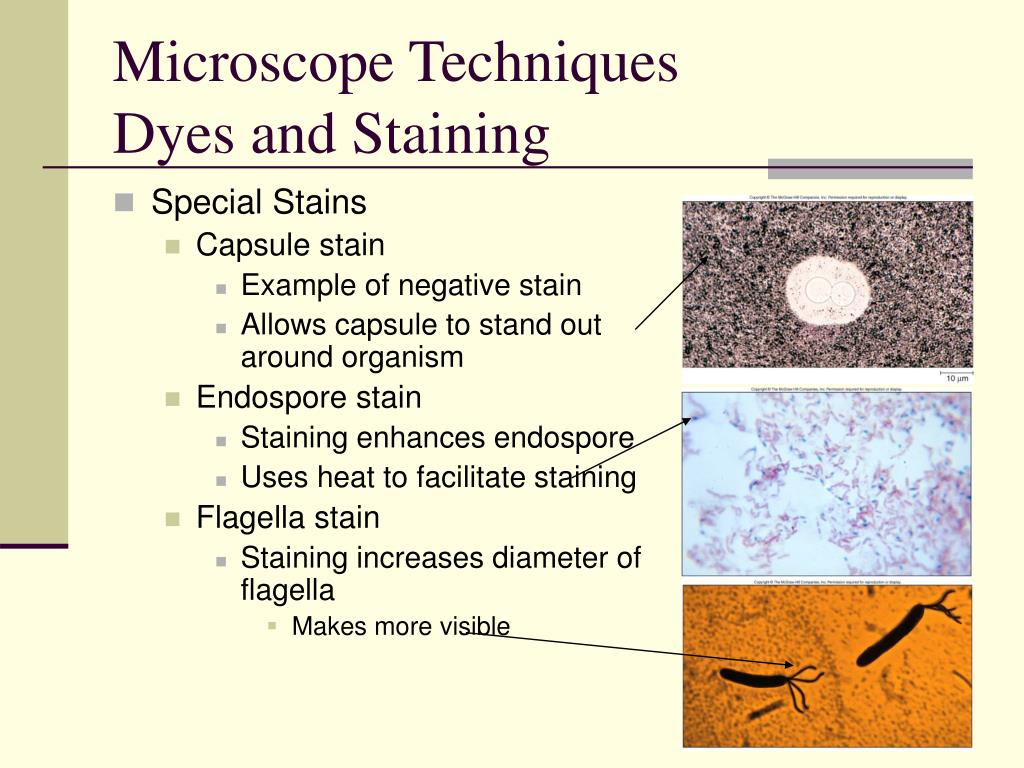

  31. Microscope TechniquesDyes and Staining • Special Stains • Capsule stain • Example of negative stain • Allows capsule to stand out around organism • Endospore stain • Staining enhances endospore • Uses heat to facilitate staining • Flagella stain • Staining increases diameter of flagella • Makes more visible

  32. Morphology of Prokaryotic Cells • Prokaryotes exhibit a variety of shapes • Most common • Coccus • Spherical • Bacillus • Rod or cylinder shaped • Cell shape not to be confused with Bacillus genus

  33. Morphology of Prokaryotic Cells • Prokaryotes exhibit a variety of shapes • Other shapes • Coccobacillus • Short round rod • Vibrio • Curved rod • Spirillum • Spiral shaped • Spirochete • Helical shape • Pleomorphic • Bacteria able to vary shape

  34. Morphology of Prokaryotic Cells • Prokaryotic cells may form groupings after cell division • Cells adhere together after cell division for characteristic arrangements • Arrangement depends on plan of division • Especially in the cocci

  35. Morphology of Prokaryotic Cells • Division along a single plane may result in pairs or chains of cells • Pairs = diplococci • Example: Neisseria gonorrhoeae • Chains = streptococci • Example: species of Streptococcus

  36. Morphology of Prokaryotic Cells • Division along two or three perpendicular planes form cubical packets • Example: Sarcina genus • Division along several random planes form clusters • Example: species of Staphylococcus

  37. Morphology of Prokaryotic Cells • Some bacteria live in groups with other bacterial cells • They form multicellular associations • Example: myxobacteria • These organisms form a swarm of cells • Allows for the release of enzymes which degrade organic material • In the absence of water cells for fruiting bodies • Other organisms for biofilms • Formation allows for changes in cellular activity

  38. Cytoplasmic Membrane • Cytoplasmic membrane • Delicate thin fluid structure • Surrounds cytoplasm of cell • Defines boundary • Serves as a semi permeable barrier • Barrier between cell and external environment

  39. Cytoplasmic Membrane • Structure is a lipid bilayer with embedded proteins • Bilayer consists of two opposing leaflets • Leaflets composed of phospholipids • Each contains a hydrophilic phosphate head and hydrophobic fatty acid tail

  40. The Basic Structural Component of the Membrane: Phospholipid Molecule

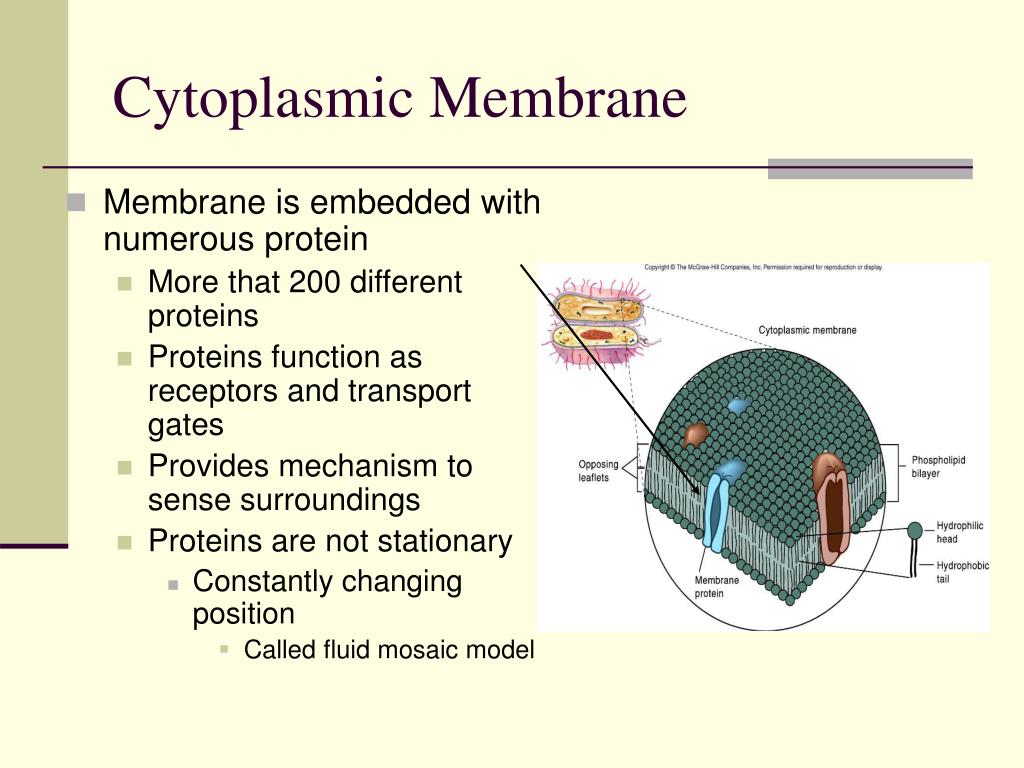

  41. Cytoplasmic Membrane • Membrane is embedded with numerous protein • More that 200 different proteins • Proteins function as receptors and transport gates • Provides mechanism to sense surroundings • Proteins are not stationary • Constantly changing position • Called fluid mosaic model

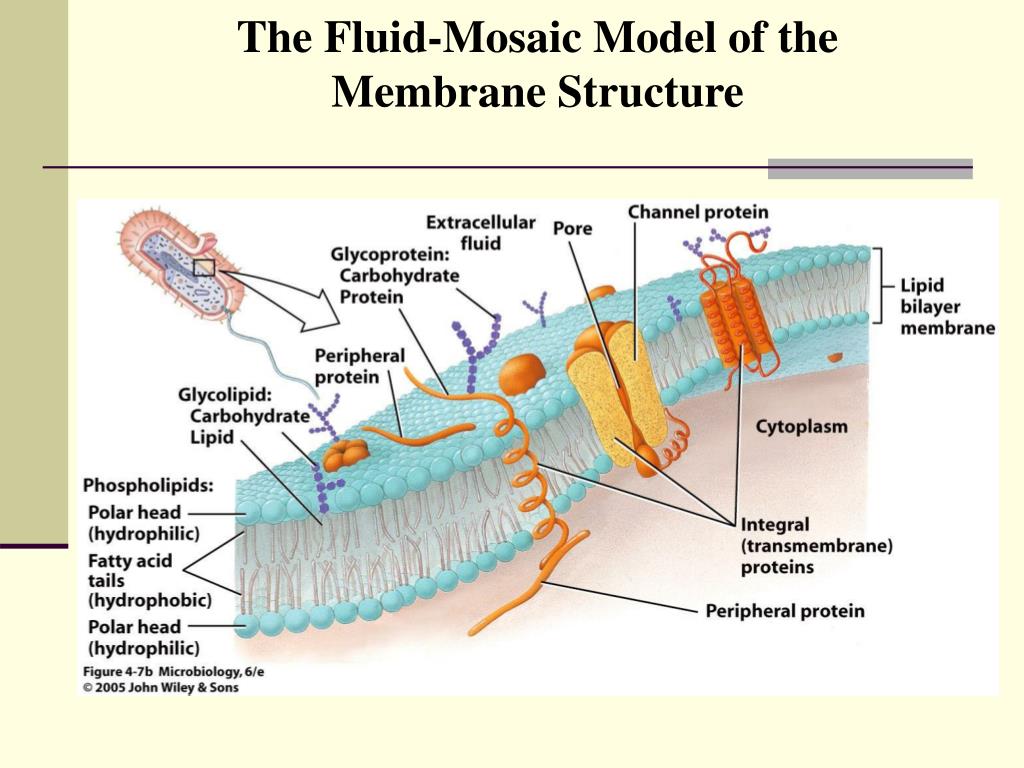

  42. The Fluid-Mosaic Model of the Membrane Structure

  43. Cytoplasmic Membrane • Cytoplasmic membrane is selectively permeable • Determines which molecules pass into or out of cell • Few molecules pass through freely • Molecules pass through membrane via simple diffusion or transport mechanisms that may require carrier proteins and energy

  44. Cytoplasmic Membrane • Simple diffusion • Process by which molecules move freely across the cytoplasmic membrane • Water, certain gases and small hydrophobic molecules pass through via simple diffusion

  45. Cytoplasmic Membrane • Simple diffusion • Osmosis • The ability of water to flow freely across the cytoplasmic membrane • Water flows to equalize solute concentrations inside and outside the cell • Inflow of water exerts osmotic pressure on membrane • Membrane rupture is prevented by rigid cell wall of bacteria

  46. Cytoplasmic Membrane • Membrane also the site of energy production • Energy produced through series of embedded proteins • Electron transport chain • Proteins are used in the formation of proton motive force • Energy produced in proton motive force is used to drive other transport mechanisms

  47. Cytoplasmic Membrane • Directed movement across the membrane • Movement of many molecules directed by transport systems • Transport systems employ highly selective proteins • Transport proteins (a.k.a permeases or carriers) • These proteins span membrane • Single carrier transports specific type molecule • Most transport proteins are produced in response to need • Transport systems include • Facilitated diffusion • Active transport • Group translocation

  48. Cytoplasmic Membrane • Facilitated diffusion • Moves compounds across membrane exploiting a concentration gradient • Flow from area of greater concentration to area of lesser concentration • Molecules are transported until equilibrium is reached • System can only eliminate concentration gradient it cannot create one • No energy is required for facilitated diffusion • Example: movement of glycerol into the cell

  49. Cytoplasmic Membrane • Active transport • Moves compounds against a concentration gradient • Requires an expenditure of energy • Two primary mechanisms • Proton motive force • ATP Binding Cassette system
