Chapter 9: Deflections Using Energy Methods. CIVL3310 STRUCTURAL ANALYSIS. Professor CC Chang. Work and Energy Principles. F. F. F. F. Work done by external forces. F. Work and Energy Principles. Member force. F. Member deformation. F. Where does the work go?

Télécharger la présentation
## CIVL3310 STRUCTURAL ANALYSIS

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

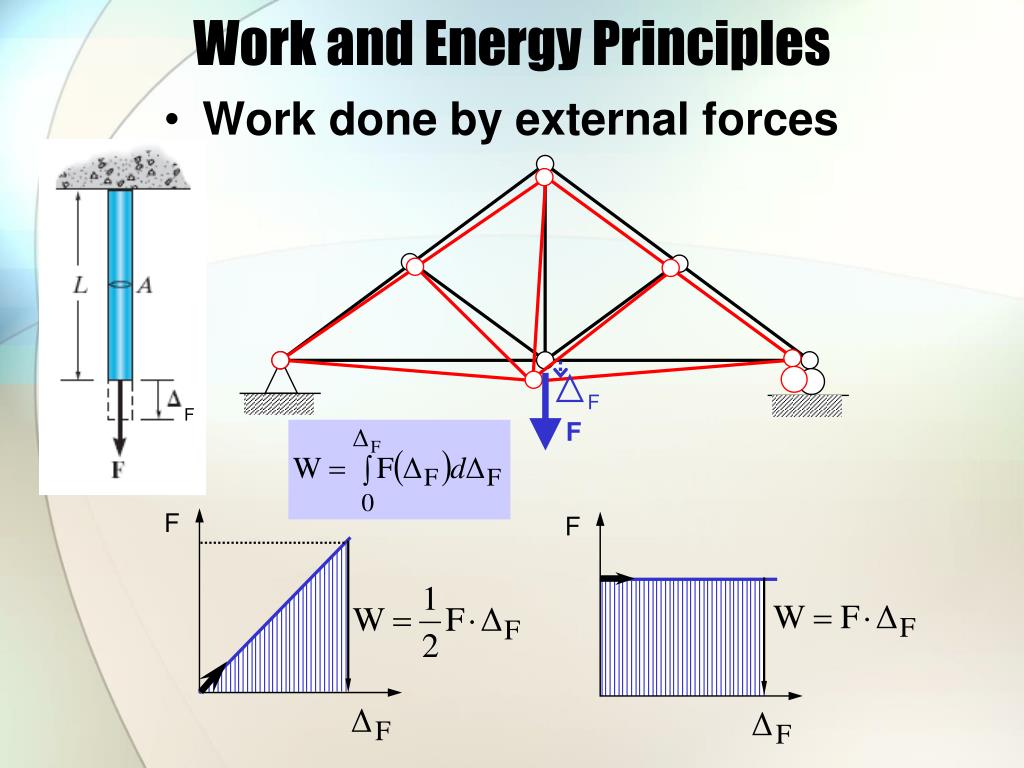

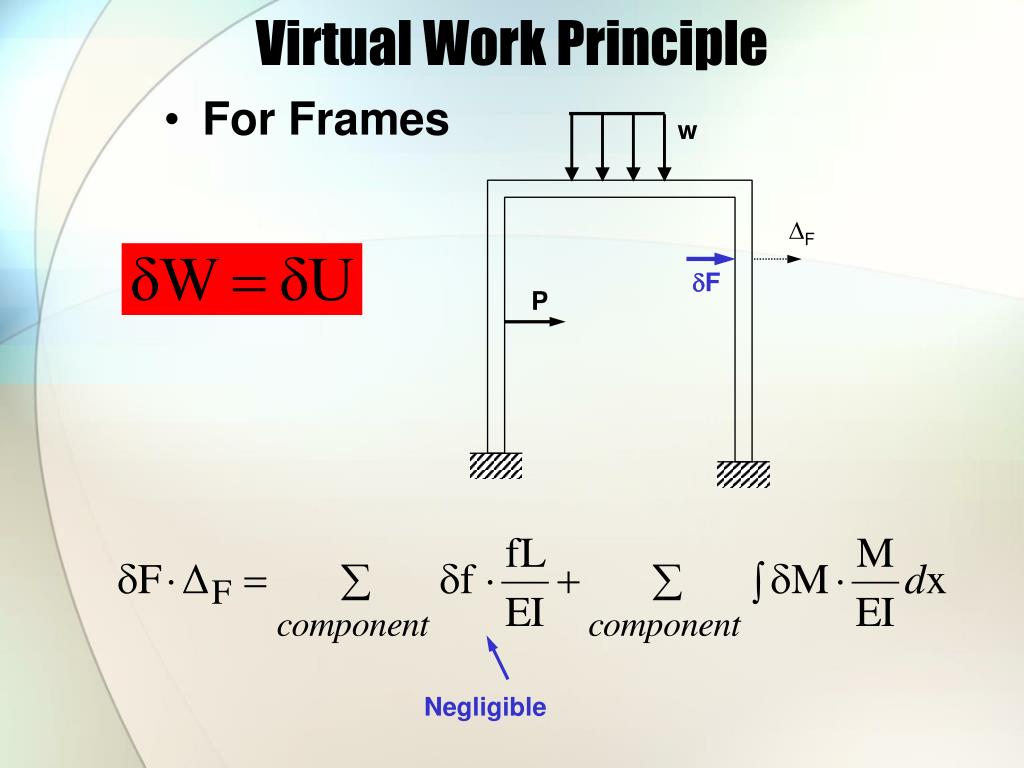

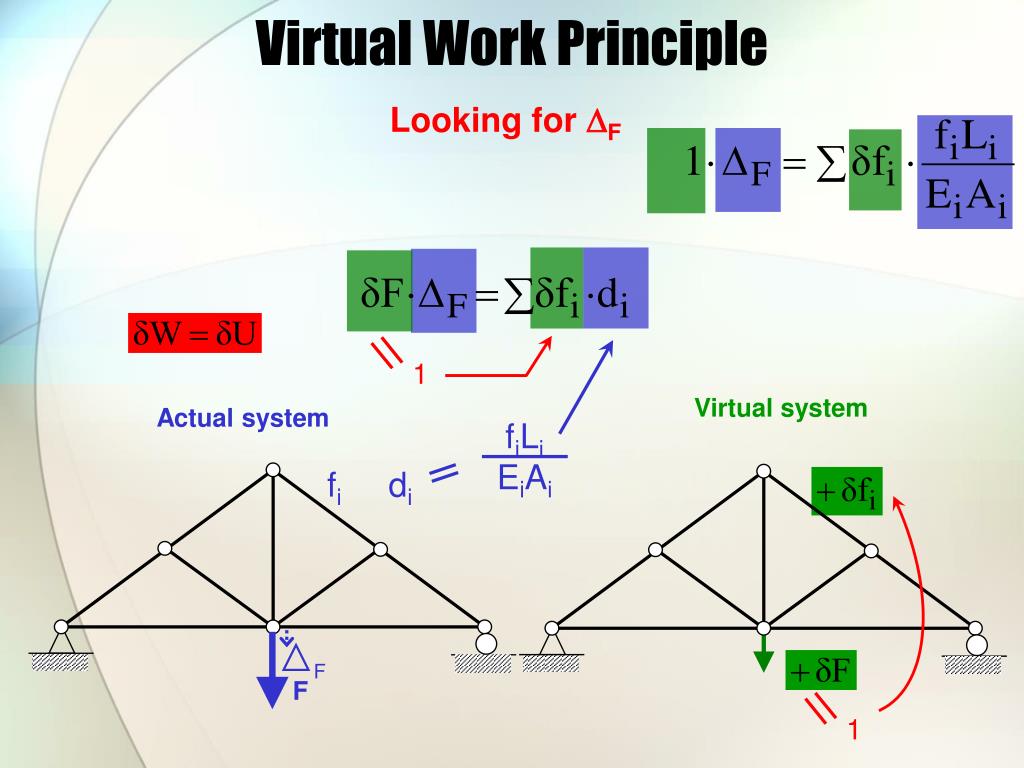

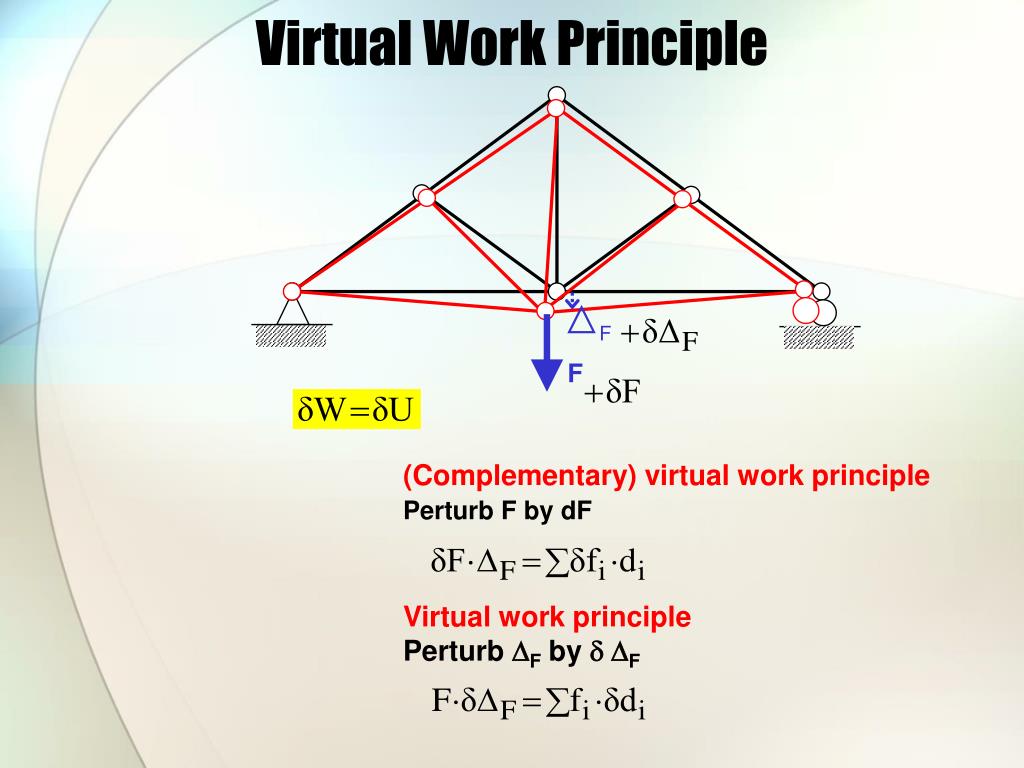

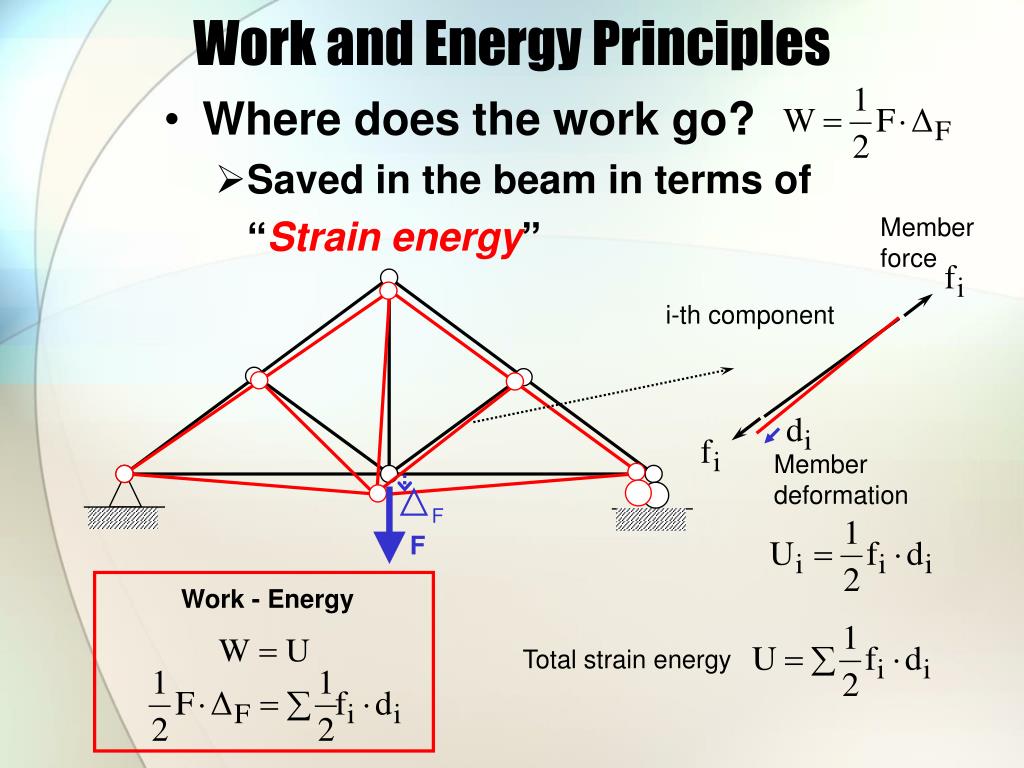

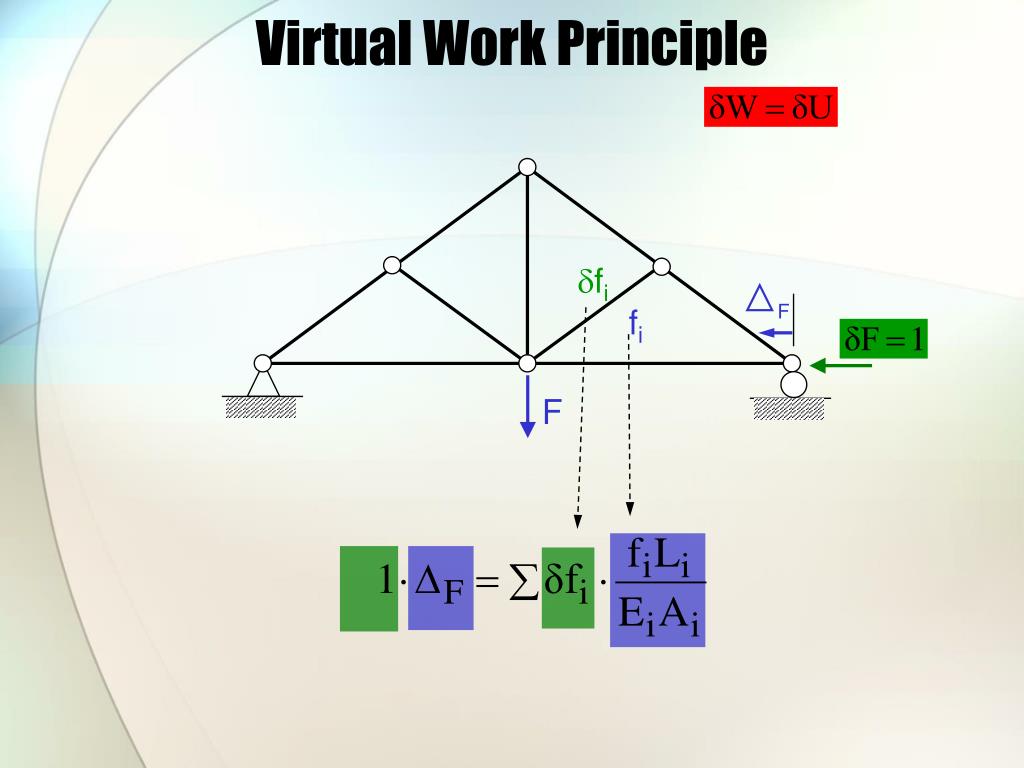

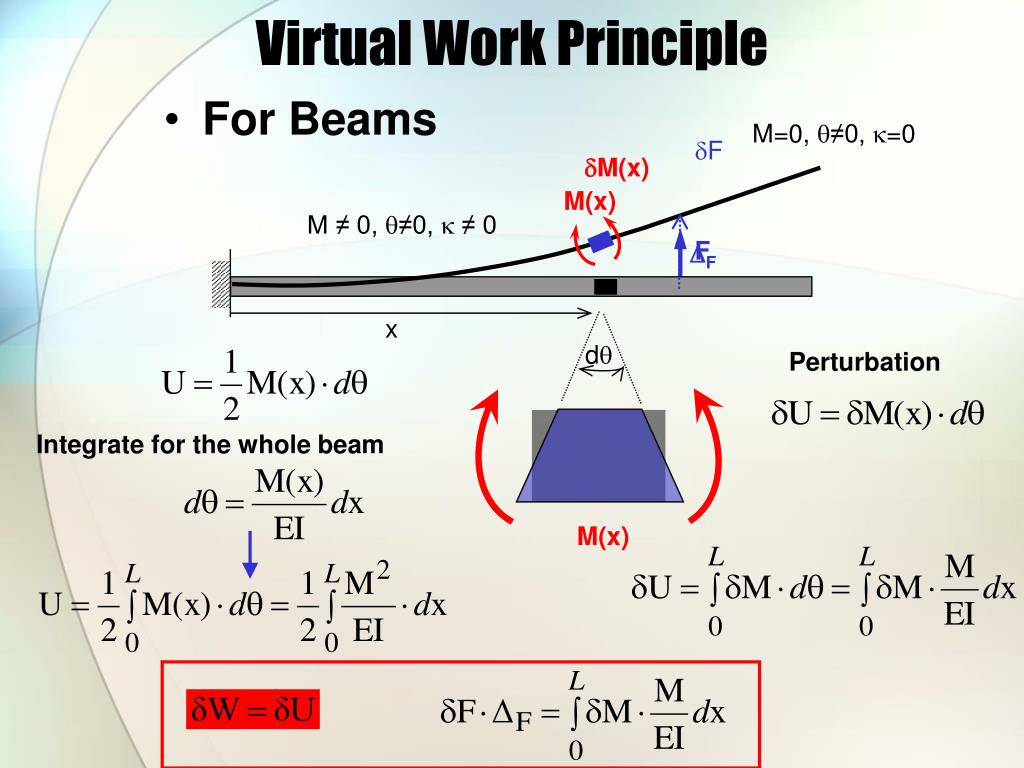

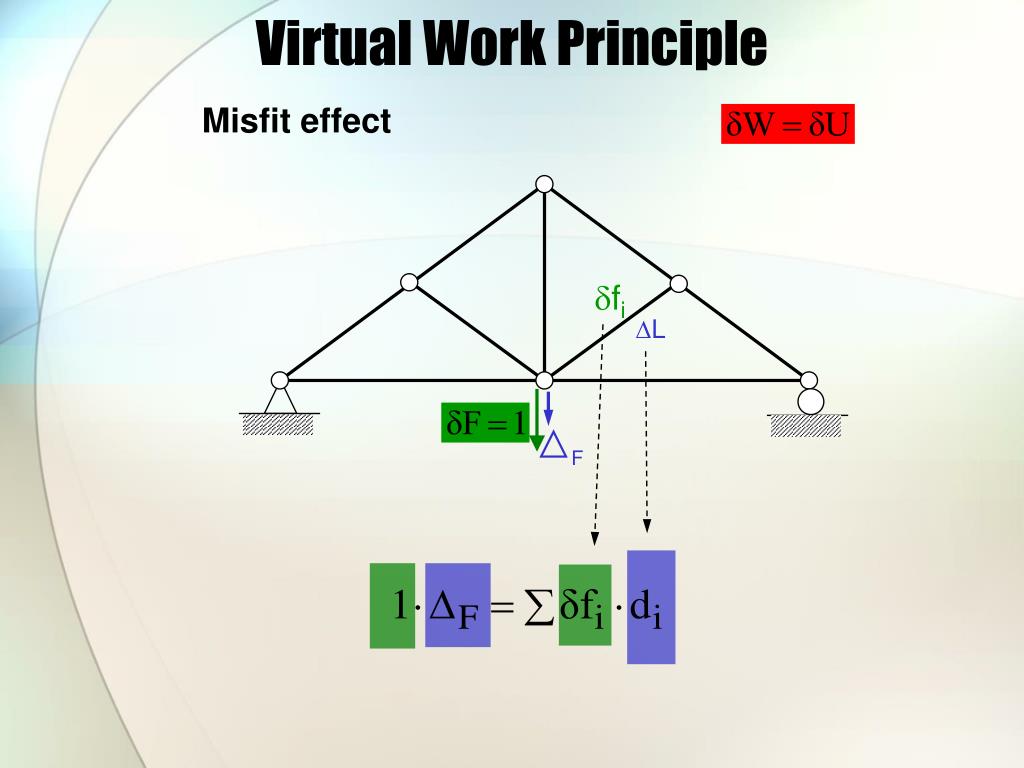

**Chapter 9:**Deflections Using Energy Methods CIVL3310 STRUCTURAL ANALYSIS Professor CC Chang**Work and Energy Principles**F F F F • Work done by external forces F**Work and Energy Principles**Member force F Member deformation F • Where does the work go? • Saved in the beam in terms of “Strain energy” i-th component Work - Energy Total strain energy**Virtual Work Principle**F F Work - Energy F • Under equilibrium, perturb the structure Perturb DF by d DF Perturb F by dF**Virtual Work Principle**F F (Complementary) virtual work principle Perturb F by dF Virtual work principle Perturb DF by d DF**Virtual Work Principle**F F (Complementary) virtual work principle Perturb F by dF fi di Thecomplementary virtual work done byan external virtual force system under the actual deformation of a structure is equal to the complementary strain energy done bythe virtual stresses under the actual strains The complementary virtual work done by an external virtual force system under the actual deformation of a structure is equal to the complementary strain energy done by the virtual stresses under the actual strains**Virtual Work Principle**F F fi di Superposition Virtual system Actual system**Virtual Work Principle**1 fiLi EiAi F F 1 Looking for DF Virtual system Actual system fi di**Virtual Work Principle**F F dfi fi**Virtual Work Principle**F Temperature effect dfi DT**Virtual Work Principle**F Misfit effect dfi DL**Virtual Work Principle**F M(x) DF x dq M(x) • For Beams M=0, q≠0, k=0 dF dM(x) M ≠ 0, q≠0, k ≠ 0 Perturbation Integrate for the whole beam**Virtual Work Principle**w P DF qA Moment due to actual loads Deformation due to actual loads dF Virtual force corresponds to actual deformation Virtual moment induced by The virtual force dMA dM(x) M(x)**Virtual Work Principle**w • For Frames DF dF P Negligible**Castigliano’s Principle**Fi Fi Fi k 1 • Work-Energy**Castigliano’s Principle**• For Trusses • For Beams • For Frames**Betti’s Law of Reciprocal Deflections**P Q P Q Betti’s Law Location 1 Location 2 Virtual work principle**Betti’s Law and Flexibility Coefficients**1 Location j Location i Flexibility coefficient Deflection at j due to a unit load at i 1 Deflection at i due to a unit load at j**9. Deflections Using Energy Methods**• Work-energy principle • Virtual work principle • Castigliano’s principle • Betti’s law
