  1. KINEMATICS ANALYSIS OF ROBOTS (Part 3)

  2. Kinematics Analysis of Robots III • This lecture continues the discussion on the analysis of the forward and inverse kinematics of robots. • After this lecture, the student should be able to: • Solve problems of robot kinematics analysis using transformation matrices

  3. Link (1) Link (2) Link (3) Revolute joint <1> Link (0) Revolute joint <3> Revolute joint <2> Example: A 3 DOF RRR Robot Link and Joint Assignment

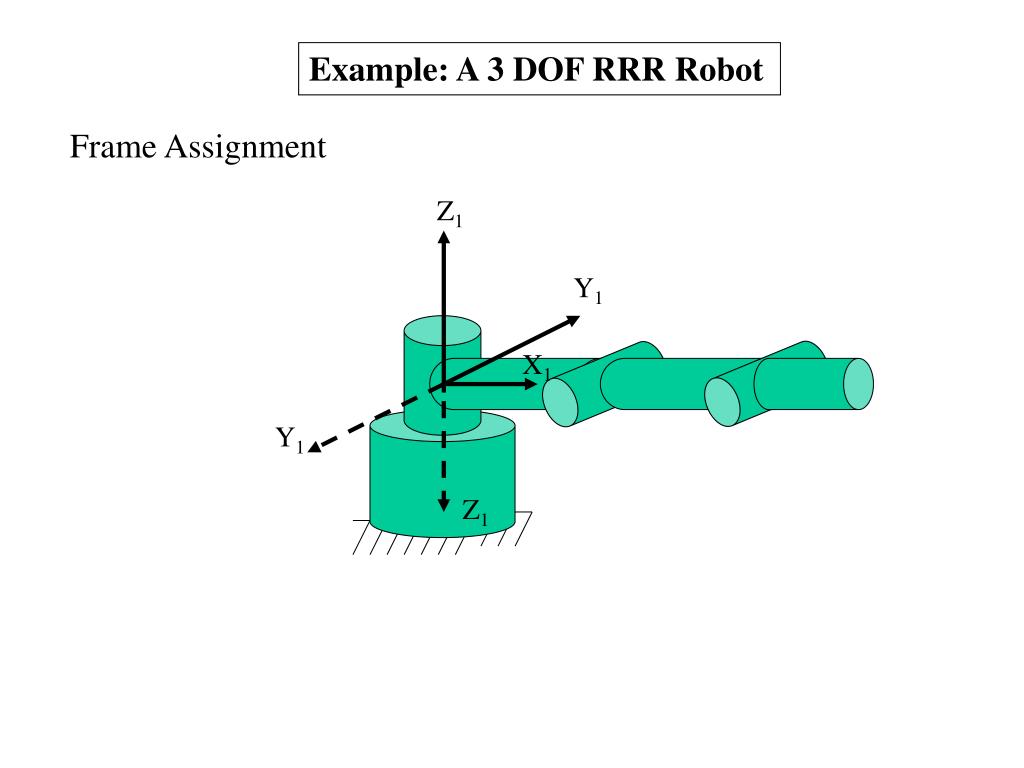

  4. Z1 Y1 X1 Y1 Z1 Example: A 3 DOF RRR Robot Frame Assignment

  5. Y2 Z2 X2 Z0, Z1 Z2 Y2 Y0, Y1 X0, X1 Example: A 3 DOF RRR Robot Frame Assignment

  6. Y2 Y3 Z3 X2 X3 Z0, Z1 Z2 Z3 Y3 Y0, Y1 X0, X1 Example: A 3 DOF RRR Robot Frame Assignment

  7. 1 Y2 Y3 2 3 X2 X3 Z0, Z1 Z2 Z3 Y0, Y1 X0, X1 Example: A 3 DOF RRR Robot Frame Assignment

  8. Y2 Y3 X2 X3 Z0, Z1 Z2 Z3 Y0, Y1 X0, X1 Example: A 3 DOF RRR Robot Tabulation of D-H parameters A B 0 = (angle from Z0 to Z1 measured along X0) = 0° a0 = (distance from Z0 to Z1 measured along X0) = 0 d1 = (distance from X0 to X1 measured along Z1)= 0 1 = variable (angle from X0 to X1 measured along Z1) 1 = 0° (at home position) but 1 can change as the arm moves

  9. Y2 Y3 X2 X3 Z0, Z1 Z2 Z3 Y0, Y1 X0, X1 Example: A 3 DOF RRR Robot Tabulation of D-H parameters A B 1 = (angle from Z1 to Z2 measured along X1) = 90° a1 = (distance from Z1 to Z2 measured along X1) = A d2 = (distance from X1 to X2 measured along Z2) = 0 2 = variable (angle from X1 to X2 measured along Z2) 2 = 0° (at home position) but 2 can change as the arm moves

  10. Y2 Y3 X2 X3 Z0, Z1 Z2 Z3 Y0, Y1 X0, X1 Example: A 3 DOF RRR Robot Tabulation of D-H parameters A B 2 = (angle from Z2 to Z3 measured along X2) = 0° a2 = (distance from Z2 to Z3measured along X2) = B d3 = (distance from X2 to X3 measured along Z3) = 0 3 = variable (angle from X2 to X3 measured along Z3) 3= 0° (at home position) but 3 can change as the arm moves

  11. Summary of D-H parameters

  12. Example: A 3 DOF RRR Robot Tabulation of Transformation Matrices from the D-H table

  13. Example: A 3 DOF RRR Robot Tabulation of Transformation Matrices from the D-H table

  14. Example: A 3 DOF RRR Robot Tabulation of Transformation Matrices from the D-H table

  15. Example: A 3 DOF RRR Robot Forward Kinematics

  16. Y2 Y3 X2 X3 Z0, Z1 Z2 Z3 Y0, Y1 X0, X1 Example: A 3 DOF RRR Robot A=3 B=2 C=1 What is the position of point “P” at the home position? P Solution:

  17. Example: A 3 DOF RRR Robot 1= 2= 3=0, A=3, and B=2:

  18. Example: A 3 DOF RRR Robot Inverse Kinematics Given the orientation and position of point “P”:

  19. Example: A 3 DOF RRR Robot Inverse Kinematics Equate elements (1,3) and (2,3): Provided that Equate elements (1,4) and (2,4):

  20. Example: A 3 DOF RRR Robot Inverse Kinematics If cos(1)0, then use px to find cos(2). Afterwards, find Otherwise use py to find sin(2) and then solve using

  21. Example: A 3 DOF RRR Robot Inverse Kinematics Equate elements (3,1) and (3,2): Now find 1, 2, and 3 given the orientation and position of point “P”:

  22. Example: A 3 DOF RRR Robot Inverse Kinematics Now cos(1)=10. We use px to find cos(2):

  23. Y3 Z0 Z3 Y0 X3 X0 Example: A 3 DOF RRR Robot Inverse Kinematics A=3 B=2 C=1 P

  24. Forward & Inverse Kinematics Issues • Given a set of joint variables, the forward kinematics will always produce an unique solution giving the robot global position and orientation. • On the other hand, there may be no solution to the inverse kinematics problem. The reasons include: • The given global position of the arm may be beyond the robot work space • The given global orientation of the gripper may not be possible given that the gripper frame must be a right hand frame • For the inverse kinematics problem, there may also exist multiple solutions, i.e. the solution may not be unique.

  25. First solution First solution Second solution Second solution Forward & Inverse Kinematics Issues Example of multiple solutions given the same gripper global position and orientation: Some solutions may not be feasible due to obstacles in the workspace

  26. Summary • This lecture continues the the discussion on the analysis of the forward and inverse kinematics of robots. • The following were covered: • Problems of robot kinematics analysis using transformation matrices
