  1. IIS7 Troubleshooting

  2. Increase Uptime with Rapid Troubleshooting www.iis.net

  3. Troubleshooting Overview • Reset and Recycle • IIS Reset • Application Pool Management • Error Codes • New HTTP Sub-status codes • Custom/Detailed Errors • Tracing in IIS7 and Longhorn • ETW tracing • IIS7 Tracing • Common Problems and solutions

  4. Application Pool Management • Easier to manage pools with IIS Manger • Manage long lists of pools • Displays Identity, Framework Version, Type • Worker Process information avail in UI • Recycle AppPools using: • Command Line: • appcmd recycle appool “DefaultAppPool” • IIS Manager: AppPools Recycle • Microsoft.web.adminsitration API • See currently running requests: • appcmd list requests • UI: Worker Process  View Current Requests • Unload App Domain now possible

  5. Rapid Fail Protection Actions • RFP occurs when pool fails X times in Y minutes (configurable) • Prevents continuous attempts to start a very ill process • Process will eventually recycle after Y minutes • IIS 7 allows a configurable action to occur when RFP kicks in • See Application Pool, Advanced Settings

  6. demo Application Pool Management Name Title Group

  7. New HTTP Sub-status codes • New sub-status codes added • Provides more detail to help quickly identify problems • Recorded in IIS logs • Combined with detailed errors to give actionable error messages • Examples: • 404.5  404.15: Denied by Request Filtering (URLScan replacement) • 500.21  500.24: ASP.NET integrated pipeline

  8. Detailed Errors • New Verbose errors provides much more information • Provided by CustomErrors IIS7 module • Suggests Causes and Solutions – often suggests corrective action or lines of inquiry • Details include configuration section in question, module in use, page, etc. • Verbose errors only delivered to localhost by default

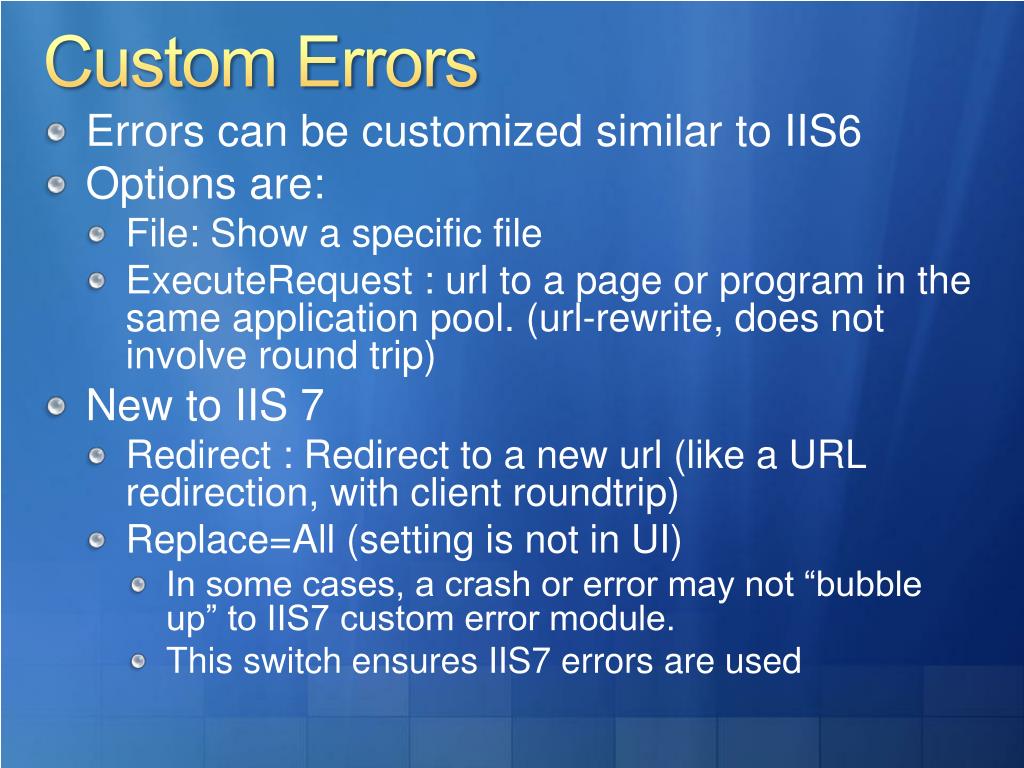

  9. Custom Errors • Errors can be customized similar to IIS6 • Options are: • File: Show a specific file • ExecuteRequest : url to a page or program in the same application pool. (url-rewrite, does not involve round trip) • New to IIS 7 • Redirect : Redirect to a new url (like a URL redirection, with client roundtrip) • Replace=All (setting is not in UI) • In some cases, a crash or error may not “bubble up” to IIS7 custom error module. • This switch ensures IIS7 errors are used

  10. Custom Error Considertaions • Delegation for custom error configuration is off by default • Prevents web.config rule to display files on the server when error occurs • If you own ALL responses (Replace=All), must handle all scenarios (eg. SOAP 500) • In Classic mode, ASP.NET errors are overridden by IIS7 custom errors • Error handling differences in classic vs integrated mode

  11. Event Tracing for Windows(ETW) • Built into the OS • Present on Windows Server 2003 • Significantly extended in Longhorn • ETW providers report into a binary log • No UI for configuration • Logs can be very large and must be parsed by utility • TIP: Logparser is your friend • Lack of ability to setup “triggers”

  12. demo ETW Tracing

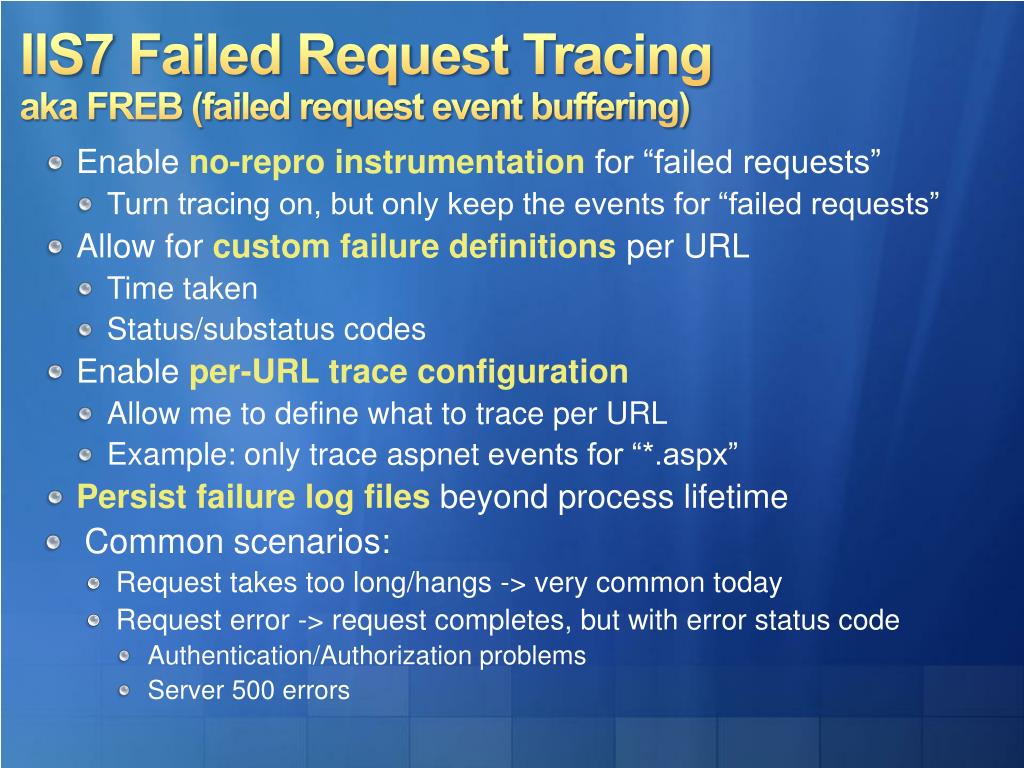

  13. IIS7 Failed Request Tracingaka FREB (failed request event buffering) • Enable no-repro instrumentation for “failed requests” • Turn tracing on, but only keep the events for “failed requests” • Allow for custom failure definitions per URL • Time taken • Status/substatus codes • Enable per-URL trace configuration • Allow me to define what to trace per URL • Example: only trace aspnet events for “*.aspx” • Persist failure log files beyond process lifetime • Common scenarios: • Request takes too long/hangs -> very common today • Request error -> request completes, but with error status code • Authentication/Authorization problems • Server 500 errors

  14. Viewing Trace Data IIS 7 Failed Request Events Logs • ETW (IIS 6)Trace Data is useful, but difficult to use. Requires utilities to extract and present events from file. • IIS 7 provides preformatted XSLT for easy analysisof capture In Vista RTM

  15. demo IIS7 Tracing Identifying cause of a slow response Determining why a page isn’t cached

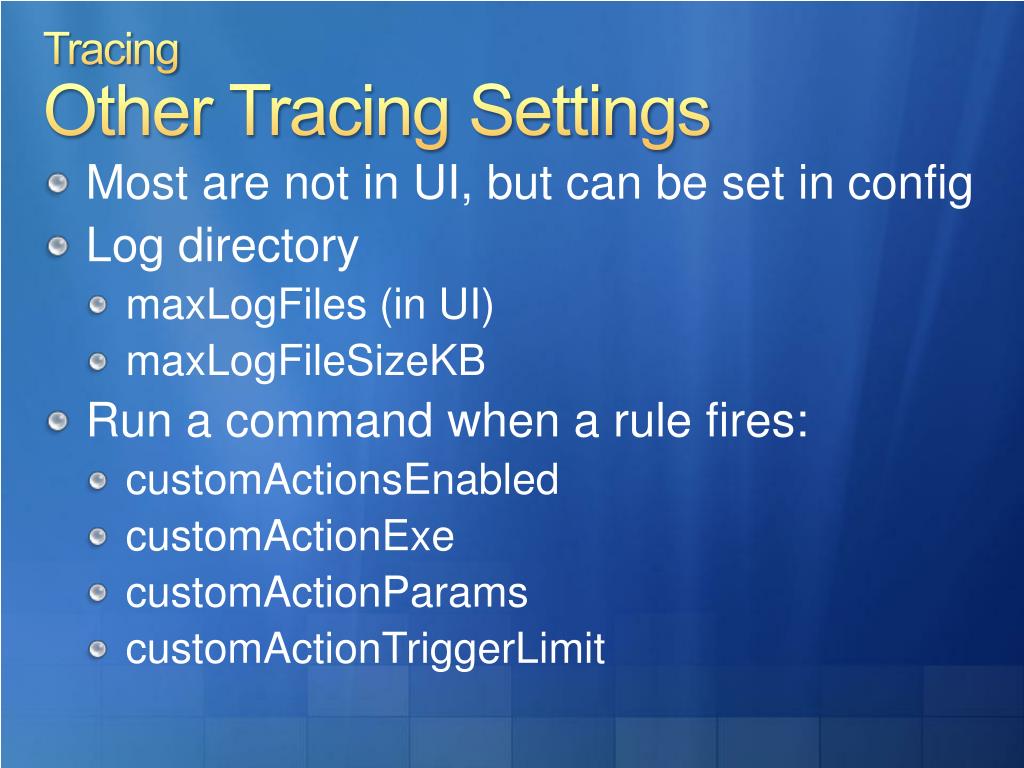

  16. TracingOther Tracing Settings • Most are not in UI, but can be set in config • Log directory • maxLogFiles (in UI) • maxLogFileSizeKB • Run a command when a rule fires: • customActionsEnabled • customActionExe • customActionParams • customActionTriggerLimit

  17. demo ASPX/WCF

  18. Extensibility Points • Create your own errors pages • Replace IIS7 error handling module • Applications can write events to the IIS 7 tracing system • Trigger specific actions when rapid fail protection occurs • Custom actions can be configure on specific errors • ASP.net pages and WCF can report trace events into trace logs

  19. IIS 7 Rx • ASP.net application doesn’t’ work in integrated mode: • Some settings in web.config may need to be repositioned. • Appcmd Migrate will do this automatically • Use Classic mode • IIS 6 installation scripts don’t work • Install IIS Management Compatibility Layer • Where do I set Read/Execute permissions for a site? • Moved to handler permissions • Why doesn’t ASP.net run? • Is it installed? Most questions of this sort are caused by the reduce footprint installation

  20. Summary • IIS Manager improves management and better visibility of runtime environment • Error messages are actionable • Command line interfaces and APIs for state query, control, and diagnostics • Built in tracing helps identify many problems without specialized debuggers • Extensibility allows new and customized options

  21. AppendixDetailed Tracing Diagram
