  1. Viscoelastic-coupling model for the earthquake cycle driven from below J.C. Savage U.S. Geological Survey, Menlo Park, CA Ge 277, Thomas ADER, January 27, 2011

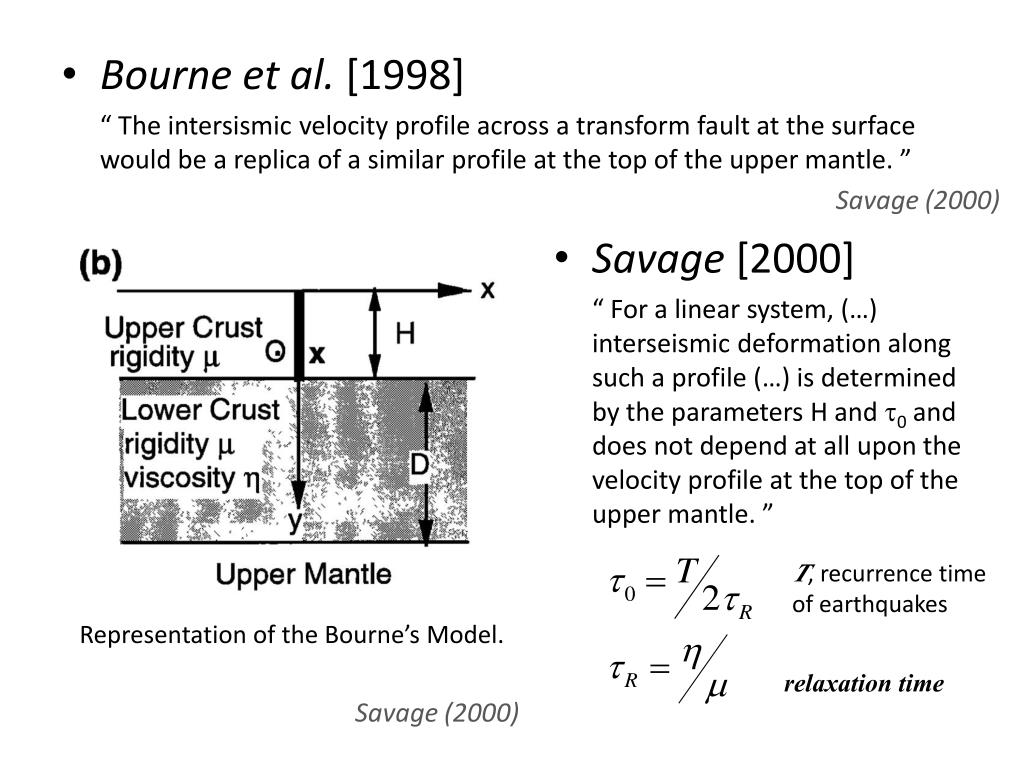

  2. Savage (2000) • Bourne et al. [1998] “ The intersismic velocity profile across a transform fault at the surface would be a replica of a similar profile at the top of the upper mantle. ” • Savage [2000] • “ For a linear system, (…) interseismic deformation along such a profile (…) is determined by the parameters H and t0 and does not depend at all upon the velocity profile at the top of the upper mantle. ” T, recurrence time of earthquakes Representation of the Bourne’s Model. relaxation time Savage (2000)

  3. Viscoelastic-Coupling model driven by the Schizosphere stress guide Surface velocity time evolution

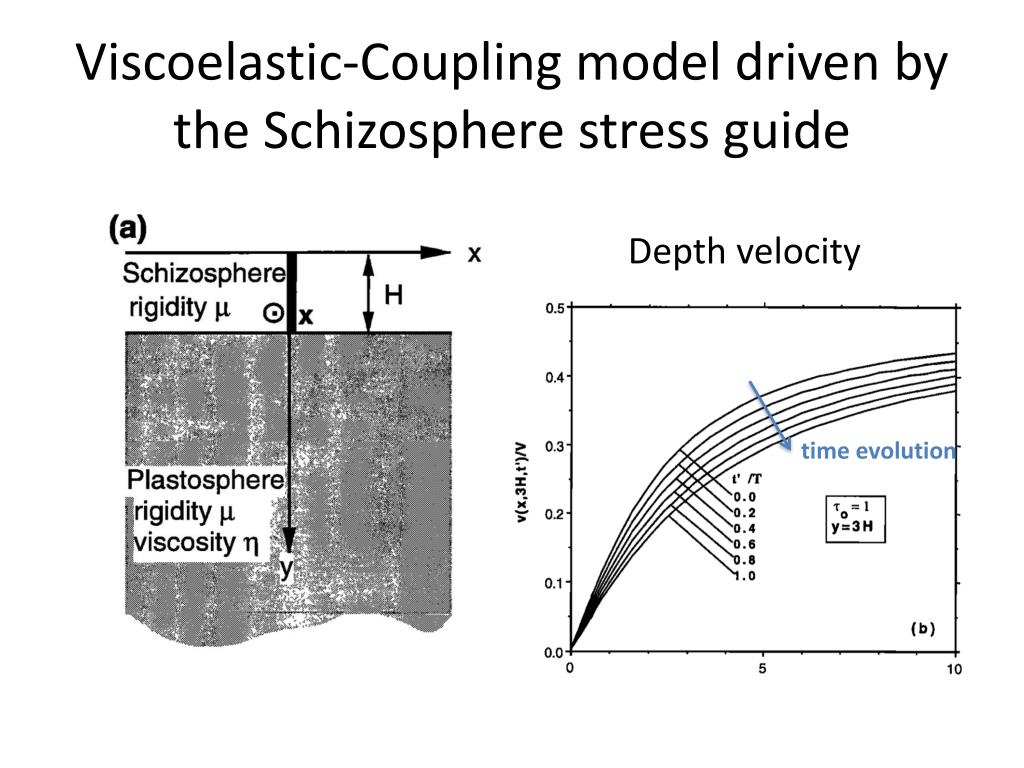

  4. Viscoelastic-Coupling model driven by the Schizosphere stress guide Depth velocity time evolution

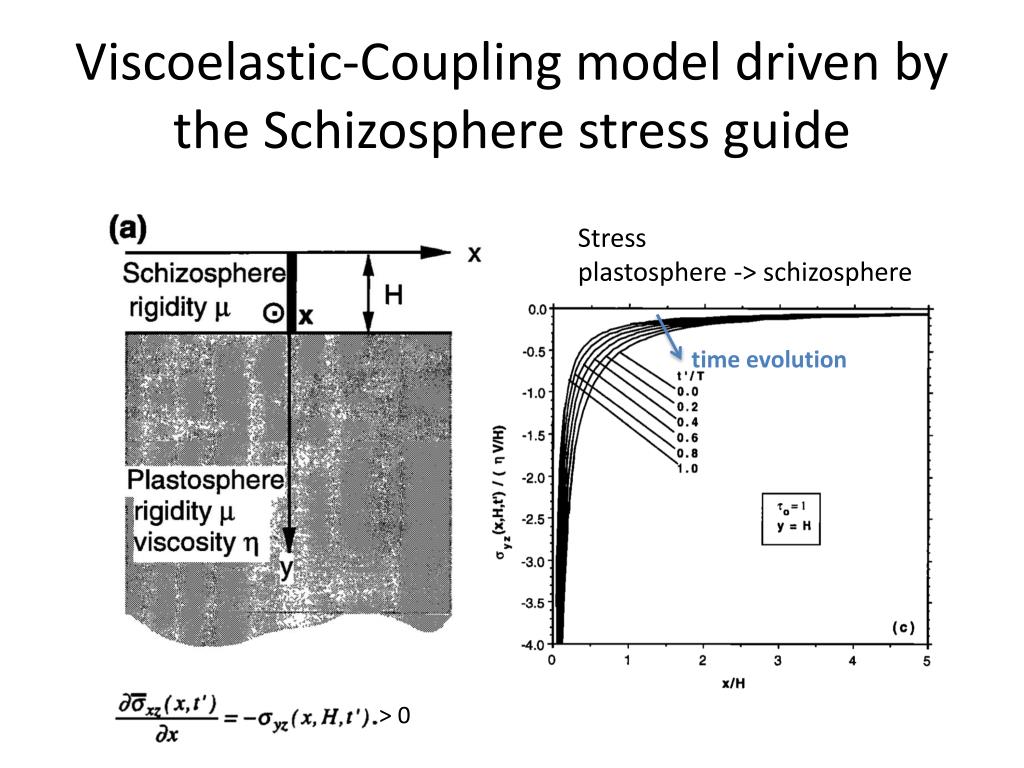

  5. Viscoelastic-Coupling model driven by the Schizosphere stress guide Stress plastosphere -> schizosphere time evolution > 0

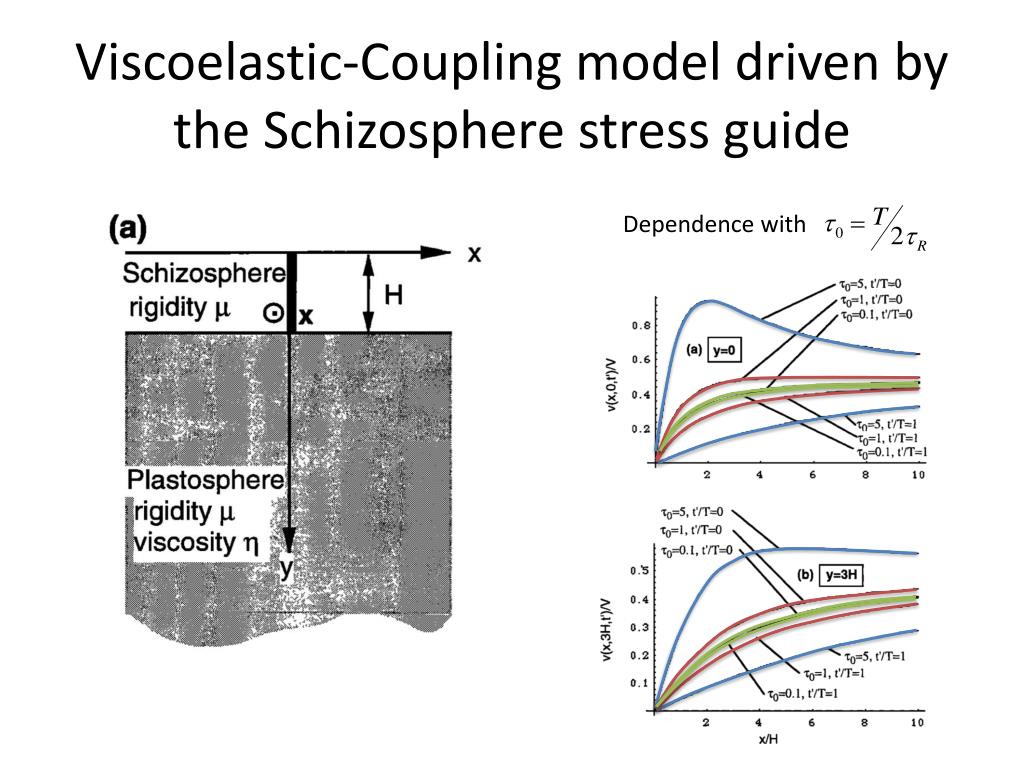

  6. Viscoelastic-Coupling model driven by the Schizosphere stress guide Dependence with

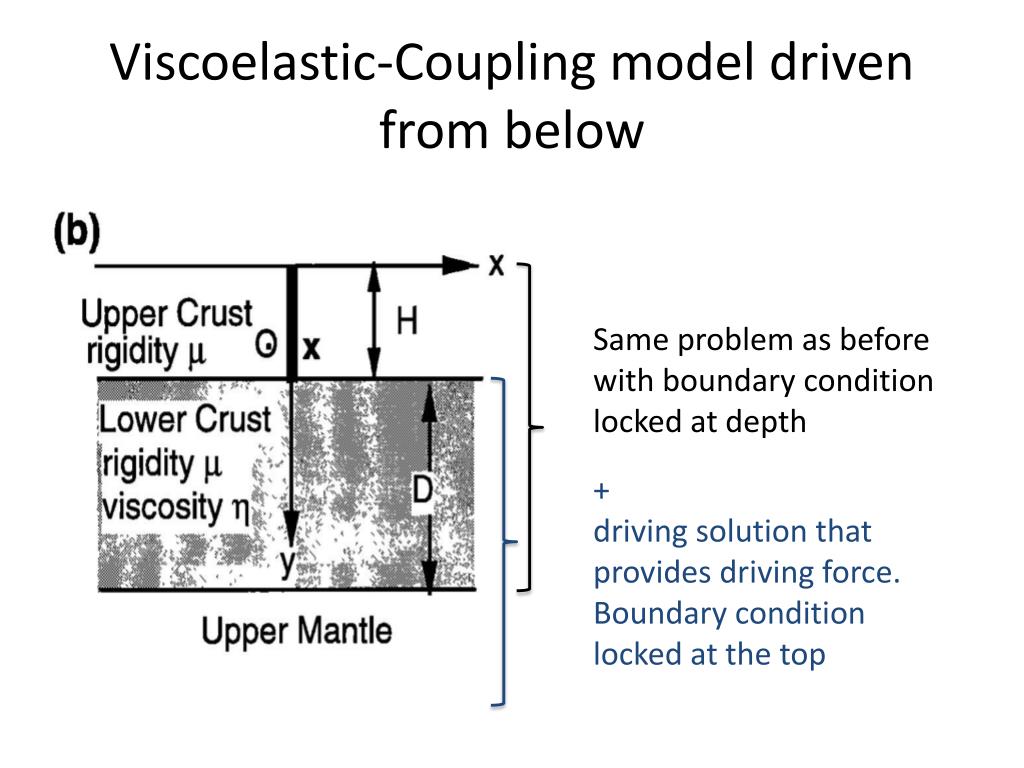

  7. Viscoelastic-Coupling model driven from below Same problem as before with boundary condition locked at depth + driving solution that provides driving force. Boundary condition locked at the top

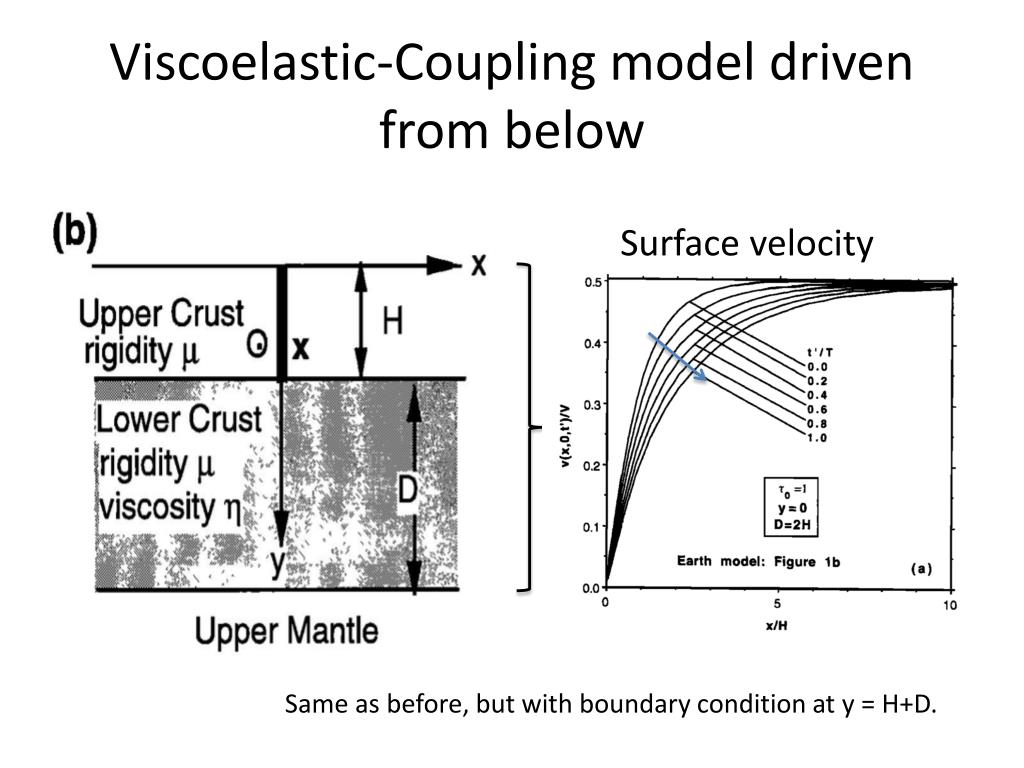

  8. Viscoelastic-Coupling model driven from below Surface velocity Same as before, but with boundary condition at y = H+D.

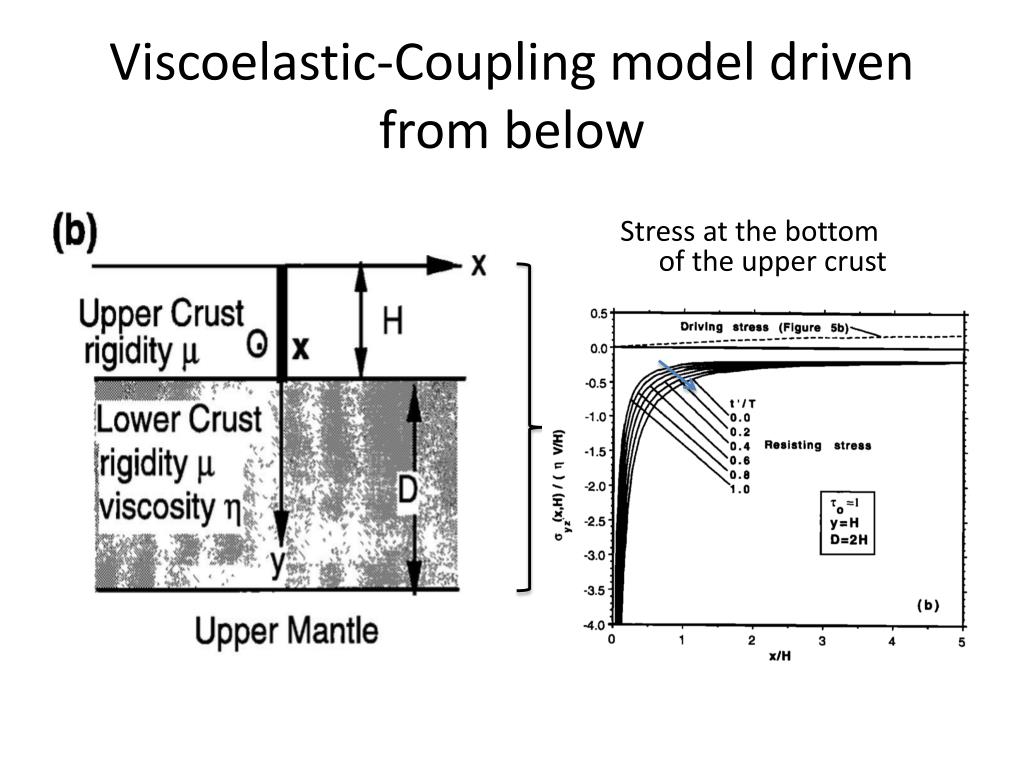

  9. Viscoelastic-Coupling model driven from below Stress at the bottom of the upper crust

  10. Viscoelastic-Coupling model driven from below Velocity in the lower crust Driving solution:

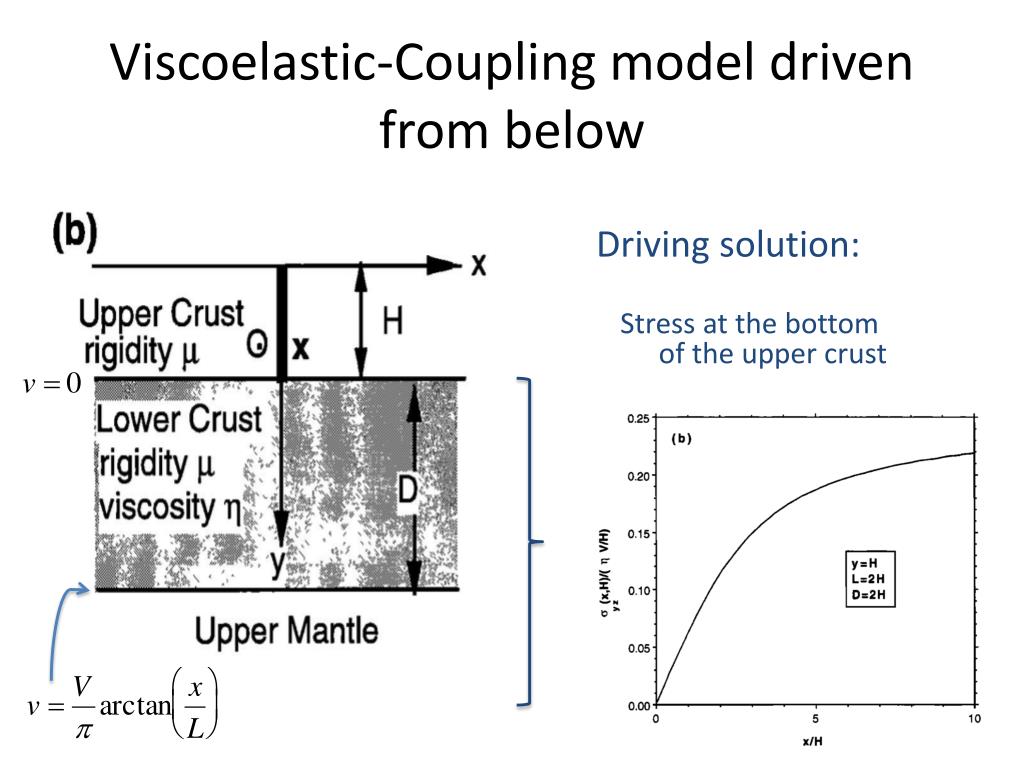

  11. Viscoelastic-Coupling model driven from below Stress at the bottom of the upper crust Driving solution:

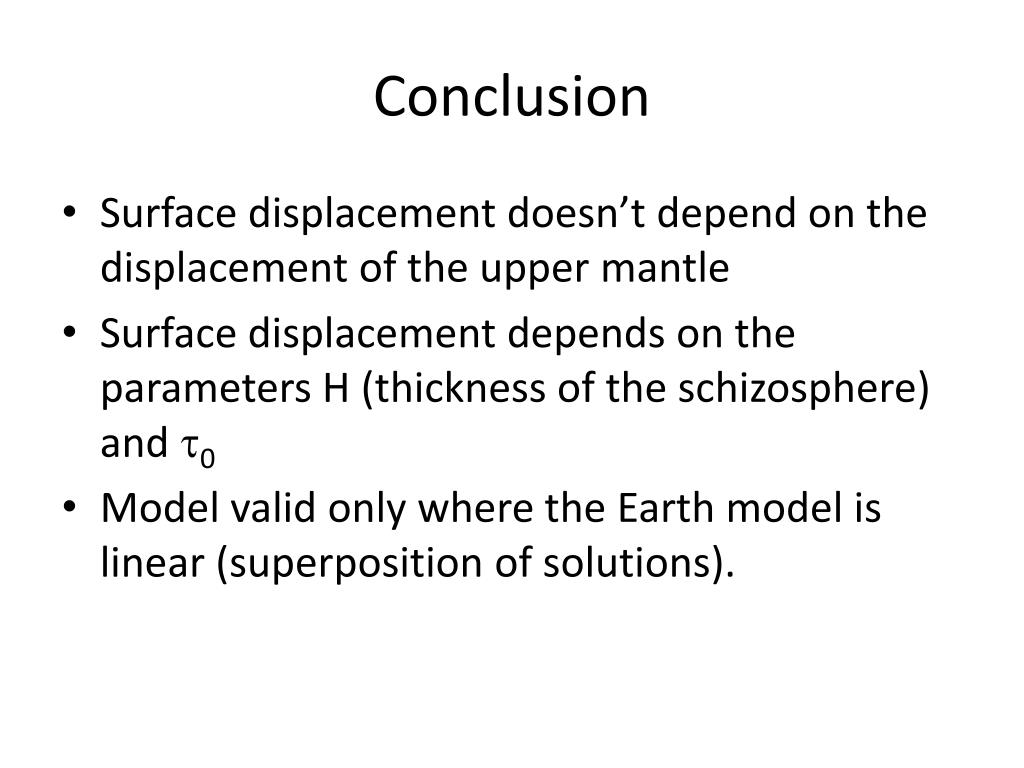

  12. Conclusion • Surface displacement doesn’t depend on the displacement of the upper mantle • Surface displacement depends on the parameters H (thickness of the schizosphere) and t0 • Model valid only where the Earth model is linear (superposition of solutions).
