  1. CS5226 2002Operating System & Database Performance Tuning Xiaofang Zhou School of Computing, NUS Office: S16-08-20 Email: zhouxf@comp.nus.edu.sg URL: www.itee.uq.edu.au/~zxf

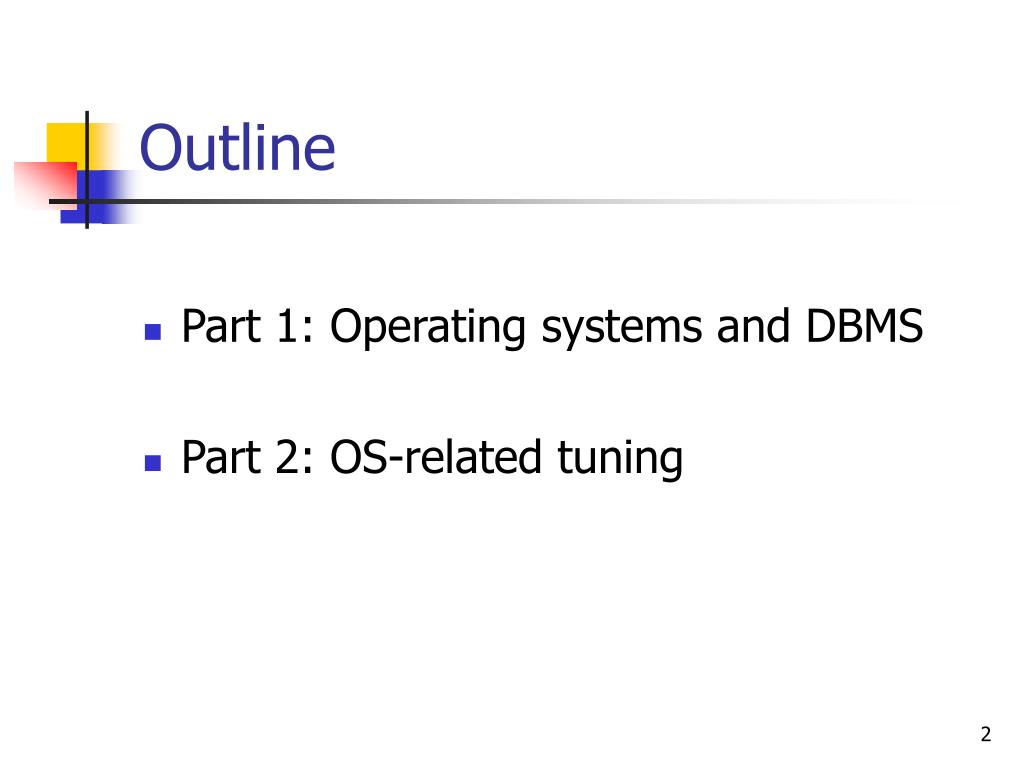

  2. Outline • Part 1: Operating systems and DBMS • Part 2: OS-related tuning

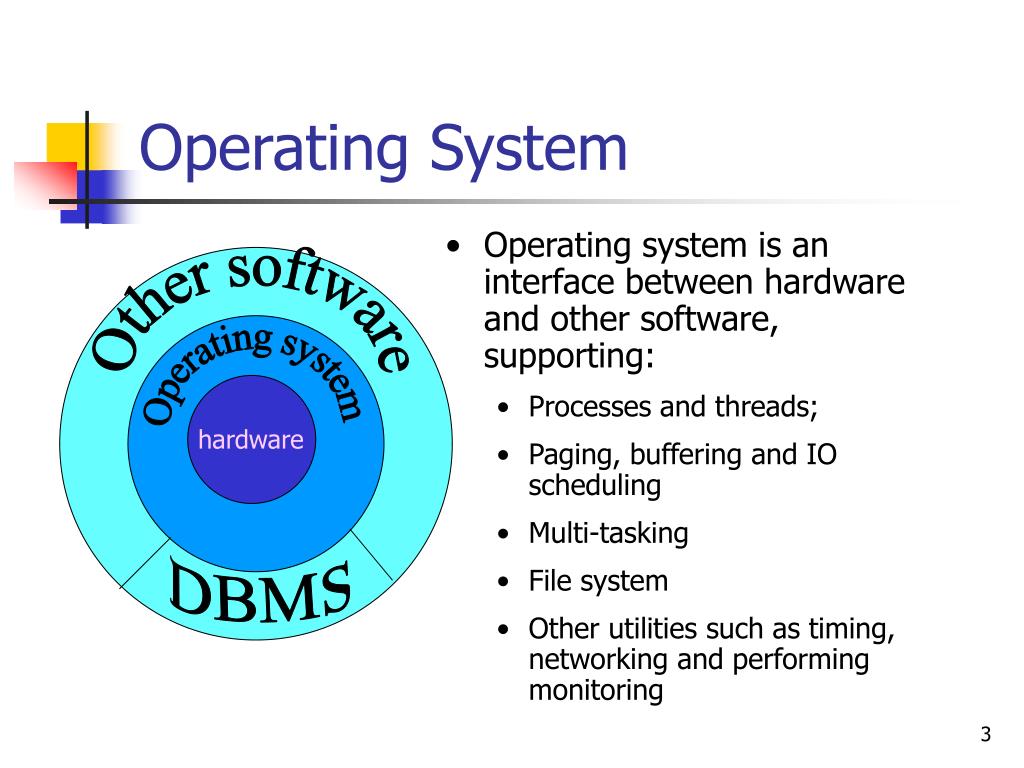

  3. Operating system is an interface between hardware and other software, supporting: Processes and threads; Paging, buffering and IO scheduling Multi-tasking File system Other utilities such as timing, networking and performing monitoring Other software Operating system hardware DBMS Operating System

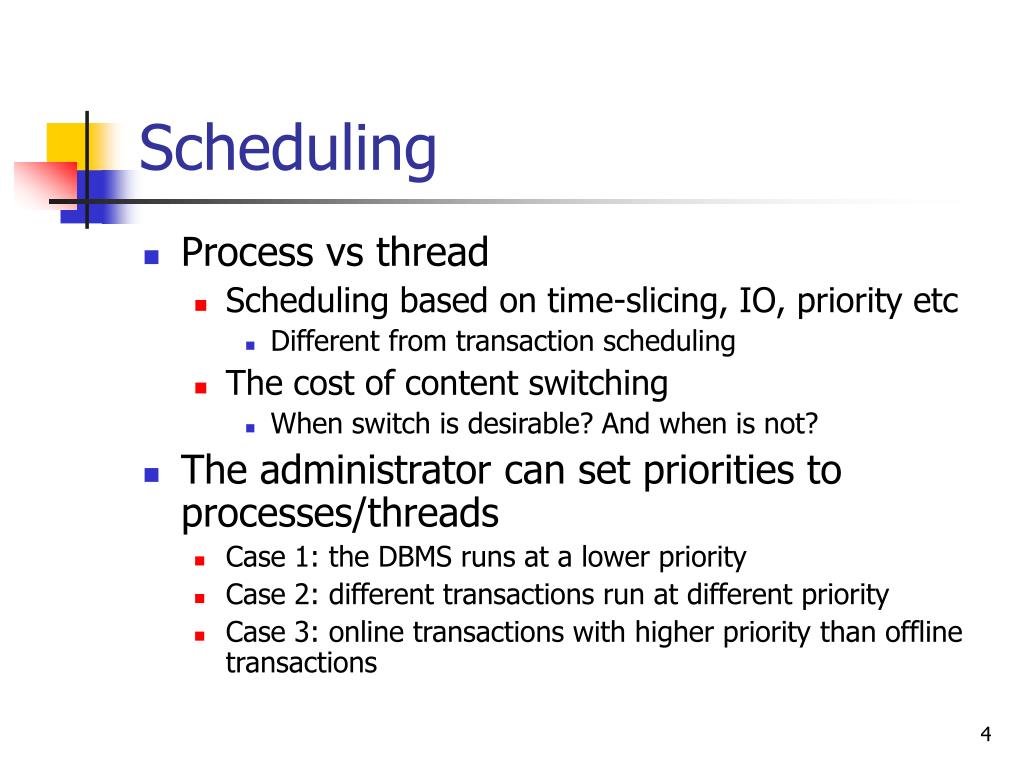

  4. Scheduling • Process vs thread • Scheduling based on time-slicing, IO, priority etc • Different from transaction scheduling • The cost of content switching • When switch is desirable? And when is not? • The administrator can set priorities to processes/threads • Case 1: the DBMS runs at a lower priority • Case 2: different transactions run at different priority • Case 3: online transactions with higher priority than offline transactions

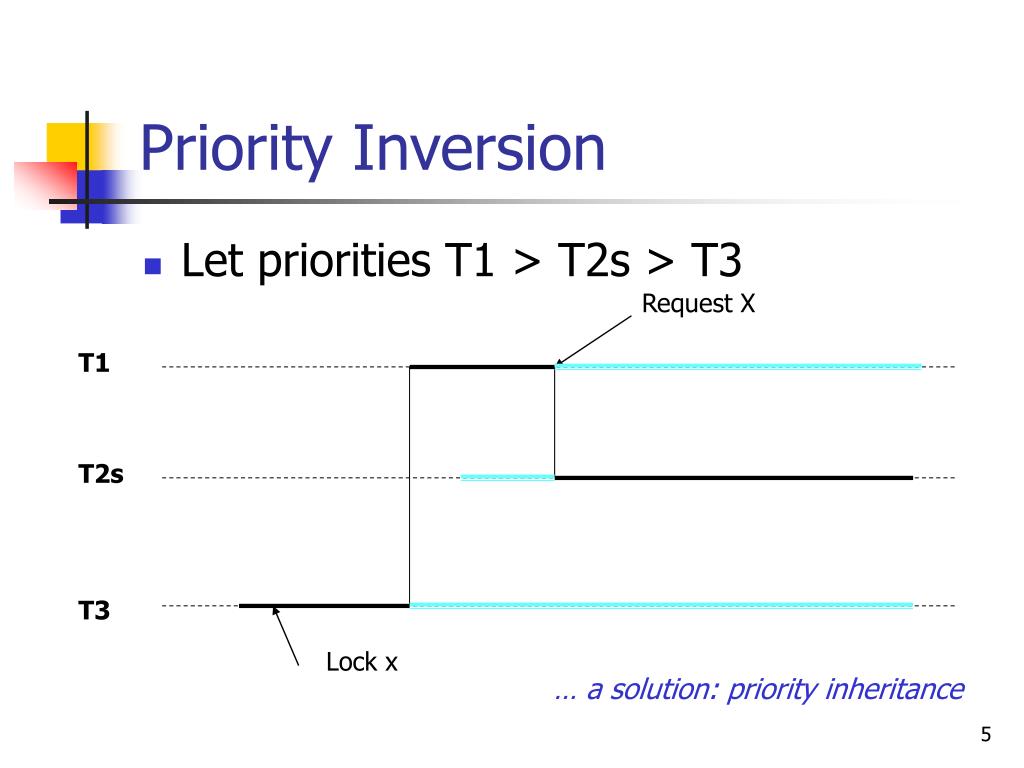

  5. Request X T1 T2s T3 Lock x Priority Inversion • Let priorities T1 > T2s > T3 … a solution: priority inheritance

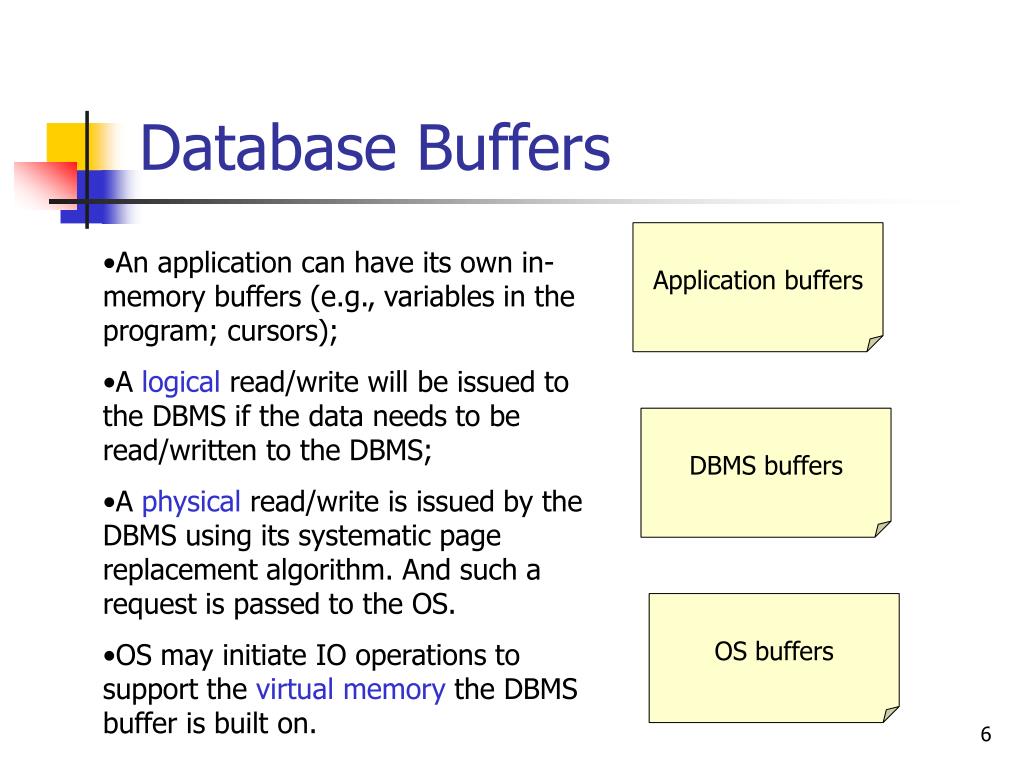

  6. Database Buffers Application buffers • An application can have its own in-memory buffers (e.g., variables in the program; cursors); • A logical read/write will be issued to the DBMS if the data needs to be read/written to the DBMS; • A physical read/write is issued by the DBMS using its systematic page replacement algorithm. And such a request is passed to the OS. • OS may initiate IO operations to support the virtual memory the DBMS buffer is built on. DBMS buffers OS buffers

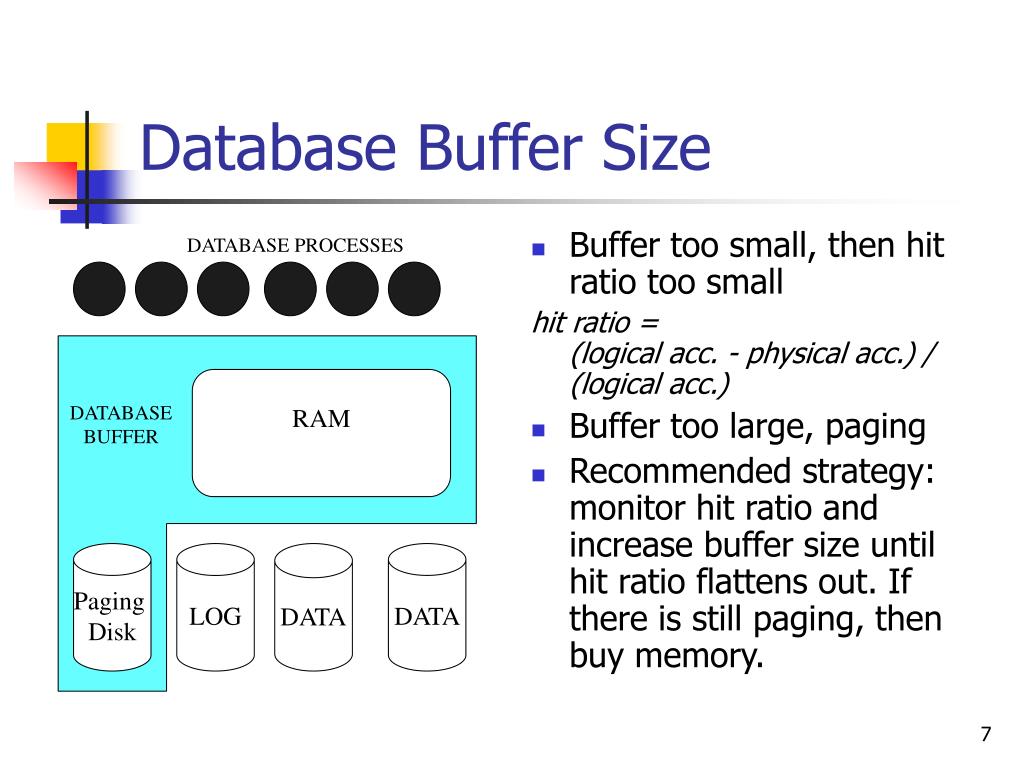

  7. Buffer too small, then hit ratio too small hit ratio = (logical acc. - physical acc.) / (logical acc.) Buffer too large, paging Recommended strategy: monitor hit ratio and increase buffer size until hit ratio flattens out. If there is still paging, then buy memory. DATABASE PROCESSES RAM DATABASEBUFFER Paging Disk LOG DATA DATA Database Buffer Size

  8. Buffer Size - Data Settings: employees(ssnum, name, lat, long, hundreds1, hundreds2); clustered index c on employees(lat); (unused) • 10 distinct values of lat and long, 100 distinct values of hundreds1 and hundreds2 • 20000000 rows (630 Mb); • Warm Buffer • Dual Xeon (550MHz,512Kb), 1Gb RAM, Internal RAID controller from Adaptec (80Mb), 4x18Gb drives (10000 RPM), Windows 2000.

  9. Buffer Size - Queries Queries: • Scan Query select sum(long) from employees; • Multipoint query select * from employees where lat = ?;

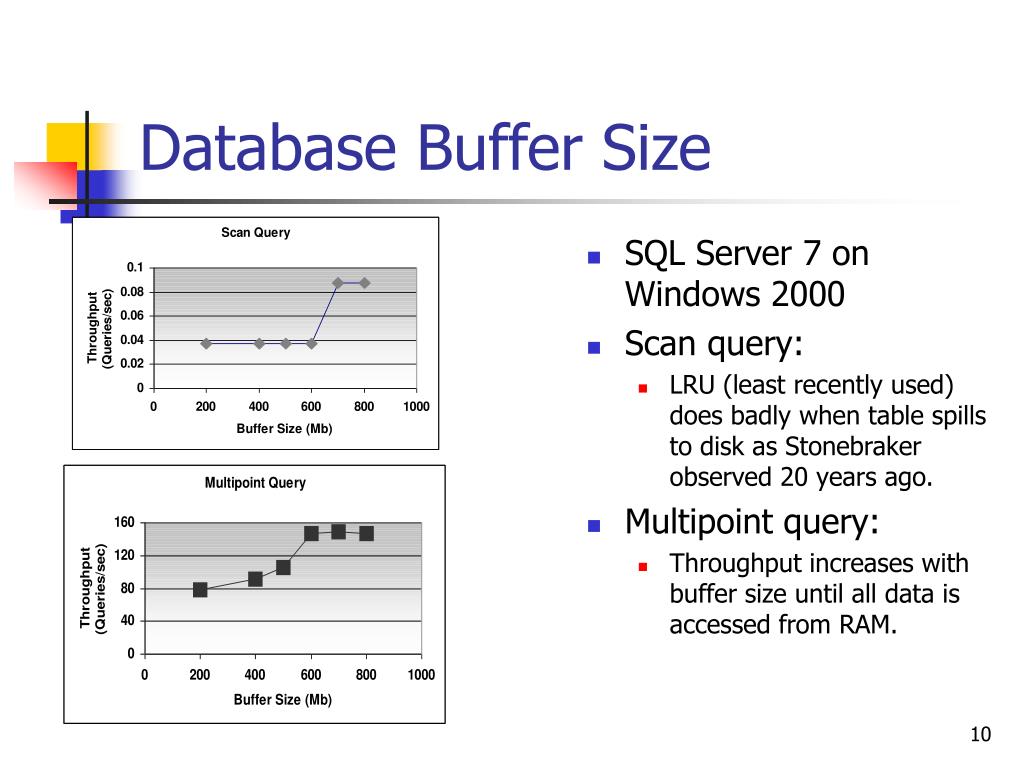

  10. SQL Server 7 on Windows 2000 Scan query: LRU (least recently used) does badly when table spills to disk as Stonebraker observed 20 years ago. Multipoint query: Throughput increases with buffer size until all data is accessed from RAM. Database Buffer Size

  11. It’s All About $$$ • Buffering is about a trade-off between speed and cost • A (18 GB) disk offers 170 random access for $300  the access cost A=$1.76 per access per second • RAM  C=$0.5/MB • Page size B = 8 KB • Page p is accessed every I=200 s • Keep page p in memory? • Yes: cost C/1024*B = $0.0039 for 8KB RAM • No: cost A/I = $0.0088 • So, p is in memory until its access interval reaches ??? s

  12. Multiprogramming Levels • More concurrent users • Better utilization of CPU cycles (and other system resources) • Risk of excessive page swapping • More lock conflicts • So how many exactly • Depends on transaction profiles • Experiments to find the best value • And this parameter may change when application patterns change

  13. Disk Layout and Access • Larger disk allocation chunks improves write performance • At the cost of disk utilisation • Setting disk usage factor • Low when expecting updates/inserts • Higher for scan-type of queries • Using prefetching • For non-random accesses

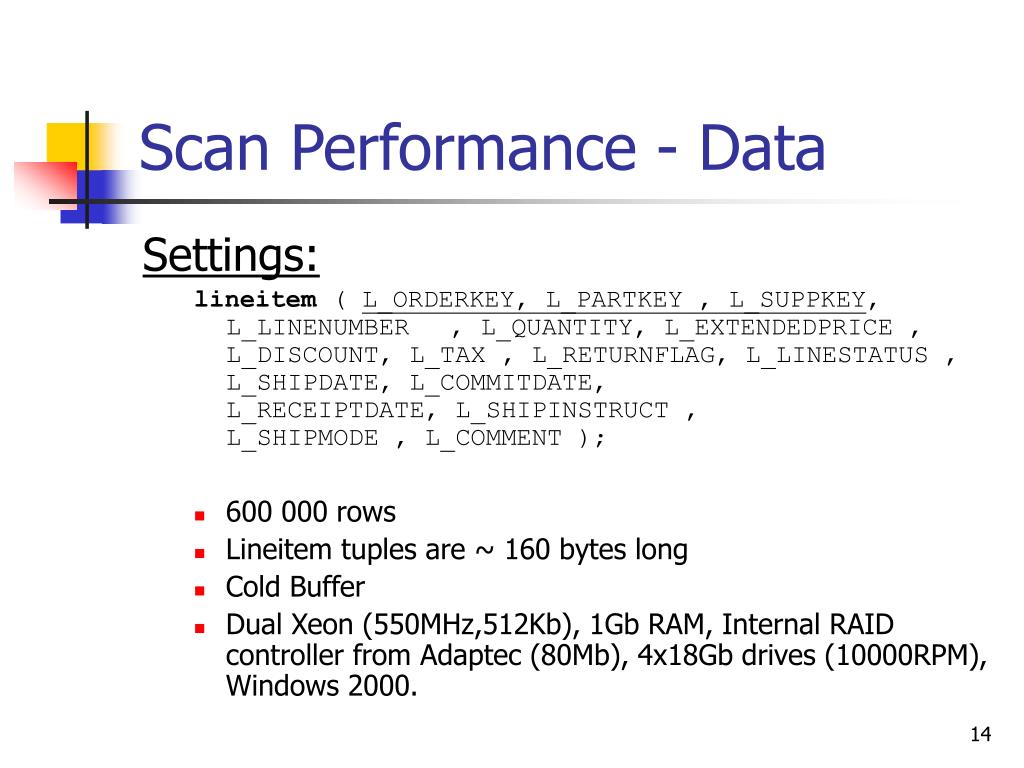

  14. Scan Performance - Data Settings: lineitem ( L_ORDERKEY, L_PARTKEY , L_SUPPKEY, L_LINENUMBER , L_QUANTITY, L_EXTENDEDPRICE , L_DISCOUNT, L_TAX , L_RETURNFLAG, L_LINESTATUS , L_SHIPDATE, L_COMMITDATE, L_RECEIPTDATE, L_SHIPINSTRUCT , L_SHIPMODE , L_COMMENT ); • 600 000 rows • Lineitem tuples are ~ 160 bytes long • Cold Buffer • Dual Xeon (550MHz,512Kb), 1Gb RAM, Internal RAID controller from Adaptec (80Mb), 4x18Gb drives (10000RPM), Windows 2000.

  15. Scan Performance - Queries Queries: select avg(l_discount) from lineitem;

  16. DB2 UDB v7.1 on Windows 2000 Usage factor is the percentage of the page used by tuples and auxiliary data structures (the rest is reserved for future) Scan throughput increases with usage factor. Usage Factor

  17. DB2 UDB v7.1 on Windows 2000 Throughput increases up to a certain point when prefetching size increases. Prefetching

  18. Summary • In this module, we have covered: • A review of OS from the DBMS perspective • How to optimise OS-related parameters and options • Thread • Buffer, and • File system • Next: tuning the hardware
