Blending Of Airfoils

Blending Of Airfoils. Reasons to repair damaged airfoils. Remove any stress risers that may liberate parts of the blades or vanes. Return the airfoil to its original aerodynamic shape. Remove any imbalance caused by disturbances in airflow caused by the defects.

telma
Télécharger la présentation

Blending Of Airfoils

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Blending Of Airfoils

  2. Reasons to repair damaged airfoils • Remove any stress risers that may liberate parts of the blades or vanes. • Return the airfoil to its original aerodynamic shape. • Remove any imbalance caused by disturbances in airflow caused by the defects. • To remove the possibility of compressor stalls and increased TOT/TIT.

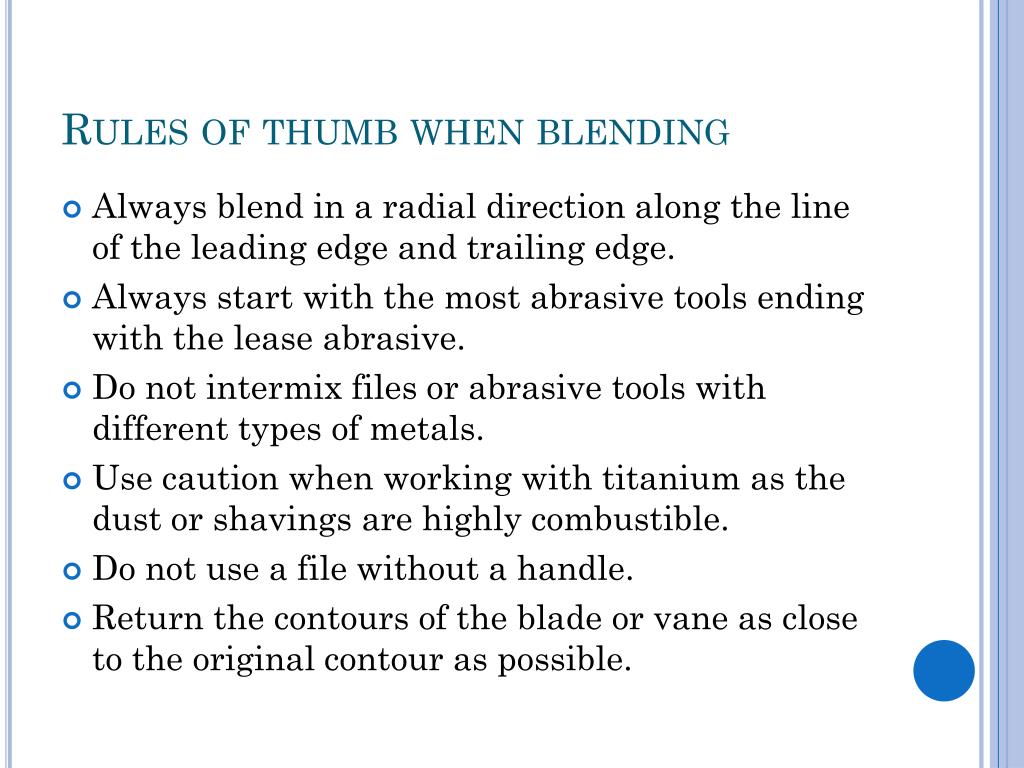

  3. Rules of thumb when blending • Always blend in a radial direction along the line of the leading edge and trailing edge. • Always start with the most abrasive tools ending with the lease abrasive. • Do not intermix files or abrasive tools with different types of metals. • Use caution when working with titanium as the dust or shavings are highly combustible. • Do not use a file without a handle. • Return the contours of the blade or vane as close to the original contour as possible.

  4. Length to depth ratio of at least 4:1 Radial Direction

  5. TCN:NG2991271 Customer:TAMP.BAY LIG Bitmap NEEGANIN PART/MODULE INSPECTION REPORT Module: ESN: N/A   PART DISPOSITION-QTY PART DESC. PART NUMBER SERIAL NUMBER QTY RCVD TSN CSN SERV REP UNSRV INSPECTION REMARKS-REPAIR NOTES
