Upgrade of OD HV Paddle Cards at University of Washington

The OD HV Paddle Cards have been upgraded for enhanced functionality and reliability. Key features include a standard VME 9U height, robust front panel design with ejector latches, and a high voltage relay system for each PMT channel, replacing traditional jumpers. The front panel is equipped with DIP switches for manual control, along with LEDs indicating the HV status of each channel. A remote control system is also under development. Detailed procedures for installation and usage are provided, ensuring optimal operation of the updated paddle cards.

terah
Télécharger la présentation

Upgrade of OD HV Paddle Cards at University of Washington

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

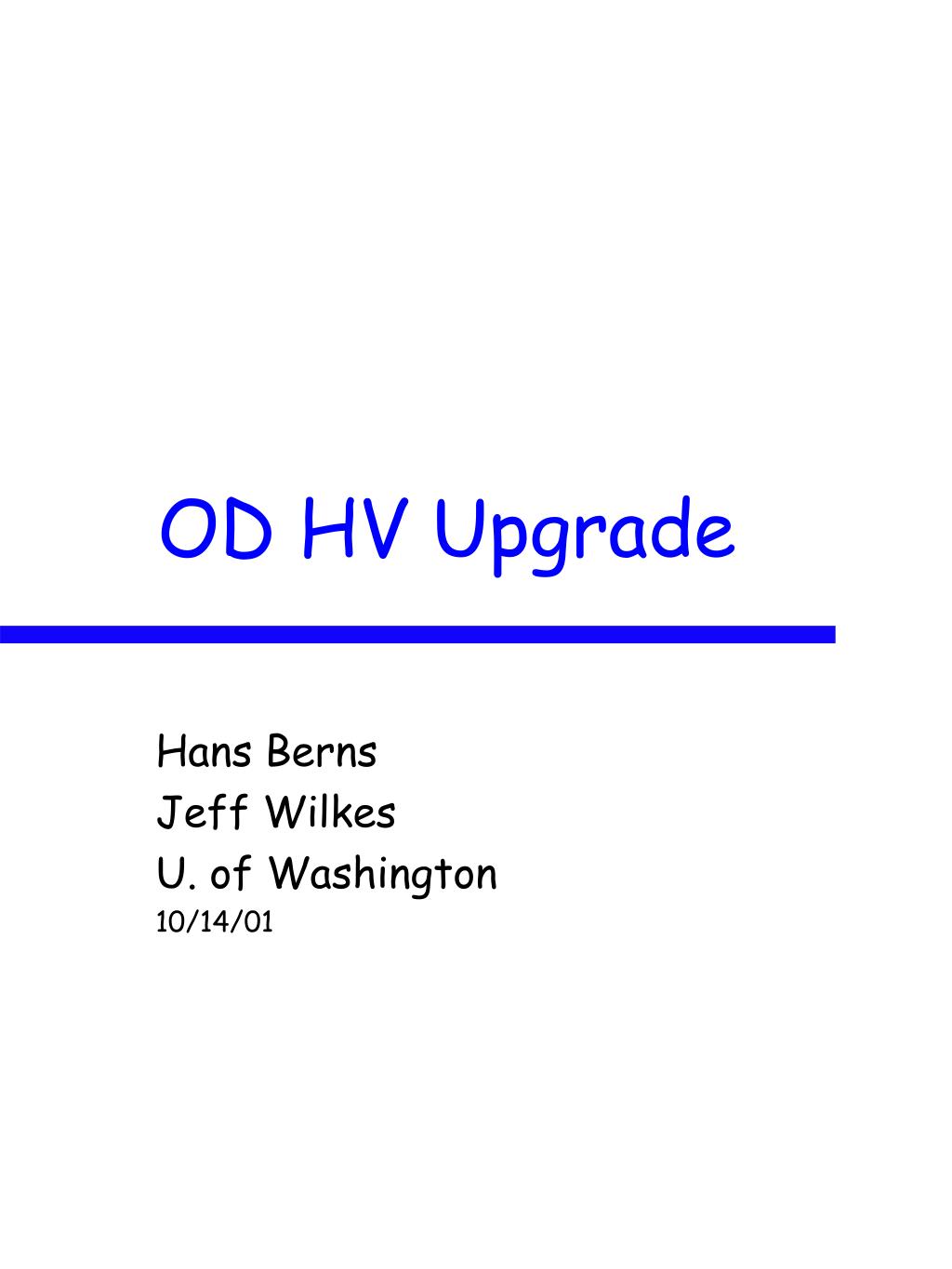

  1. OD HV Upgrade Hans Berns Jeff Wilkes U. of Washington 10/14/01

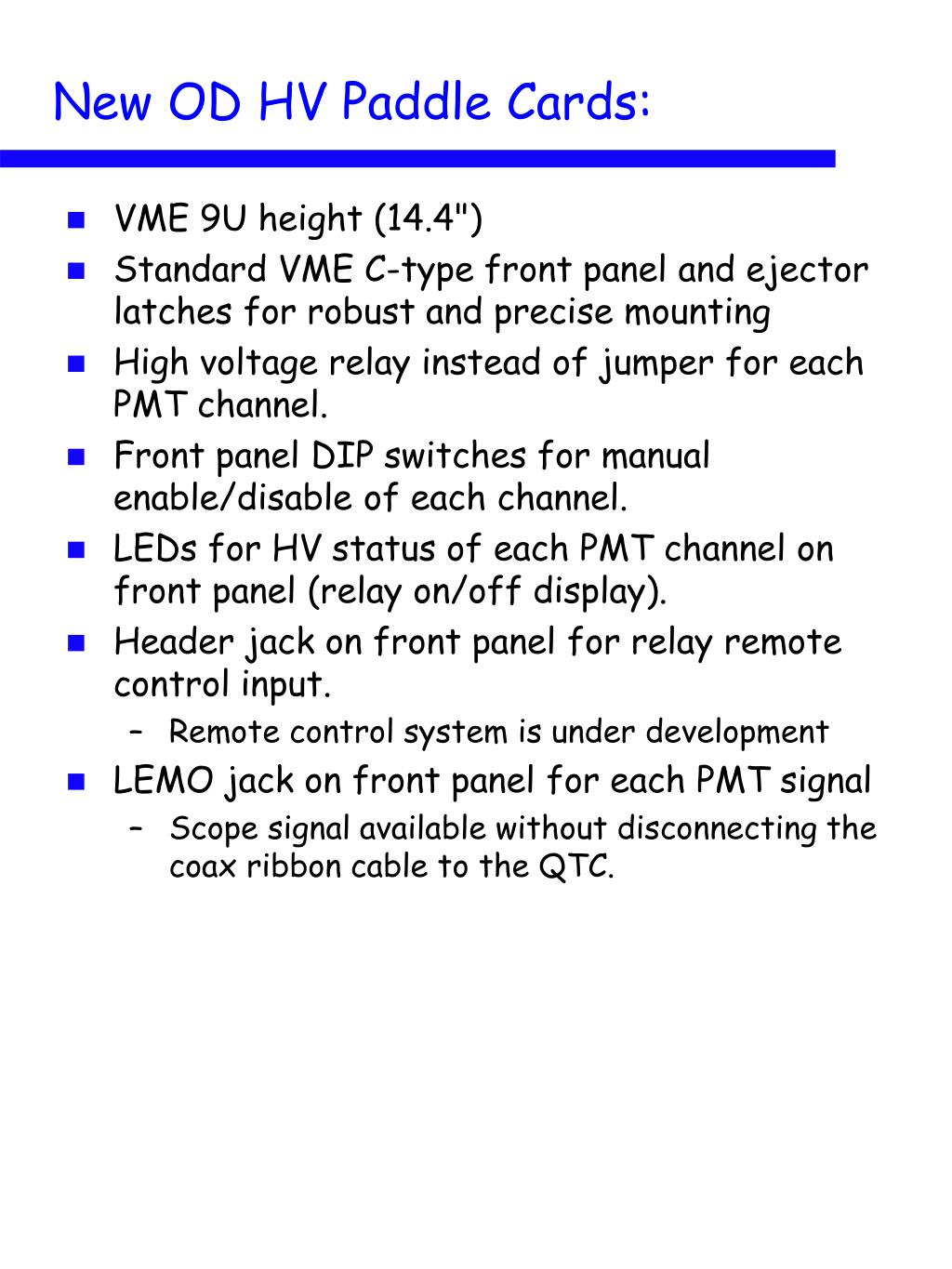

  2. New OD HV Paddle Cards: • VME 9U height (14.4") • Standard VME C-type front panel and ejector latches for robust and precise mounting • High voltage relay instead of jumper for each PMT channel. • Front panel DIP switches for manual enable/disable of each channel. • LEDs for HV status of each PMT channel on front panel (relay on/off display). • Header jack on front panel for relay remote control input. • Remote control system is under development • LEMO jack on front panel for each PMT signal • Scope signal available without disconnecting the coax ribbon cable to the QTC.

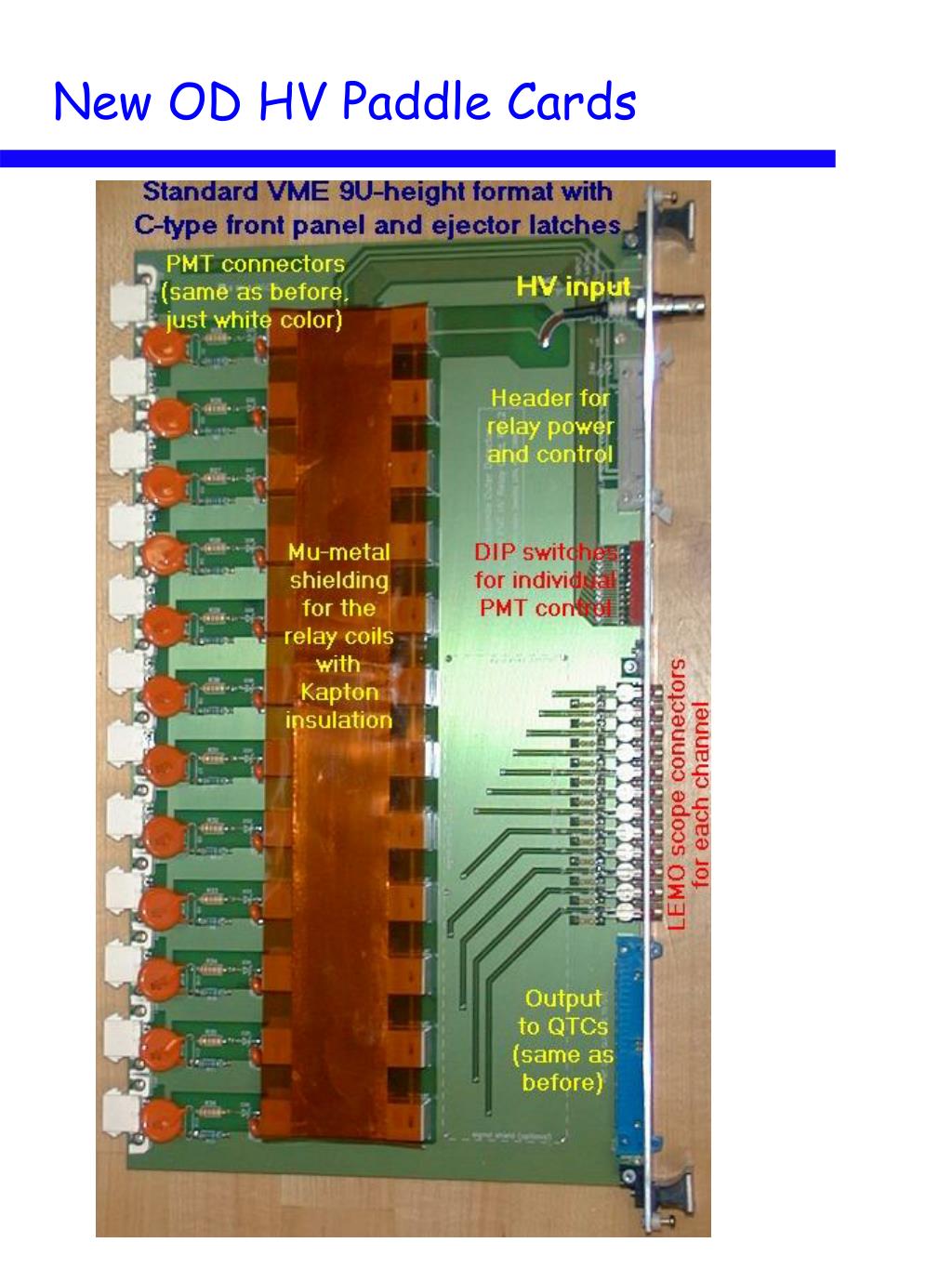

  3. New OD HV Paddle Cards

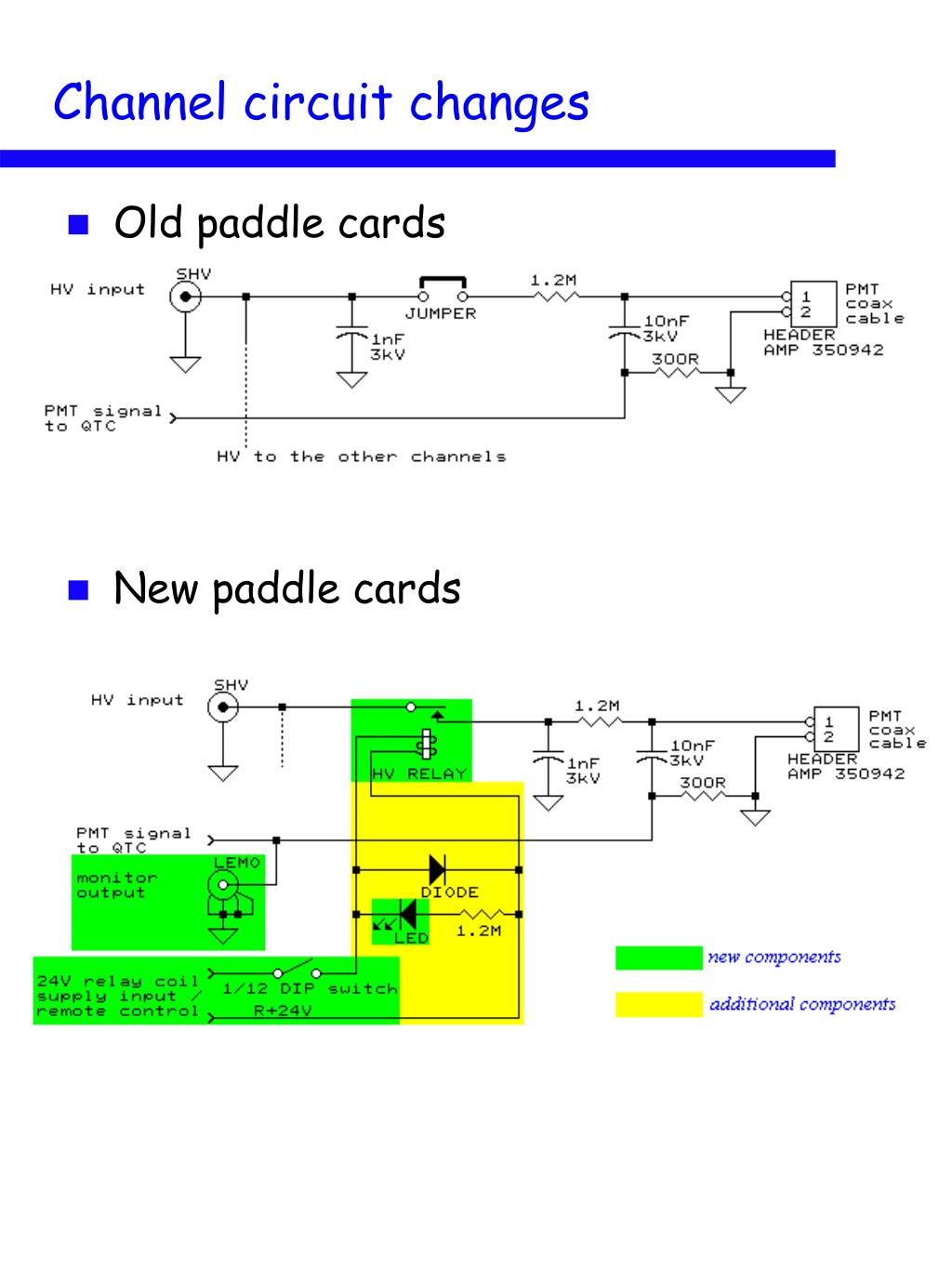

  4. Channel circuit changes • Old paddle cards • New paddle cards

  5. Installation • Test installation (Hut 1): 11/21/00 • Full installation began: 4/27/01 • Completed: 5/2/01

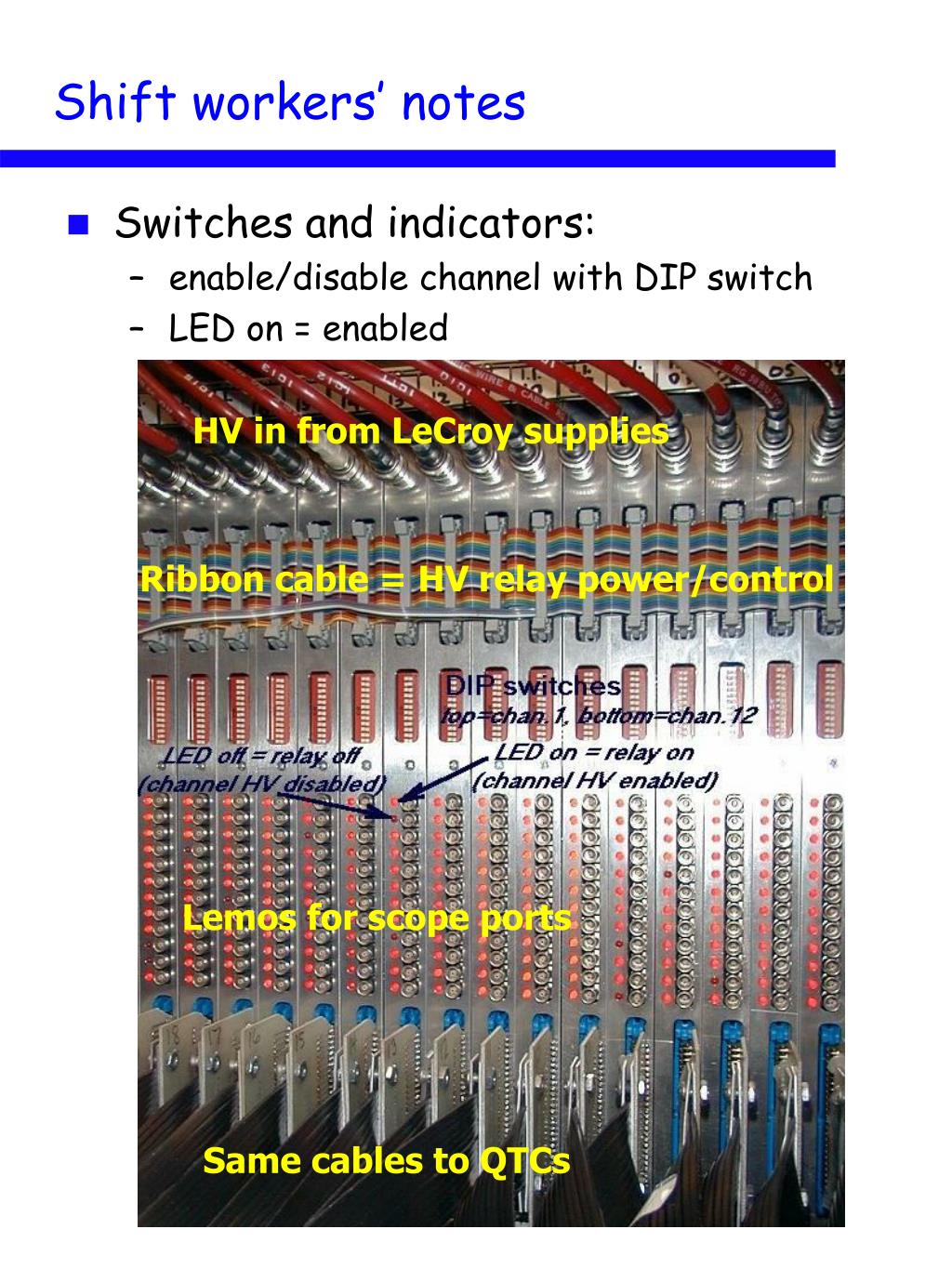

  6. Shift workers’ notes • Switches and indicators: • enable/disable channel with DIP switch • LED on = enabled HV in from LeCroy supplies Ribbon cable = HV relay power/control Lemos for scope ports Same cables to QTCs

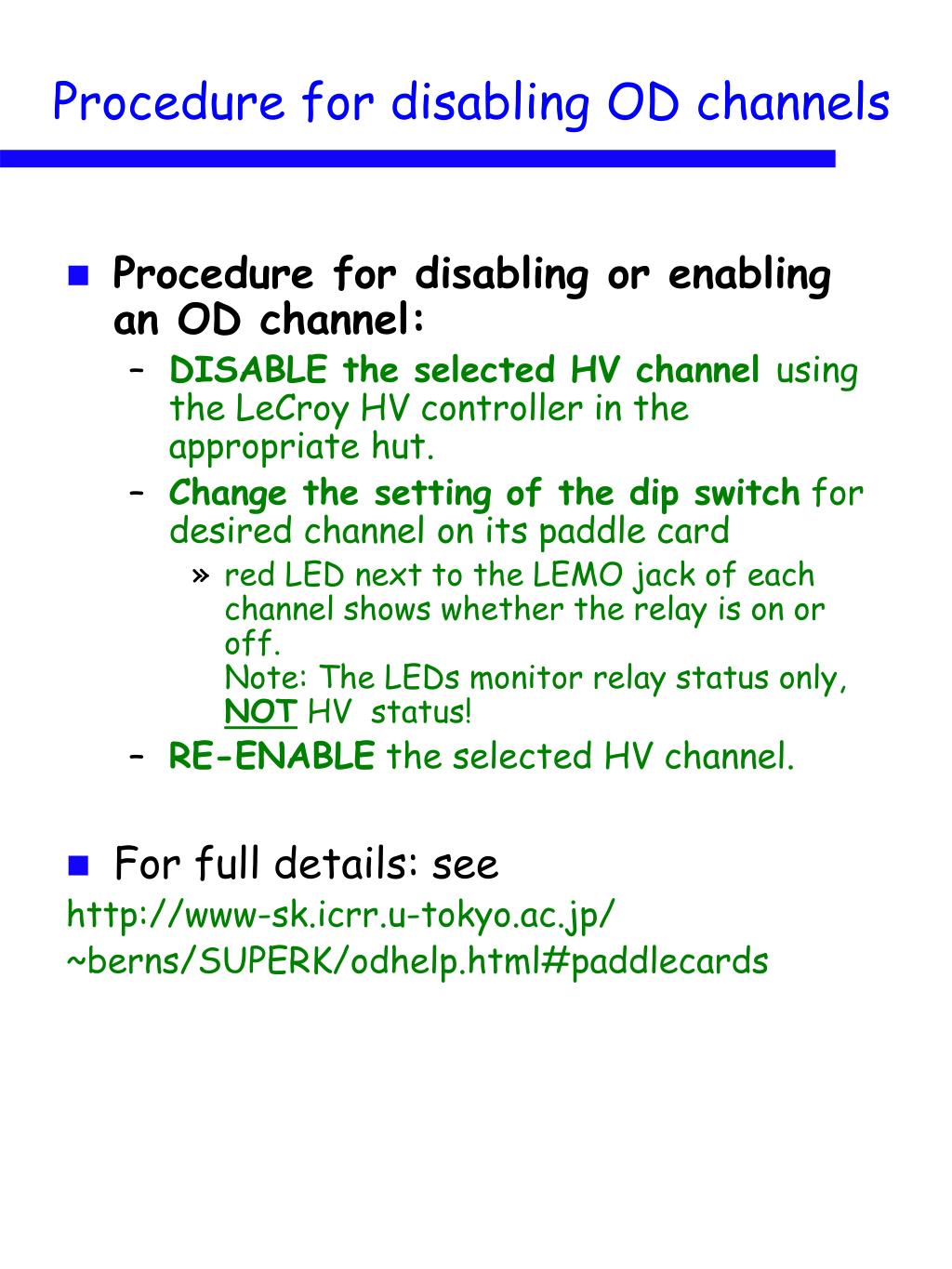

  7. Procedure for disabling OD channels • Procedure for disabling or enabling an OD channel: • DISABLE the selected HV channel using the LeCroy HV controller in the appropriate hut. • Change the setting of the dip switch for desired channel on its paddle card • red LED next to the LEMO jack of each channel shows whether the relay is on or off.Note: The LEDs monitor relay status only, NOT HV status! • RE-ENABLE the selected HV channel. • For full details: see http://www-sk.icrr.u-tokyo.ac.jp/ ~berns/SUPERK/odhelp.html#paddlecards
