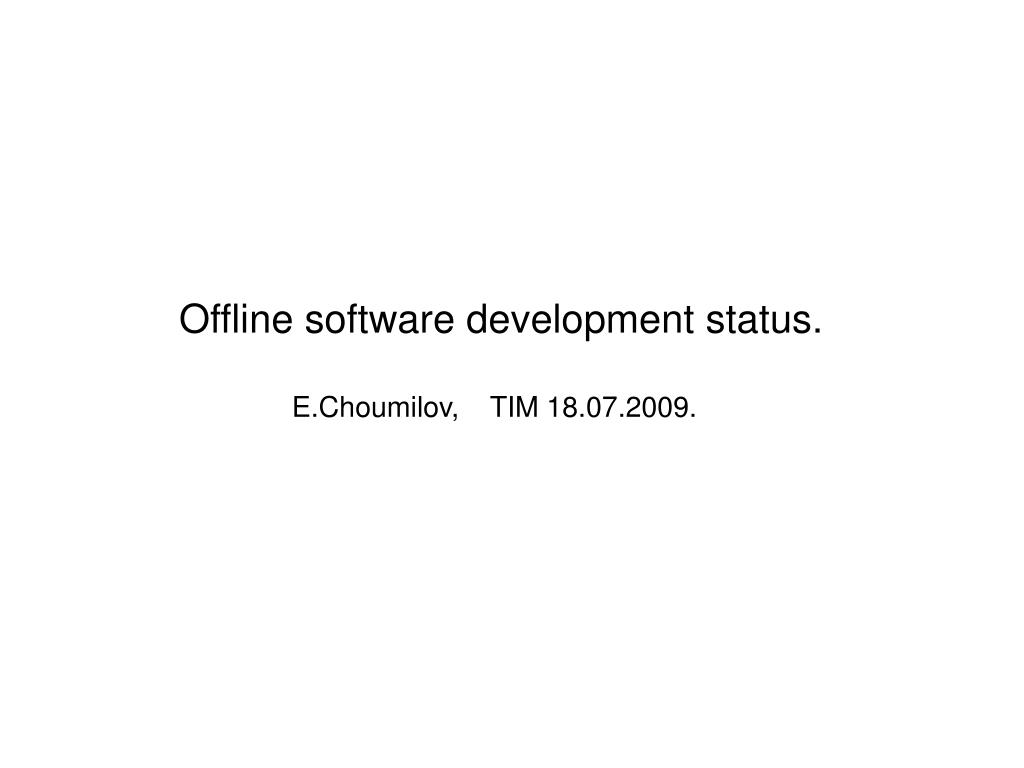

1. Offline software development status. E.Choumilov, TIM 18.07.2009.

2. ECAL: • Now MC Geant-hits can be written to root-file (new data card ECMC 30=(0)), • related codes are written and tested (be careful – very high hits multiplicity, • set ECMC 30=1 to let hits writing to root-file when IOPA 43 set to “write all”, • SET 30=2 to force writing at any conditions. • “On-Board” pedestals handling codes are modified according new format • (very preliminary, not tested on real data). New data card ECCA 75=(15) • is the bit-pattern describing the final content of pedestals block (A-peds, • D-peds, Thresholds, PedWidth). • Geometry is modified according to the latest beam test results (super layers • misalignment is added, lower pixel response in pixel-to-pixel transitional • area (+-3mm around pixel boundary) is introduced (40% signal reduction • at the boundary point).

3. TOF/ACC: • “On-Board” pedestals handling codes are updated (still preliminary, not • tested on real data). New data card TFCA 40=(63) is the bit-pattern • describing the final content of pedestals block (A-peds, D-peds, • PreTrigWords, StatusWords, Thresholds, PedWidth). • Common for all sub-detectors data card CALIB 3=ijklm is decimal “bit-pattern” of sub-detectors to be used in automatic update of DB. Default • ijklm=11111 (use all sub-detectors), see datacards.doc file for more details. • TOF offline calibrations codes are modified to work with “Tof Calibration • Commander” program (“summary”-block is added in log-file). • ACC dE/dX channels saturation treatment is added (not final, need • more information from ACC-group for better accuracy, currently unique • nonlinearity curve is used). Data card ATRE 6=(0) is introduced, set it • to 1 to apply corrections to raw amplitudes. In any case these corrections • are non very important because do not affect ACC-efficiency. See also • fig.1-3 for illustration. • 4. Preliminary version of TOF Calibration Commander is released.

4. Fig.1 (light output <=> impact point)

5. Fig.2 (no corrections)

6. Fig.3 (with corrections)

7. TOF Calibration Commander features • This is the graphic interface between the user and different TOF calibration • procedures. These procedures are the part of standard offline reconstruction • program. So this interface use standard gbatch.exe executable. Interface is • written using Perl/Tk. • To use Commander SSH to pcamsr0, CD to /f2users/tofaccuser/headquarters. • Read “README_1st” file for more instructions. Use “StartTofCommander” • command to start the job. After you got window, select (left click) needed • session type (from 6 available types) and click “Start” button. The rest of • interface is build now automatically according selected session type. Use “Help” • button and right click on some critical buttons for more help. • Six available now session types are (written on related buttons) : • “PedCal” – creates pedestal/width/status tables using real data • (if in raw format !!!) or “OnBoard” created pedestal data. • “Ped2DB” - write this tables into the Data Base (DB). Before DB updating • you can check pedestals quality time evolution and remove bad tables.

8. These two calibration types were demonstrated during one of the last year • TIMs and now just incorporated into common shell. • 3) “TdcLin” – this session creates TOF TDC nonlinearity corrections table • for each of LT (low threshold) and FT (fast trigger) SFET channels using • the real physical data runs. • “TdcL2DB” – during this session you can check the quality of all tables • accumulated in previous “TdcLin” sessions and write good ones into the DB. • The fig.4 shows the screenshot made during this session. • 5) “TAUCal” – most complicated session. Use real data to create 5 types • of calibration files: Ref-File (contains references to other calibration files), • CalibStatus-File, file with side-times offsets and effective light velocities • for each paddle, file with paddle-time offsets and slewing correction and • file with channels relative amplification factors, paddles energy loss • absolute normalizations and paddles light attenuation parameters. • This session use the results of previous “TdcLin” session. During this • session calibration quality and files consistency are checked and good • calibration sets are written into related store (directory) used in next session. • Use also “Help” button for more information. See screenshots on fig.5,6.

9. “TAU2DB” – this session use previously accumulated calibration files sets. • You can check calibration parameters quality and their evolution in time, • exclude bad sets and write good ones into DB. For more information • use “Help” button. See also screenshot on fig.7.

10. Fig.4

11. Fig.5

12. Fig.6

13. Fig.7

14. TOF-team members, please try to use this program (but not simultaneously !). I am ready for questions and proposals.
