  1. Evolution of radiation levels during 2011 and weekly report values Weekly Report ... On behalf of the MCWG (Marco Calviani team)

  2. Evolution of radiation levels during 2011 ATLAS 1.7*108 cm-2 1.2*108 cm-2 Luminosity is the main source of radiation for P1/5/8 + vacuum • Difference between UJ14/16 due to spread of the RadMON

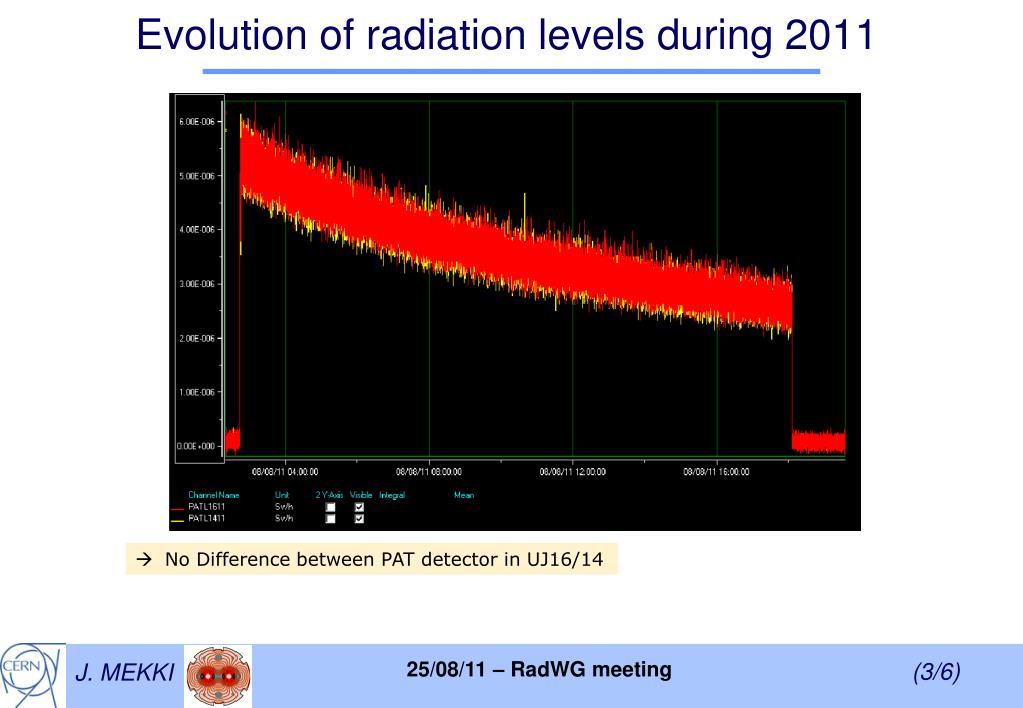

  3. Evolution of radiation levels during 2011 • No Difference between PAT detector in UJ16/14

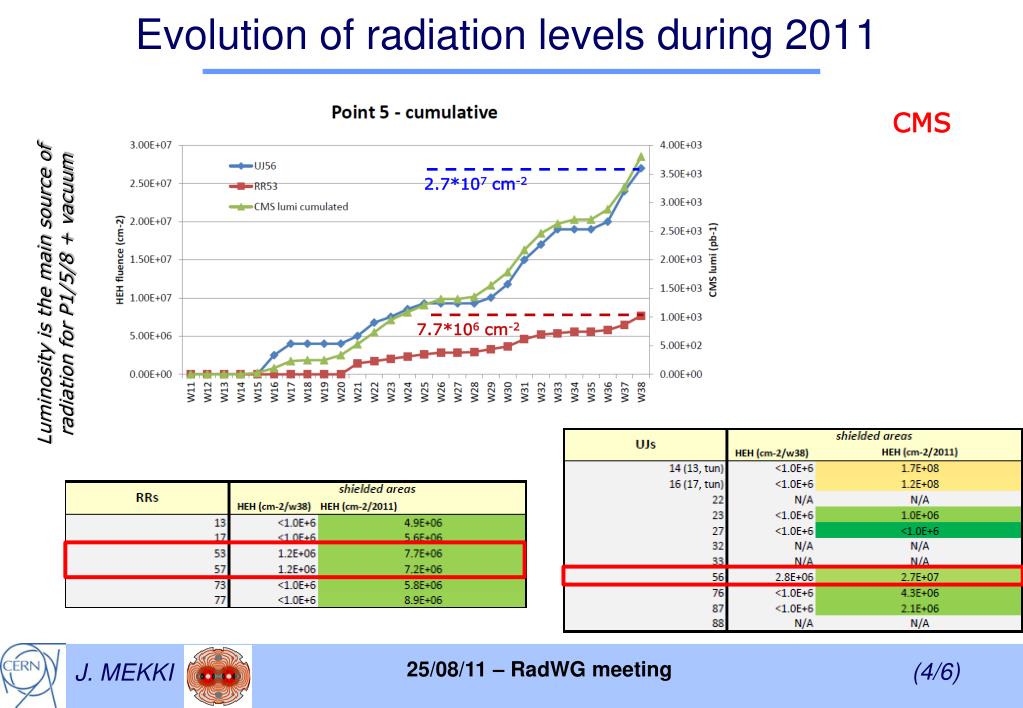

  4. Evolution of radiation levels during 2011 CMS 2.7*107 cm-2 Luminosity is the main source of radiation for P1/5/8 + vacuum 7.7*106 cm-2

  5. Evolution of radiation levels during 2011 LHCb 1.6*108 cm-2 Luminosity is the main source of radiation for P1/5/8 + vacuum 3.3*107 cm-2

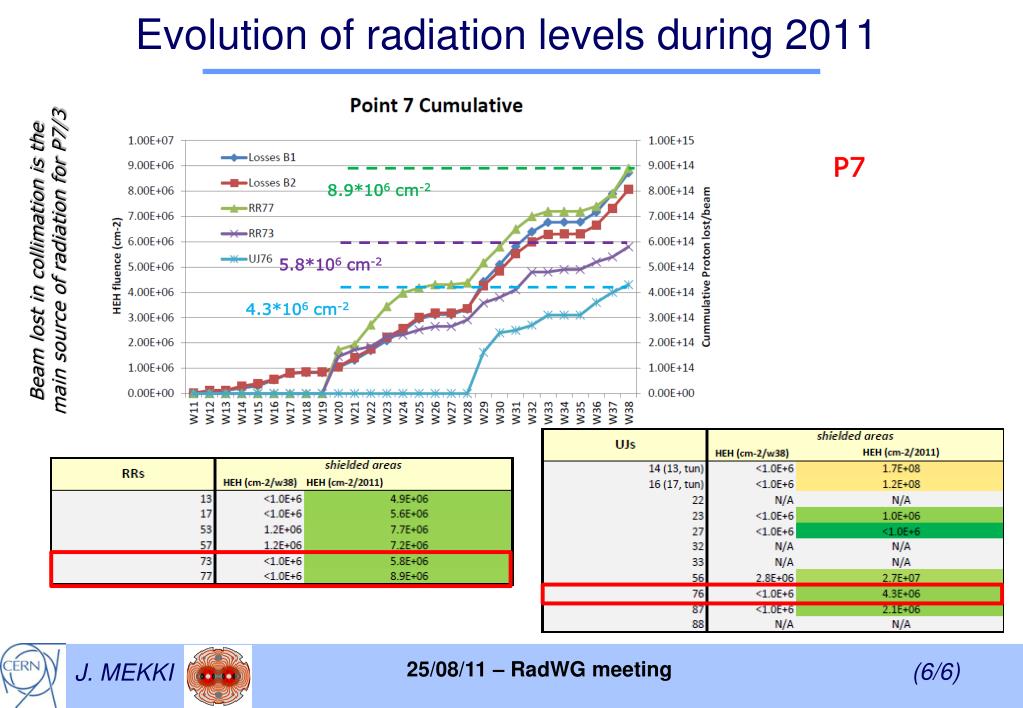

  6. Evolution of radiation levels during 2011 P7 8.9*106 cm-2 Beam lost in collimation is the main source of radiation for P7/3 5.8*106 cm-2 4.3*106 cm-2
