Accelerometer Feedback System

Accelerometer Feedback System. Monitors the forces due to acceleration on a model train Reports data to Xilinx board using a 315 MHz RF transmitter/receiver pair Results are displayed on Xilinx LCD and sent to PC using a USB compatible PIC Graphs information on PC. Train Mounted

tess
Télécharger la présentation

Accelerometer Feedback System

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

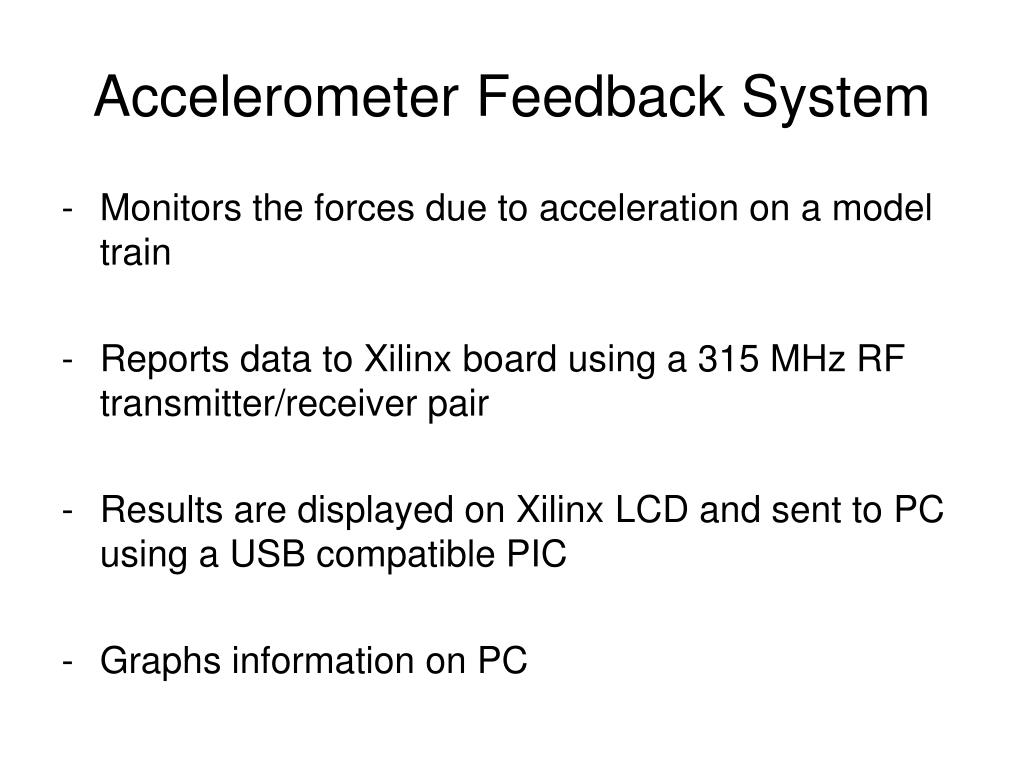

  1. Accelerometer Feedback System • Monitors the forces due to acceleration on a model train • Reports data to Xilinx board using a 315 MHz RF transmitter/receiver pair • Results are displayed on Xilinx LCD and sent to PC using a USB compatible PIC • Graphs information on PC

  2. Train Mounted PIC and Sensor RF Receiver System Overview 315MHz Link UART0 Wired Connection Xilinx Board UART2 Wired Connection PC USB PIC USB Link

  3. PIC Specific Hardware • Train Mounted PIC • 18LF1220 • Low cost, 3.3 Volts, 18 Pin DIP, 8 MHz Internal Oscillator • Uses 2 Channel ADC • 2400 baud UART • USB PIC • 18f4550 • 40 Pin DIP, 20 MHz Crystal • High Speed USB 2.0 • 19200 baud UART

  4. Xilinx Software • Three UARTS • RF Receiver - Captures sensor readings from train mounted PIC • USB Communication - Sends most recent sensor readings upon request - Gets alarm settings • Accessory Communication - Alerts extra boards when alarm condition is reached • LCD - Shows sensor readings and current alarm status

  5. PC Interface

  6. Future Improvements • Upgrade transmitter/receiver • 2.4 GHz results in less noise • Supports up to 250K baud • Change DIP to SMT components • Decreases board size • Lowers cost of manufacturing • Move Xilinx functionality to PIC 18F4550 • Greatly reduces cost and complexity

More Related
