Understanding Population Growth: Models and Dynamics

thea avatar
thea
37 diapositives · 481 Views · Sep 07, 2014

This piece explores the mathematical models and dynamics of population growth, focusing on two primary types: exponential and logistic growth. The equations for non-overlapping and overlapping populations are discussed, illustrating how intrinsic growth rates and carrying capacities influence population size. Key terms such as birth rates, death rates, and reproductive rates provide a framework for understanding population changes over time. Various figures illustrate concepts, including J-shaped and S-shaped growth patterns, equipping readers with foundational knowledge of population dynamics.

#understanding population growth: models and dynamics #understanding population growth: models and dynamics ppt #powerpoint #presentation
Understanding Population Growth: Models and Dynamics - slide 1
01 / 37Understanding Population Growth: Models and Dynamics
1 / 17

Télécharger la présentation

Understanding Population Growth: Models and Dynamics
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Populations

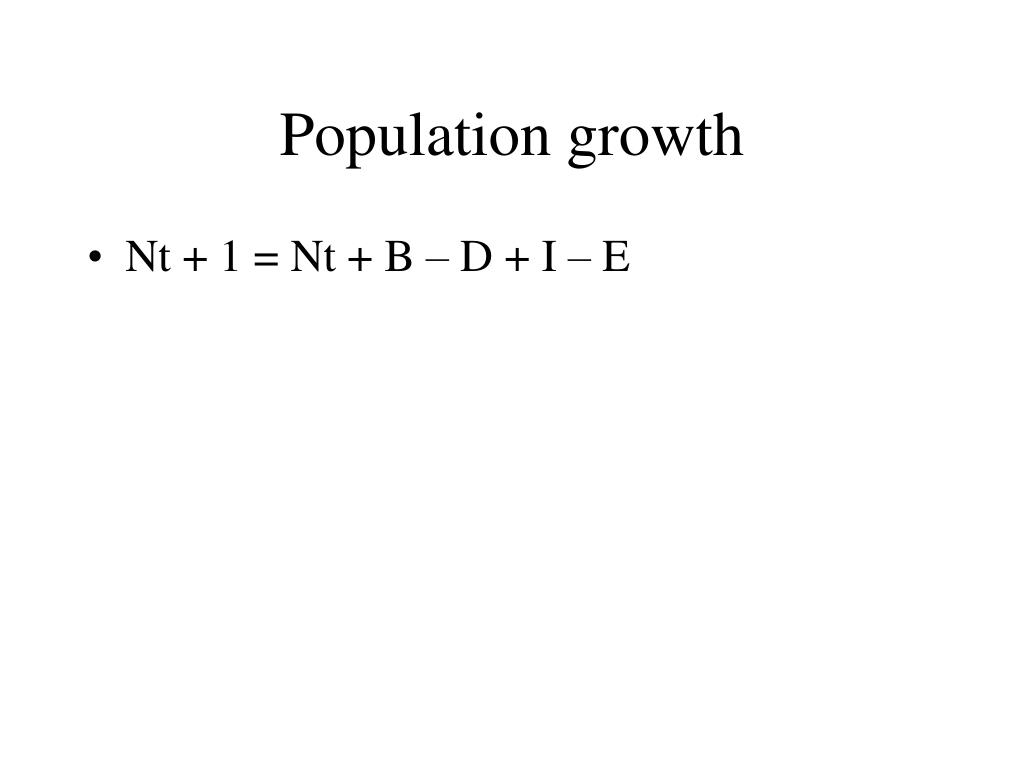

  2. Population growth • Nt + 1 = Nt + B – D + I – E

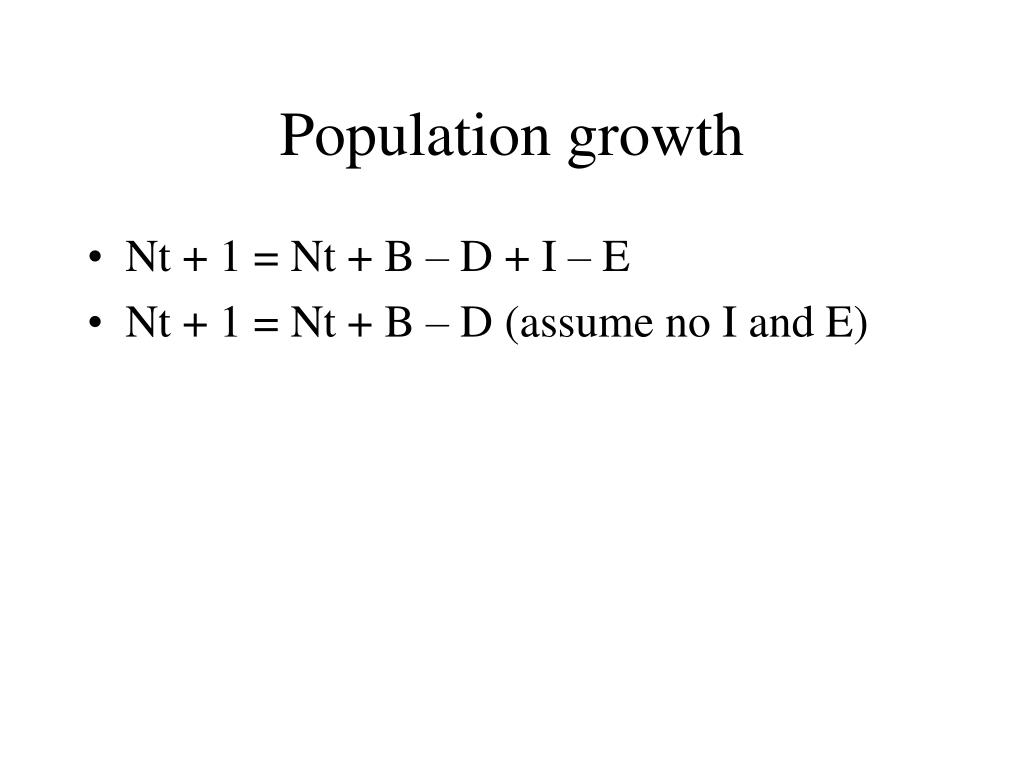

  3. Population growth • Nt + 1 = Nt + B – D + I – E • Nt + 1 = Nt + B – D (assume no I and E)

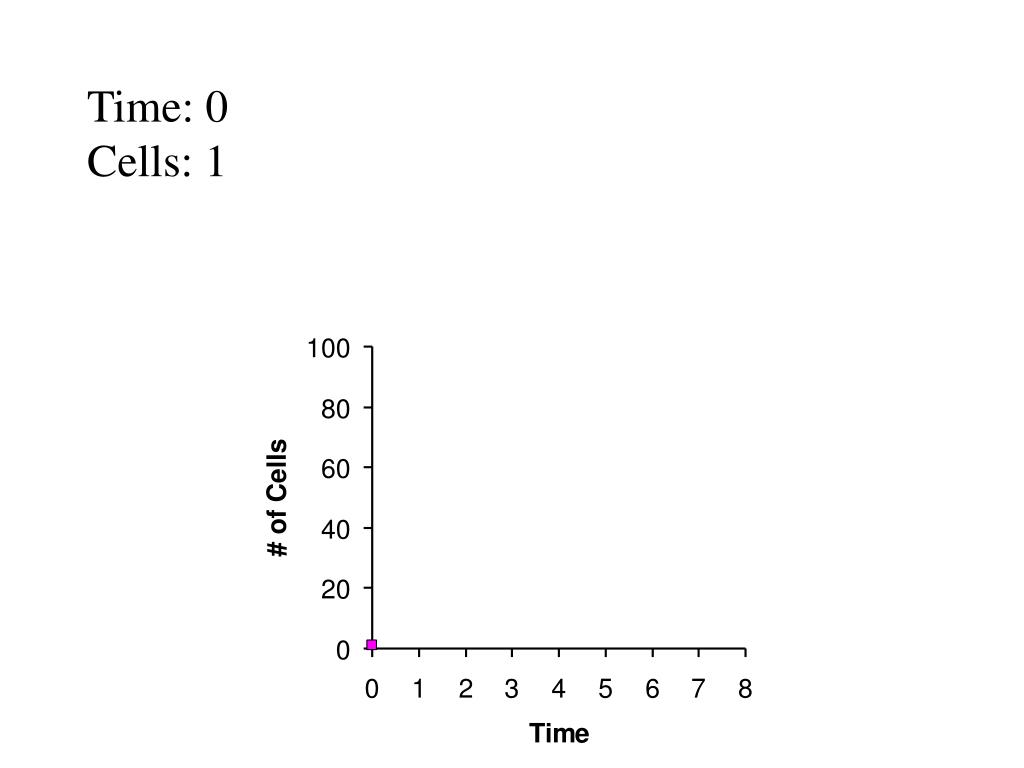

  4. Time: 0Cells: 1

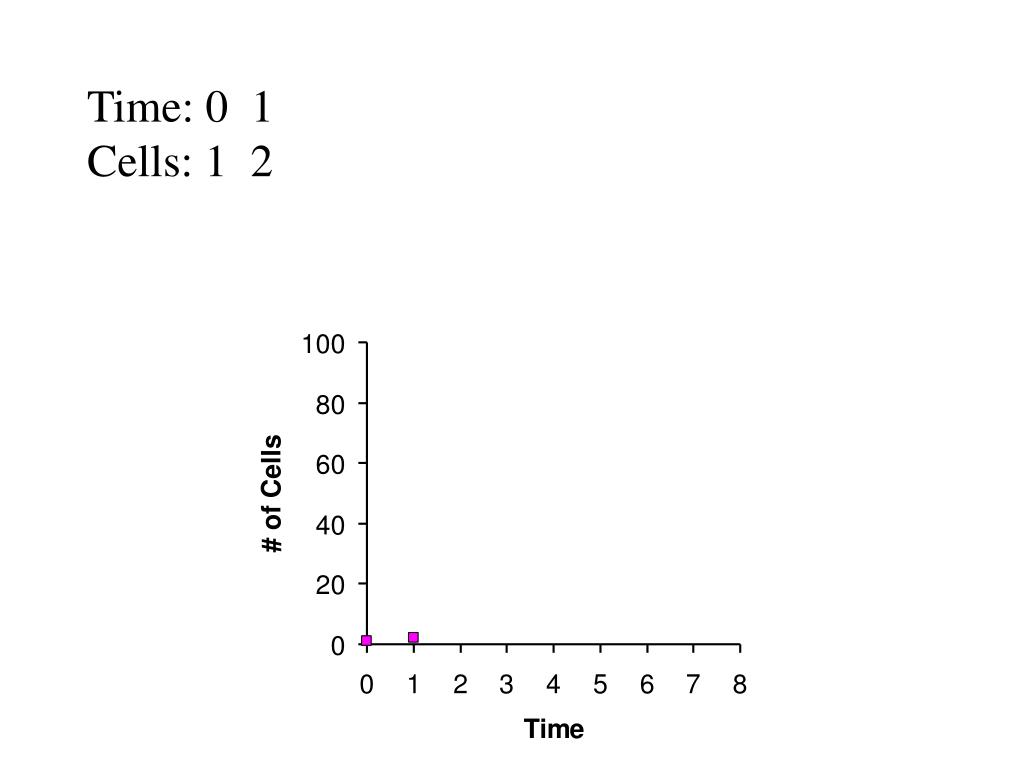

  5. Time: 0 1Cells: 1 2

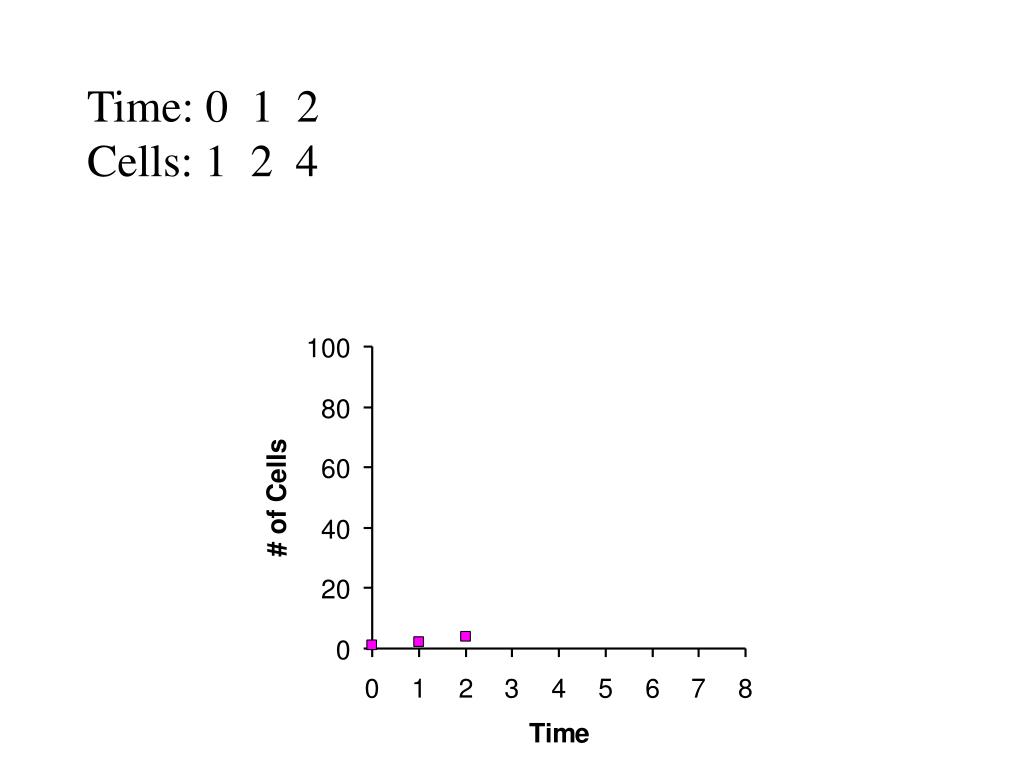

  6. Time: 0 1 2Cells: 1 2 4

  7. Time: 0 1 2 3Cells: 1 2 4 8

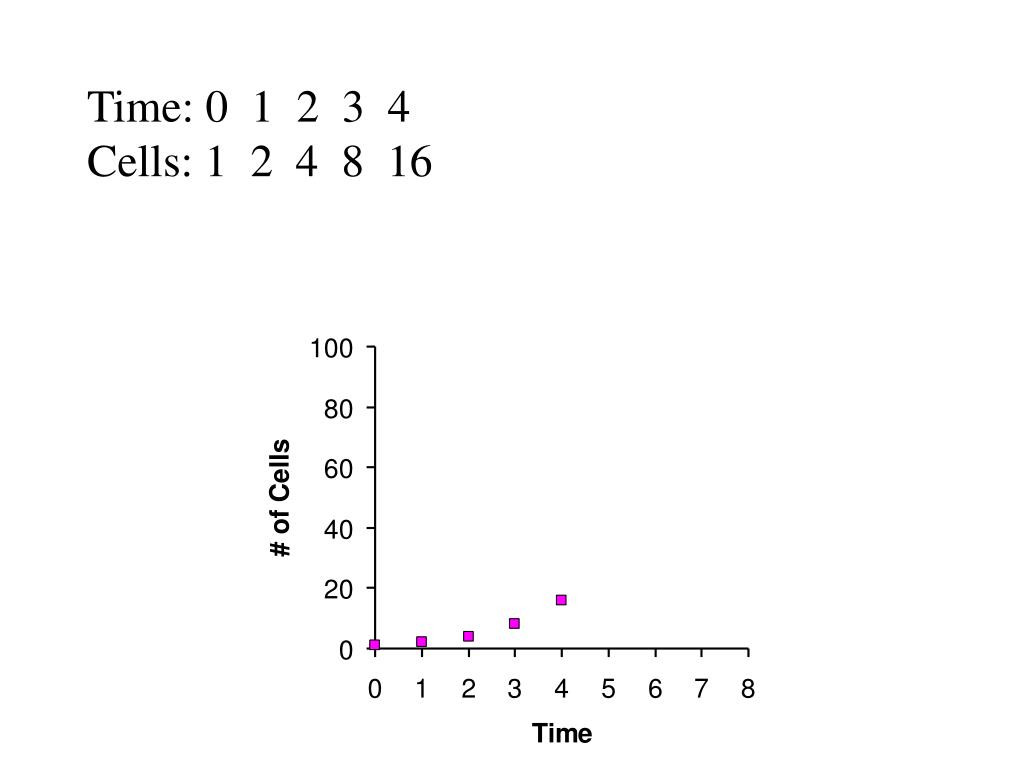

  8. Time: 0 1 2 3 4Cells: 1 2 4 8 16

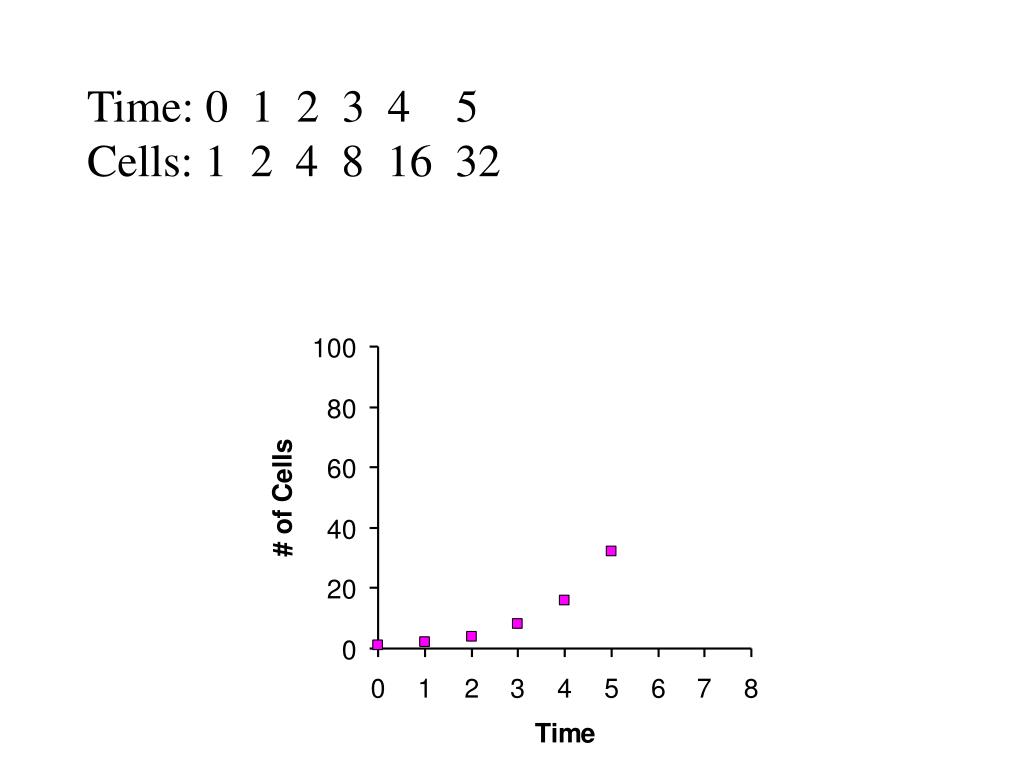

  9. Time: 0 1 2 3 4 5Cells: 1 2 4 8 16 32

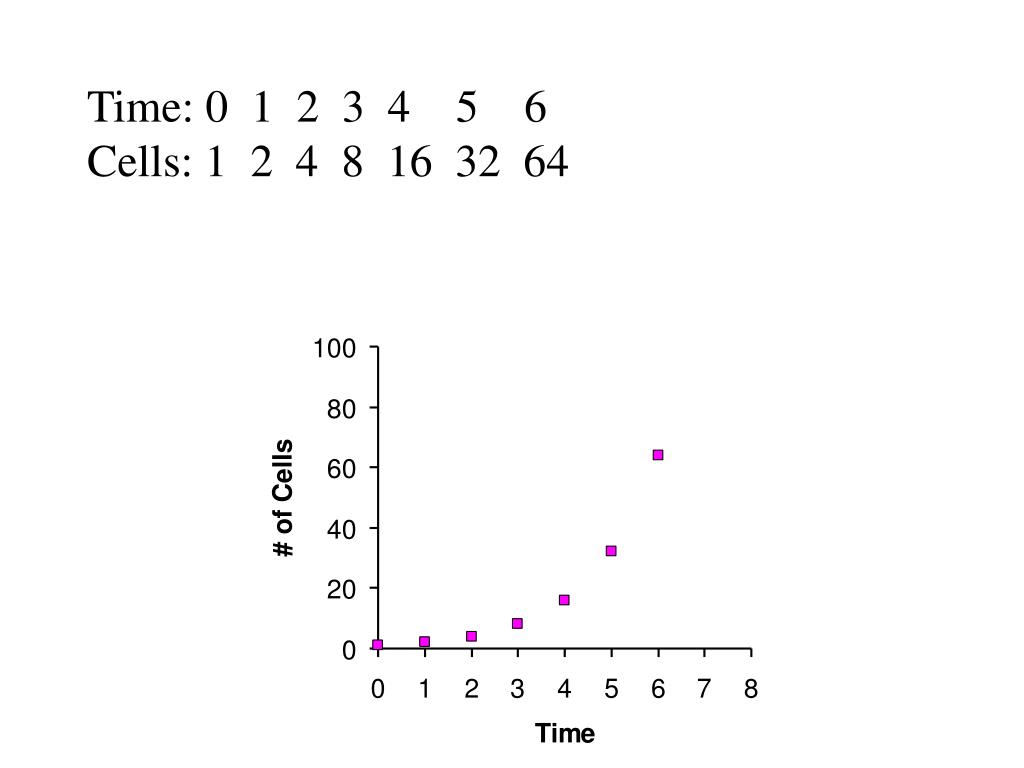

  10. Time: 0 1 2 3 4 5 6Cells: 1 2 4 8 16 32 64

  11. Time: 0 1 2 3 4 5 6 7Cells: 1 2 4 8 16 32 64 128

  12. Time: 0 1 2 3 4 5 6 7Cells: 1 2 4 8 16 32 64 128 “J” shaped or exponential growth

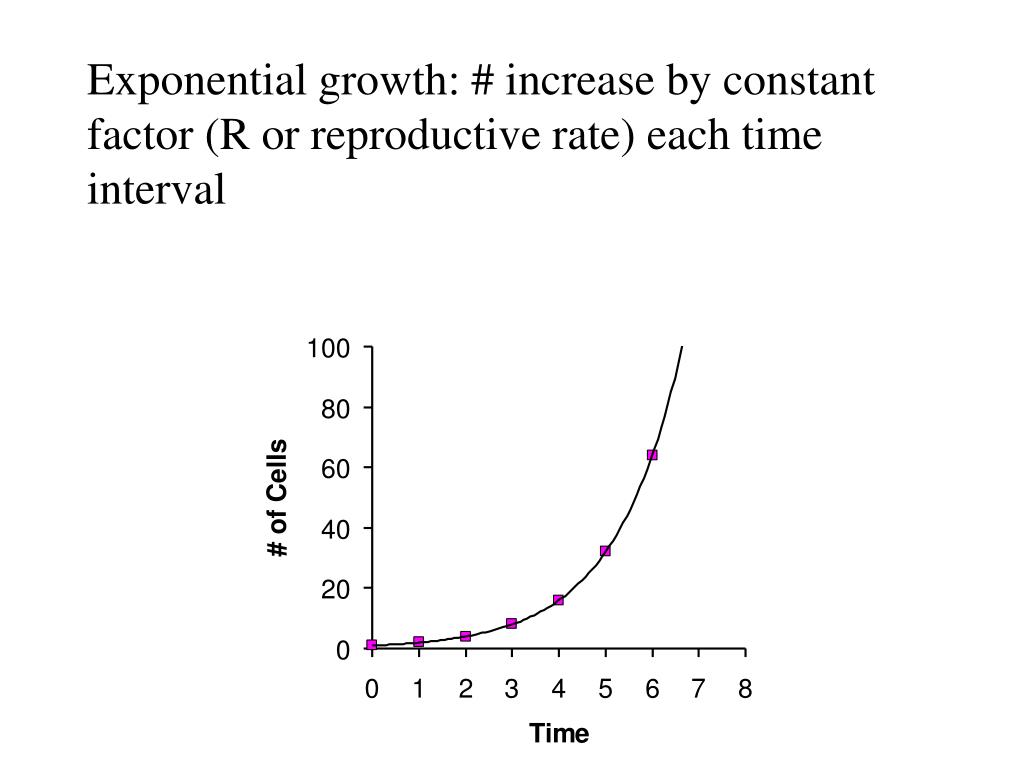

  13. Exponential growth: # increase by constant factor (R or reproductive rate) each time interval

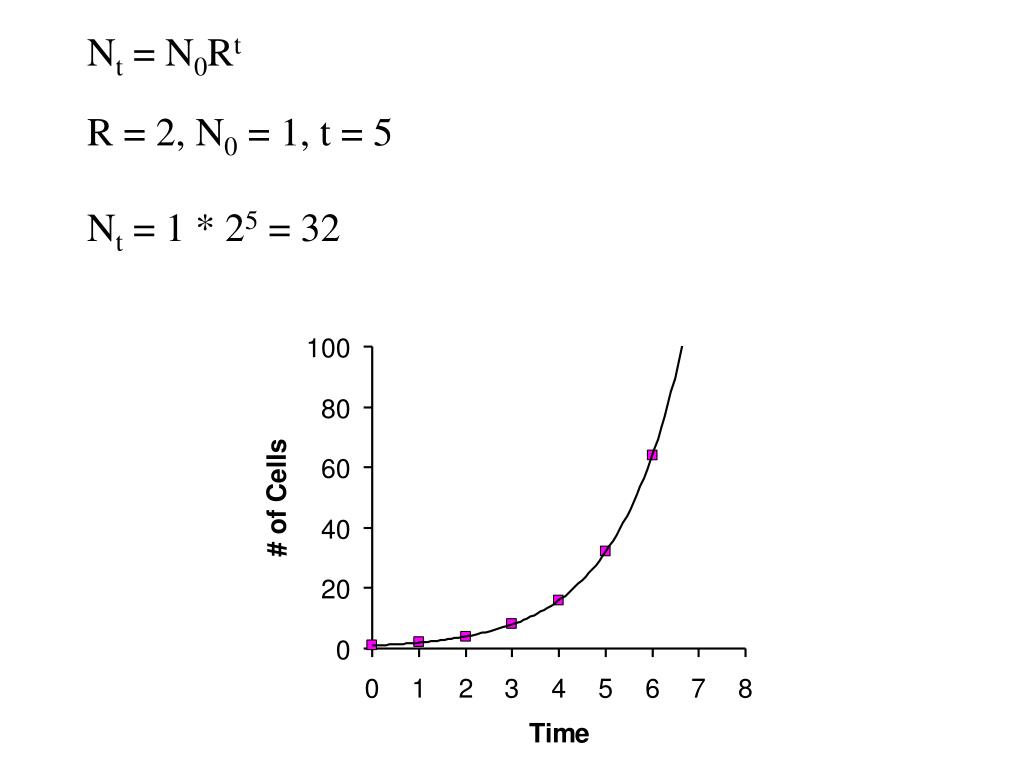

  14. Nt = N0RtR = 2, N0 = 1, t = 5Nt = 1 * 25 = 32

  15. Nt = N0RtR = 2, N0 = 1, t = 5Nt = 1 * 25 = 32 Mathematical model for non-overlapping (discrete) populations

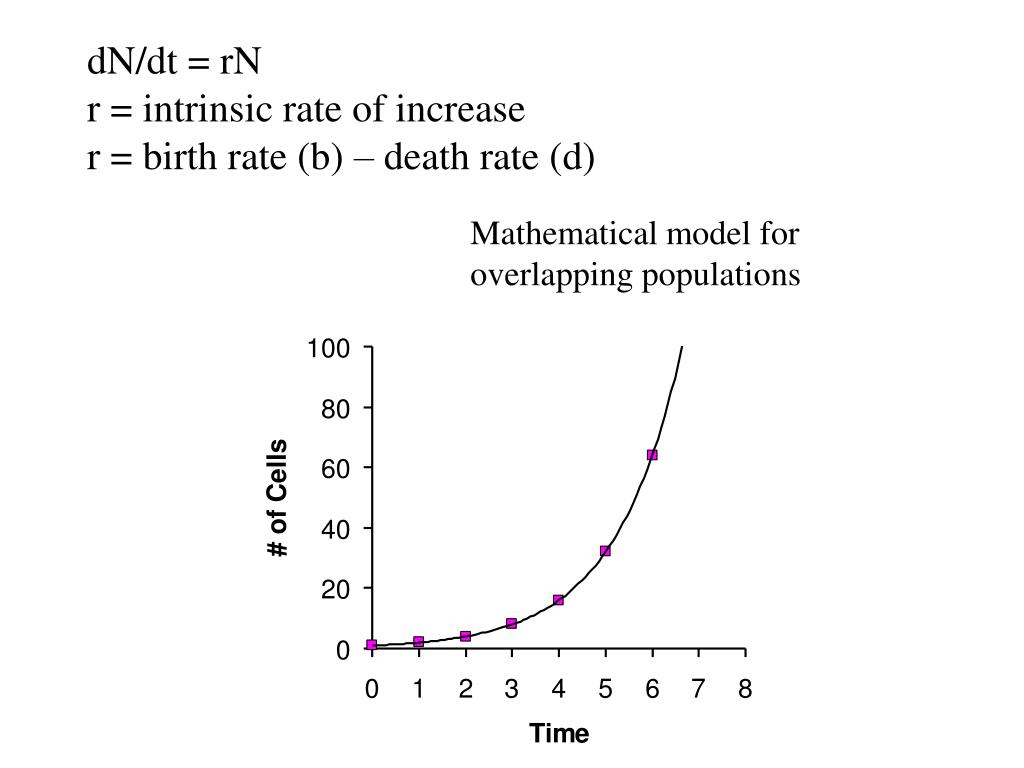

  16. dN/dt = rNr = intrinsic rate of increaser = birth rate (b) – death rate (d) Mathematical model for overlapping populations

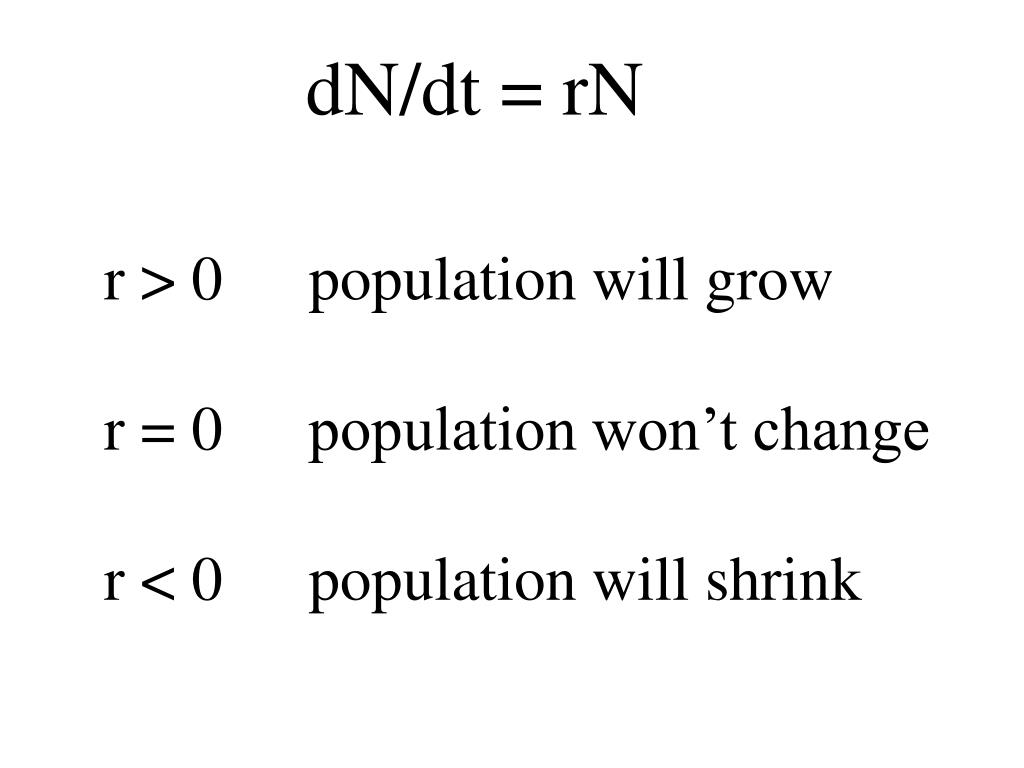

  17. dN/dt = rN r > 0 population will grow r = 0 population won’t change r < 0 population will shrink

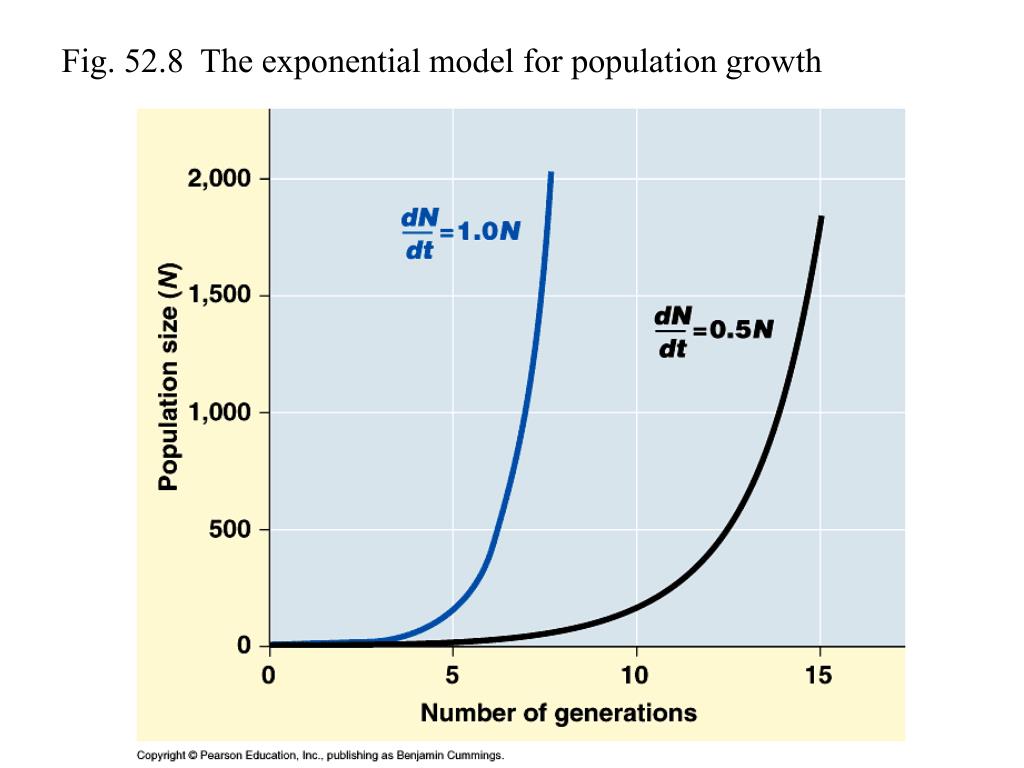

  18. Fig. 52.8 The exponential model for population growth

  19. Fig 52.9

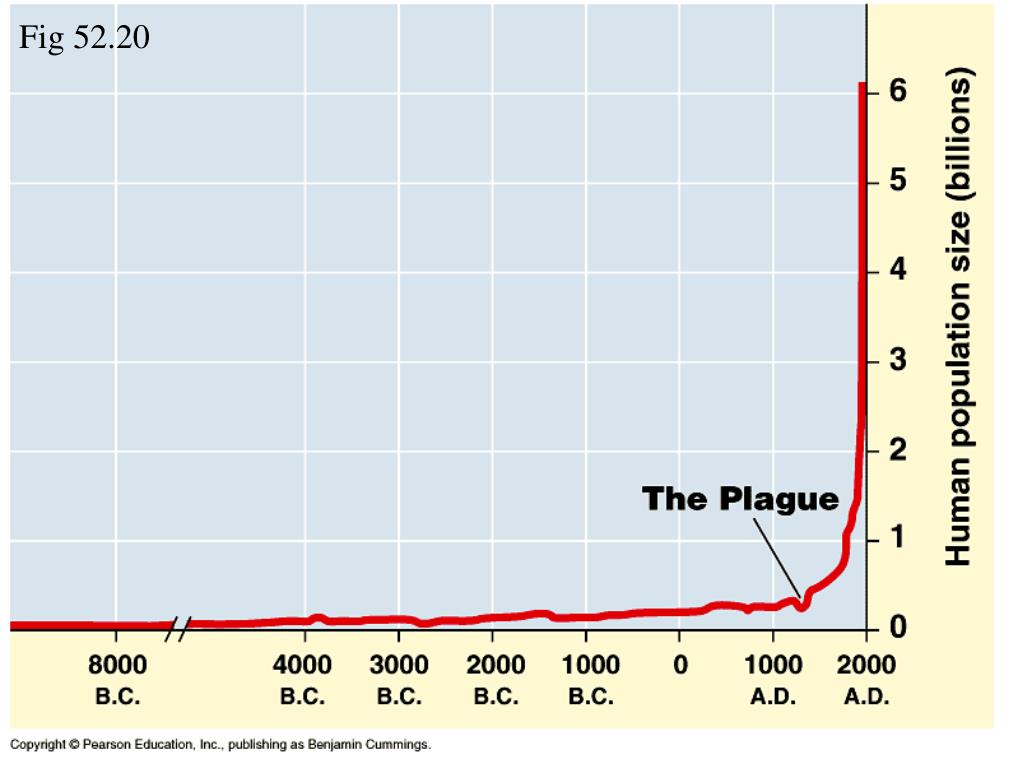

  20. Fig 52.20

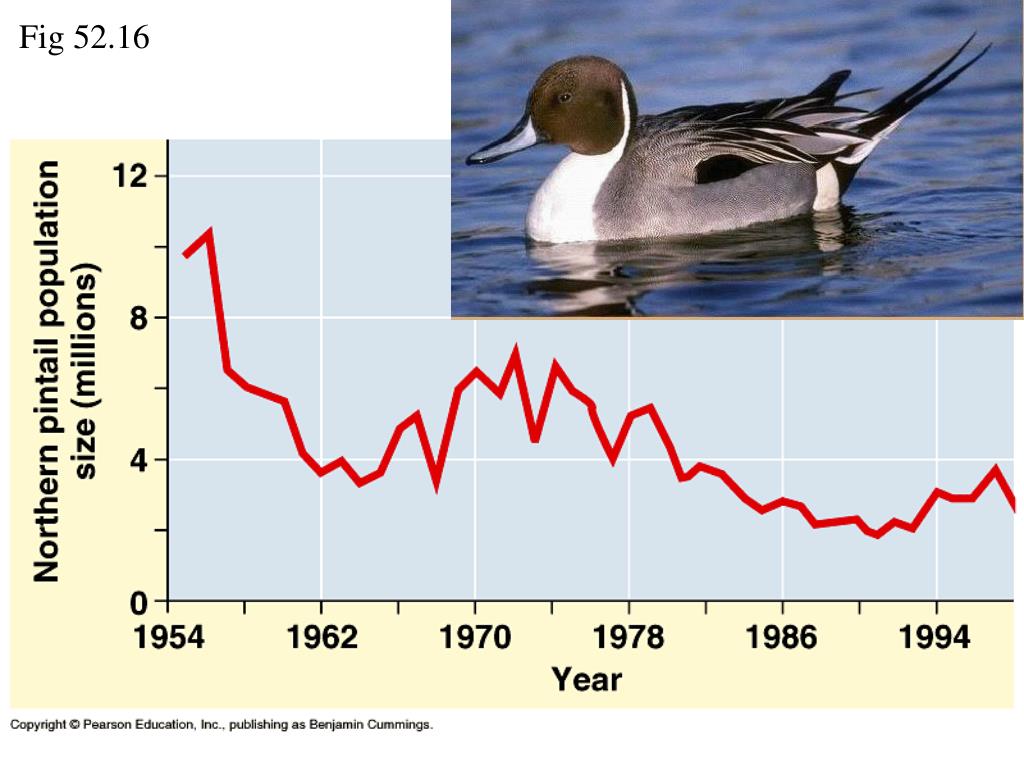

  21. Fig 52.16

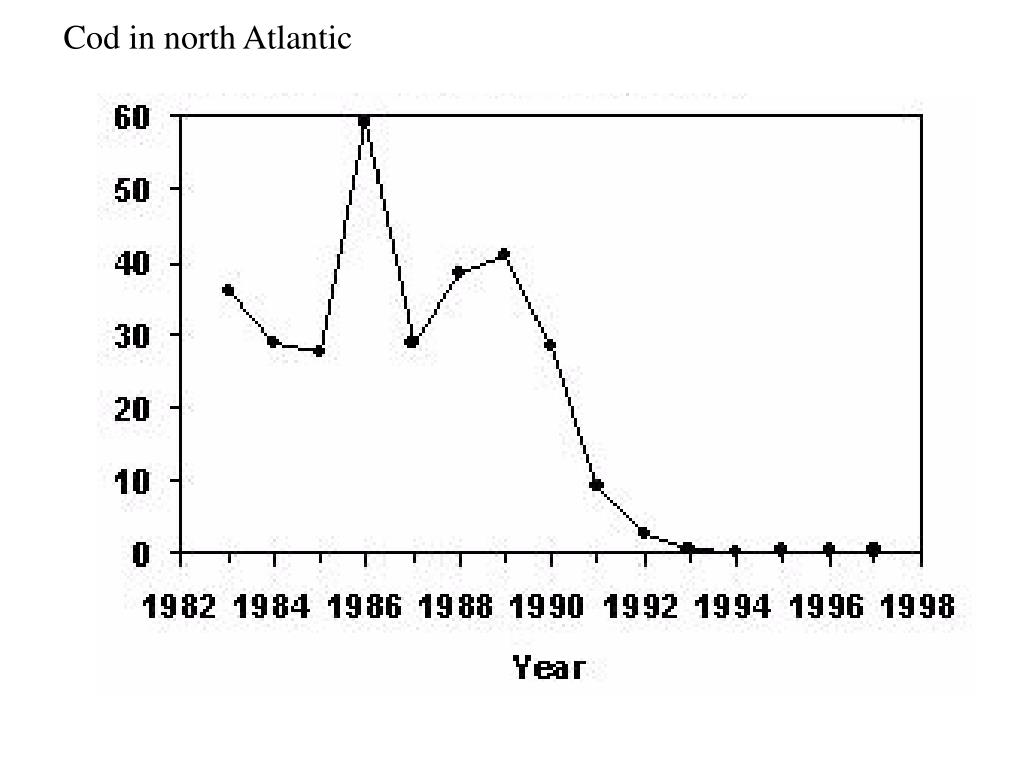

  22. Cod in north Atlantic

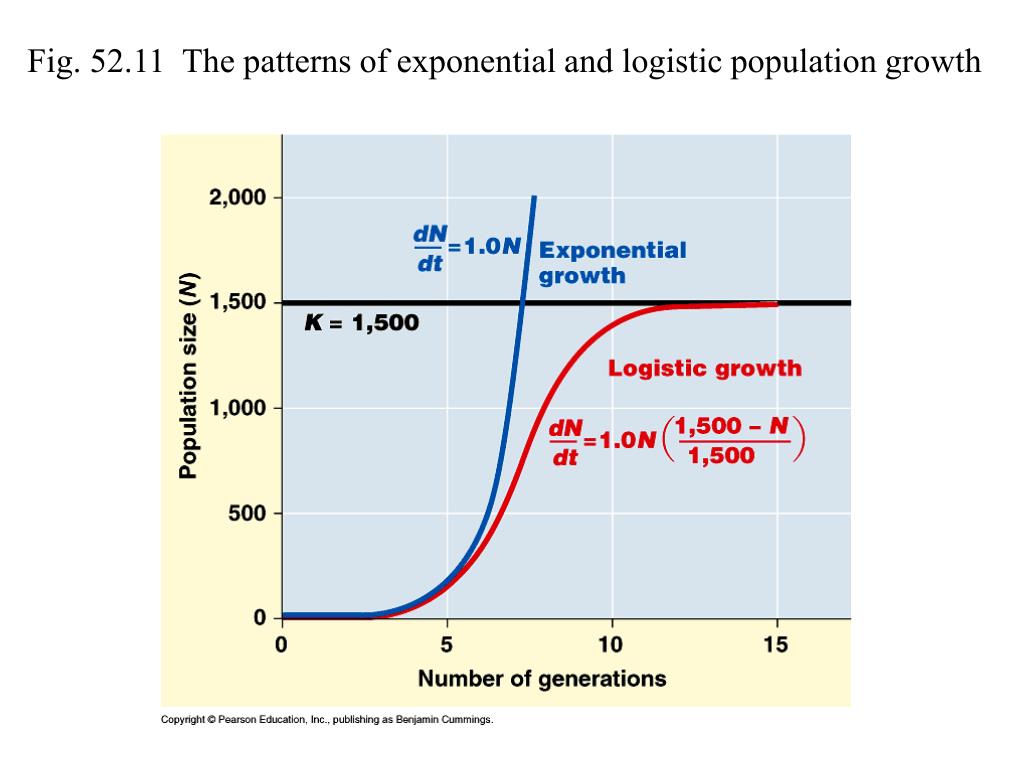

  23. Fig. 52.11 The patterns of exponential and logistic population growth

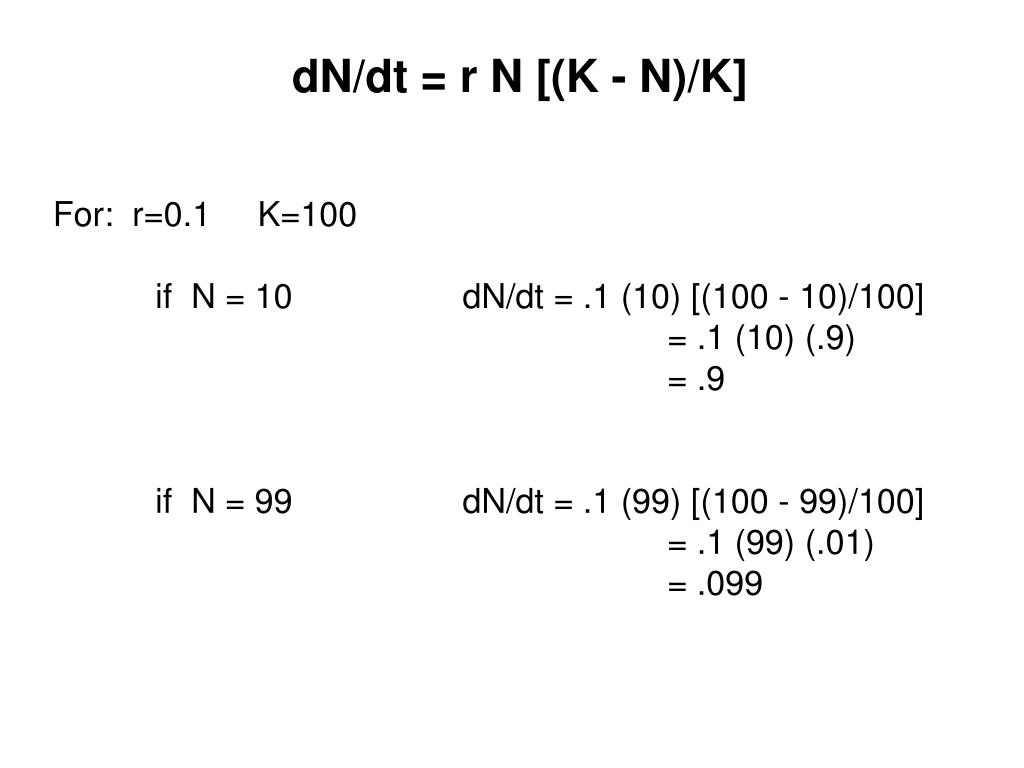

  24. dN/dt = r N [(K - N)/K] For: r=0.1 K=100 if N = 10 dN/dt = .1 (10) [(100 - 10)/100] = .1 (10) (.9) = .9 if N = 99 dN/dt = .1 (99) [(100 - 99)/100] = .1 (99) (.01) = .099

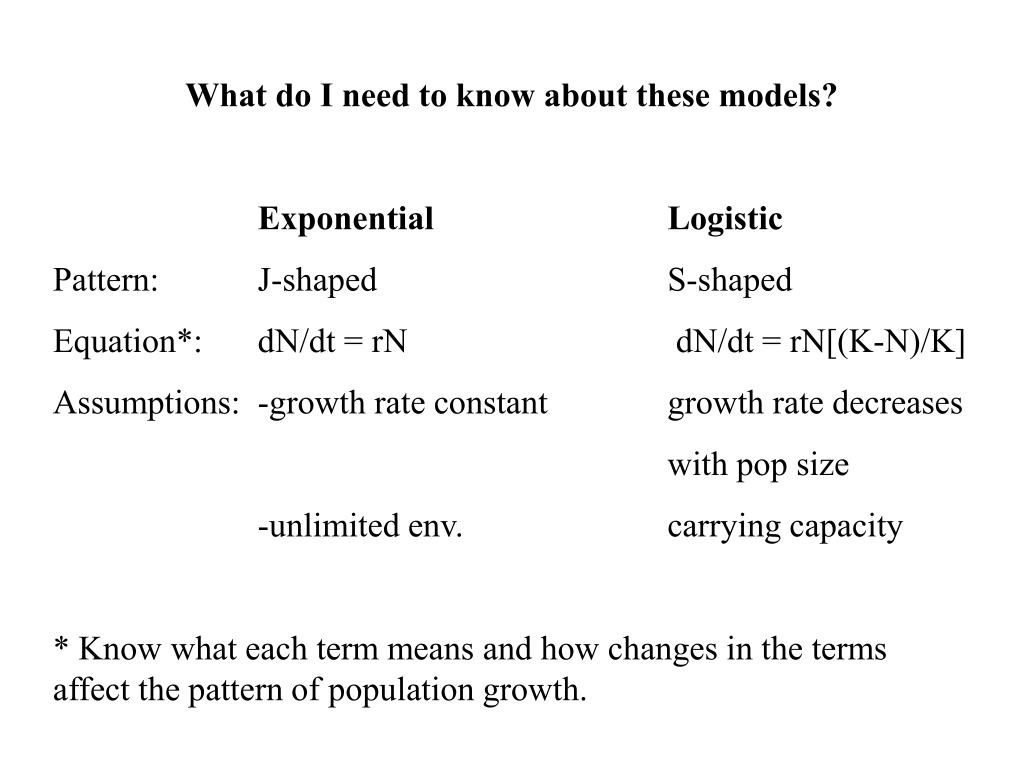

  25. What do I need to know about these models? ExponentialLogistic Pattern: J-shaped S-shaped Equation*: dN/dt = rN dN/dt = rN[(K-N)/K] Assumptions: -growth rate constant growth rate decreases with pop size -unlimited env. carrying capacity * Know what each term means and how changes in the terms affect the pattern of population growth.

  26. Sometimes population growth is independent of density

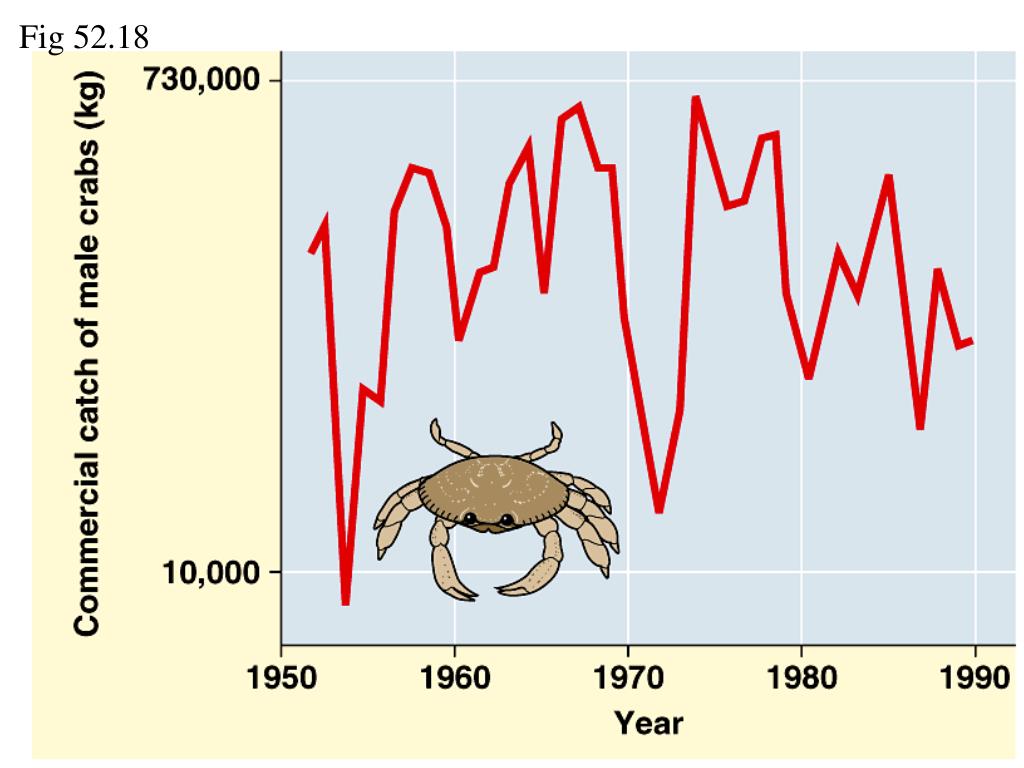

  27. Fig 52.18

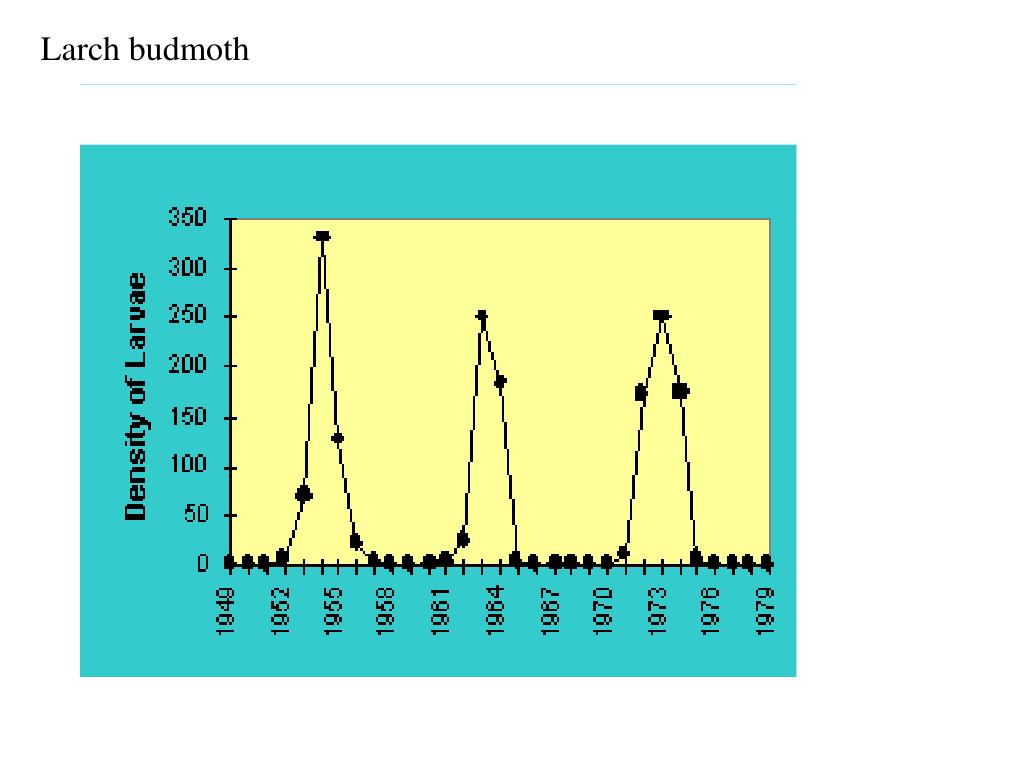

  28. Larch budmoth

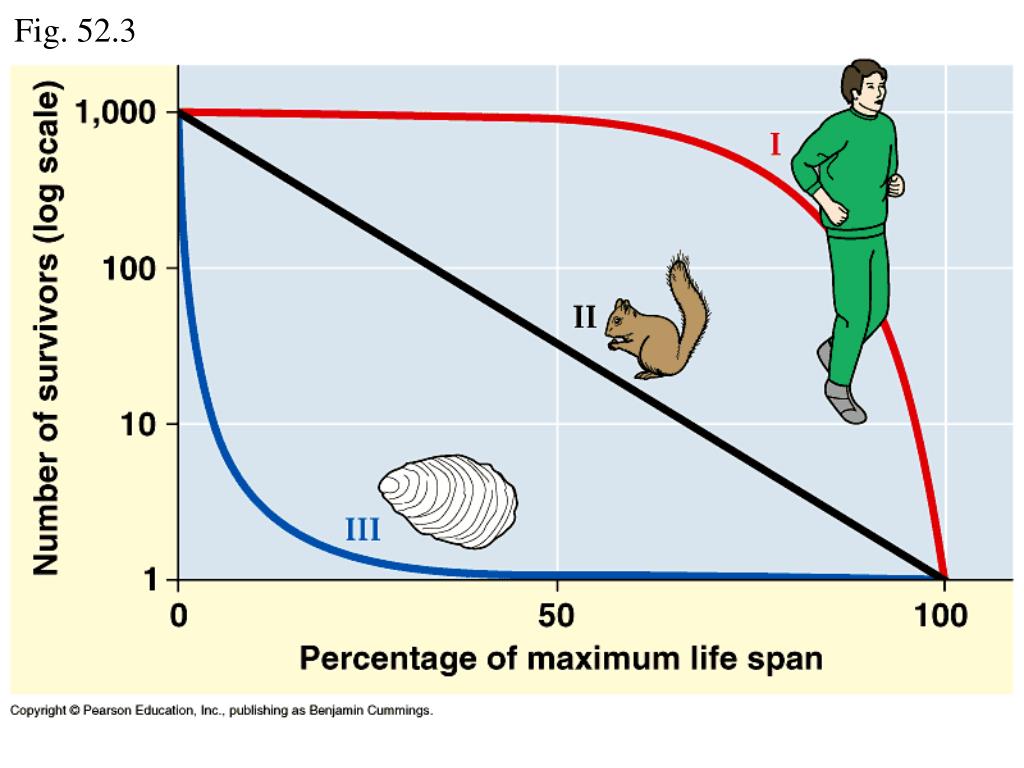

  29. Fig. 52.3

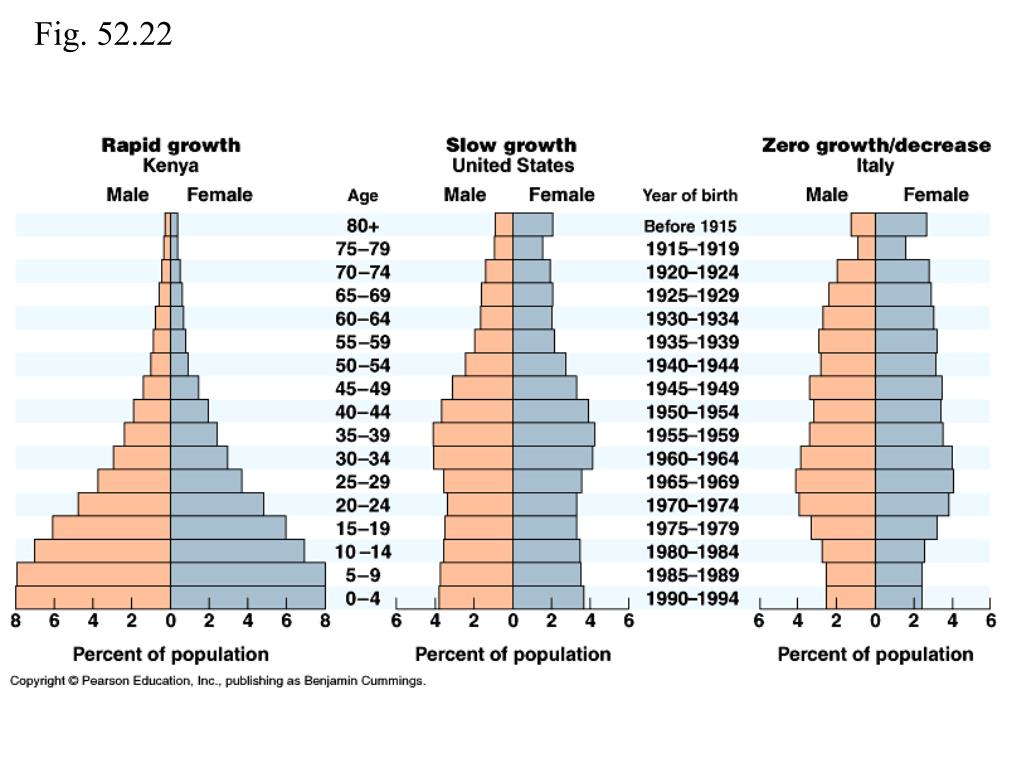

  30. Fig. 52.22

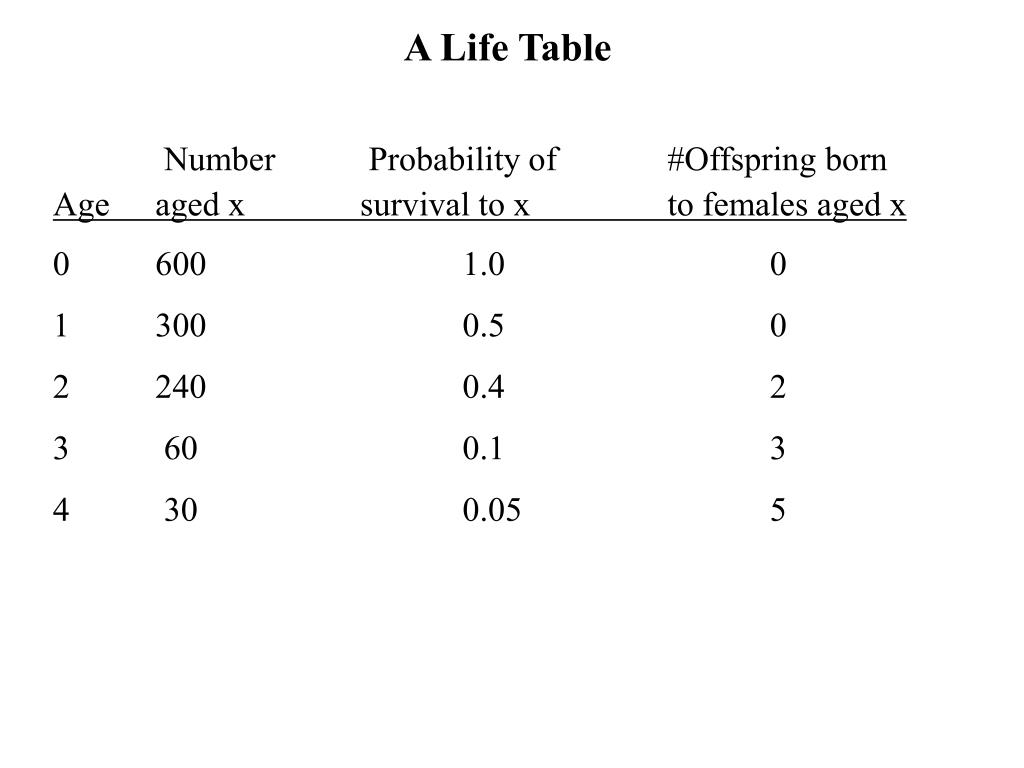

  31. A Life Table Number Probability of #Offspring born Age aged x survival to x to females aged x 0 600 1.0 0 1 300 0.5 0 2 240 0.4 2 3 60 0.1 3 4 30 0.05 5

  32. Age group (x) Nx bx lx 0 600 0 1 1 300 0 .5 2 240 2 .4 3 60 3 .1 4 30 5 .05 lxbx 0 0 .8 .3 .25 Lifetime offspring per individual female Σ lxbx = 1.35
