  1. Problem Solving throughExhaustive State Space Search Jacques Robin

  2. Outline • Search Agent • Formulating Decision Problems as Navigating State Space to Find Goal State • Generic Search Algorithm • Specific Algorithms • Breadth-First Search • Uniform Cost Search • Depth-First Search • Backtracking Search • Iterative Deepening Search • Bi-Directional Search • Comparative Table • Limitations and Difficulties • Repeated States • Partial Information

  3. Search Agents • Generic decision problem to be solved by an agent: • Among all possible action sequences that I can execute, • which ones will result in changing the environment from its current state, • to another state that matches my goal? • Additional optimization problem: • Among those action sequences that will change the environment from its current state to a goal state • which one can be executed at minimum cost? • or which one leads to a state with maximum utility? • Search agent solves this decision problem by a generate and test approach: • Given the environment model, • generate one by one (all) the possible states (the state space) of the environment reachable through all possible action sequences from the current state, • test each generated state to determine whether it satisfies the goal or maximize utility • Navigation metaphor: • The order of state generation is viewed as navigating the entire environment state space

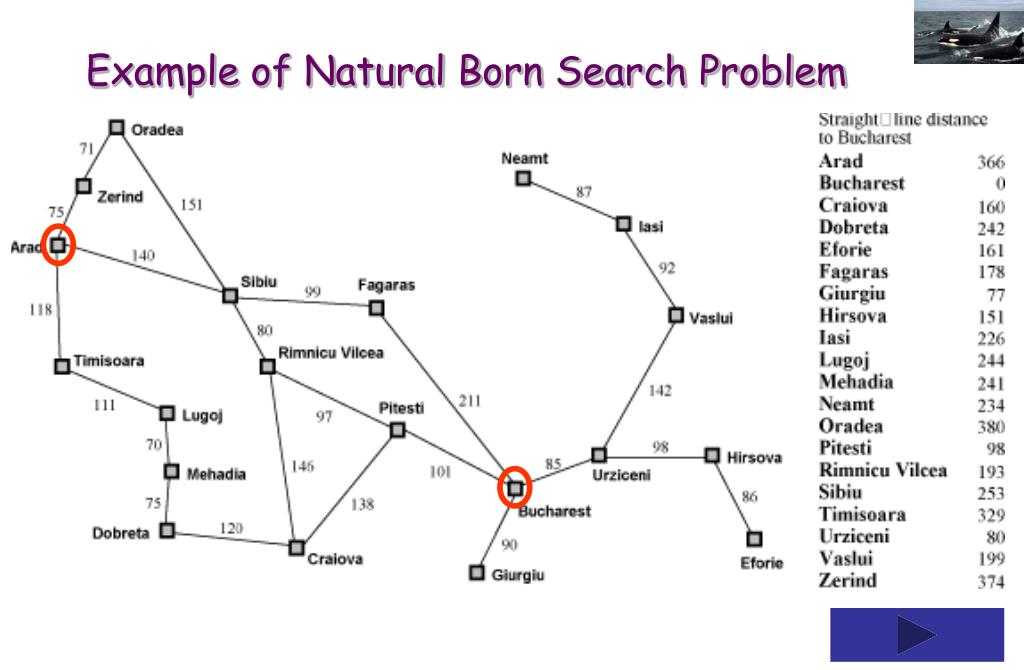

  4. Example of Natural Born Search Problem

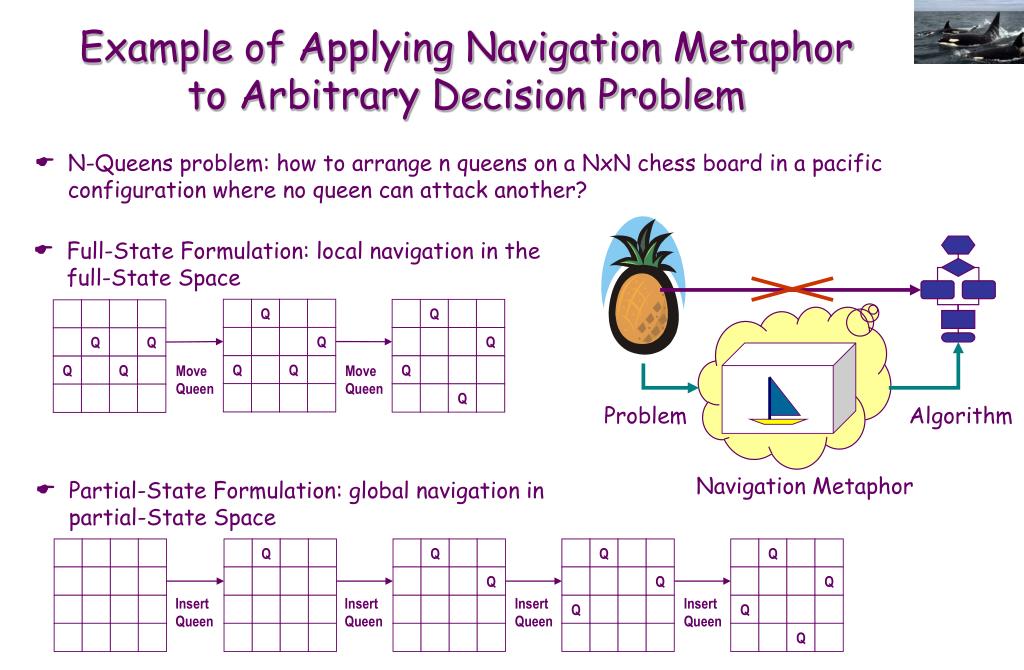

  5. Q Q Q Q Q Q Q Q Q Q Q Q Q Q Q Q Q Q Q Q Move Queen Move Queen Q Q Problem Algorithm Insert Queen Insert Queen Insert Queen Insert Queen Navigation Metaphor Example of Applying Navigation Metaphorto Arbitrary Decision Problem • N-Queens problem: how to arrange n queens on a NxN chess board in a pacific configuration where no queen can attack another? • Full-State Formulation: local navigation in thefull-State Space • Partial-State Formulation: global navigation in partial-State Space

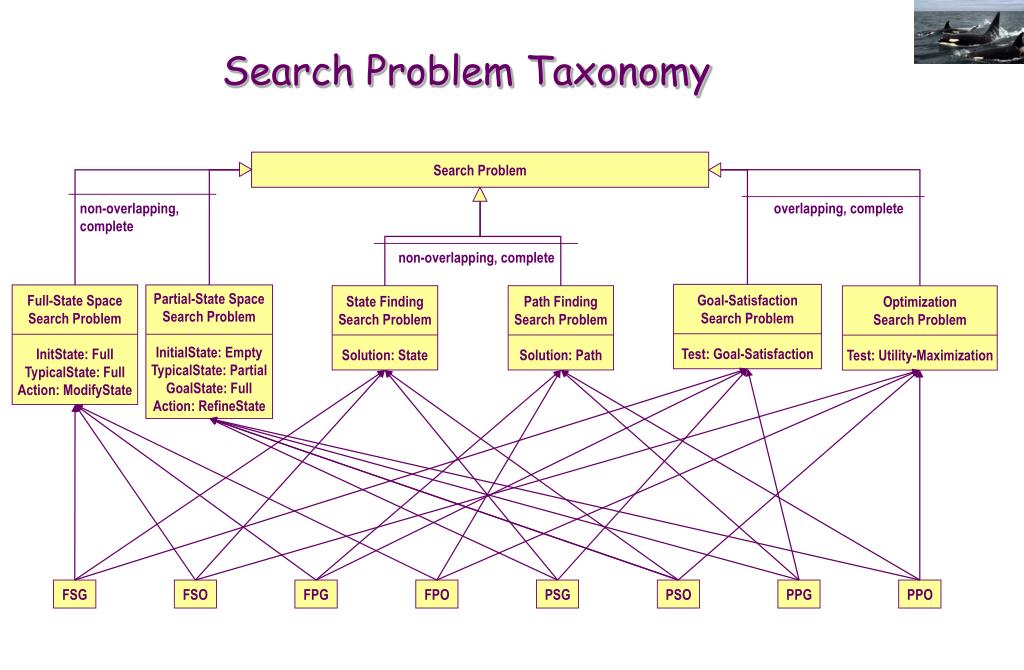

  6. non-overlapping, complete overlapping, complete Full-State Space Search Problem InitState: Full TypicalState: Full Action: ModifyState non-overlapping, complete Partial-State Space Search Problem InitialState: Empty TypicalState: Partial GoalState: Full Action: RefineState Path Finding Search Problem Solution: Path Goal-Satisfaction Search Problem Test: Goal-Satisfaction Optimization Search Problem Test: Utility-Maximization State Finding Search Problem Solution: State FSG FSO FPG FPO PSG PSO PPG PPO Search Problem Taxonomy Search Problem

  7. Search Tree • The state space can be represented as a search tree • Each search tree node represents an environment state • Each search tree arc represents an action changing the environment from its source node to its target node • Each node or arc can be associated to a utility or cost • Each path from the tree root to another tree node represents an action sequence • Some search tree node leaves represent goal states • The problem of navigating the state space then becomes one of generating and maintaining a search tree until a solution node or path is generated • The problem search tree: • An abstract concept that contains one node for each possible environment state • Can be infinite • The algorithm search tree: • A concrete data structure • A subset of the problem search tree that contains only the nodes generated and maintained (i.e., explored) at the current point during the algorithm execution (always finite) • Problem search tree branching factor: average number of actions available to the agent in each state • Algorithm effective branching factor: average number of nodes effectively generated as successors of each node during search

  8. c d c c,d d c,d c c d d d d c c,d d c,d c c c,d c,d c,d c d d c d c,d d d c d c c c d c,d d c,d d d c,d c c c,d d c,d d d c c d d d c,d c,d d c,d d c,d d d d c,d d d c d c,d c d d c,d d c d c,d d c c c,d c d d c,d d c,d c,d d Search Tree Example: Vacuum Cleaner World u u u u s s s u u d u d u d s s s d s s d d d d u s d u d u s d s u s d

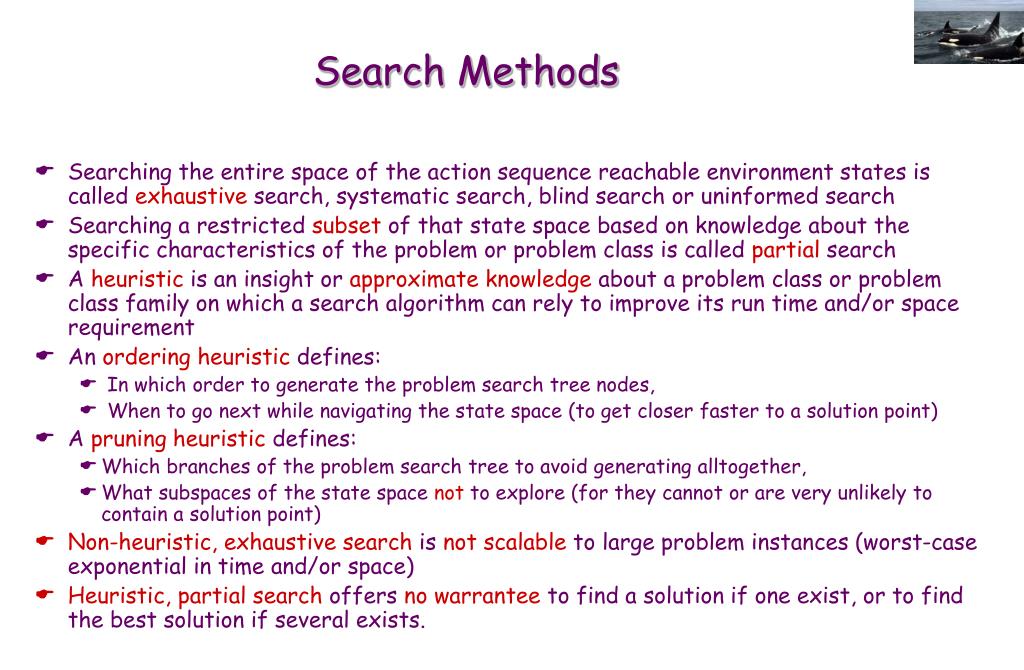

  9. Search Methods • Searching the entire space of the action sequence reachable environment states is called exhaustive search, systematic search, blind search or uninformed search • Searching a restricted subset of that state space based on knowledge about the specific characteristics of the problem or problem class is called partial search • A heuristic is an insight or approximate knowledge about a problem class or problem class family on which a search algorithm can rely to improve its run time and/or space requirement • An ordering heuristic defines: • In which order to generate the problem search tree nodes, • When to go next while navigating the state space (to get closer faster to a solution point) • A pruning heuristic defines: • Which branches of the problem search tree to avoid generating alltogether, • What subspaces of the state space not to explore (for they cannot or are very unlikely to contain a solution point) • Non-heuristic, exhaustive search is not scalable to large problem instances (worst-case exponential in time and/or space) • Heuristic, partial search offers no warrantee to find a solution if one exist, or to find the best solution if several exists.

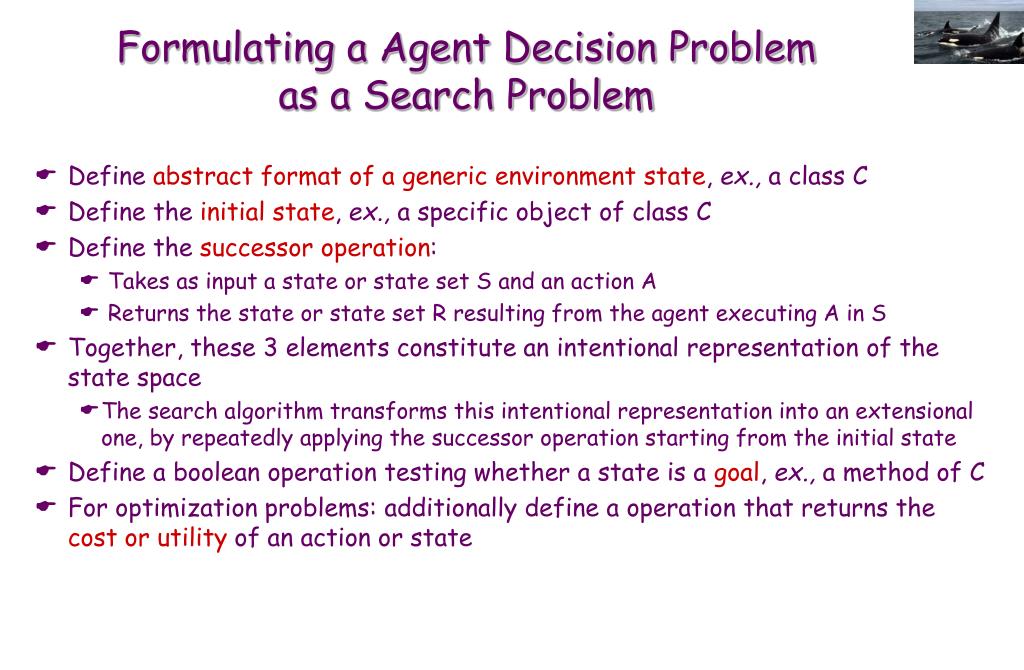

  10. Formulating a Agent Decision Problemas a Search Problem • Define abstract format of ageneric environment state, ex., a class C • Define the initial state, ex., a specific object of class C • Define the successor operation: • Takes as input a state or state set S and an action A • Returns the state or state set R resulting from the agent executing A in S • Together, these 3 elements constitute an intentional representation of the state space • The search algorithm transforms this intentional representation into an extensional one, by repeatedly applying the successor operation starting from the initial state • Define a boolean operation testing whether a state is a goal, ex., a method of C • For optimization problems: additionally define a operation that returns the cost or utility of an action or state

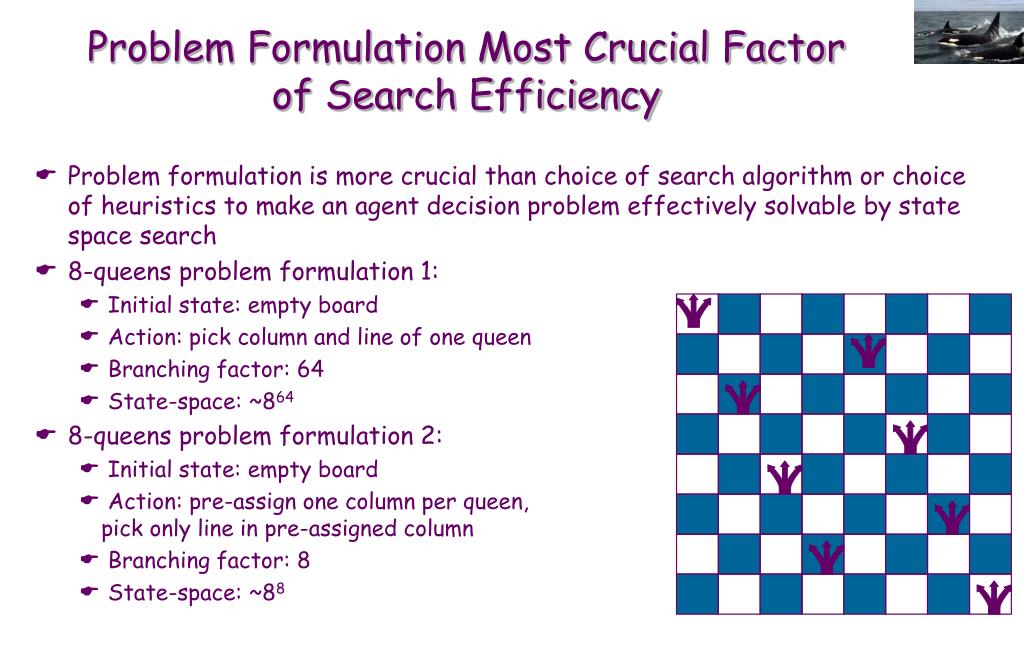

  11. Problem Formulation Most Crucial Factorof Search Efficiency • Problem formulation is more crucial than choice of search algorithm or choice of heuristics to make an agent decision problem effectively solvable by state space search • 8-queens problem formulation 1: • Initial state: empty board • Action: pick column and line of one queen • Branching factor: 64 • State-space: ~864 • 8-queens problem formulation 2: • Initial state: empty board • Action: pre-assign one column per queen, pick only line in pre-assigned column • Branching factor: 8 • State-space: ~88

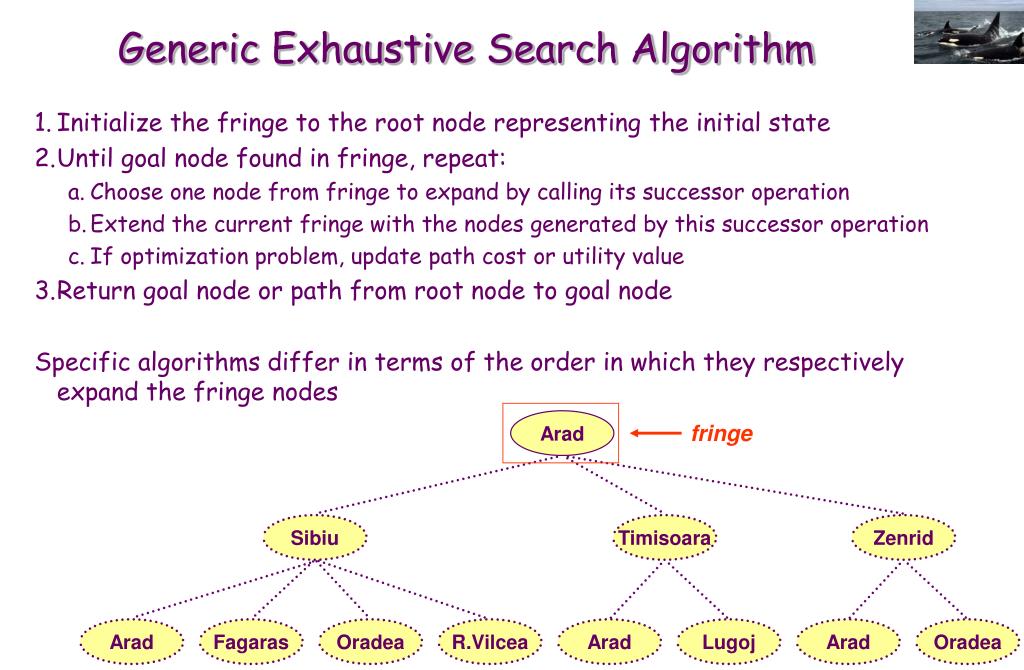

  12. fringe Generic Exhaustive Search Algorithm • Initialize the fringe to the root node representing the initial state • Until goal node found in fringe, repeat: • Choose one node from fringe to expand by calling its successor operation • Extend the current fringe with the nodes generated by this successor operation • If optimization problem, update path cost or utility value • Return goal node or path from root node to goal node Specific algorithms differ in terms of the order in which they respectively expand the fringe nodes Arad Sibiu Timisoara Zenrid Arad Fagaras Oradea R.Vilcea Arad Lugoj Arad Oradea

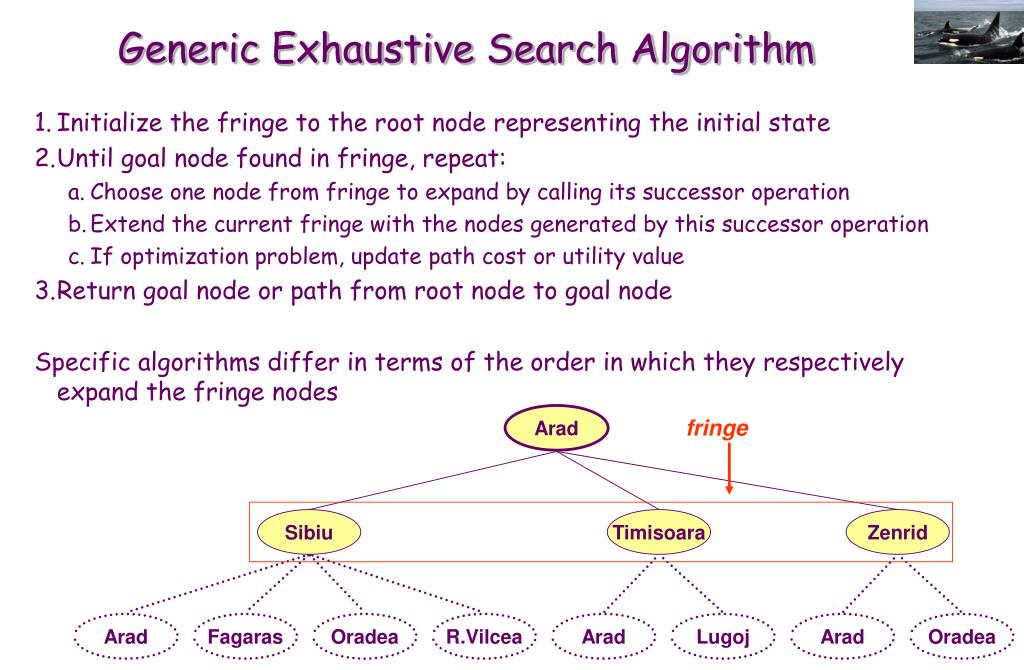

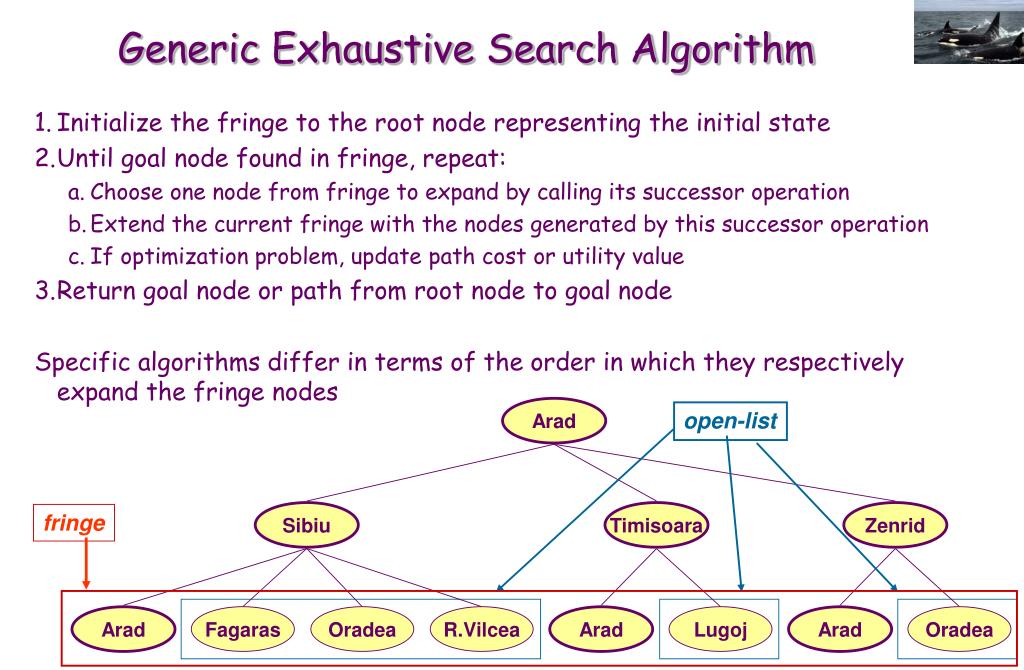

  13. Generic Exhaustive Search Algorithm • Initialize the fringe to the root node representing the initial state • Until goal node found in fringe, repeat: • Choose one node from fringe to expand by calling its successor operation • Extend the current fringe with the nodes generated by this successor operation • If optimization problem, update path cost or utility value • Return goal node or path from root node to goal node Specific algorithms differ in terms of the order in which they respectively expand the fringe nodes Arad fringe Sibiu Timisoara Zenrid Arad Fagaras Oradea R.Vilcea Arad Lugoj Arad Oradea

  14. Generic Exhaustive Search Algorithm • Initialize the fringe to the root node representing the initial state • Until goal node found in fringe, repeat: • Choose one node from fringe to expand by calling its successor operation • Extend the current fringe with the nodes generated by this successor operation • If optimization problem, update path cost or utility value • Return goal node or path from root node to goal node Specific algorithms differ in terms of the order in which they respectively expand the fringe nodes Arad open-list Sibiu Timisoara Zenrid fringe Arad Fagaras Oradea R.Vilcea Arad Lugoj Arad Oradea

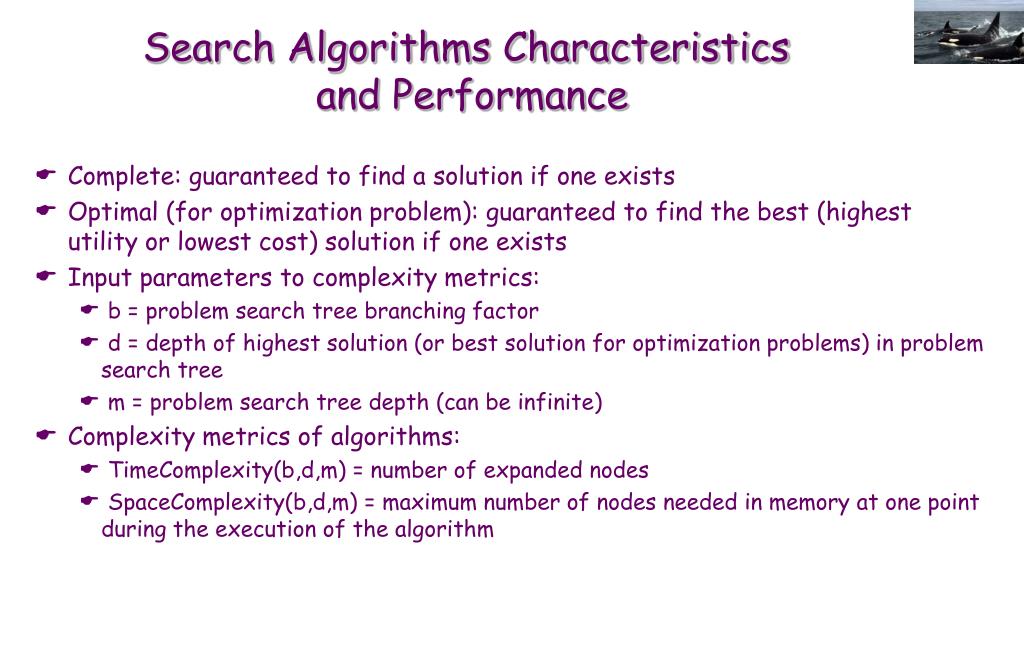

  15. Search Algorithms Characteristics and Performance • Complete: guaranteed to find a solution if one exists • Optimal (for optimization problem): guaranteed to find the best (highest utility or lowest cost) solution if one exists • Input parameters to complexity metrics: • b = problem search tree branching factor • d = depth of highest solution (or best solution for optimization problems) in problem search tree • m = problem search tree depth (can be infinite) • Complexity metrics of algorithms: • TimeComplexity(b,d,m) = number of expanded nodes • SpaceComplexity(b,d,m) = maximum number of nodes needed in memory at one point during the execution of the algorithm

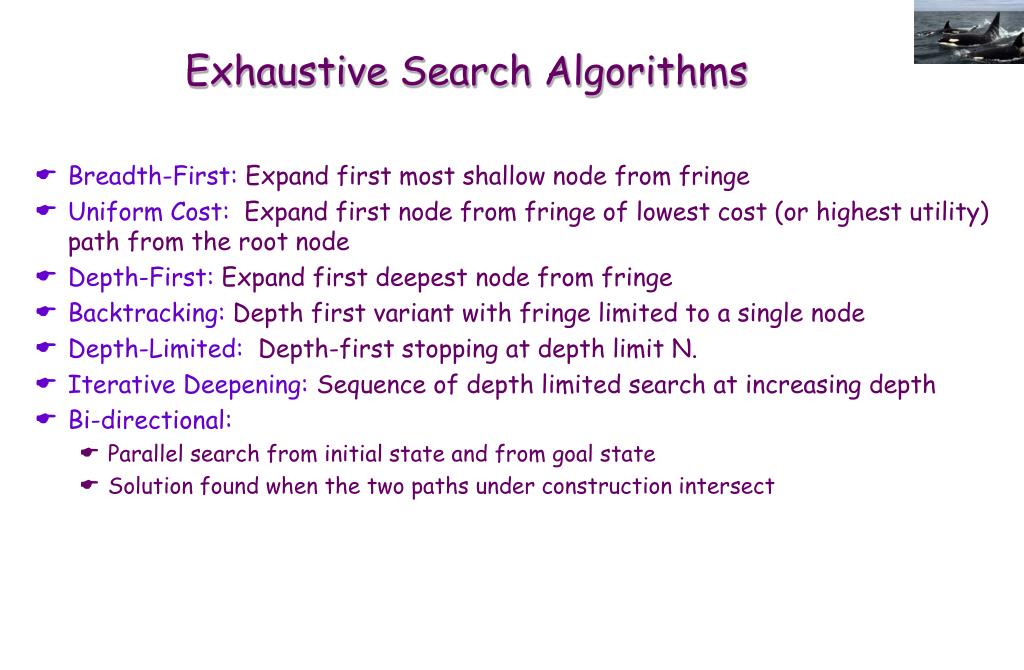

  16. Exhaustive Search Algorithms • Breadth-First: Expand first most shallow node from fringe • Uniform Cost: Expand first node from fringe of lowest cost (or highest utility) path from the root node • Depth-First: Expand first deepest node from fringe • Backtracking: Depth first variant with fringe limited to a single node • Depth-Limited: Depth-first stopping at depth limit N. • Iterative Deepening: Sequence of depth limited search at increasing depth • Bi-directional: • Parallel search from initial state and from goal state • Solution found when the two paths under construction intersect

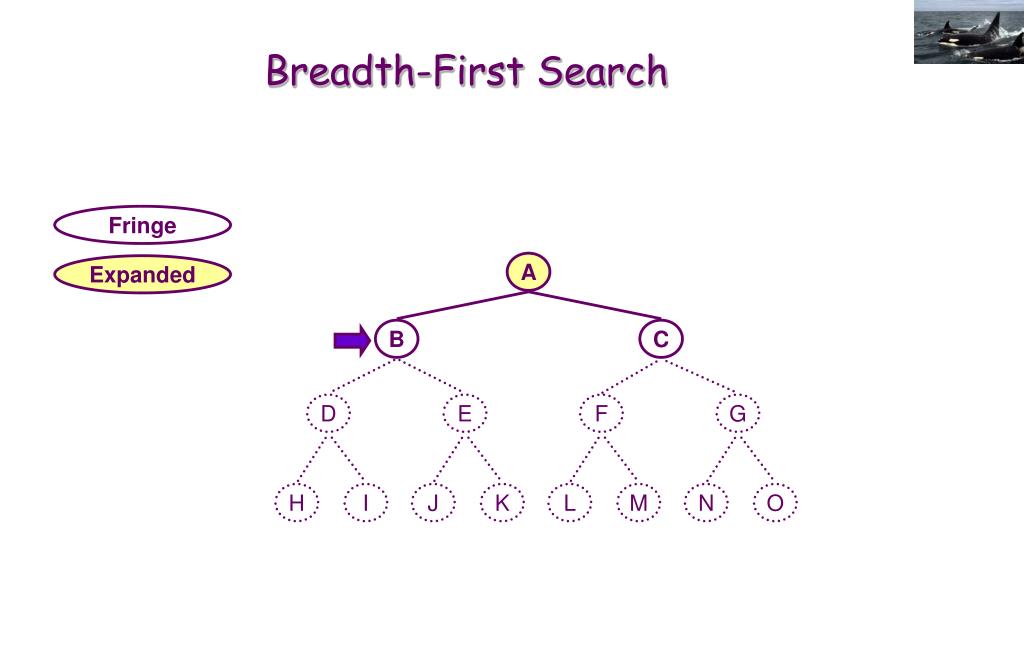

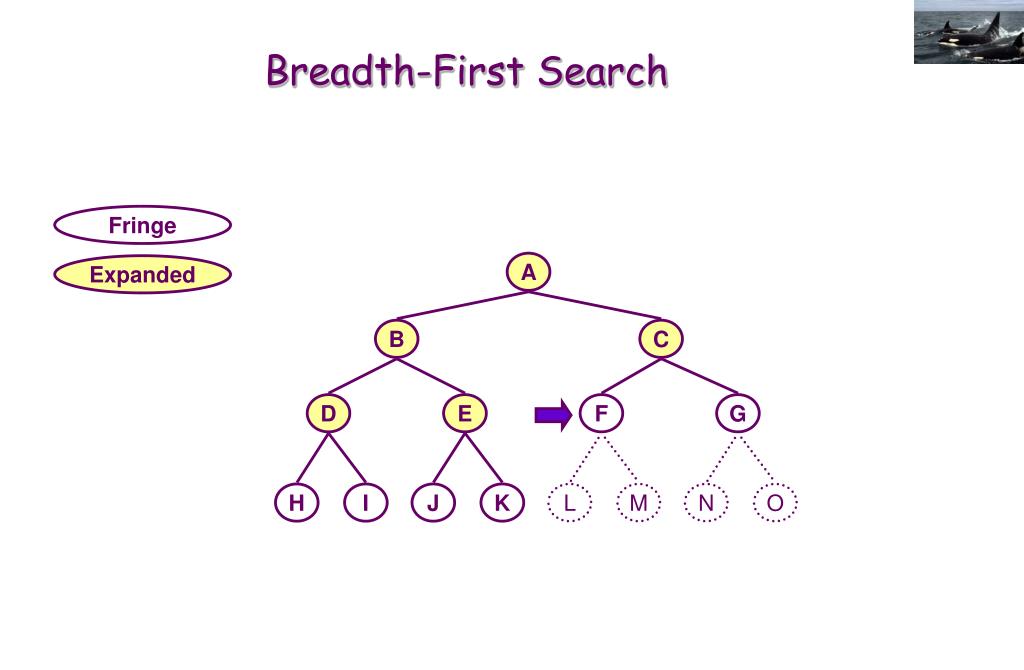

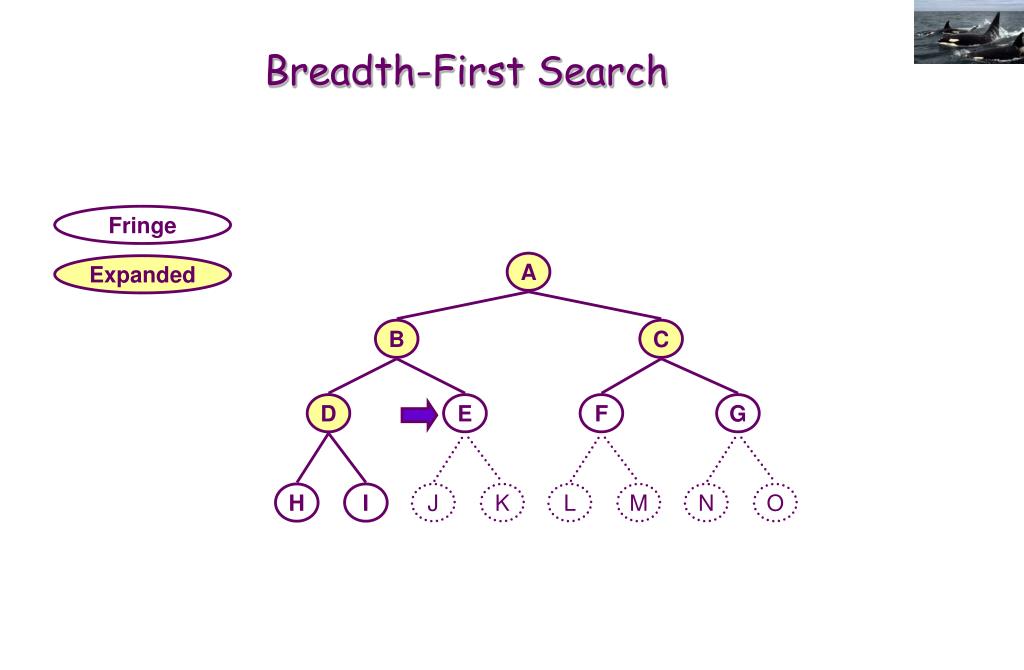

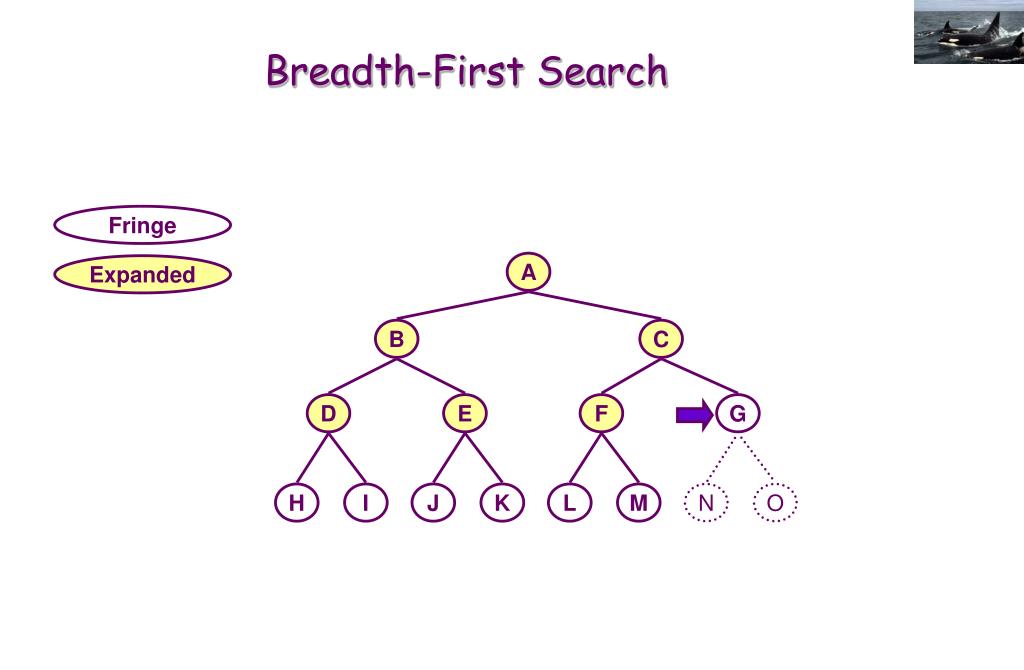

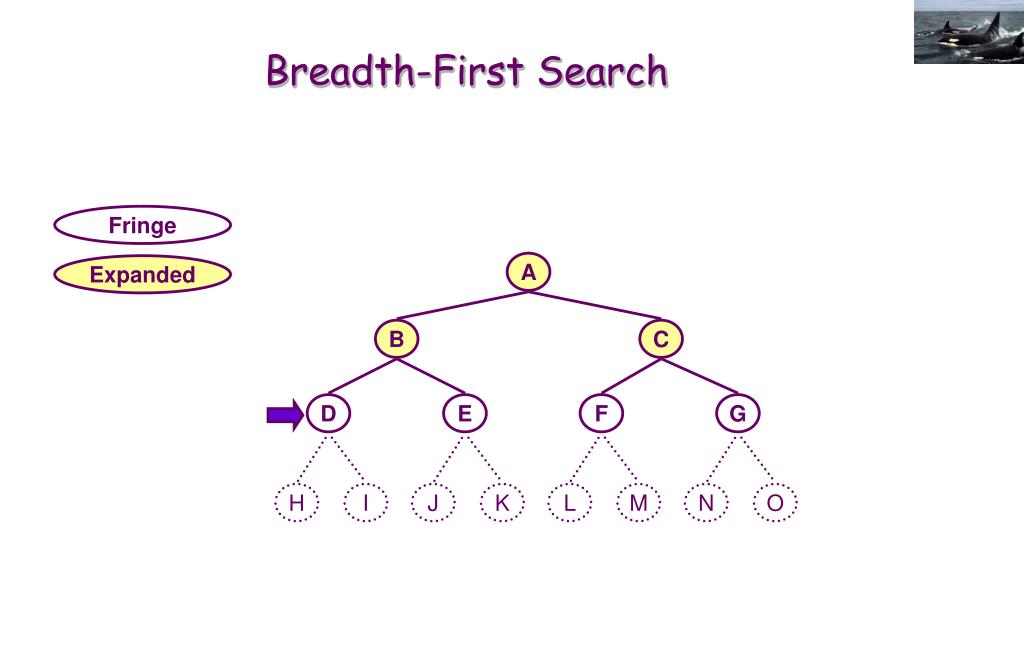

  17. Breadth-First Search Fringe A B C D E F G H I J K L M N O

  18. Breadth-First Search Fringe A Expanded B C D E F G H I J K L M N O

  19. Breadth-First Search Fringe A Expanded B C D E F G H I J K L M N O

  20. Breadth-First Search Fringe A Expanded B C D E F G H I J K L M N O

  21. Breadth-First Search Fringe A Expanded B C D E F G H I J K L M N O

  22. Breadth-First Search Fringe A Expanded B C D E F G H I J K L M N O

  23. Breadth-First Search Fringe A Expanded B C D E F G H I J K L M N O

  24. Breadth-First Search Fringe A Expanded B C D E F G H I J K L M N O

  25. A A A B C D B C D B C D 15 1 5 15 5 15 EB EB Ec 11 11 10 Uniform Cost Search B 10 1 5 5 Problem Graph: C E A 15 5 D A

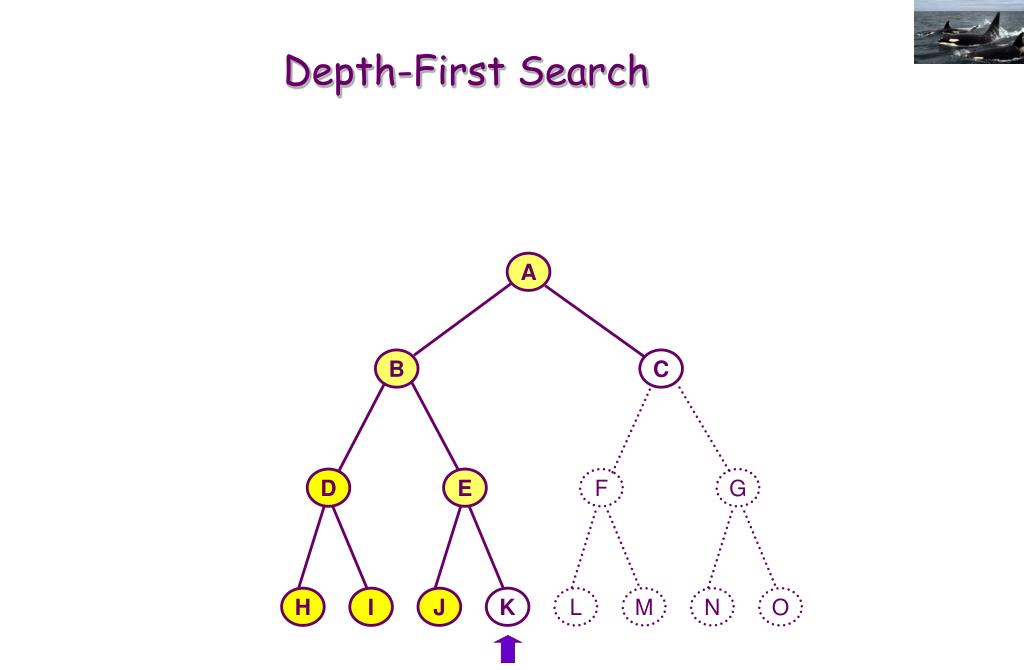

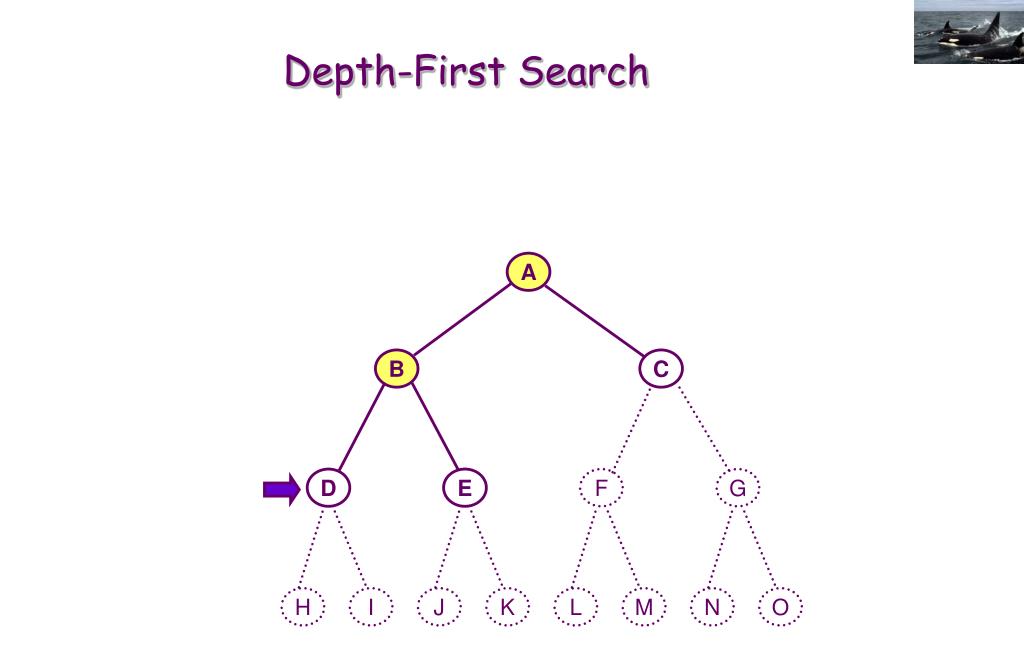

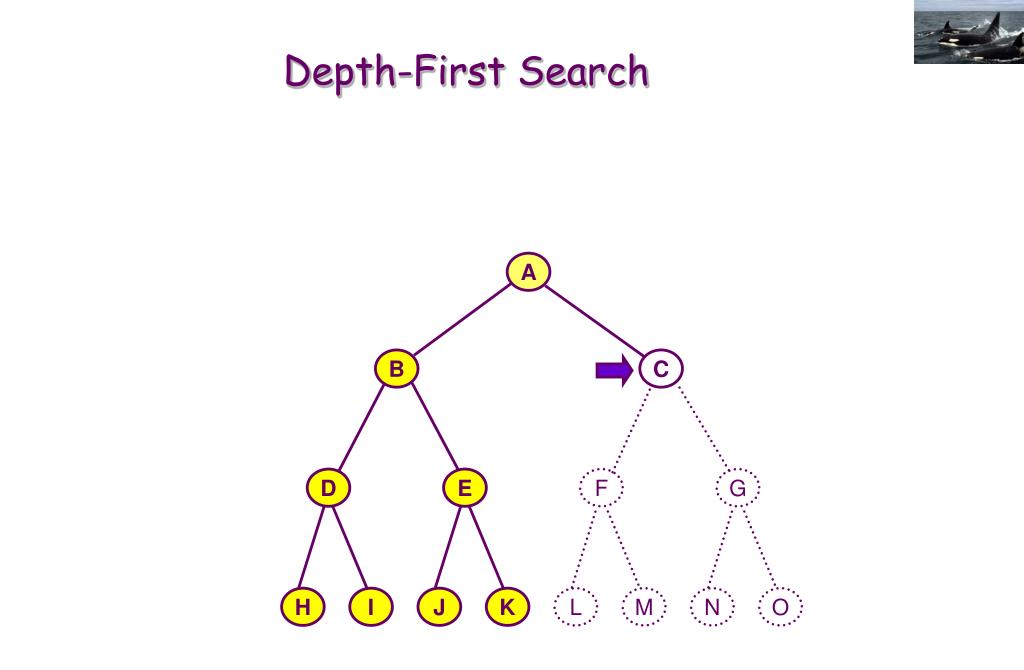

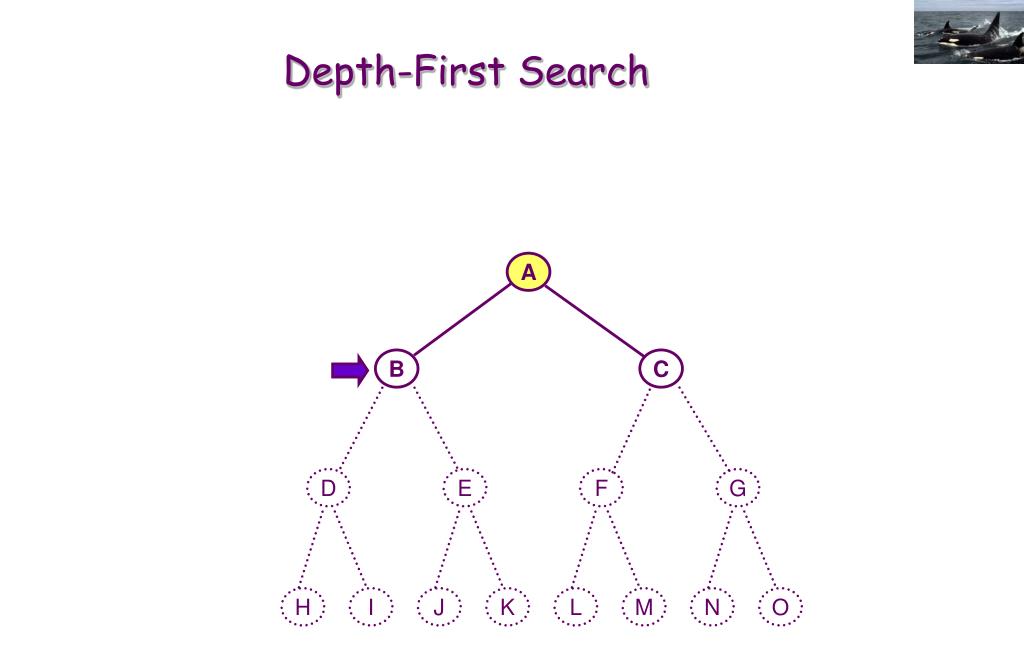

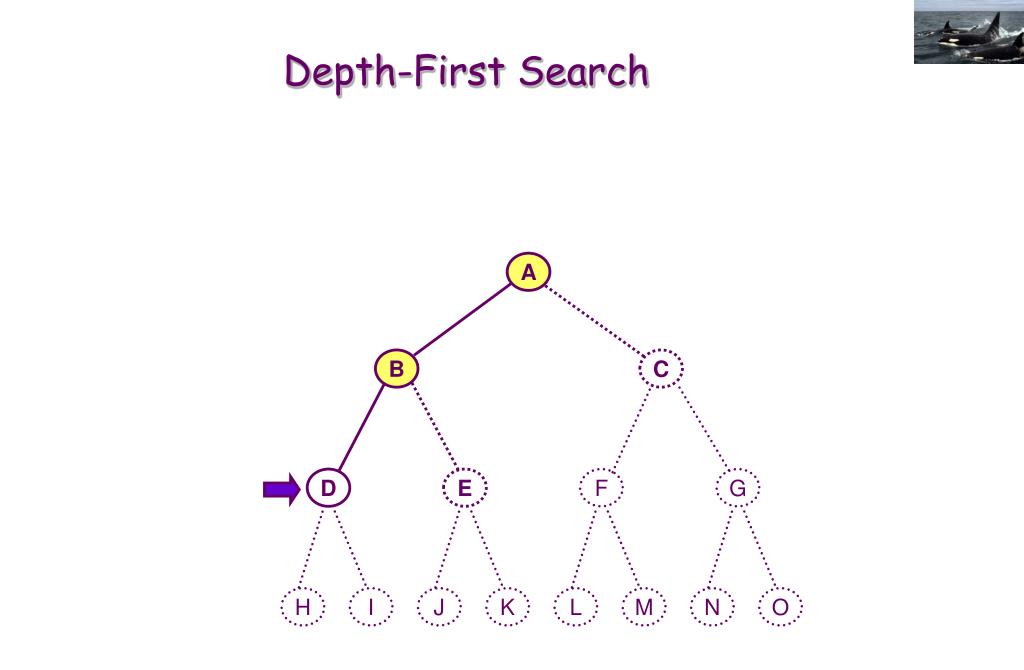

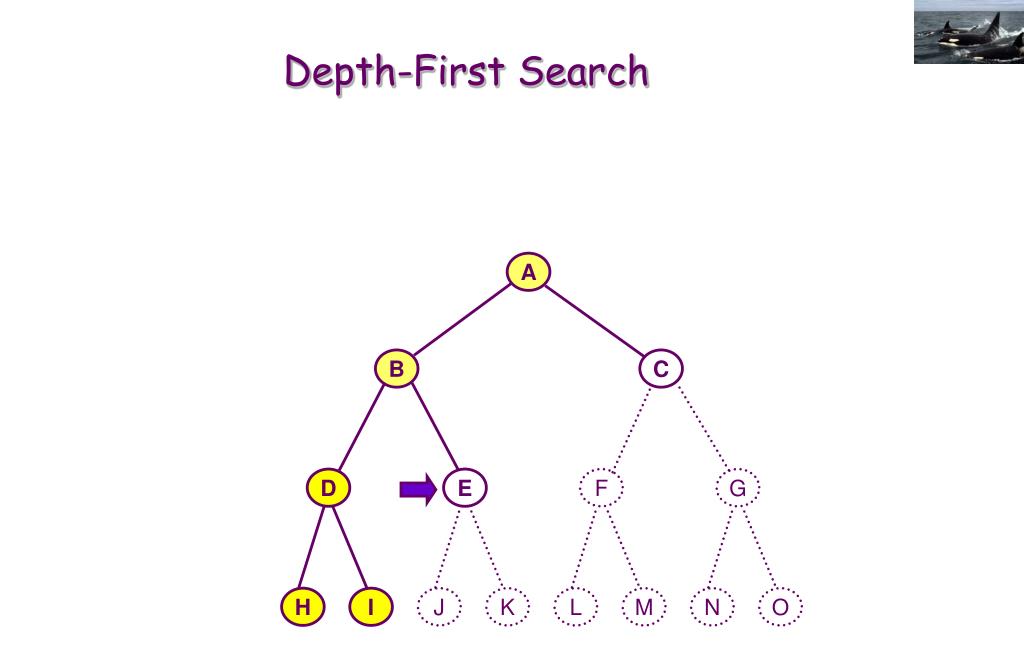

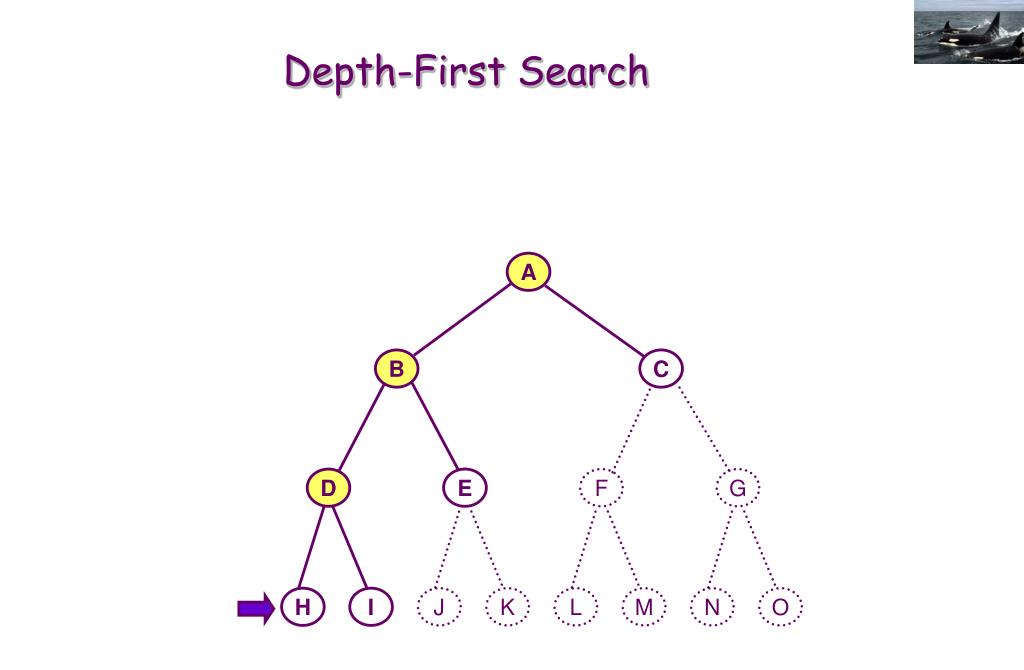

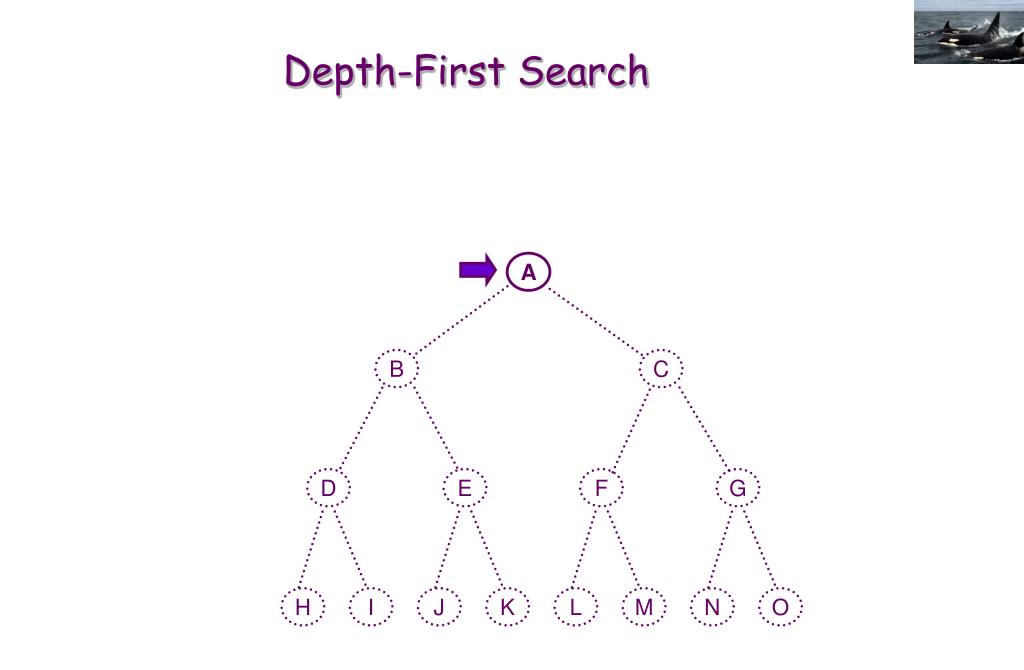

  26. Depth-First Search A B C D E F G H I J K L M N O

  27. Depth-First Search A B C D E F G H I J K L M N O

  28. Depth-First Search A B C D E F G H I J K L M N O

  29. Depth-First Search A B C D E F G H I J K L M N O

  30. Depth-First Search A B C D E F G H I J K L M N O

  31. Depth-First Search A B C D E F G H I J K L M N O

  32. Depth-First Search A B C D E F G H I J K L M N O

  33. Depth-First Search A B C D E F G H I J K L M N O

  34. Depth-First Search A B C D E F G H I J K L M N O

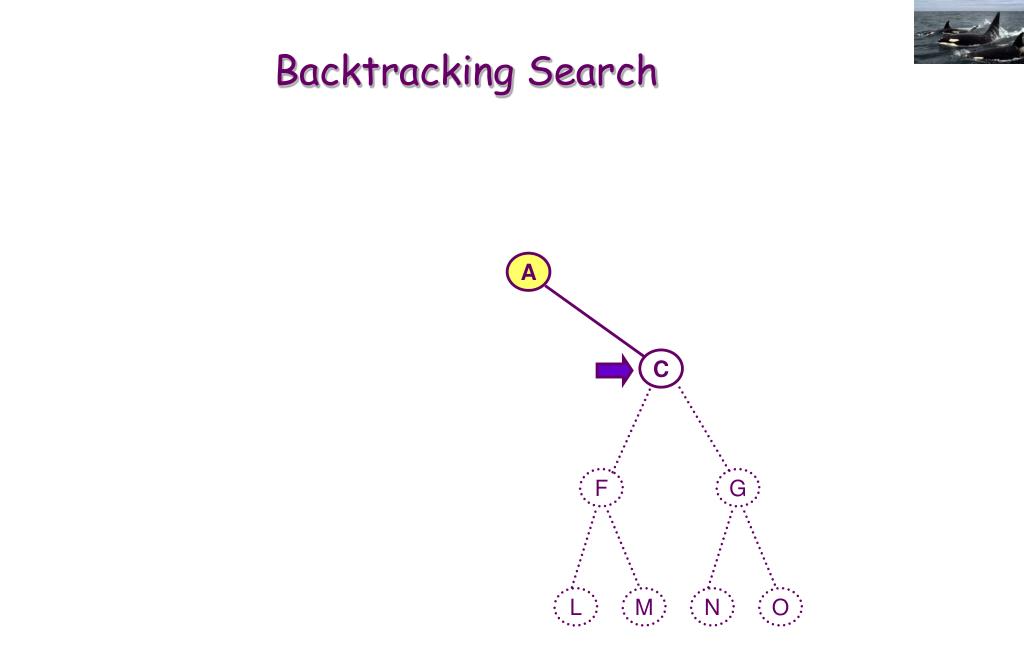

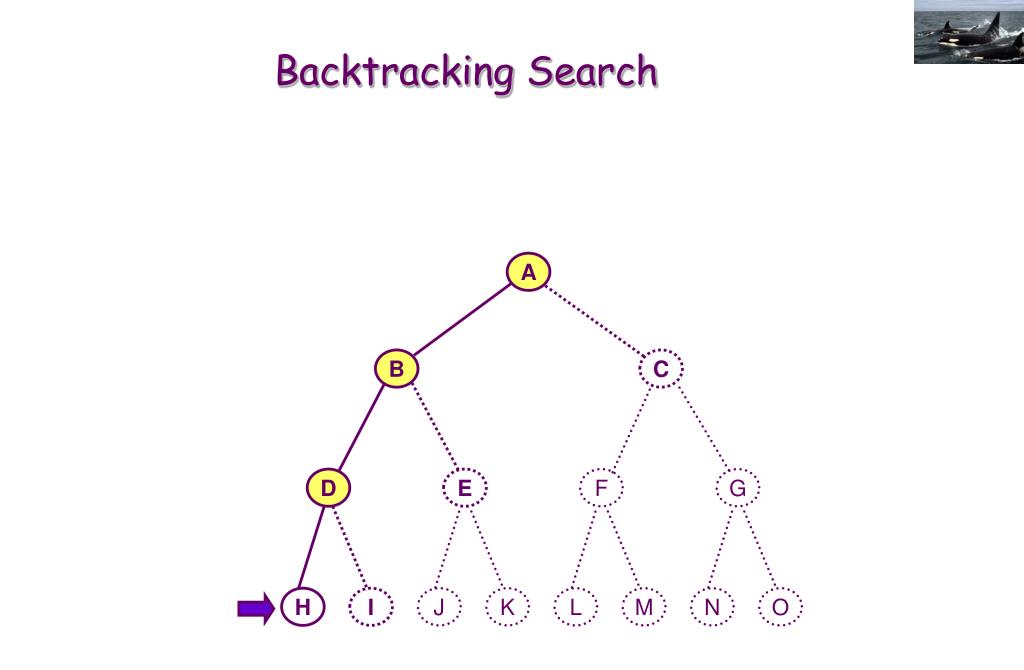

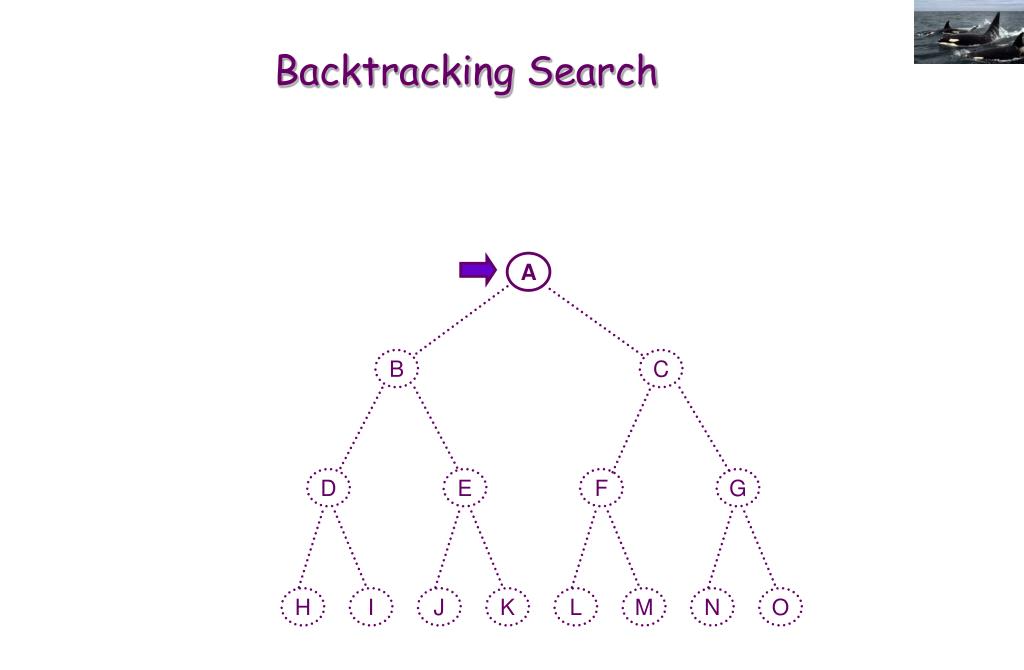

  35. Backtracking Search A B C D E F G H I J K L M N O

  36. Backtracking Search A B C D E F G H I J K L M N O

  37. Depth-First Search A B C D E F G H I J K L M N O

  38. Backtracking Search A B C D E F G H I J K L M N O

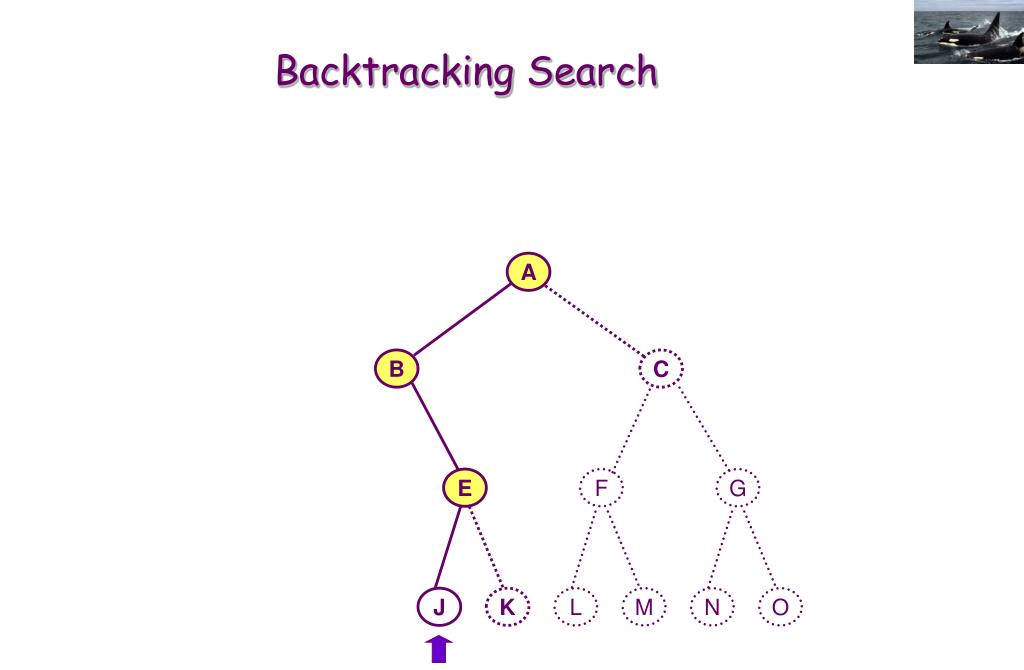

  39. Backtracking Search A B C D E F G I J K L M N O

  40. Backtracking Search A B C E F G J K L M N O

  41. Backtracking Search A B C E F G J K L M N O

  42. Backtracking Search A B C E F G K L M N O

  43. Backtracking Search A C F G L M N O

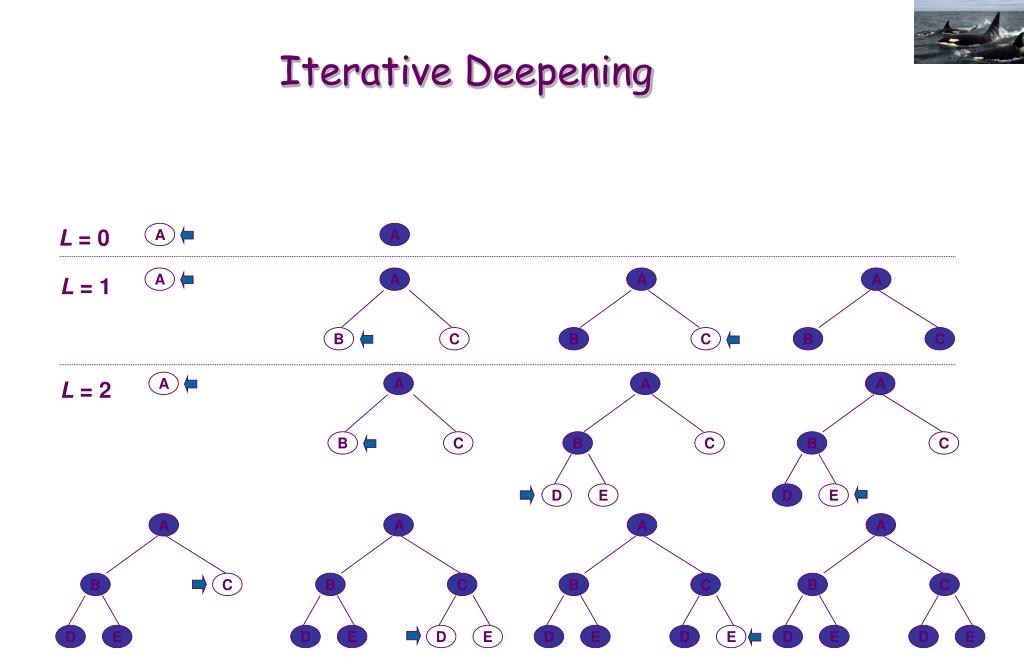

  44. L = 0 A L = 1 A A A A B C B C B C L = 2 A A A A B C B C B C D E D E A A A A B C B C B C B C D E D E D E D E D E D E D E Iterative Deepening A

  45. Bi-Directional Search • Two parallel searches: one from the current state and one from the goal state • When they reach a common node: a path from current to goal has been found • Time complexity halved: O(bd/2) + O(bd/2) = O(bd/2) << O(bd) • But not alwayspossible: • Irreversibleactions • Large numberof intentionallyspecifiedgoal states

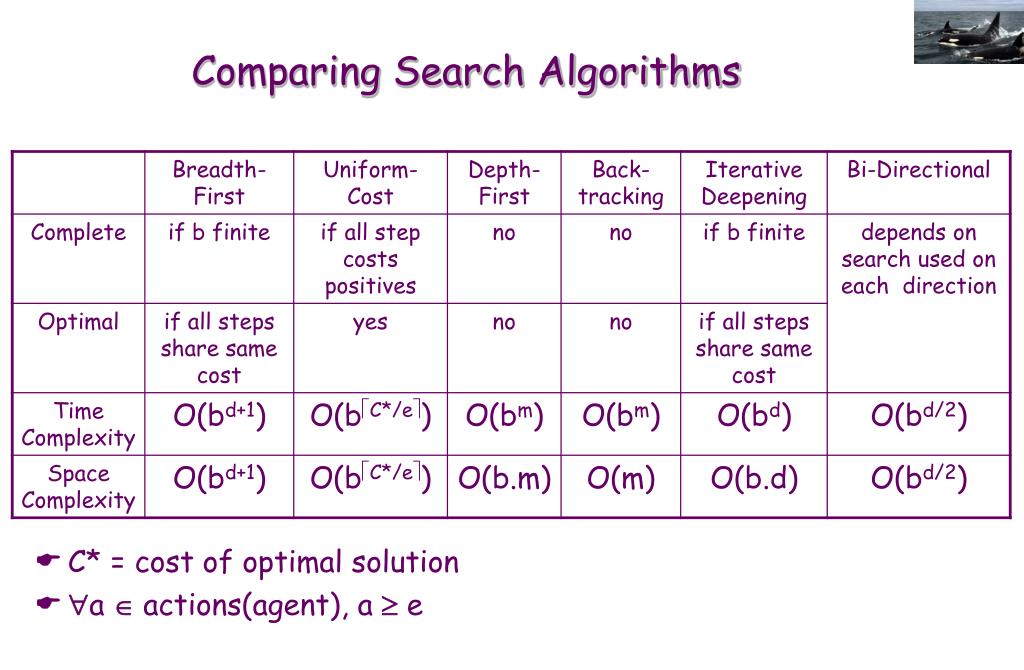

  46. Comparing Search Algorithms • C* = cost of optimal solution • a  actions(agent), a  e

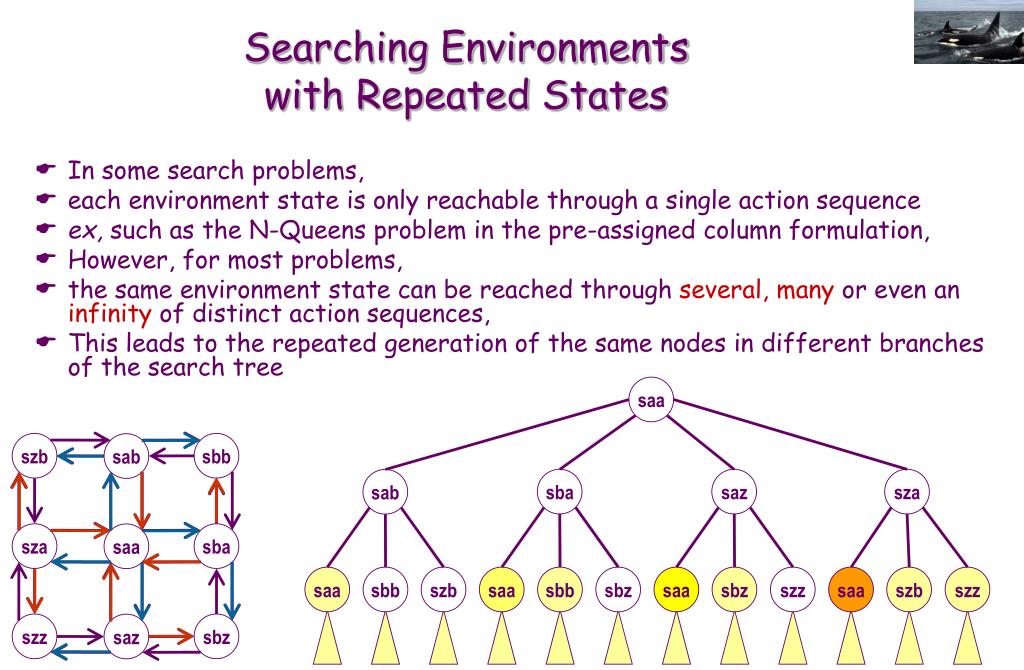

  47. sba saz sza sab saa sbb szb saa sbb sbz saa sbz szz saa szb szz Searching Environmentswith Repeated States • In some search problems, • each environment state is only reachable through a single action sequence • ex, such as the N-Queens problem in the pre-assigned column formulation, • However, for most problems, • the same environment state can be reached through several, many or even an infinity of distinct action sequences, • This leads to the repeated generation of the same nodes in different branches of the search tree saa szb sbb sab sza sba saa szz sbz saz

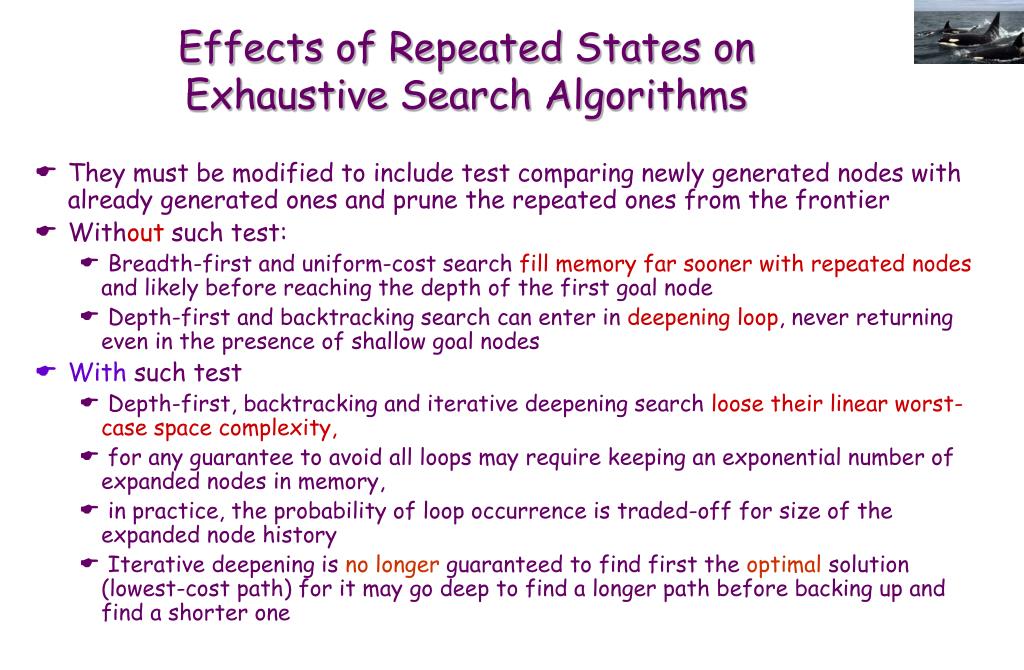

  48. Effects of Repeated States onExhaustive Search Algorithms • They must be modified to include test comparing newly generated nodes with already generated ones and prune the repeated ones from the frontier • Without such test: • Breadth-first and uniform-cost search fill memory far sooner with repeated nodes and likely before reaching the depth of the first goal node • Depth-first and backtracking search can enter in deepening loop, never returning even in the presence of shallow goal nodes • With such test • Depth-first, backtracking and iterative deepening search loose their linear worst-case space complexity, • for any guarantee to avoid all loops may require keeping an exponential number of expanded nodes in memory, • in practice, the probability of loop occurrence is traded-off for size of the expanded node history • Iterative deepening is no longer guaranteed to find first the optimal solution (lowest-cost path) for it may go deep to find a longer path before backing up and find a shorter one

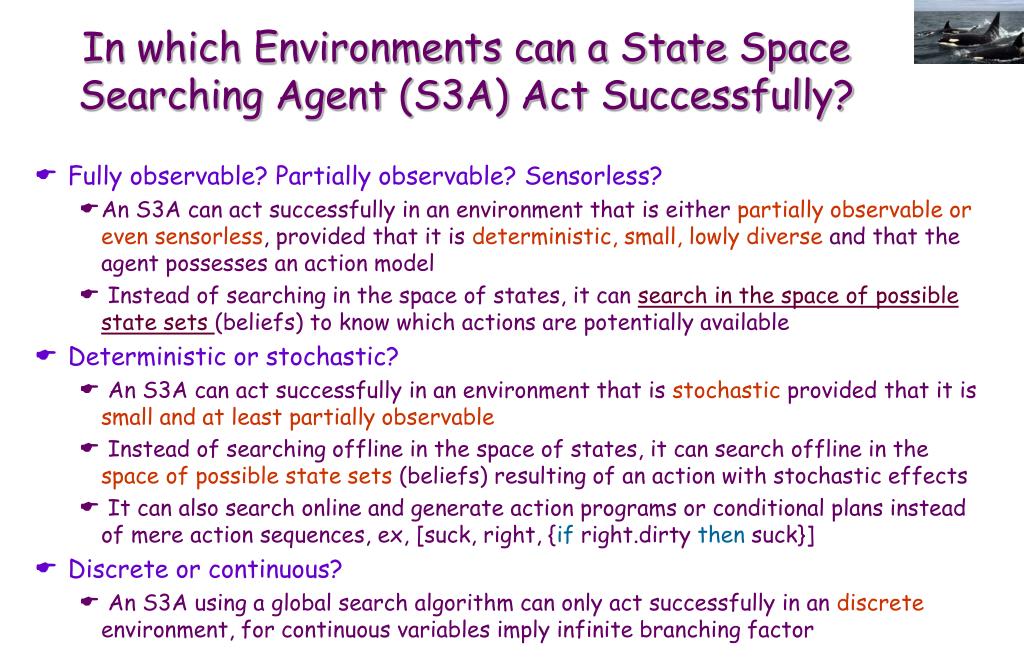

  49. In which Environments can a State Space Searching Agent (S3A) Act Successfully? • Fully observable? Partially observable? Sensorless? • An S3A can act successfully in an environment that is either partially observable or even sensorless, provided that it is deterministic, small, lowly diverse and that the agent possesses an action model • Instead of searching in the space of states, it can search in the space of possible state sets(beliefs) to know which actions are potentially available • Deterministic or stochastic? • An S3A can act successfully in an environment that is stochastic provided that it is small and at least partially observable • Instead of searching offline in the space of states, it can search offline in the space of possible state sets (beliefs) resulting of an action with stochastic effects • It can also search online and generate action programs or conditional plans instead of mere action sequences, ex, [suck, right, {if right.dirty then suck}] • Discrete or continuous? • An S3A using a global search algorithm can only act successfully in an discrete environment, for continuous variables imply infinite branching factor

  50. In which Environments can a State Space Searching Agent (S3A) Act Successfully? • Episodic or non-episodic? • An S3A is only necessary for a non-episodic environment which requires choosing action sequences, where the choice of one action conditions the action range subsequently available • Static? sequential? concurrent synchronous or concurrent asynchronous? • An S3A can only act successfully in a static or sequential environment, for there is no point in searching for goal-achieving or optimal action sequences in an environment that changes due to factors outside the control of the agent • Small or large? • An S3A can only act successfully in a medium-sized environment provided that it is deterministicand at least partially observable, or small environment that are either stochastic or sensorless • Lowly or highly diverse? • An S3A can only act successfully in low diversity environment for diversity affects directly the branching factor of the problem search tree space
