  1. ATS WEATHER NETWORK AMRC June 2005 ATS Meteorology 1

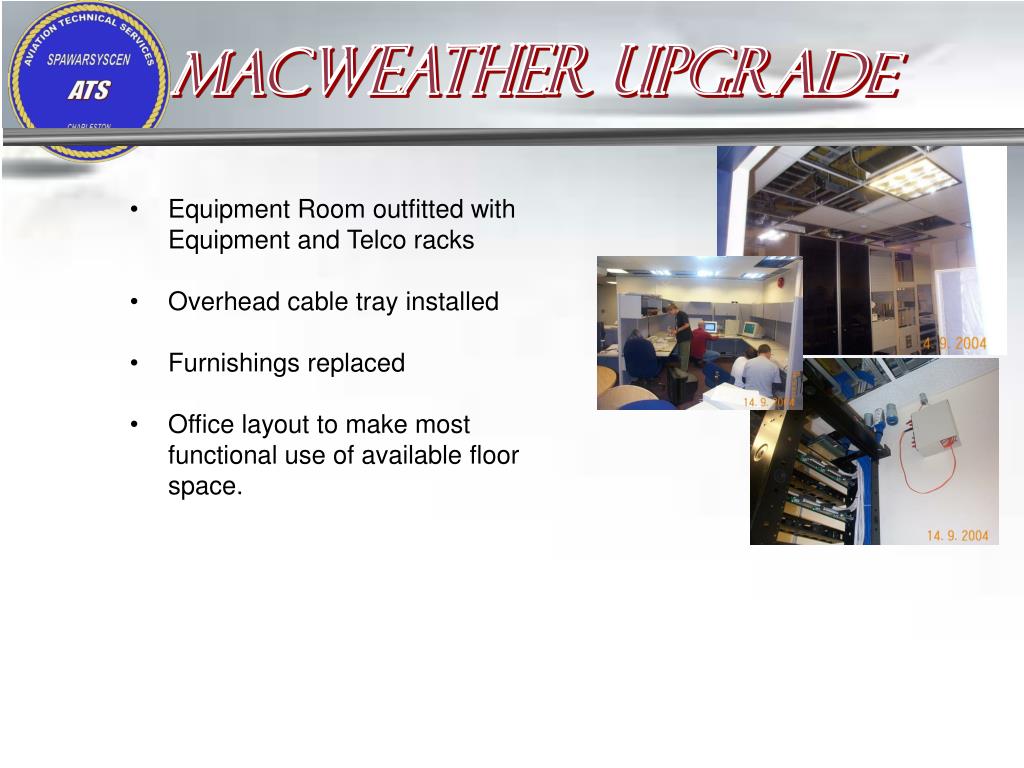

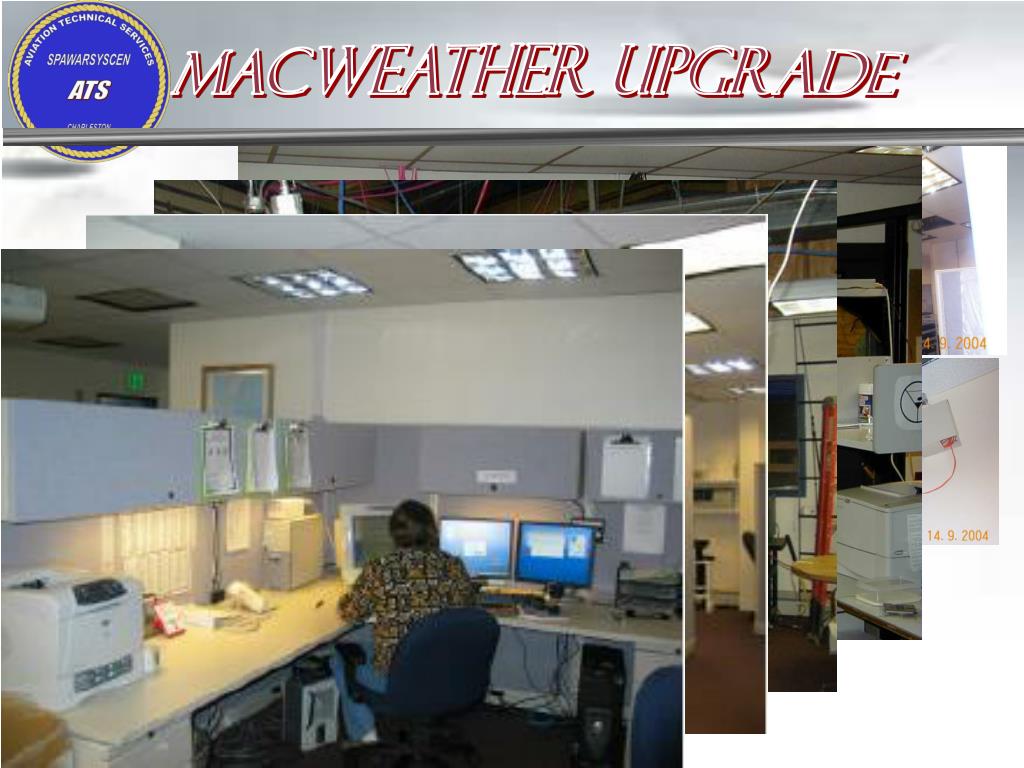

  2. MacWEATHER UPGRADE • Equipment Room outfitted with Equipment and Telco racks • Overhead cable tray installed • Furnishings replaced • Office layout to make most functional use of available floor space.

  3. MacWEATHER UPGRADE

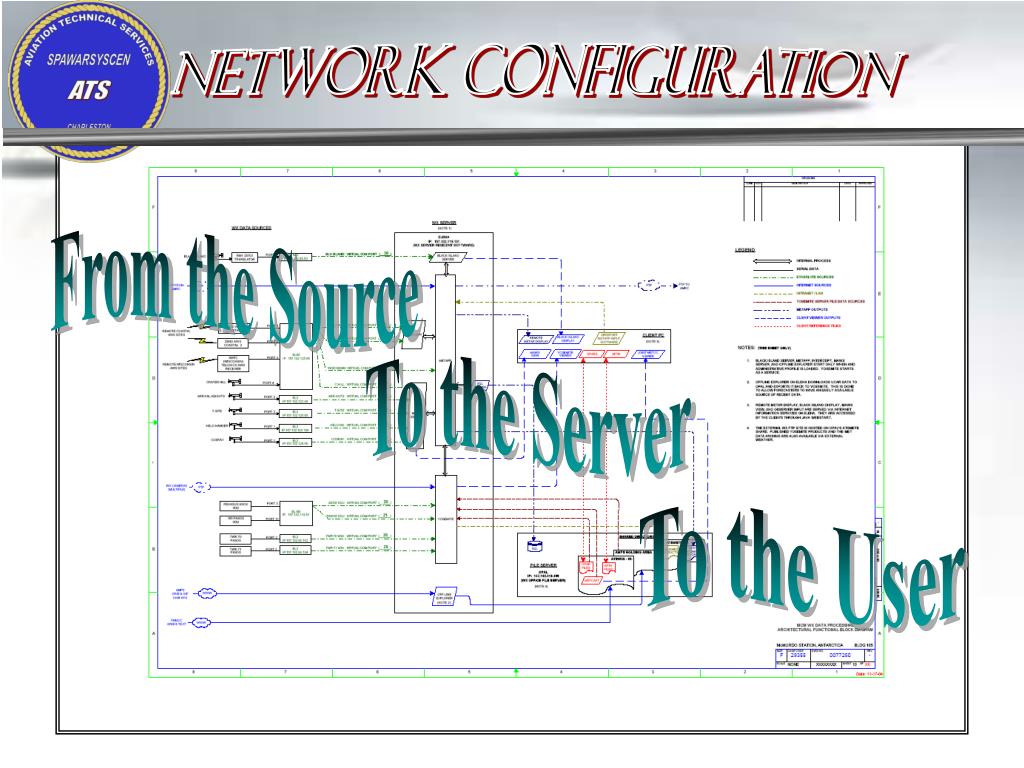

  4. Network Configuration From the Source To the Server To the User

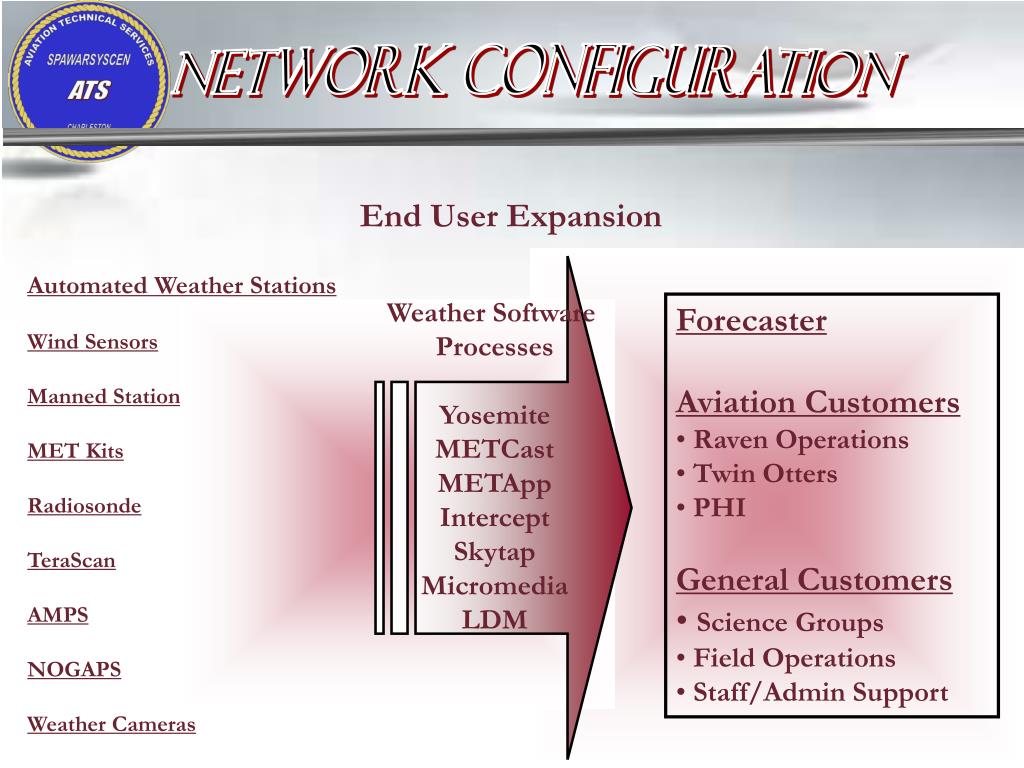

  5. Network Configuration End User Expansion Automated Weather Stations Wind Sensors Manned Stations MET Kits Radiosonde TeraScan AMPS NOGAPS Weather Cameras Weather Software Processes Yosemite METCast METApp Intercept Skytap Micromedia LDM • Forecaster • Aviation Customers • Raven Operations • Twin Otters • PHI • General Customers • Science Groups • Field Operations • Staff/Admin Support

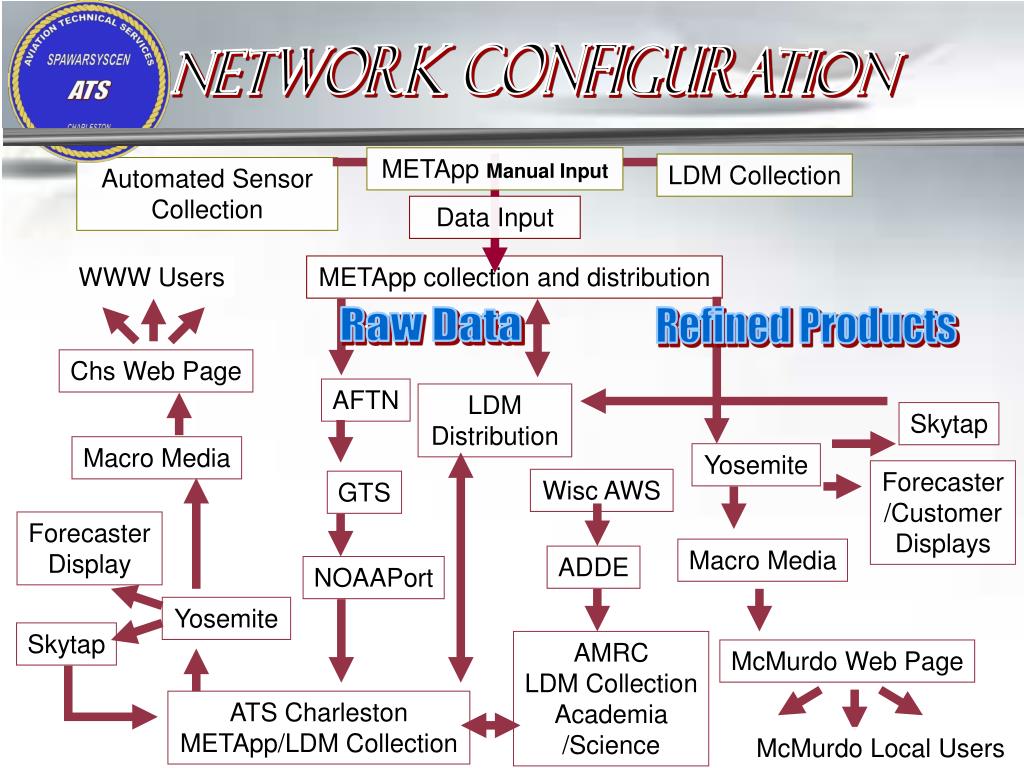

  6. Network Configuration METApp Manual Input LDM Collection Automated Sensor Collection Data Input WWW Users METApp collection and distribution Raw Data Refined Products Chs Web Page AFTN LDM Distribution Skytap Macro Media Yosemite Forecaster/Customer Displays Wisc AWS GTS Forecaster Display Macro Media ADDE NOAAPort Yosemite Skytap AMRC LDM Collection Academia /Science McMurdo Web Page ATS Charleston METApp/LDM Collection McMurdo Local Users

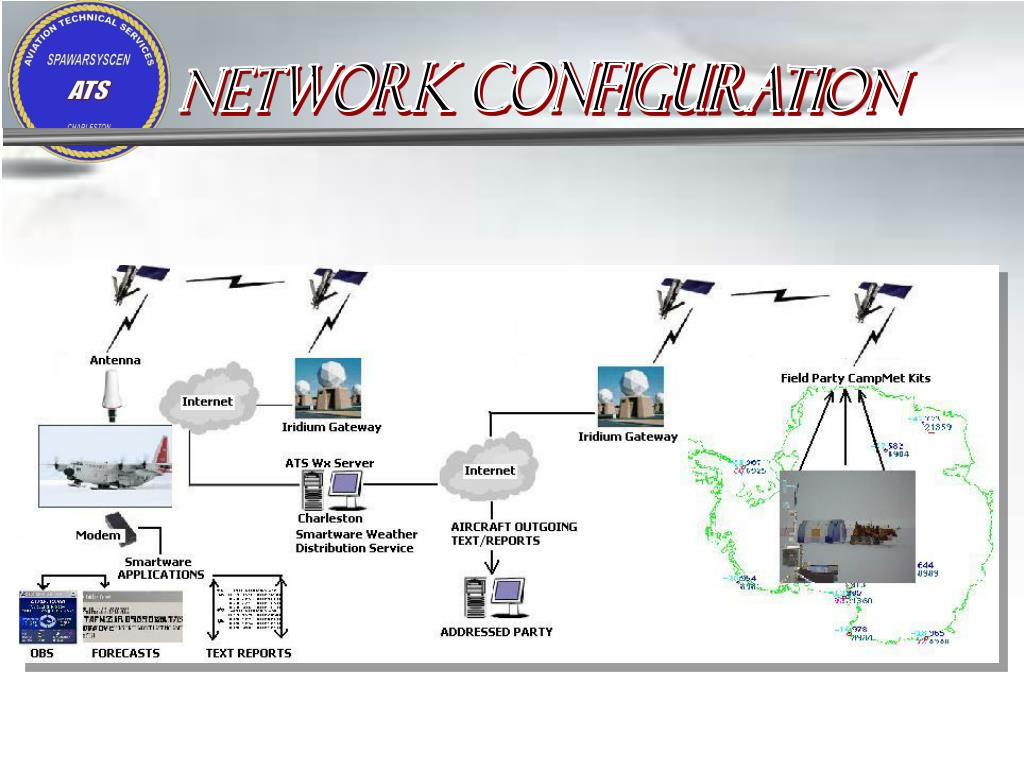

  7. Network Configuration • MET Kits • Iridium data distribution • Two extra serial ports • Two way communication • PDA/Laptop interface • Mobile Communication Kit • Iridium data distribution • Two way communication • PDA/Laptop interface Mobile Weather - Live weather data display Weather Web Page – Operational data McMurdo and WWW from Charleston KIOSK Terminals in McMurdo (MCC/Dining Fac/Chalet/Crary Lab?) AIREP Display – Mod to GPS?

  8. Network Configuration

  9. Questions
