  1. Speech Coding Basics A Tutorial Mahdi Amiri Supervisor Dr. H. R. Rabiee April 2009 Sharif University of Technology

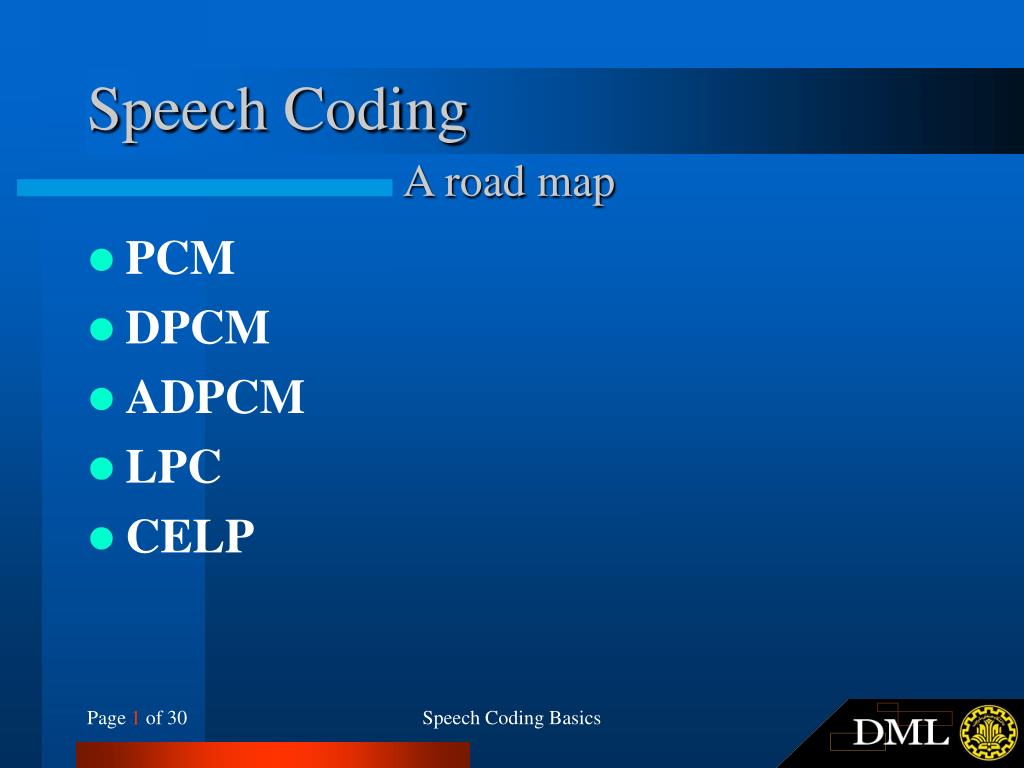

  2. Speech Coding A road map • PCM • DPCM • ADPCM • LPC • CELP Speech Coding Basics

  3. Pulse-code Modulation (PCM) Basics • Digital Representation of an Analog Signal • Sampling and Quantization • Parameters: • Sampling Rate (Samples per Second) • Quantization Levels (Bits per Sample) Speech Coding Basics

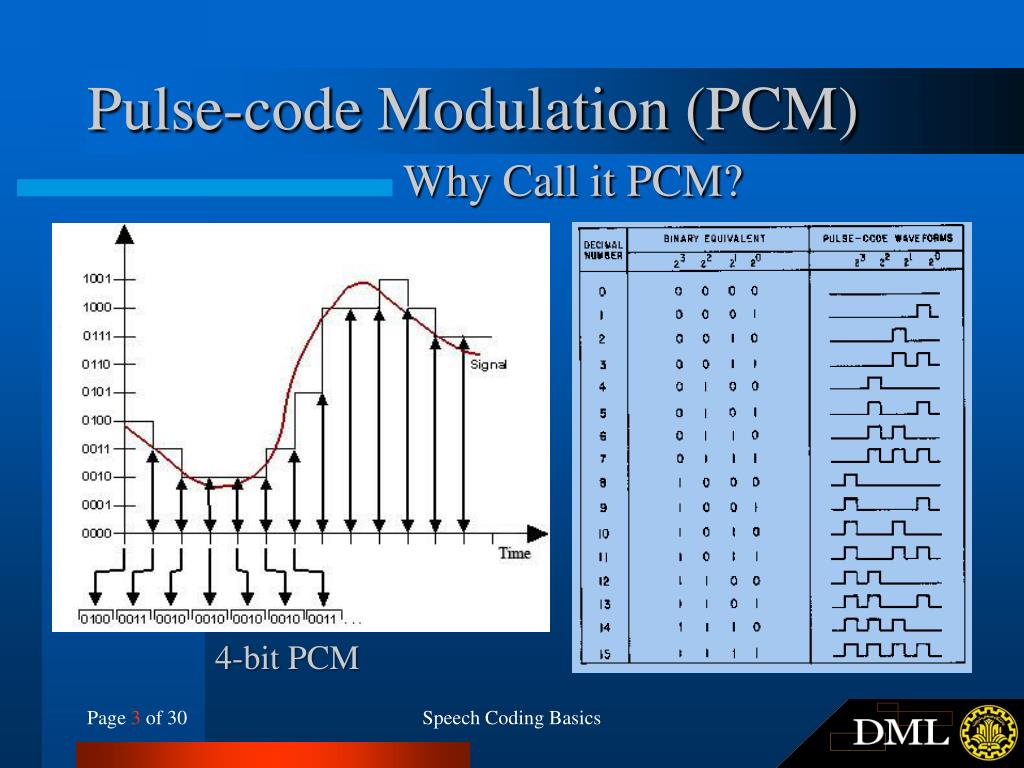

  4. Pulse-code Modulation (PCM) Why Call it PCM? 4-bit PCM Speech Coding Basics

  5. Pulse-code Modulation (PCM) Bit per Second (bit/s) • How to choose proper… • Sampling Rate • 8 Khz ? • Quantization Level • 8 bit/sample ? • Bit per Second for 8000 Hz 8 bit PCM • 64 kbit/s Speech Coding Basics

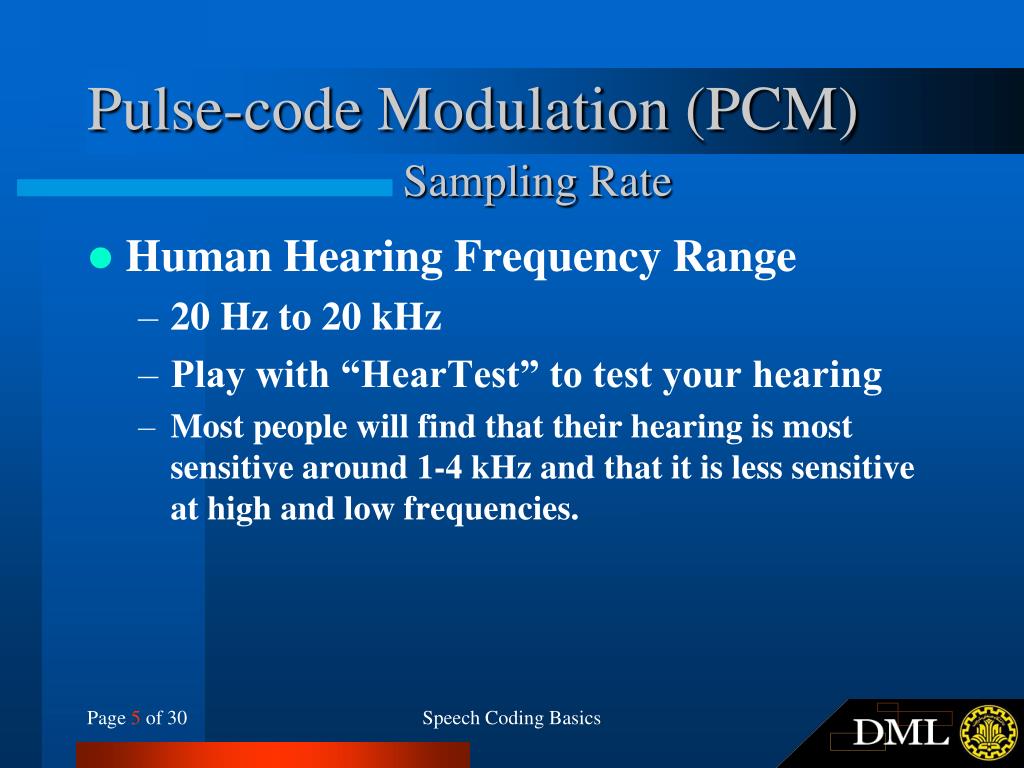

  6. Pulse-code Modulation (PCM) Sampling Rate • Human Hearing Frequency Range • 20 Hz to 20 kHz • Play with “HearTest” to test your hearing • Most people will find that their hearing is most sensitive around 1-4 kHz and that it is less sensitive at high and low frequencies. Speech Coding Basics

  7. Pulse-code Modulation (PCM) Hearing Range Speech Coding Basics

  8. Pulse-code Modulation (PCM) Sampling Rate • Human Vocal Range • Normal: 80 Hz to 1100 Hz • Charles Kellogg (14 KHz) (not verified) • Guinness Book of Records • Female: Georgia Brown • (Eight octaves, 25087Hz) • Male: Tim Storms • (Six octaves) Speech Coding Basics

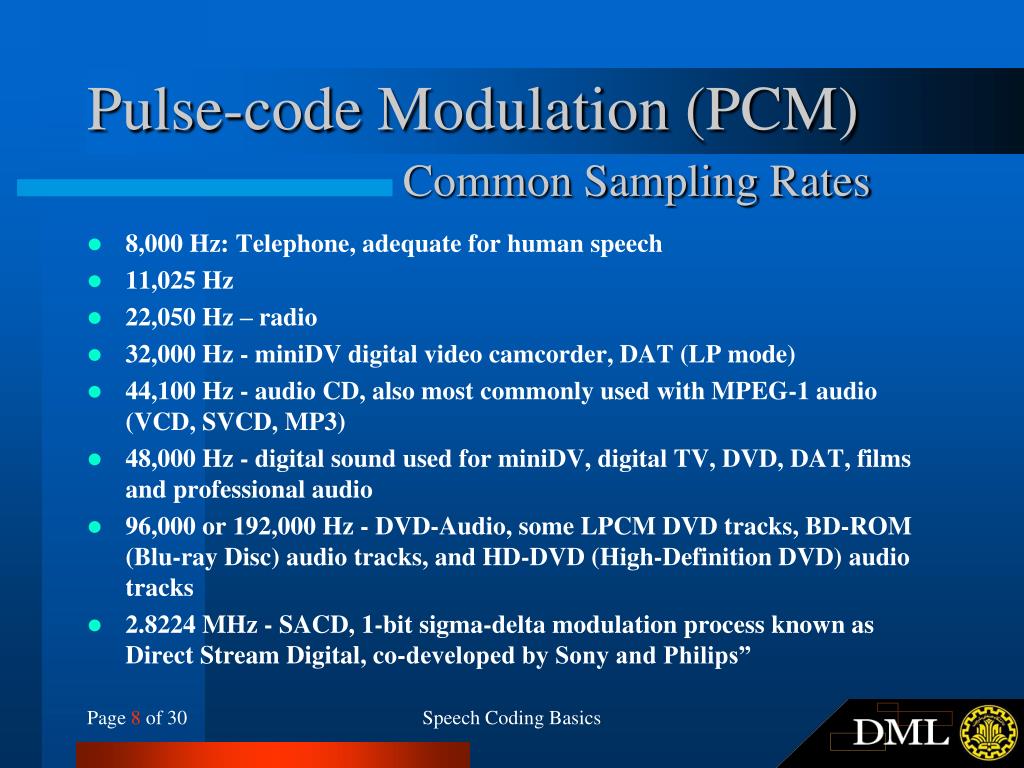

  9. Pulse-code Modulation (PCM) Common Sampling Rates • 8,000 Hz: Telephone, adequate for human speech • 11,025 Hz • 22,050 Hz – radio • 32,000 Hz - miniDV digital video camcorder, DAT (LP mode) • 44,100 Hz - audio CD, also most commonly used with MPEG-1 audio (VCD, SVCD, MP3) • 48,000 Hz - digital sound used for miniDV, digital TV, DVD, DAT, films and professional audio • 96,000 or 192,000 Hz - DVD-Audio, some LPCM DVD tracks, BD-ROM (Blu-ray Disc) audio tracks, and HD-DVD (High-Definition DVD) audio tracks • 2.8224 MHz - SACD, 1-bit sigma-delta modulation process known as Direct Stream Digital, co-developed by Sony and Philips” Speech Coding Basics

  10. Pulse-code Modulation (PCM) Quantization Levels • Want to prevent human ear fatigue by minimizing quantization noise • Signal-to-Noise Ratio = 6.02B dB • SNR is approximately 6 dB per bit. • 16-bit => 96 dB • Above 36 dB is required Speech Coding Basics

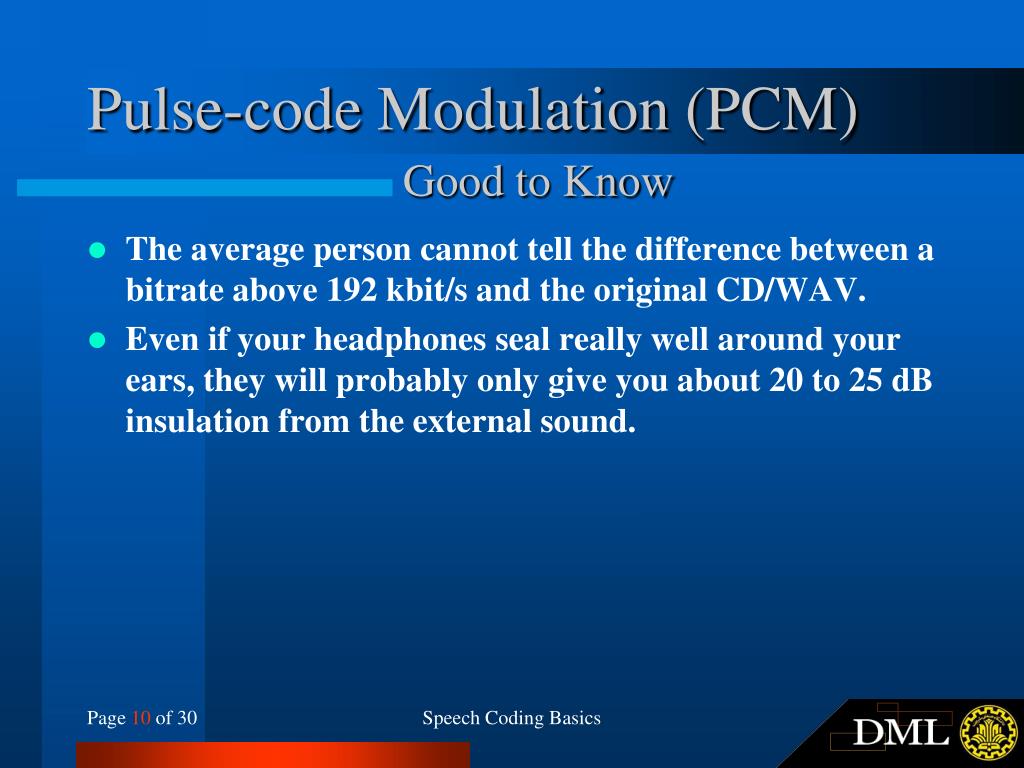

  11. Pulse-code Modulation (PCM) Good to Know • The average person cannot tell the difference between a bitrate above 192 kbit/s and the original CD/WAV. • Even if your headphones seal really well around your ears, they will probably only give you about 20 to 25 dB insulation from the external sound. Speech Coding Basics

  12. Pulse-code Modulation (PCM) Images Speech Coding Basics

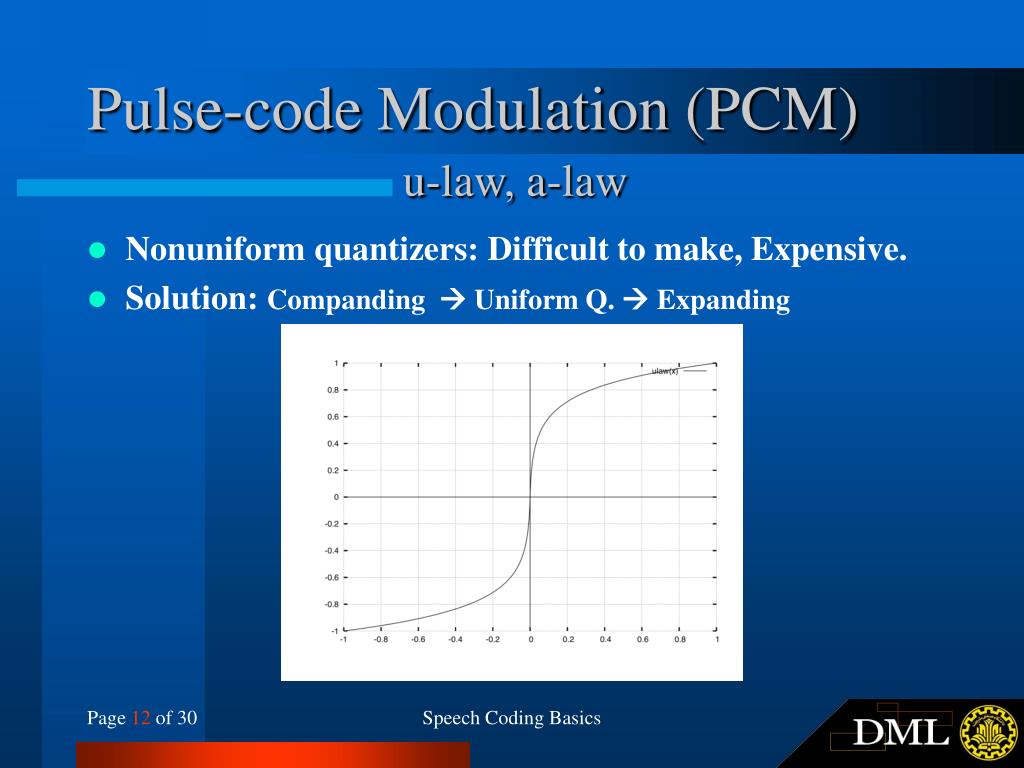

  13. Pulse-code Modulation (PCM) u-law, a-law • Nonuniform quantizers: Difficult to make, Expensive. • Solution: Companding  Uniform Q.  Expanding Speech Coding Basics

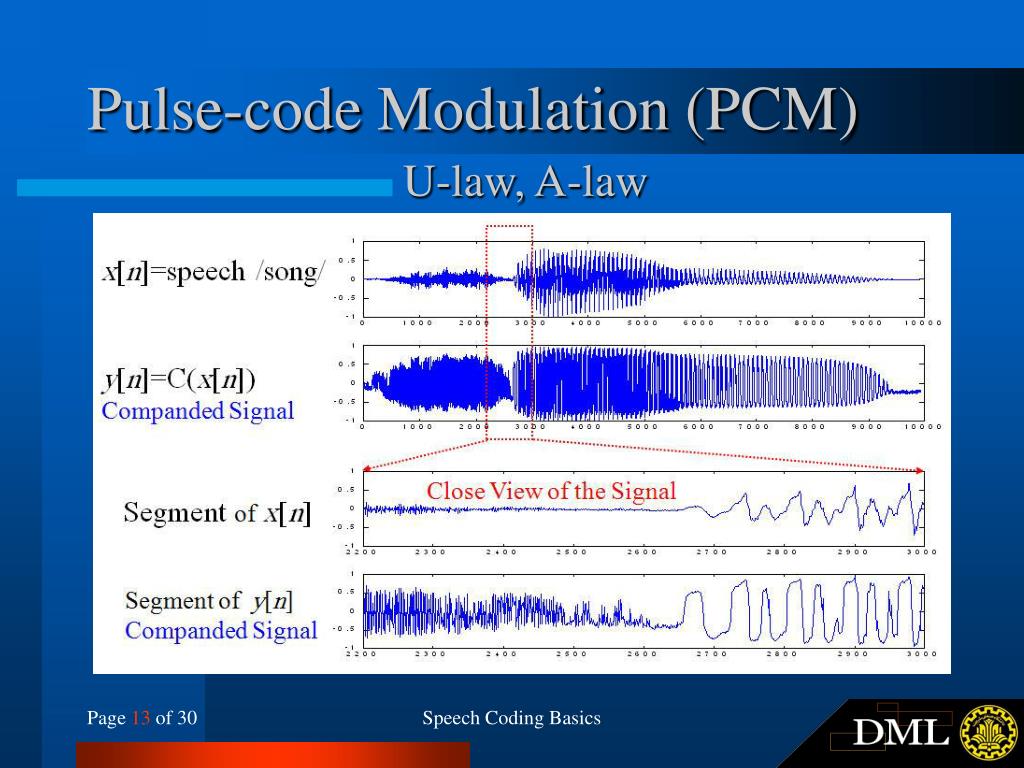

  14. Pulse-code Modulation (PCM) U-law, A-law Speech Coding Basics

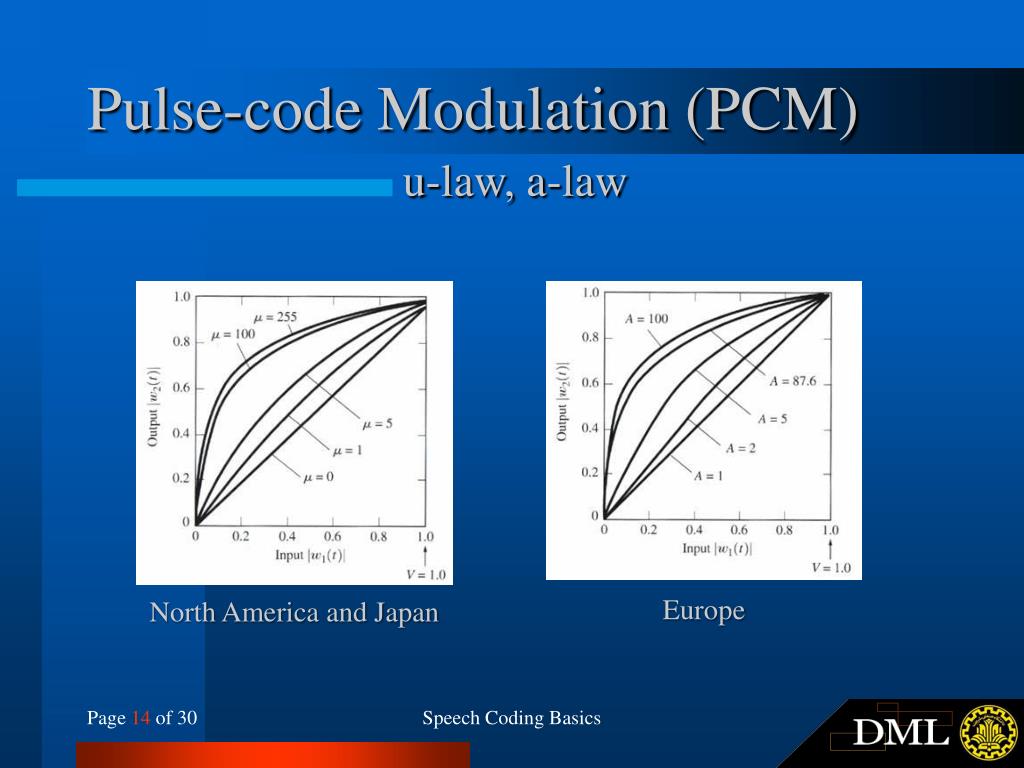

  15. Pulse-code Modulation (PCM) u-law, a-law Europe North America and Japan Speech Coding Basics

  16. Differential PCM (DPCM) Idea Speech Coding Basics

  17. Differential PCM (DPCM) Basic Scheme General Predictive Coding Problem? Speech Coding Basics

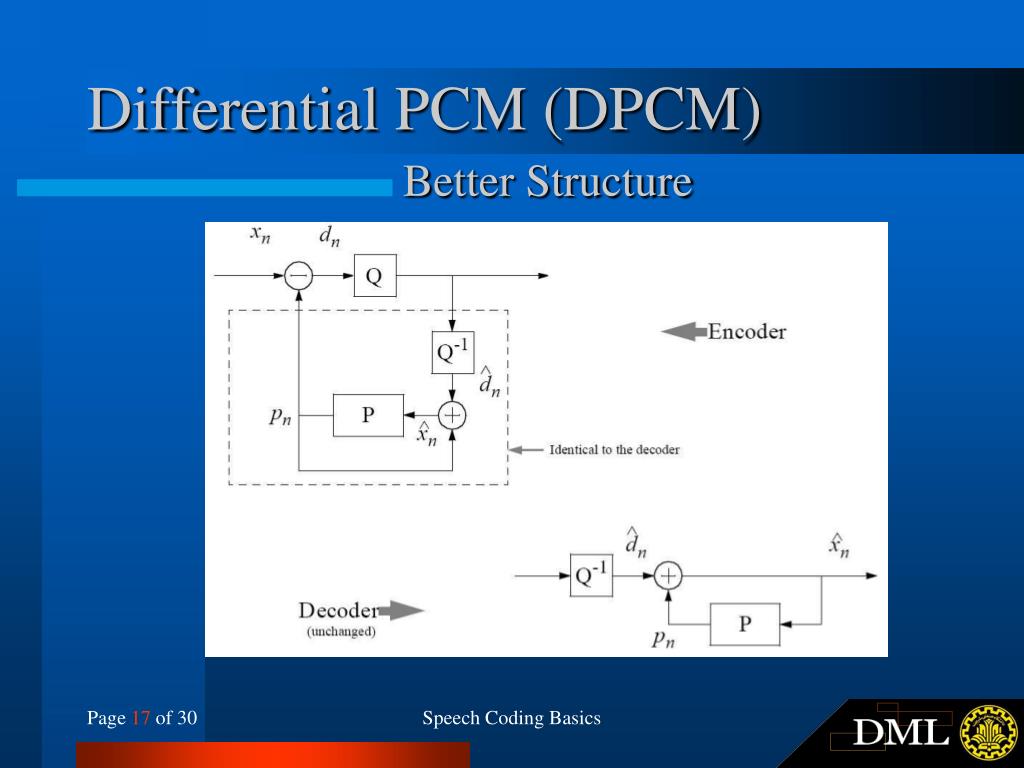

  18. Differential PCM (DPCM) Better Structure Speech Coding Basics

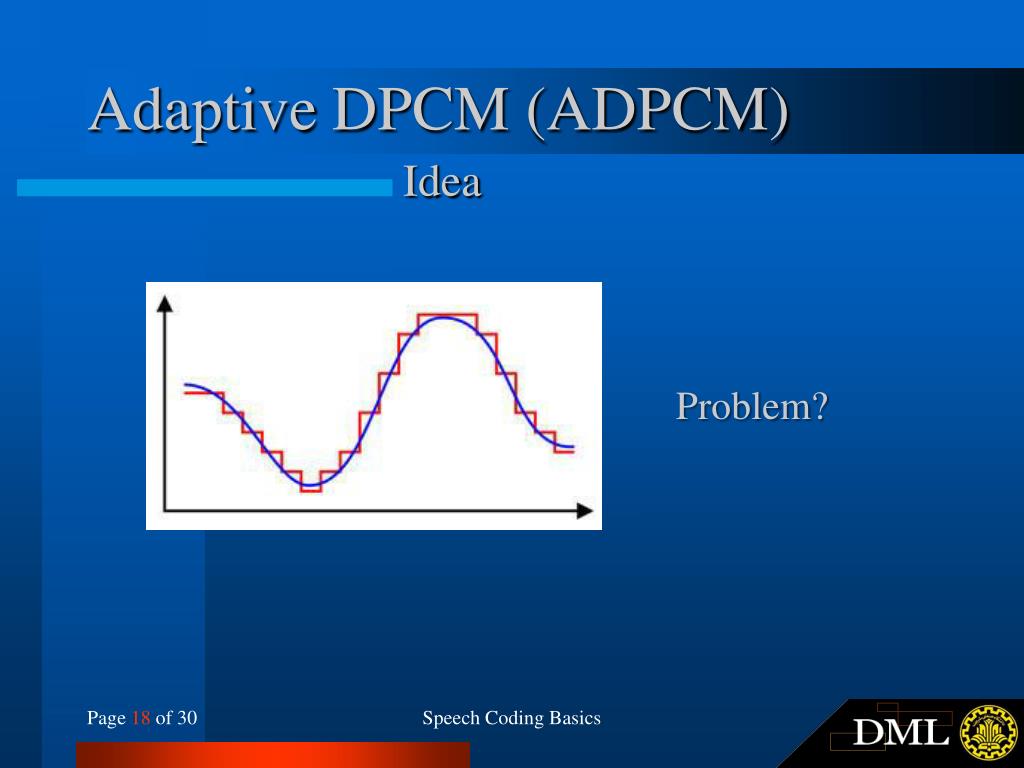

  19. Adaptive DPCM (ADPCM) Idea Problem? Speech Coding Basics

  20. Adaptive DPCM (ADPCM) Size of Quantization Step Speech Coding Basics

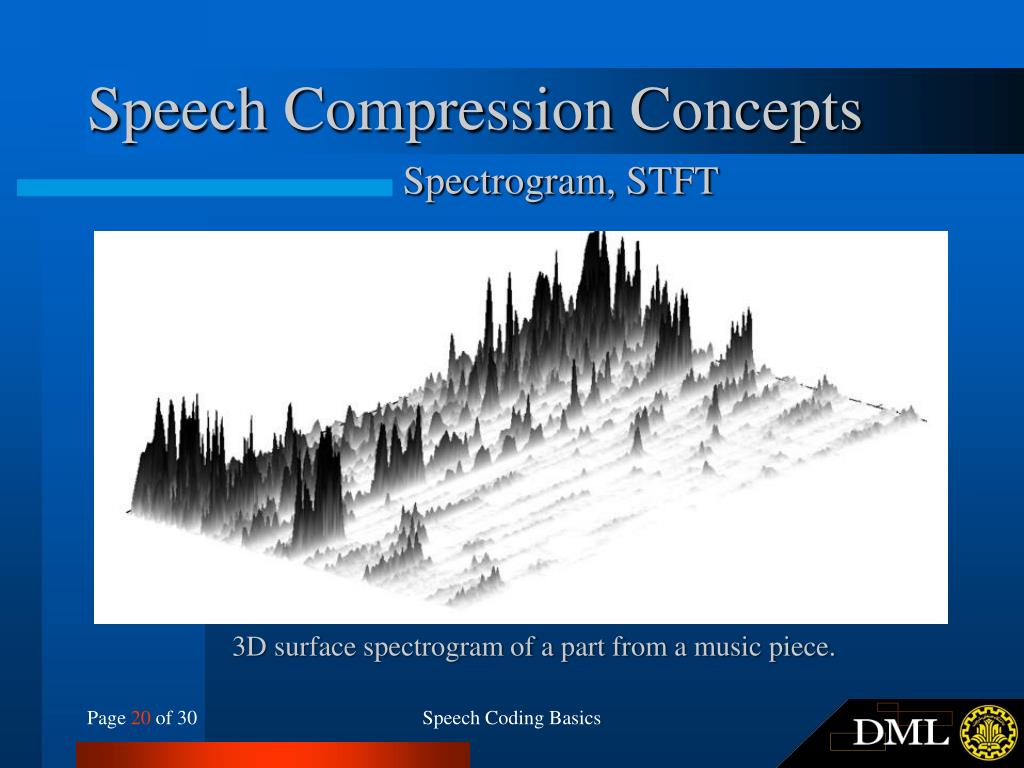

  21. Speech Compression Concepts Spectrogram, STFT 3D surface spectrogram of a part from a music piece. Speech Coding Basics

  22. Speech Compression Concepts Spectrogram Spectrogram of a male voice saying ‘nineteenth century’. Speech Coding Basics

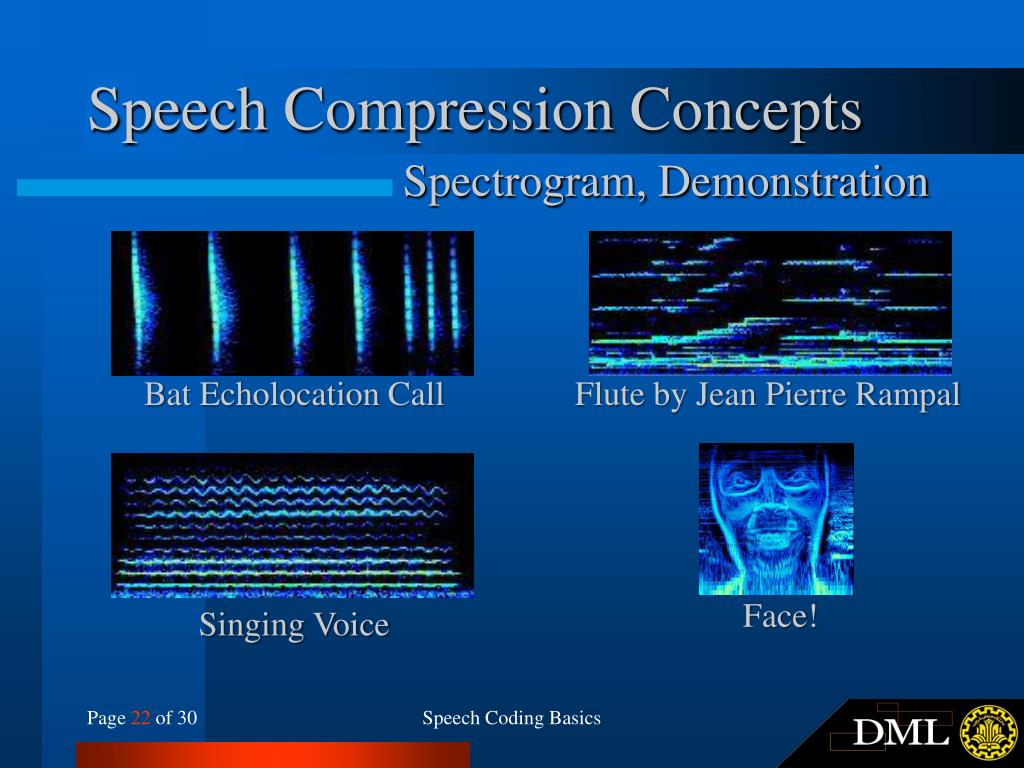

  23. Speech Compression Concepts Spectrogram, Demonstration Bat Echolocation Call Flute by Jean Pierre Rampal Face! Singing Voice Speech Coding Basics

  24. Speech Compression Concepts Formant Speech Coding Basics

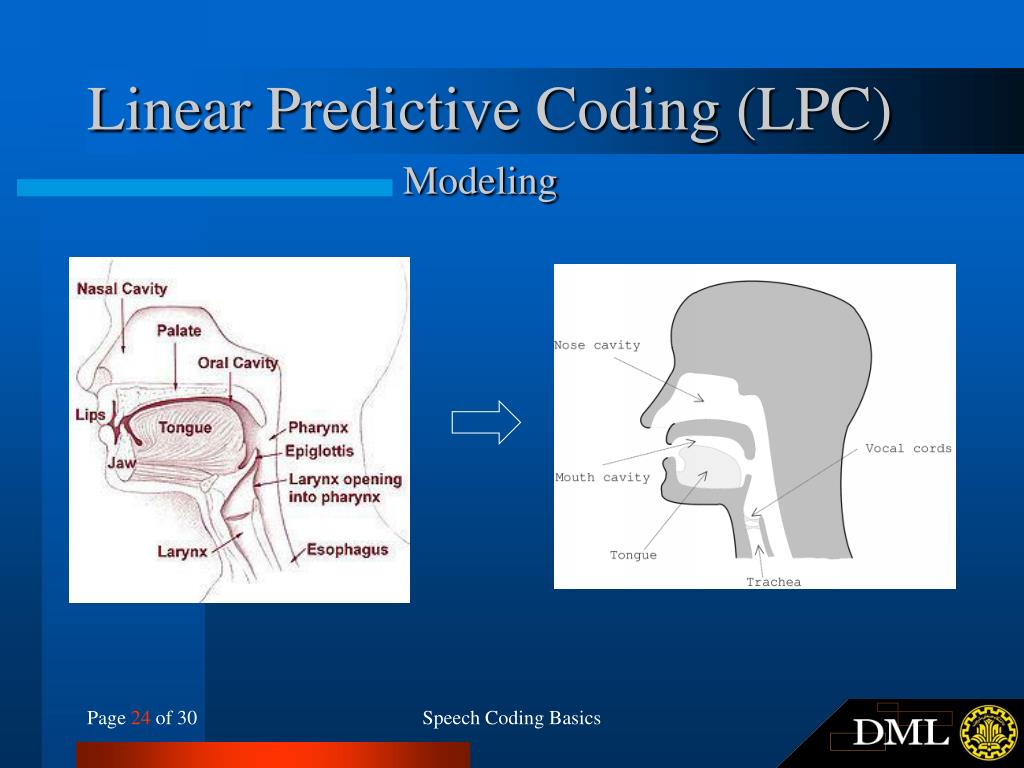

  25. Linear Predictive Coding (LPC) Modeling Speech Coding Basics

  26. Linear Predictive Coding (LPC) Modeling (Hiss or Buzz) Buzzer  Filter Chuncks: 30 thr. 50 frames/sec. Speech = Formants + Residue Predictor for each frame: Speech Coding Basics

  27. Linear Predictive Coding (LPC) Modeling (Hiss or Buzz) Speech Coding Basics

  28. Code Excited Linear Prediction CELP • Problem of LPC • Where there is both Hiss and Buzz • Solution • Encode residue • Method • Vector Quantization (Codebook) Speech Coding Basics

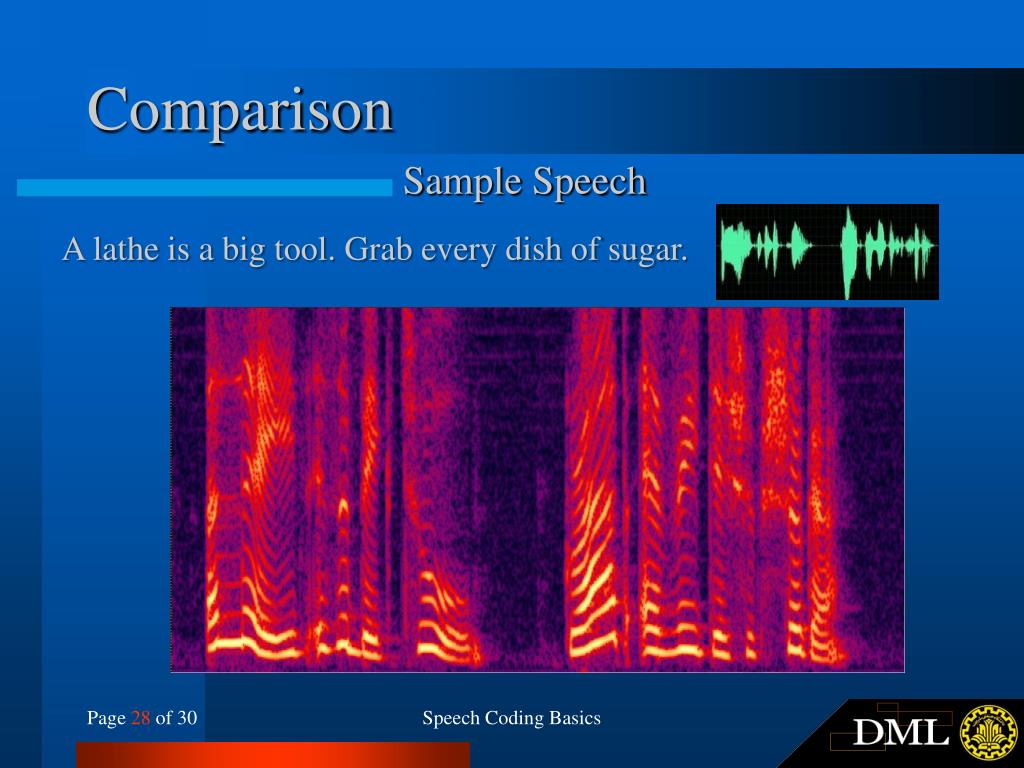

  29. Comparison Sample Speech A lathe is a big tool. Grab every dish of sugar. Speech Coding Basics

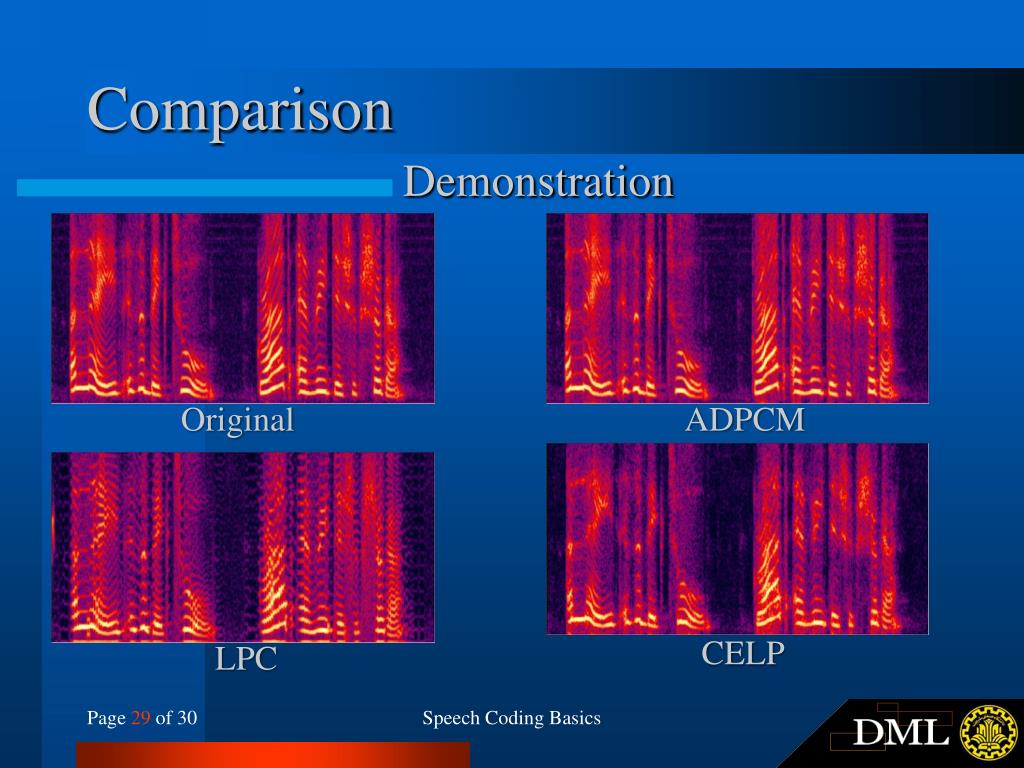

  30. Comparison Demonstration Original ADPCM CELP LPC Speech Coding Basics

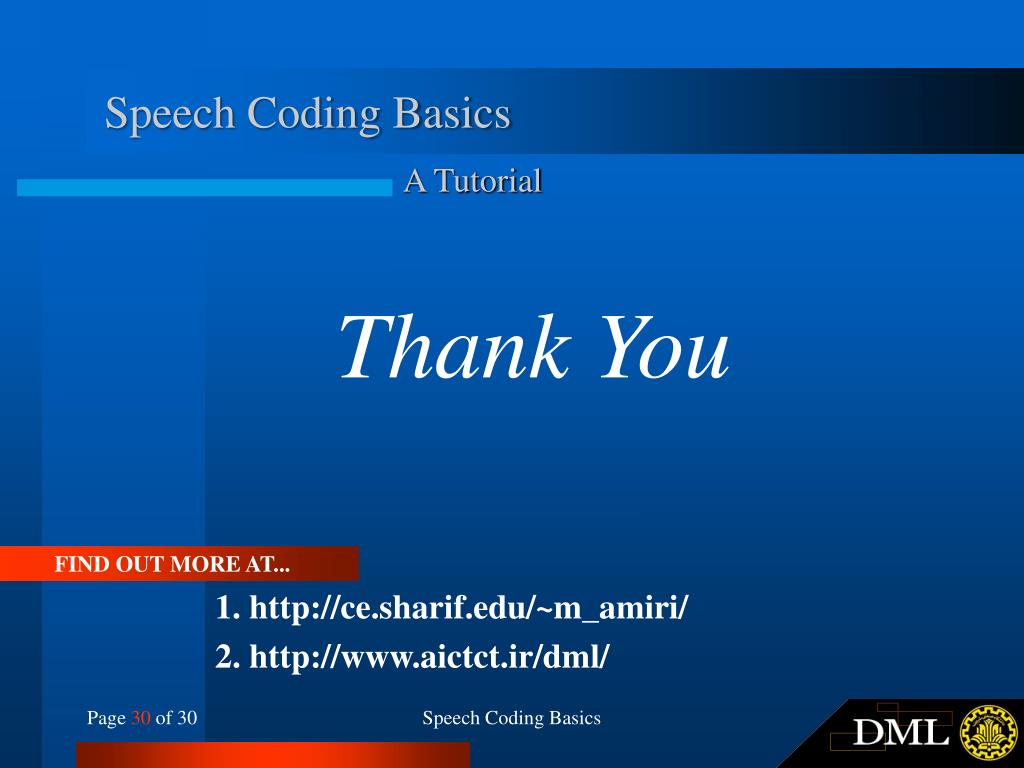

  31. Speech Coding Basics A Tutorial Thank You FIND OUT MORE AT... 1. http://ce.sharif.edu/~m_amiri/ 2. http://www.aictct.ir/dml/ Speech Coding Basics

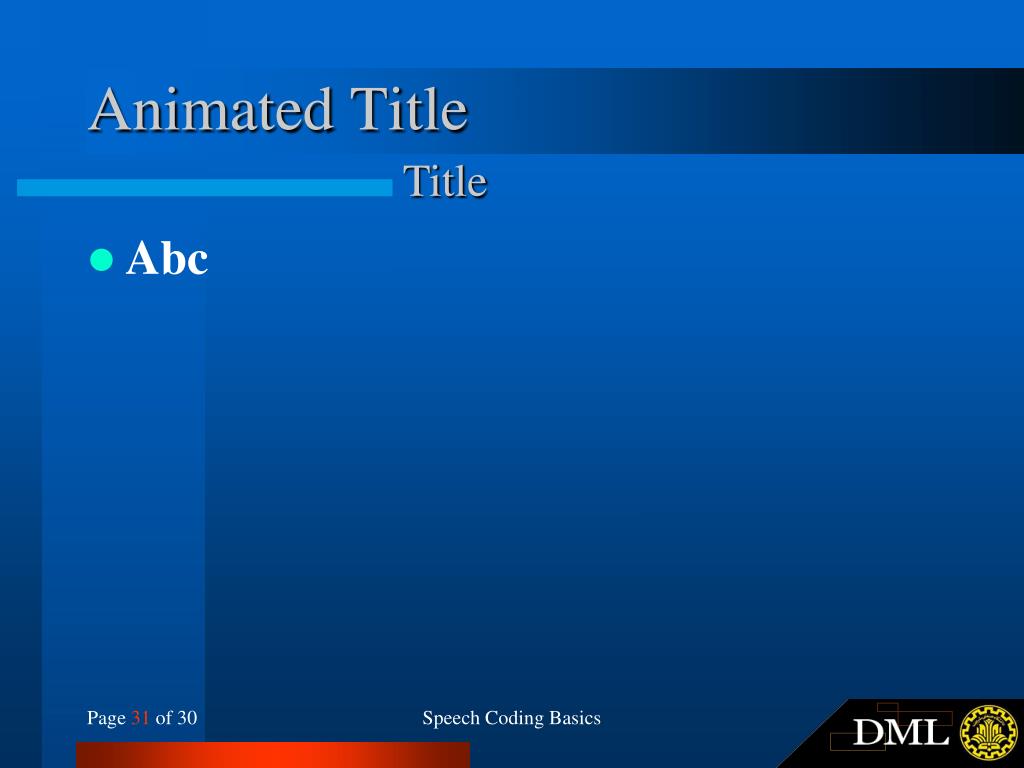

  32. Animated Title Title • Abc Speech Coding Basics

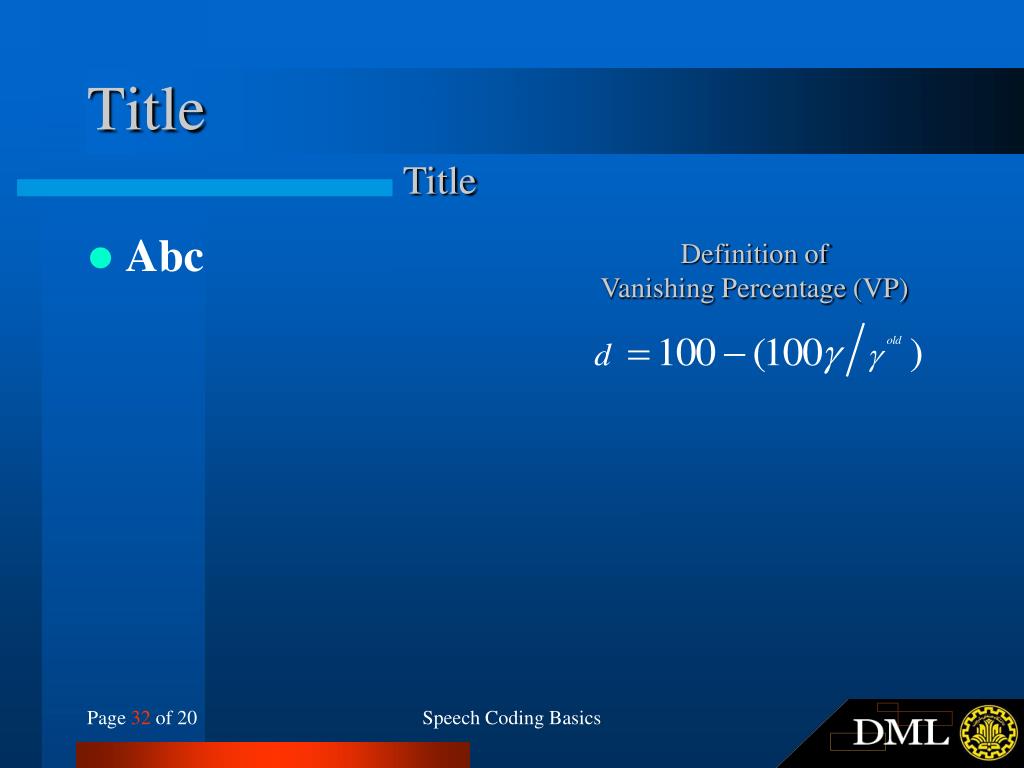

  33. Title Title • Abc Definition ofVanishing Percentage (VP) Speech Coding Basics
