T-line perturbations due to glass at the ends

T-line perturbations due to glass at the ends. Model: Spice with 32 x 1.6mm 50 W elements with stubs: 30 stubs: 100fF stubs #2,4: 150fF. Jean-Francois May 5 th ‘09. 50 W. 50 W. Current pulse. Spice output.

thomas-jordan
Télécharger la présentation

T-line perturbations due to glass at the ends

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

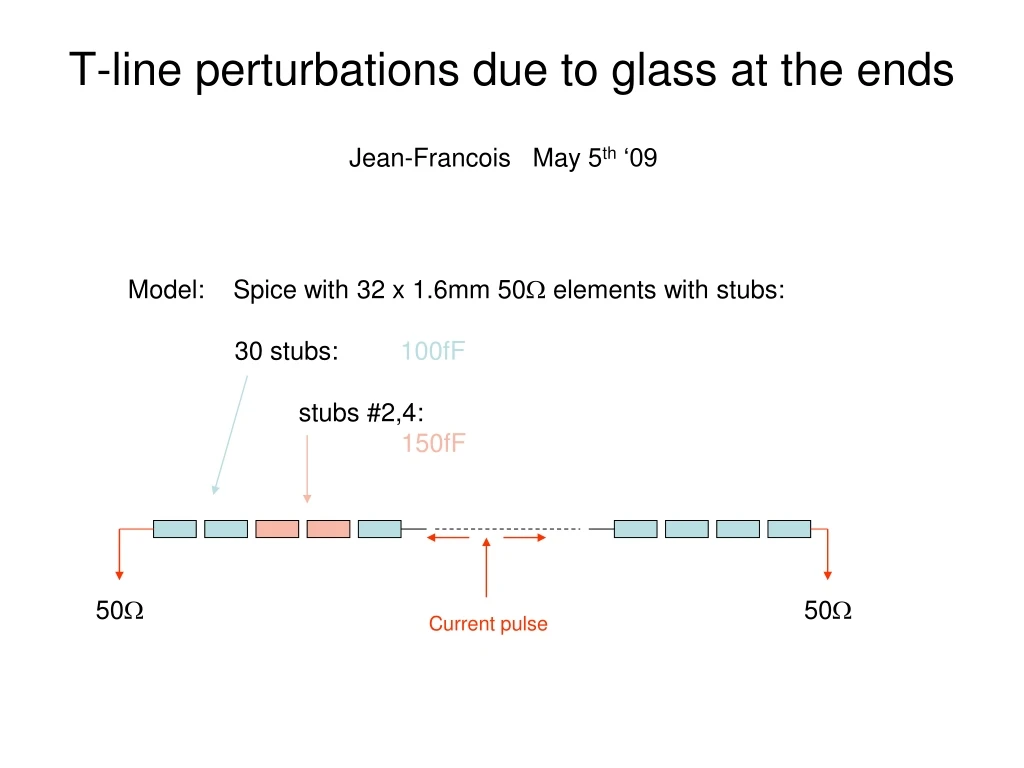

  1. T-line perturbations due to glass at the ends Model: Spice with 32 x 1.6mm 50W elements with stubs: 30 stubs:100fF stubs #2,4: 150fF Jean-Francois May 5th ‘09 50W 50W Current pulse

  2. Spice output • Rising edge almost not delated (1ps) Trailing edge slightly delayed (3 ps) • Waveform slightly distorded

  3. Spice output (zoom)
