  1. RPC Trigger Software

  2. VME Hardware setup TB equipped with embedded PC (EtLinux) RPC VME-PCI SBS Interface Bit3 Controller Trigger Board Pattern Unit TTCvi Link Board 1 Link Board 2 Link Board 3 Link Board 4 WinNT 4 PCI-VME Ethernet Michał Pietrusiński

  3. Applications • aboot – command line utility to load Altera FPGAs • interbs – simple command line utility to interact with JTAG boards • Basic JTAG operations (TAP state, send/receive vectors of bits) • Chip and board level operations – access to elements by its name: • read/write specific chip registers • execute JTAG instructions • set/get state of specific pin/signal Michał Pietrusiński

  4. interbs – example of usage suncms1:/usr/local/bin>interbs chain.bsc PAC:pt ALTERA:ap PAC:pac ALTERA:ac interbs>reset interbs>ss pt BYPASS interbs>ss ap BYPASS interbs>ss pac SAMPLE interbs>ss ac BYPASS interbs>sir sending sequence:11101001111111 received=10110001011000 interbs>sdr sending sequence: 00000000000000000000000000000000000000000000000000000000000000000000000 Received sequence: 00000000000000000000000000000000000000000000000000000000000000000101000 interbs>gs pac|BOUN_REG|sig|codeout3 o1 interbs>gs pac|BOUN_REG|sig|codeout4 o0 interbs>gs pac|BOUN_REG|sig|codeout5 o1 interbs>gs pac|BOUN_REG|sig|codeout6 o0 interbs>quit List of chips in the chain Set TAP to Reset state Prepare the program to execute given instructions in chips Send/rec sequence to instruction registers Send/rec sequence to data registers (length of chain is calcuated automaticaly) Print state of some signals: o1 - output high o0 – output low Michał Pietrusiński

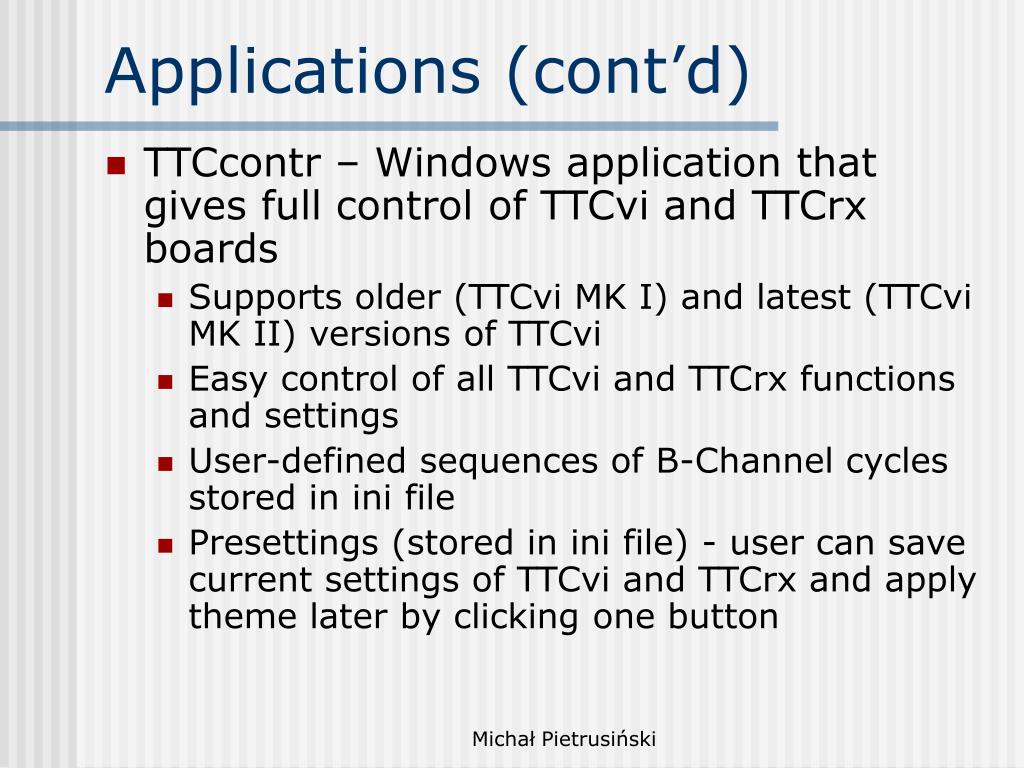

  5. Applications (cont’d) • TTCcontr – Windows application that gives full control of TTCvi andTTCrx boards • Supports older (TTCvi MK I) and latest (TTCvi MK II) versions of TTCvi • Easy control of all TTCvi and TTCrx functions and settings • User-defined sequences of B-Channel cycles stored in ini file • Presettings (stored in ini file) - user can save current settings of TTCvi and TTCrx and apply theme later byclicking one button Michał Pietrusiński

  6. TTC screenshot Michał Pietrusiński

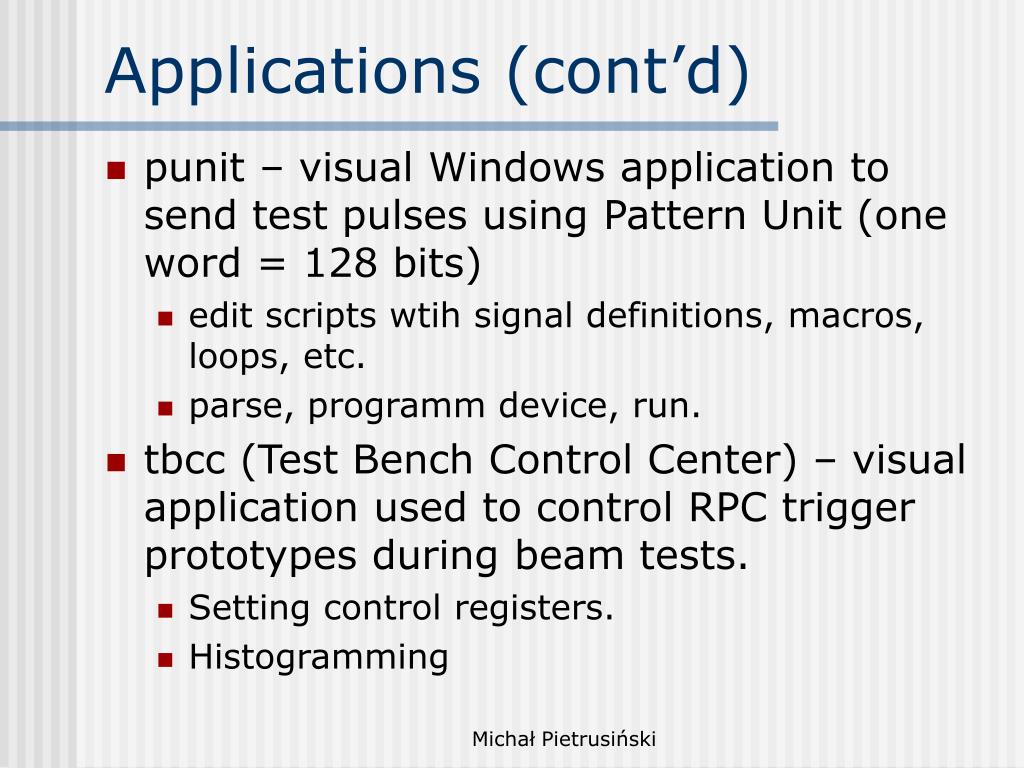

  7. Applications (cont’d) • punit – visual Windows application to send test pulses using Pattern Unit (one word = 128 bits) • edit scripts wtih signal definitions, macros, loops, etc. • parse, programm device, run. • tbcc (Test Bench Control Center) – visual application used to control RPC trigger prototypes during beam tests. • Setting control registers. • Histogramming Michał Pietrusiński

  8. Beam-test software goals • Hardware setup and control (FPGAs loading, setting control registers) • Readout of boards, histogramming • Intuitive GUI: software is to be used by non software experts • Reusable, easy to modify • High performance Michał Pietrusiński

  9. Tbcc screenshot Michał Pietrusiński

  10. Packages • VME library • Altera loading package • JTAG primitives library (bscontr) • JTAG layout library (bslayout) • Test pulses generation library (punit) • Histogramming package • Internal Interface (II) package • TTCvi package Michał Pietrusiński

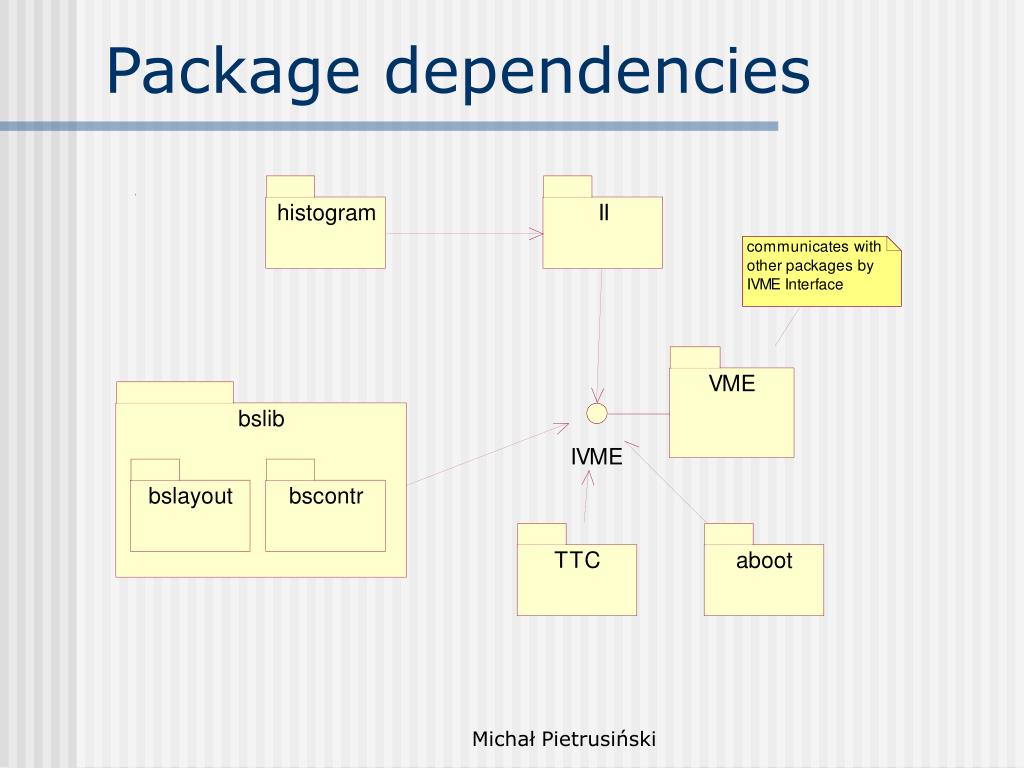

  11. Package dependencies Michał Pietrusiński

  12. Boundary Scan package Michał Pietrusiński

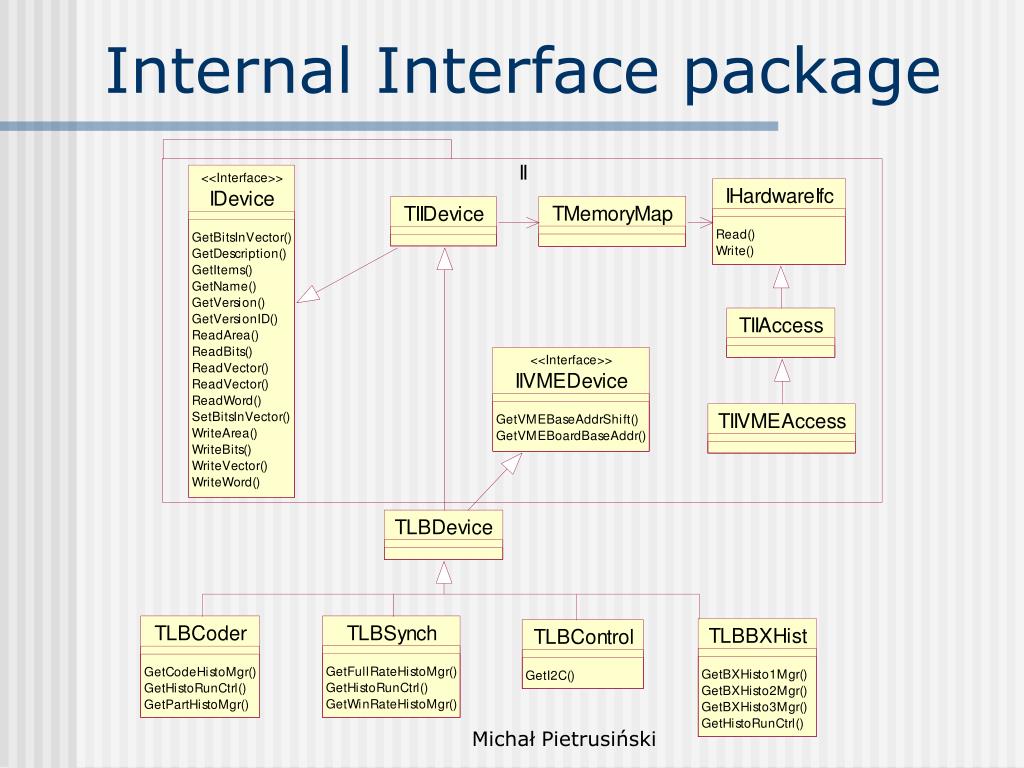

  13. Internal Interface package Michał Pietrusiński

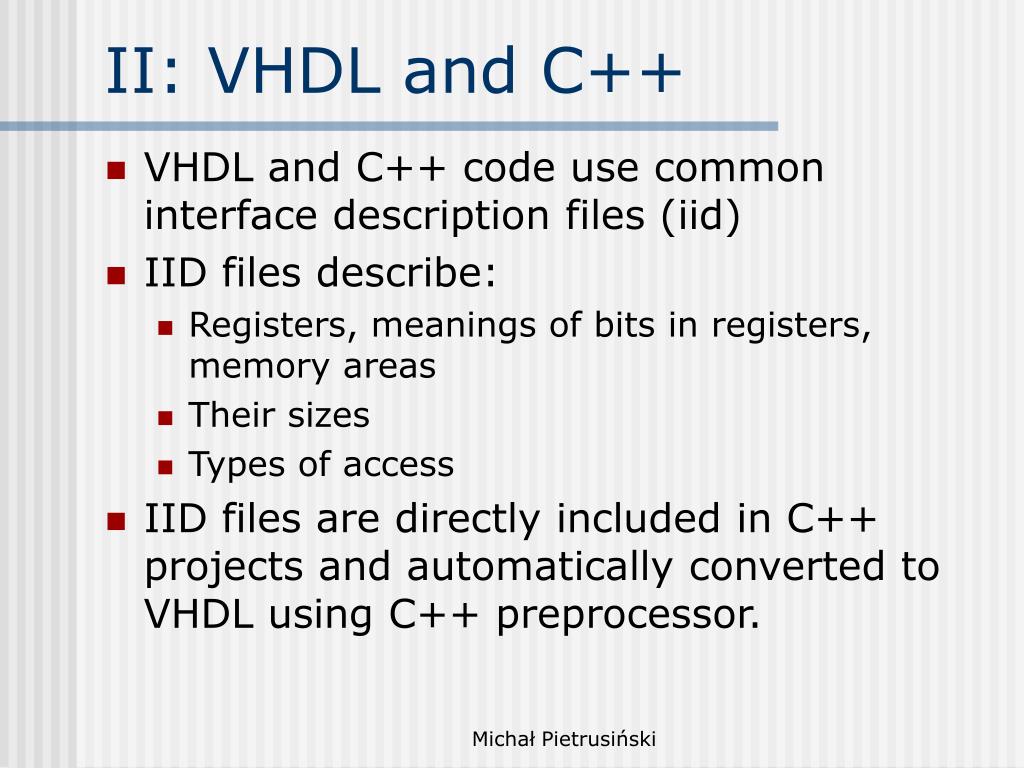

  14. II: VHDL and C++ • VHDL and C++ code use common interface description files (iid) • IID files describe: • Registers, meanings of bits in registers, memory areas • Their sizes • Types of access • IID files are directly included in C++ projects and automatically converted to VHDL using C++ preprocessor. Michał Pietrusiński

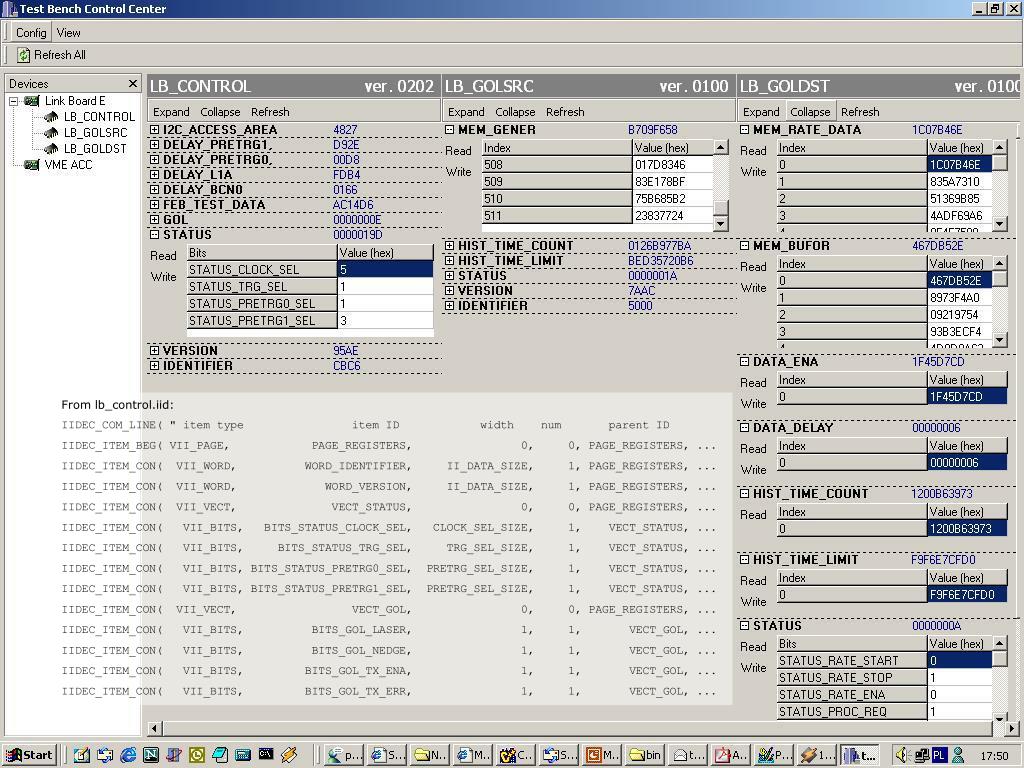

  15. Tbcc screenshot II From lb_control.iid: IIDEC_COM_LINE( " item type item ID width num parent ID IIDEC_ITEM_BEG( VII_PAGE, PAGE_REGISTERS, 0, 0, PAGE_REGISTERS, ... IIDEC_ITEM_CON( VII_WORD, WORD_IDENTIFIER, II_DATA_SIZE, 1, PAGE_REGISTERS, ... IIDEC_ITEM_CON( VII_WORD, WORD_VERSION, II_DATA_SIZE, 1, PAGE_REGISTERS, ... IIDEC_ITEM_CON( VII_VECT, VECT_STATUS, 0, 0, PAGE_REGISTERS, ... IIDEC_ITEM_CON( VII_BITS, BITS_STATUS_CLOCK_SEL, CLOCK_SEL_SIZE, 1, VECT_STATUS, ... IIDEC_ITEM_CON( VII_BITS, BITS_STATUS_TRG_SEL, TRG_SEL_SIZE, 1, VECT_STATUS, ... IIDEC_ITEM_CON( VII_BITS, BITS_STATUS_PRETRG0_SEL, PRETRG_SEL_SIZE, 1, VECT_STATUS, ... IIDEC_ITEM_CON( VII_BITS, BITS_STATUS_PRETRG1_SEL, PRETRG_SEL_SIZE, 1, VECT_STATUS, ... IIDEC_ITEM_CON( VII_VECT, VECT_GOL, 0, 0, PAGE_REGISTERS, ... IIDEC_ITEM_CON( VII_BITS, BITS_GOL_LASER, 1, 1, VECT_GOL, ... IIDEC_ITEM_CON( VII_BITS, BITS_GOL_NEDGE, 1, 1, VECT_GOL, ... IIDEC_ITEM_CON( VII_BITS, BITS_GOL_TX_ENA, 1, 1, VECT_GOL, ... IIDEC_ITEM_CON( VII_BITS, BITS_GOL_TX_ERR, 1, 1, VECT_GOL, ... Michał Pietrusiński

  16. Histogramming package Michał Pietrusiński
