Instantaneous Velocity

Neil Amin Brent Anderson Period 2 AP Physics. Instantaneous Velocity. Definition. Velocity, or the motion with a numerical value and direction, at a specific moment in time. The difference between velocity and speed is that velocity has a speed with a vector while speed just has speed.

thy
Télécharger la présentation

Instantaneous Velocity

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

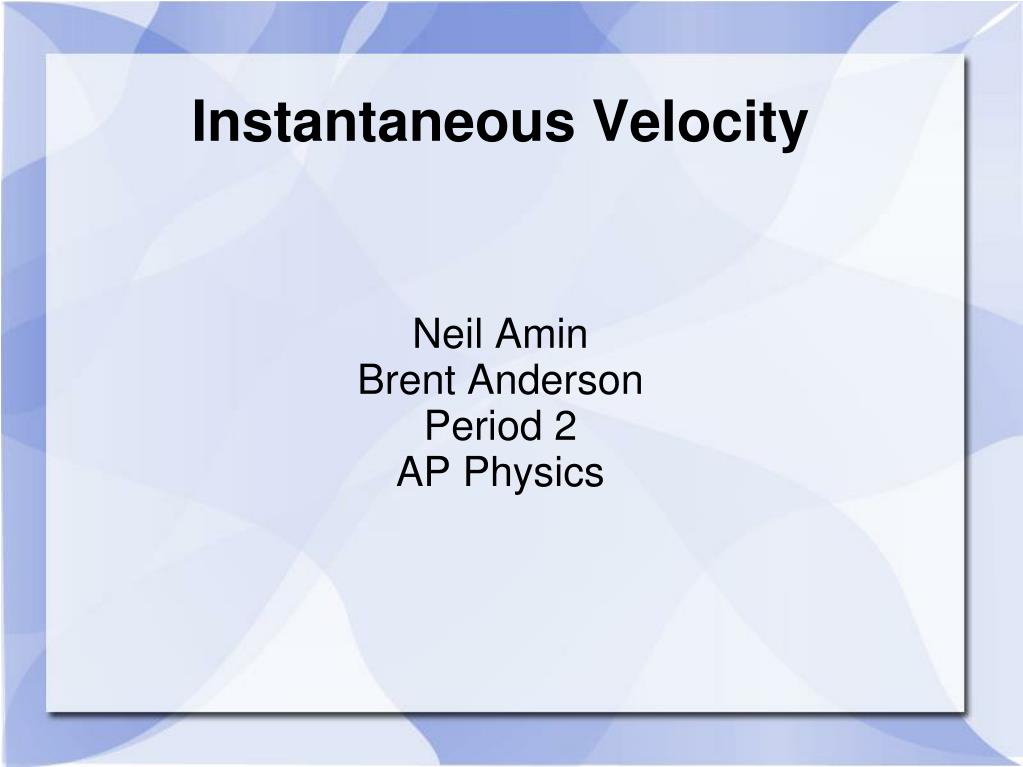

  1. Neil Amin Brent Anderson Period 2 AP Physics Instantaneous Velocity

  2. Definition • Velocity, or the motion with a numerical value and direction, at a specific moment in time. • The difference between velocity and speed is that velocity has a speed with a vector while speed just has speed.

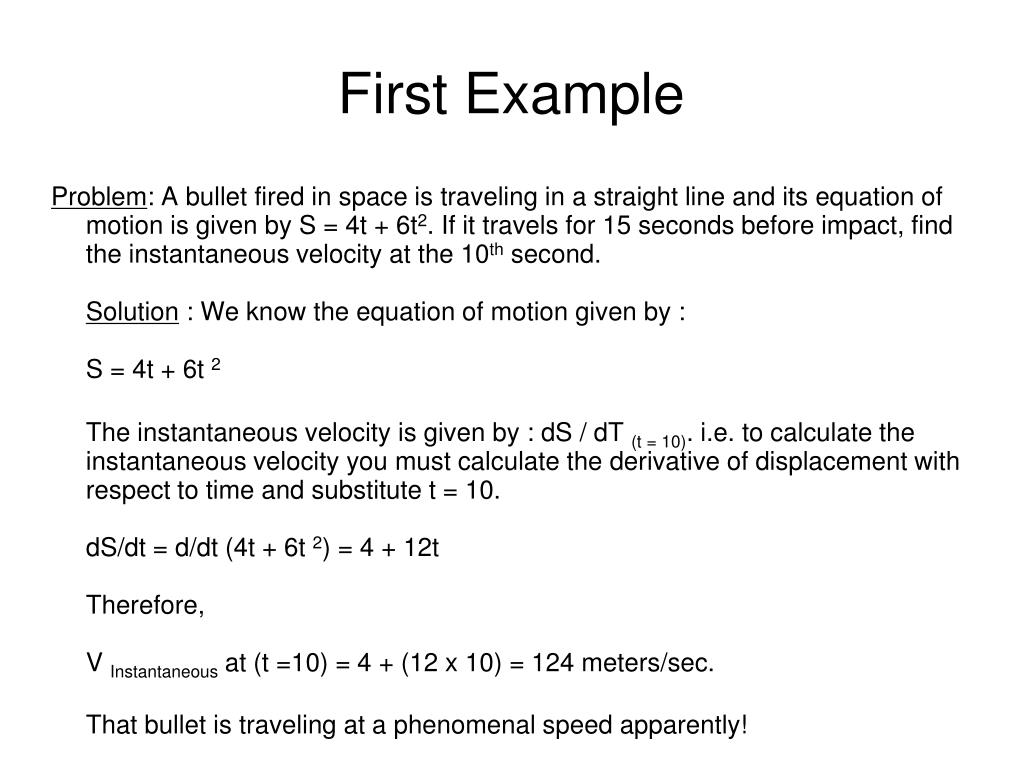

  3. First Example • Problem: A bullet fired in space is traveling in a straight line and its equation of motion is given by S = 4t + 6t2. If it travels for 15 seconds before impact, find the instantaneous velocity at the 10th second.Solution : We know the equation of motion given by :S = 4t + 6t 2The instantaneous velocity is given by : dS / dT (t = 10). i.e. to calculate the instantaneous velocity you must calculate the derivative of displacement with respect to time and substitute t = 10. dS/dt = d/dt (4t + 6t 2) = 4 + 12tTherefore, V Instantaneous at (t =10) = 4 + (12 x 10) = 124 meters/sec. That bullet is traveling at a phenomenal speed apparently!

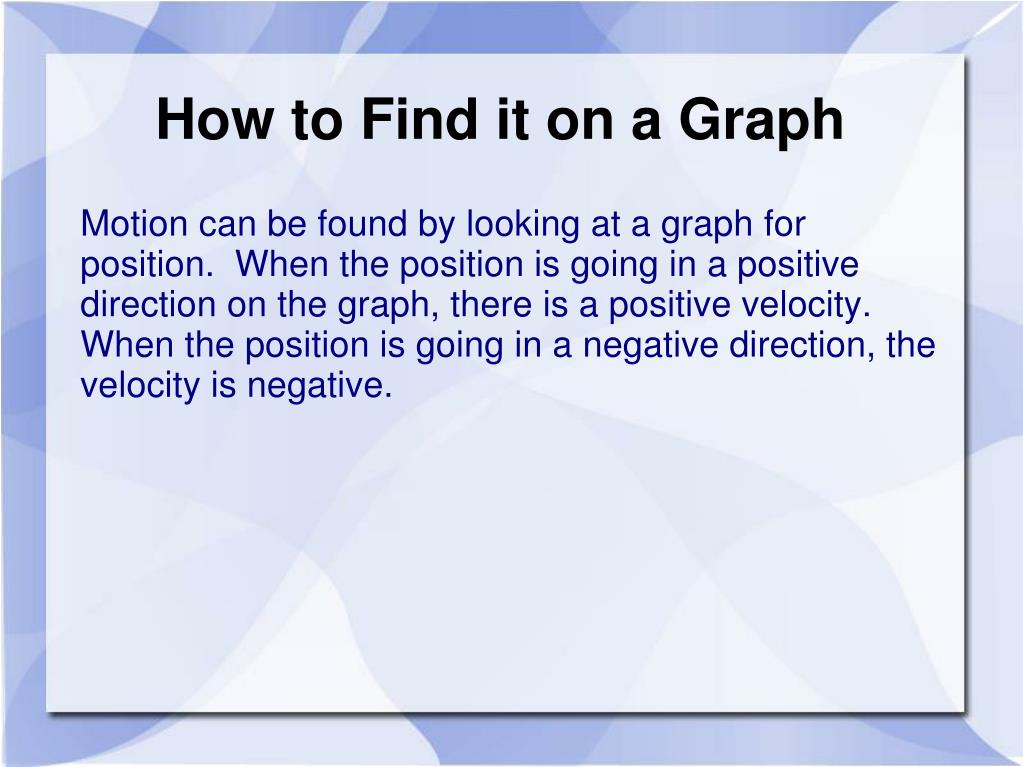

  4. How to Find it on a Graph • Motion can be found by looking at a graph for position. When the position is going in a positive direction on the graph, there is a positive velocity. When the position is going in a negative direction, the velocity is negative.

  5. Review • Table 2.1: Position and time for a runner. • t(s) x(m) • 1.00 1.00 • 1.01 1.02 • 1.10 1.21 • 1.20 1.44 • 1.50 2.25 • 2.00 4.00 • 3.00 9.00 • Find the runner's instantaneous velocity at t = 1.00 s.

  6. Review Continued • We can interpret the instantaneous velocity graphically as follows. Recall that the average velocity is the slope of the line joining P and Q To get the instantaneous velocity we need to take $\Delta$t $\rightarrow$ 0, or P $\rightarrow$ Q. When P $\rightarrow$ Q, the line joining P and Q approaches the tangent to the curve at P (or Q). Thus the slope of the tangent at P is the instantaneous velocity at P. Note that if the trajectory were a straight line, we would get v = $\bar{v}$ , the same for all t .

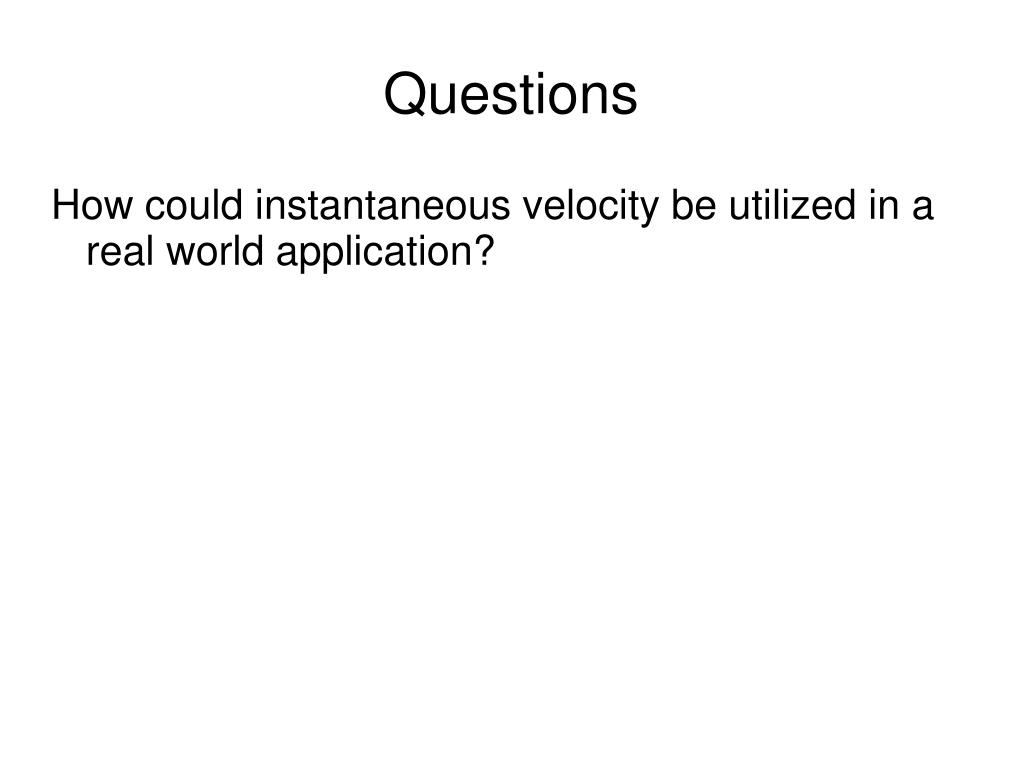

  7. Questions • How could instantaneous velocity be utilized in a real world application?
