Understanding P, NP, and NP-Complete Problems: Key Concepts and Zero-Knowledge Proofs

This document delves into computational complexity theory, covering essential topics such as P, NP, NP-complete problems, and zero-knowledge proofs. It discusses the significance of polynomial time solutions and the challenges posed by problems like the Traveling Salesman and 3-Coloring. The work highlights that while some problems can be verified in polynomial time, not all have polynomial time proofs, with examples illustrating the complexity of factoring and coloring challenges. Furthermore, it introduces the concept of zero-knowledge proofs, demonstrating how one can prove knowledge without revealing specific information.

tiger
Télécharger la présentation

Understanding P, NP, and NP-Complete Problems: Key Concepts and Zero-Knowledge Proofs

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 233-234 Sedgewick & Wayne (2004); Chazelle (2005)

  2. Linear-reduces: Cost of reduction is proportional to size of input

  3. Traveling Salesman Problem

  4. Best known algorithm takes exponential time!

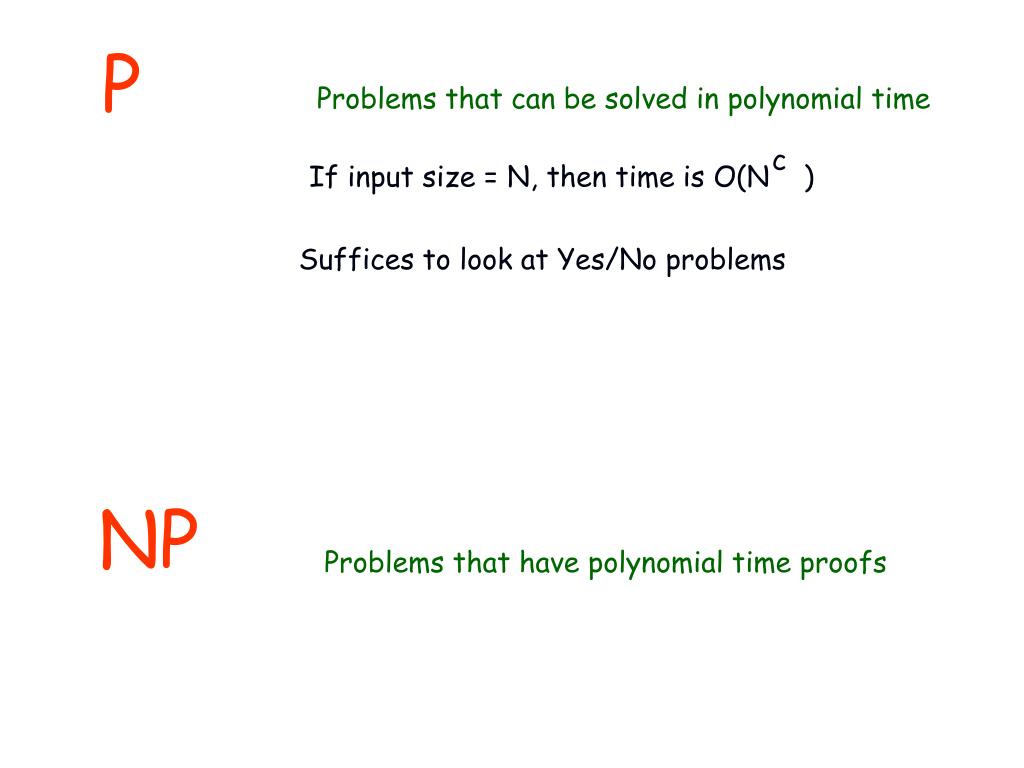

  5. P Problems that can be solved in polynomial time c If input size = N, then time is O(N ) Suffices to look at Yes/No problems NP Problems that have polynomial time proofs

  6. 3-Coloring Not known to be in P

  7. 3-Coloring But is in NP

  8. A polynomial time proof of 3-Coloring

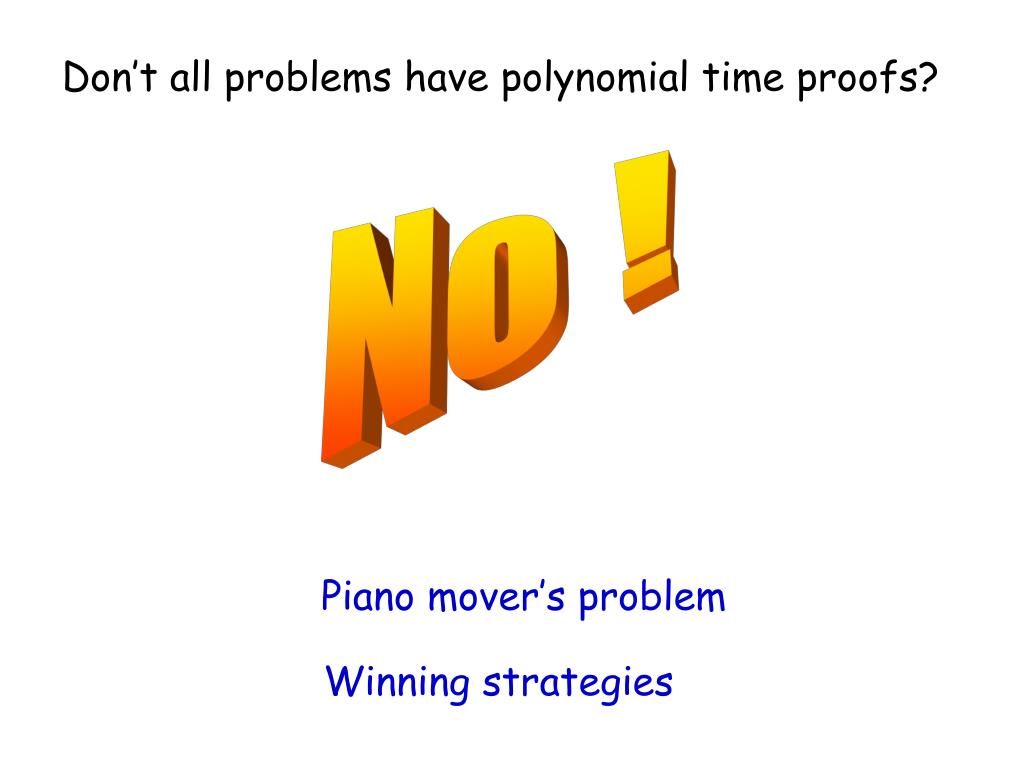

  9. Don’t all problems have polynomial time proofs? No ! Piano mover’s problem Winning strategies

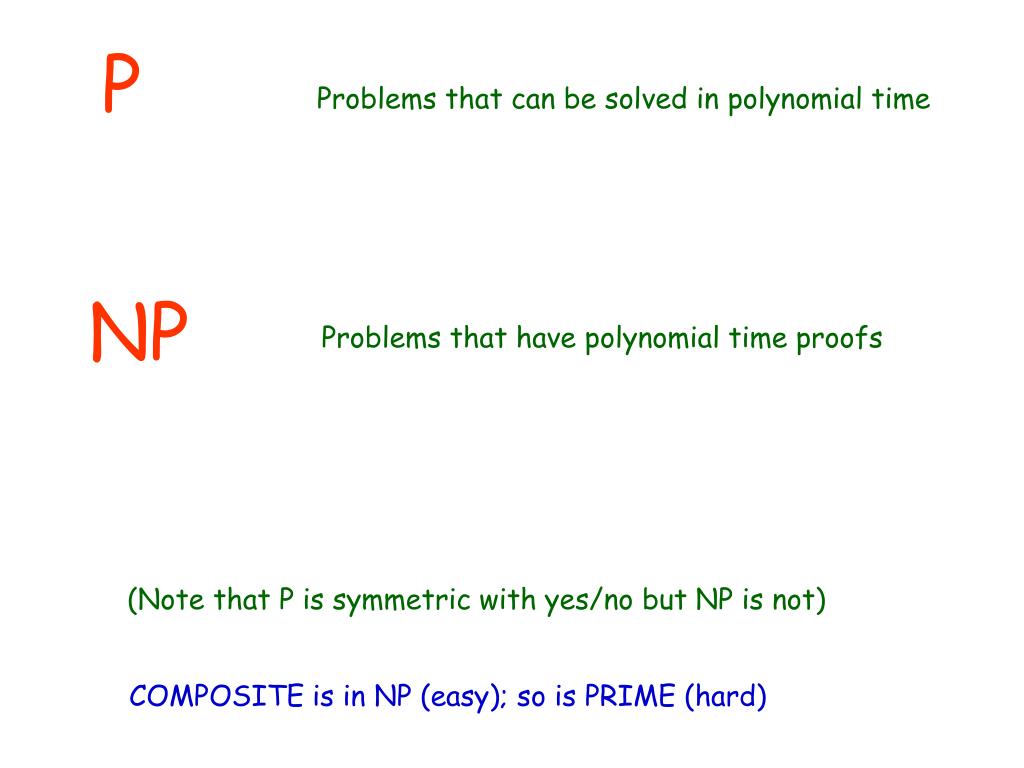

  10. P Problems that can be solved in polynomial time NP Problems that have polynomial time proofs (Note that P is symmetric with yes/no but NP is not) COMPOSITE is in NP (easy); so is PRIME (hard)

  11. P = NP ?

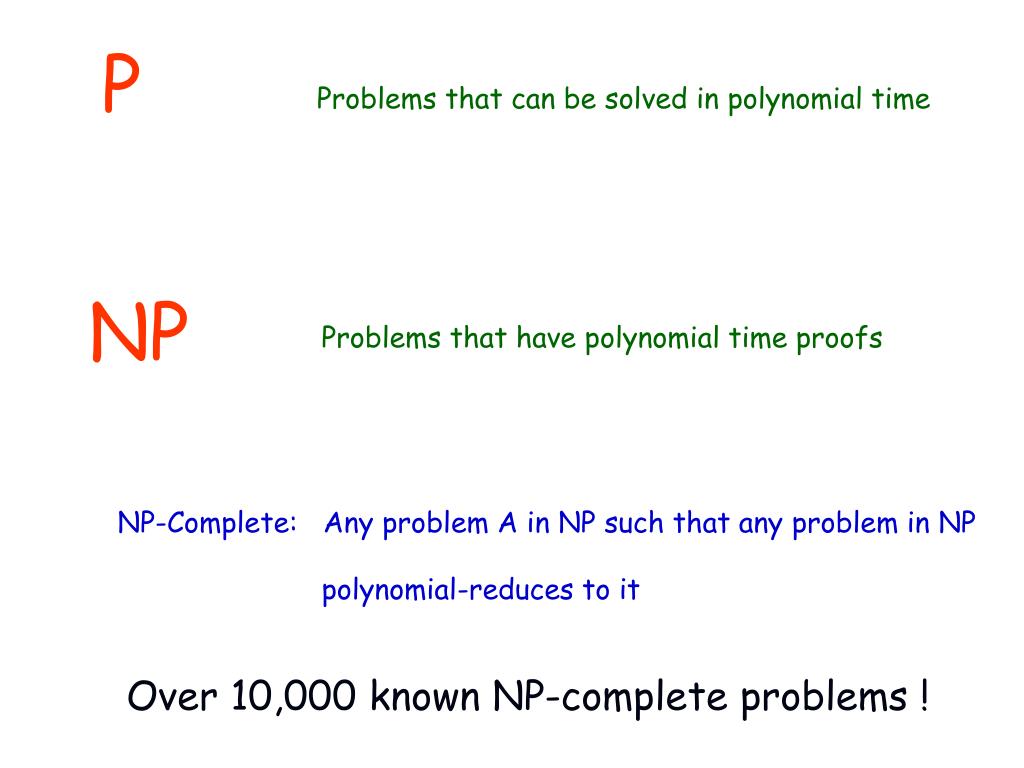

  12. P Problems that can be solved in polynomial time NP Problems that have polynomial time proofs NP-Complete: Any problem A in NP such that any problem in NP polynomial-reduces to it Over 10,000 known NP-complete problems !

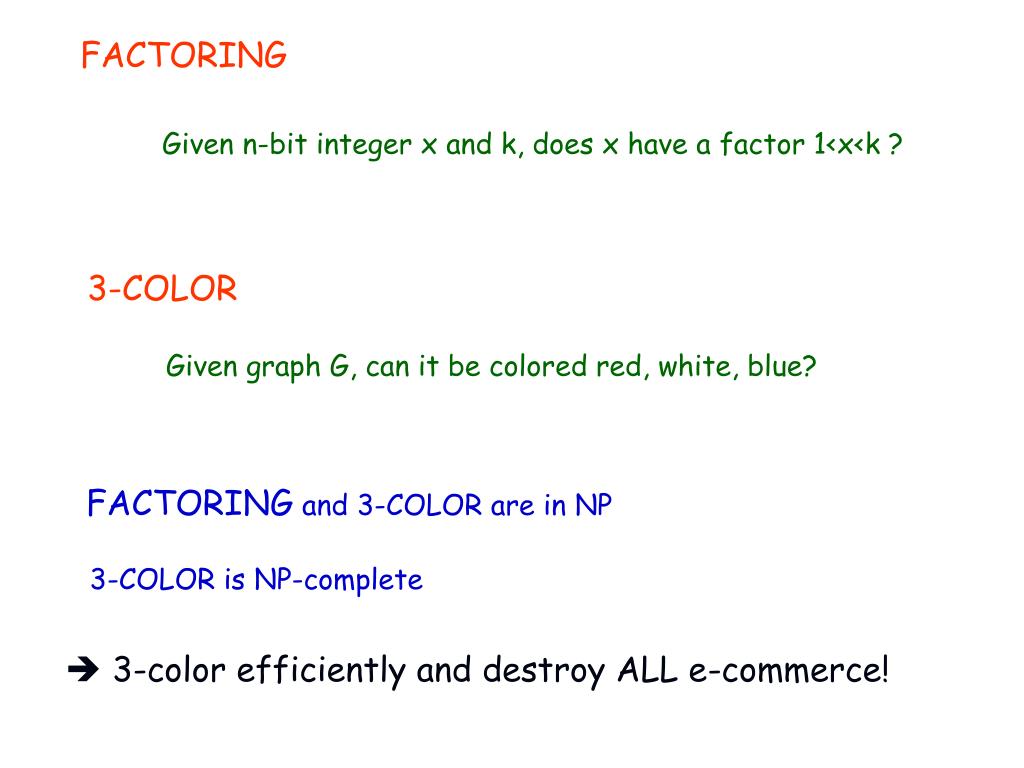

  13. FACTORING Given n-bit integer x and k, does x have a factor 1<x<k ? 3-COLOR Given graph G, can it be colored red, white, blue? FACTORING and 3-COLOR are in NP 3-COLOR is NP-complete  3-color efficiently and destroy ALL e-commerce!

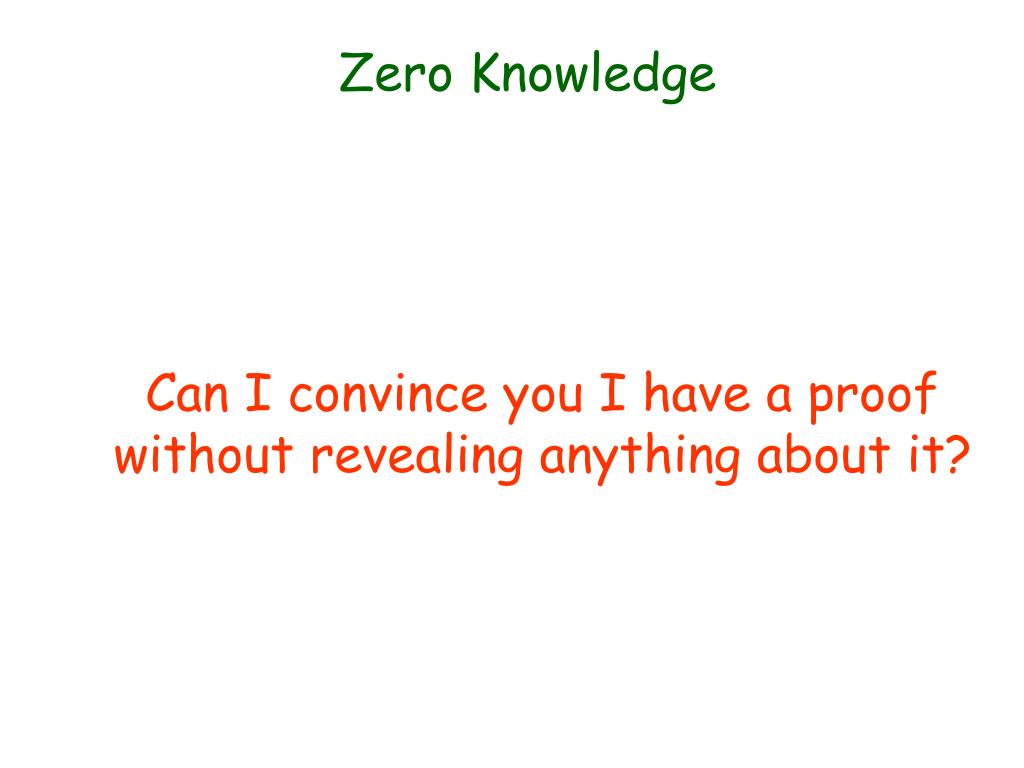

  14. Zero Knowledge Can I convince you I have a proof without revealing anything about it?

  15. 3-Coloring

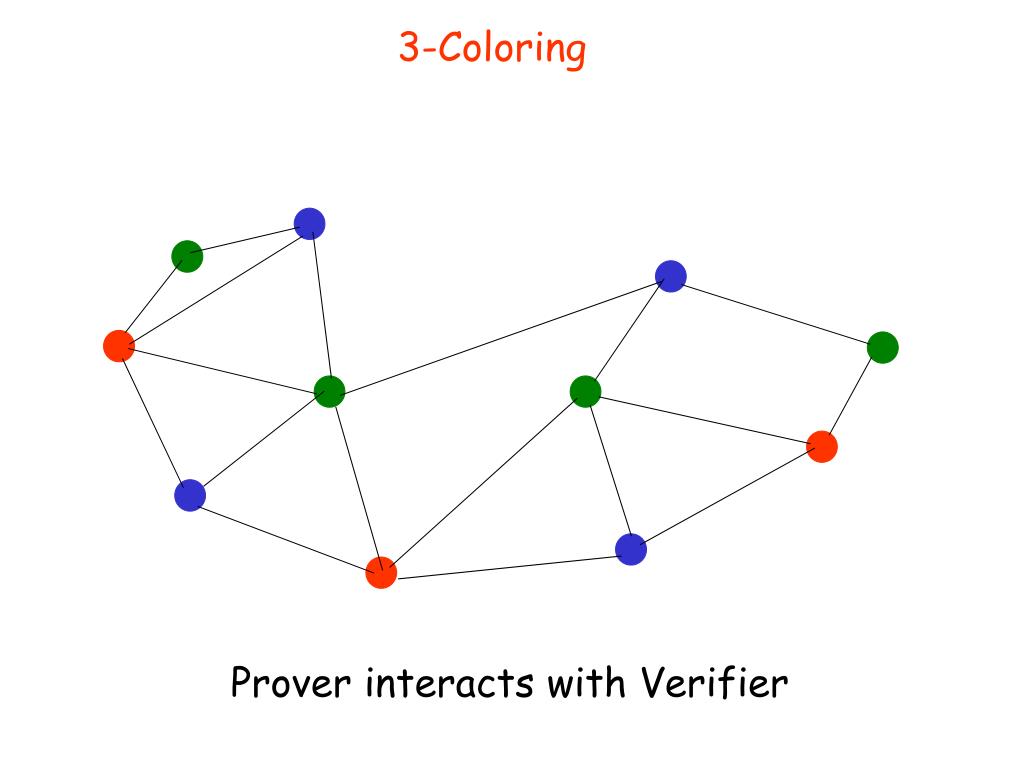

  16. 3-Coloring Prover interacts with Verifier

  17. 3-Coloring Prover hides coloring

  18. 3-Coloring Verifier checks an edge at random

  19. 3-Coloring Verifier spots a lie with probability 1/E

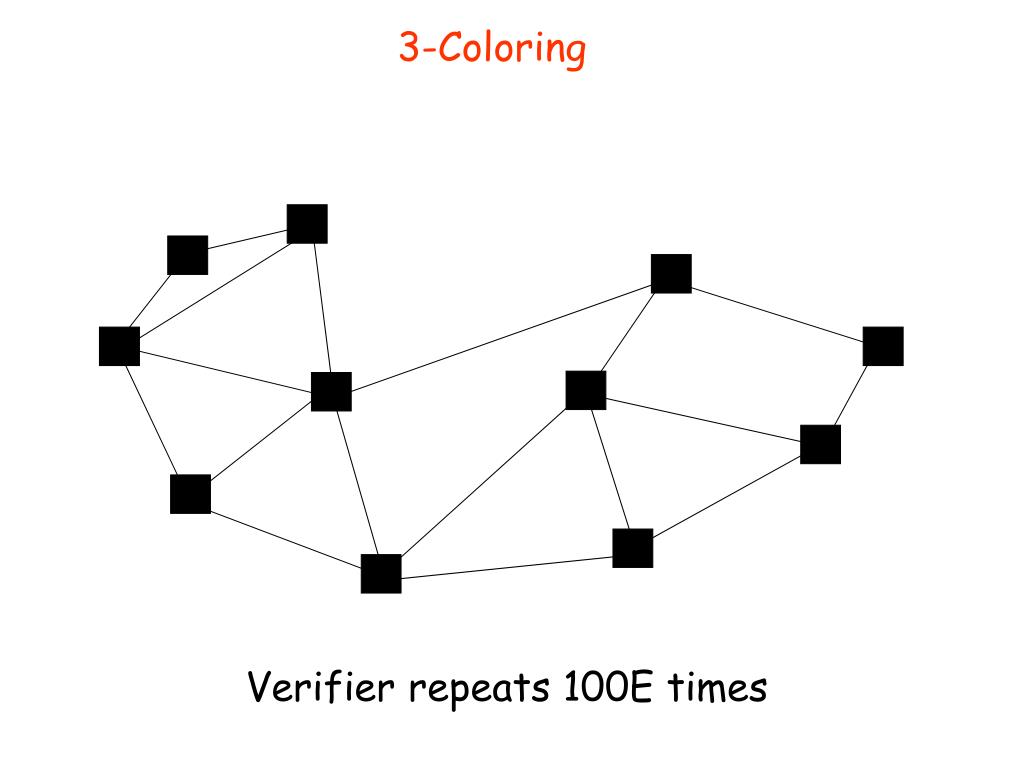

  20. 3-Coloring Verifier repeats 100E times

  21. If Verifier spots no lies, she concludes the graph is 3-colorable Prover fools Verifier with negligible probability

  22. Is it Zero-Knowledge? Verifier can color most of the graph!

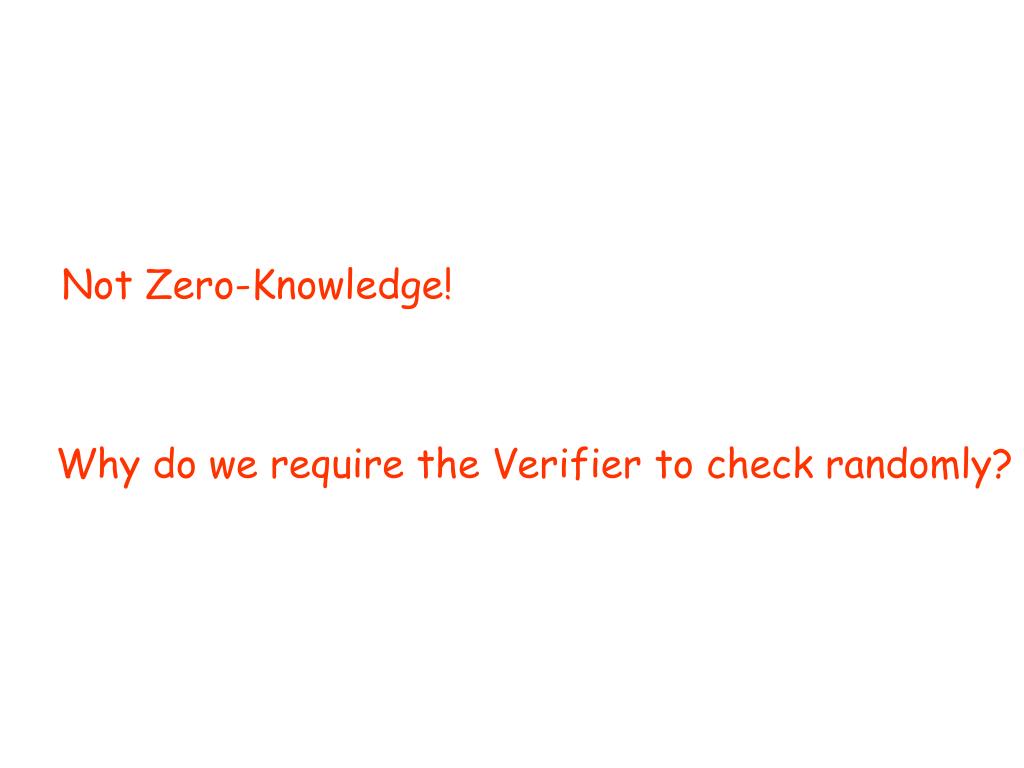

  23. Not Zero-Knowledge! Why do we require the Verifier to check randomly?

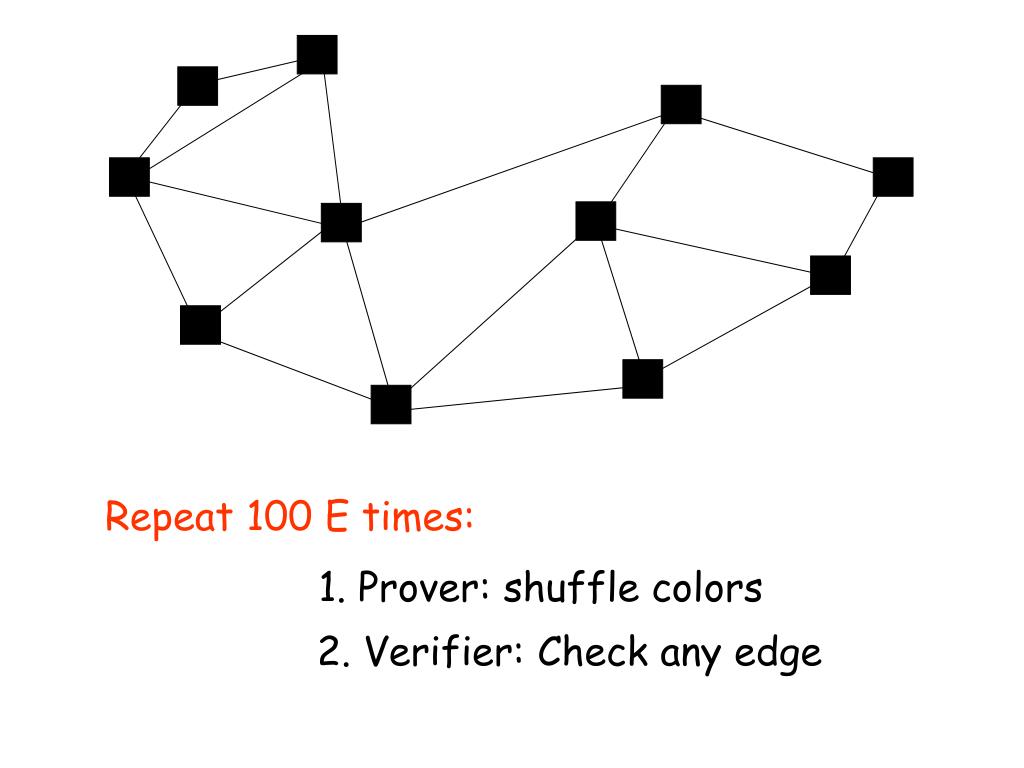

  24. Repeat 100 E times: 1. Prover: shuffle colors 2. Verifier: Check any edge

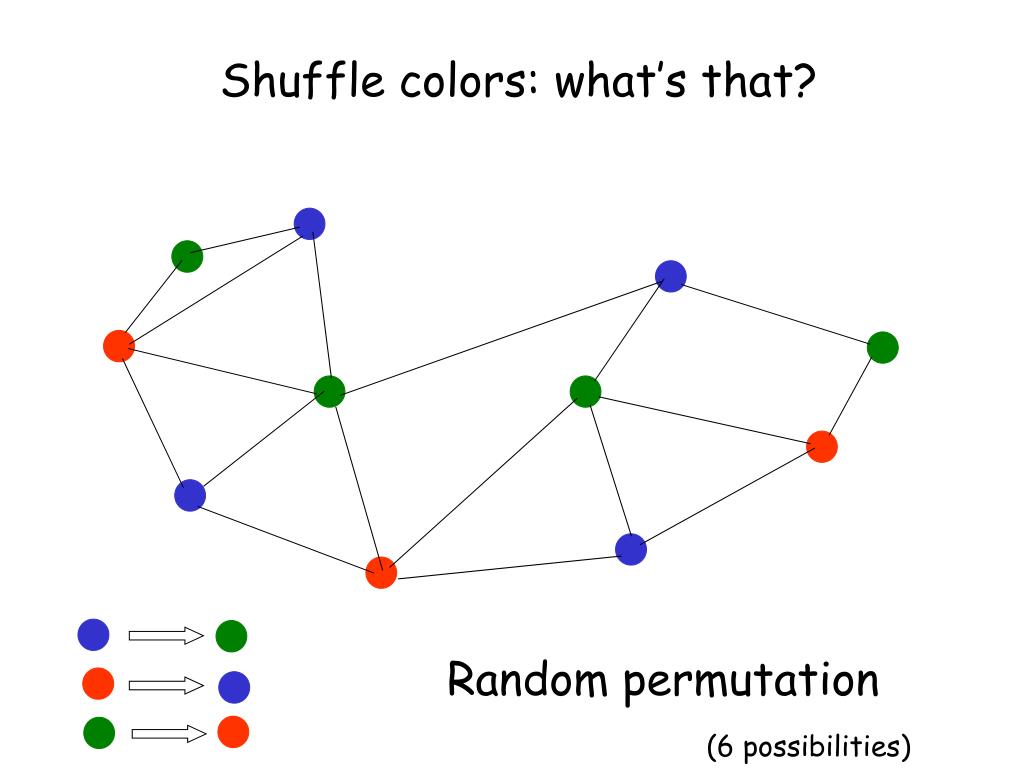

  25. Shuffle colors: what’s that? Random permutation (6 possibilities)

  26. Step 1: Prover shuffles coloring

  27. Step 2: Prover hides coloring

  28. Step 3: Verifier checks an edge

  29. Step 1: Prover shuffles coloring

  30. Step 2: Prover hides coloring

  31. Step 3: Verifier checks an edge, etc

  32. Why is it zero-knowledge? No matter what the Verifier does, she only sees a random pair of colors So, she can simulate the whole protocol by herself – no need for the prover.

  33. Every problem in NP has a zero-knowledge proof

  34. PCP (probabilistically checkable proofs) Can I convince you I have a proof of Riemann’s hypothesis by letting you look at only 2 lines picked at random? Yes, with probability of error 1/google

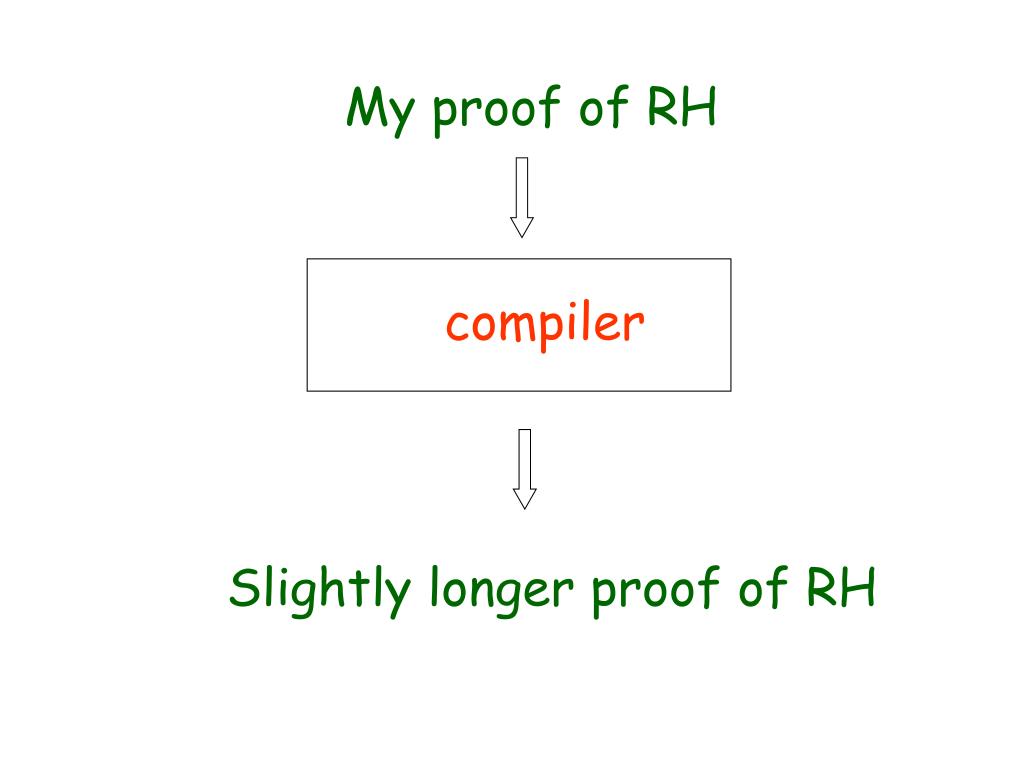

  35. My proof of RH compiler Slightly longer proof of RH

  36. compiler
