PHY1012F ROTATION II

PHY1012F ROTATION II. Gregor Leigh gregor.leigh@uct.ac.za. ROTATIONAL ENERGY. Use the laws of conservation of mechanical energy and angular momentum to solve rotational problems, including those involving rolling motion.

tilden
Télécharger la présentation

PHY1012F ROTATION II

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

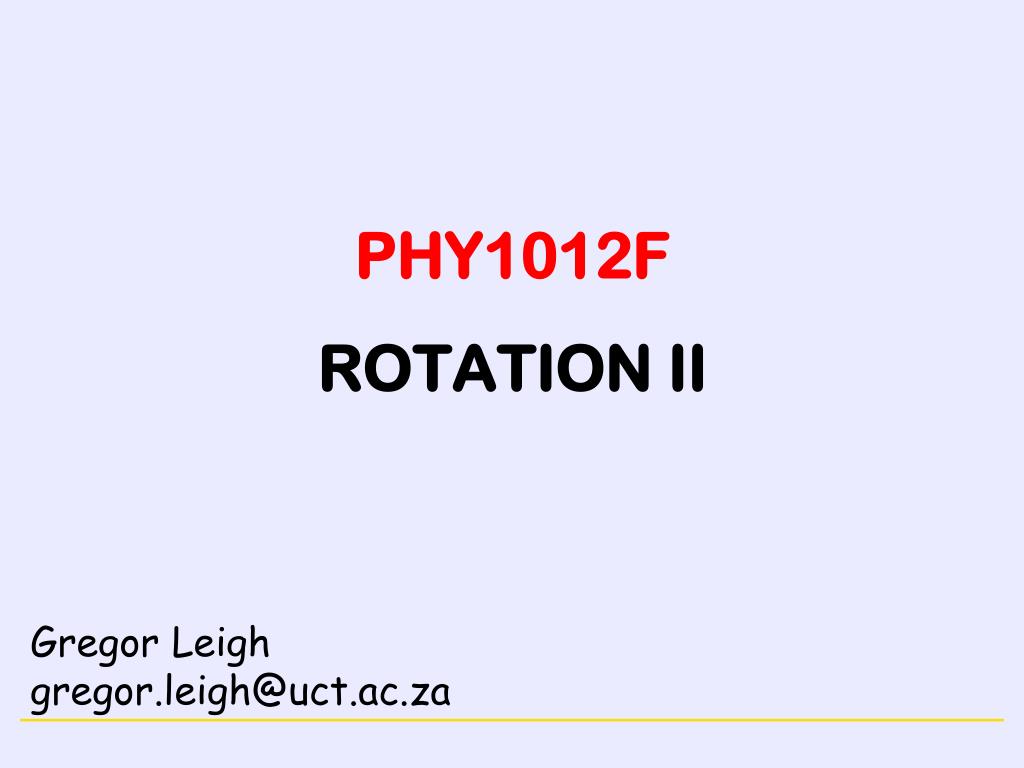

  1. PHY1012FROTATION II Gregor Leighgregor.leigh@uct.ac.za

  2. ROTATIONAL ENERGY ROTATIONAL ENERGY • Use the laws of conservation of mechanical energy and angular momentum to solve rotational problems, including those involving rolling motion. • Use vector mathematics to describe and solve problems involving rotational problems. Learning outcomes:At the end of this chapter you should be able to…

  3. ROTATIONAL ENERGY ROTATIONAL ENERGY Each particle in a rigid rotating body has kinetic energy. m2 r3 m3 r2 The sum of all the individual kinetic energies of each of the particles is the rotational kinetic energy of the body: r1 axle  m1 Krot = ½m1v12 + ½m2v22 + …  Krot = ½m1r122 + ½m2r222 + …  Krot = ½(m1r12)2  Krot = ½I2

  4. CONSERVATION OF ENERGY As usual, energy is conserved (in frictionless systems). PHY1012F ROTATIONAL ENERGY If, however, a horizontal axis of rotation does not coincide with the centre of mass, the object’s potential energy will vary. axle So we write: Emech = Krot + Ug= ½I2 + MgyCM K U Emech=K+U Emech=0 4

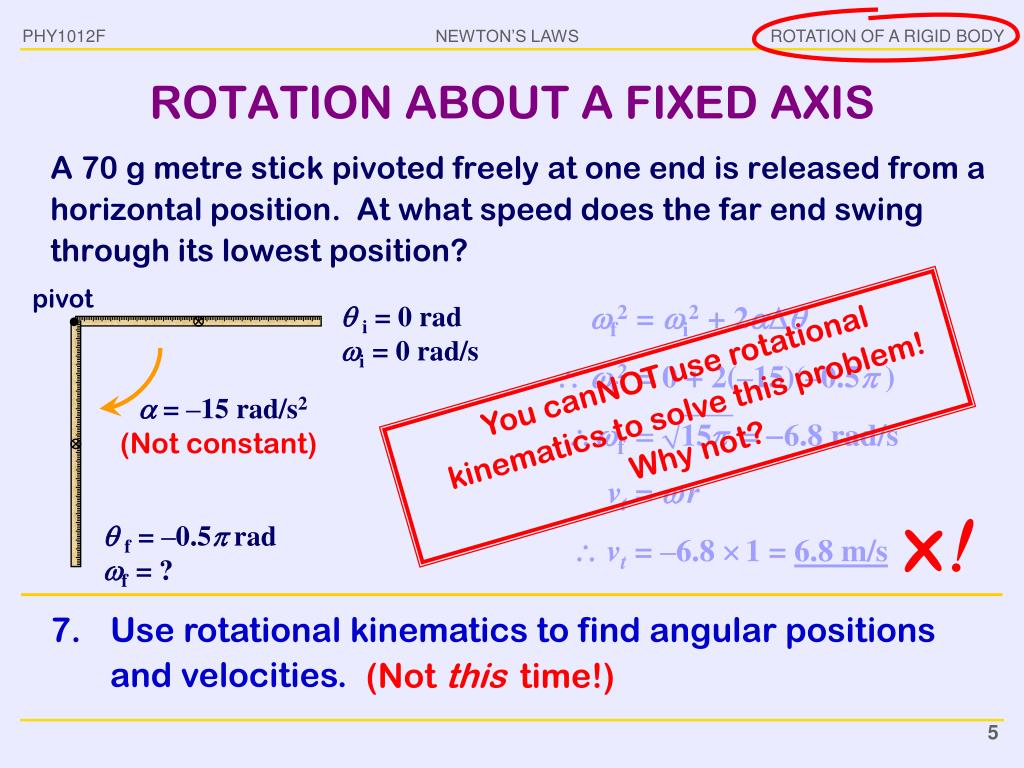

  5. ROTATION OF A RIGID BODY ROTATION ABOUT A FIXED AXIS A 70 g metre stick pivoted freely at one end is released from a horizontal position. At what speed does the far end swing through its lowest position? pivot f2= i2 + 2  i= 0 radi= 0 rad/s • You canNOT use rotational kinematics to solve this problem! Why not?  f2= 0 + 2(–15)(–0.5 ) = –15 rad/s2 • (Not constant) vt = r  f= –0.5 radf= ?  vt = –6.8 1 = 6.8 m/s • Use rotational kinematics to find angular positions and velocities. • (Not this time!)

  6. y • L = 1 m • x ROTATIONAL ENERGY A 70 g metre stick pivoted freely at one end is released from a horizontal position. At what speed does the far end swing through its lowest position? pivot • M = 0.07 kg • yCM = 0 m • 0 = 0 rad/s Before: ½I02 + MgyCM 0 = ½I12 + MgyCM 1 • yCM = –0.5 m • 1 = ? • vtip = ? After:

  7. 2R ROTATIONAL ENERGY ROLLING MOTION Rolling is a combination of rotation and translation. (We shall consider only objects which roll without slipping.) As a wheel (or sphere) rolls along a flat surface… • each point on the rim describes a cycloid; • the axle (the centre of mass) moves in a straight line, covering a distance of 2R each revolution; • the speed of the wheel is given by

  8. ROTATIONAL ENERGY FUNNY THING ABOUT THE CYCLOID… If a farmer’s road surface were rutted into a cycloid form, the smoothest way to get his sheep to market would be to use a truck with… SQUARE wheels!

  9. ROTATIONAL ENERGY ROLLING MOTION The velocity of a particle on a wheel consists of two parts: TRANSLATION + ROTATION = ROLLING v=2vCM =2R vCM R vCM v = R + = 0 v = 0 –R vCM P So the point, P, at the bottom of an object which rolls (without slipping) is instantaneously at rest…

  10. ROTATIONAL ENERGY KINETIC ENERGY OF A ROLLING OBJECT If we regard P as an instantaneous axis of rotation, the object’s motion simplifies to one of pure rotation, and thus its kinetic energy is given by:  v=2R K =Krot about P = ½IP2 v = R Using the parallel axis theorem, IP = (ICM + MR2) v = 0 K =½ICM2 + ½M(R)2 P  K =½ICM2 + ½M(vCM)2 K =Krot+ KCM I.e.

  11. h ROTATIONAL ENERGY THE GREAT DOWNHILL RACE Kf = Ui  ½ICM2 + ½M(vCM)2 = Mgh ICM = cMR2 and  I.e. The actual values of M and R do not feature, but where the mass is situated is of critical importance.

  12. h ROTATIONAL ENERGY THE GREAT DOWNHILL RACE vCM2 = 0 + 2ax x where  I.e. The acceleration of a rolling body is less than that of a particle by a factor which depends on the body’s moment of inertia.

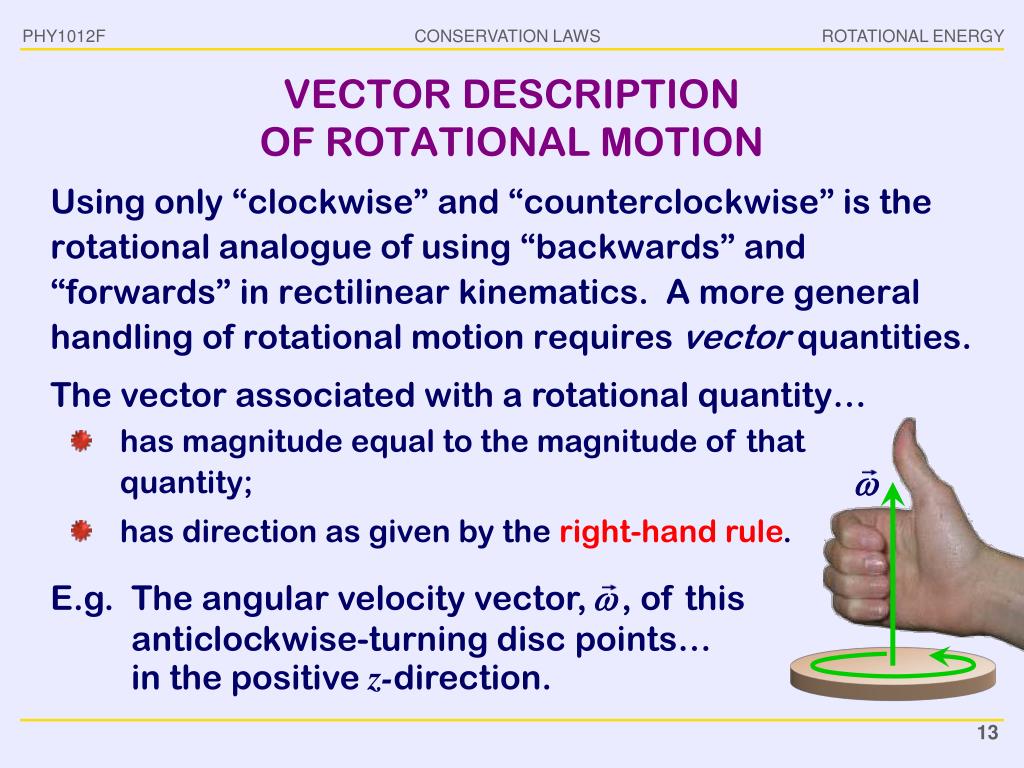

  13. ROTATIONAL ENERGY VECTOR DESCRIPTION OF ROTATIONAL MOTION Using only “clockwise” and “counterclockwise” is the rotational analogue of using “backwards” and “forwards” in rectilinear kinematics. A more general handling of rotational motion requires vector quantities. The vector associated with a rotational quantity… • has magnitude equal to the magnitude of that quantity; • has direction as given by the right-hand rule. E.g. The angular velocity vector, , of this anticlockwise-turning disc points… in the positive z-direction.

  14. ROTATIONAL ENERGY THE CROSS PRODUCT The magnitude of the torque exerted by force applied at displacement from the turning point is:  rFsin Once again, the quantity rFsin is the product of two vectors, and , at an angle  to each other. This time, however, we use the orthogonal components to determine the cross product of the vectors: . • y 1 In RH system: • x 1 1 • z

  15. ROTATIONAL ENERGY THE CROSS PRODUCT Notes: • The more orthogonal the vectors, the greater the cross product; the more parallel, the smaller… • Since it is a vector quantity, the cross product is also known as the vector product. • . • Derivative of a cross product:

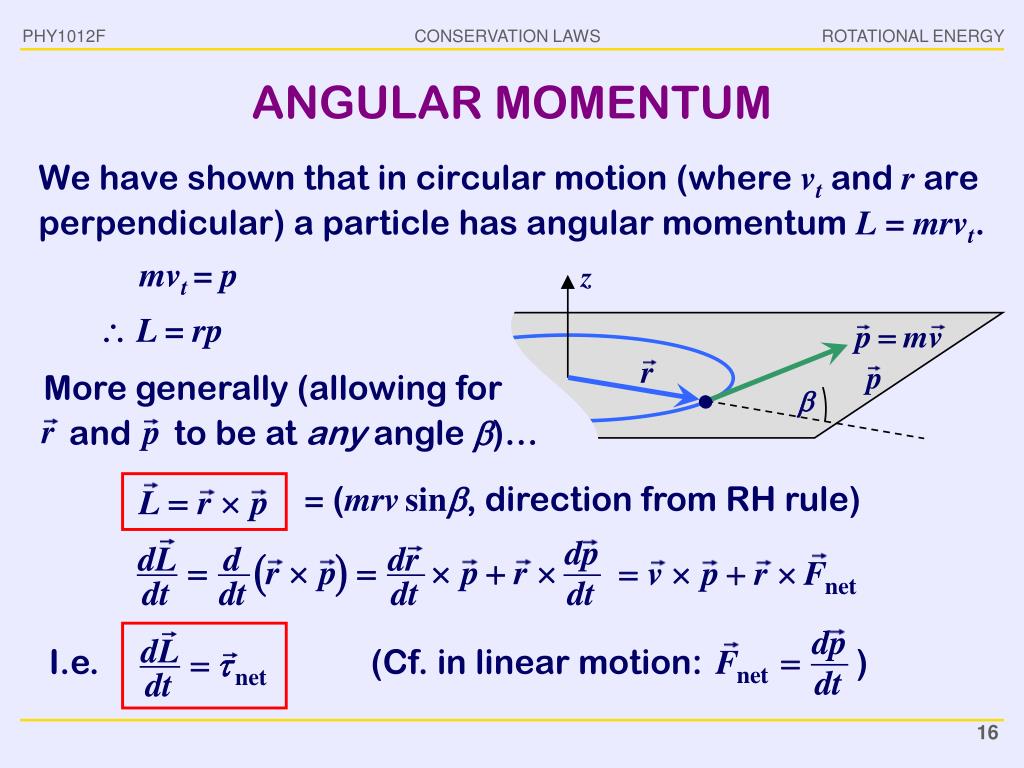

  16. ROTATIONAL ENERGY ANGULAR MOMENTUM We have shown that in circular motion (where vt and r are perpendicular) a particle has angular momentum L = mrvt. mvt = p • z  L = rp More generally (allowing for and to be at any angle )… •  = (mrvsin, direction from RH rule) I.e. (Cf. in linear motion: )

  17. ROTATIONAL ENERGY ROTATIONAL MOMENTUM & ENERGY Summary of corresponding quantities and relationships: KCM = ½MvCM2 Krot = ½I2 (around an axis of symmetry) Linear momentum, , is con-served if there is no net force Angular momentum, , is con-served if there is no net torque

  18. ROTATIONAL ENERGY ROTATIONAL ENERGY • Use the laws of conservation of mechanical energy and angular momentum to solve rotational problems, including those involving rolling motion. • Use vector mathematics to describe and solve problems involving rotational problems. Learning outcomes:At the end of this chapter you should be able to…
