  1. Ionic Compounds

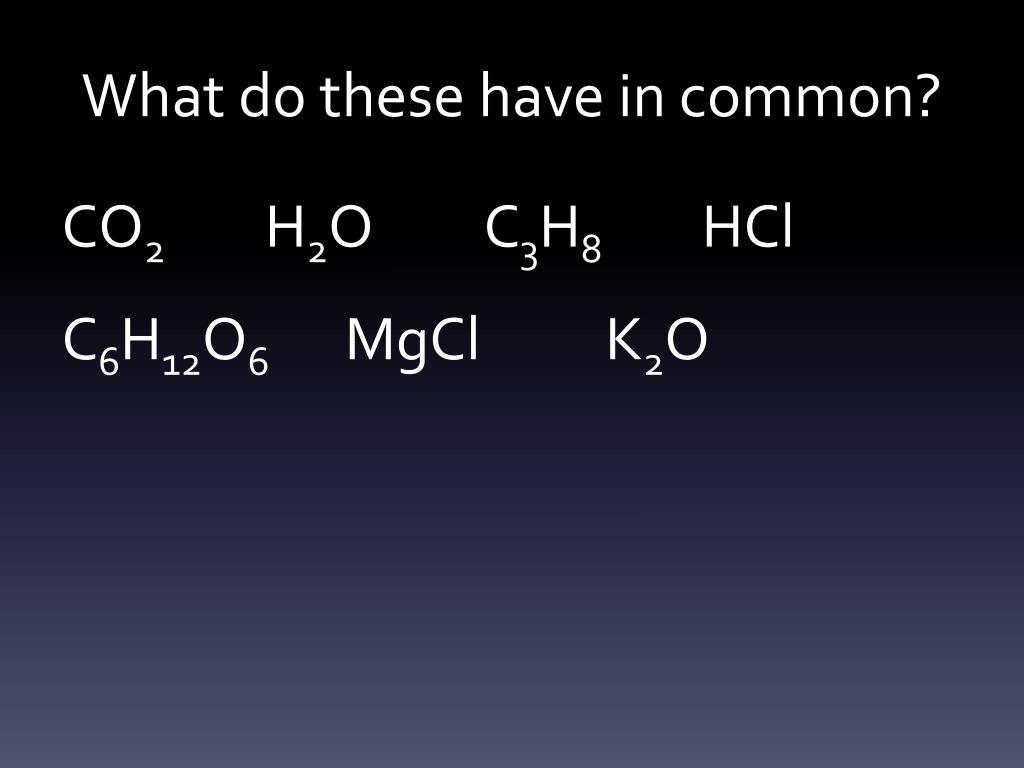

  2. What do these have in common? CO2 H2O C3H8HClC6H12O6 MgCl K2O

  3. They are all compounds – 2 or more elements chemically bound together

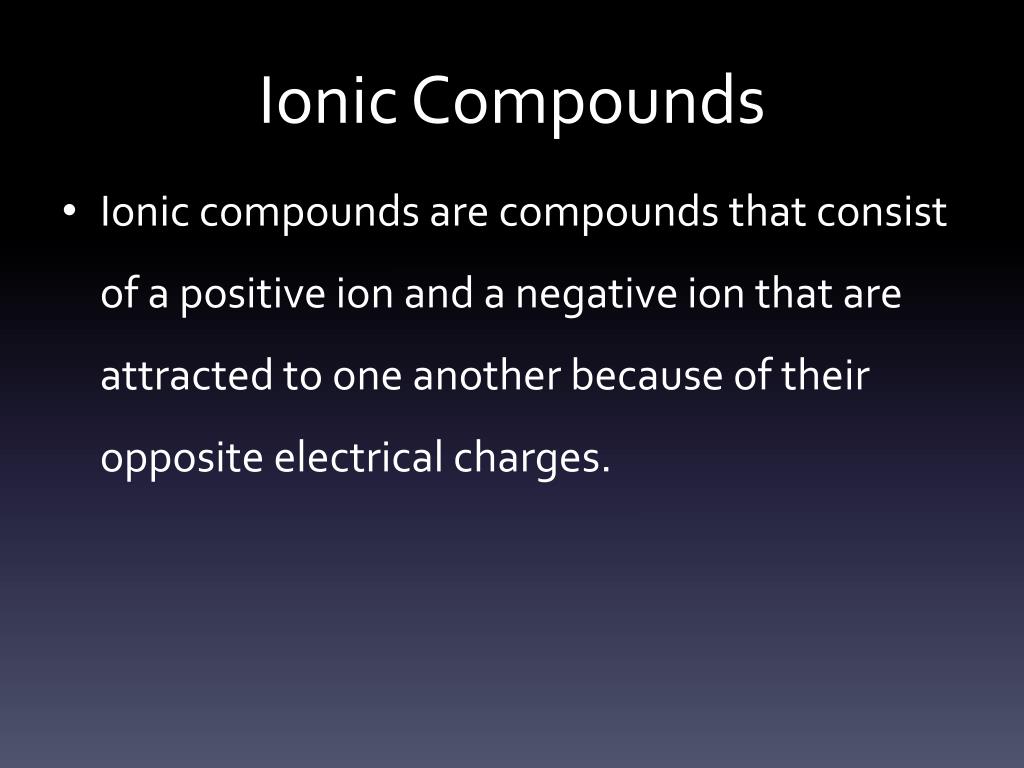

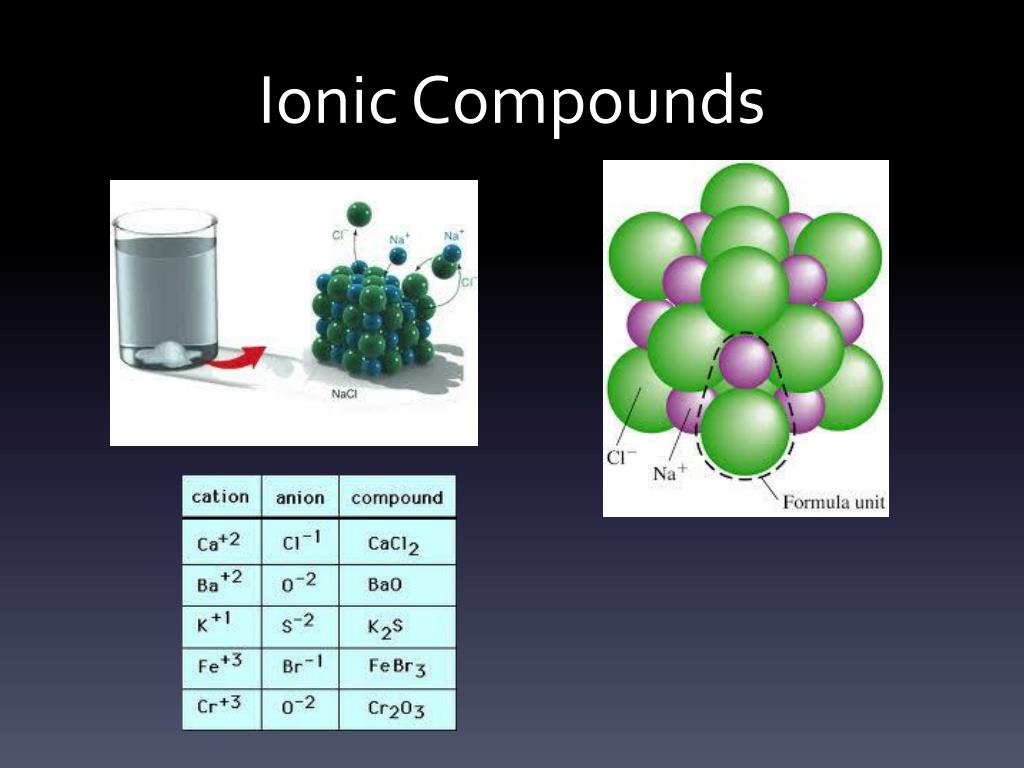

  4. Ionic Compounds • Ionic compounds are compounds that consist of a positive ion and a negative ion that are attracted to one another because of their opposite electrical charges.

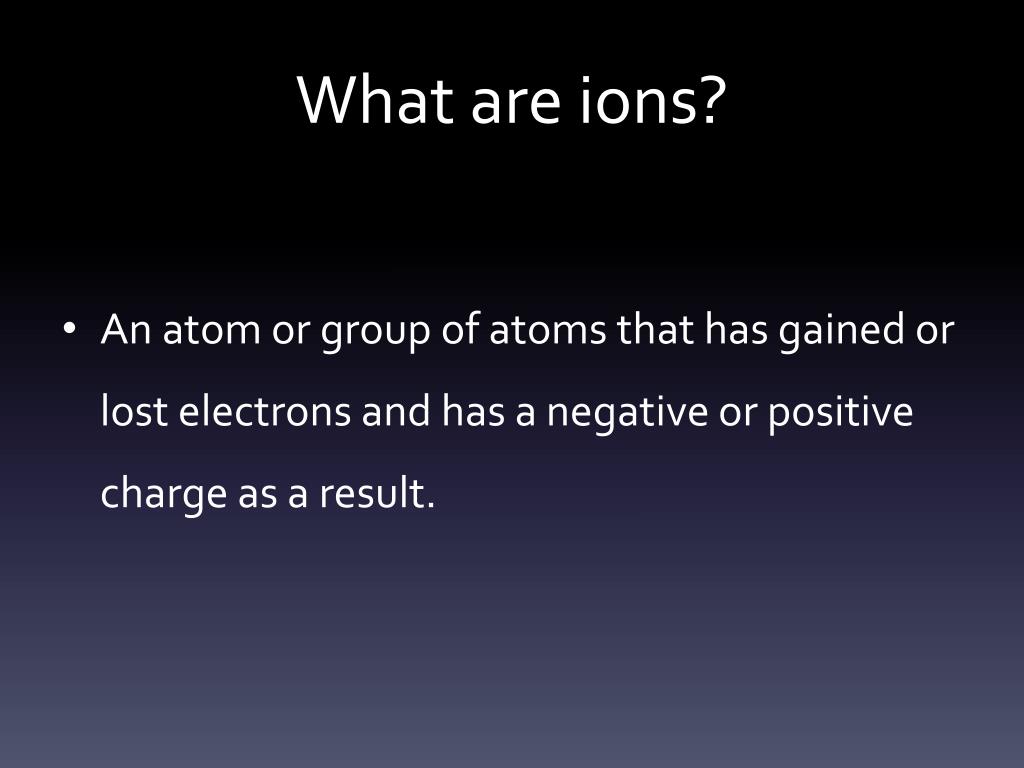

  5. What are ions? • An atom or group of atoms that has gained or lost electrons and has a negative or positive charge as a result.

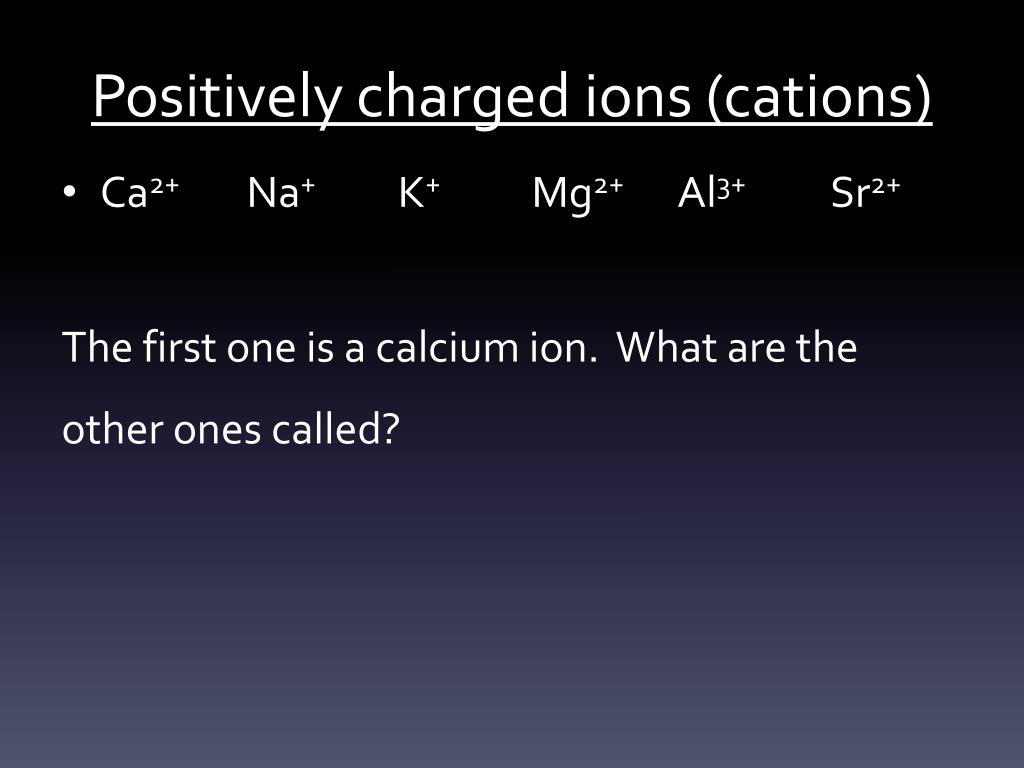

  6. Positively charged ions (cations) • Ca2+ Na+ K+ Mg2+ Al3+ Sr2+ The first one is a calcium ion. What are the other ones called?

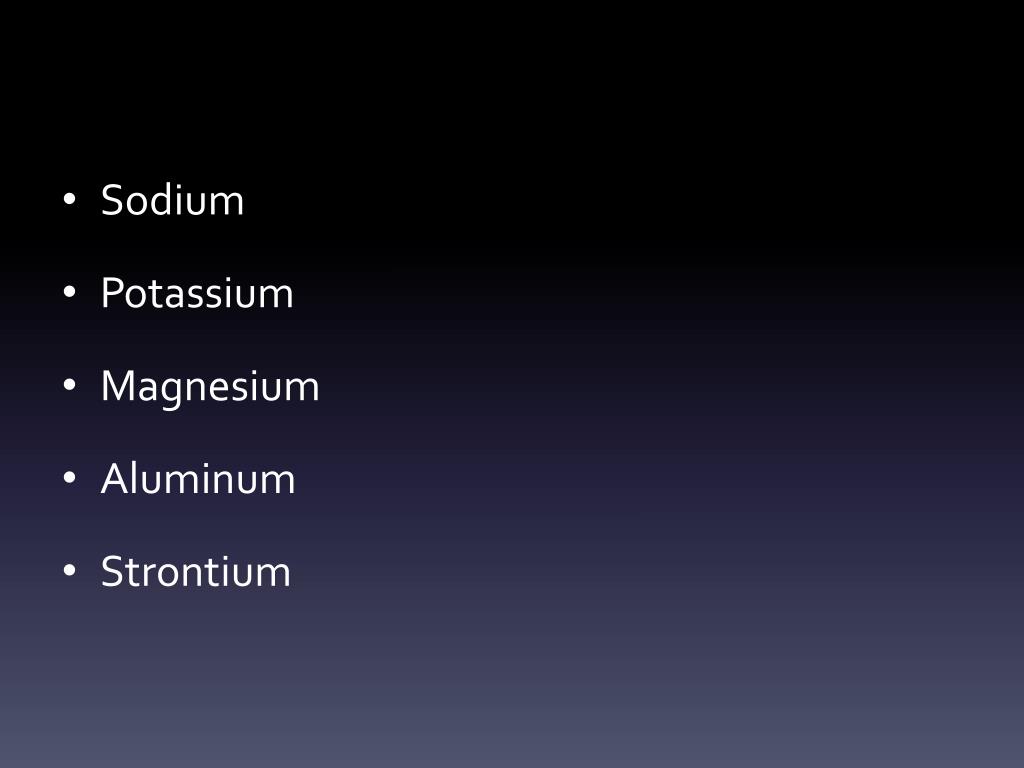

  7. Sodium • Potassium • Magnesium • Aluminum • Strontium

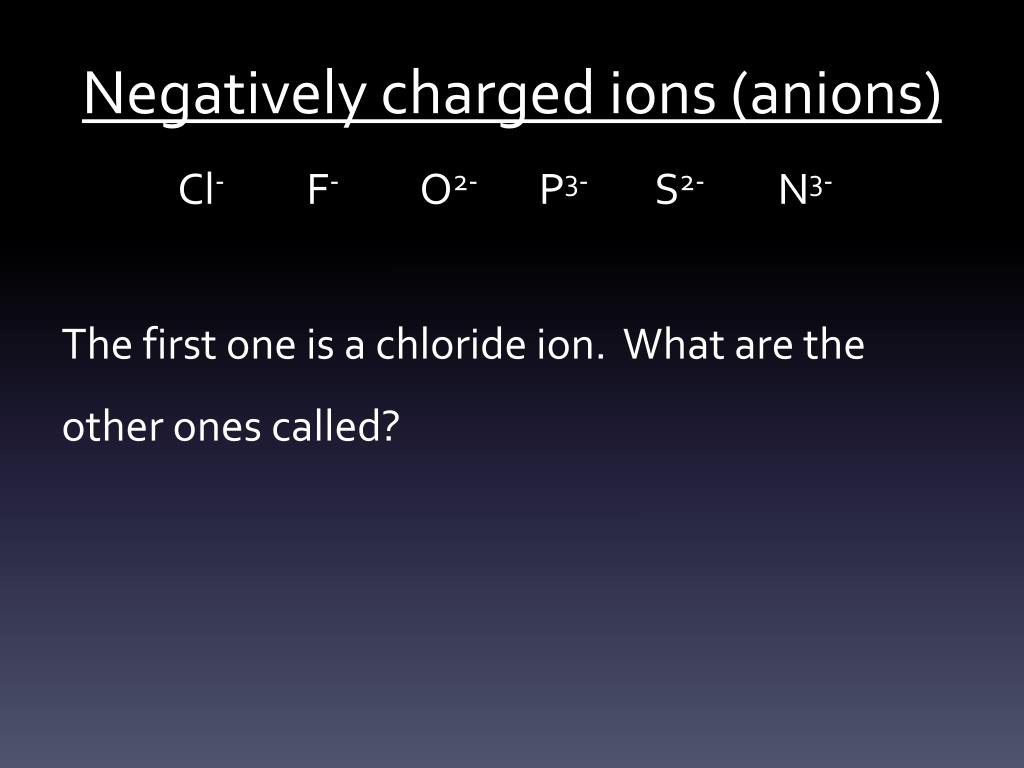

  8. Negatively charged ions (anions) Cl- F- O2- P3- S2- N3- The first one is a chloride ion. What are the other ones called?

  9. Fluoride • Oxide • Phosphide • Sulfide • Nitride

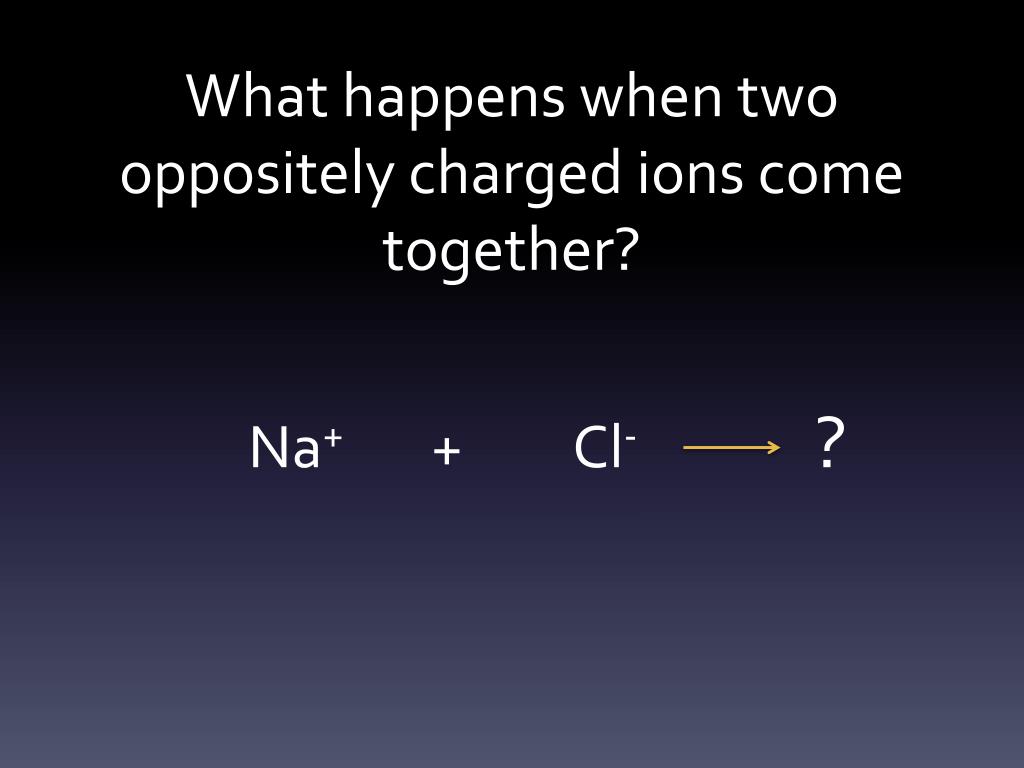

  10. What happens when two oppositely charged ions come together? Na+ + Cl- ?

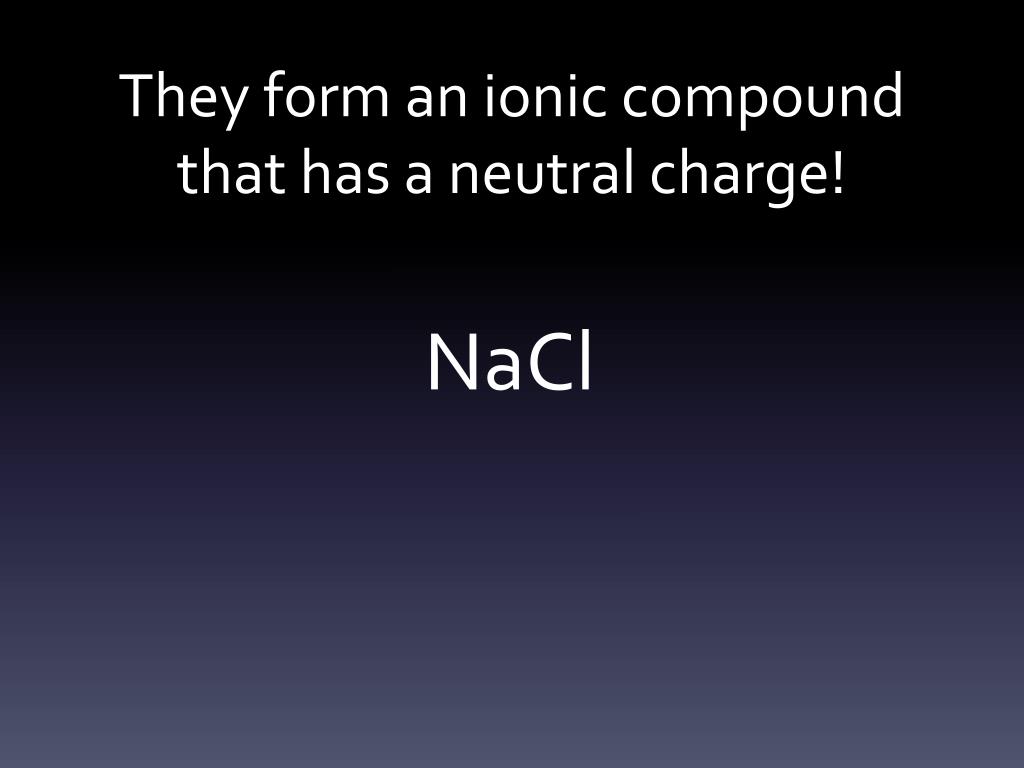

  11. They form an ionic compound that has a neutral charge! NaCl

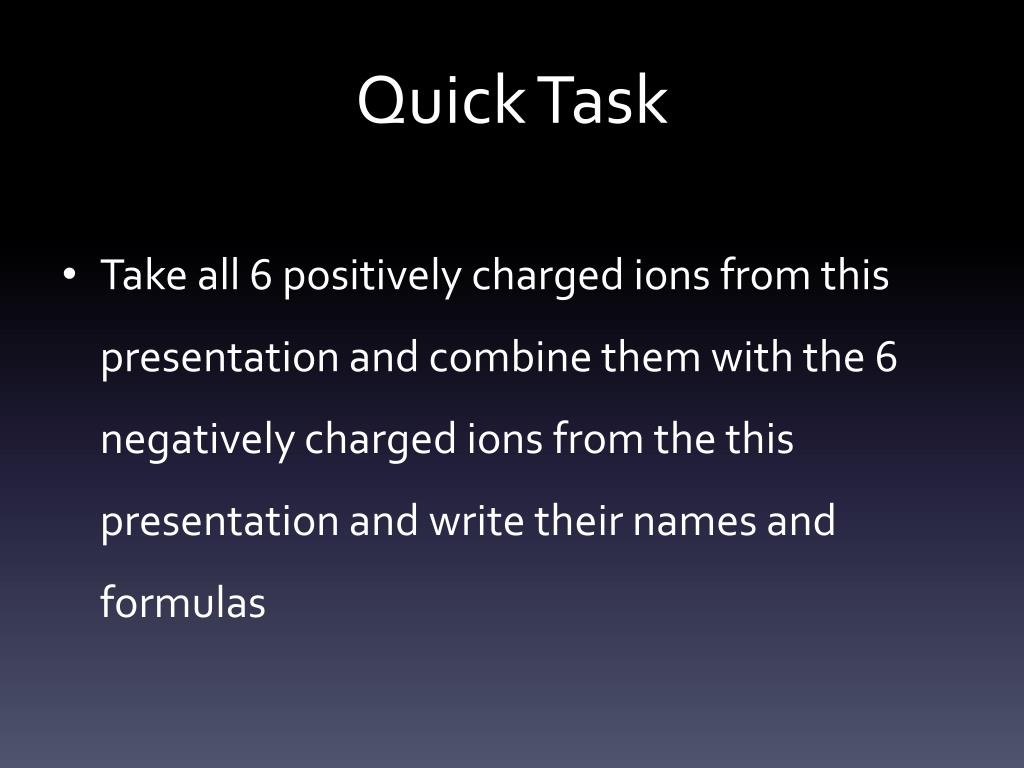

  12. Quick Task • Take all 6 positively charged ions from this presentation and combine them with the 6 negatively charged ions from the this presentation and write their names and formulas

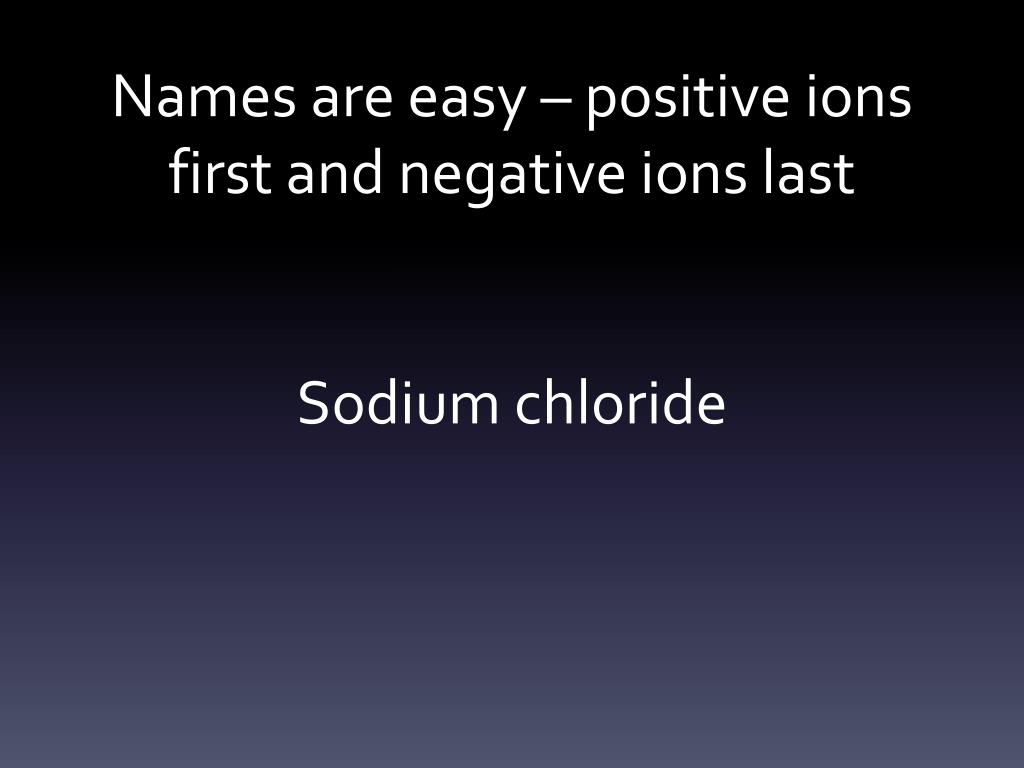

  13. Names are easy – positive ions first and negative ions lastSodium chloride

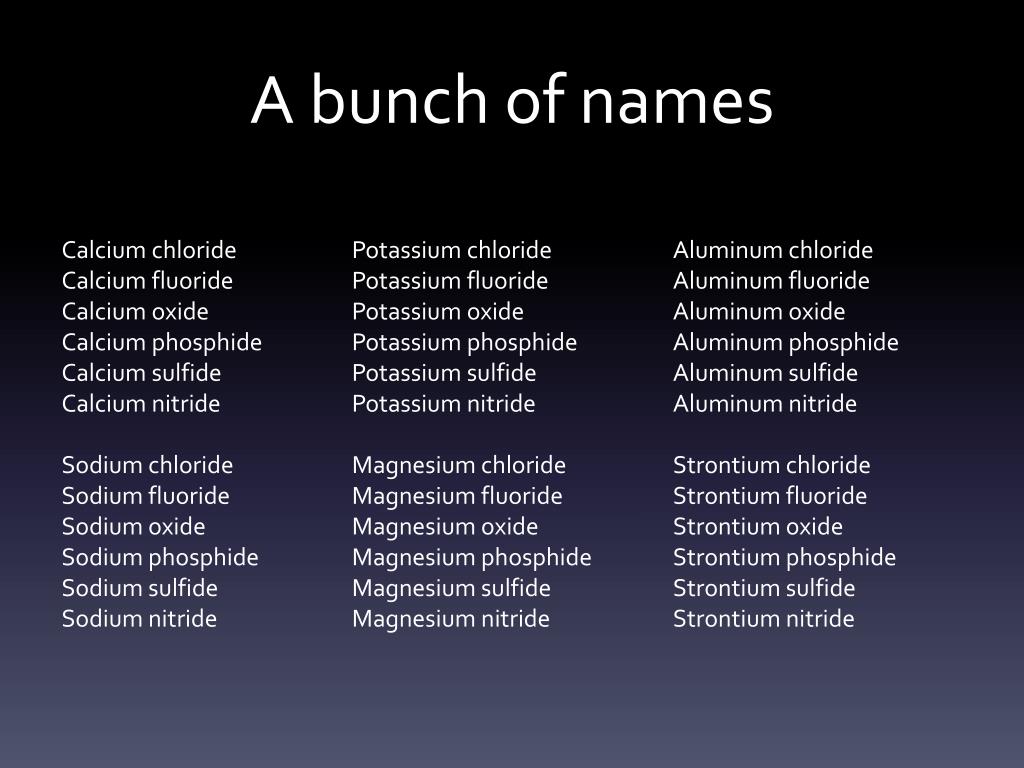

  14. A bunch of names Calcium chloride Calcium fluoride Calcium oxide Calcium phosphide Calcium sulfide Calcium nitride Sodium chloride Sodium fluoride Sodium oxide Sodium phosphide Sodium sulfide Sodium nitride Potassium chloride Potassium fluoride Potassium oxide Potassium phosphide Potassium sulfide Potassium nitride Magnesium chloride Magnesium fluoride Magnesium oxide Magnesium phosphide Magnesium sulfide Magnesium nitride Aluminum chloride Aluminum fluoride Aluminum oxide Aluminum phosphide Aluminum sulfide Aluminum nitride Strontium chloride Strontium fluoride Strontium oxide Strontium phosphide Strontium sulfide Strontium nitride

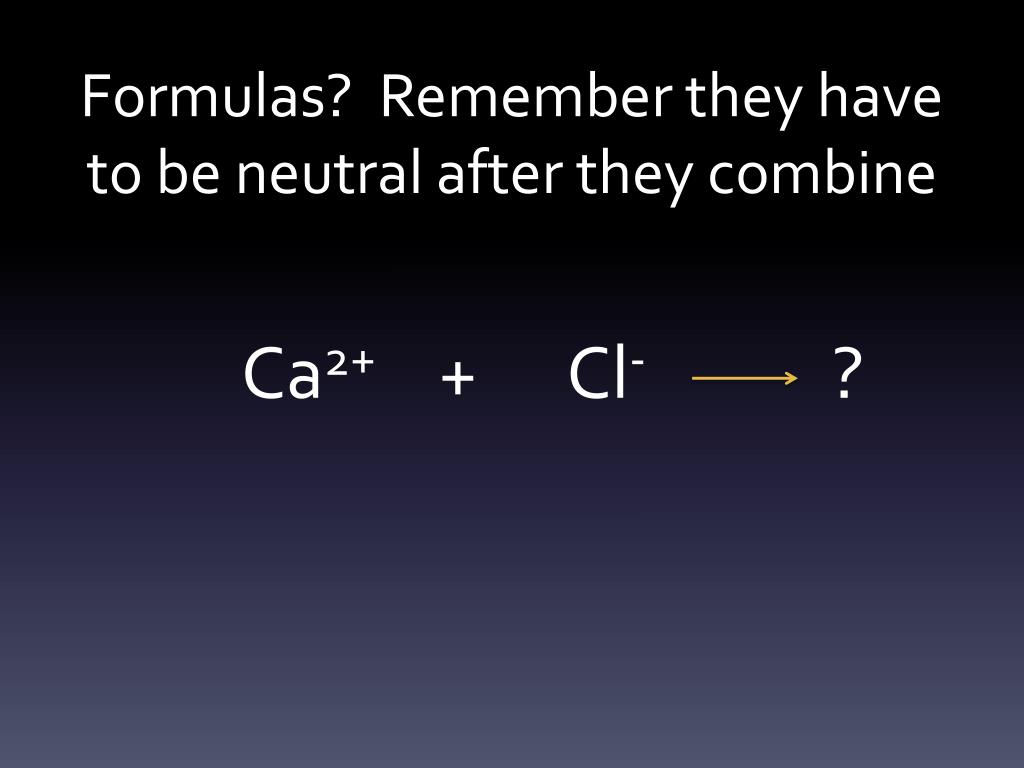

  15. Formulas? Remember they have to be neutral after they combine Ca2+ + Cl- ?

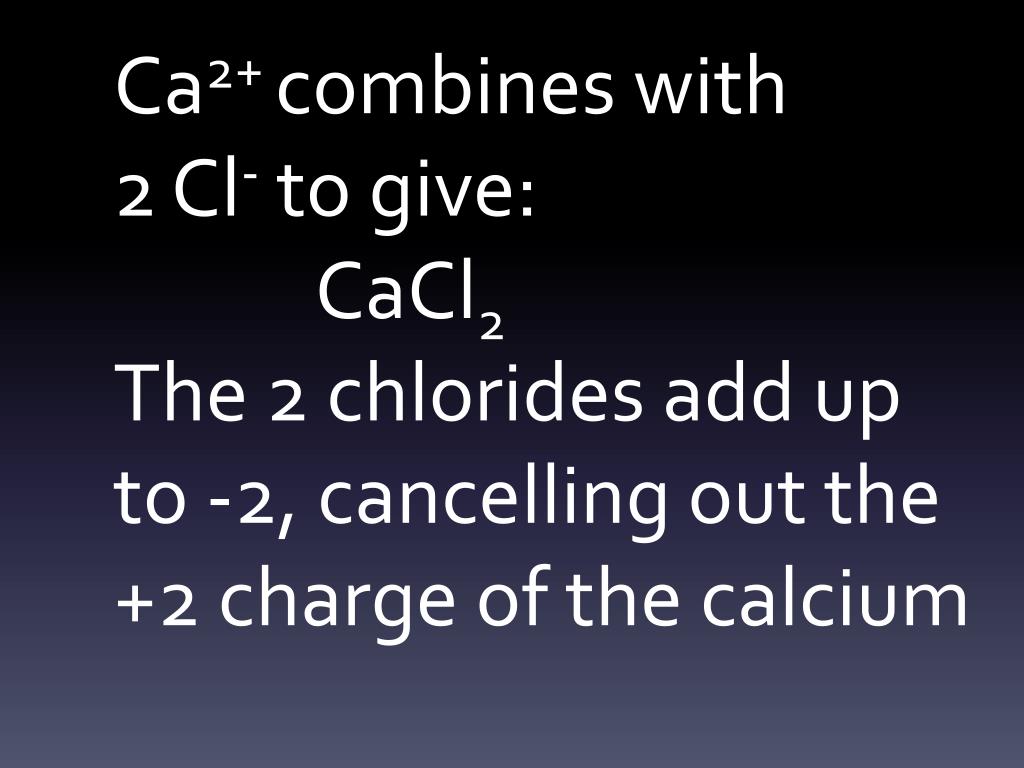

  16. Ca2+ combines with 2 Cl- to give: CaCl2 The 2 chlorides add up to -2, cancelling out the +2 charge of the calcium

  17. A bunch of formulas CaCl2 CaF2 CaO Ca3P2 CaS Ca3N2 NaCl NaF Na2O Na3P Na2S Na3N KCl KF K2O K3P K2S K3N MgCl2 MgF2 MgO Mg3P2 MgS Mg3N2 AlCl3 AlF3 Al2O3 AlP Al2S3 AlN SrCl2 SrF2 SrO Sr3P2 SrS Sr3N2
