Memory (an introduction)

An introduction to memory recall through clocked D latch circuits. This article explores voltage at D, edge-triggered circuits, writing to memory words, reading memory words, and memory writing enable techniques.

tirzah
Télécharger la présentation

Memory (an introduction)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

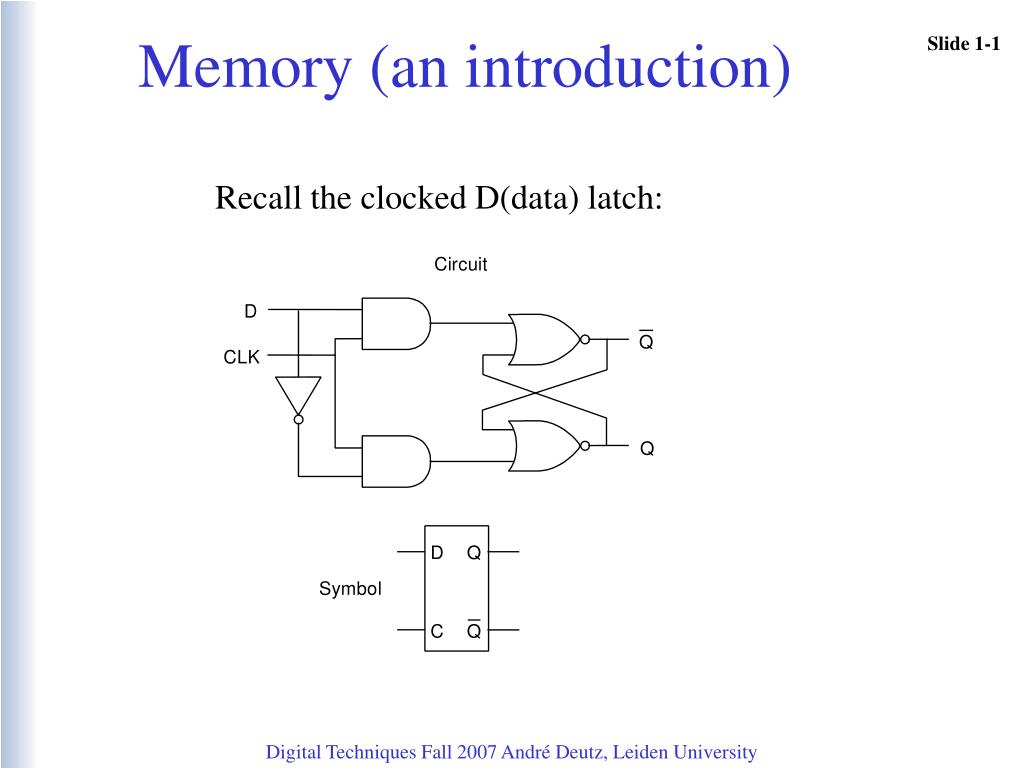

  1. Memory (an introduction) Recall the clocked D(data) latch: C i r c u i t D Q C L K Q D Q S y m b o l C Q Digital Techniques Fall 2007 André Deutz, Leiden University

  2. Aside:Edge triggered/level triggered A B D A C Time What is the voltage at D? Digital Techniques Fall 2007 André Deutz, Leiden University

  3. Edge triggered C i r c u i t D Q B Cl ock Q C D D Q Q S y m b o l C C Q Q Digital Techniques Fall 2007 André Deutz, Leiden University

  4. I2 I1 I0 Data In Word 0 Word 1 memory Word 2 D D D D D D D D D D D D D Q Q Q Q Q Q Q Q Q Q Q Q Q Word 3 C C C C C C C C C C C C C Q Q Q Q Q Q Q Q Q Q Q Q Q Writing to a memory word Digital Techniques Fall 2007 André Deutz, Leiden University

  5. I2 I1 I0 Data In Word 0 Word 1 memory Word 2 D D D D D D D D D D D D D Q Q Q Q Q Q Q Q Q Q Q Q Q Word 3 C C C C C C C C C C C C C Q Q Q Q Q Q Q Q Q Q Q Q Q Writing to a memory word Digital Techniques Fall 2007 André Deutz, Leiden University

  6. I2 I1 I0 Data In Word 0 a1 Word 1 a0 2 to 4 decoder memory Word 2 D D D D D D D D D D D D D Q Q Q Q Q Q Q Q Q Q Q Q Q Word 3 C C C C C C C C C C C C C Q Q Q Q Q Q Q Q Q Q Q Q Q Writing to a memory word Digital Techniques Fall 2007 André Deutz, Leiden University

  7. I2 I1 I0 Data In Word 0 a1 Word 1 a0 2 to 4 decoder memory Word 2 D D D D D D D D D D D D D Q Q Q Q Q Q Q Q Q Q Q Q Q Word 3 C C C C C C C C C C C C C Q Q Q Q Q Q Q Q Q Q Q Q Q Writing to a memory word enable Digital Techniques Fall 2007 André Deutz, Leiden University

  8. I2 I1 I0 Data In Word 0 a1 a0 Word 1 2 to 4 decoder Word 2 D D D D D D D D D D D D D Q Q Q Q Q Q Q Q Q Q Q Q Q Word 3 C C C C C C C C C C C C C Q Q Q Q Q Q Q Q Q Q Q Q Q memory Writing to a memory word enable Digital Techniques Fall 2007 André Deutz, Leiden University

  9. I2 I1 I0 Data In Word 0 a1 Word 1 a0 2 to 4 decoder Word 2 D D D D D D D D D D D D D Q Q Q Q Q Q Q Q Q Q Q Q Q Word 3 C C C C C C C C C C C C C Q Q Q Q Q Q Q Q Q Q Q Q Q memory Writing to a memory word enable Digital Techniques Fall 2007 André Deutz, Leiden University

  10. I2 I1 I0 Data In Word 0 a1 Word 1 a0 2 to 4 decoder Word 2 D D D D D D D D D D D D D Q Q Q Q Q Q Q Q Q Q Q Q Q Word 3 C C C C C C C C C C C C C Q Q Q Q Q Q Q Q Q Q Q Q Q memory Reading a mem word

  11. I2 I1 I0 Data In Word 0 a1 Word 1 a0 2 to 4 decoder Word 2 D D D D D D D D D D D D D Q Q Q Q Q Q Q Q Q Q Q Q Q Word 3 C C C C C C C C C C C C C Q Q Q Q Q Q Q Q Q Q Q Q Q memory enable

  12. I2 I1 I0 Data In Word 0 a1 Word 1 a0 2 to 4 decoder Word 2 D D D D D D D D D D D D D Q Q Q Q Q Q Q Q Q Q Q Q Q Word 3 C C C C C C C C C C C C C Q Q Q Q Q Q Q Q Q Q Q Q Q memory enable

  13. I2 I1 I0 Data In Word 0 a1 Word 1 a0 2 to 4 decoder Word 2 D D D D D D D D D D D D D Q Q Q Q Q Q Q Q Q Q Q Q Q Word 3 C C C C C C C C C C C C C Q Q Q Q Q Q Q Q Q Q Q Q Q memory enable
