  1. Digital communication fundamentals for cognitive radio CENG 5931 GNU Radio Instructor:Dr.Collins Presented by Geetha Paturi (0933346)

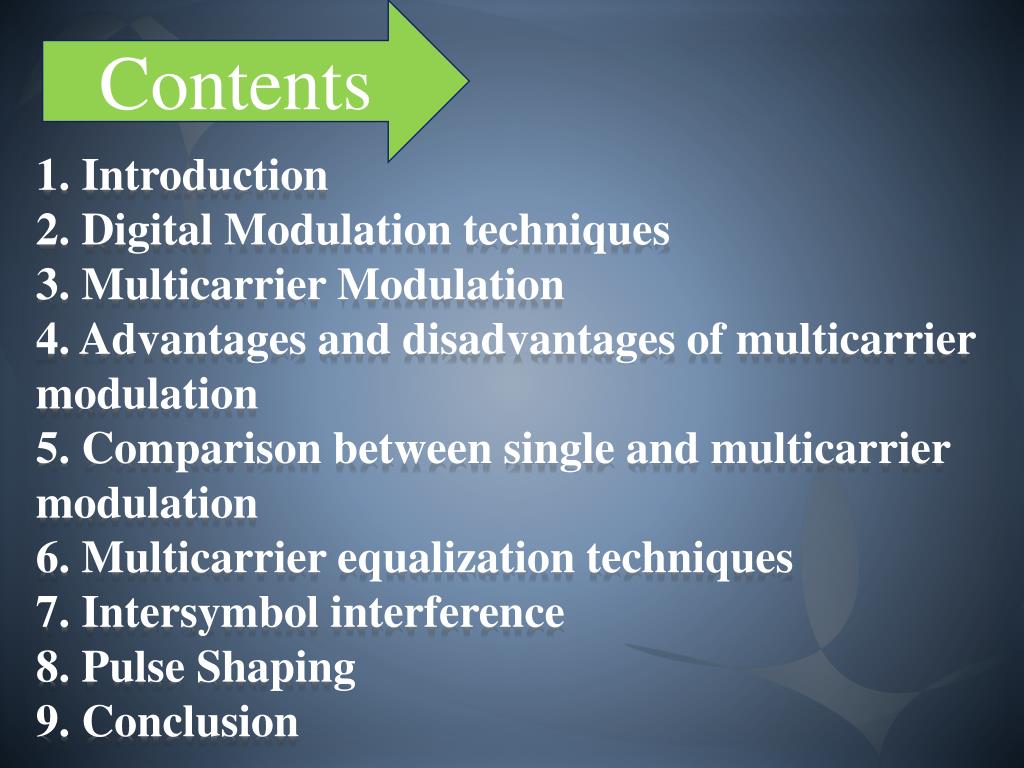

  2. Contents 1. Introduction2. Digital Modulation techniques3. Multicarrier Modulation4. Advantages and disadvantages of multicarrier modulation5. Comparison between single and multicarrier modulation 6. Multicarrier equalization techniques7. Intersymbol interference 8. Pulse Shaping9. Conclusion

  3. Introduction • Data communication system(requirements) • Robust to error • Sufficient data rates • Network capacity constraints • Achieve balance between these requirements to overcome conflicting system operating parameters.

  4. Data Transmission(Anatomy of wireless digital communication system) • Bit error rate(BER) • Band width efficiency

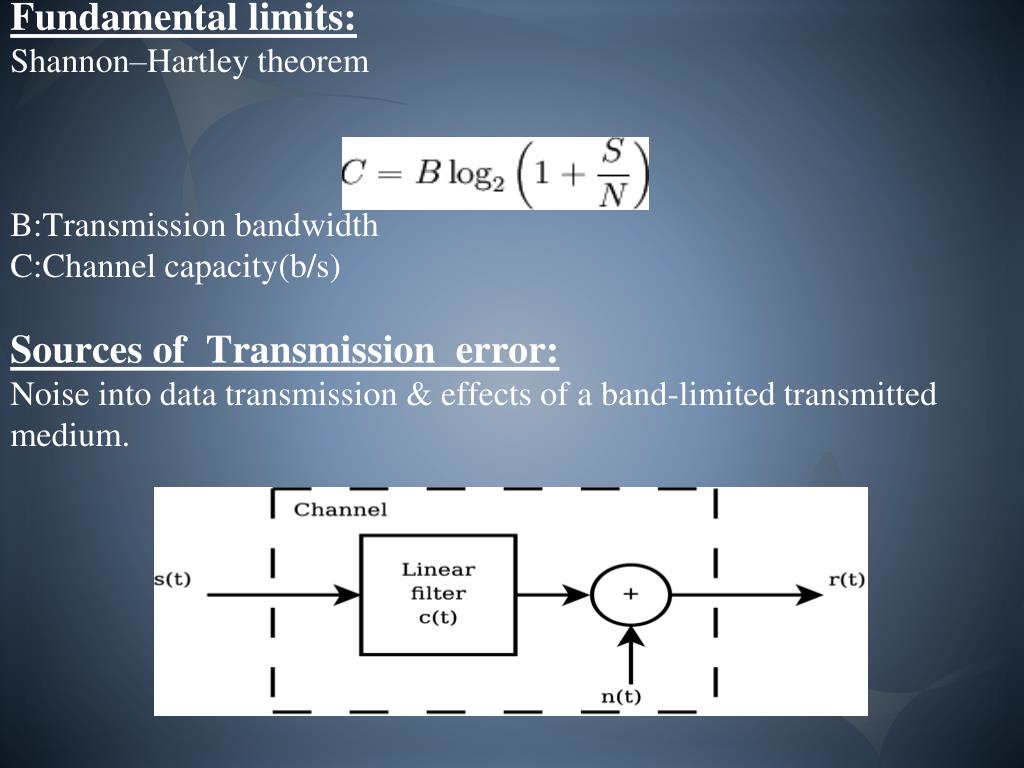

  5. Fundamental limits:Shannon–Hartley theoremB:Transmission bandwidthC:Channel capacity(b/s)Sources of Transmission error:Noise into data transmission & effects of a band-limited transmitted medium.

  6. Digital Modulation Techniques • Representation of Signals • Euclidean Distance between Signals • Decision Rule • Power Efficiency • M-ary Phase Shift Keying • M-ary Quadrature Amplitude Modulation

  7. Representation of Signals

  8. Euclidean Distance between Signals • From a signal constellation plot we can see how an error may occur in the transmission whenever the actually received signal vector is incorrectly shifted to another signal constellation point by noise contribution. • Euclidean Distance and vector representation between two signals is defined as

  9. Decision Rule Nearest neighbor rule waveform representation

  10. Power Efficiency Power efficiency of modulation scheme measures the largest minimum signal distance achievable by modulation technique given the lowest transmit power available. Energy per symbol Energy per bit Power efficiency

  11. M-ary Phase Shift Keying

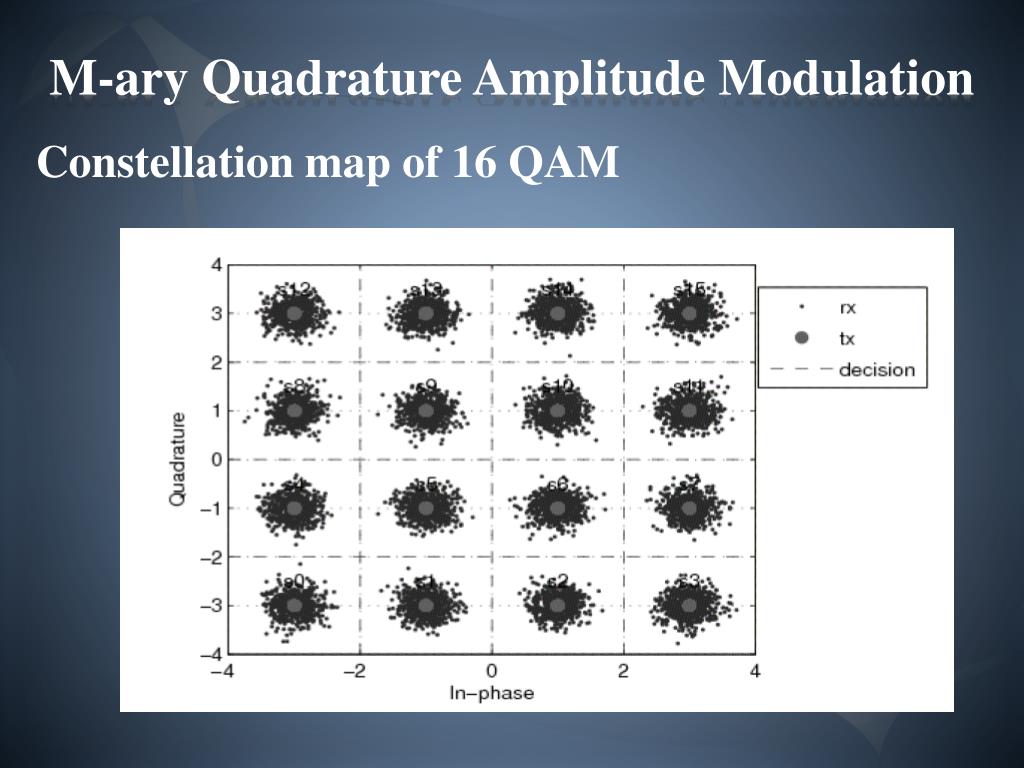

  12. M-ary Quadrature Amplitude Modulation Constellation map of 16 QAM

  13. QAM Receiver

  14. Multicarrier modulation Single input/Single output MCM receiver Single input/Single output MCM transmitter

  15. Advantages and disadvantages of Multicarrier modulation ADVANTAGES • Transmission agility • High data rate • Immunity to non-flat fading response. • “divide-and-conquer” channel distortion • Adaptive bit loading DISADVANTAGES • Sensitive to narrowband noise • Sensitive to amplitude clipping • Sensitive to timing jitter, delay

  16. Comparison between single carrier and multicarrier

  17. Multicarrier equalization techniques • To improve quality of received signal equalizers are employed. • Design decisions of equalizer depend on a number of factors such as type of distortion and implementation complexity. Distortion reduction • To mitigate effects of distortion introduced by the channel there are two techniques. Channel coding-Adding redundancy Channel equalization-effects of channel are inverted at receiver

  18. Intersymbol Interference • When transmissions are sent across a dispersive channel it is possible for the output of that channel intercepted by the receiver to be distorted via temporal spreading resulting in overlapping of individual symbol pulses.

  19. Pulse Shaping To channel SOURCE IMPULSE MODULATION H(f)Pulse shaping filter

  20. Conclusion • Mathematical tools necessary for enabling advanced features • Various modulation schemes can be used for transmission under different constraints and expectations • Bit Error Rate is primarily used to define performance • Digital communication theory at the core of cognitive radio operations

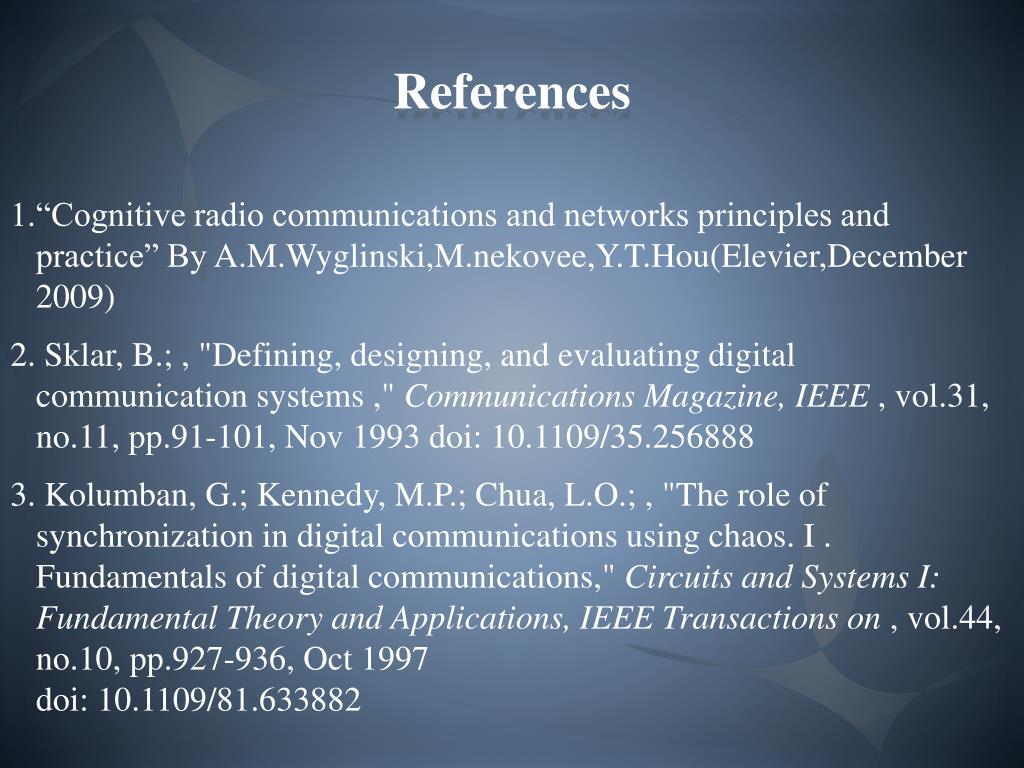

  21. References 1.“Cognitive radio communications and networks principles and practice” By A.M.Wyglinski,M.nekovee,Y.T.Hou(Elevier,December 2009) 2.Sklar, B.; , "Defining, designing, and evaluating digital communication systems ," Communications Magazine, IEEE , vol.31, no.11, pp.91-101, Nov 1993 doi: 10.1109/35.256888 3.Kolumban, G.; Kennedy, M.P.; Chua, L.O.; , "The role of synchronization in digital communications using chaos. I . Fundamentals of digital communications," Circuits and Systems I: Fundamental Theory and Applications, IEEE Transactions on , vol.44, no.10, pp.927-936, Oct 1997doi: 10.1109/81.633882
