EE557: Server-Side Development

toan avatar
toan
16 diapositives · 313 Views · Oct 14, 2014

EE557: Server-Side Development. Lecturer: David Molloy Room: XG19 Mondays 10am-1pm Notes: http://www.eeng.dcu.ie/~ee557 Mailing List: ee557@list. dcu.ie. EE557: Server-Side Development. Web Applications. Two types of web applications

EE557: Server-Side Development - slide 1
01 / 16EE557: Server-Side Development
1 / 17

Télécharger la présentation

EE557: Server-Side Development
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. EE557: Server-Side Development Lecturer: David Molloy Room: XG19 Mondays 10am-1pm Notes: http://www.eeng.dcu.ie/~ee557 Mailing List: ee557@list. dcu.ie

  2. EE557: Server-Side Development Web Applications • Two types of web applications • Presentation-oriented: application generates interactive pages containing • various types of markup (XML, HTML etc.) and dynamic content in response • to requests -> we are familiar with this type • Service-oriented: Service-oriented web application implements the endpoint • of a web service. Frequently we used presentation-oriented applications • as clients to our service-oriented web applications

  3. EE557: Server-Side Development Web Services • Services offered via the Web • Business application sends a request to a service at a given URL • using the SOAP protocol over HTTP • Service receives the request, processes it and returns a response • Example: A stock quote service • Request asks for the price of a specified stock, response gives back • the stock price and other information • Example: delivery system • Service that maps out the efficient delivery of goods. Business sends • a request containing the delivery destinations, service processes the • request to generate the most efficient route • Web Services most commonly used for B2B transactions, as opposed • to B2C transactions -> integrating business services

  4. EE557: Server-Side Development Web Services • Web services depend on the ability of parties to communicate with • each other even if they are using different information systems • XML is a markup language that makes data portable and is the • key technology in addressing this need • This inter-system communication is handled using the SOAP • protocol • Figure 11.0 from notes (won’t copy/paste clearly)

  5. EE557: Server-Side Development Simple Object Access Protocol • .NET and other technologies are based around SOAP • Simple protocol based on the idea that in a distributed architecture • you will need to exchange information • SOAP is lightweight, with a minimal amount of overhead • Occurs over HTTP, avoiding tricky issues such as firewalls and • non-typical sockets • Messages are packaged in a SOAP envelop and sent to the server • in a Request/Response fashion • SOAP unlike other protocols such as RMI does not require a strong • connection between the client and the server • Instead, SOAP allows services in alternative languages/platforms • to interoperate -> “incompatible systems”

  6. EE557: Server-Side Development SOAP • SOAP message contains: • - Envelope: describes the message and how to process it • - Header: contains the features of the SOAP message • - Body: contains the primary information for the message receiver

  7. EE557: Server-Side Development SOAP Message • Envelop is analogous to a snail mail envelope. It supplies information • which includes data relating to the recipient and the sender as well • as further detail about the message itself

  8. EE557: Server-Side Development Features of SOAP • Uses standard internet HTTP • Uses XML to send and receive messages • Platform Independent • Language Independent • A protocol for exchanging information in a decentralised and • distributed environment

  9. EE557: Server-Side Development Sample SOAP Message <SOAP-ENV:Envelope xmlns:SOAP-ENV=“http://schemas.xmlsoap.org/soap/envelope/" xmlns:xsi="http://www.w3.org/1999/XMLSchema-instance" xmlns:xsd="http://www.w3.org/1999/XMLSchema" > <SOAP-ENV:Body> <ns1:GetStockQuote xmlns:ns1="urn:xmethods-quotes"> <SOAP-ENV:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"> <symbol xsi:type="xsd:string">IBM</symbol> </ns1:GetStockQuote> </SOAP-ENV:Body> </SOAP-ENV:Envelope>

  10. EE557: Server-Side Development Sample SOAP Message <SOAP-ENV:Envelope xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/" SOAP-ENV:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"/> <SOAP-ENV:Body> <m:GetStockQuoteResponse xmlns:m="urn:xmethods-quotes"> <Price>34.5</Price> </m:GetStockQuoteResponse> </SOAP-ENV:Body> </SOAP-ENV:Envelope>

  11. EE557: Server-Side Development SOAP • As stated previously, we need to know how to send and receive • SOAP messages • Therefore we use HTTP • Eg. Our first message • SOAPAction header indicates the ‘intent’ of a request and is • mandatory. Each SOAP server could have multiple functions and • the SOAPAction defines which function is being requested POST /StockQuote HTTP/1.1 Host: www.stockquoteserver.com Content-Type: text/xml; charset="utf-8" Content-Length: nnnn SOAPAction: "Some-URI“ ...the soap request packet here...

  12. EE557: Server-Side Development SOAP • Similarly the SOAP response from the HTTP server might be: HTTP/1.1 200 OK Content-Type: text/xml; charset="utf-8" Content-Length: nnnn ...Soap Response packet here...

  13. EE557: Server-Side Development Java API for XML Web Services • JAX-WS is a Java API for building Web services and clients that • communicate using XML • Part of Java EE platform from Sun Microsystems • Implemented as part of project Glassfish • Glassfish is an open source Java EE application server from Sun • JAX-WS is the successor to JAX-RPC (Java API for XML-based RPC) • previously covered on this module • JAX-WS allows developers to develop SOAP based interoperable • and portable web services • Despite SOAP being complicated to manually implement, JAX-WS • hides this complexity from the application developer

  14. EE557: Server-Side Development Web Services Description Language • WSDL is an XML file which describes what functionality a web service • provides and how to access these services • - What a service does? • - How the service is accessed? • - Where a service is located? • Take a look at a WSDL file • We will dynamically generate a WSDL file in our example Java API for XML Web Services • Calculator Web Service - Demonstrate

  15. EE557: Server-Side Development Java API for XML Web Services • So why is this approach better than using Java RMI? • Similar effect using a proxy on the client

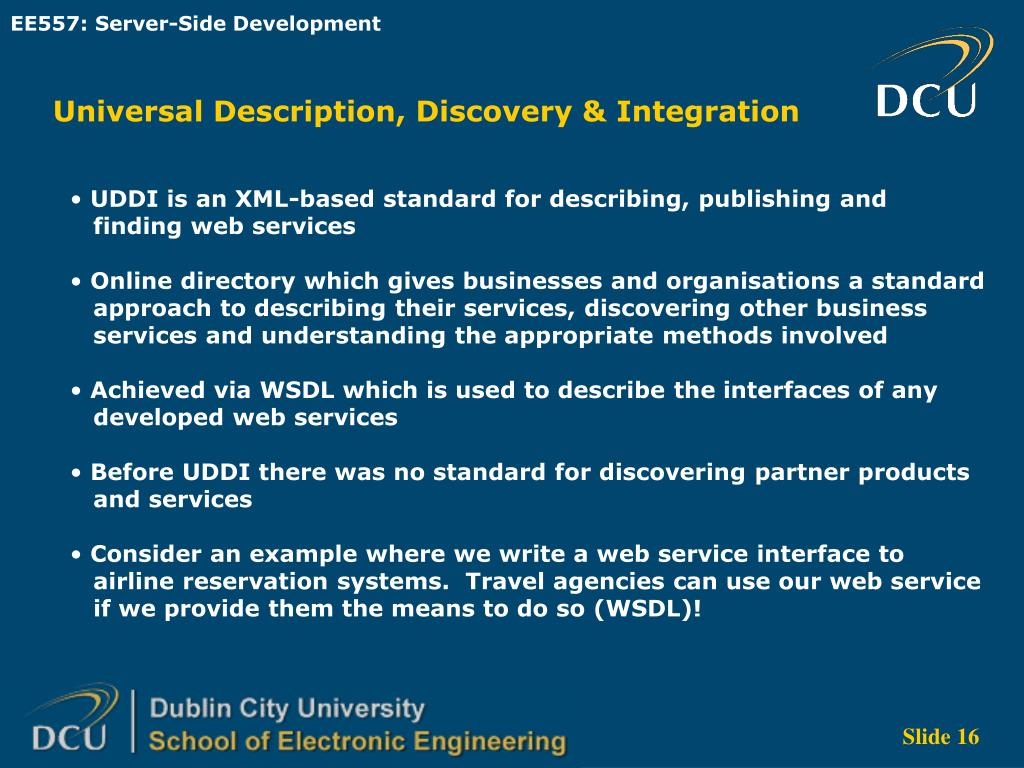

  16. EE557: Server-Side Development Universal Description, Discovery & Integration • UDDI is an XML-based standard for describing, publishing and • finding web services • Online directory which gives businesses and organisations a standard • approach to describing their services, discovering other business • services and understanding the appropriate methods involved • Achieved via WSDL which is used to describe the interfaces of any • developed web services • Before UDDI there was no standard for discovering partner products • and services • Consider an example where we write a web service interface to • airline reservation systems. Travel agencies can use our web service • if we provide them the means to do so (WSDL)!
