Welcome to Scope and Fee System Training
Course Learning Objectives • This Training presentation has the primary objective of equipping you with an understanding of the Scope and Fee system (SAFe) without diving all the way into its finest detail. • Note 1: The course is not intended to focus on the overall PDP Process. • Note 2: The use of the web based SAFe system is currently limited to PDP type projects (not Task Order….)
Course Learning Objectives • The training will be Consultant/Subconsultant centric • Use of the system will be primarily from this role’s point of view • The flow of the training will generally follow the life cycle of a typical Profile
Definition of a Key Term: Profile • A Profileis the central “thing” in the new application. A Profile has: • Tasks – these are the rows from the Excel Spreadsheet (Scope, Ownership, Suggested Path) • Assigned Users: PMs, Consultants, Reviewers • Proposal Fees • Narratives, Comments, Documents – all provided by various Team members • Project information such as durations, route info, locations and limits, etc. • Formal approvals provided by named Approvers • Proposal Signature from Principals at the various Consultants • Functionality to LOCK a proposal so that it cannot be materially altered after the submission
Course Learning Objectives By the end of today’s session, you will have an understanding about how… • to get a User Name and Password • users are assigned into roles within the Profile • project data is added and used to produce a Scope & Fee proposal • profiles are locked and unlocked • proposal submissions and revisions are made • proposals are accepted • Modifications are addressed in SAFE
Online System Overview Why a new web-based system?
Why a new browser-based system? • Centralized electronic collaborative space • Scope & Fee Proposal generation, including Narratives and Task management • Cost Proposal generation with correct, consistent overhead calculations • Integrated Document Management • Proposal Team Management (PMs thru Sub-Consultants)
Why a new browser-based system? • Management of Agreements and Modifications • Collect data in a uniform manner enabling inter and cross-project analysis • Transitions from Excel as a data collection platform • Implements a process engine that permits users to perform certain actions on Profiles at certain states • Contains approval workflow process to capture systematic approvals
Benefits of Online System • Integration into other DOT managed systems • Integrates Data From Ellis and the Consultant Services System • Profile Role based permissions permitting customized access levels • For authorized Agreement(s), Scope and Fee can be viewed from the comfort of home.
System Requirements • Internet Browsers • Microsoft Internet Explorer 7 or higher • Mozilla Firefox 6 or higher • Google Chrome – not supported
Getting Started with the Online System How do I find the URL and sign in?
Application Sign In: Username and Password • http://pdp.dot.state.oh.us
User Roles in the Scope and Fee System • Central Office/Consultant Services Application Administrators • (ODOT Admins) • District Administrators (P&E’s and Contract Managers) • Profile Administrators (ODOT) • (a.k.a. Project Managers, Contract Managers, or P & E’s) • Prime Consultants • Sub-Consultants • Reviewers • Workflow Approvers (ODOT)
Application Layout New nomenclature? Menu vs. Navigator?
Application Layout • Multi-User Type Home Page • Profiles that matter to you (My Profiles) are shown by default to authenticated (Signed On) users • Profiles at certain statuses are displayed to any user, authenticated or not • Find Profiles in various manners, by PID, C-R-S, District or Status
Application Layout • Home Screen
Application Layout • Familiar Menu metaphor • Menu options are based on the status of the Profile and user permissions • Screen modes make use of the maximum screen real estate
Application Layout • Application Menu
Application Layout • Profile Navigator • Profile Details • Profile Specifics, Comments and Attachments • Tasks Details • Narratives, Comments and Attachments • Team Management • User Management, Prime and Sub-Consultants, Labor and Direct Cost rate information
Data Retention • Some screens store the data to the database as you interact with them • Task List Scoping • Cost entry screens • These functionalities minimize the risk of losing lots of data if users were to navigate away (intentionally or on accident) • Most interfaces require users to SAVE the work to persist the information • Narratives, Comments • Adding and Moving Tasks • Profile Details such as Net Fee, Profile Description
Scope Add/Move Task Narratives In Scope vs. out of Scope My Tasks Upload Documents Subconsultants Wizard (what's that?)
Scoping Activities • Profile Admin responsibilities • Path selection (if not completed during creation) • Net Fee • Project Initiation Package • Profile Description • Each of these (besides Path) may be edited in the Profile Explorer (accordion) or in the Profile Wizard
Scoping Activities • Task List view permits configuration of the Profile Details, the Tasks themselves or the Teams (ODOT or Consultant firms or Reviewers) • Ownership / Assignment is used by Prime Consultants to assign tasks to their Sub-Consultants • Fee Proposal screens permit the entry of labor hours and direct cost occurrences (by Consultants) or the viewing of the calculated proposal amounts by any team member.
Scoping Activities • Task List View
Scoping Activities • Scoping Checkbox functions • Transition from EXCEL Yes/No to indicate In Scope to Checkbox T/F • Original Path will always be displayed, and will still show the original NO even though a PM may choose to include a task as In Scope • Even with 1.2.C.C. marked as not YES for the path, the PM may include with the Scope • Checking Consultant, ODOT, LPA or If Authorized will automatically mark a task as In Scope • Check All / Uncheck All behavior • Check All Relies on In Scope = True and will act on the menu item selected based on a Task being marked as In Scope • Warning when using this function it may “loose” previous task identifications
Scoping Activities • Task List Views defined • My Tasks • All Tasks (default view) • Tasks in Scope • Path Suggested • Assigned Tasks • ODOT/LPA • Consultant (Prime) • Sub Assigned
Scoping Activities • Task Ownership Screen
Scoping Activities: Statuses Direct Selection Submitted for Proposal Review Released to Consultant Pre-Scope Begin Request for LOI Acceptance Review Executing Agreement Authorized Print Agreements/Create Mods Non-Selection Rescinded
Scoping Activities: Statuses • The primary Status path a Profile will follow is:(in order) • Pre-Scope • Request for Letter of Interest • Released to Consultant • Submitted for Proposal Review • Acceptance Review • Executing Agreement • Authorized • Profile Admins manage these statuses • Unauthorized User • Can only view: Request for LOI and Authorized

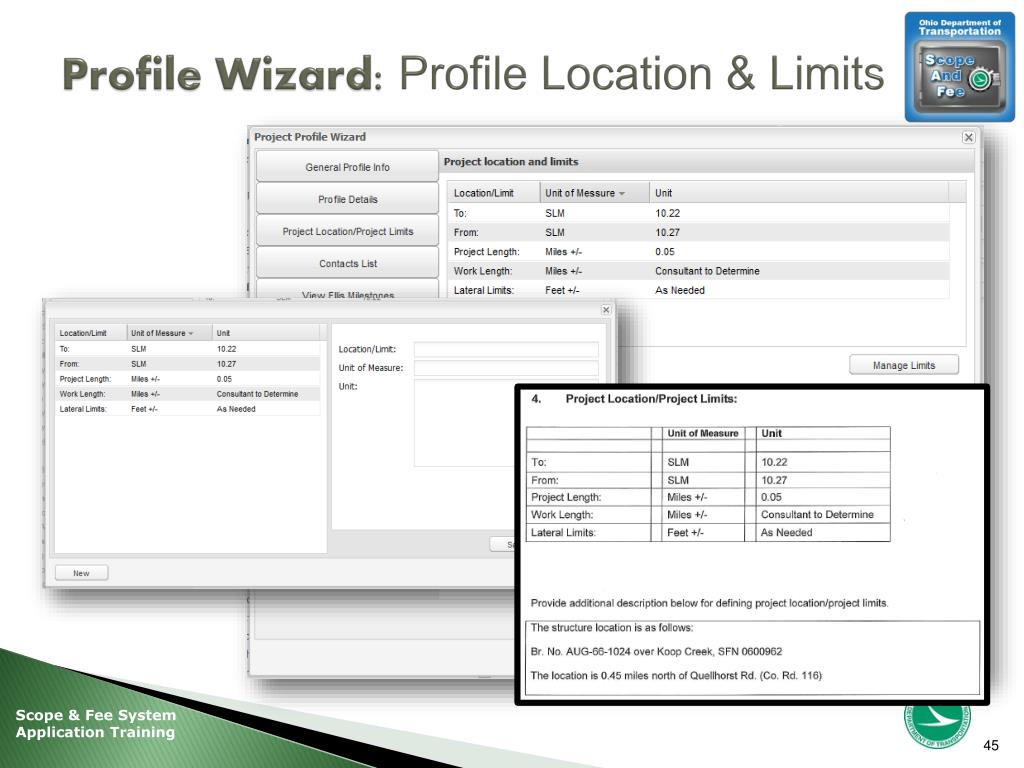

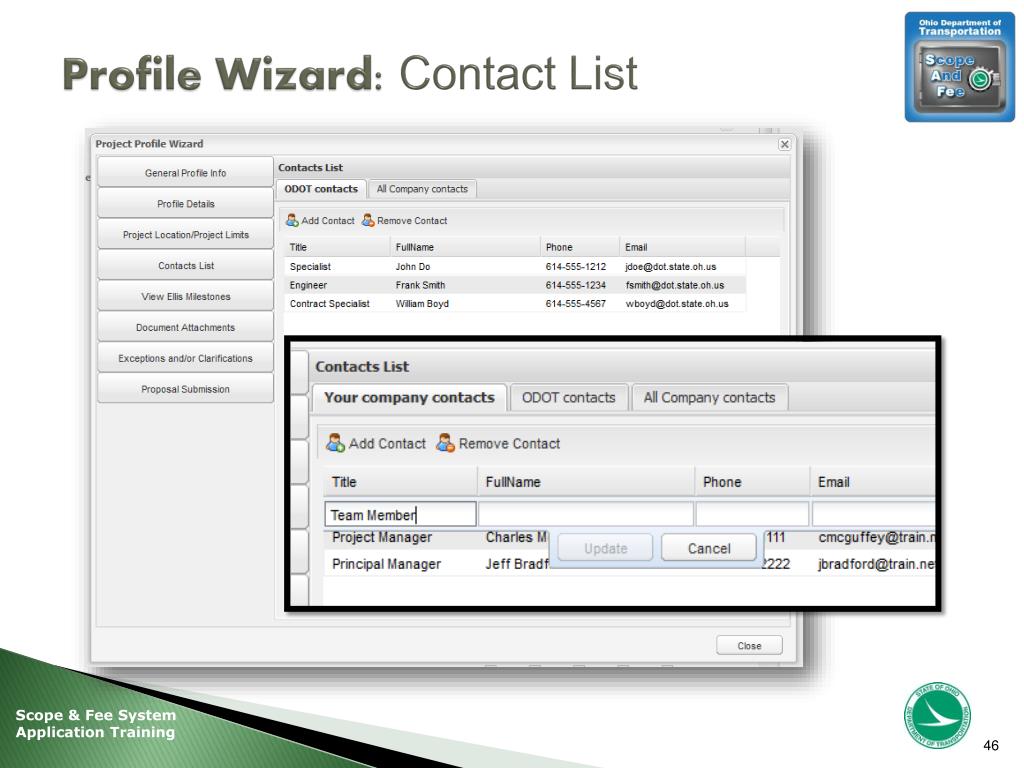

Profile Wizard (Scope) • The Wizard is a multi-panel UI that Profile Administrators and Prime Consultants will complete in order to produce a consistent, well-formed Scope and Fee proposal • Captures additional team information such as a Contact List for all contributing parties (Sub-Consultants or ODOT resources) • Provides a single place for much of the Profile information that is not fee-related or narrative based • Is used to record finalized electronic signatures in-lieu of wet signatures by Consultant Principal personnel • Permits the production of a printable, formalized proposal if needed
