  1. Flight Readiness Review Team Hawaii

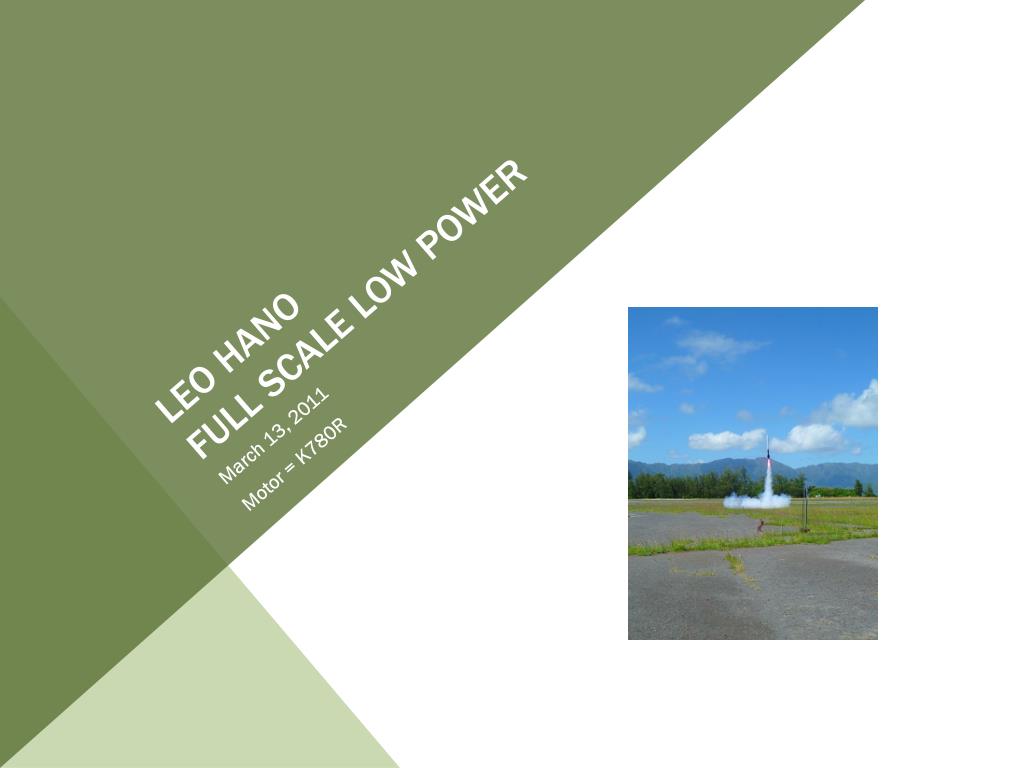

  2. Leo HanoFull Scale Low Power March 13, 2011 Motor = K780R

  3. Leo HanoFull Scale Low Power March 20, 2001 Motor = K1000W

  4. Overview

  5. Parachutes • Drogue • 42in • 83.59 ft/sec • Main • 144in • 22.45 ft/sec

  6. Dual Deployment Avionics test • Main Charge • Drogue Charge

  7. rail Exit Velocity • 65.2 ft/sec • Reach safe speed at 66.34 inches

  8. Hula-hoop2 planned features • 2 memory options • Model A: 256 Kbytes – built on multiple circuit boards to be flown on the Leo Hano rocket • Model B: 128 Kbytes – built on one circuit board to be flown on an Executioner rocket • One version of the program code for all units • Variable sample rates – between 1 to 6 samples per second

  9. Hula-hoop2 Subsystems • Controller • Main serial interface • Debug port serial interface • Field Input and Output • Data storage • Sensors & Analog to Digital Convertors (ADC) • Temperature • Acceleration • Magnetic field • 12 bit ADC • Power

  10. Block Diagram – V3

  11. Controller Data Storage Micro Technology 24LC512-I/P EEPROM features: 8 pin DIP capacity of 65,536 bytes or 64 Kbytes per chip I2C interface Memory sizes Model A: 4 chips for 256 Kbytes Model B: 2 chips for 128 Kbytes • Parallax Basic Stamp 2p features: • 24 pin DIP • 8 code and/or data segments at 2 Kbytes per segment • 16 digital Input/Output interfaces • Debug and program upload interface • Voltage regulator at +5 Volts

  12. Sensors Temperature: Acceleration: Parallax’s Freescale MMA7455 Accelerometer features: wider than usual 8 pin DIP SPI or I2C interface – using SPI 3 axis acceleration choices of 2g, 4g or 8 g – using 8g 8 bit or 10 bit resolution – using 8 bit Digital Output Data stream 8 bits in 8 bits out • National Semiconductor LM34 features: • 3 pin TO-92 case • Analog Output • Connected to ADC#2

  13. Sensors: Magnetic Field • Custom built inductors • Analog Output • 3 coils will be used, one for each axis (X, Y and Z) • Each coil will have its own 4 resistor network that will be connected to ADC#1

  14. Analog to digital convertors: 12 bit ADC #1 Analog to digital convertors: 12 bit adc #2 Micro Technology MCP3202 features 8 pin DIP 12 bit resolution 2 single ended input channels SPI interface Data stream 4 bits in 12 bits out • Micro Technology MCP3208 features • 16 pin DIP • 12 bit resolution • 8 single ended input channels • SPI interface • Adjustable voltage reference (.25 to 5 volts) while keeping the device’s power supply at 5 volts. Will be set at 1 volt • Data stream • 6 bits in • 12 bits out

  15. Mahalo
