  1. Western’s OATT Revision Open Access Transmission Service Tariff Public Meeting Nov 8, 2004 Darrick Moe, Project Manager

  2. Motivation for Revision • Western’s OATT not revised since its adoption in 1998 Making needed adjustments at this time • FERC issued Large Generator Interconnection (LGI) Order 2003 in July of 2003 Affects all jurisdictional entities with OATT

  3. OATT Revision Process • Western wide Team (Team) formed April 2004 • Membership • All Western Regions • Various Functional Areas • Sub-Team focused on LGI Issues • Informal Public Process now ongoing • See http://www.wapa.gov/oatt.htm • E-mail comments to tariffcomments@wapa.gov • Targeting early 2005 for FERC filing

  4. Large Generator Interconnections FERC Order 2003 • Standardizes process for interconnecting generators larger than 20 MW • Makes LGI Procedures and Agreements (LGIP/IA) part of OATT • LGI filing required to retain safe-harbor status • Western indicated to FERC we would comply with Order 2003 provisions to the extent possible Gave notice that filing would be forthcoming

  5. Deviations from LGI Pro Forma • Eliminate provisions subjecting Western to FERC’s jurisdiction or State authority • Eliminate non-applicable provisions related to taxes and indemnification • Assure compliance with environmental laws • Clarify that all permits responsibility of Interconnection Customer • Eliminate provisions that could result in Western liability for liquidated damages • Require contract reassignments receive prior approval from Western

  6. Best Effort to Meet Timelines • Numerous rigid timelines are defined • Western has limited ability to increase staff • Western is subject to Regional Reliability review • Western will use best efforts to comply with timelines

  7. LGI Construction Cost Estimates • Western will use best efforts to estimate construction costs for network upgrades • Actual costs for construction of network facilities will be recovered by Western, regardless of deviation from initial estimates • Up front payments will always be required, not other forms of security • Anti-Deficiency rules require funds on deposit before work begins

  8. Construction Cost Allocation Issues • Provisions remain allowing transmission provider or interconnection customer to build • If customer builds network upgrade facilities • Western policy requires inspectors during construction • Costs to be borne by Interconnection Customer • Drawings and documents provided must comply with Western’s standards • Clarified these costs to be at interconnection customer’s expense: • All voice communications equipment • All costs associated with negotiating LGIA • Clarified all invoices to be paid within 30 days

  9. Limitation on Term • Pro Forma provisions have no definitive term limit • Western is limited to 40 year power sale contract term for power sales • Similar contract term for generator interconnection mirrors Reclamation Law • Will allow for renegotiation at end of term • If generation facility ceases operation for 3 consecutive years, may terminate after 90-day- notice

  10. Meter Testing • Meters at point of interconnection become Western’s property • Pro Forma provisions would require Western testing every 2 years • This deviates from some Western Regional testing practices • Provision altered to provide Western-owned meters tested in accordance with regional meter testing policies Retain option for Customer to request inspection and reimburse Western for costs

  11. Payments for Network Upgrades • Network upgrade costs paid up-front by interconnection customer • Western will repay interconnection customer for network upgrades using bill crediting on transmission service • Includes payment of interest, capped at Federal interest rate • Credits will not be limited to 5 years; will extend as long as required to repay investment • Credits will not exceed transmission customer’s bill • Prevents Anti-Deficiency and cash flow issues

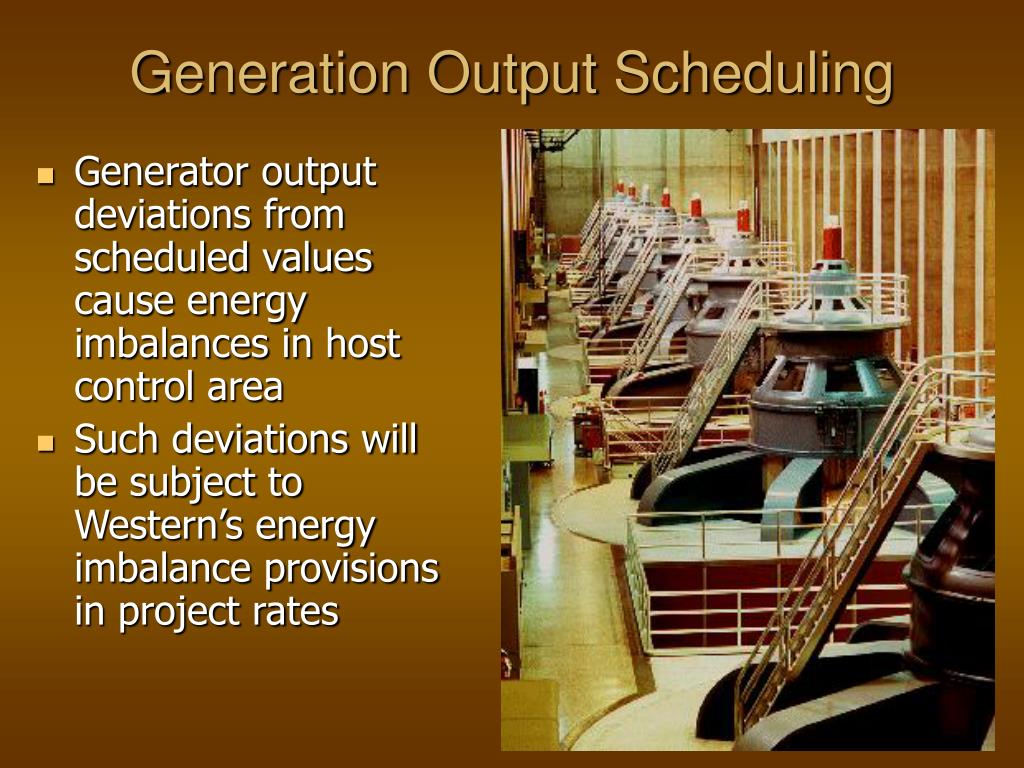

  12. Generation Output Scheduling • Generator output deviations from scheduled values cause energy imbalances in host control area • Such deviations will be subject to Western’s energy imbalance provisions in project rates

  13. LGIP Study Provisions • Change in location of point of interconnection • Results in a new queue position under Pro Forma provisions • Western would allow such a change by mutual consent Consent granted in circumstances for which the study assumptions/conditions are not impacted • Off-Peak transmission loading to be studied • Instead of just on-peak • When required for reliability

  14. Participant Funding • FERC allows RTOs to explore participant funding options • Western reserves the right to explore participant funding as appropriate • May be appropriate in some circumstances for Western’s transmission • Western has history of open use of transmission and collaborative approach to construction

  15. Modified OATT Provisions • Western’s mailing address for transmission service information replaced with updated web address information • References to Regional Reliability Councils updated to current names • Energy Imbalance Schedule modified to clarify that Western has option to use in-kind or financial repayment and to increase EI bandwidth

  16. Network Operating Agreements and Committees • Network Operating Agreements and Committees made optional for each Network Integration Transmission Service (NITS) contract • Instead of a NOC, Western meets separately and jointly with NITS customers, as needed • More effective than Pro Forma Network Operating Committee • Simplicity of some NITS contracts makes NOA unnecessary

  17. Deposit Methodology Altered For entry into queue for Firm Point to Point service exceeding one year and new NITS contracts • Application fee updated to $3,500 across Western • Pro Forma deposit of first month’s service to be required • Capped at a max of $100,000 • To be repaid with a credit on first month’s service • Western to continue policy of not paying interest on deposits or study advances, due to rate impacts and Federal financial operating restrictions • However, customer may opt to establish interest-bearing escrow account for queue deposit

  18. Advance Collection of Funds To prevent potential anti-deficiency or cash-flow problems, Western has discretion to require for these conditions: • For Western acquiring ancillary services from a 3rd party • As requested by the transmission customer • When the services are not available from Western • Due to creditworthiness concerns associated with a new application for service

  19. Late Payments for OATT Service • Western has experienced some difficulty in receiving timely payments for transmission service • Late fees assessed on firm power deliveries result in higher interest charges than under OATT • OATT late payment interest provisions have been conformed to those used for firm power customers • May also require advance payment for customers chronically late in submitting payments • Required to prevent cash-flow or Anti-Deficiency concerns for Western

  20. Transmission System Peak Calculation • Pro Forma OATT specifies all firm to be included in monthly transmission system peak • Western’s detailed transmission rate formula • Filed with FERC in conjunction with OATT • Specifies that only firm lasting one year or more included in transmission system peak • Short-term firm revenue from previous year used to reduce revenue requirement Including in peak calculation could skew outcome, resulting in costs not being recovered from appropriate customers • Does not significantly impact rate calculation • Therefore, adjusting OATT to conform with rate filings

  21. Longer Term Non-Firm Service • Pro Forma Non-firm Point to Point service limited to one month in duration • Some transmission customers expressed interest in longer terms • Regions provided flexibility to offer longer term non-firm service • Regional business practice postings would define specific provisions • Will not conflict with existing tariff provisions

  22. OATT Attachments J & K • Clarify that Sierra Nevada Region’s Path 15 investments will be marketed by the California ISO • Provisions made contingent upon Authorized funding levels • Western’s change of rates provisions removed; not applicable to formula-based rates • Study and deposit costs for Bureau of Reclamation and Corps of Engineers LGI can be waived

  23. The Panel • Ron Klinefelter • Corporate Service Office • Office of General Counsel Team Member • Bob Kennedy • Rocky Mountain Region, Operations • Lead the LGI Sub-Team efforts • Steve Sanders • Upper Great Plains Region, Operations • Substantial contributions to OATT Modification

  24. Submitting Comments • All comments must be received by Nov. 22 • Options for submission • E-mail to tariffcomments@wapa.gov • Use form at http://www.wapa.gov/oatt.htm • Fax to (720) 962–7059 (Attn: OATT Comm) • Write: Western Area Power Admin Attn: Corporate Communications P.O. Box 281213 Lakewood, CO 80228–8213 • Comments and responses to be posted to web
