Objectives • Describe the wireless LAN Market and the standards that govern the market • Describe the appropriate applications of a wireless LAN and how wireless LANs should best be used • Define the major wireless LAN organizations and the role each organization plays
Wireless LAN Market Overview • Past, Present, Future of wireless LANs • Introduction to current standards –IEEE 802.11 –IEEE 802.11b –IEEE 802.11a –IEEE 802.11g
Applications of a Wireless LAN • Deployed in an accessor distributionrole • Extending the network to remote areas within and outside of buildings • Low-cost building-to-building connectivity (replacing Telco) • “Last Mile”data delivery service (WISP) • Modest speed access method • Allows flexibility for mobile users (roaming) • SOHO use • CoS & QoS are available only with specialized hardware • Movable network (mobile office, hospital, classroom) • Metropolitan Area Wireless Networks
FCC • Makes the regulations regarding RF frequency use & power output limits for the United States • Designates ISM & UNII band usage parameters such as: –Frequency bands used –Power output limits –License-free use of the frequency bands –Type of RF transmissions (spread spectrum technology) • www.fcc.gov
IEEE • Makes the industry standards regarding WLANs in the United States • Created 802.11 and subsequent Wireless LAN standards • Creates the standards within the confines of FCC regulations • www.ieee.org
WLIF • Founded to assist with interoperability testing • Created “OpenAir”certification • Member funded • Now defunct
The Wi-Fi Alliance • Creator of the Wi-FiTMcertification for wireless LAN hardware interoperability • Wi-Fi certification for 802.11b and 802.11a • www.wi-fi.com • WPA (Wi-Fi Protected Access)
WLANA •Promotes wireless LAN industry education and awareness •Non-profit organization relying on affiliate and sponsor members to support it and to drive the industry forward •www.wlana.com
Objectives • Describe the behavior of RF • Explain the variables involved with antennas and RF • Perform RF mathematics for building FCC compliant systems
Radio Frequency • What is RF? • RF Behaviors –Reflection –Refraction –Diffraction –Scattering –Absorption • Gain and Loss
Voltage Standing Wave Ratio (VSWR) • What is VSWR? • Causes of VSWR • Effects of VSWR –Decreased signal amplitude –Transmitter and amplifier failure

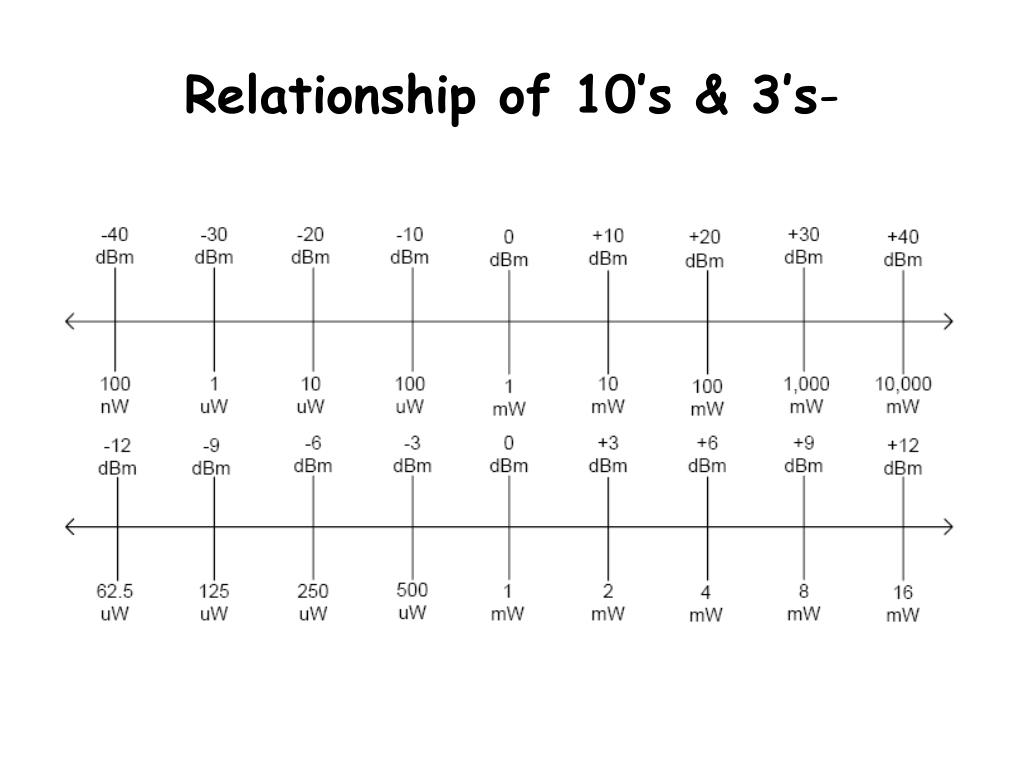

RF Math The Relationship of the 10’s and 3’s
RF Math Problem 1 Calculating the Equivalent Isotropic Radiated Power (EIRP)
RF Math Problem 2 Convert Decibels to Watts
Objectives Upon completion of this chapter you will be able to: • Define spread spectrum technologies and how they are used • Describe modulation and the different data rates • Explain and compare FHSS and DSSS • List the factors that impact signal throughput and range
FHSS vs. DSSS • Narrowband Interference • Cost • Rated Bandwidth
Objectives Upon completion of this chapter you will be able to: • Configure, install, and manage wireless infrastructure devices • Configure, install, and manage wireless client devices • Configure, install, and manage the different types of wireless gateways
Objectives Upon completion of this chapter you will be able to: • Explain the types of wireless LAN antennas and how/when to use them • Describe the various wireless LAN accessories and where they are used

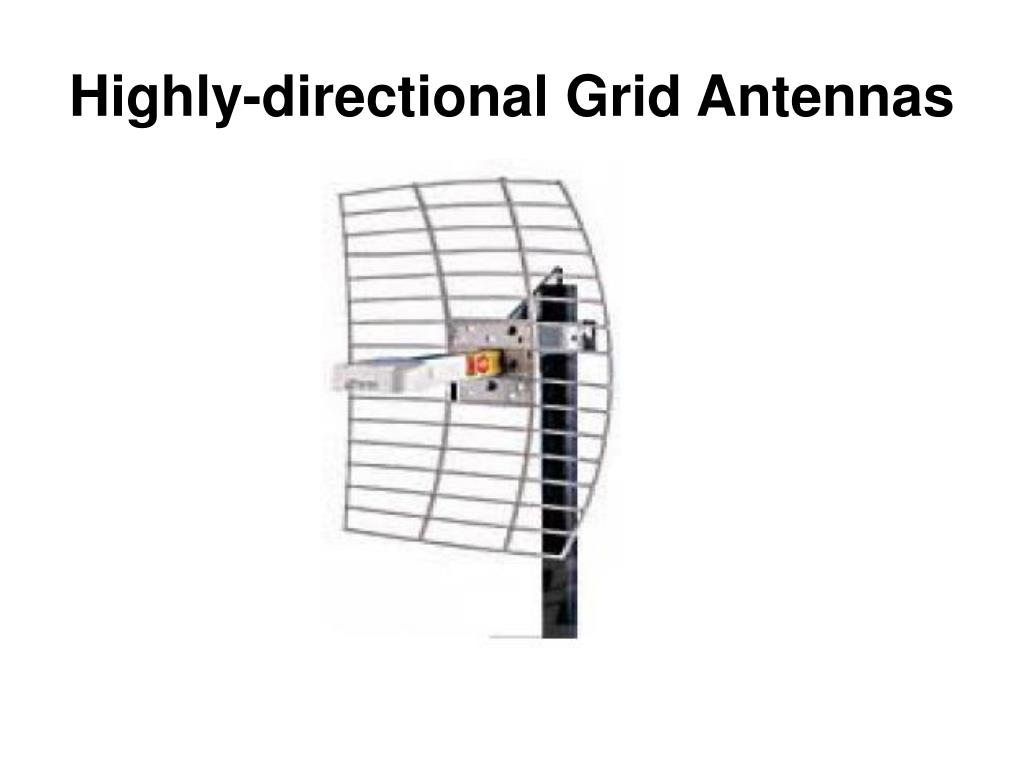

Antenna Mounts • Ceiling • Wall • Pillar • Ground plane • Mast • Articulating • Chimney mount • Tripod-mast

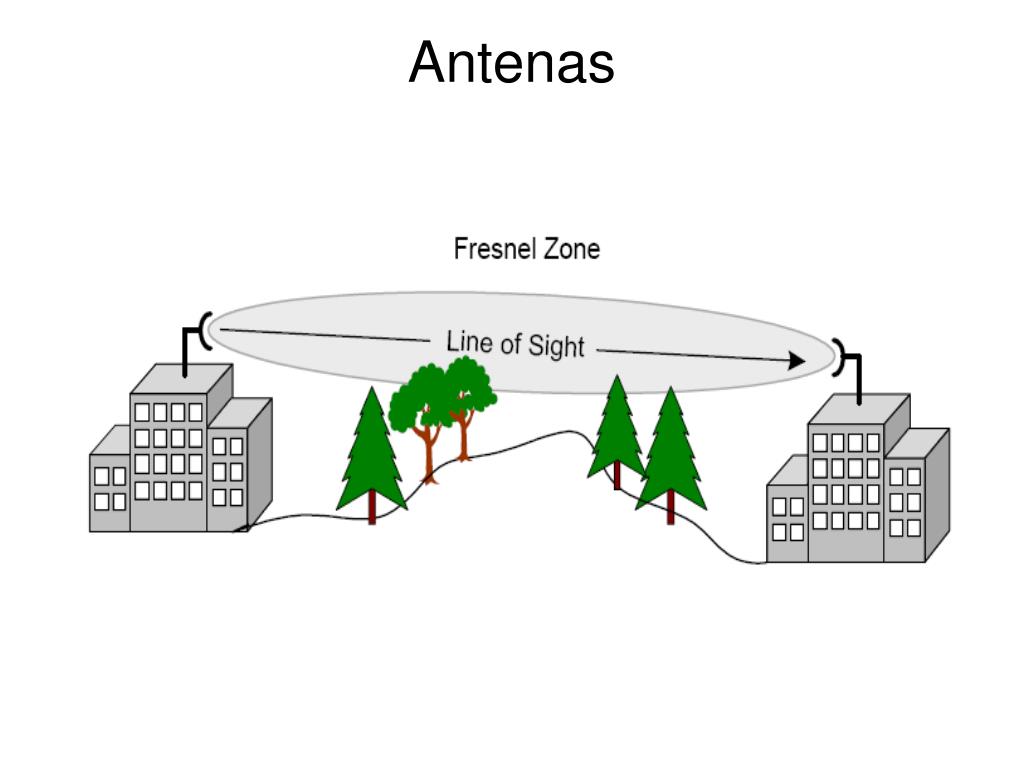

RF Antenna Installation/Configuration • Proper orientation • Precise alignment • Secure mounting • Avoid conductive areas • Prevent moisture • Avoid obstructions • Best coverage
RF Antenna Safety • Factory Manuals • Keep your distance from transmissions • Avoid metal obstructions • Consider Professional Installers • Avoid power lines • Use grounding rods
