  1. T2K Data Acquisition System Matt Thorpe STFC Rutherford Appleton Laboratory 17th IEEE Real-Time Conference 2010, Lisbon, Portugal

  2. The T2K Experiment T2K Collaboration: ~450 collaborators, 65 institutes, 12 countries

  3. Super-Kamiokande far detector

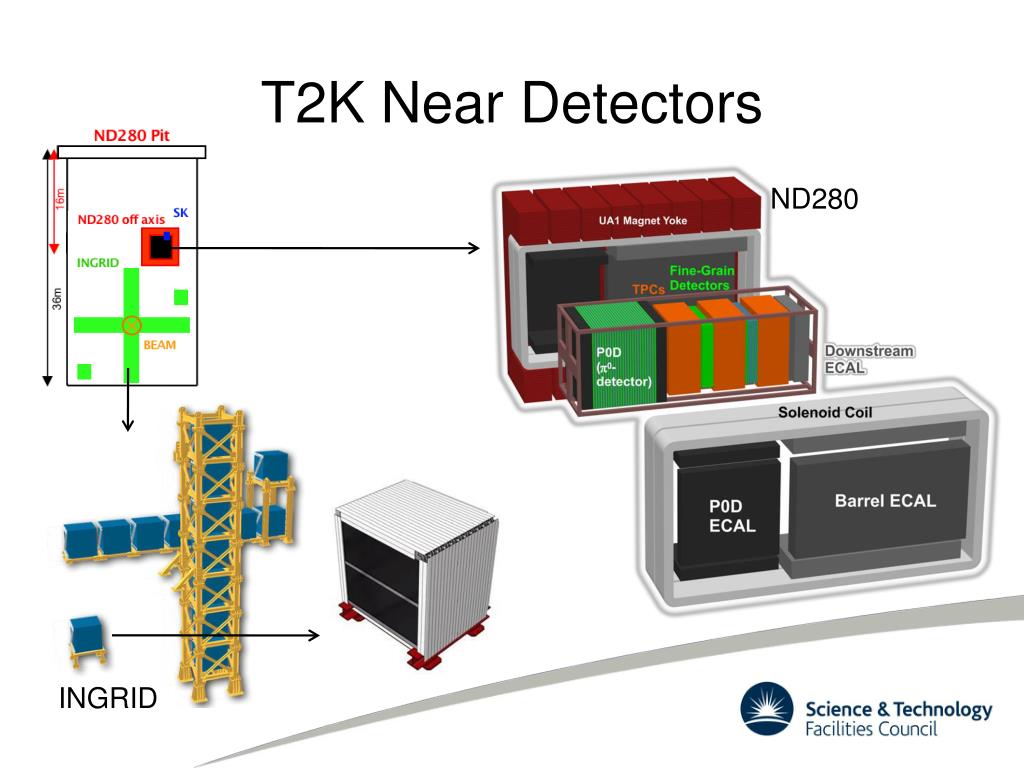

  4. T2K Near Detectors ND280 INGRID

  5. T2K Near Detectors ND280 INGRID

  6. T2K NM pit - 26/11/2009

  7. Scintillator geometries P0D INGRID FGD SMRD

  8. Multi-Pixel Photon Detectors

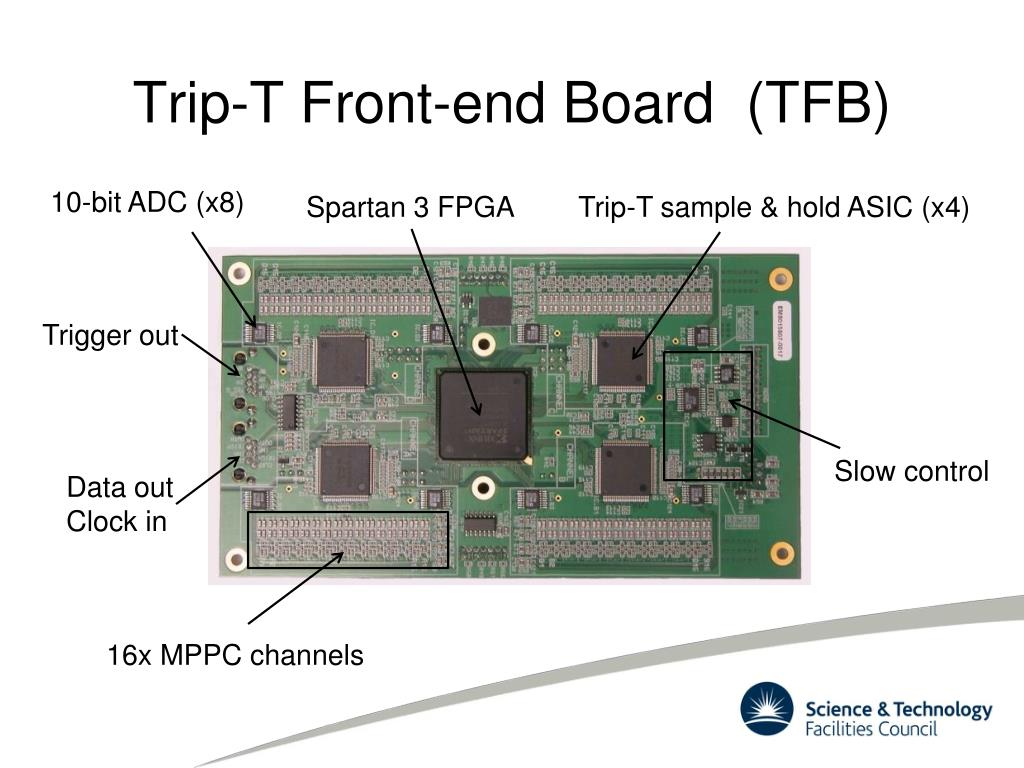

  9. Trip-T Front-end Board (TFB) 10-bit ADC (x8) Spartan 3 FPGA Trip-T sample & hold ASIC (x4) Trigger out Slow control Data out Clock in 16x MPPC channels

  10. Trip-T Front-end Board (TFB) 10-bit ADC (x8) Spartan 3 FPGA Trip-T sample & hold ASIC (x4) Trigger out Slow control Data out Clock in 16x MPPC channels

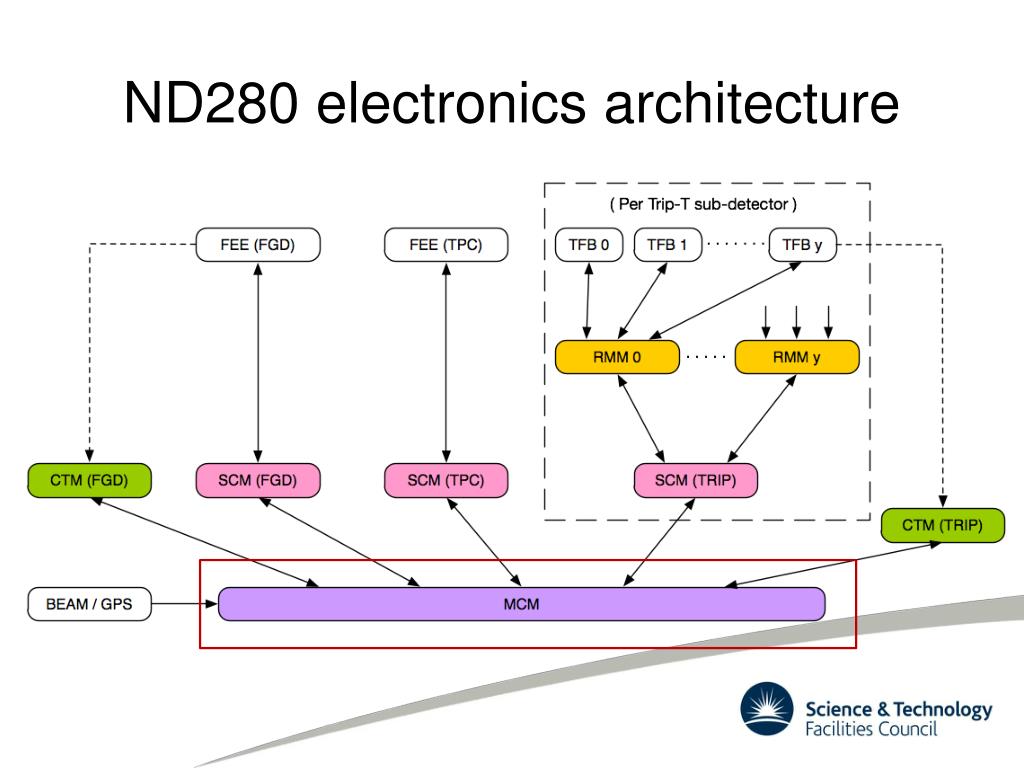

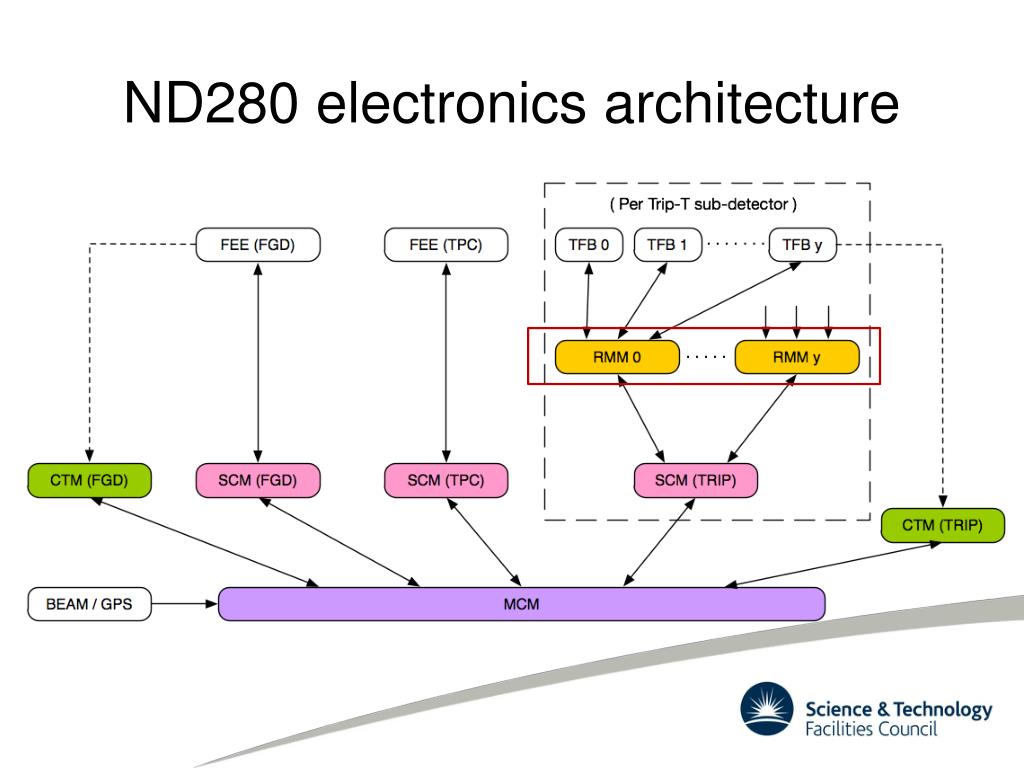

  11. ND280 electronics architecture

  12. ND280 electronics architecture

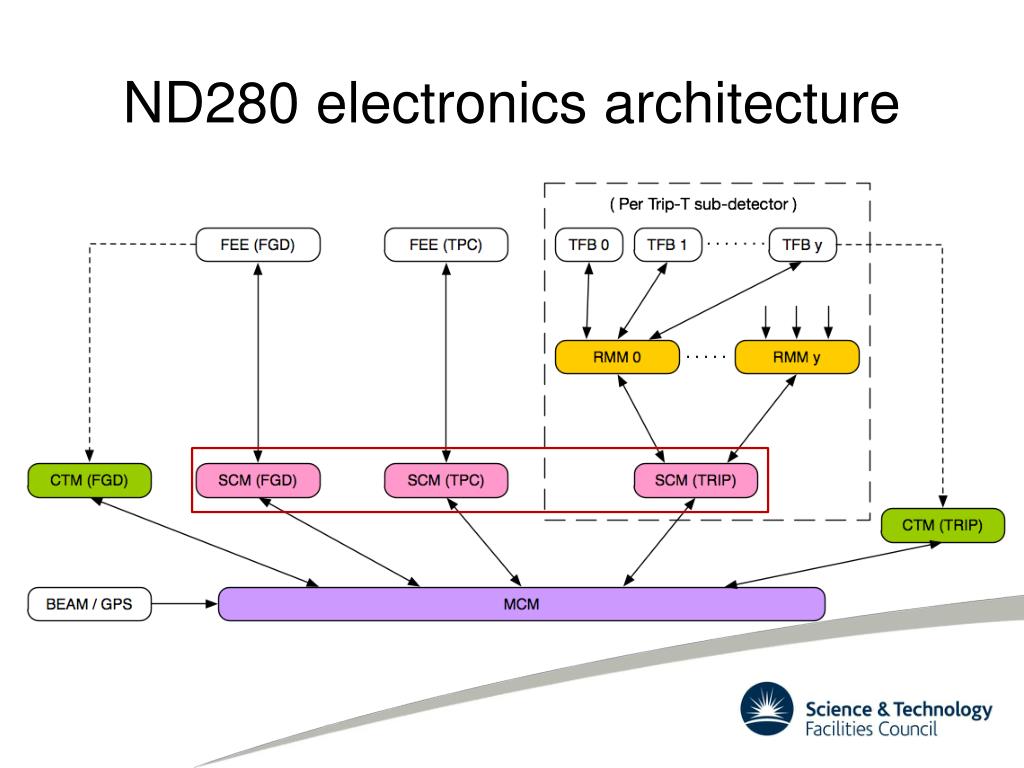

  13. ND280 electronics architecture

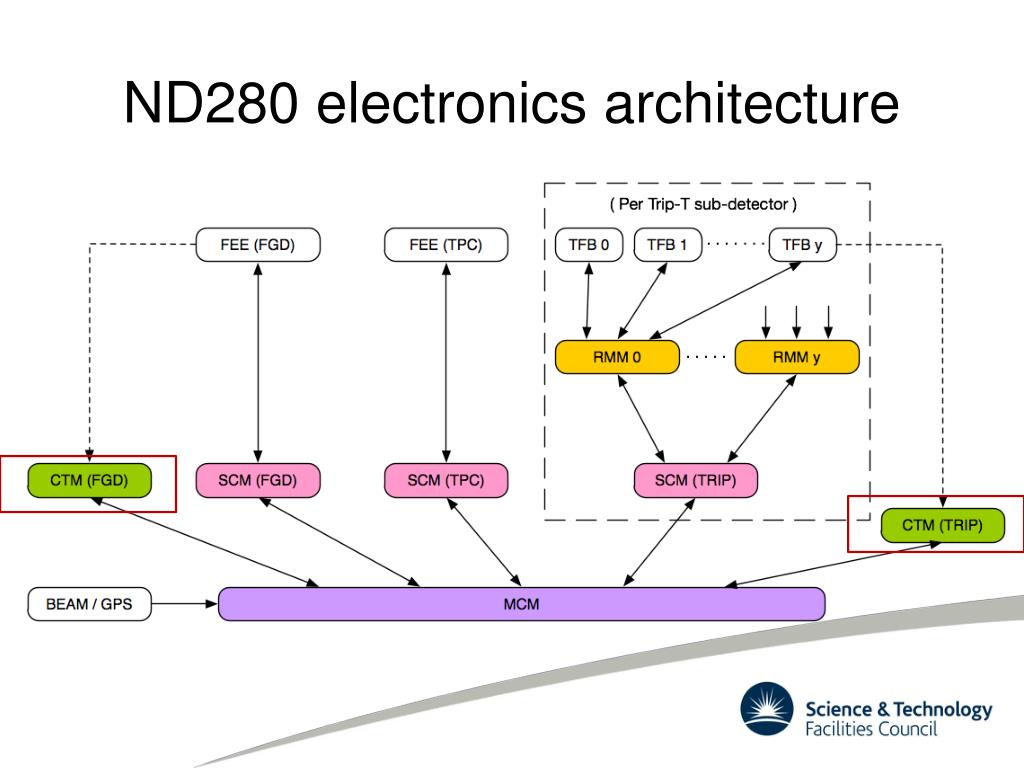

  14. ND280 electronics architecture

  15. Back-end Board (BEB) 512MB DDR2 Optical I/O Virtex II Pro FPGA 48x LVDS I/O PROM (x2), JTAG

  16. DAQ System Architecture

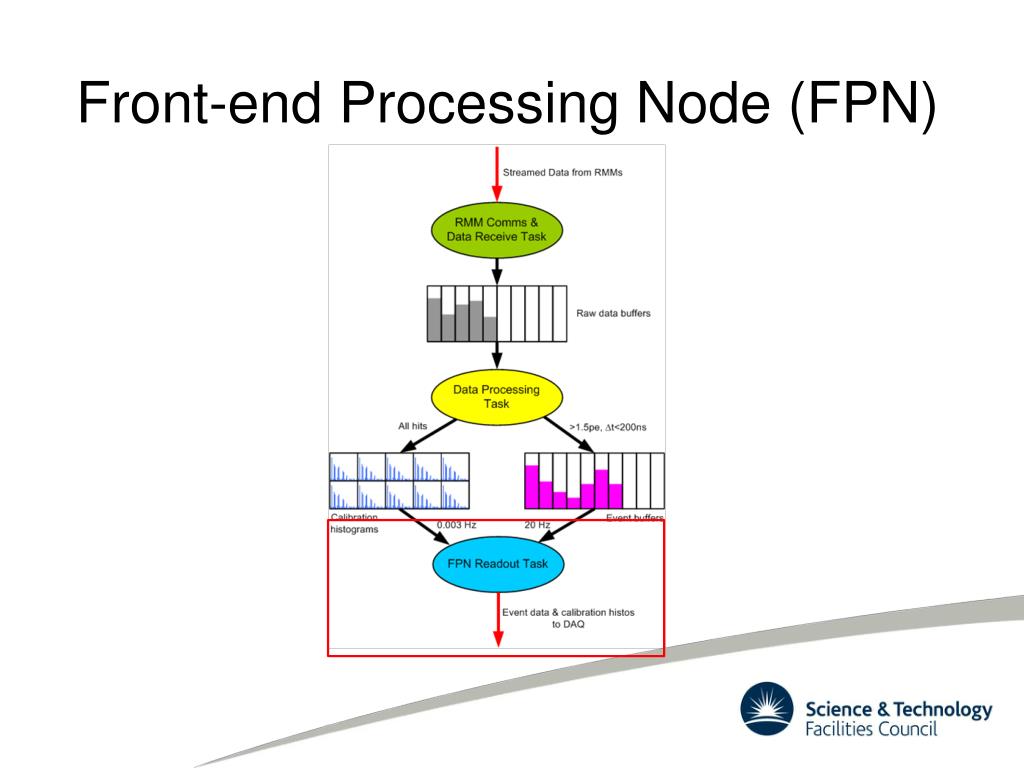

  17. Front-end Processing Node (FPN)

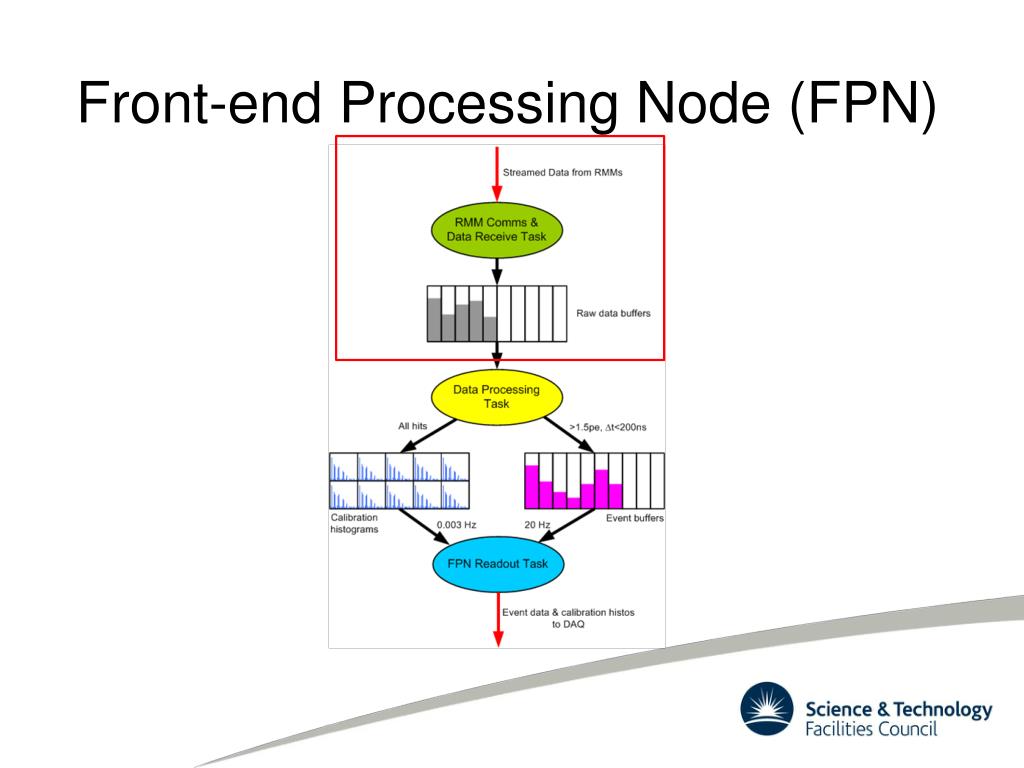

  18. Front-end Processing Node (FPN)

  19. Front-end Processing Node (FPN)

  20. Front-end Processing Node (FPN)

  21. MIDAS Back-end Processes

  22. First INGRID cosmic event Single module cosmic event, 2009

  23. Neutrino interaction in the P0D sub-detector

  24. Conclusions • DAQ successfully used to commission all current ND280 detectors with multiple sub-detectors commissioned and calibrated simultaneously • Also deployed as QA DAQ systems for module production • DAQ ready to accept INGRID diagonal modules and ECAL P0D & barrel modules summer-autumn 2010 • Now in daily use for beam data taking • Data rates to tape are within acceptable limits • CPU load on FPNs low (~5% RXT, ~10% DPT)
